Sealer bag equipment or bag sealing equipment is designed to seal various kinds of pre-made bags or pouches. Bags can be sealed using impulse heat, hot melt glue, hot air (to re-activate pre-applied glue), thread stitching, or many other bag sealing methods. Depending on the bag sealer machine, the bag may have the opening of the bag folded over prior to sealing. Bag sealers can be designated as semi-automatic or automatic. Semi-automatic bag sealers require the operator to present the bag to the bag sealer in the proper manner and to activate the bag sealing cycle. The operator is responsible for closing the bag, and tucking the bags flaps, if necessary. The operator is also responsible for discharging the bag from the machine. Automatic bag sealers have the bag fed into the bag sealer automatically with a conveyor or by some other method. The bag sealer then automatically closes the bag, automatically tucks the bag flaps if necessary, and automatically seals the bag.
CVP, model Mark lll, semi automatic vacuum and gas flush modified atmosphere bag sealer configured for M.A.P. package with number of bags per minute – depending on materials, application and operator dexterity. All head components are constructed of 304 stainless steel. Equipped with 56½" hot bar sealing system (55" usable seal area), with dual snorkels, side mounted Cuno filter. Control panel has PLC Micro-Controller with 2 hand control, vacuum and gas flush control logic, low gas warning system, pneumatically operated adjustable head mount with joystick control and dry vane vacuum pump with throttle valve, gas flush port. Mounted on H style base frame with casters.
OAD: 57" L x 35" W x 77" H
CVP, model Mark III, semi automatic vacuum bag sealer with number of bags per minute – depending on materials, application and operator dexterity. All head components are constructed of 304 stainless steel. Equipped with 56½" hot bar sealing system (55" usable seal area), with dual snorkels. Control panel has PLC Micro-Controller with 2 hand control, vacuum and gas flush control logic, pneumatically operated adjustable head mount with joystick control and dry vane vacuum pump powered by a 3 hp drive with throttle valve, gas flush port. Mounted on H style base frame with adjustable legs.
OAD: 57" L x 36" W x 67" H

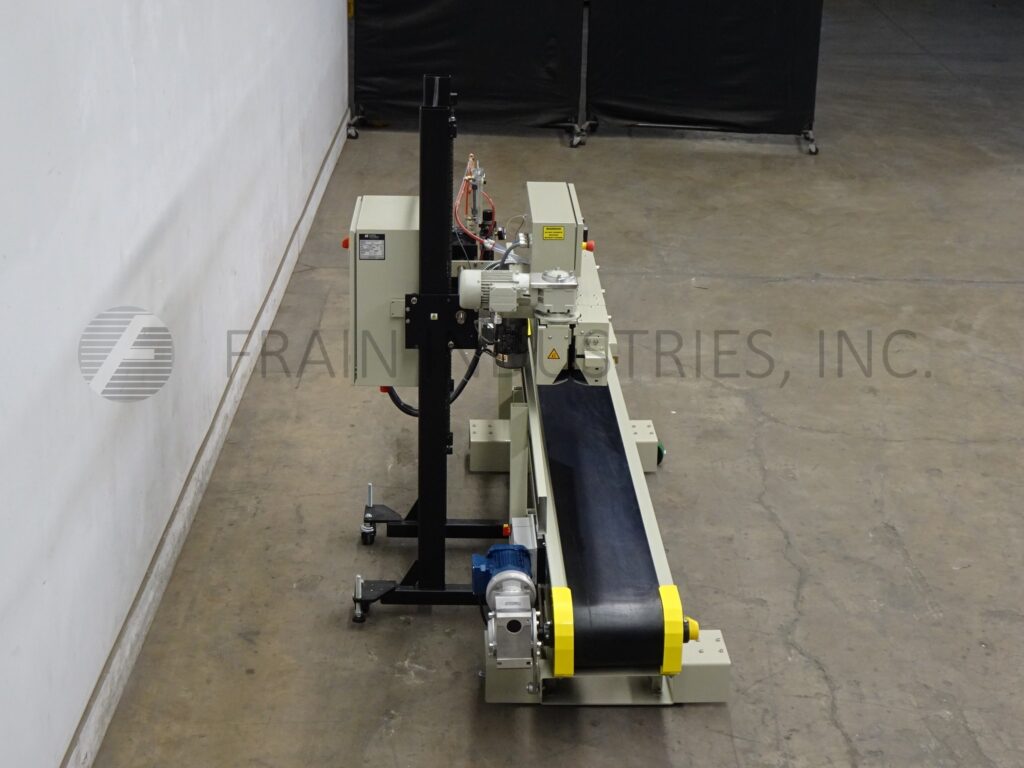

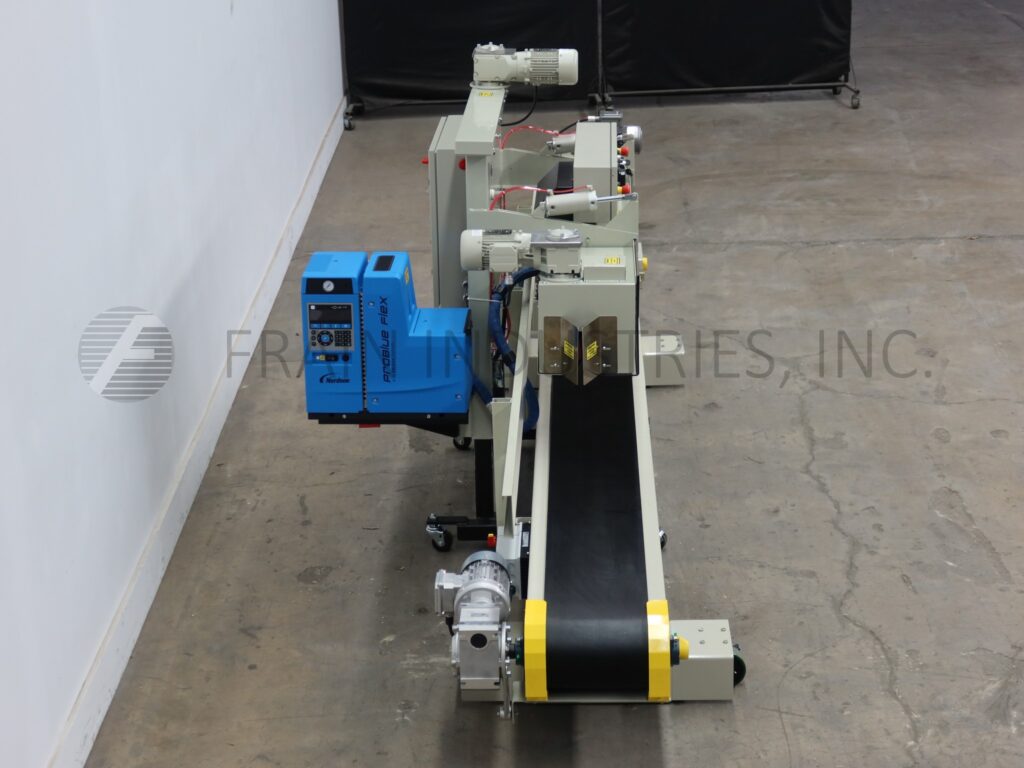

Fischbein Model DRC 500, right to left, double roll glue bag sealer. Rated from 0 to 110 linear feet per minute with number of bags – depending on materials, application and operator dexterity. Minimum bag face width: 5". Minimum bag free top: 6". Filled bag weight from 1 lbs to 50 lbs, will run most gusseted and flat bags. Equipped with bag trimmer, single fold before glue application, second final fold and Nordson hot melt system. Mounted above a 12" wide x 170" long belt conveyor.
OAD: 170"L x 56"W x 68"H

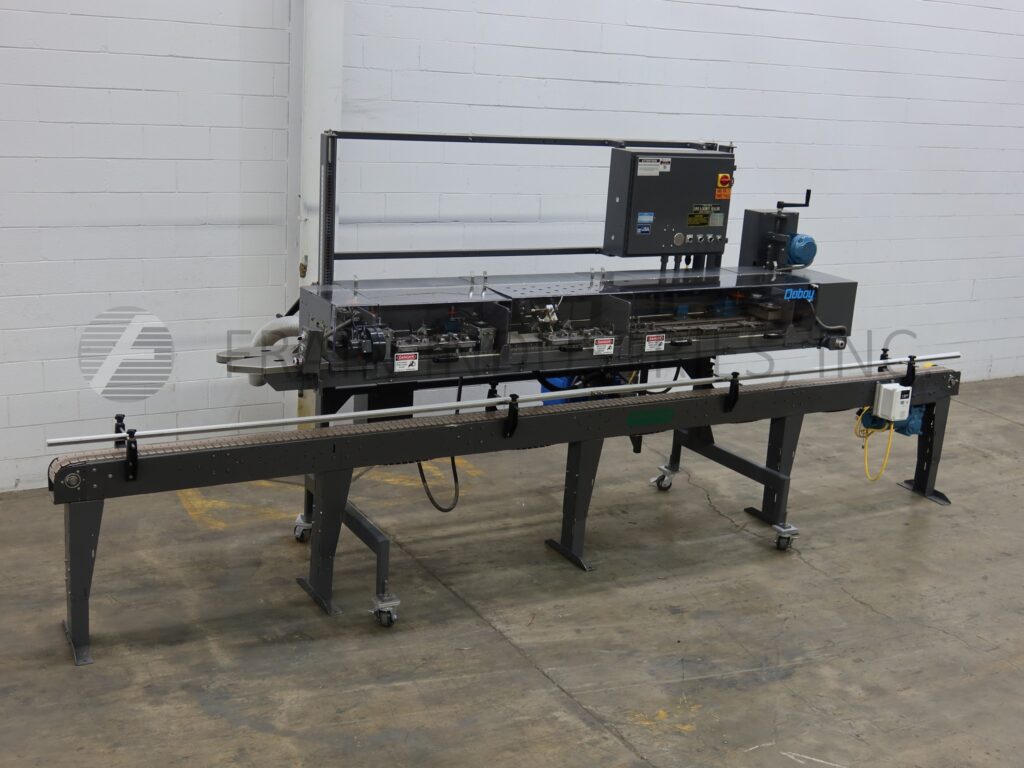

Doboy Model GS1000S, high speed, mount over conveyor, double fold, hot melt, bag sealer rated from 0 to 100 feet per minute, with number of bags – depending on materials and application. Bag size range: 3 lbs to 20 lbs, Bag Width: 3.5" to 15". Equipped with top bag carrier chain, outer glue seal station with hot melt glue applicator, (2) 3/4" folds and 42" compression section, rotary trimmer, hand crank height adjustable variable speed controls and Lexan guarding. Mounted on a height adjustable frame.
OAD: 183"L x 56"W x 86"H

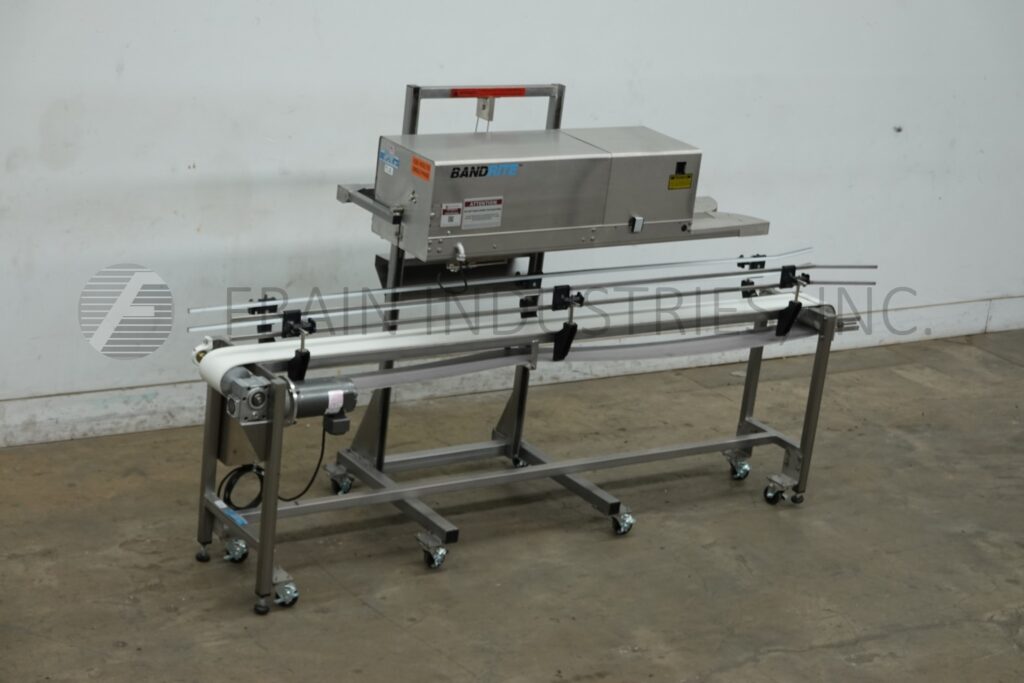

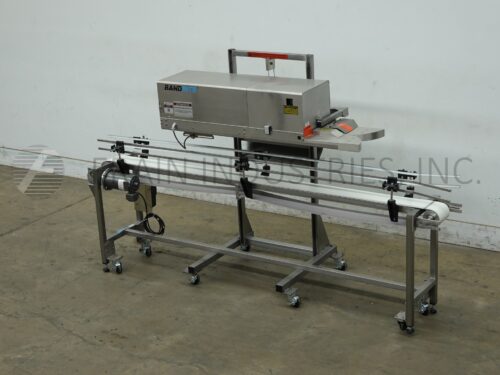

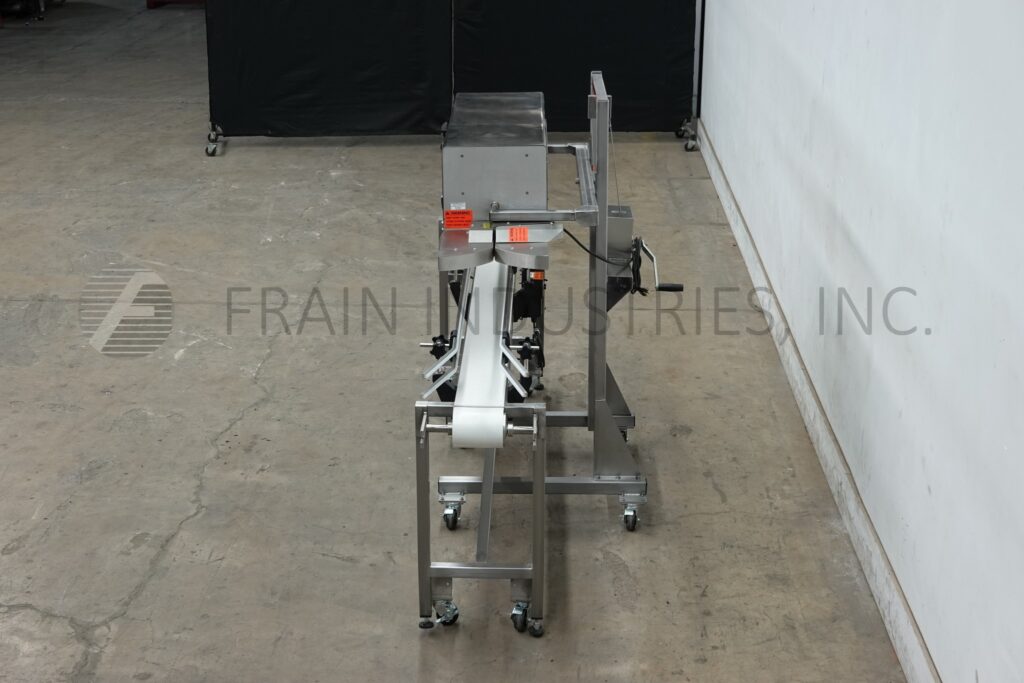

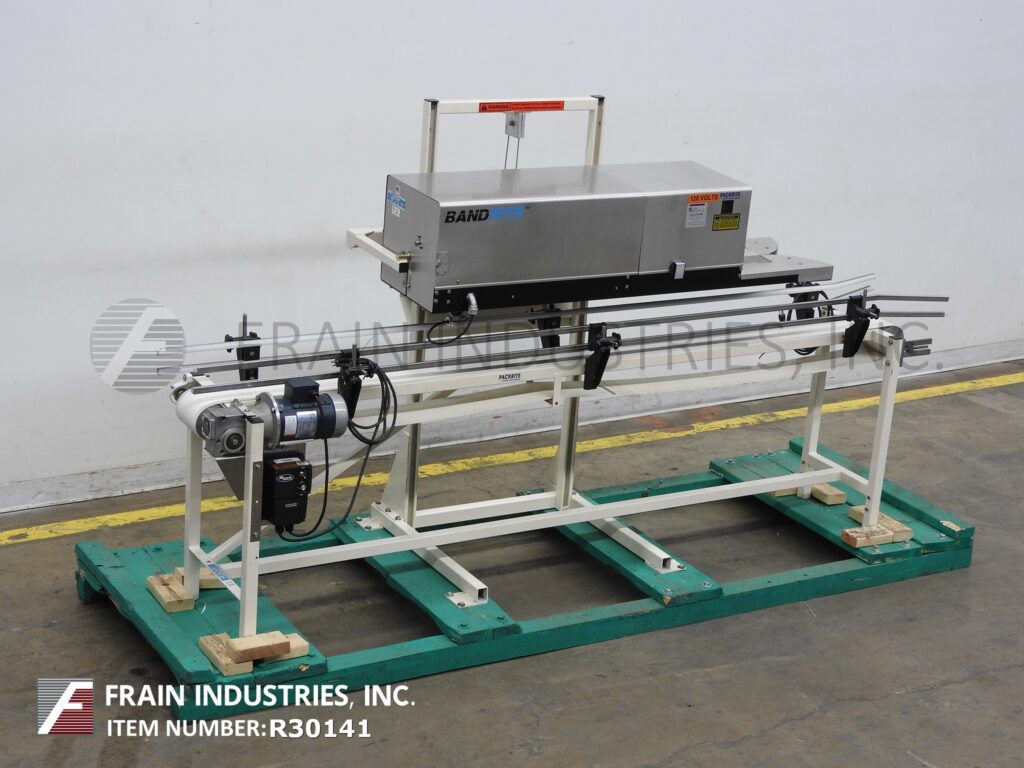

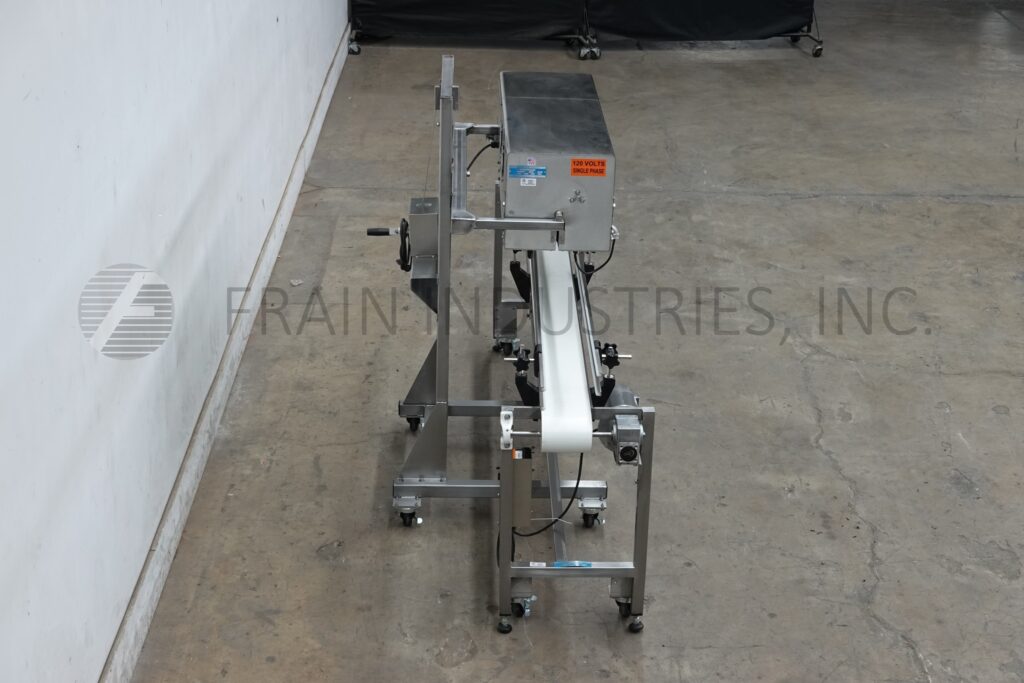

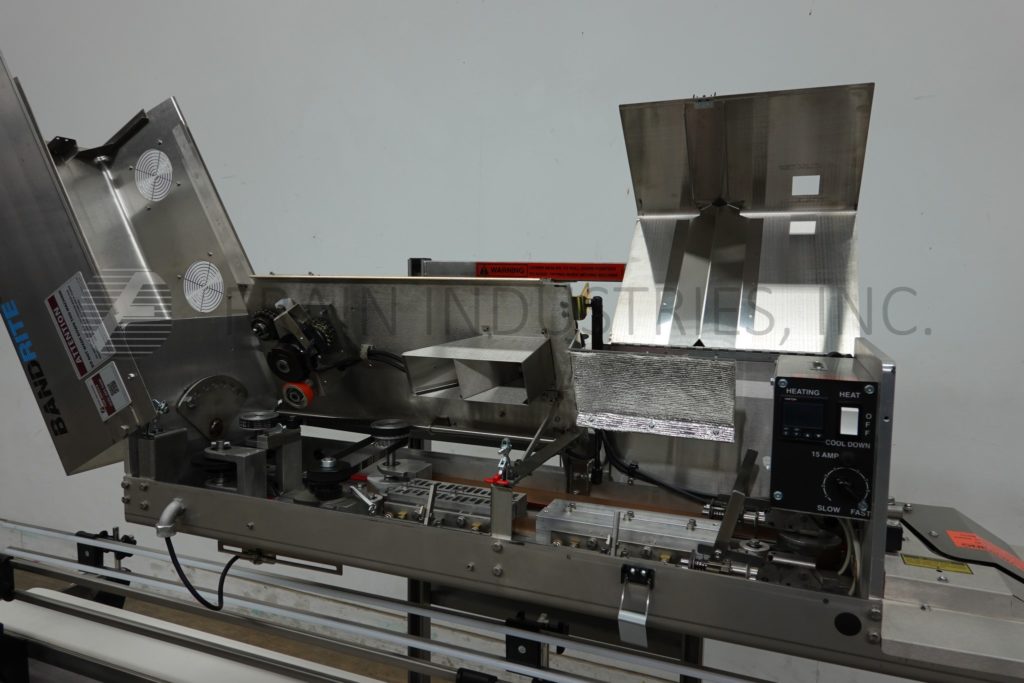

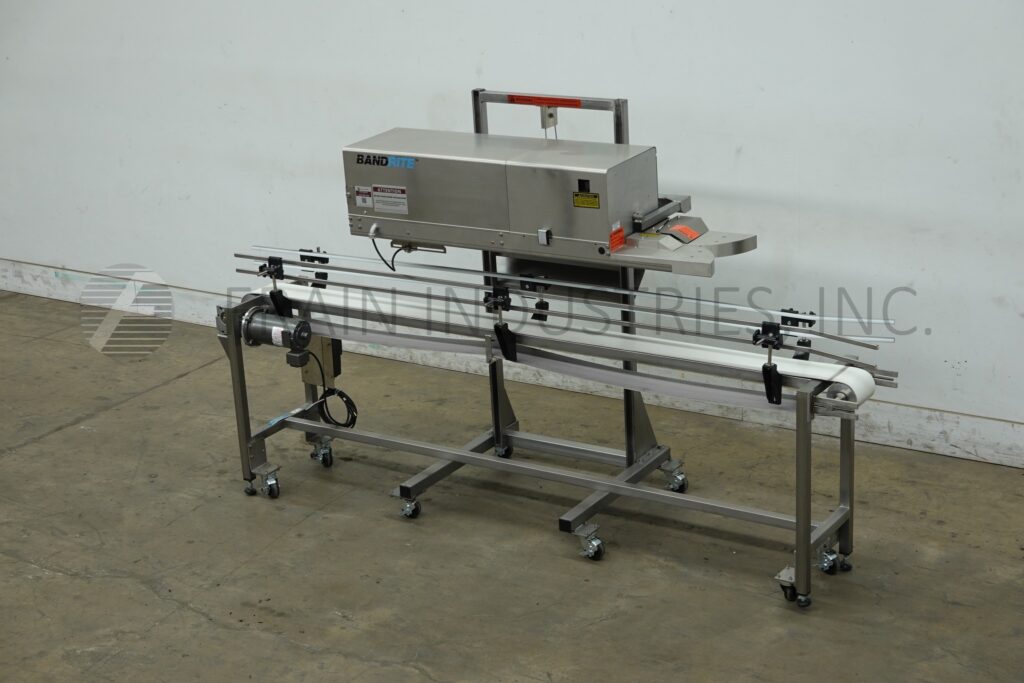

Bandrite Model 6000 RTL, Automatic, continuous motion, band style bag sealer rated from 250 to 750 inches per minute with number of bags – depending on materials, application and operator dexterity. Equipped with angled, tilt away sealing head has ¾" wide heat sealing and cooling bars with non-marking carrier belts, adjustable running speeds and temperature controls up to 600°F, bag trim station, 1 line coder and hand crank height adjustable for different size bags. Mounted over 6" wide x 100" long stainless steel conveyor with variable speed controller powered by ¼ Hp drive.
OAD: 108" L x 36" W x 59" H

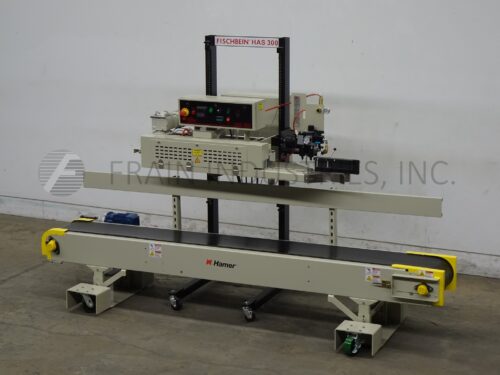

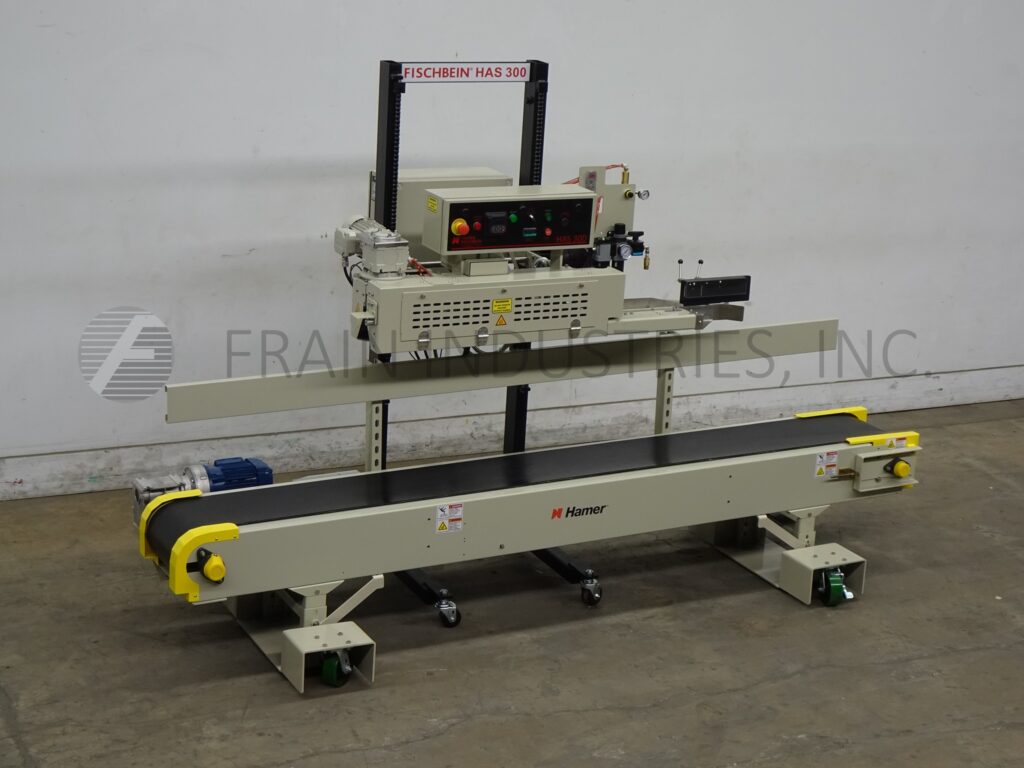

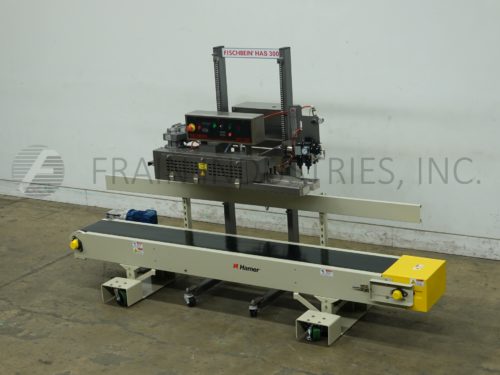

Fischbein, Model HAS 300, right to left, hot air bag sealer. Rated from 30 to 60 linear feet per minute with number of bags – depending on materials, application and operator dexterity. Capable of running most heat sealable pillow and gusseted bags with maximum bag thickness of 10 mils and free bag top of 6" minimum. Equipped with 48" long dual compression belt sealing section. Control panel has push button start / stop. Digital touch pad controls for heat, roller tension and air pressure. Up / down switch and VFD speed control. Mounted on powered height adjustable powder coated steel frame with casters. Mounted above a 12" wide x 120" long belt bag conveyor
OAD: 125"L x 45"W x 77"H
CVP Model Mark lll, Semi automatic, vacuum / gas flush, configured for M.A.P. (modified atmosphere package) bag sealer with number of bags per minute – depending on materials, application and operator dexterity. All seal head components are constructed of T-303 / 304 stainless steel with an electro-polished finish. Equipped with 30" hot bar sealing system (26" usable seal area) and Cool-Edge seal bar with Teflon® tape, dual snorkels, side mounted Cuno filter, Twin Teflon vacuum / gas flush particle probes with 9-1/4" spacing. Control panel has (4) program PLC Micro-Controller with 2 hand control, vacuum and gas flush control logic, low gas warning system, pneumatically operated adjustable head mount with joystick control and dry vane vacuum pump with throttle valve, gas flush port. Mounted on stainless steel frame with casters.
OAD: 41" L x 40" W x 60" H
CVP Model Mark lll, semi automatic vacuum and gas flush modified atmosphere bag sealer configured for M.A.P package with number of bags per minute – depending on materials, application and operator dexterity. All head components are constructed of T-303/304 stainless steel with an electro-polished finish. Equipped with 30" hot bar sealing system (26" usable seal area) and Cool-Edge seal bar with Teflon® tape, with dual snorkels, side mounted Cuno filter, Twin Teflon vacuum / gas flush particle probes with 9-1/4" spacing. Control panel has (4) program PLC Micro-Controller with 2 hand control, vacuum and gas flush control logic, low gas warning system, pneumatically operated adjustable head mount with joystick control and dry vane vacuum pump with throttle valve, gas flush port. Mounted on H style base frame with casters.
OAD: 40" L x 38" W x 62" H
