DCA Company Pans, Revolving System MD121

  Back to All Equipment
  • Manufacturer: DCA Company
  • Model: MD121
  • Frain Number: 5H1358
  • Category: Revolving Pan
  • Subcategory: System
  • Condition: Used, in excellent condition
  • Availability: In Stock

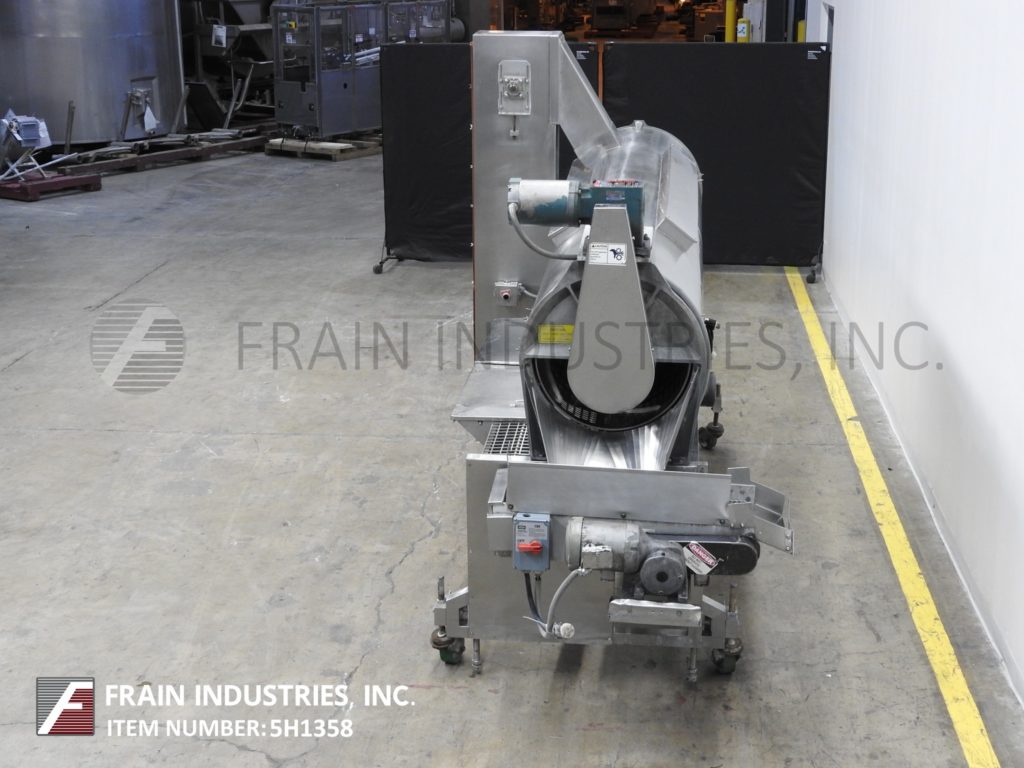

DCA Model MD121, continous, stainless steel, powdered, granulated or cinnamon sugar donut coating system with number of donuts per hour – depending on materials and application. Drum specifications: 21" ID; 105" in Length with 1" long x ½" wide inside drum perfs and 55" long x 4¾" wide site port. Equipped with 12" x 7" charge with 50" high in feed, 11" wide discharge to a 12" wide x 32" long stainless steel wire belt with 31" floor clearence, end sugar recycle chute with 72" long x 15" wide x 16" deep stainless steel reclaim suger bin with flip up cover and inner / outer paddles as well as 3" OD stainless steel bottom feed screw to 72" long bucket elevator with cover. Drum and feeder start / stop push button controls with vari-speed controller. Mounted on stainless steel base frame.

OAD: 145"L x 53"W x 92"H
