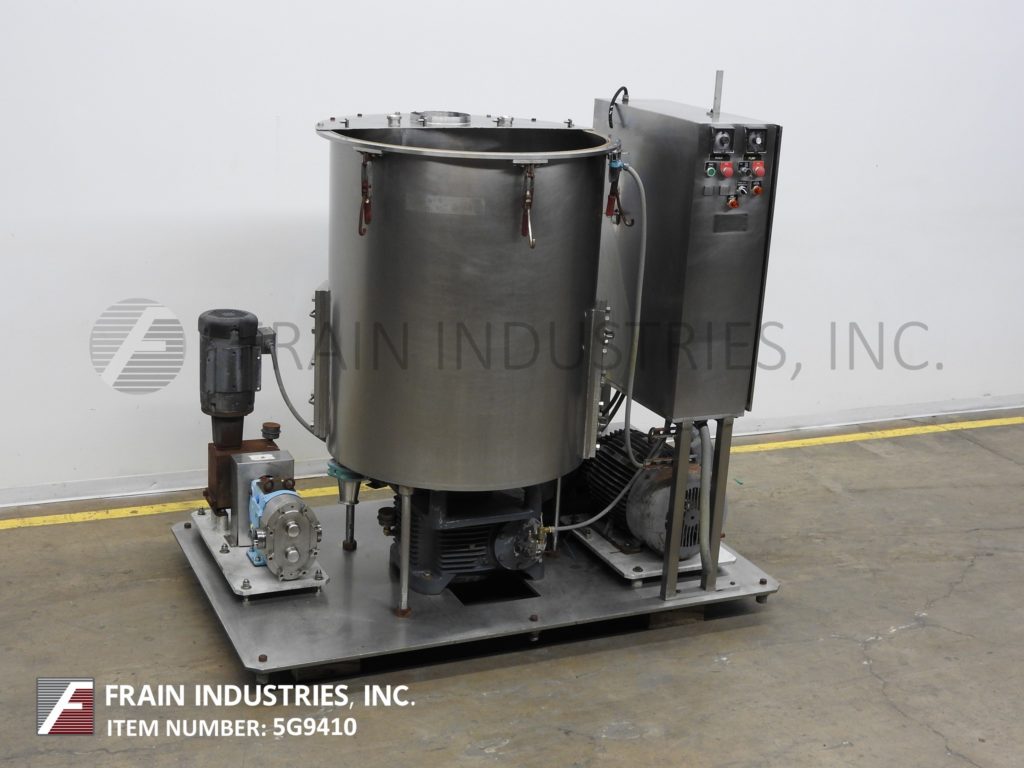

Photo of Goodway Mixer Paste Vertical VBM-2000

Goodway Mixer Paste Vertical VBM-2000

  Back to All Equipment

Goodway, Model VBM 2000, 304 stainless steel, slurry mixer and transfer system. Rated to 2,000 lb batches with 4 to 9 minutes mix times per batch – depending on materials, application and machine configuration. Equipped with a 44" ID x 52" straight wall stainless steel mixing tank (300 gallons) with half flip up bolt down cover, two stationary stator assemblies one each side and inner rotating mix blades with bottom platform mounted ___ Hp main motor drive and ___ hp secondary motor drive for slow speed mixing while pumping. Waukesha Model 130 postive displacemet transfer pump with 3½"OD / 3"ID seated bevel style inlet/outlet ports with 10" ground clearance and 10 Hp motor drive with a 10:1 ratio gearbox for a discharge rate of 45 gpm. Control panel with push button start / stop for mixer and pump, timer dials for mixer and pump and product valve open / close switch. Mounted on a 96" long x 60" wide stainless steel platform.

OAD: 96"L x 60"W x 84"H
