Hottman Mixer Paste Horizontal MJ4

  Back to All Equipment

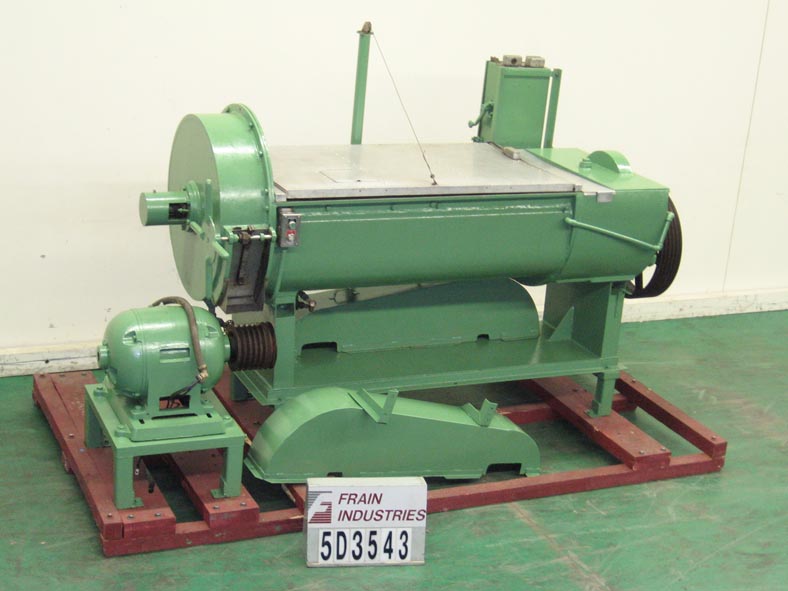

25 cuft (185 gal) carbon steel dual shaft single ribbon horizontal paste mixer with 72"L x 33"W x 18"depth jacketed mixing chamber with a running capacity of 24.75 cu ft (185 gal). Unit has 2 1/2" dia shaft with 2"L x 3/4"W ribbons. Unit has hand wheel controls for dumping or raising the tank to the disired position. Equipped with an 8" x 7" hand crank slide gate side bottom discharge with 31" clearance and a 1" dia drain. Includes 32"L x 28"W x 34"H recirculating pump. For mixing heavy, viscous masses and solids with liquids.

OAD: 118"L x 62"W x 78"H
