Koss Industrial Blanchers Rotary M-T15-1500

  Back to All Equipment
  • Manufacturer: Koss Industrial
  • Model: M-T15-1500
  • Frain Number: 5G8533
  • Category: Blancher
  • Subcategory: Rotary
  • Condition: Used, in excellent condition
  • Availability: In Stock

***Part Of Complete Line 5G8538A***

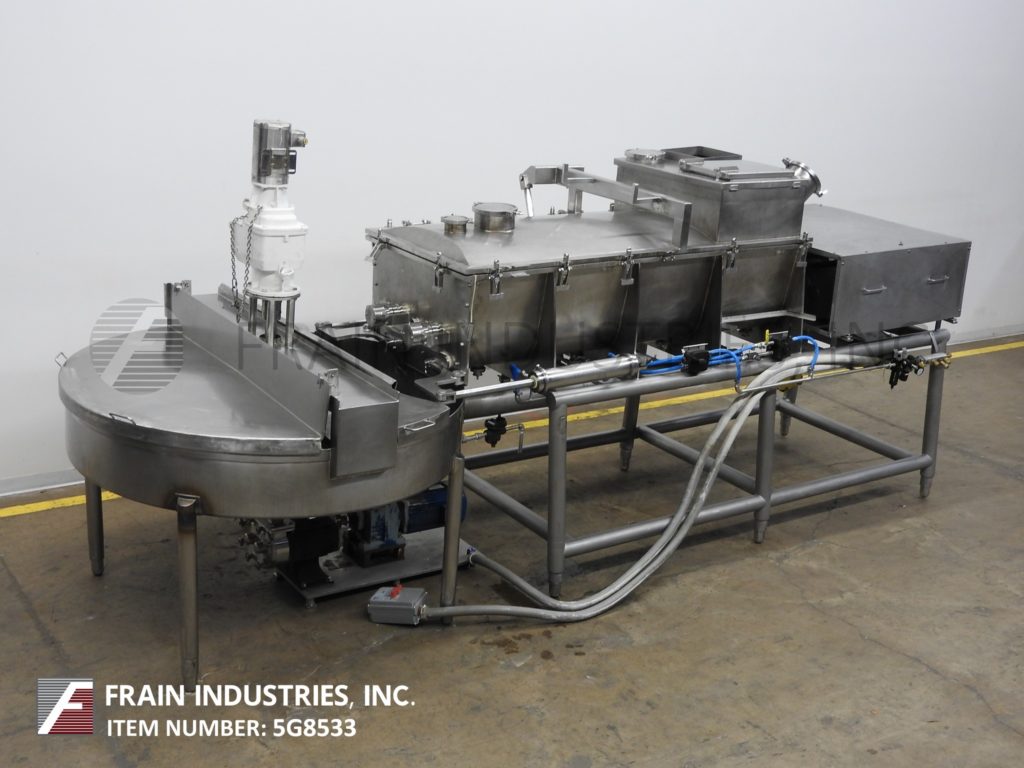

Koss, Twin Screw, 316 stainless steel, direct steam, batch cooking system. Rated from 100 to 1500 lbs of product per batch with a 7 minute cycle time – depending on materials, application and machine configuration. Equipped with 83" long x 34" wide x 21" deep chamber, pneumatic flip top bolt down cover with (1) 13" x 13", (1) 15" x 18" and (2) 8¾"OD / 7¾"ID product charges, (2) 16" diameter screws on 3" OD shafts powered by 20 hp drives, 2½"OD / 2"ID Tri-clamp style steam inlet port with steam filter system, (2) 10½" x 3¾" side end product discharges to a 200 gallon, 316 stainless steel, stir pot. Vessel Dimensions: 72" diameter x 11" straight wall. Equipped with a top mounted scrape agitation powered by a 1 hp drive and a Waukesha, Model 64, transfer pump with a 3"OD / 2½"ID Tri-clamp discharge with 6" ground clearance.

OAD: 144"L x 60"W x 84"H (cooker)
76"L x 74"W x 91"H (Stir Pot)
