Lee Kettle Double Motion D9MS

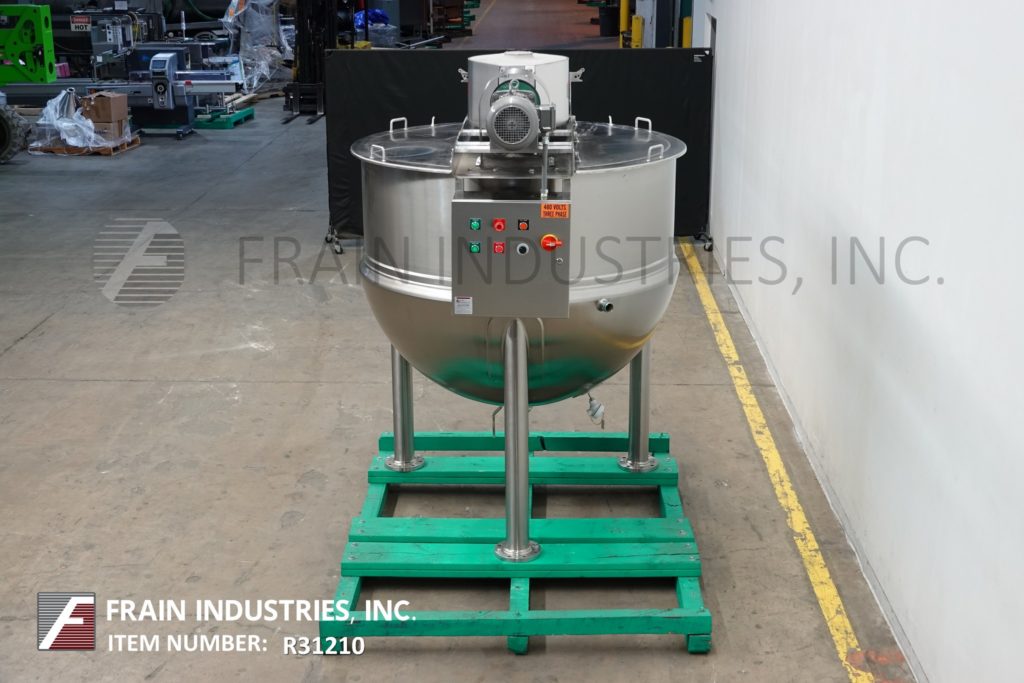

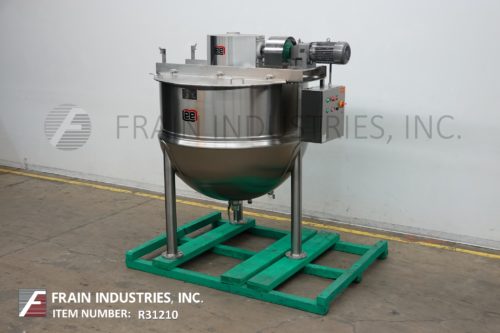

Back to All EquipmentLee Model 500D9MS, 500 gallon, atmosheric design, stainless steel, double motion, scrape surface, 1/2 jacketed kettle with pounds of product per hour – depending on materials and application. 316 stainless steel shell and agitator; 304 stainless steel jacket and channel support on rim, with # 4 finish inside and # 4 finish outside were applicable. Vessel dimensions: 62" ID x 51" in Depth. Equipped with bridge mounted scrape surface, double motion, tilt out agitation with dual flip top covers and has a maximum product visacosity of 100,000 cps. 1/2 jacket, with MAWP of 90 psi @ 332 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 2" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. 3" OD center bottom discharge has flush-bottom ball valve outlet and sanitory tri-clamp with 16" floor clearence. Mounted on (3) stainless steel legs
OAD: 90" L x 70" W x 90" H
