Lee Tank SS JKT 1000L

  Back to All Equipment

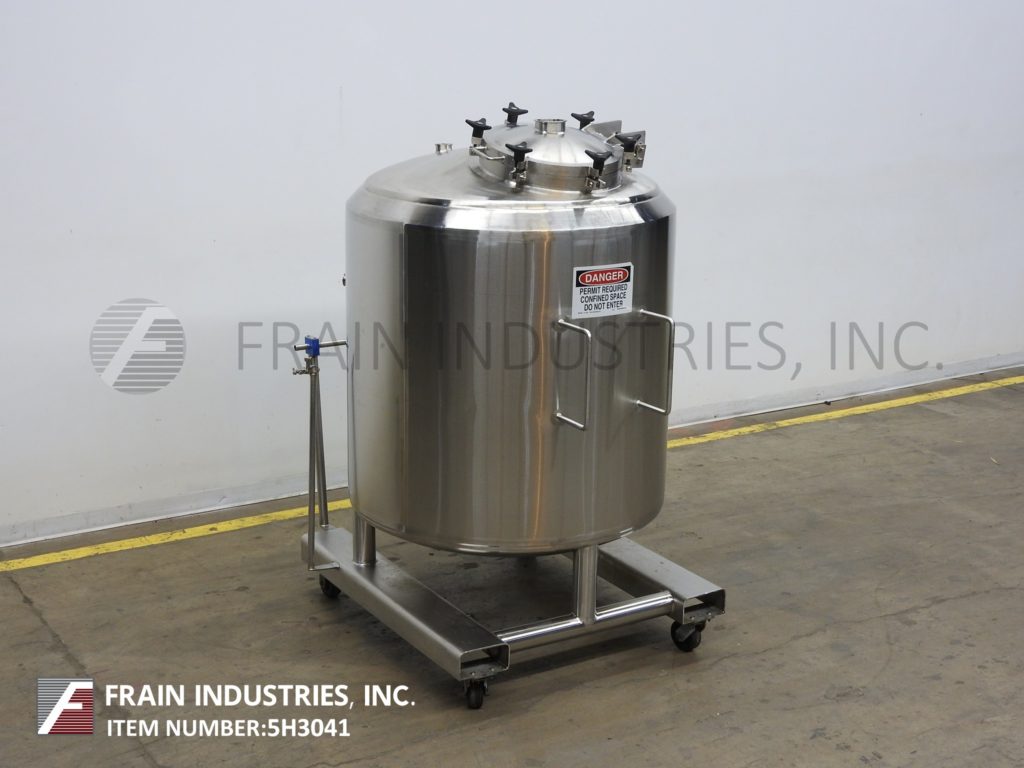

Lee, 1000 liter capacity, 316L stainless steel, jacketed and insulated, internal vacuum tank. Vessel dimensions: 42" diameter x 54" deep with a 44" straight wall. Equipped with an 18" diameter bolt down manway, (1) thermowell and plug valve with 2"OD / ¾"ID Tri-Clamp style discharge with 11" ground clearance. Mounted on a forkliftable stainless steel base with casters.

Top Ports:
(2) 4½"OD / 4"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(2) 2"OD / 1½"ID Tri-Clamp
(1) 2"OD / ¾"ID Tri-Clamp

Jacket Ports:
(2) 2"OD / ¾"ID Tri-Clamp

MAWP: 45 PSI @ 302°F (Vessel)
100 PSI @ 338°F (Jacket)

MDMT: -20°F @ 45 PSI (Vessel)
-20°F @ 100 PSI (Jacket)

Vac: FV (Vessel)

Nat’l Brd: 6793

OAD: 63"L x 53"W x 80"H
