New Jersey Filler Liquid Grav/Press 12HEAD

  Back to All Equipment

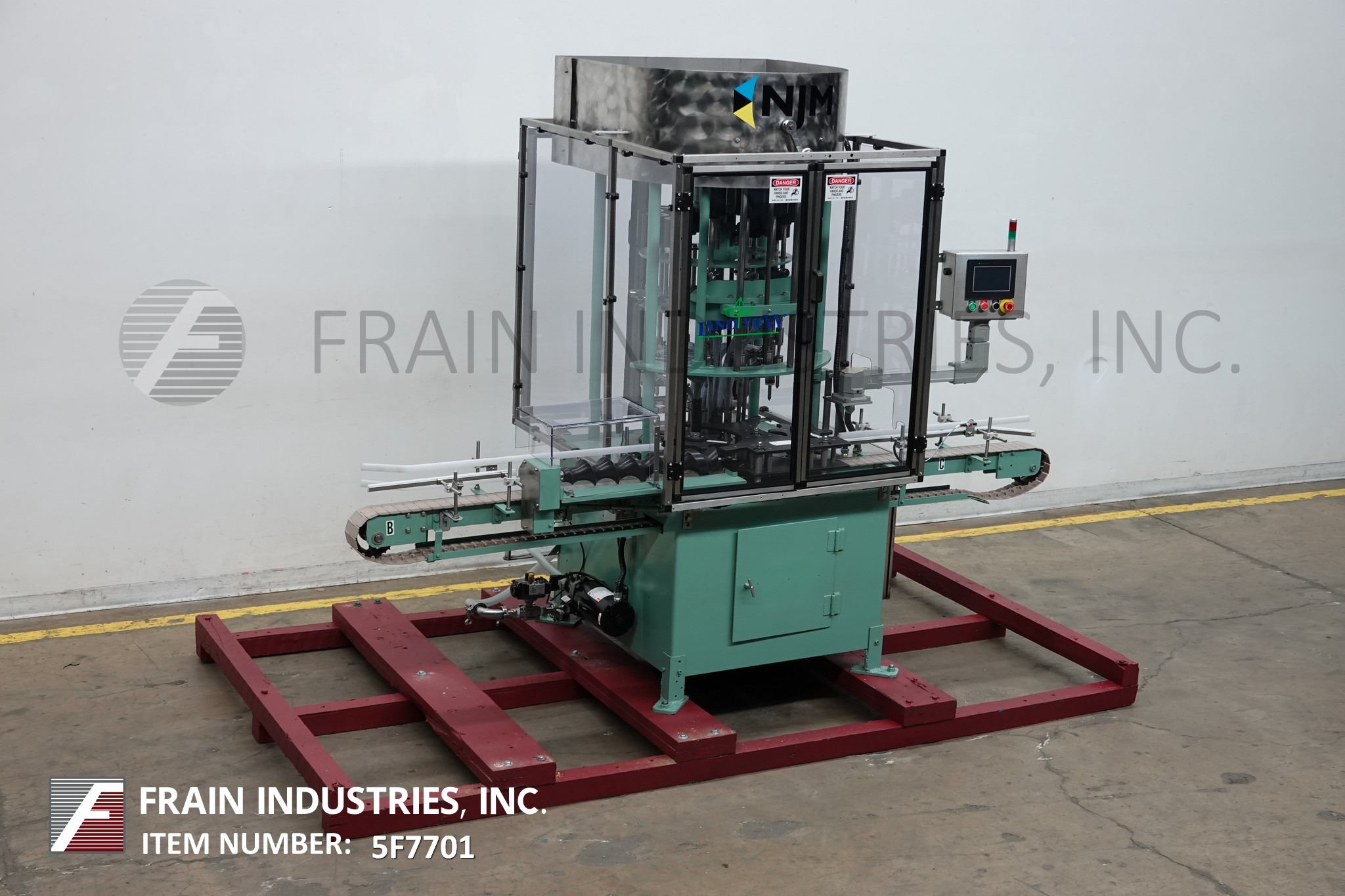

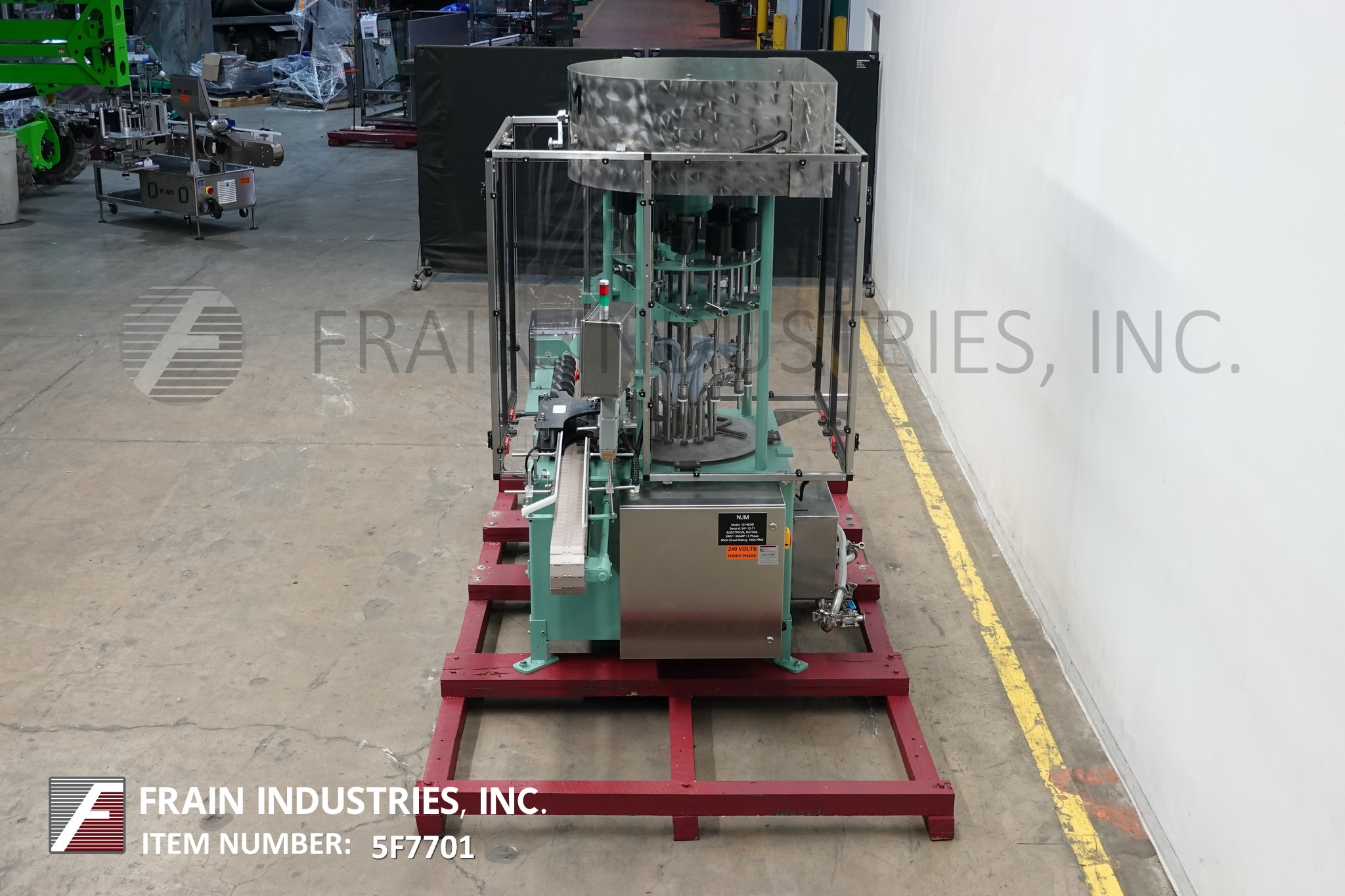

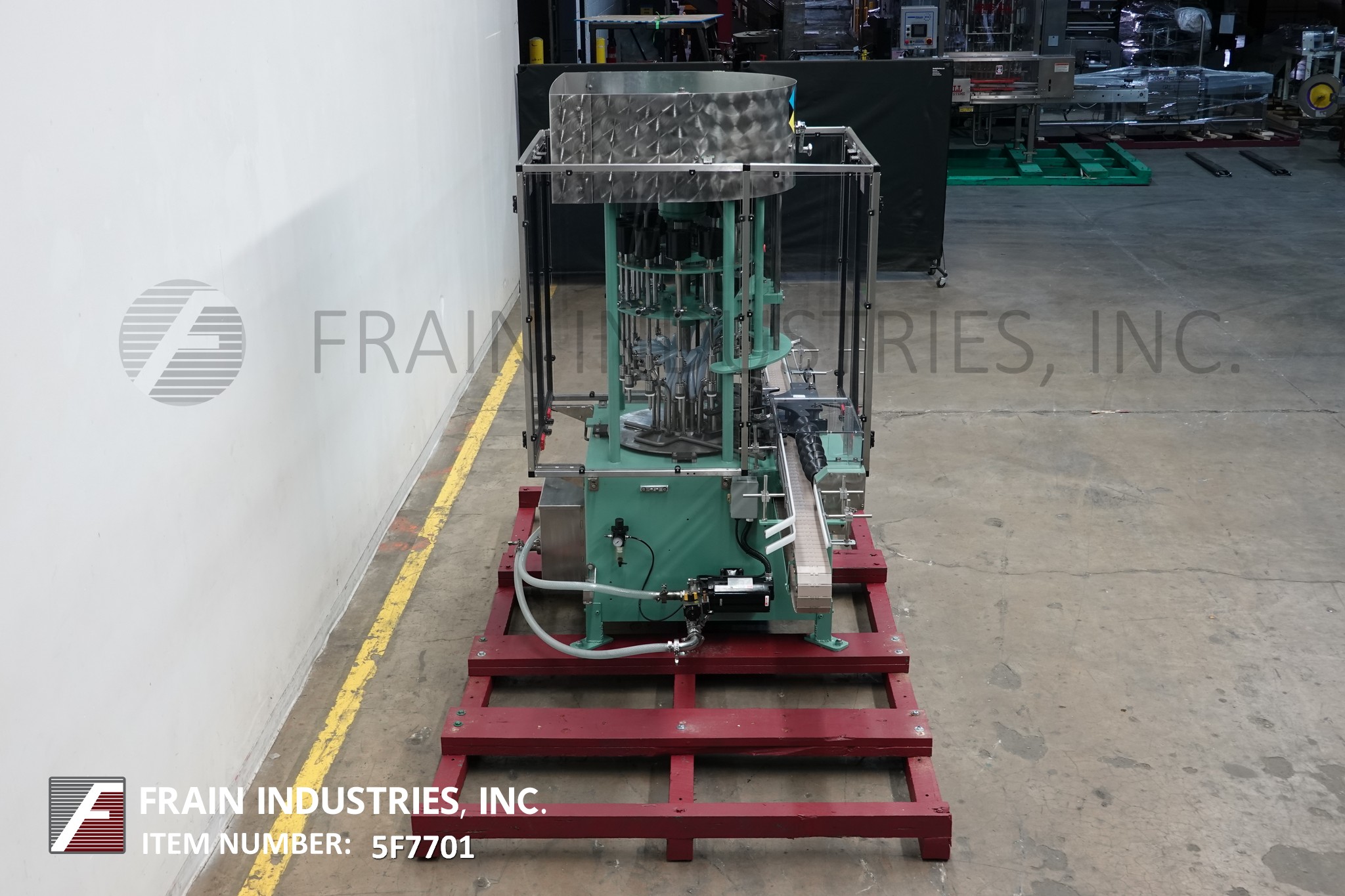

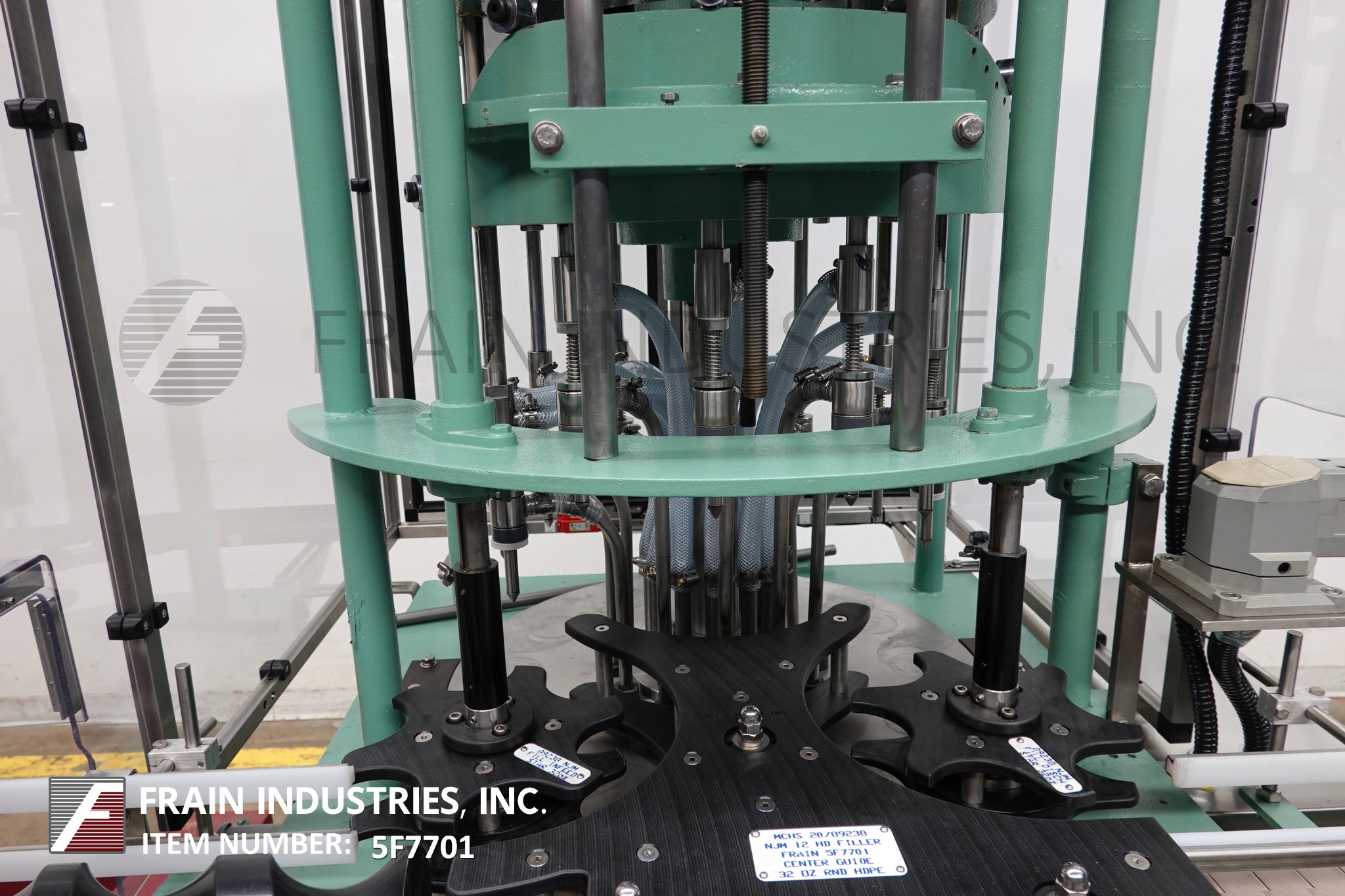

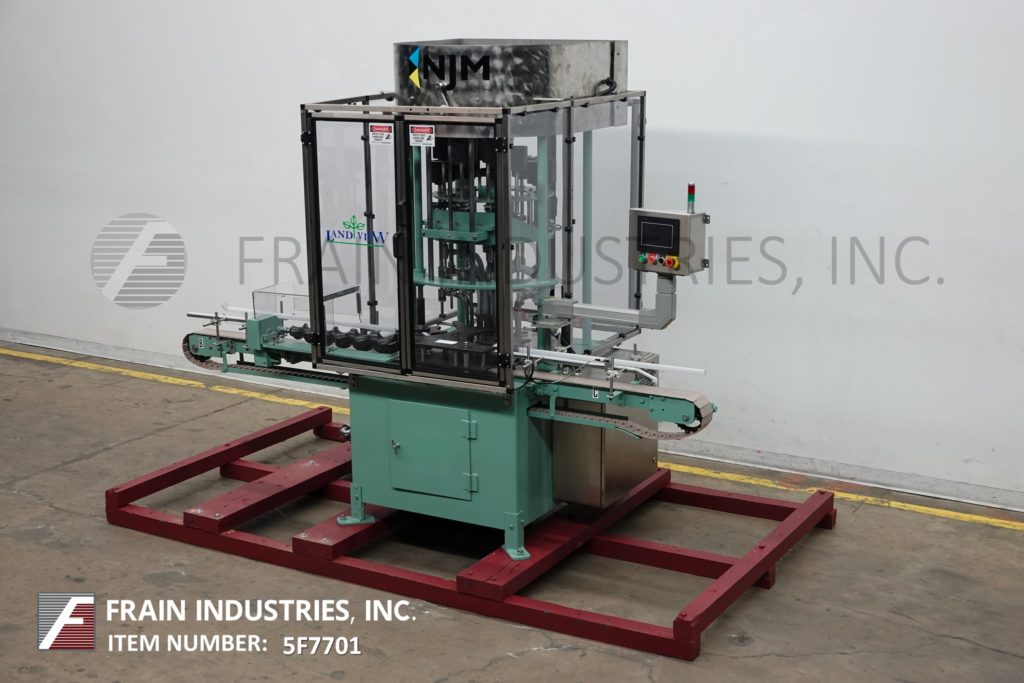

Njm Model 12-Head rotary, gravity / overflow filler rated from 40 to 90 containers per minute – depending on materials and appliction. Container size: 1" to 5-1/16" in Diameter; 2" to 14" in Height capable of handling plastic and glass containers round and other shapes which can be controlled by worm screw. Equipped with 112" long x 2-1/2" wide conveyor, worm screw to star wheel in feed and discharge, no container / no fill, 28" OD turrett with overhead drive and (12) 5/8" OD nozzles set on 5-1/4" centers with stainless steel product hopper float valve, start / stop and e-stop push button controls.

OAD: 112" L x 72" W x 88" H
