Feldmeier Tank SS JKT 400 GAL

  Back to All Equipment

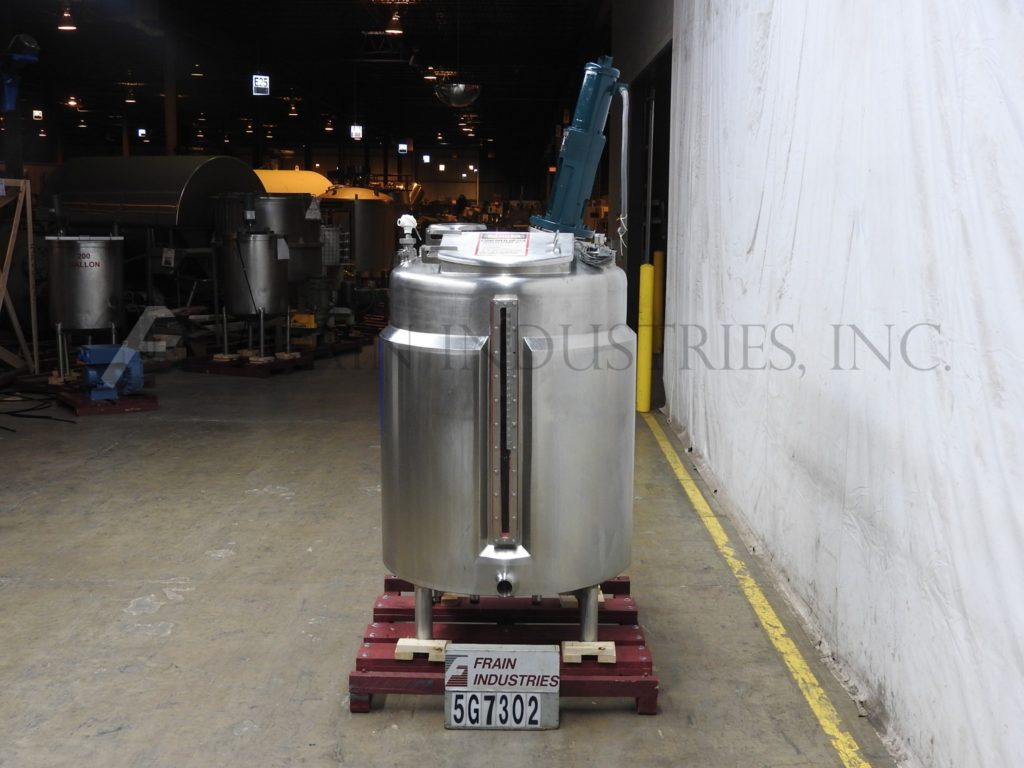

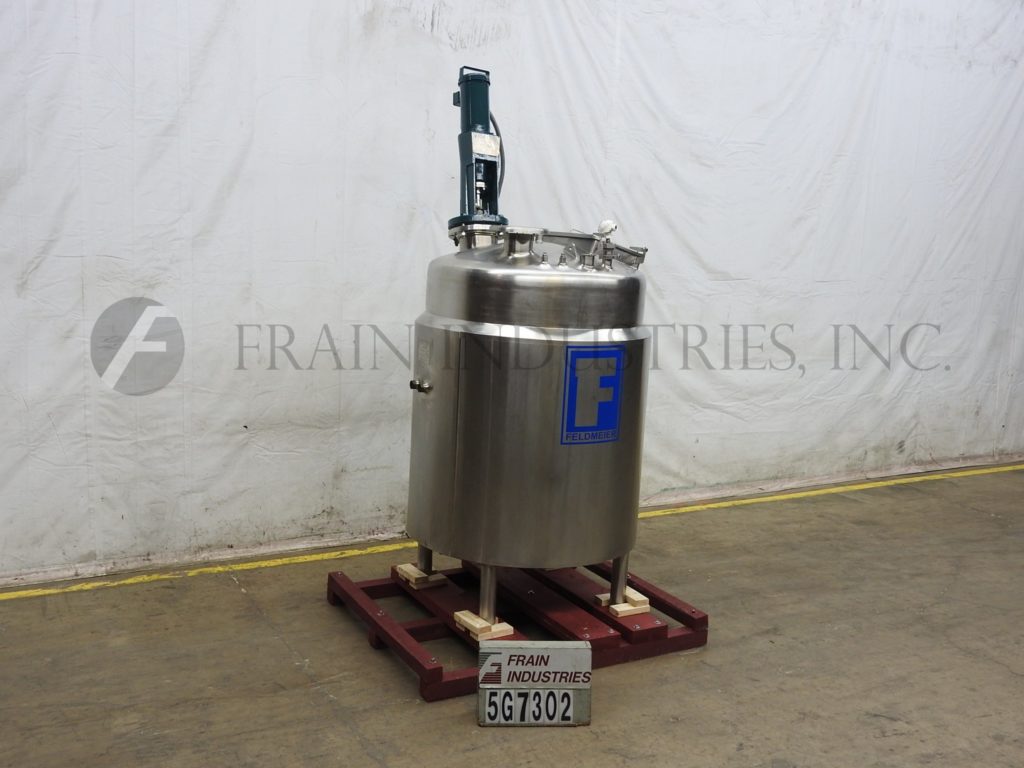

Feldmeier, 400 gallon capacity, 304 stainless steel jacketed and insulated tank. Vessel dimensions: 48" diameter x 52" deep with slant bottom. Equipped with a 24" x 16" manway with flip up cover, (2) level sensors, 44" x 2" sight glass and 3 Hp top mounted prop agitator. Unit mounted on (4) legs with a 3½" OD / 3" ID Tri-clamp style front discharge with 15" ground clearance.

Top Ports:
(2) 3½"OD / 3"ID Tri-clamp
(1) 2"OD / 1½" ID Tri-clamp
(1) 4½" Open Vent
(2) ¾" NPT

Jacket Ports:
(6) 1½" NPT

MAWP: 100PSI / FV @ 300°F
MDMT: -20°F @ 100PSI / FV
Nat’l Brd: 5005

OAD: 56"L x 51"W x 118"H
