Todd Street Inc Tank SS Single Wall 150 GAL

  Back to All Equipment

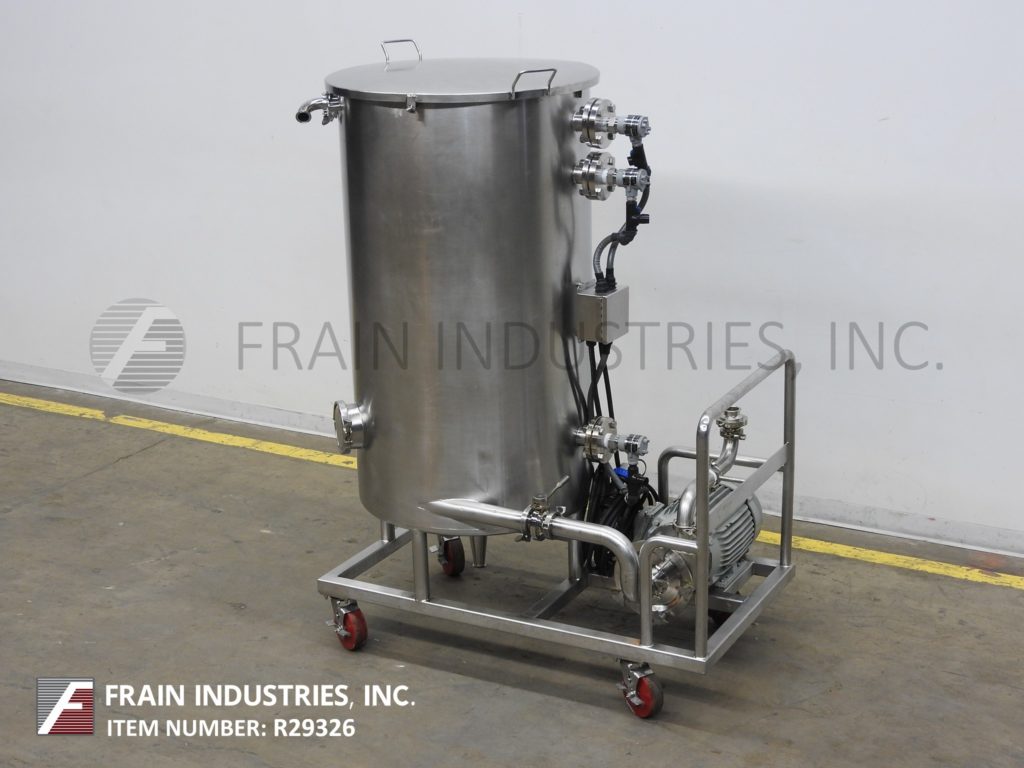

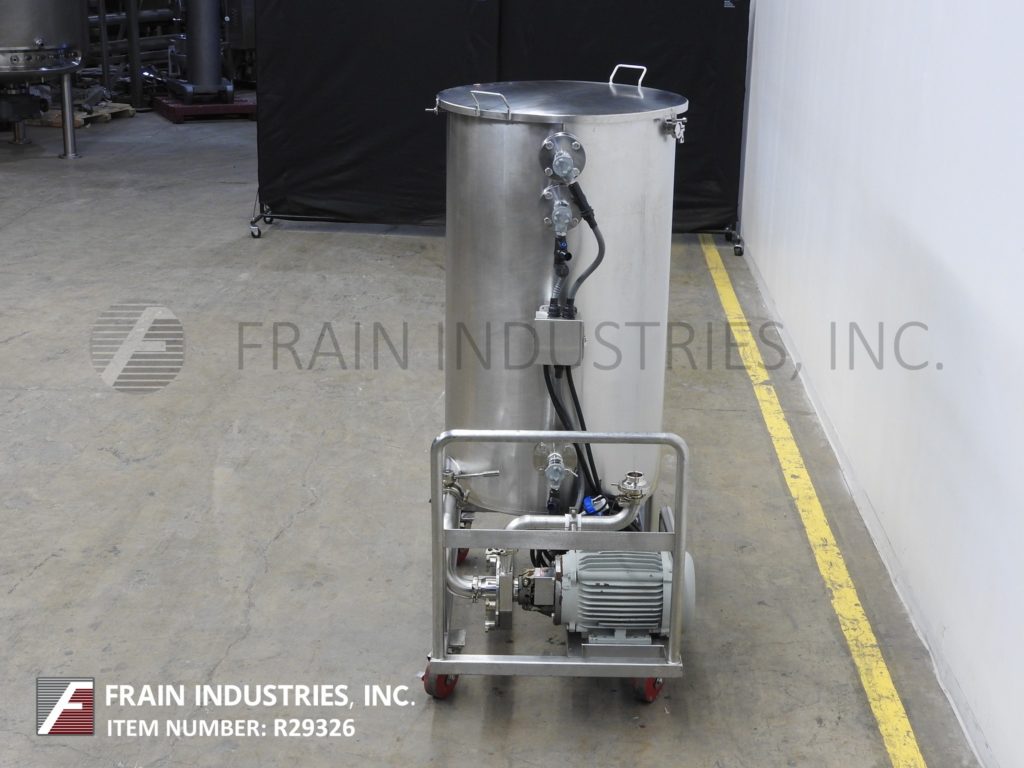

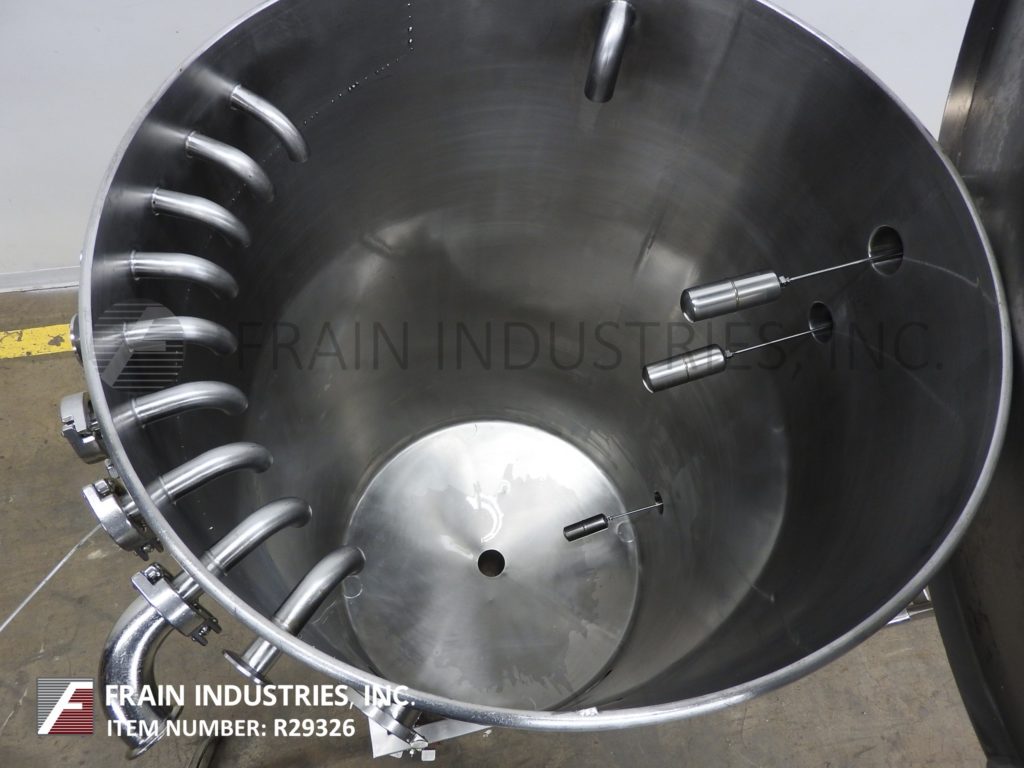

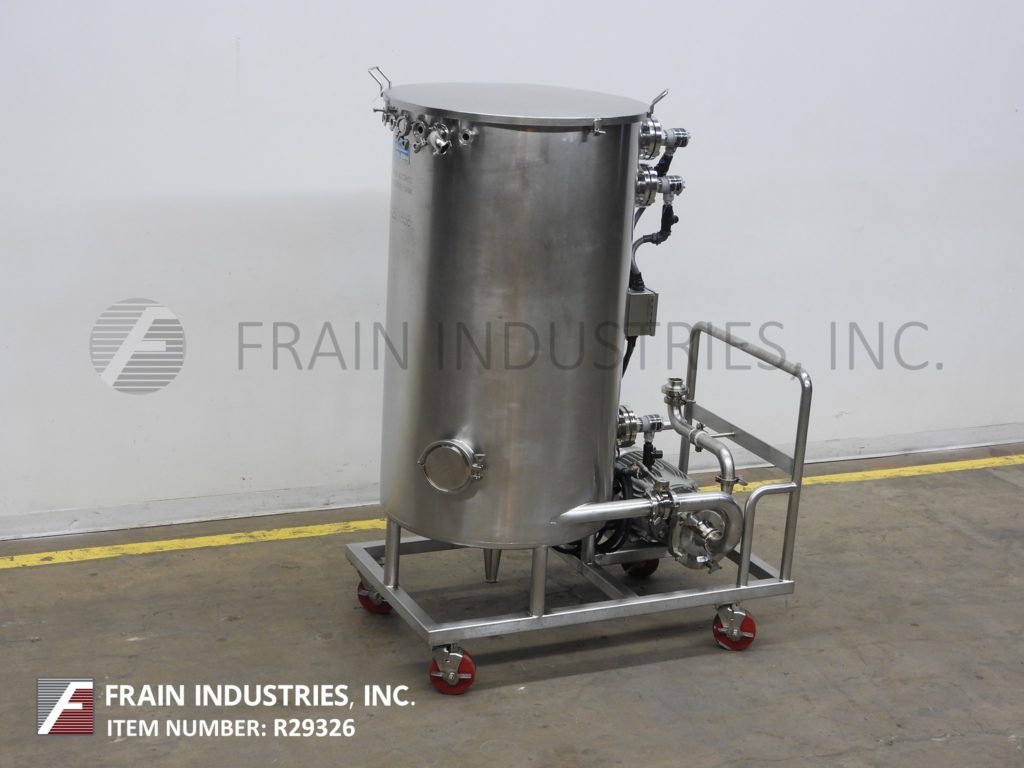

TSI, 150 gallon, 304 stainless steel skid mounted portable recovery / recirculation tank. Vessel Dimensions: 32" diameter x 60" deep with a 56" straight wall. Equipped with a lift off cover, (3) component level sensor, 3½"OD / 3"ID Tri-clamp style bottom drain with 15" ground clearance and 3"ID / 2½"ID bottom side discharge to a Fristam, Model FPX, centrifugal pump with a 7" diameter impeller powered by a 10 HP motor. System mounted on heavy duty stainless steel base with casters.

Side Access:
(1) 6½"OD / 5½"ID Tri-Clamp
(1) 2"OD / 1½" ID Tri-Clamp
(9) 2"OD / ¾"ID Tri-Clamp

OAD: 58"L x 36"W x 76"H
