Frain Industries can help you with your cleaner washer project no matter how big or small your cleaning needs. A cleaner washer machine uses water and soap to clean and rinse inside and outside of containers or other items. A cleaner washer machine is normally equipped with drying capabilities.
North Star Engineered Products, Model HW5000, helical wash system with Mueller falling film chiller. Rated to wash up to 8000 lbs of product per hour with wash temperature down to 34°F – depending on materials, application and machine configuration. Fill capacity: 400 gallons. Equipped with a 32″ wide x 136″ long x 30″ deep wash tank with (22) spray nozzles, 30½” wide x 60″ long mesh conveyor with (8) spray nozzles, (4) centrifugal pumps for washer system and (1) centrifugal pump to chiller. System mounted on leveling legs.
OAD: 210″L x 147″W x 136″H
HMI Heinzen, inclined cleated wash tank designed to wash dirt and other debris from buoyant product with amount of product per minute – depending on product being run and belt speed. Equipped with 42" wide x 77" long x 40" deep water trough with 12" wide x 112" long incline cleated white plastic product discharge belt with 2" high cleats set on 12" centers and has discharge height of 68" with top motor drive. Mounted on stainless steel (4) leg frame. Tenderleaf wash equipment for many fresh cut product applications such as lettuce, carrot tomatos, broccoli, cauliflower and many more.
OAD: 145" L x 48" W x 78" H
HMI Heinzen, inclined cleated wash tank designed to wash dirt and other debris from buoyant product with amount of product per minute – depending on product being run and belt speed. Equipped with 40" wide x 55" long x 30" deep water trough with (3) in feed end ¼" OD piped water access ports. 18" wide x 128" long incline cleated blue plastic product belt with 2" high cleats set on 14½" centers and has discharge height of 64" with top motor drive. Mounted on stainless steel (4) leg frame. Tenderleaf wash equipment for many fresh cut product applications such as lettuce, carrot tomatos, broccoli, cauliflower and many more.
OAD: 135" L x 48" W x 95" H
Vanmark 6 roller, stainless steel, abrasive, scrubber, peeler rated up to 10,000 lbs of patatos per hour – depending on machine configuration. All stainless steel construction. Equipped with 68" long x 48" wide inner stainless steel product chamber has top flip-up cover and 36" long product in feed chute with (6) 68" long x 4" OD, abrasive and bristle type scrub brushes and water spray valves and is rated up to 27 gallons of water per minute maximum with roller speed of 100 rpm to 550 rpm. Cone bottom has 6" OD center bottom port with 12" floor clearence. Mounted on (4) leg stainless steel frame.
OAD: 108" L x 48" W x 65" H
Vanmark 304 stainless steel hydrolift, destoner and rinser. Rated from 1,000 lbs/Hr to 25,000 lbs/Hr – depending on application and machine configuration. (2) function operation (1) to rinse product and remove sand, stone, or any other non-floatable materials, and (2) to elevate product using a vertical auger which creates constant speed and water turbulance. Equipped with 31" long x 48" wide x 26" deep stainless recieving hopper with 4" NPT bottom drain and (2) 4" NPT overflow ports, 15" diameter auger and 36" long discharge chute with 16" x 15" discharge port and 72" discharge height. Mounted on stainless steel base frame.
OAD: 60"L x 52"W x 114"H
CMI Equipment & Engineering Co. Model MNL stainless steel, trough style, high powered, multi noozle vegetable spray washer with pounds of product per hour – depending on materials and application. Equipped with 180" long x 32" wide x 28" deep slant bottom wash trough with 135" long x 3-1/2" OD threaded side water supply pipe and 1-1/2" end bottom drain port. (16) top, (11) on one side, (6) on the other side and (4) end, 2" wide high power spray noozles each with its own individual adjustment control lever. bottom recirculation basin and 67" long x 30-1/2" wide incline dewatering conveyor belt with 10 Hp centrifugal pump. Controll panel has start, stop, push buttons and speed control dial. Mounted on stainless steel base frame. Perfect way to wash fruits, radishes and leafy salad greens such as celery, broccoli, cauliflower, spinach, radicchio, romaine and spring mix.
OAD: 247" L x 54" W x 62" H
CMI Equipment & Engineering Co. Model MNL stainless steel, trough style, high powered, multi noozle vegetable spray washer with pounds of product per hour – depending on materials and application. Equipped with 180" long x 32" wide x 28" deep in feed to 3" deep discharge, slant bottom wash trough with 135" long x 3-1/2" OD threaded side water supply pipe and 1-1/2" end bottom drain port. (16) top, (11) on one side, (6) on the other side and (4) end, 2" wide high power spray noozles each with its own individual adjustment control lever. 67" long x 30-1/2" wide flex-link incline cleated dewatering conveyor belt with 1/2" high cleats set on 6" centers to a bottom 93" long x 35" wide x 26" deep stainless steel reculation basin with 10 Hp centrifugal pump. Controll panel has start, stop, push buttons and speed control dial. Mounted on stainless steel base frame. Perfect way to wash fruits, radishes and leafy salad greens such as celery, broccoli, cauliflower, spinach, radicchio, romaine and spring mix.

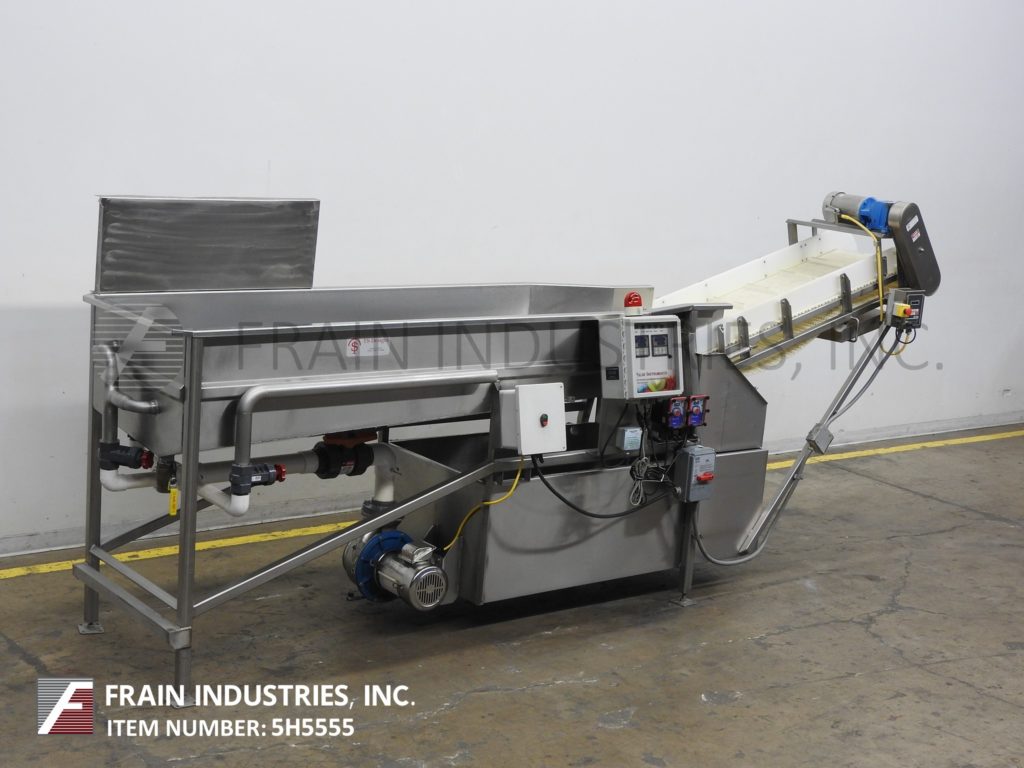

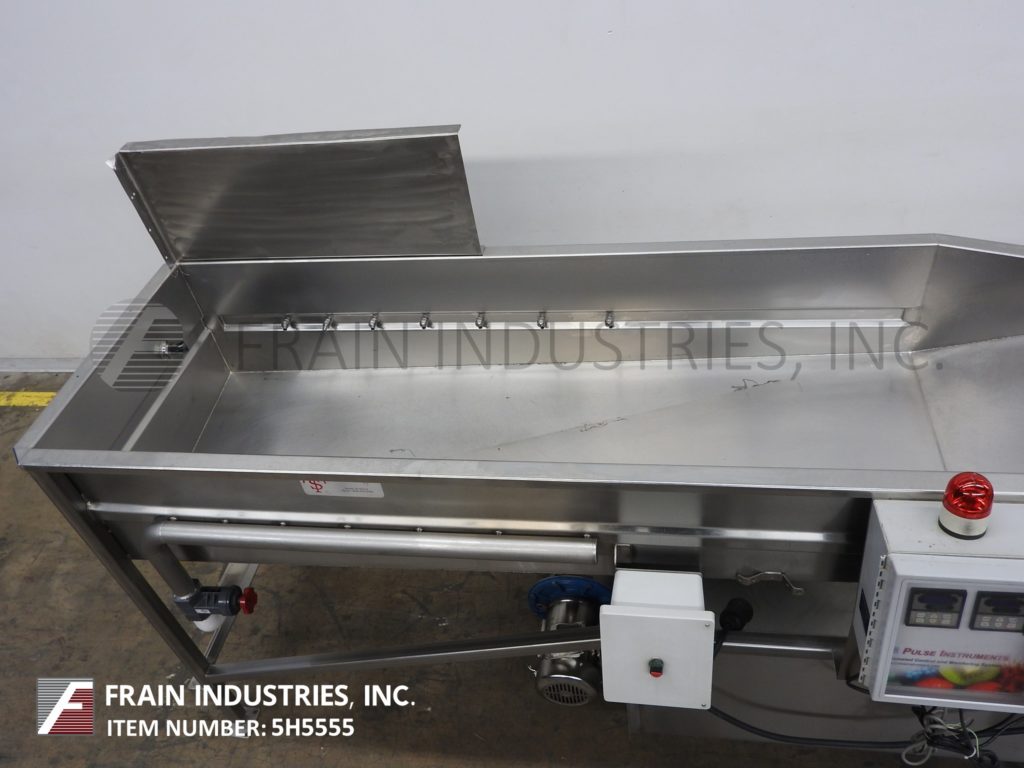

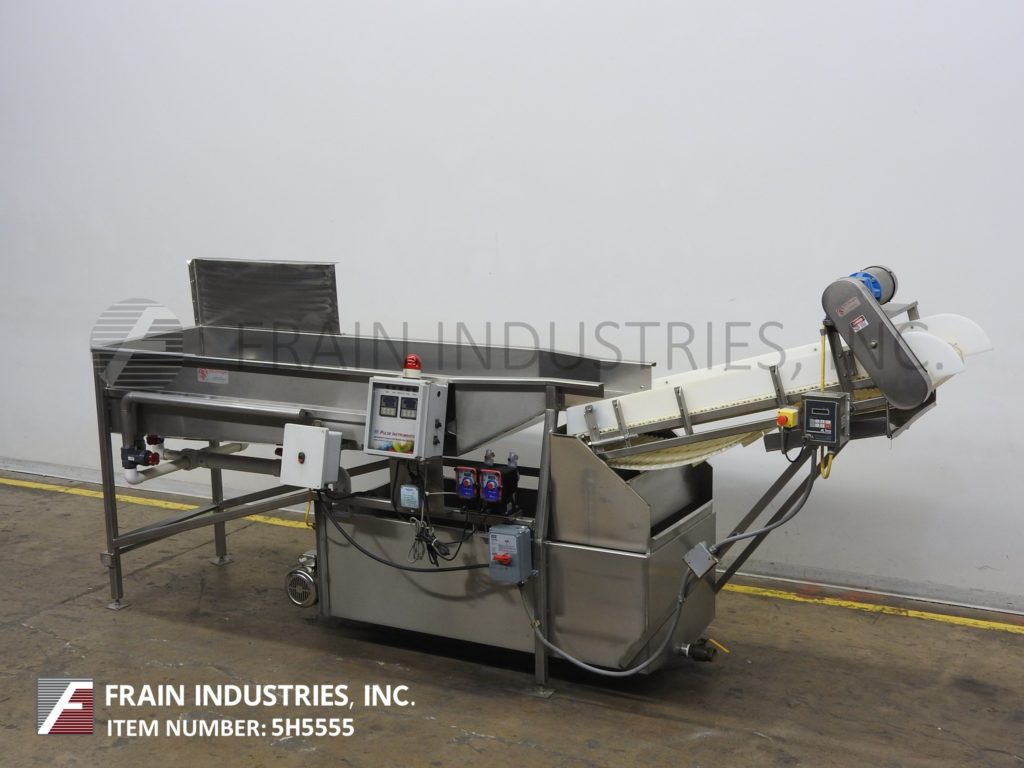

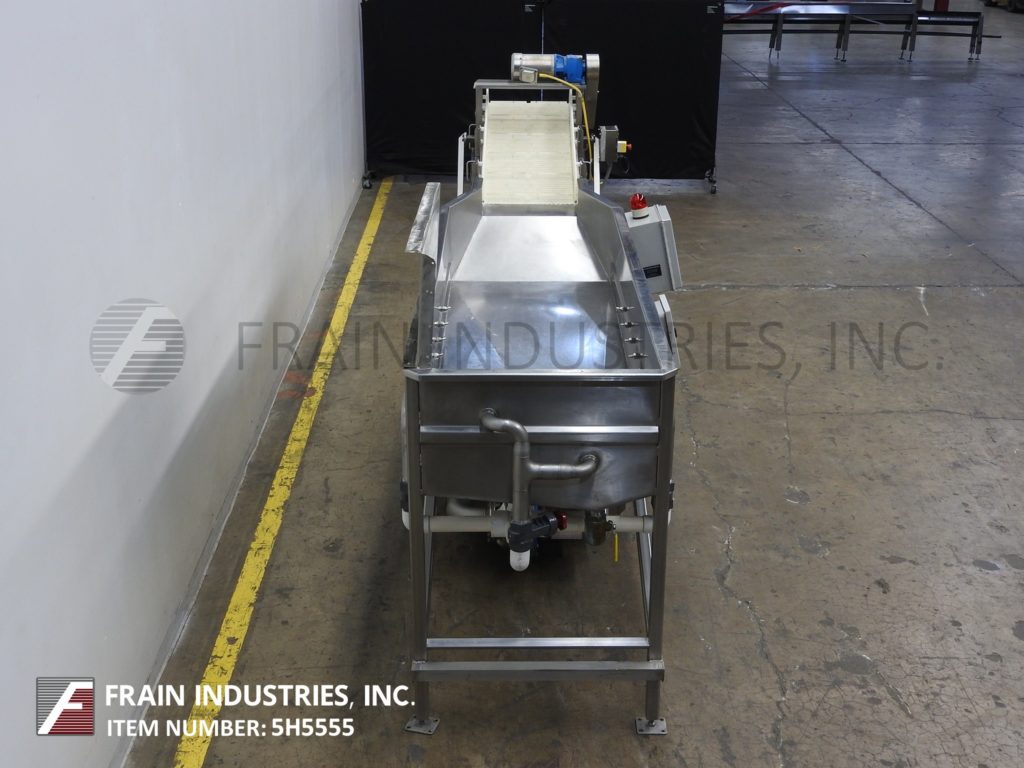

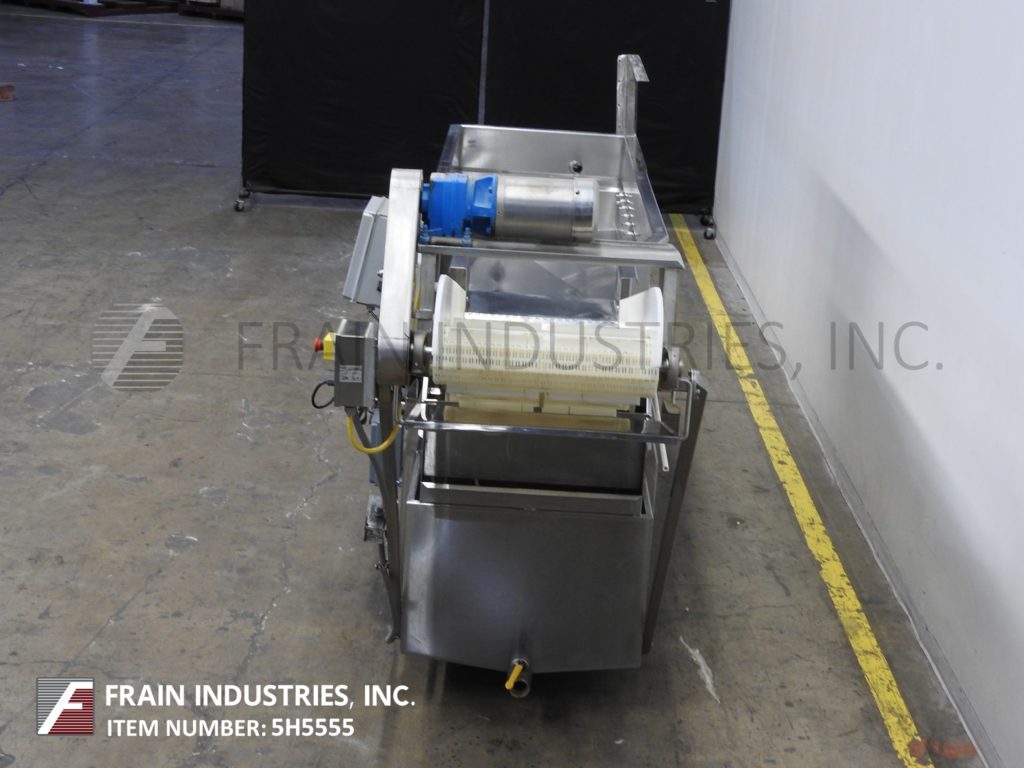

TS design Inc, Model Jetted Flume Washer is a stainless steel, jet spray destoner designed to wash and remove stones and sand from leafy product with pounds of product per hour – depending on materials and application. All 304 stainless steel construction with hydrosieve water filtration system that filters out particles 1/32" and larger. Equipped with 106" long x 32" wide x 22" deep wash trough with (7) 1/2" OD side mounted water jet spray nozzles set on 6" centers (7) each side and has 2-1/2" OD end bottom port. 64" long x 23" wide incline cleated product discharge conveyor with 20" wide x 1" high cleats set on 10" centers and 3/4 Hp top mounted motor drive with vari-speed controller and 71" discharge height. 68" long x 32" wide x 29" deep bottom solution trough with 2-1/2" OD end bottom port. Stainless steel 3 Hp centrifugal circulation pump with Pulse Instruments monitor and control sanitizer system for monitoring the Iwaki cleaning solution metering pumps, water faults and statis light with 3-1/2" / 2-1/2" PVC and 2-1/2" stainless steel piping. Mounted on all stainless steel base frame with start and stop push buttons. Operation: The product is placed into the washer trough and the spray jets force the produce forward and down into the water and hydrosieve filter removes unwanted particles from the circulating water in trough and product exits on incline cleated conveyor.
OAD: 192" L x 54" W x 82" H
Franken, stainless steel, rotary dewatering screen, with amout of product per hour – depending on materials and application. Equipped with 36" ID x 31" long stainless steel rotary drum with dewatering screen and flip-up cover has 54" drum inlet and outlet height with stainless steel trough on stand. Side bottom Tri-Clamp style discharge with 2½" OD / 2" ID with 27" ground clearence. Mounted on (4) leg base frame.
OAD: 109" L x 85" W x 76" H

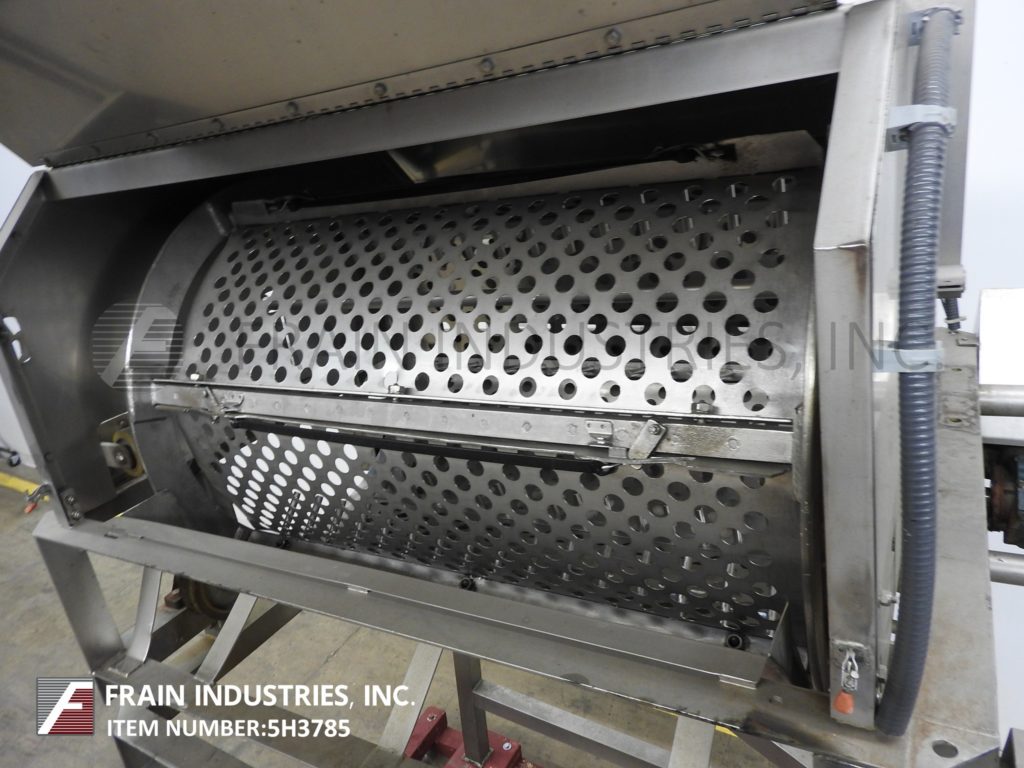

Franken, stainless steel, perforated rotary washer, with amount of product per hour – depending on materials and application. Equipped with 31" ID x 54" long stainless steel rotary drum section with 1" ID perforations and top spray bar supplied by a 1" NPT fitting. Mounted on 4 leg base frame with a 81" infeed and 63" discharge.
OAD: 73" L x 60" W x 108" H
Magnuson Model WSO3060, stainless steel, brush style, product washer, scrubber, peeler rated up to 8,000 lbs of product per hour – depending on materials, application and machine configuration. All stainless steel construction. Equipped with 90" long x 21" wide stainless steel product chamber has 70" long x 22" wide top flip-up cover with 12" x 18" product port and (2) 5" x 5" sight ports with 1-1/2" OD threaded end water access port rated from 10 to 15 gallons of water per minute. End product gate discharge with chute and bottom cone shaped waste removal hopper with 10" x 19" discharge opening and 17" floor clearence. Inner chamber has (6) 64" long x 3" OD, (4) abrasive and (2) bristle type scrub brushes powered by end motor drive and has inner water spray valves. Control panel has A/B vari-speed contoller with start stop and e-stop push button controls. Mounted on (4) leg stainless steel base frame with casters.
Optional 159" L x 29" W x 72" H S/S Platform
OAD: 112" L x 32" W x 74" H Scrubber
A.K. Robins, Model HYD, product hydrator and washer with amount of product per hour – depending on materials and application. Equipped with 144" long x 48" wide x 51" deep hydrator tank with 36" OD x 125" long perforated reel with 3/8" holes and powered by 1 Hp drive, 26" x 16" product charge, surface spray bar to move contaminates toward overflow, 9"OD / 4"ID 8-bolt flange overflow discharge, 21" wide x 14" long product discharge chute with 70" ground clearance, (1) 7½"OD/3"ID 4-bolt water supply, (1) 6"OD / 2"ID 4-bolt flange water supply, (2) 3½" od bottom side drains and (4) 12" x 12" manway access panels. Mounted on (8) leg frame.Can be used to hydrate products or separate undersize buoyant particles.
OAD: 188"L x 60"W x 98"H
