Liquid can fillers are similar to liquid gravity fillers in that gravity can fillers utilize the pressure of gravity on a liquid product to fill the product into the can. Gravity can fillers plunge a nozzle into the can that has a gasket that forms a seal with the top of the can.

The nozzle on the liquid can filler then opens to allow product to flow from the product hold tank. Once the liquid reaches a level above the filling ports in the nozzle, the head pressure above the liquid in the can is equal to the pressure above the liquid in the product hold tank. Once this occurs, the liquid stops flowing into the can. As the nozzle is raised out of the can, the nozzle closes to prevent more product from entering the can.

Contact Us

Related Categories

Liquid Equipment In Stock

FMC Food Tech Filler Can Liquid 28 HEAD

  • Manufacturer: FMC Food Tech
  • Model Number: 28 HEAD
  • Frain Number: 5C2832

Fully automatic 28 head rotary gravity filler capable of speeds over 400 CPM. Filling nozzles are set on 5-1/2" centers. Currently set on 211 diam cans and was last used in a soup operation filling chicken broth. Has bottom up fill and was driven by a seamer. Fill volume determined by can diameter. Has worm screw to star wheel infeed. Has standard open air type filling valves. All contact parts and frame are constructed of S/S. OAD: 72"W x 56"L x 56"H.

Get a Free Quote Call: 630-629-9900

FMC Food Tech Filler Can Liquid 28 HEAD

  • Manufacturer: FMC Food Tech
  • Model Number: 28 HEAD
  • Frain Number: 5C2833

Fully automatic 28 head rotary gravity filler capable of speeds 100 to 400 cans per minute. Filling nozzles are set on 5-1/4" centers. Currently set on 404 diam cans and was last used in a food operation filling soup and juice. Has bottom up fill and was driven by a seamer. Fill volume determined by can diameter. Has worm screw to star wheel infeed. Has standard open air type filling valves. All contact parts, and frame are constructed of S/S. OAD: 56"W x 75"L x 65"H.

Get a Free Quote Call: 630-629-9900

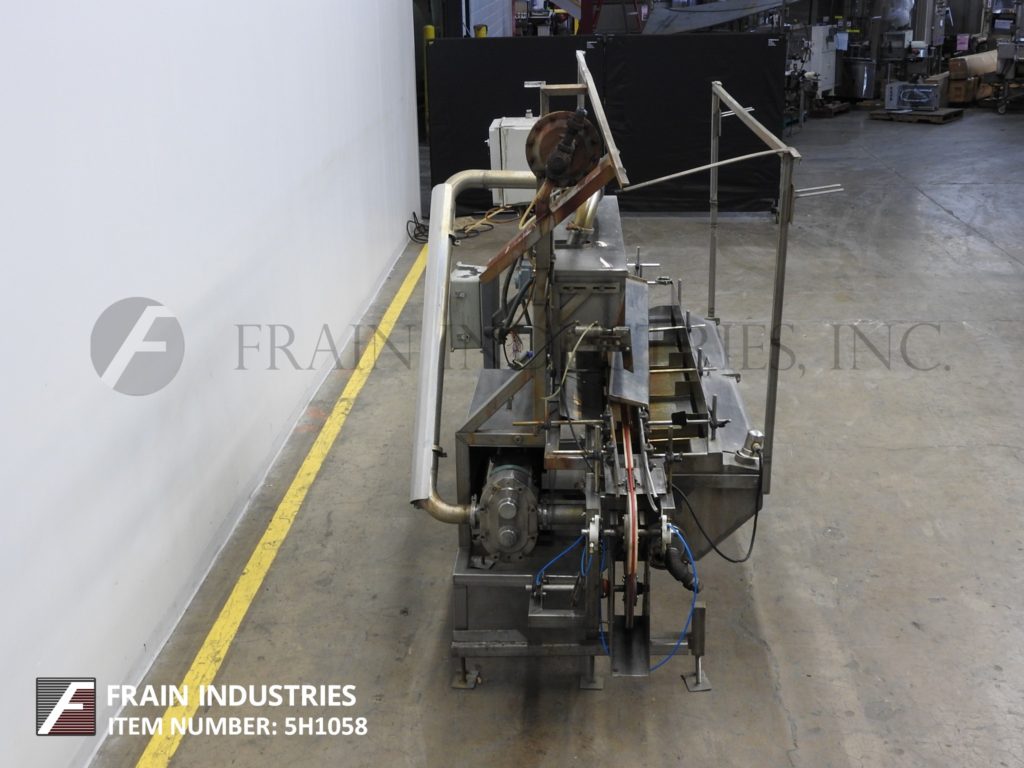

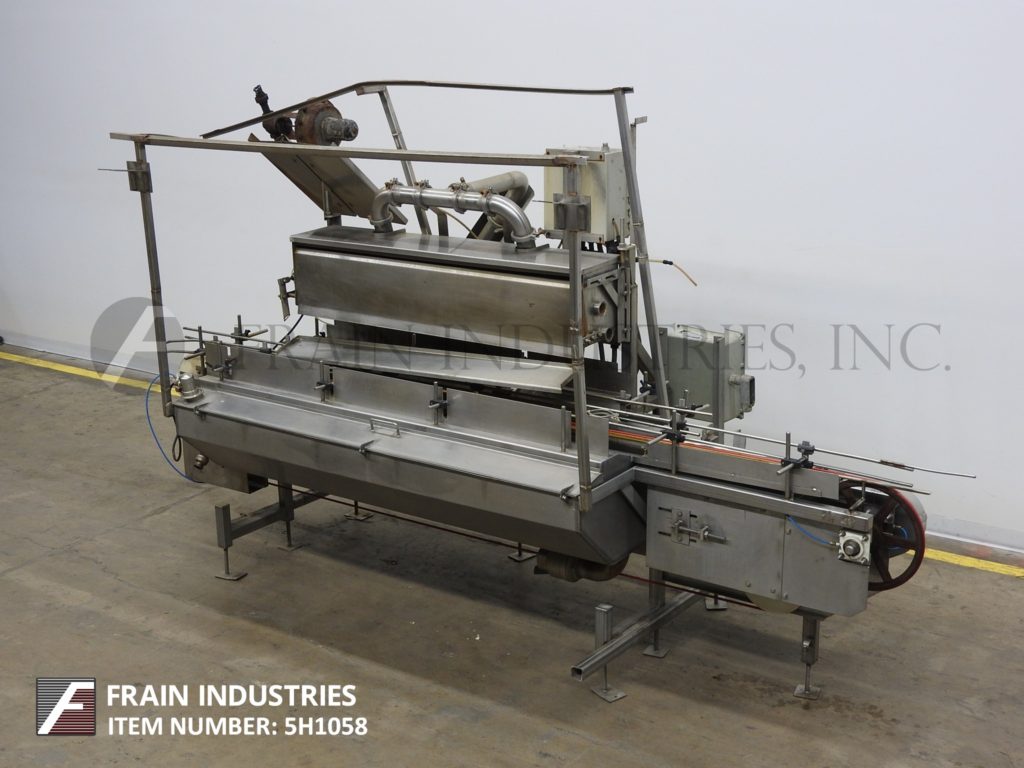

Solbern Filler Can Liquid LCB

  • Manufacturer: Solbern
  • Model Number: LCB
  • Frain Number: 5H1058

Solbern Model LCB stainless steel, in-line free standing self driven economic briner designed for running one or various size containers on the same line with containers per minute – depending on materials and application. Equipped 58" long x 10" wide x 10" high stainless steel top product tank and with 168" long single 1/4" OD rubber container belt, with guide rails, containers are angled to regulate head space for accurate fills and slight over flow. thru and before leaving the fill area and has 83" long x 24" wide x 16" high bottom stainless steel overflow tank with perforated particle panels. All stainless steel sanitary piping and Waukehaw 130 PD pump.
Mounted on height stainless steel frame with adjustable leveling legs.

OAD: 168" L x 56" W x 83" H

Get a Free Quote Call: 630-629-9900

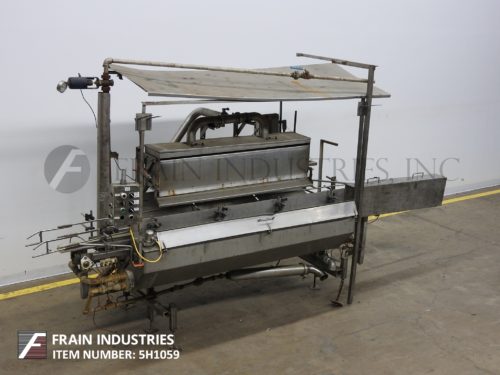

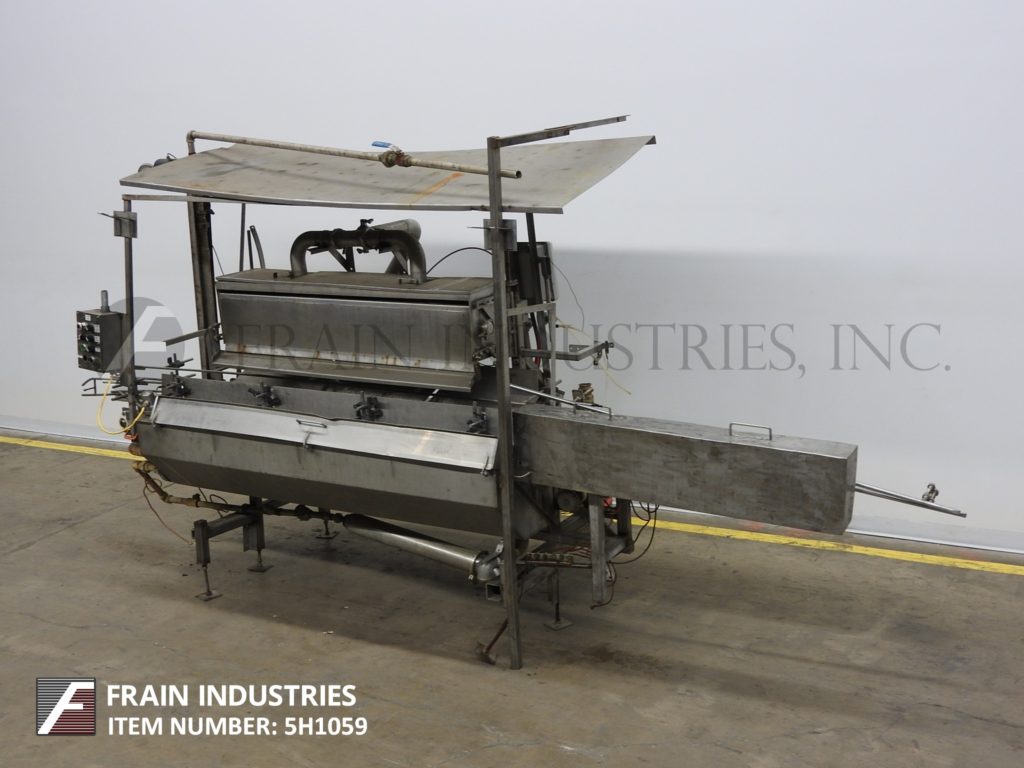

Solbern Filler Can Liquid LSB

  • Manufacturer: Solbern
  • Model Number: LSB
  • Frain Number: 5H1059

Solbern Model LSB stainless steel, in-line seamer-driven briner designed for high speed brining and saucing or the addition of any free-flowing liquid such as broth, to pre-filled container without spillage with number of containers per minute – depending on materials and application. Equipped 58" long x 10" wide x 10" high stainless steel top product tank with 60" long feed screw thru fill zone, containers are angled to regulate head space for accurate fills and slight over flow before leaving. Has 78" long x 19" wide x 16" high bottom stainless steel overflow tank with perforated particle panels. Prior to exiting the feed screw containers are spaced to the precise seamer pitch and are picked up by the seamer chain, providing a smooth transfer without spillage. All stainless steel sanitary piping and Waukehaw 130 PD pump. Mounted on height stainless steel frame with adjustable leveling legs.

OAD: 126" L x 43" W x 80" H

Get a Free Quote Call: 630-629-9900
