Material Handling Equipment – Machines designed for handling various off-line products that are necessary for the overall operation of the plant but not directly utilized in the production of goods. Material Handling is a term used for a system of conveyors, transfers, channelizers, and indexers designed to move product from one point to the next. Material Handling Systems can be incorporated into any packaging line to form a system that can handle the complete packaging process.

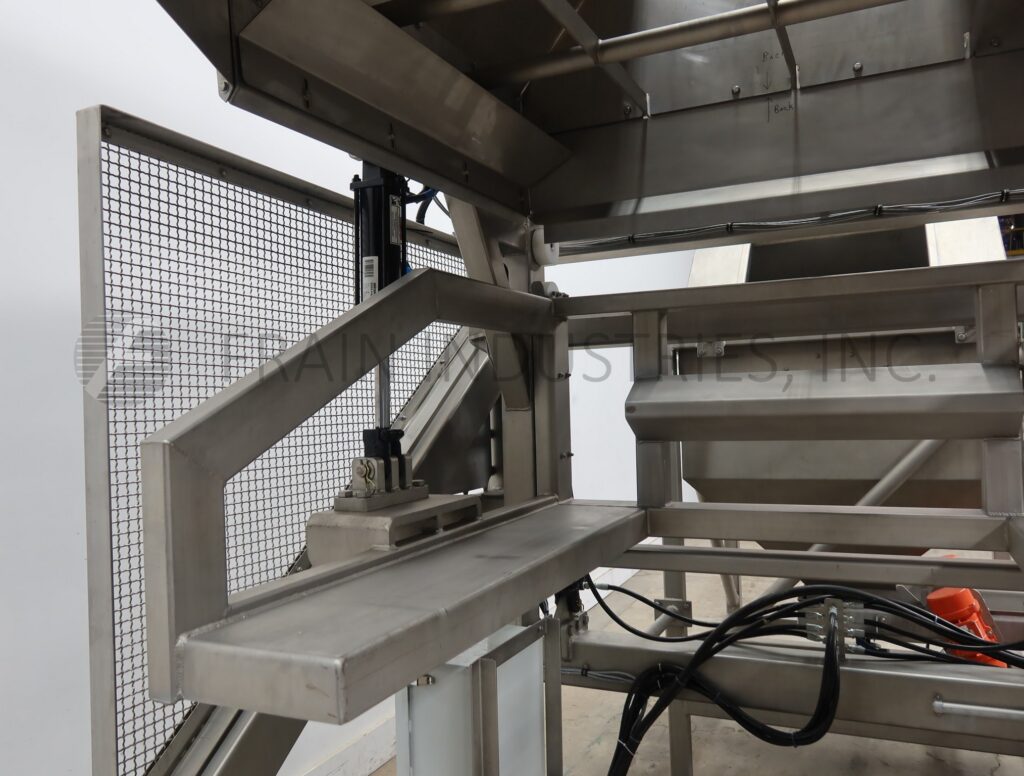

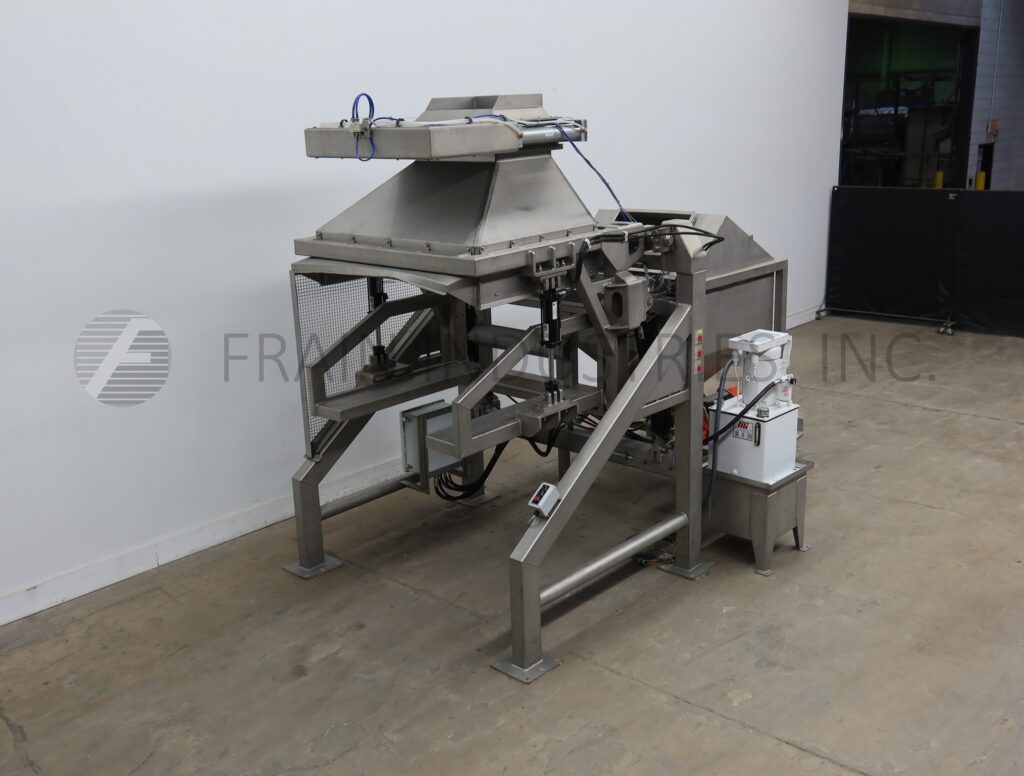

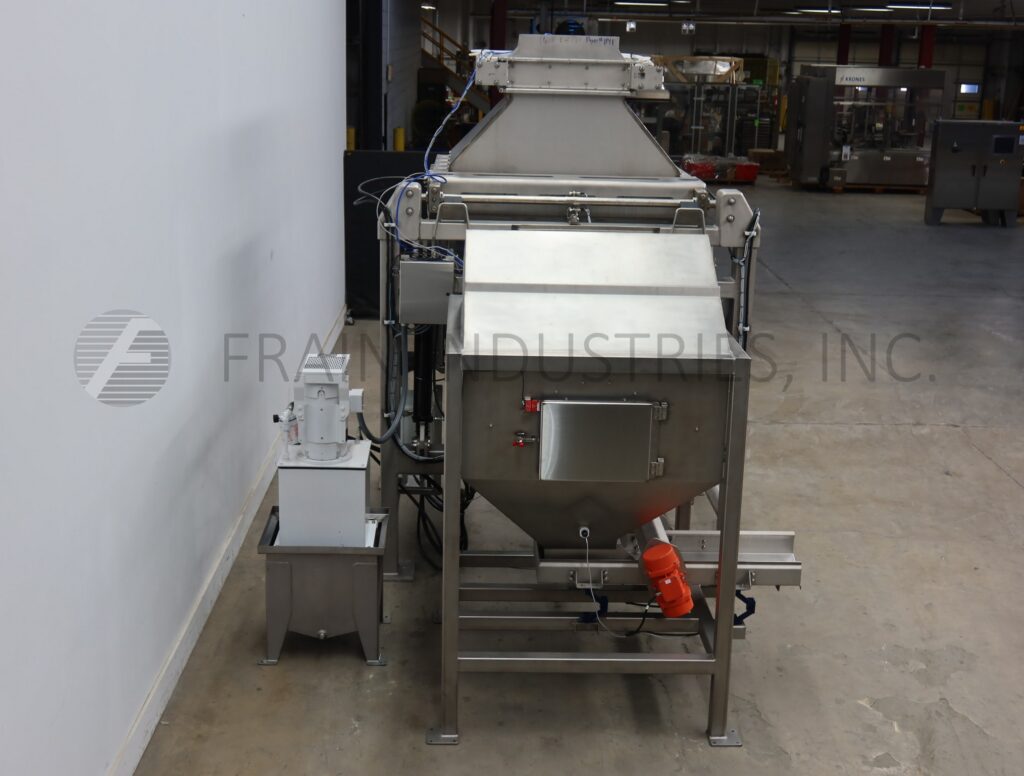

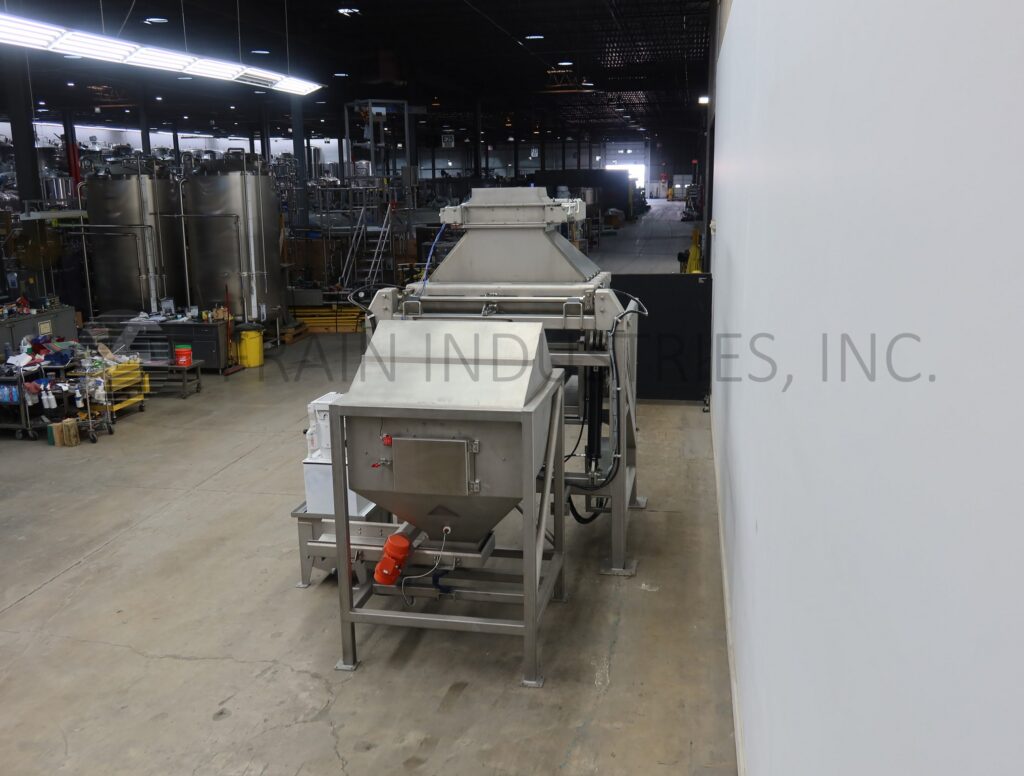

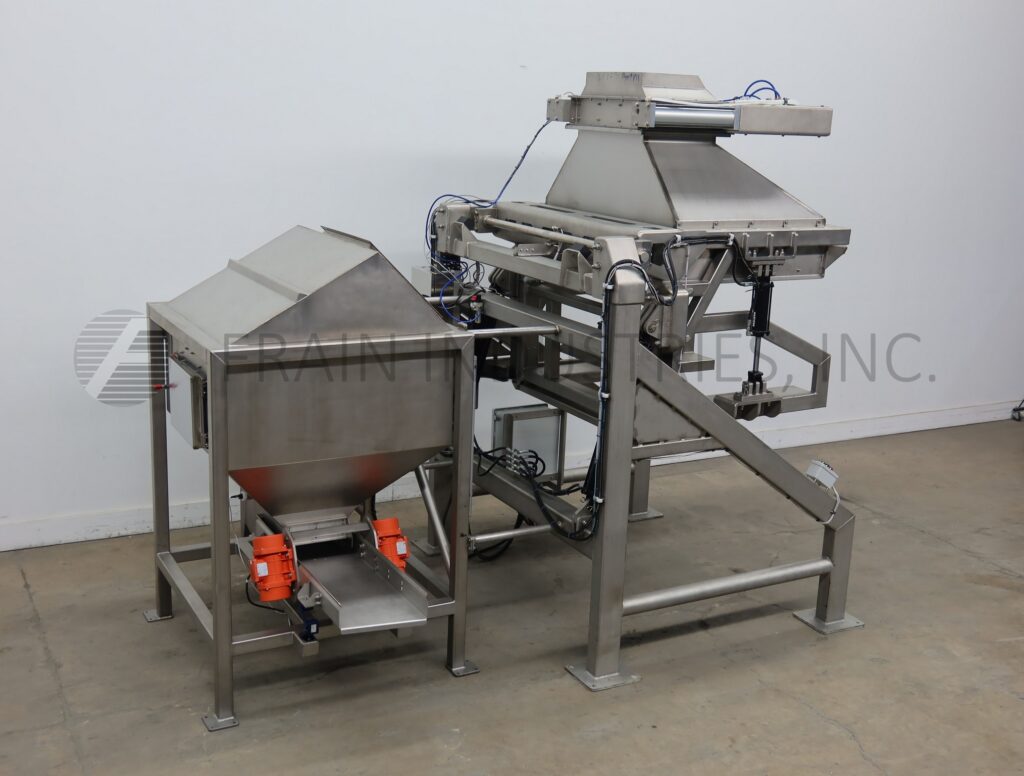

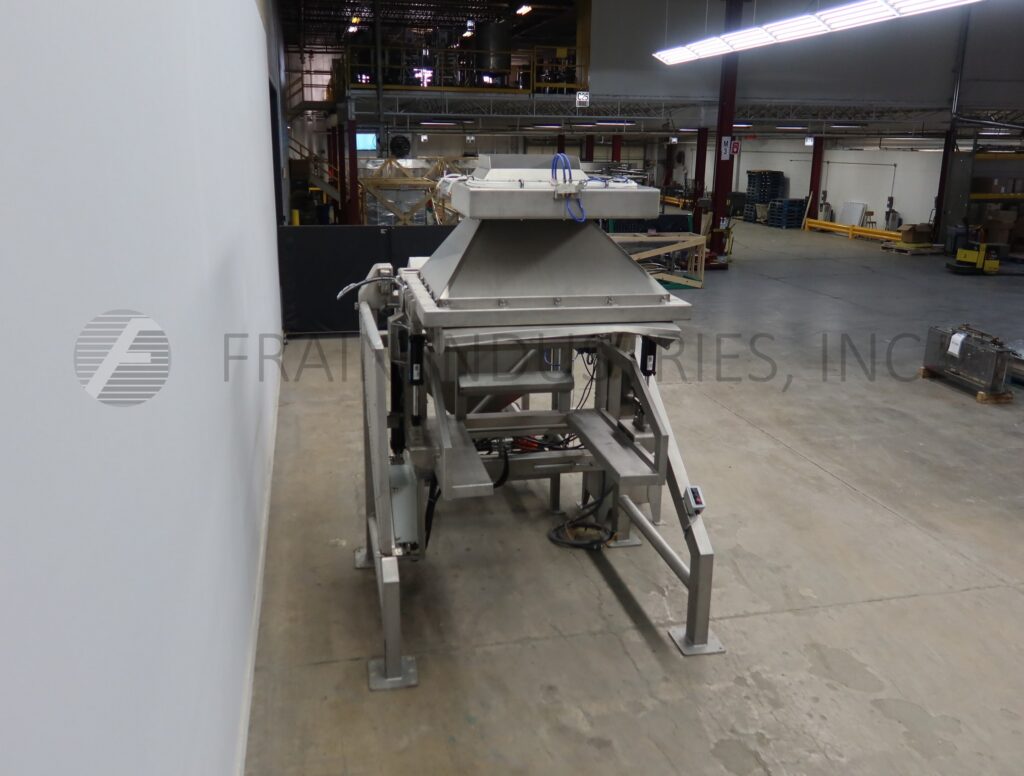

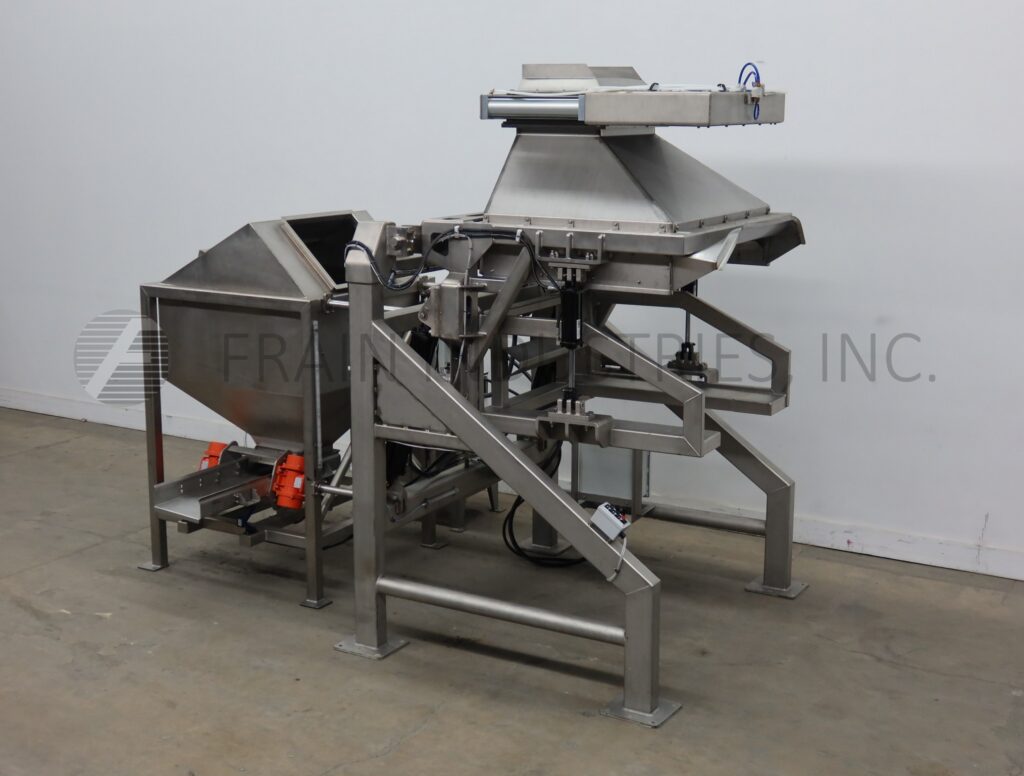

GWI, model 2 stage, 304 stainless steel tote dumper and surge hopper with vibratory conveyor discharge. Tote size range: 28" height x 48" length x 48" width. Maximum lifting capacity 2000 lbs. Tote infeed height: 56" with a dump height of 77". Powered by 7½ hp hydraulic pack with a 23 gallon hydraulic fluid reservoir. Set up to dump directly into surge hopper. Surge hopper dimensions: 40 ft³, 47¼" Long x 47¼" Wide with 24" straight wall above a 20" deep truncated pyramid with 13" W x 13" L discharge that feeds to a vibratory conveyor. Surge hopper equipped with 20¾" Long x 26¾" Wide infeed opening with an infeed height of 77", soft drop baffling,12½" x 18½" clampdown manway. Vibratory conveyor dimensions: 52" L x 16¾" W x 5" H, 23½" discharge height. Vibratory conveyor equipped with (2) 0.43 hp drives.
OAD: 158" L x 100" W x 128" H

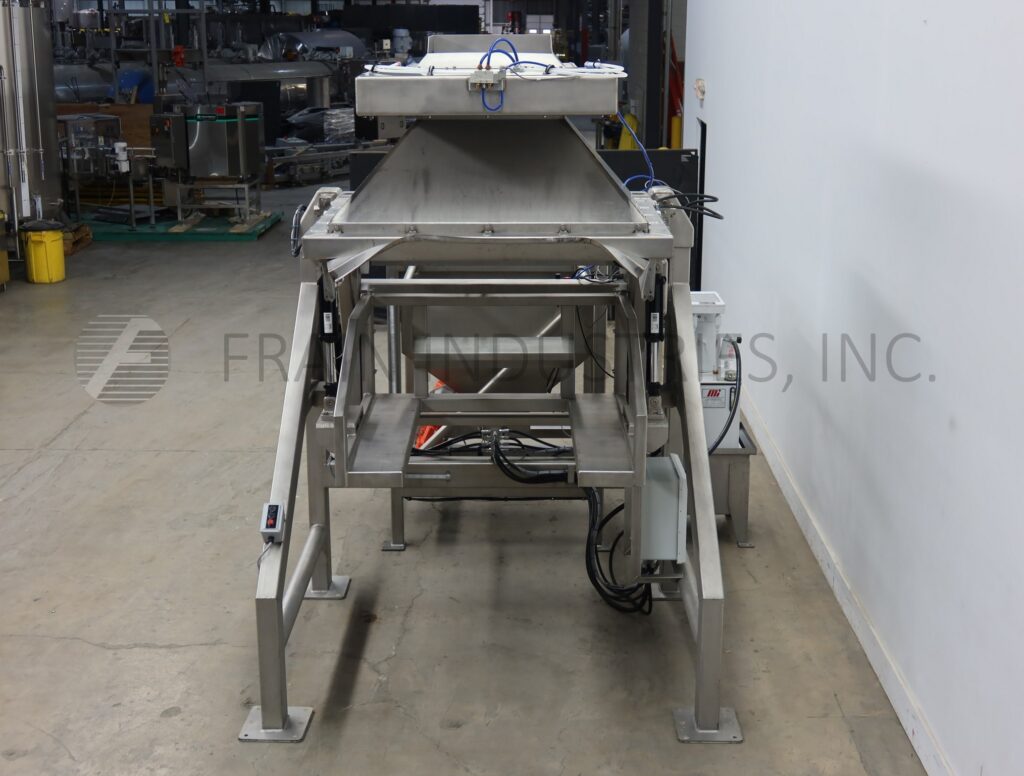

GWI, model 2 stage, 304 stainless steel tote dumper and surge hopper with vibratory conveyor discharge. Tote size: 28" height x 48" length x 48" width. Maximum lifting capacity 2000 lbs. Tote infeed height: 56" with a dump height of 77". Powered by 7½ hp hydraulic pack with a 23 gallon hydraulic fluid reservoir. Set up to dump directly into surge hopper. Surge hopper dimensions: 40 ft³, 47¼" Long x 47¼" Wide with 24" straight wall above a 20" deep truncated pyramid with 13" W x 13" L discharge that feeds to a vibratory conveyor. Surge hopper equipped with 20¾" Long x 26¾" Wide infeed opening with an infeed height of 77", soft drop baffling,12½" x 18½" clampdown manway. Vibratory conveyor dimensions: 52" L x 16¾" W x 5" H, 23½" discharge height. Vibratory conveyor equipped with (2) 0.43 hp drives.

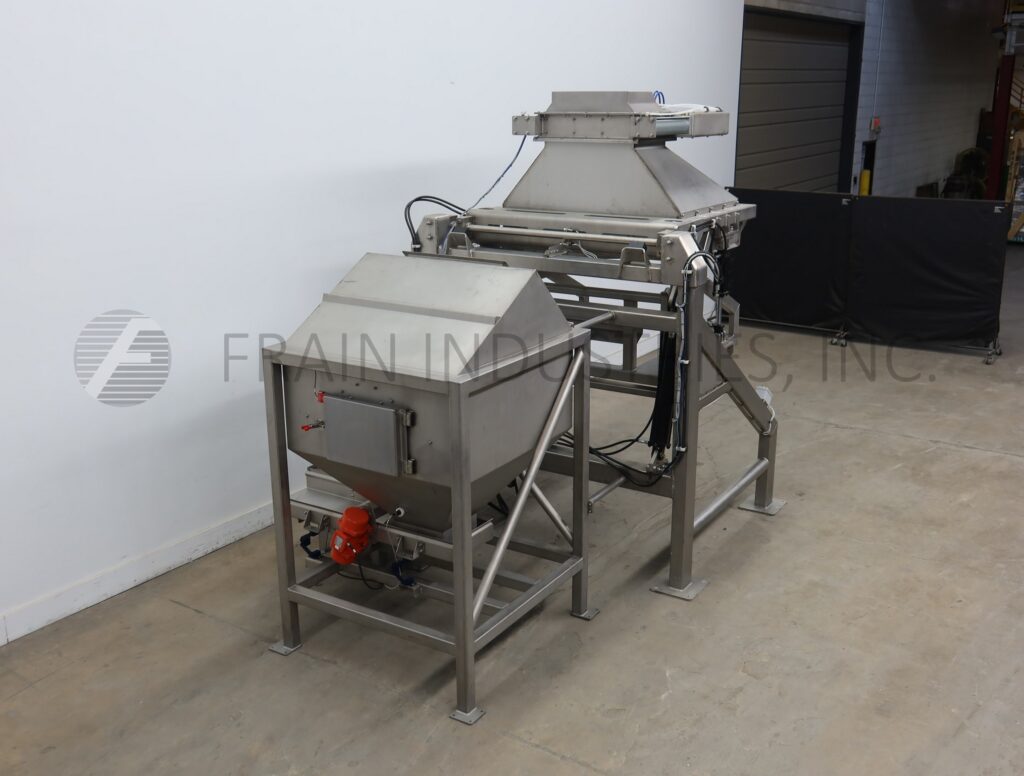

GWI, model 2 stage, 304 stainless steel tote dumper and surge hopper with vibratory conveyor discharge. Tote size : 28" height x 48" length x 48" width. Maximum lifting capacity 2000 lbs. Tote infeed height: 56" with a dump height of 77". Powered by 7½ hp hydraulic pack with a 23 gallon hydraulic fluid reservoir. Set up to dump directly into surge hopper. Surge hopper dimensions: 40 ft³, 47¼" Long x 47¼" Wide with 24" straight wall above a 20" deep truncated pyramid with 13" W x 13" L discharge that feeds to a vibratory conveyor. Surge hopper equipped with 20¾" Long x 26¾" Wide infeed opening with an infeed height of 77", soft drop baffling,12½" x 18½" clampdown manway. Vibratory conveyor dimensions: 52" L x 16¾" W x 5" H, 23½" discharge height. Vibratory conveyor equipped with (2) 0.43 hp drives.

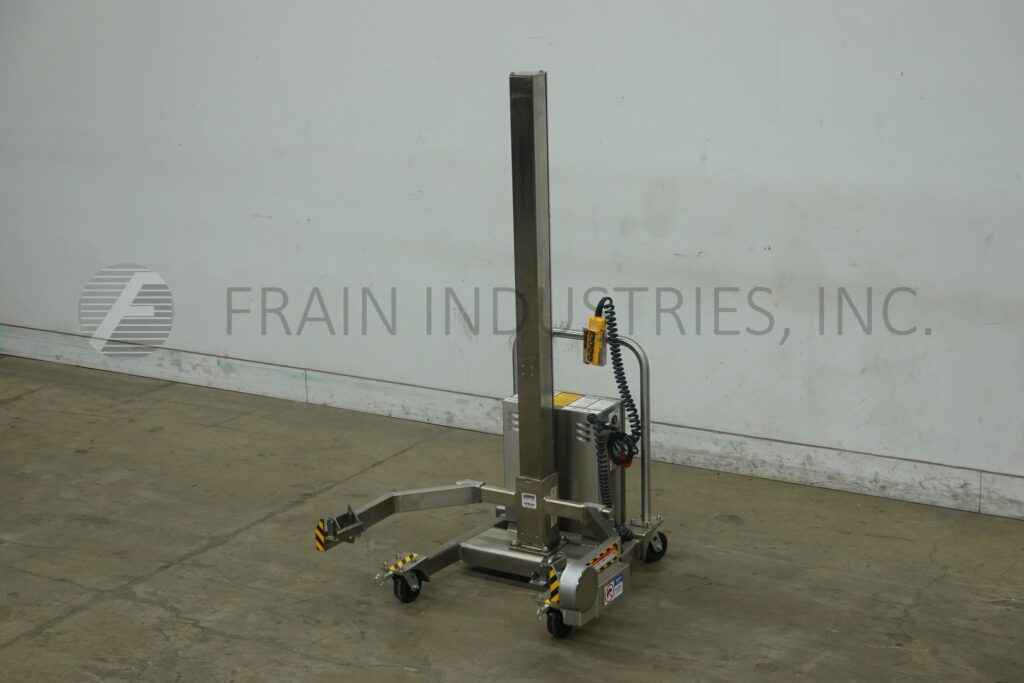

Merrill drum dumper with 120" high columm, 13" diameter x 24" long barrel holder with dual barrel clamps and 80" discharge height.
OAD: 54"L x 50" W x 120" H

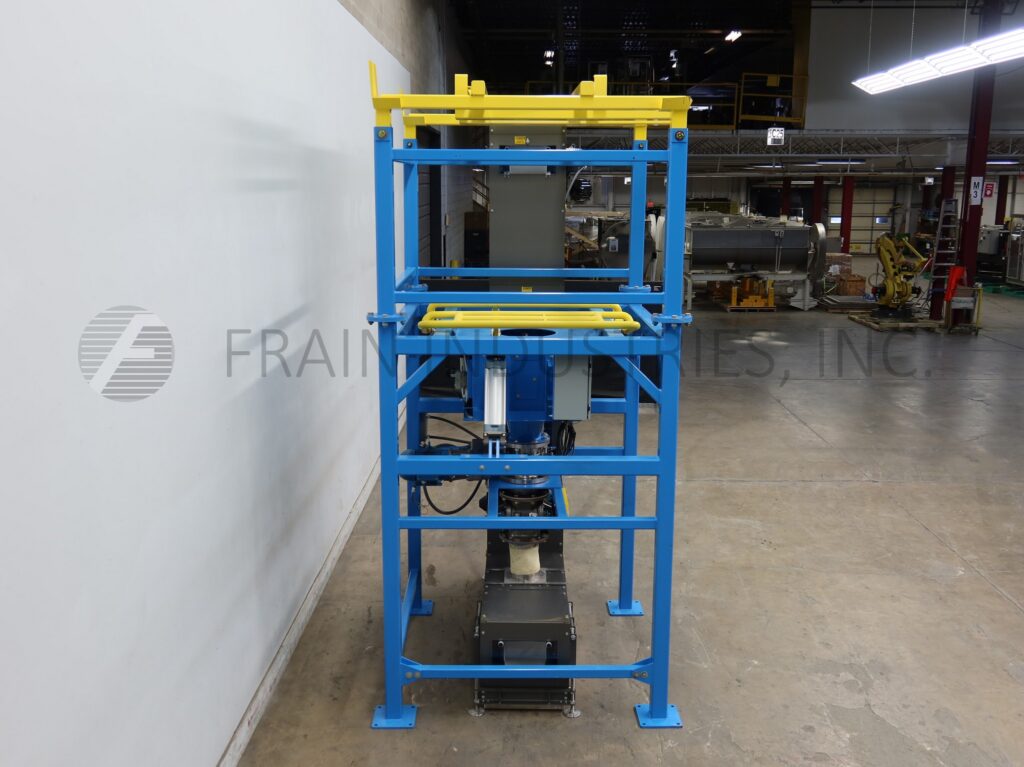

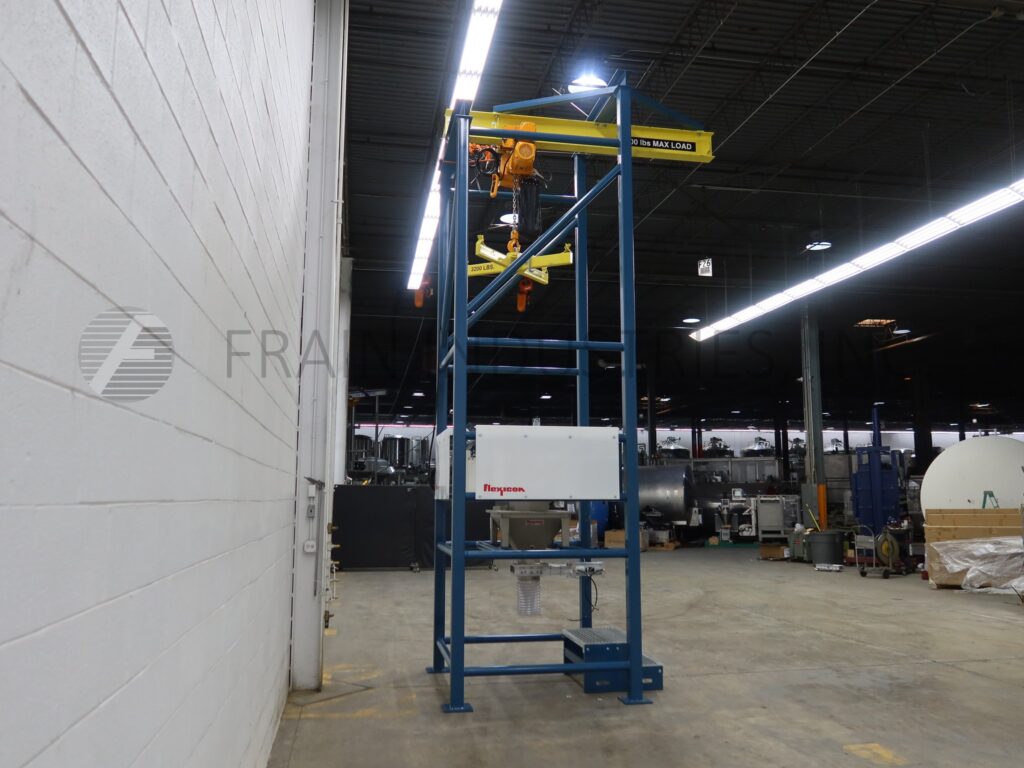

Flexicon, Model BFC-C, Bulk bag, super sack unloading system. Equipped with 109" long cantilevered I-beam extending 45" beyond frame, spider lift bag attachment rated to 3200 lbs., powered hoist and trolley, bag massagers, and 12" iris valve to secure sac chute and 3 ft³ hopper with 8" flanged outlet and slide gate valve.
OAD: 114" L x 67" W x 217" H
Cozzini, Model CBD3080-610, 304 stainless steel construction tote / vat dumper. Equipped with 48" wide x 44" long x 55" high tote chamber. Powered by 3 hp hydraulic pack with push button start / stop for pump and raise / lower for dumper. Requires 183" high ceiling clearance and discharges at a height of 80" at a 45° discharge angle with maximum capacity of 3,000 lbs
OAD: 55"L x 67"W x 104"H (in down position)

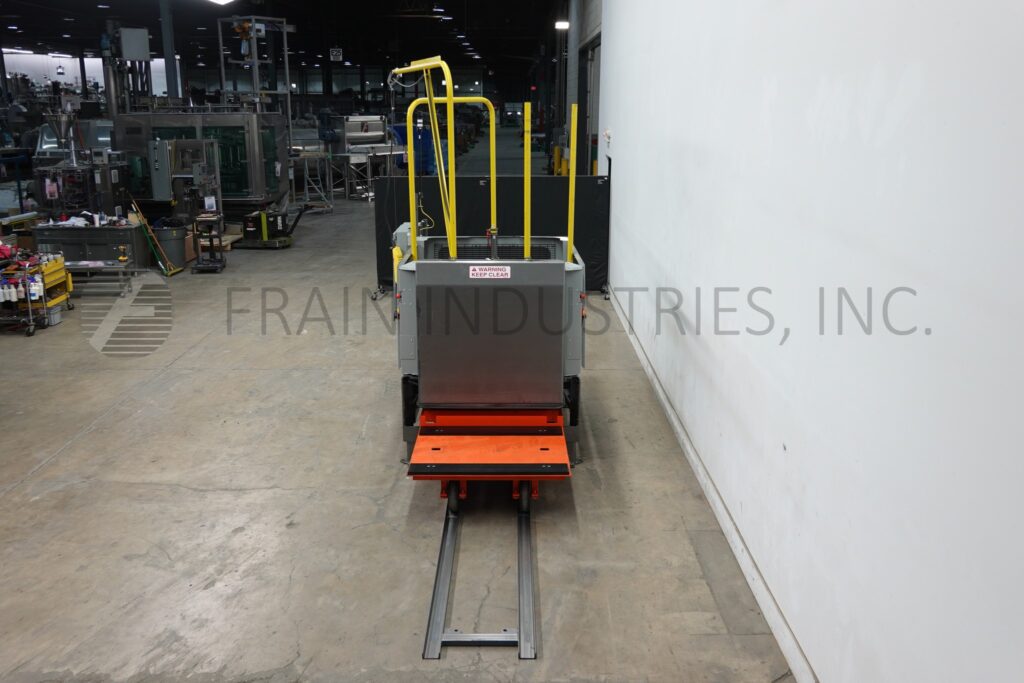

Cherry’s Industrial, Model: BXD-2500-48, hydraulic ground level loading tote dump, rated up to 2500 lbs. Maximum load size: 50" in length; 50" in width; 20" – 40" in height. Equipped with 48" high pivot point, and a 48" dump height.
OAD: 110" L x 98" W x 79" H
Cherry’s Industrial, Model SC75P, free standing, single clamp, 180° hydraulic pallet inverter with number of loads per hour – depending on materials , application and operator dexterity. Load Capacity: up to 4,400 lbs. Equipped with 49" Long x 49" Wide load table, 42" minimum to 75" maximum jaw opening size range, 5 hp power pack and pendant style push button control package and safety guarding. Loaded and relocated by forklift.
OAD: 124"L x 80"W x 96"H (in 90° position)

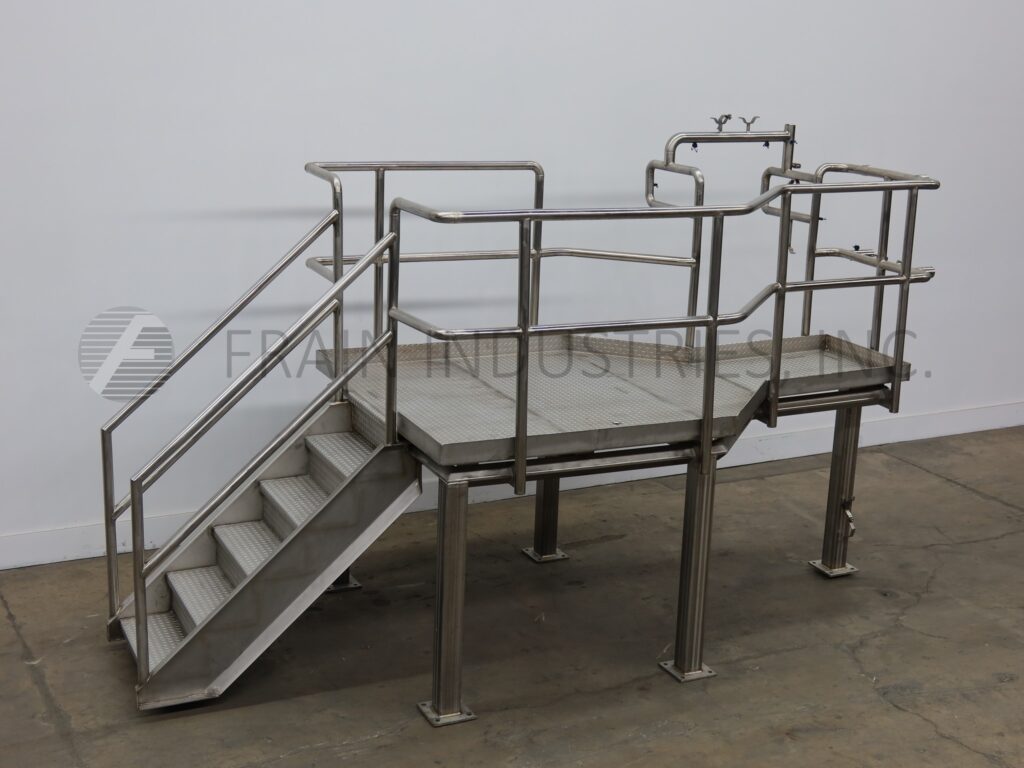

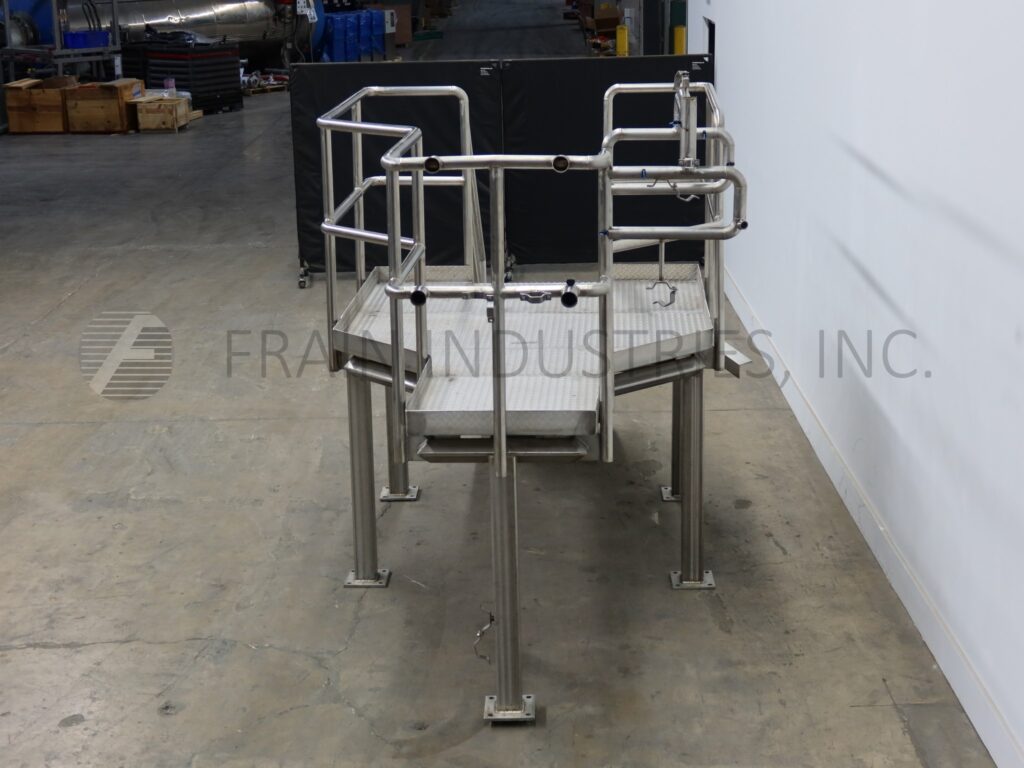

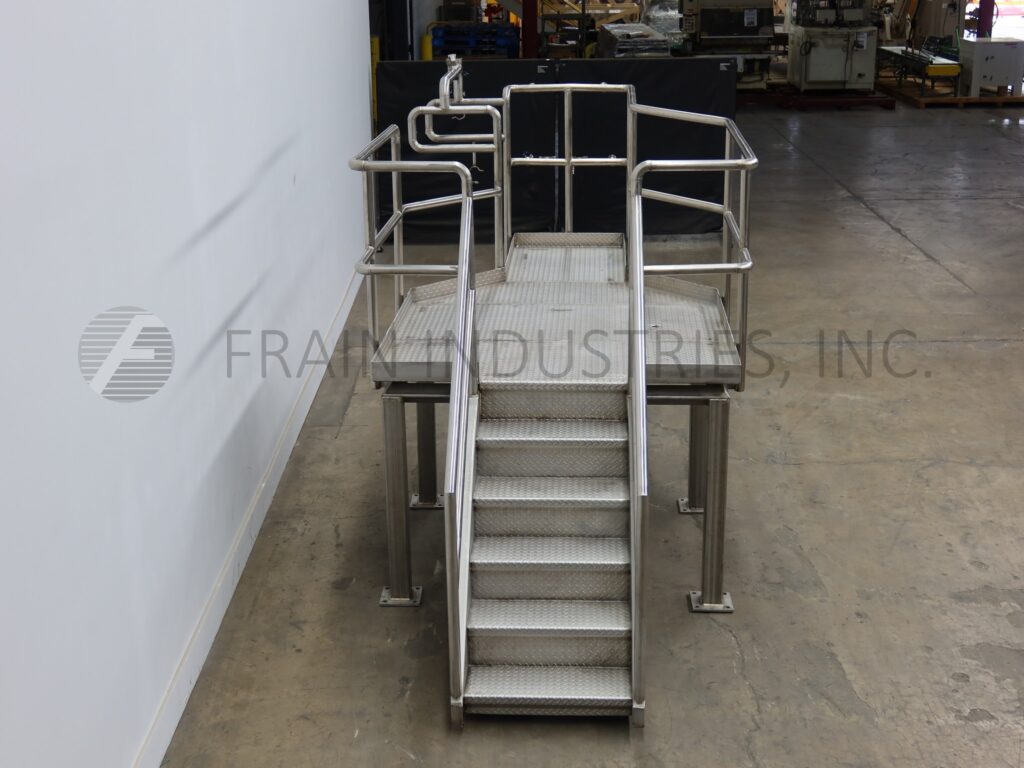

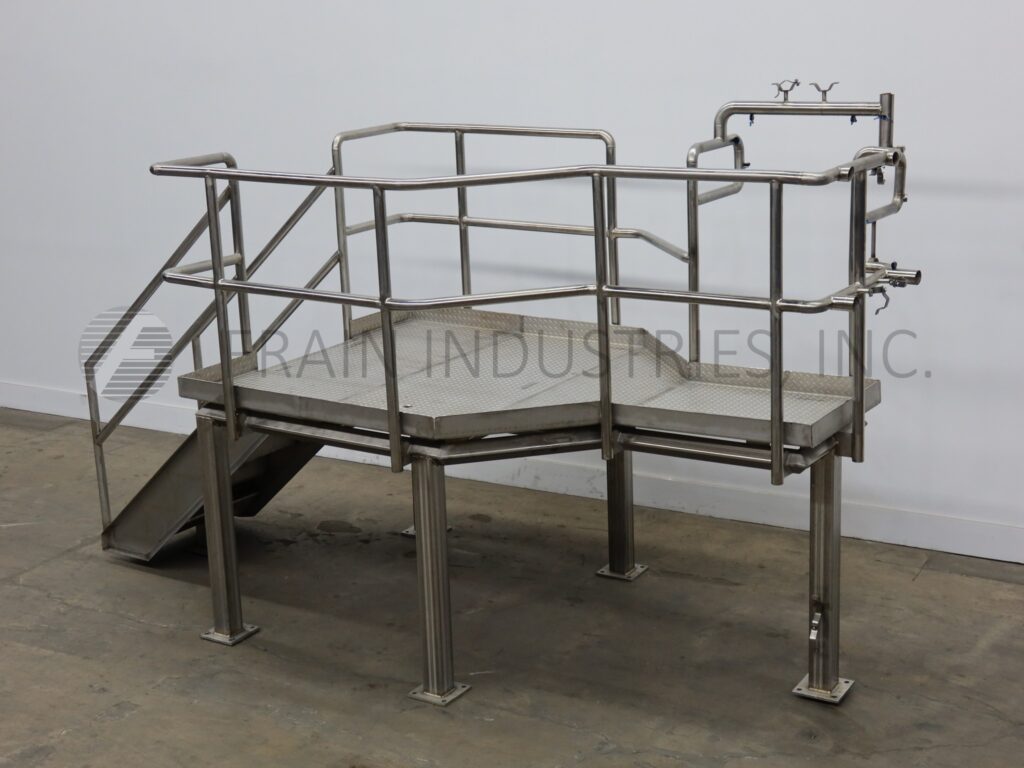

Stainless steel mezzanine equipped with a 68" x 112" standing platform set 47" off the ground, (5) step staircase and 42" high guard rail.
OAD: 164"L x 73"W x 89"H
Cascade Model 40G-SLI, free standing, single clamp, 180° hydraulic pallet inverter with number of loads per hour – depending on materials, application and operator dexterity. Load Capacity up to 4,000 lbs. Equipped with 48" Long x 48" Wide load table, 32" minimum to 66" maximum jaw opening size range,10 Hp power pack and push button control package. Mounted on heavy duty frame.Loaded and relocated by forklift.
OAD: 56"L x 78"W x 96"H

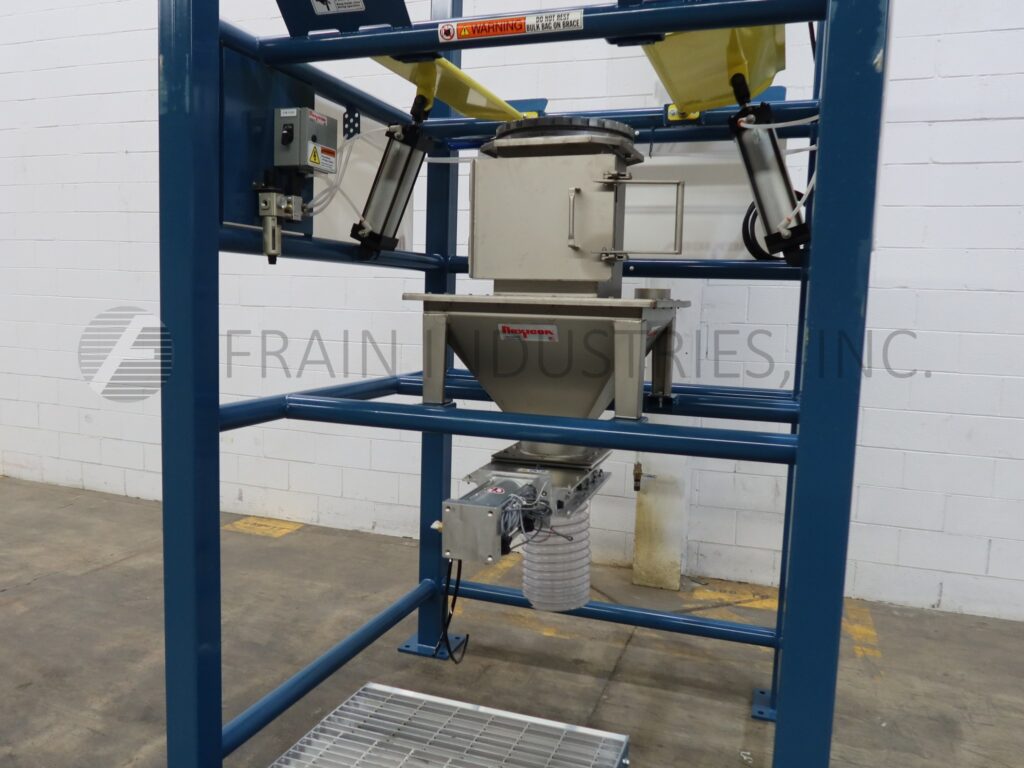

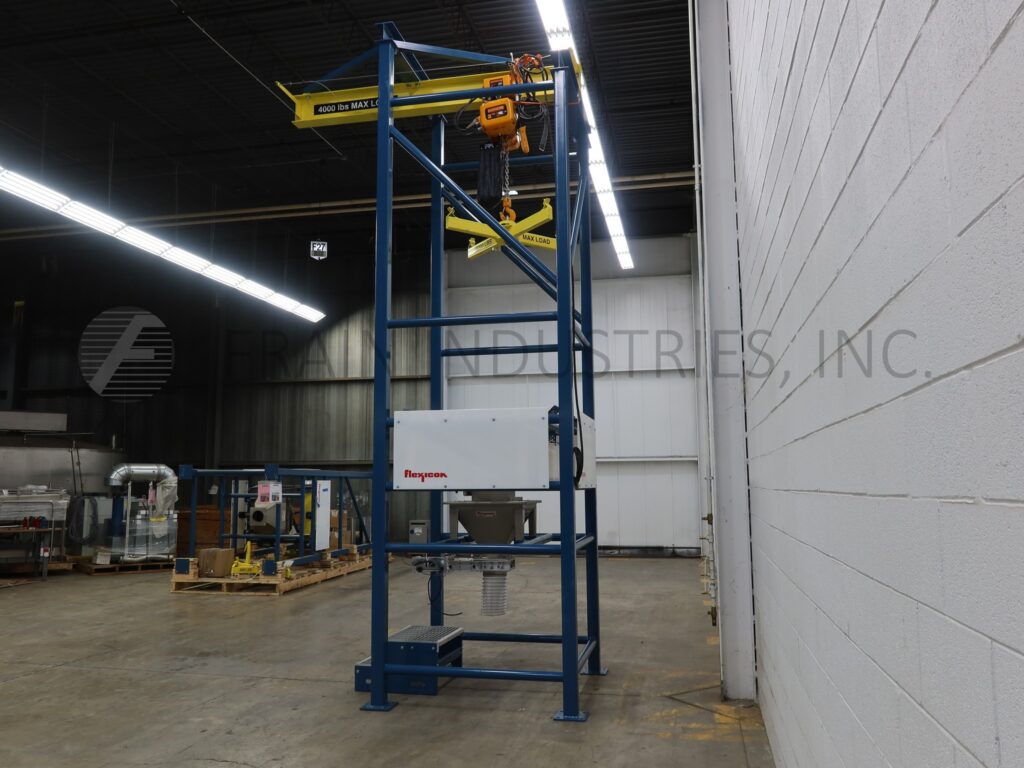

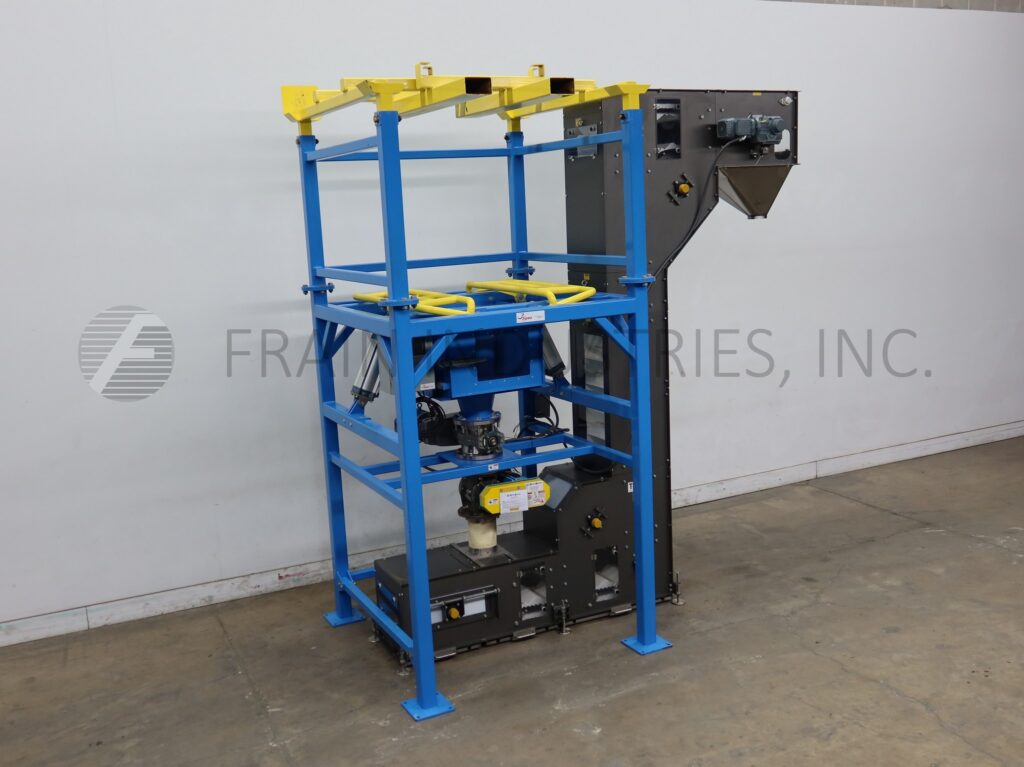

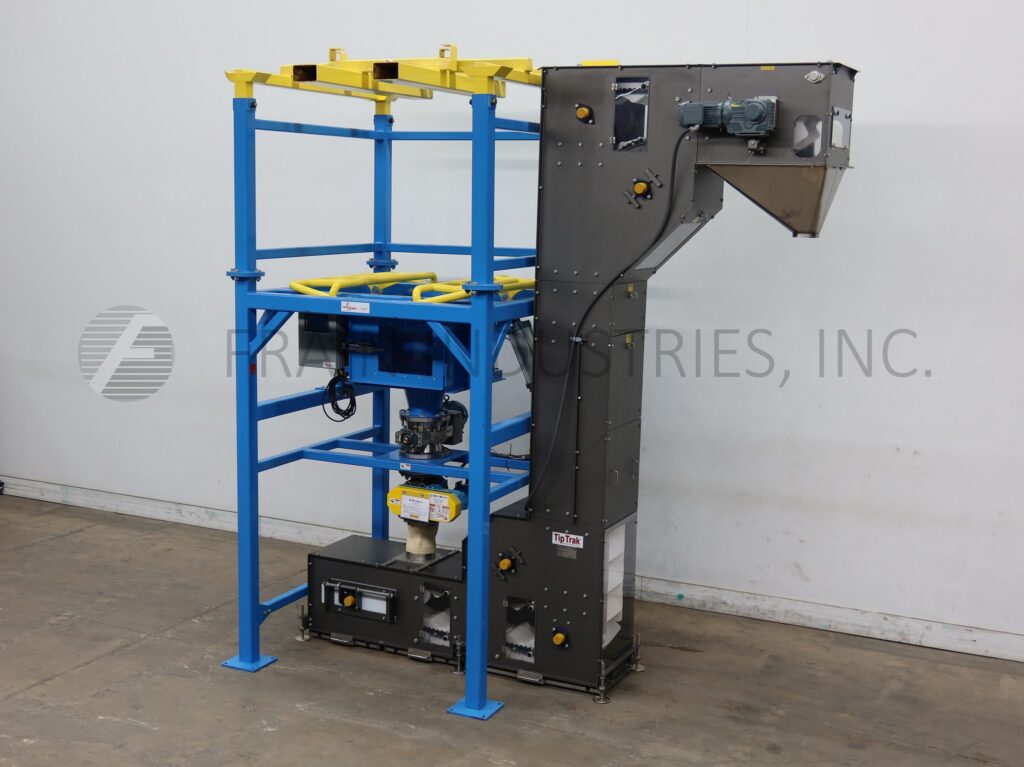

3Sigma Systems, bulk bag super sack unloading system. Rated to 4,400 lbs capacity bags with number of pounds and bulk bags per hour – depending on materials, application, operator dexterity and machine configuration. Equipped with fork liftable 36" long x 34½" wide spider lift bag attachment with adjustable height bag rest, paddle massager, bag access chamber, 5 HP clump breaker, ½ hp rotary airlock and has 8" diameter discharge with 33" ground clearance into bucket elevator. UniTrak bucket elevator equipped with 10¼" wide x 4½" long x 5" deep buckets, 8" diameter charge port, 66" long bottom horizontal run, 128" vertical run with a 20" wide frame, 48" long top horizontal run and 6" diameter discharge with 114" ground clearance.
OAD: 145"L x 77"W x 158"H

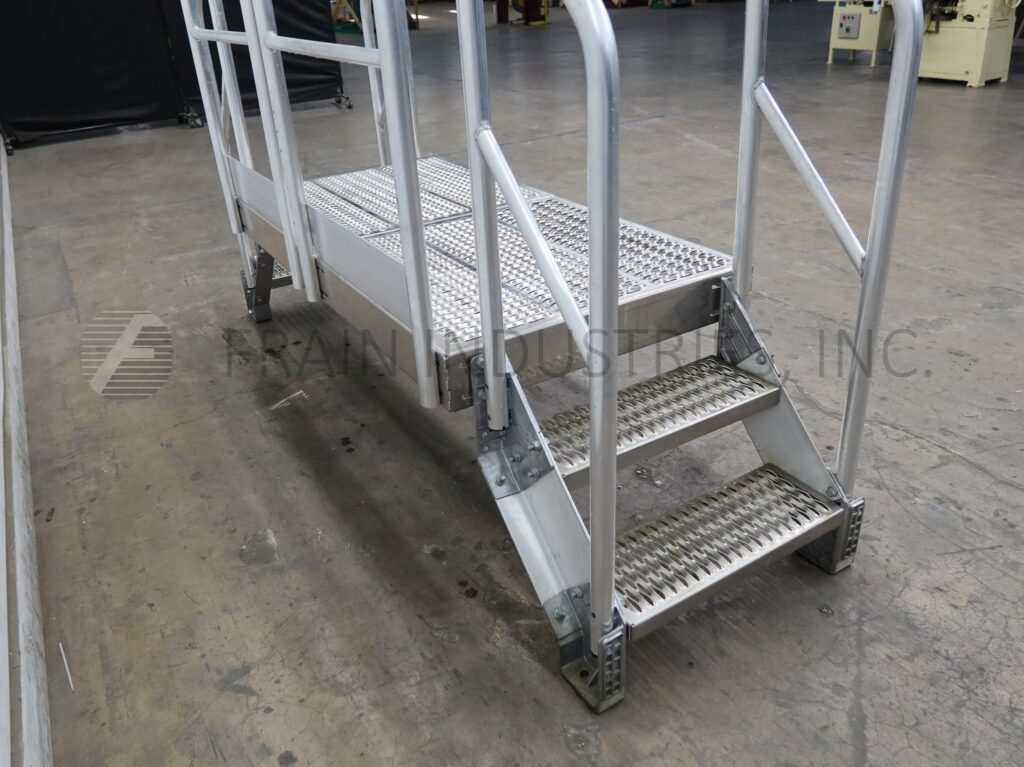

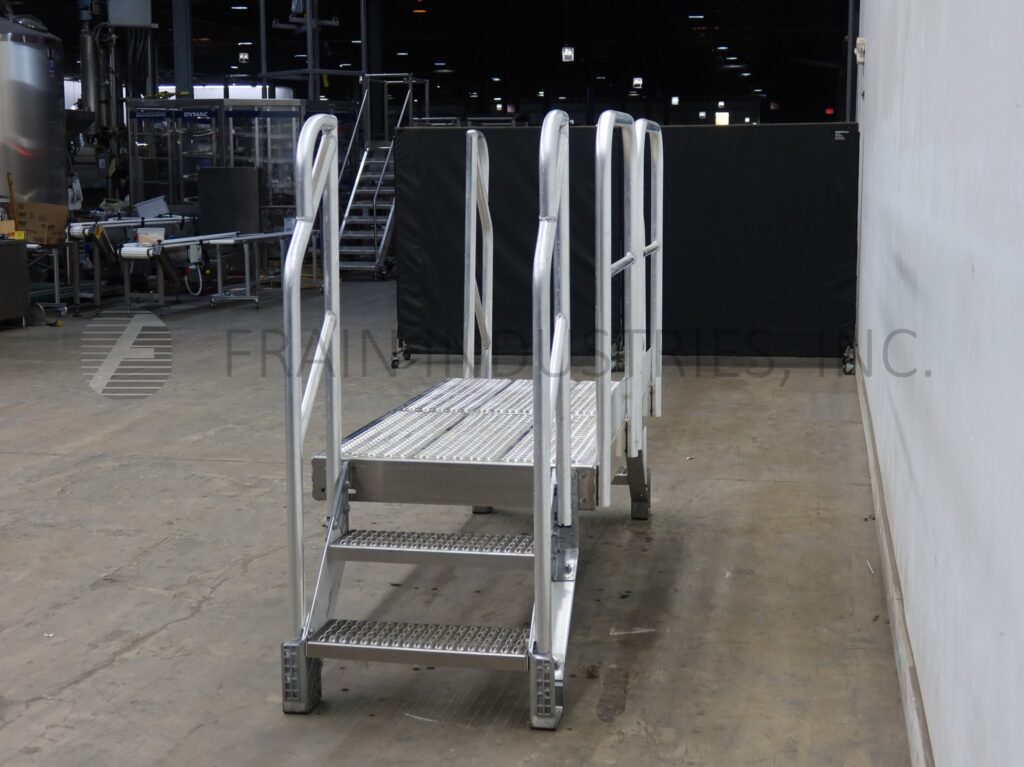

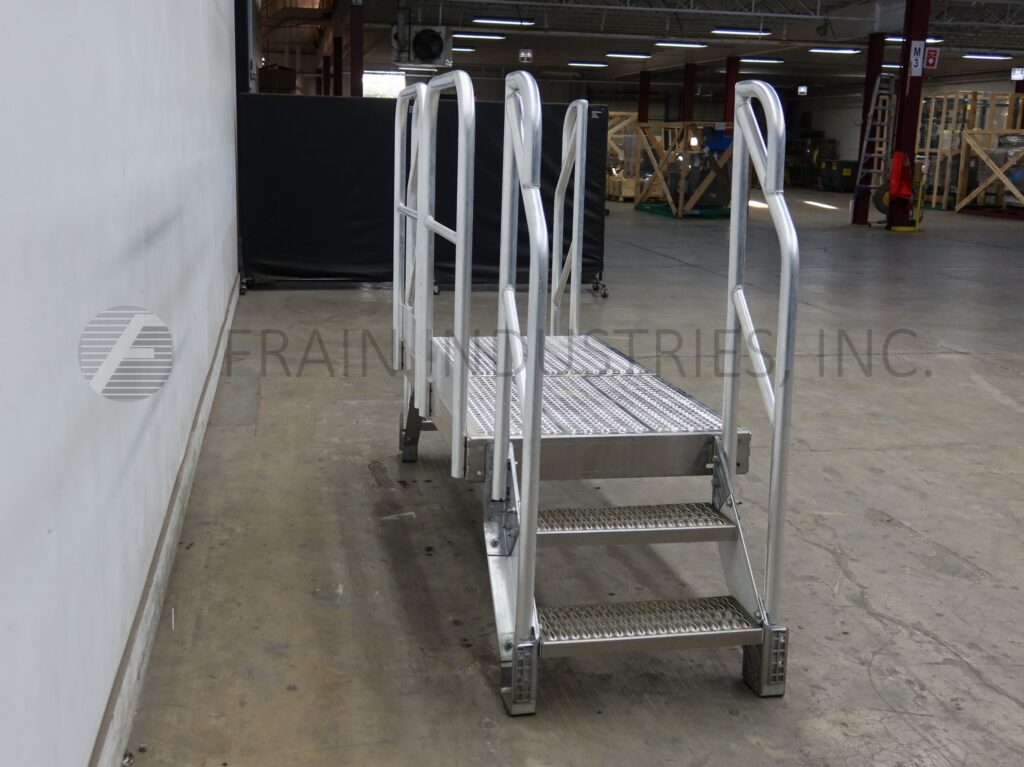

Aluminum mezzanine equipped with a 72" x 36" standing platform with 42" high guard rail set 27" off the ground, (2) step staircase each side and 21" crossover clearance.
OAD: 109"L x 38"W x 70"H
