Vemag Model 500, continuous, twin screw, vacuum stuffer rated from 500 to 2200 Kg’s of product per hour with portion weights from 15 to 10,000 grams – depending on materials and application Filling pressure up to 20 Bar. Equipped with 24" OD x 26" deep stainless steel, tilt back product hopper with auger, side scraper, center baffle and 3-1/2" x 14" long carbon steel twin screw product feed system (change part per application), side vacuum pot and plug port with filter screen, knee level adjustment lever, vacuum pressure gauge, oil-less vacuum pump and discharge port with guillotine product cut-off and 100" long x 10" wide product discharge conveyor. Control panel has Vemag 878 portioning operating panel. touch pad PanelView controller with start / stop push buttons. Mounted on (4) leg frame.
OAD: 45" L x 30" W x 63" H Stuffer 100" L x 10" W x 42" H Discharge Conveyor
Henry & Sons Model 3000 S1, continuous, stainless steel vacuum stuffer, rated from 60 to 300 lbs per minute or 60 to 12,000 lbs per hour – depending on materials and application. Equipped with 36" diameter x 29" deep, stainless steel product hopper with side scraper and cover, double screw feed system (change part per application). 10 Hp motor drive and is capable of speeds from 35 to 450 rpm. 3-1/2" OD sanitary, threaded discharge horn attachment and holder, (2) 3-1/4" side vacuum glass site ports with filter screens and (1) top 3" diameter top site port, knee level adjustment lever and start / stop, portion on / off controls with vacuum gauge and oil-less vacuum pump. Mounted on stainless steel frame.
OAD: 64" L x 34" W x 76" H

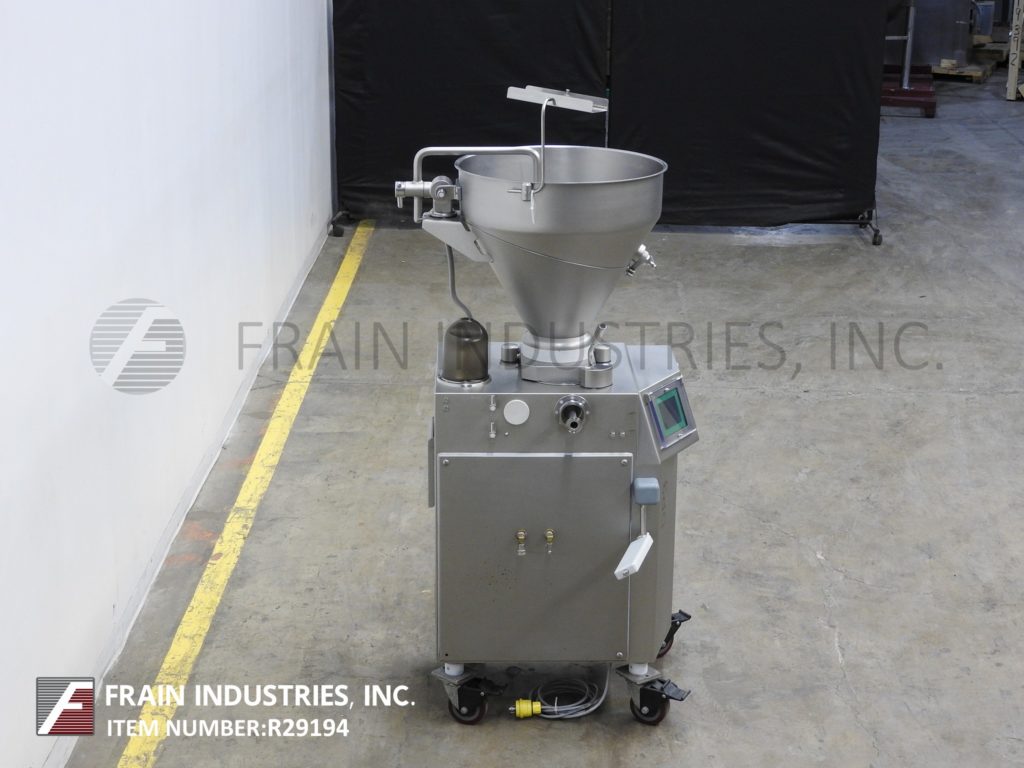

Vemag DP3, continuous, stainless steel, rotary vane pump, stuffer, portioner, designed for smaller quantities and easy cleaning (for frequent product change over) with pounds of product per hour – depending on materials and application. Weights from 10 to 200 grams. Equipped with 24" diameter x 24" deep tilt back divided product hopper with screw and side scrape, rotary vane product feed, vacuum pot, plug port and filter screen, knee level adjustment lever, vacuum pressure gauge, oil-less vacuum pump and 3" OD threaded discharge port with 40" floor clearance. Touch screen controller, portion and vacuum control dial and start / stop push buttons. Speeds dependant on materials, application and machine configuration. (Example: up to 140 portions per minute on a 10gm portion.) Mounted on casters.
OAD: 31" L x 27" W x 72" H

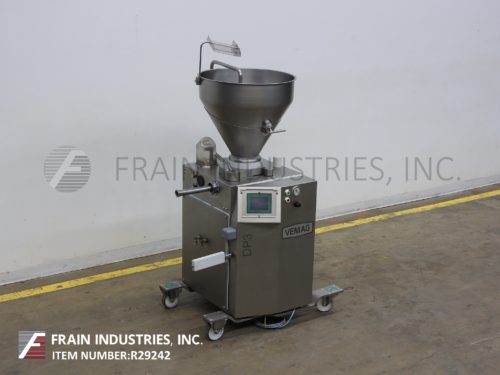

Vemag DP3, continuous, stainless steel, rotary vane pump, stuffer, portioner, designed for smaller quantities and easy cleaning (for frequent product change over) with pounds of product per hour – depending on materials and application. Weights from 10 to 200 grams. Equipped with 24" diameter by 24" deep tilt back divided product hopper with screw and side scrape, rotary vane product feed, vacuum pot, plug port and filter screen, knee level adjustment lever, vacuum pressure gauge, oil-less vacuum pump and 3" OD threaded discharge port with 40" floor clearance. Touch screen controller, portion and vacuum control dial and start / stop push buttons. Speeds dependant on materials, application and machine configuration. (Example: up to 140 portions per minute on a 10gm portion.) Mounted on casters.
OAD: 31" L x 27" W x 67" H

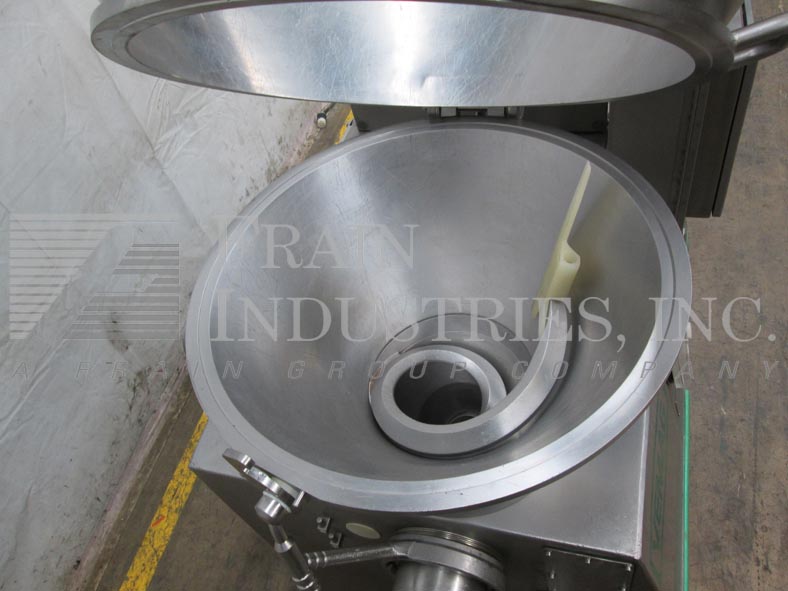

Vemag Model HP 15S, stainless steel, vacuum stuffer rated from 35 rpm to 450 rpm. Equipped with 36" OD x 34" deep tilt back product hopper (with auger and side scrape attachment) and double screw product feed system with 8-1/8" OD and 6" ID sanitary threaded discharge and plug port with filter screen and has fill pressure up to 40 bar, with oil-less vacuum pump and cart loader. Control panel has A/B controller with panel view and e-stop. Mounted on (4) leg frame. Rates / volumes dependent on materials, application and machine configuration.
OAD: 90" L x 54" W x 82" H
