Mill Machines

Used Mill Equipment

There are many different names that are used to describe particle size reduction: milling, grinding, granulating, comminuting, etc. Milling systems can size reduce wet or dry powders. Their are variable speed drives that permit low speed screening and high speed impacting with one milling system. A typical milling system consists of an inlet chamber with a rotor screen and an outlet. The particle size depends upon the speed of the rotor, rotor type, screen hole size and the feed rate of the product. High shear granulation turns powders into dense granules for tableting or coating. Powders are added to a mixing bowl. A large impeller spins the powders into a vortex. A chopper tool shears the granules and removes the air. The granulated product is dried in the mixing bowl or fluid bed dryer.
Contact Us

Related Categories

Mill Equipment In Stock

Photo of Greerco Mill Colloid W250V

Greerco Mill Colloid W250V

Thumbnail of Greerco Mill Colloid W250V Thumbnail of Greerco Mill Colloid W250V Thumbnail of Greerco Mill Colloid W250V Thumbnail of Greerco Mill Colloid W250V

Greerco Mill Colloid W250V

  • Manufacturer: Greerco
  • Model Number: W250V
  • Frain Number: 5C3187

Greeco Model W250V colloid mill capable of complete dispersion and deagglomeration of liquids in liquids or solids in liquids at rates from 5 to 150 Gallons per hour – depending on materials and application. Equipped with 12" diameter 5 gallon capacity 316 stainless steel hopper with recirculation pipe and bypass valve for multipass operation, truncated cone shaped 2-1/2" diameter rotor and a concave shaped stator. controller with start / stop controls and mounted on base frame. Used for cosmetics, emulsions, oils, dispersions, waxes and others

OAD: 34" L x 28" W x 54" H

Get a Free Quote Call: 630-629-9900
Photo of Fitzmill Mill Hammer DAS06

Fitzmill Mill Hammer DAS06

Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06

Fitzmill Mill Hammer DAS06

  • Manufacturer: Fitzmill
  • Model Number: DAS06
  • Frain Number: R30380

Fitzmill, Model DAS06, stainless steel hammer mill with pounds of product per hour – depending on materials and application. Equipped with 20" wide x 20" long x 4" deep feed pan, (16) fixed knife / impact blades and 15" x 5" discharge with 32" of ground clearance. Mounted on (4) leg stainless steel frame with casters.

OAD: 48"L x 30"W x 61"H

Get a Free Quote Call: 630-629-9900

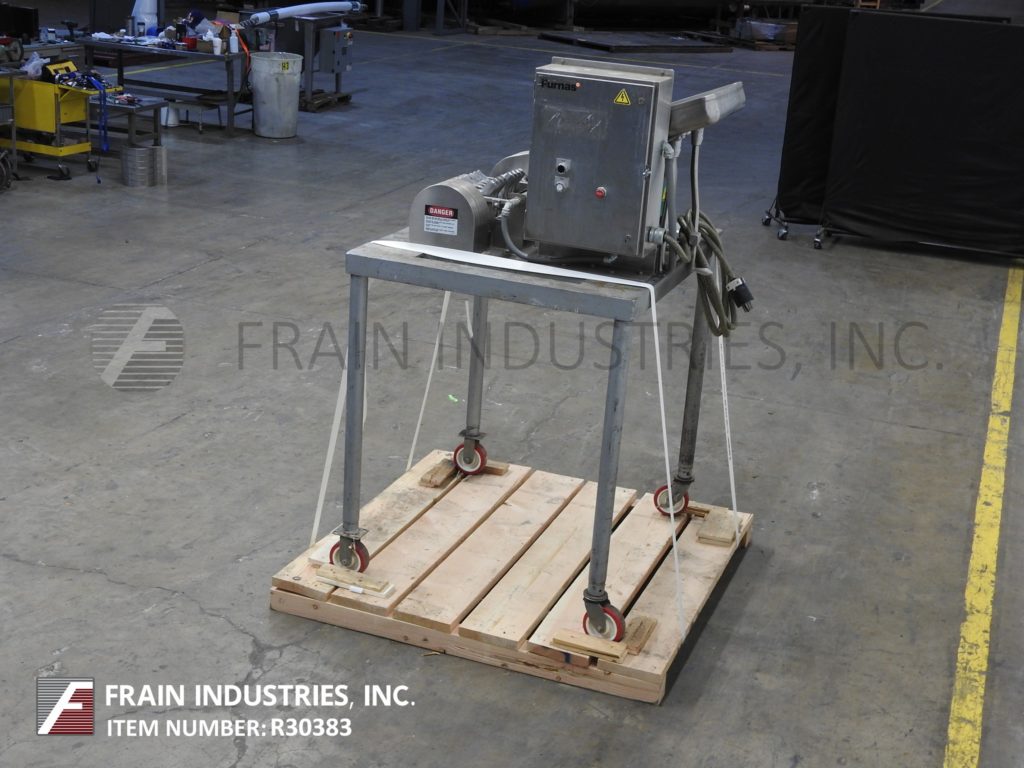

Photo of Fitzmill Mill Hammer DKAS012

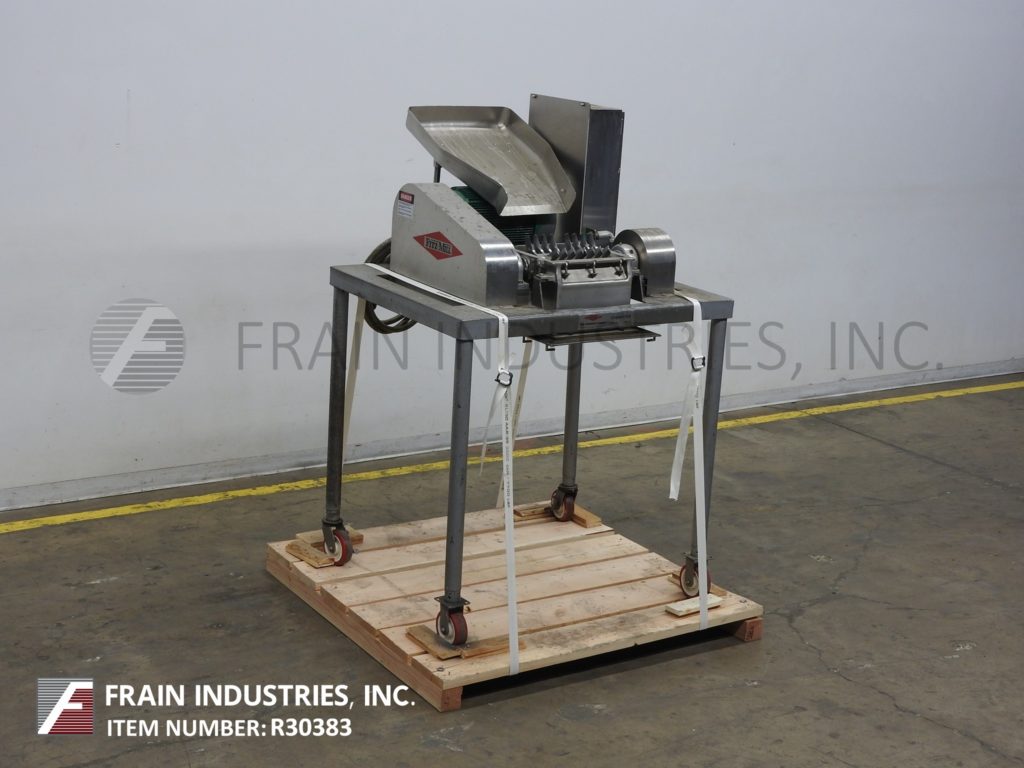

Fitzmill Mill Hammer DKAS012

Thumbnail of Fitzmill Mill Hammer DKAS012 Thumbnail of Fitzmill Mill Hammer DKAS012 Thumbnail of Fitzmill Mill Hammer DKAS012 Thumbnail of Fitzmill Mill Hammer DKAS012

Fitzmill Mill Hammer DKAS012

  • Manufacturer: Fitzmill
  • Model Number: DKAS012
  • Frain Number: R30383

Fitzmill, Model DKAS012, stainless steel hammer mill with pounds of product per hour – depending on materials and application. Equipped with 20" wide x 24" long x 4" deep feed pan, (32) 3" long x 1½" wide fixed knife blades and 12" x 15" discharge with 45" of ground clearance. Mounted on (4) leg stainless steel frame with casters

OAD: 50"L x 50"W x 78"H

Get a Free Quote Call: 630-629-9900
Photo of Fitzmill Mill Hammer DAS06

Fitzmill Mill Hammer DAS06

Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06

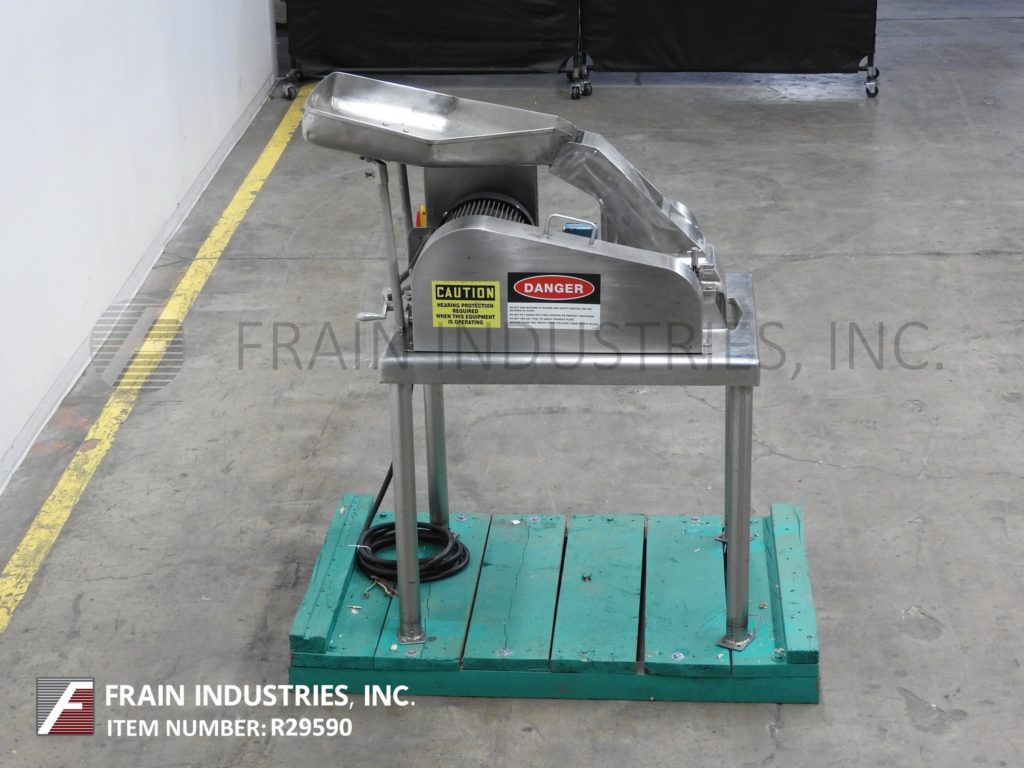

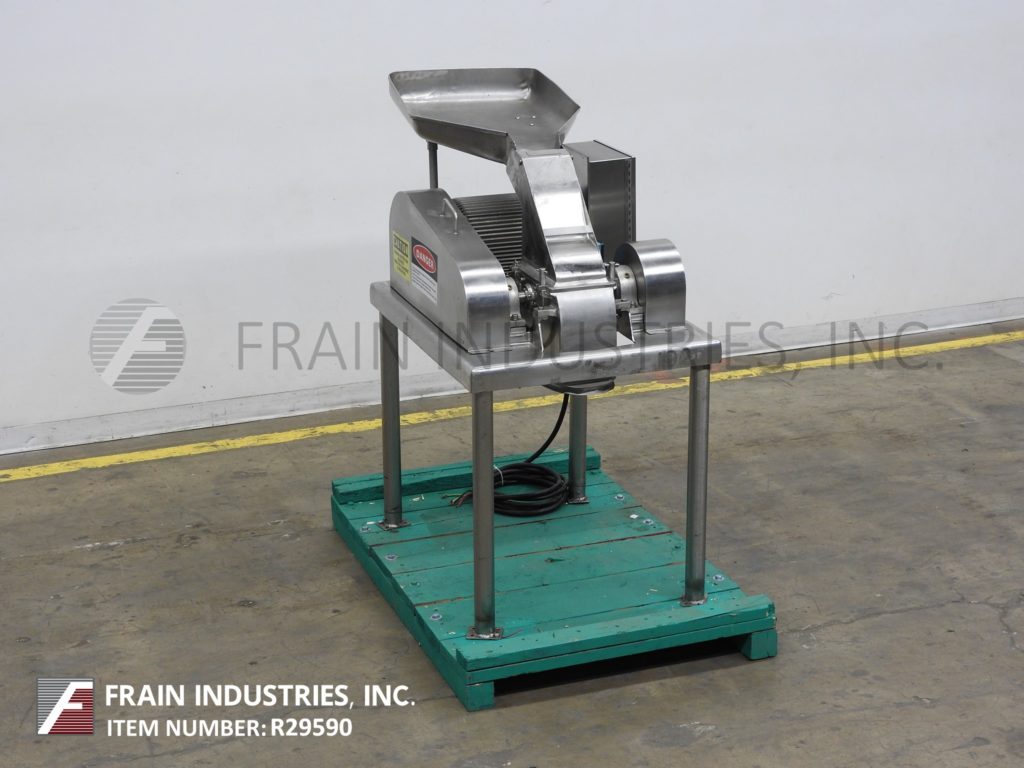

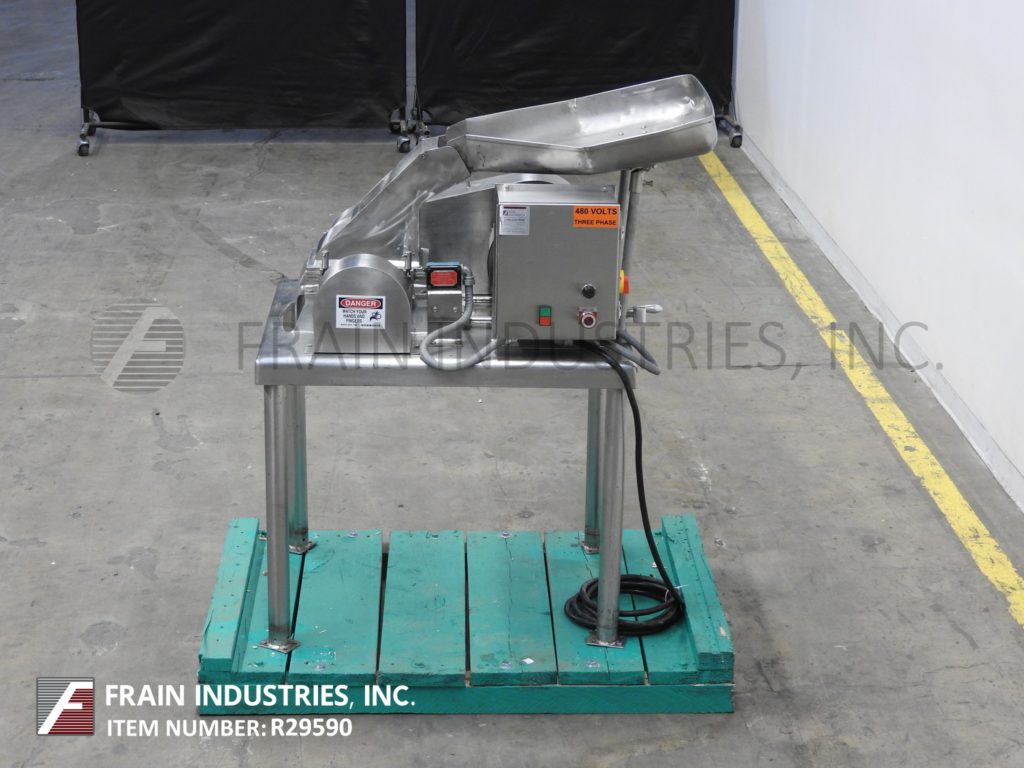

Fitzmill Mill Hammer DAS06

  • Manufacturer: Fitzmill
  • Model Number: DAS06
  • Frain Number: R29590

Fitzmill, Model DASO6, stainless steel hammer mill with production rates per hour – depending on materials, application and machine configuration. Equipped with a 28" long x 20" wide x 4" deep feed pan, 6" wide x 4" high feed throat, 11” long x 6” wide blade chamber and (16) fixed knife/impact blades powered by a 7½ Hp motor drive. Product discharge is 15½” long x 5¾” wide with 34” floor clearance. Start / stop controls, mounted on (4) legs with casters.

OAD: 48"L x 35"W x 64"H

Get a Free Quote Call: 630-629-9900
Photo of Micron Powder Systems Mill Hammer 2DH

Micron Powder Systems Mill Hammer 2DH

Thumbnail of Micron Powder Systems Mill Hammer 2DH Thumbnail of Micron Powder Systems Mill Hammer 2DH Thumbnail of Micron Powder Systems Mill Hammer 2DH Thumbnail of Micron Powder Systems Mill Hammer 2DH

Micron Powder Systems Mill Hammer 2DH

Micron Model Mikro 2DH, hammer mill, with rates of production per hour – depending on materials, application and machine coniguration. Equipped with stainless steel contact parts, 16" x 16" x 13" deep hopper, 12" long x 3" OD twin feed screws, (24) rotary split swing hammers driven by 15 Hp motor and has 24" OD cover with 5" OD air relief port. Main and feeder motor start and stop push button controls with e-stop. Mounted on (4) leg frame with casters.

OAD: 48" L x 48" W x 63" H

Get a Free Quote Call: 630-629-9900
Photo of Fitzmill Mill Hammer DAS06

Fitzmill Mill Hammer DAS06

Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06

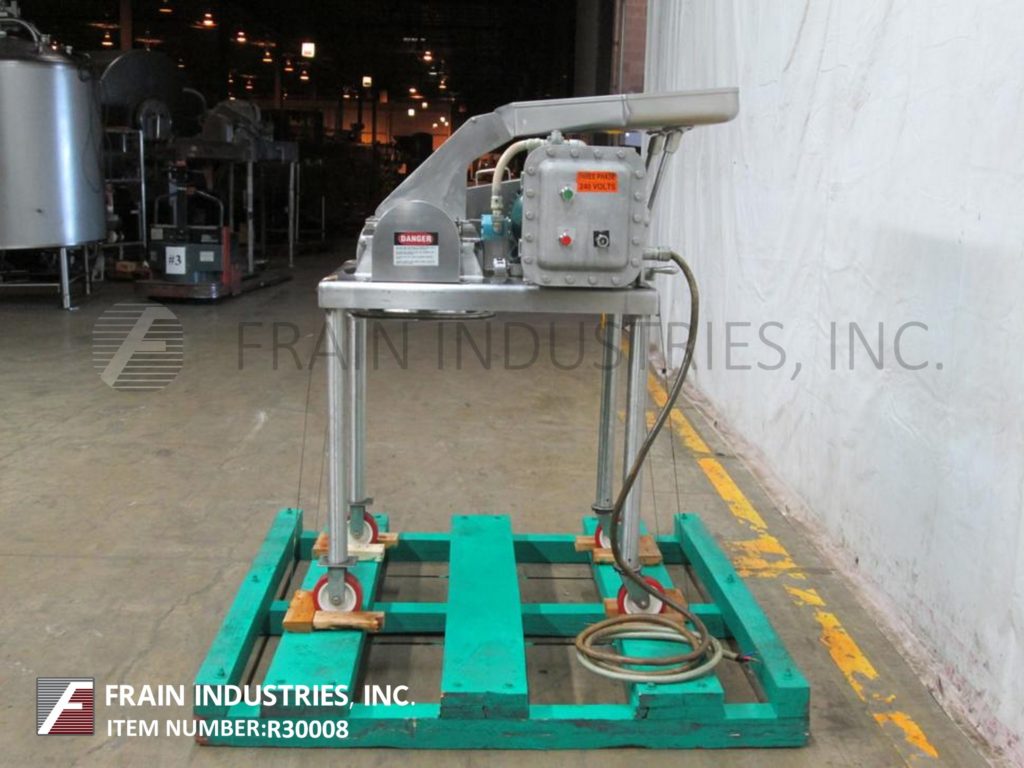

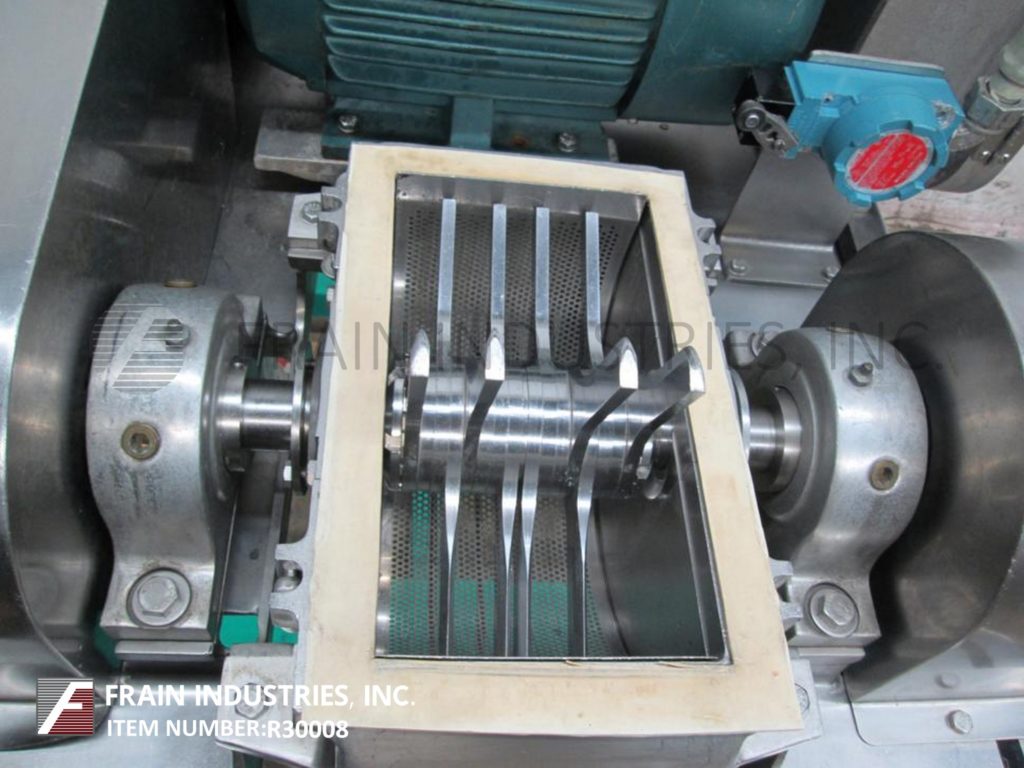

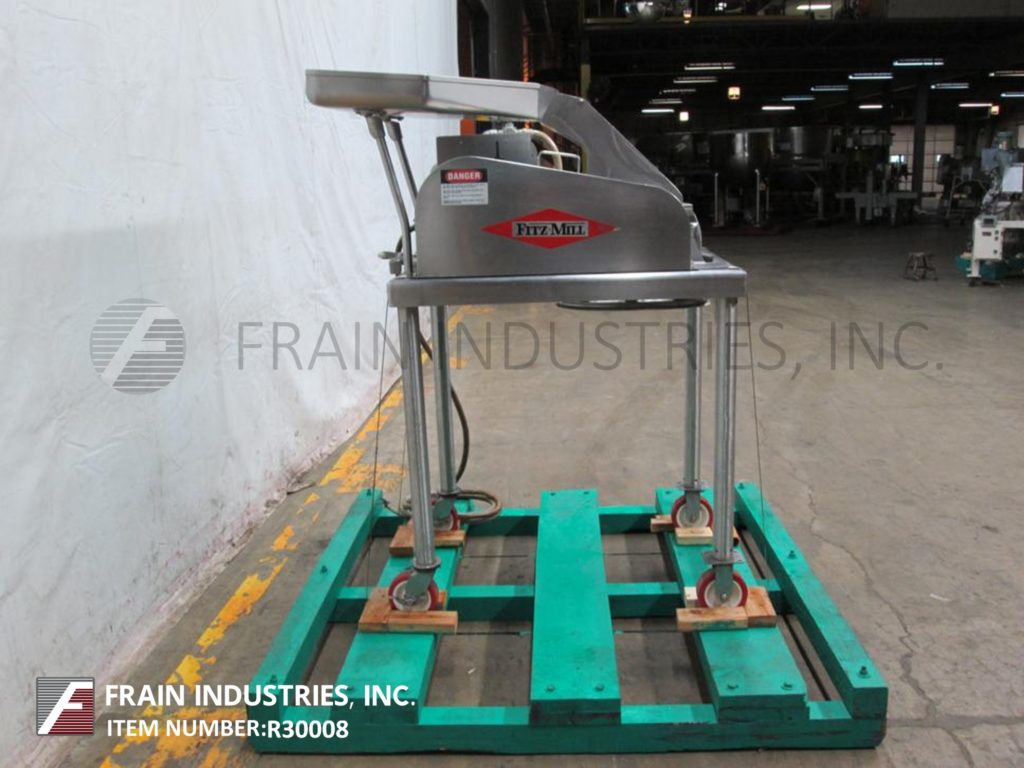

Fitzmill Mill Hammer DAS06

  • Manufacturer: Fitzmill
  • Model Number: DAS06
  • Frain Number: R30008

Fitz mill Model DAS06, 316 stainless steel, pan fed hammer mill. Equipped with 26" long x 20" wide stainless steel feed pan, with 6" x 11" feed throat and 16 fixed stainless steel blunt / knife blades with a discharge height of 36". Control panel with start, stop, e-stop controls and VFD. Mounted on (4) stainless steel legs with casters. Rates dependent on materials, application and machine configuration.

OAD: 52" L x 30" W x 66" H

Get a Free Quote Call: 630-629-9900
Photo of Quadro Mill Hammer 194S

Quadro Mill Hammer 194S

Thumbnail of Quadro Mill Hammer 194S Thumbnail of Quadro Mill Hammer 194S Thumbnail of Quadro Mill Hammer 194S Thumbnail of Quadro Mill Hammer 194S

Quadro Mill Hammer 194S

  • Manufacturer: Quadro
  • Model Number: 194S
  • Frain Number: R29070

Quadro Model 194S, 316 stainless steel particle size reduction Comil. Equipped with 14" diameter x 12" dep stainless steel product hopper, 6" diameter feed throat, 8" diameter screen and 10" diameter discharge port with 36" ground clearance. Variable speed. Rated up to 4,000 lbs of product per hour – depending on materials, machine configuration and application.

OAD: 42"L x 30"W x 64"H

Get a Free Quote Call: 630-629-9900
Photo of Fitzmill Mill Hammer DAS06

Fitzmill Mill Hammer DAS06

Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06

Fitzmill Mill Hammer DAS06

  • Manufacturer: Fitzmill
  • Model Number: DAS06
  • Frain Number: R29370

Fitzmill, Model DAS06, stainless steel hammer mill. with pounds of product per hour – depending on materials, application and machine configuration. Equipped with a 9" wide x 52" long x 5" deep vibratory feed pan and (16) fixed knife blades powered by 10 Hp motor drive. Product discharges onto a 16" wide inclined take away conveyor with 1" high cleats set on 12" centers and a 49" discharge height. Control panel with push button start / stop and variable speed touch pad.

OAD: 182"L x 45"W x 85"H

Get a Free Quote Call: 630-629-9900
Photo of Quadro Mill Hammer 197

Quadro Mill Hammer 197

Thumbnail of Quadro Mill Hammer 197 Thumbnail of Quadro Mill Hammer 197 Thumbnail of Quadro Mill Hammer 197 Thumbnail of Quadro Mill Hammer 197 Thumbnail of Quadro Mill Hammer 197

Quadro Mill Hammer 197

  • Manufacturer: Quadro
  • Model Number: 197
  • Frain Number: R29071

Quadro Model 197, 316 stainless steel particle size reduction Comil. Rated from 360 to 800 lbs of product per hour – depending on materials and application. Equipped with 10" diameter x 6" deep stainless steel product hopper, 3" diameter feed throat, 5" diameter screen and 6" diameter discharge port with 13" ground clearance. Mounted on stainless steel (4) leg base frame with variable speed control.

OAD: 28"L x 13"W x 32"H

Get a Free Quote Call: 630-629-9900

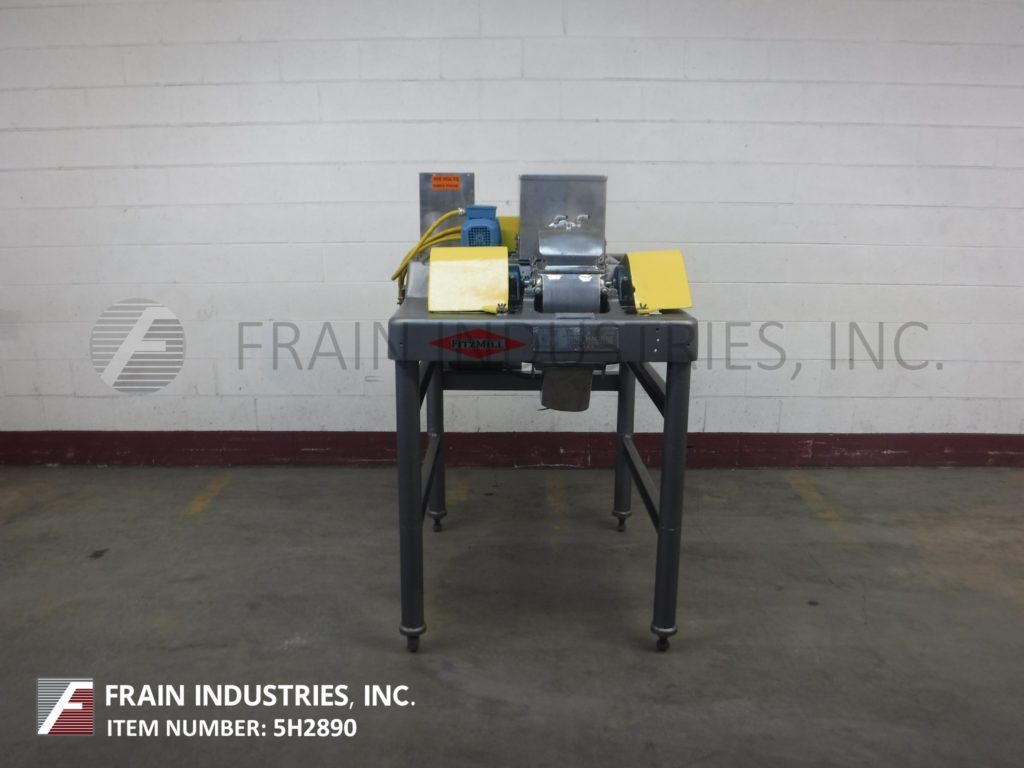

Photo of Fitzmill Mill Hammer DAS06

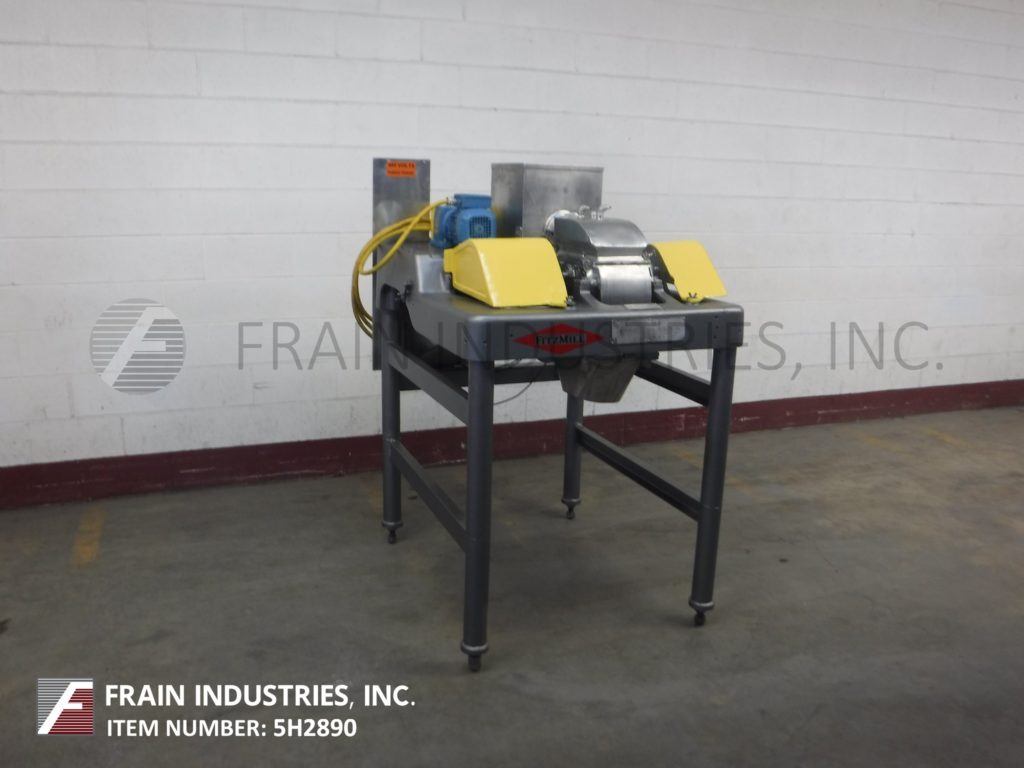

Fitzmill Mill Hammer DAS06

Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06

Fitzmill Mill Hammer DAS06

  • Manufacturer: Fitzmill
  • Model Number: DAS06
  • Frain Number: 5H2890

Fitzmill, Model DAS06, stainless steel hammer mill. with pounds of product per hour – depending on materials and application. Equipped with 12" long x 12" wide x 12" deep (½ ft³) product hopper, 4" diameter feed screw with 2" centers powered by ¾ HP drive and (26) 4" long x 3" wide fixed knife blades powered by a 15 hp drive. Product discharge is 9½”L x 6” W with 31" of ground clearance. Mounted on (4) leg painted frame base.

OAD: 55"L x 40"W x 62"H

Get a Free Quote Call: 630-629-9900
Photo of Morehouse Cowles Mill Ball & Pebble 10-25PX

Morehouse Cowles Mill Ball & Pebble 10-25PX

Morehouse Cowles Mill Ball & Pebble 10-25PX

Morehouse Cowles Model 10-25P, single vessel pressure media mill, single pass, rated from 35 to 225 gallons per hour – depending on materials, application and machine configuration. Equipped with 12" OD x 40" long grinding chamber with 1-1/2" ID threaded top port and 1-1/2" ID threaded bottom port, chamber contains (12) parallel 10" OD agitator disks mounted on a high speed shaft and when the shaft is spinning high energy is produced by the disks to the media and when product is added the motion of the disks and grinding media produce high impact force that uniformly deagglomerates product to any specified size or finish. Full water jacket used as needed to keep product warm or cold per application is rated at 50 psi, product move through the grinding chamber, enters the bottom and is ground by the media as it rises through the chamber and exits through the 8" OD top hat screen. Driven by top mounted 30 Hp (4) V-belt motor drive, with start, stop, e-stop push button controls pressure / temperature gauges.
Gross Volume:15 gallons
Typical Media Load: 55-60% of Total Gross Volume
Media required per application.

OAD: 58" L x 36" W x 90" H

Get a Free Quote Call: 630-629-9900
Photo of Fitzmill Mill Hammer JT

Fitzmill Mill Hammer JT

Thumbnail of Fitzmill Mill Hammer JT Thumbnail of Fitzmill Mill Hammer JT Thumbnail of Fitzmill Mill Hammer JT Thumbnail of Fitzmill Mill Hammer JT

Fitzmill Mill Hammer JT

  • Manufacturer: Fitzmill
  • Model Number: JT
  • Frain Number: R28902

Fitzpatrick, Model JT, stainless steel homoloid mill. with production rates per minute – depending on materials, application and machine configuration. Equipped with 15" diameter x 10" deep feed hopper with 3" diameter feed throat, (15) fixed knife blades and 10" long x 6" wide bottom product discharge with 21” ground clearance. Push button start / stop controls. Mounted on stainless steel base frame with casters.

OAD: 42"L x 37"W x 47"H

Get a Free Quote Call: 630-629-9900
