Frain Industries has many used robotic palletizers and other end of line packaging equipment in stock and ready to set up for your application. Frain Industries can engineer a robotic palletizing solution depending on your application, speed requirements, pack pattern, pack size, footprint, and line integration requirements. Frain has robotic palletizing solutions for many applications including: cases, shrink film, display packs, plastic containers, bags, bales, trays, bundles, pails, drums, cans, bottles and many others.
Additionally Frain has the ability to integrate palletizer accessories including:
Frain Industries carries used palletizers from many OEM’s including: ABB Automation, Adept, Advance Lifts, Allen, Alvey, Automated Production Systems, Busse Brothers, Chatland, Columbia, Currie, FMC, Kinetic, Meridian, Mollers, Ouellette, RMT, Seco, Slidell, Top Tier Inc, Uni-Pak, Von Gal, Whallon and many other

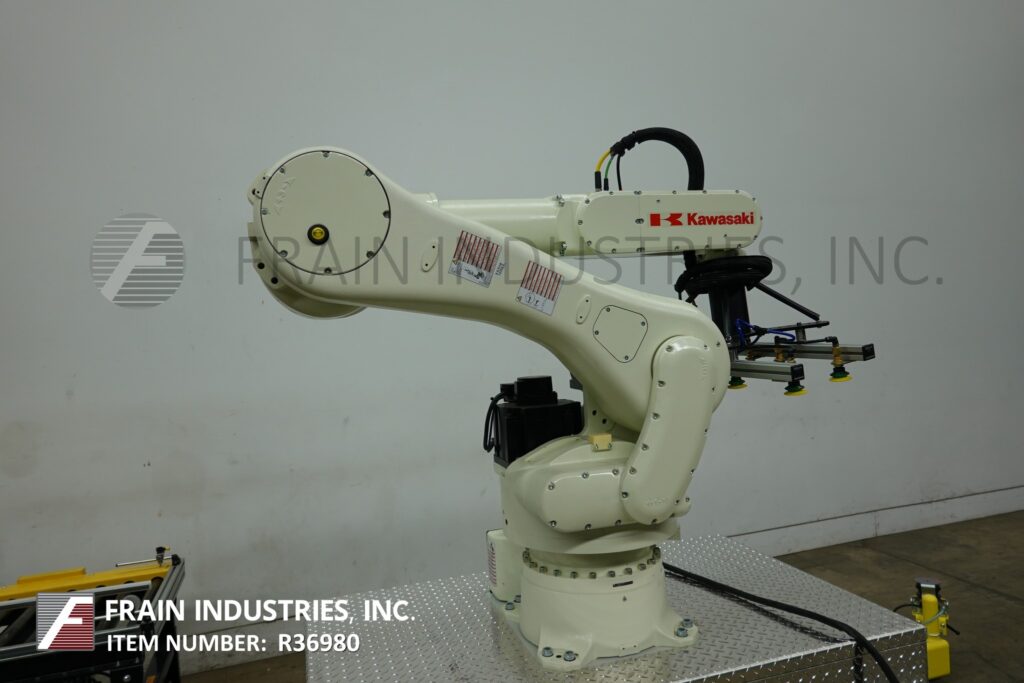

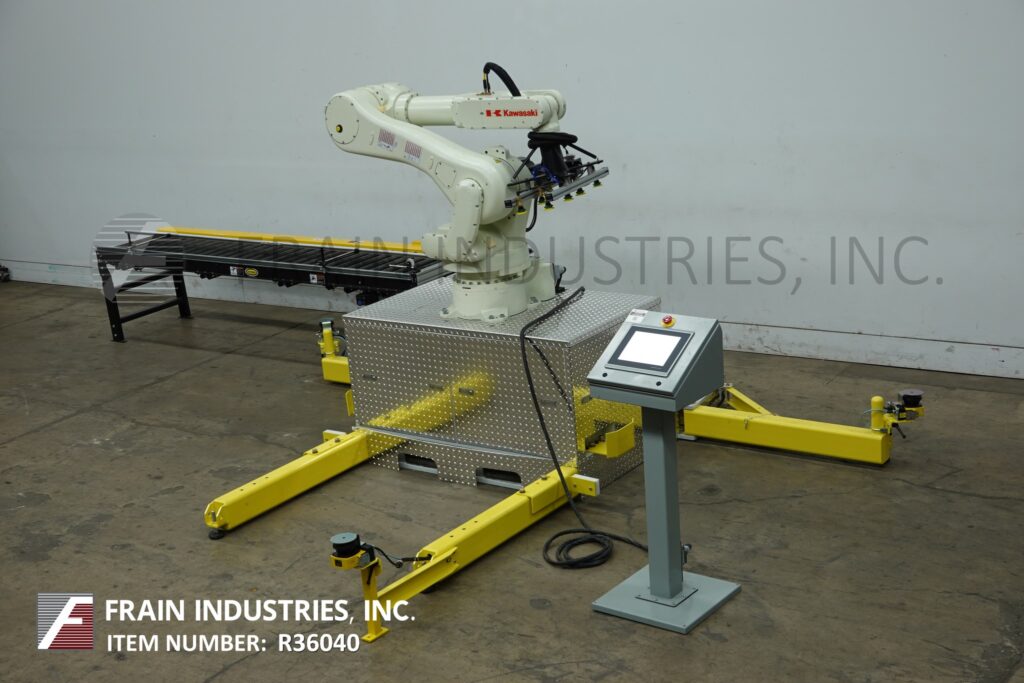

BTB Solutions LLC, Model REAPR, (rapidly employed palletizing system) with 6 axis, articulated, rotary joint, robotic, pic-n-place arm. The system has a Kawasaki RS080N robot arm with 24" long (4) suction cup end effector and has a stack height up to 79" with a maximum reach of 82" and maximum pick-up weight of 160 lbs. Capable of 3 pallet positions. Product infeed roller conveyor is 22" wide x 118" long with 2" diameter rollers set on 4" centers. Control panel has A/B PLC with A/B HMI panelview with step by step setup. (3) 2D area scanners provide 360 degree safety protection with (2) configurable zones (warning zone – slows the robot’s motion and stop zone – stops all motion). Mounted on heavy duty frame. Rates dependent on materials, application, environment, pattern configuration and type of end effector.
OAD: 74" L x 67" W x 80" H (Robot) : 123" L x 34" W x 32" H (Conveyor)

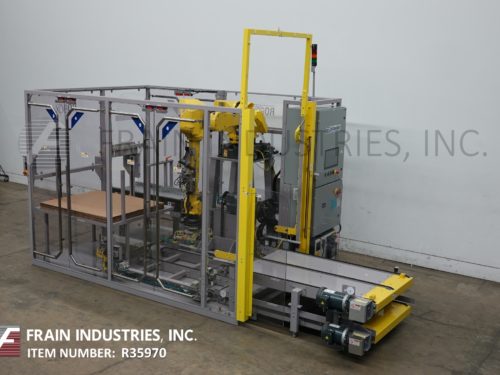

Schneider Model Robox, Robotic palletizing system with (5) axis, articulated, rotary joint, servo driven, robotic, pic-n-place arm rated from 1 to 15 cycles per minute with number of product – depending on materials, application, machine configuration and pack pattern. Painted carbon steel construction. Case size range: 6.5" to 22" in length, 4.5" to 16" in width and 3" to 16" in height. Pallet dimensions 48" x 40" x 4.5". Maximum pallet load size: 41" x 48" x 80" and sheet sizes 30" x 30" to 48" x 40" vacuum pickable. with maximum case pick-up weight of 80 lbs. Ambient temperature of 35º F to 100ºF and 95% RH non-condensing. Magazine pallet sheet and layer sheet capable. Fanuc M-7 10iC/50H Robot, with vacuum tooling end arm affector. Over / Under conveyor, has (3000 pound) capacity and 20 second cycle. Double perimeter guard locking doors located along the length of pallet provides operators easy access to pallet and has 80" long infeed conveyor with 30" to 36" infeed height and 0" to 15" discharge height. Control panel has Rockwell Automation Compact GaurdLoix PLC with VersaView 12" touchscreen HMI and statis light bar. UL Compliance, inspection and labeling of main electrical enclosure. Mounted on heavy duty frame.
OAD: 211" L x 97" W x 90" H
Schneider Model Robox, Robotic palletizing system with (5) axis, articulated, rotary joint, servo driven, robotic, pic-n-place arm rated from 1 to 10 cycles per minute with number of product – depending on materials, application, machine configuration and pack pattern. Painted carbon steel construction. Case size range: 6.5" to 22" in length, 4.5" to 16" in width and 3" to 16" in height. Pallet dimensions 48" x 40" x 4.5". Maximum pallet load size: 41" x 48" x 80" and sheet sizes 30" x 30" to 48" x 40" and vacuum pickable. Maximum pick-up weight of 50 kg. or 110 lbs. Ambient working temperature of 35º F to 100ºF and 95% RH non-condensing. Equipped with pallet sheet magazine, layer sheet capable. Fanuc M-7 10iC/50H Robot has end of arm vacuum tooling end affector. Over / Under conveyor, (3,000 pound) capacity and 20 second cycle time, Double (2) locking doors on perimeter guard located along the length of pallet provides operators easy access to pallet and has 80" long in feed conveyor with 30" to 36" in feed height and 0" to 15" discharge height. Control panel has Rockwell Automation Compact GaurdLoix PLC with VersaView 12" touchscreen HMI and statis light bar. UL Compliance, inspection and labeling of main electrical enclosure. Mounted on heavy duty frame.
Adjustable End-of-Arm Tooling Size range: 10.75 x 7.5″ to 18.25″ to 14.75″ with proper change parts
OAD: 211" L x 97" W x 90" H”

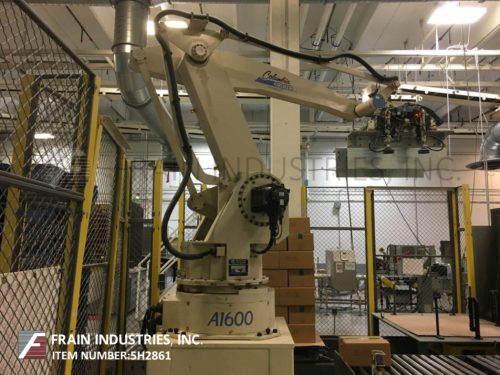

Okura Model A1600, Single robotic, (4) axis, pick and place palletizer arm, 10′ long product infeed conveyor, pallet dispensor, slip sheet, dual powered roller pallet loading areas. Maximum load capacity of: 140 Kg. Remote control panel has New A/B PLC controller with HMI touch pad controls has main power and motor power on / off with start, stop, e-stop controls. Cage style safety guarding and roller in feed and discharge conveyor sections.
OAD: __" L x __" W x ___" H

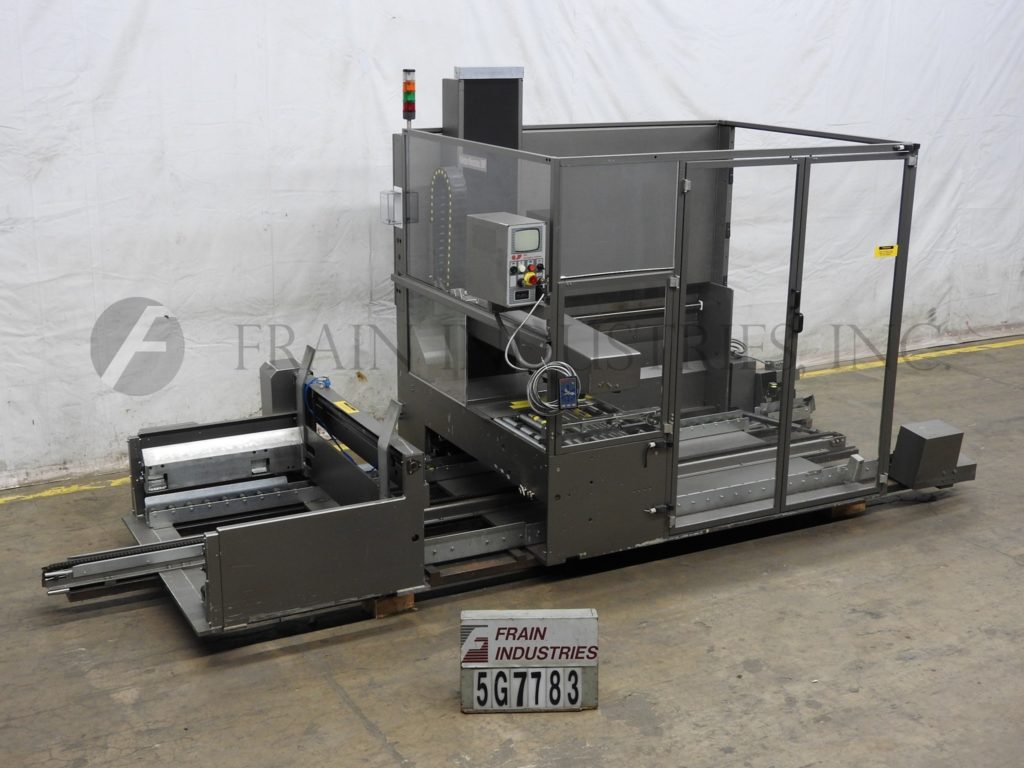

PRB Packaging Systems, Model Ministratus, 4 axis, robotic, vaccum pic-n-place arm palletizer. Rated from 2 to 6 cycles per minute and number of cases and pallets per hour – depending on materials, application and pack pattern. Pallet size: 37½" long x 42½" wide x 60" high. Case Size range: 6" to 23½" long x 4" to 15¾" wide x 3¼" to 23½" high. Equipped with 32" long x 43" wide x 24" high empty pallet dispenser, 178" long x 1½" wide center chain conveyor (2) 164" long x 2" wide side roller conveyors 23" long x 23" wide in feed product roller conveyor, 20" x 10½" (8) vaccun suction cup pick head mounted on 48" long robotic arm, hand held programming controller with display screen. Robotic arm controlled by A/B PLC and capable of moving in (3) dimensions plus case rotation and has ststis light bar. Mounted on heavy duty frame.
OAD: 196"L x 75"W x 90"H
