Fanuc, Model M-410IC/110, bag palletizer, 4 axes, articulated rotary joint, servo driven, robotic, pic-n-place arm capable of palletizing and depalletizing and rated from 5 to 15 cycles per minute with number of product – depending on materials, application, machine configuration and pack pattern. Unit is capable of moving product from floor level up to 88" in height, and has range of motion of 720 degrees, rated up to maximum pick-up weight of 110 Kg. Equipped with forked vacuum bag head mounted on robotic arm with 94.6" maximum horizontal reach and has vacuum pump. Remote control panel has Fanuc R30iB controls with digital hour counter and auto / manual switch, fault, fault reset, power and e-stop push button controls, also has hand held, touch pad controller with display. Mounted on platform style base.
OAD: 94"L x 60"W x 101"H (Robot)
Fanuc, Model M-410IC/185, 4 axes, servo driven, robotic case palletizing, rated from 5 to 15 cycles per minute with number of product – depending on materials, application, machine configuration and pack pattern. Unit is capable of moving product from floor level up to 123" in height, and has range of motion of 720 degrees, rated up to maximum pick-up weight of 185 Kg. Equipped with vacuum pic-n-place head mounted on robotic arm with 123.72". maximum horizontal reach and has vacuum pump. Remote control panel has Fanuc R30iB controls with digital hour counter and auto / manual switch, fault, fault reset, power and e-stop push button controls, also has hand held, touch pad controller with display.
OAD: 97"L x 54"W x 135" (Robot only)

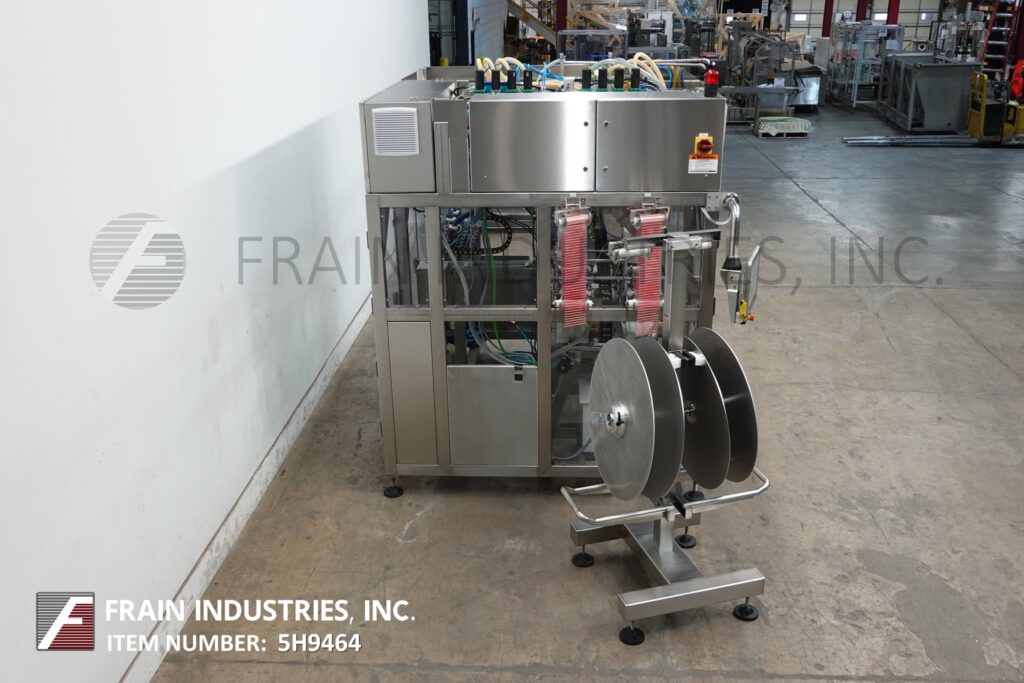

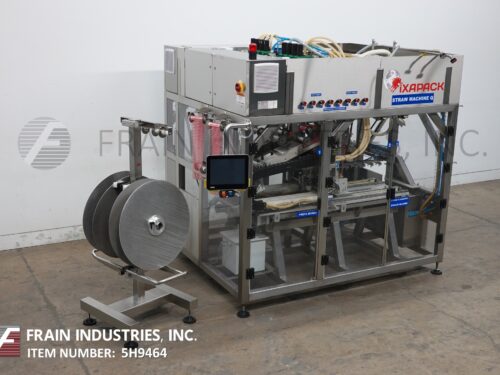

Ixapack Global servo driven straw applicator. Equipped with 32" diameter dual roll stand, servo driven cutting cylinder, (2) 38" long vacuum board accumulators, (8) head glue applicator, (8) head robotic pic and place and touch screen HMI.
OAD: 115"L x 80"W x 105"H

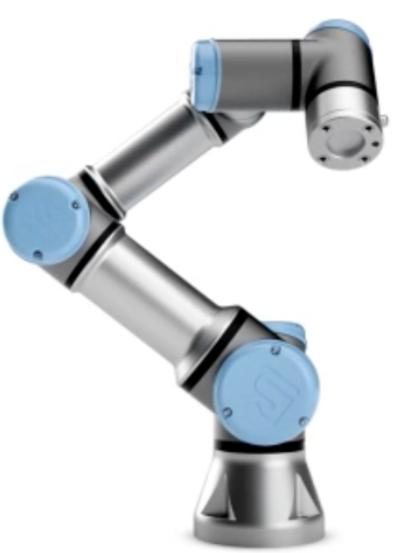

Model UR3e 3Kg 6.6 lbs Payload50mm 19.7 inches Reach Programming – Polyscope graphical user interface on 12 inch touchscreen with mountingIP Rating – IP54Pose Repeatability +/- 0.03 mm, with payload, per ISO 9283Footprint – Ø 128 mmMaterials – Aluminum, Plastic, SteelControl BoxIP classification – IP44I/O power supply – 24V 2APower source – 100-240VAC, 47-440HzPhysicalControl box size -18.7 in x 16.7 in x 10.6 in
Item #T1, Epick Two Cup End-EffectorEnergy Source – ElectricityGripper Mass – 710gVacuum Level – 80%Vacuum Flow – 12L/min
Item #T2, Air Pick Two Cup End-EffectorEnergy Source – Compressed AirGripper Mass – 332gVacuum Level – 85%Air Consumption – 135.9L/min

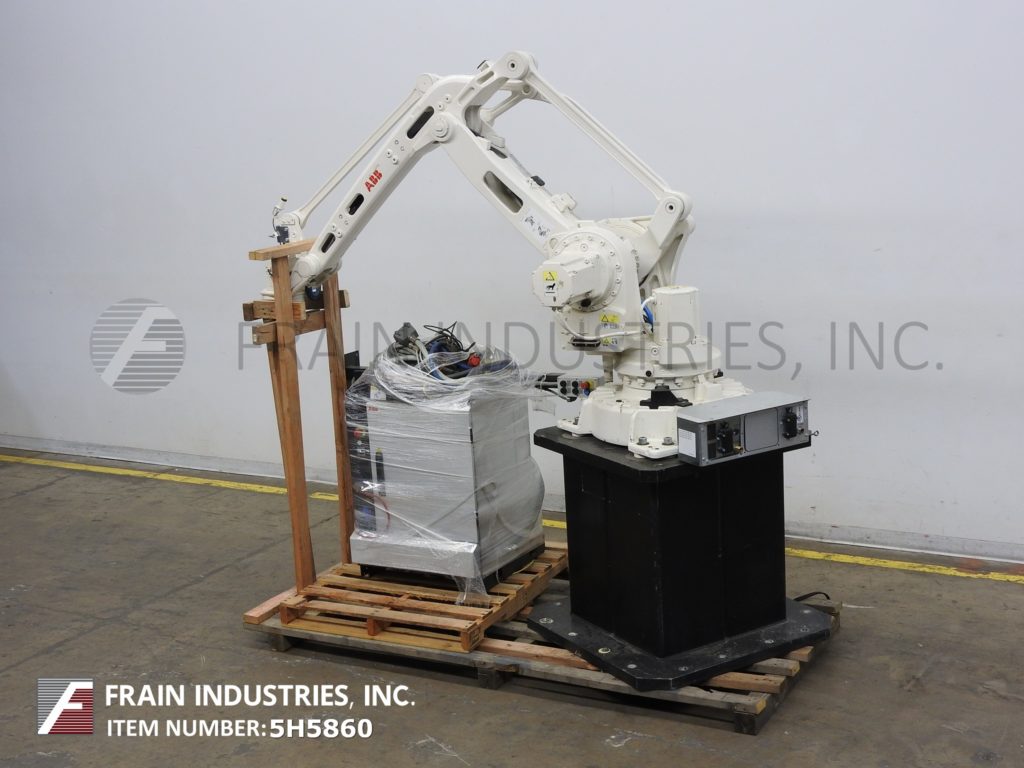

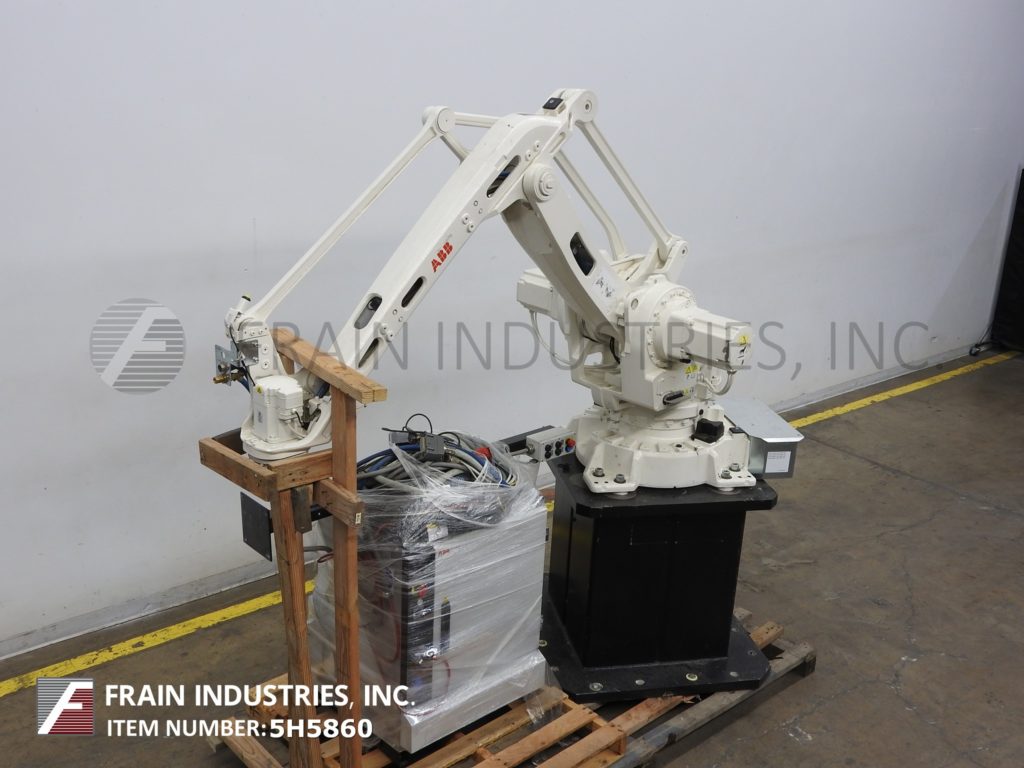

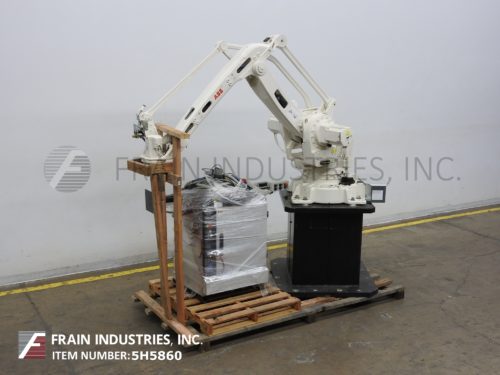

ABB Model IRC5M2004, (4) axis, end of the line, robotic, pick n place palletizer arm rated up to 2,190 cycles per hour on a 60 Kg load with number of product – depending on materials and application. Operating range: R-axis (rotation) 320°, Reach 2.4m (7.8 Ft), Maximum handling capacity of 110 Kg, (243 lbs). Ambient temperature range during operation of 0 Deg C (32 Deg F) to 45 Deg C to (113 Deg F). with relative humidity of 95% maximum. Remote Model IRC5 single cabinet controller with touch pad and hand held controls has operator interface with motors on, cycle start, request to enter, S T empty pallet and e-stop push button controls. Mounted on 42" x 42" ground fastened, pedestal style base with enclosed cage style safety guarding.
OAD: 105" L x 50" W x 96" H Robotic Arm 28" L x 29" W x 44" H Control Cabinet
