Home » Seamer » 4 Head
Angelus 40PDF, Automatic, heavy duty, 4 head can seamer capable of doing up to 275 cpm depending on application. Has min / max can size range of: 201 – 404 dia x 111- 700 H, with proper change parts. 4 revolving rotary seaming heads currently set up for 301 dia cans, with (4) 4 1/2" dia rotary can pedestals on 10" centers, disc star wheel infeed, no-can / no-lid, central lubrication system, control box with start, e-stop buttons, 5 hp motor drive, and is mounted on cast iron common base frame.
OAD: 72" L x 48" W x 76" H
Angelus Model 29P, automatic rotary atmospheric can seamer rated from 500 to 200 cans per minute, depending on materials and application. Can size range: 202 to 404 in Diameter x 1-1/2" to 5-1/2" in Height. Equipped with (4) rotary sealing heads, timing disc to star wheel product in feed, No Can / No lid and reciprocating stack lid feeder. Change parts required to accommodate size range. Currently set for 211 diameter fiber can. Last running in a coffee operation.
OAD: 48" L x 48" W x 72" H.
Continental Can Model 304CR, automatic, heavy duty, 4 head, can seamer rated from 50 to 250 containers per minute – depending on materials and application. Minimum / maximum container size range: 202 to 404 in Diameter x 208 to 414 in Height, with proper change parts, currently set for 307 Diameter can. Equipped with (4) double roll seaming heads, 60" long lugged chain infeed conveyor set on 8" centers with (5) pocket star wheel discharge with no-can / no-lid, central lubrication system, hand crank height adjustable. Control box with start, e-stop buttons and mounted on heavy duty common base frame with 32" infeed / discharge height. Change parts required to accommodate size ranges
OAD: 72" L x 68" W x 76" H
Continental Can Model 334CRP4, automatic, 4 head, can seamer rated 100 to 250 containers per minute – depending on materials and application. Can size range: 202 to 404 in Diameter x 104 to 708 in Height, with proper change parts. Equipped with (4) double roll seaming heads, 65" long lugged chain infeed conveyor set on 7" centers, and (5) pocket star wheel discharge with no-can / no-lid, central lubrication system, rapid height adjustment control box with start, e-stop buttons. Mounted on a common base frame with 32" in feed / discharge height. Change parts required to accommodate size range. OAD: 95" L x 48" W x 77" H

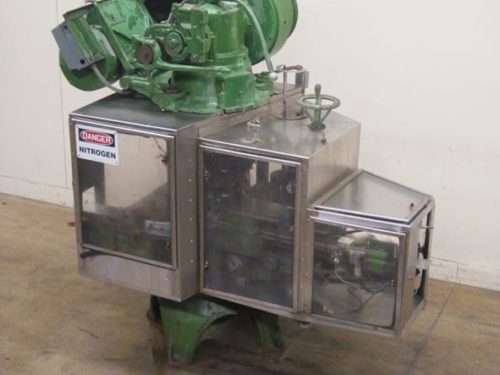

Panama Model PDS-0, automatic, four head, nitrogen flush can seamer rated from 10 to 40 containers per minute – depending on materials and application. Can size range: 202 to 603 in Diameter; 214 to 700 in Height, currently set for 401 in Diameter x 308 in Height. Equipped with worm screw to disc infeed, no-can / no-lid, 20" long lid magazine, 4 roll seaming head, discharge arm, central lubrication system, nitrogen flush, with lexxan enclosure. Mounted on (4) leg base frame.
OAD: 76" L x 56" W x 80" H
