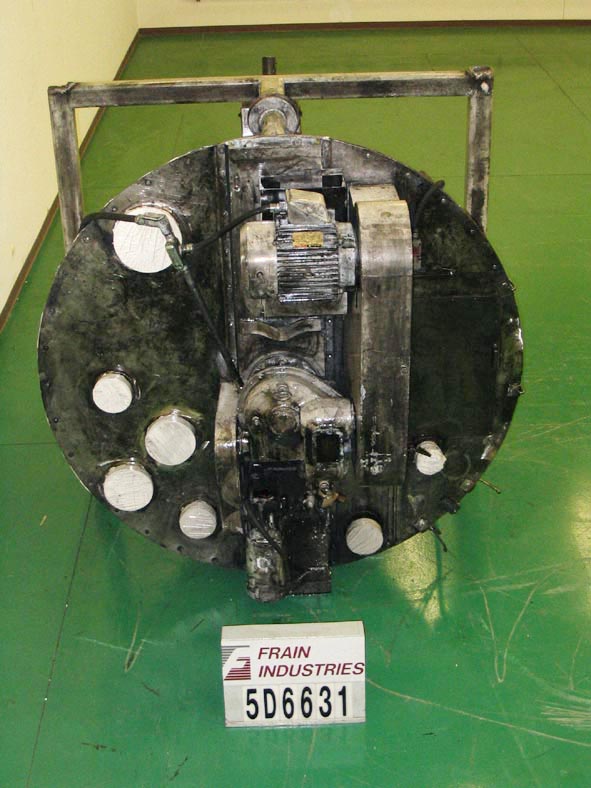

Photo of J H Day Mixer Paste Vertical NAUTA MBX 525

J H Day Mixer Paste Vertical NAUTA MBX 525

  Back to All Equipment

52.5 cu. ft. (392 gallon), 304 stainless steel, single wall, vertical paste mixer with a 12" diameter bottom support screw. Features three distinct intermixing actions: the screw turning on its axis, the screw orbiting the tank, and the screw spiralling the material upward. Equipped with three 6" diameter top ports, one 10" diameter top port, one 4" diameter top port, a 17" wide by 46" long top acess panel, and a 6 1/2" diameter side bottom circular stopper discharge. Powered by a Reliance 10 hp motor.

OAD: 79"L x 79"W x 130"H
