Stokes / Compression Component Press Tablet Rotary BB2 35 STATION

  Back to All Equipment

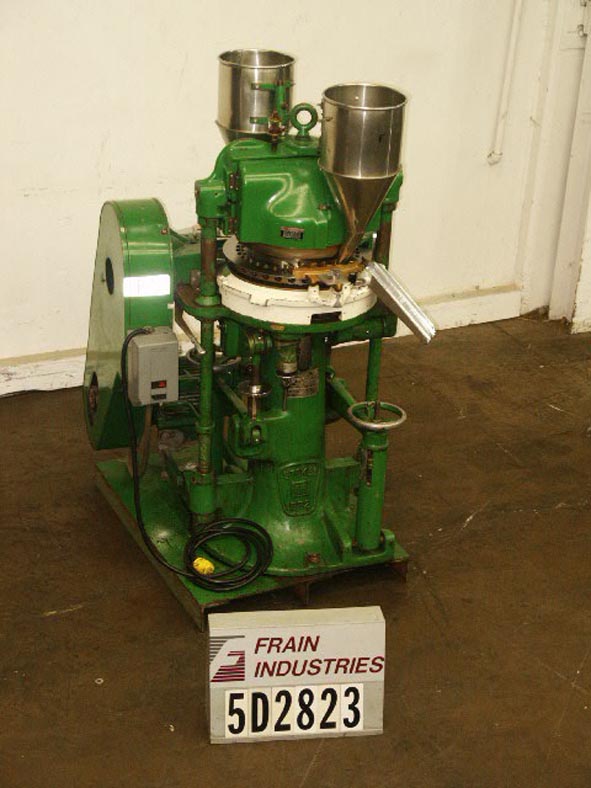

Colton automatic 35 station rotary tablet press rated up to 1500 tablets per minute – depending on materials and application. Maximum pressure (above and below): 4 Tons. Maximum tablet diameter of 7/16", maximum fill depth of 11/16". Punch Length: Upper 5-1/4" lower 5-1/4" Punch diam: upper 3/4" lower 3/4". Die diameter: 0.945" Die depth: 7/8". Equipped with keyed uppers, dual stainless steel hoppers, brass feed frames and overfill device. Simultaneous top / bottom compression and automatic pressure release. Mounted on heavy duty base frame. Customer to supply tooling.

OAD: 52”L x 42”W x 70”H
