Labeler Machines

Labelette Labeler P/S Wrap APS106

• Manufacturer: Labelette
• Model Number: APS106
• Frain Number: R27981

Automatic, inline, pressure sensitive wrap labeler capable of speeds up to 175cpm ( depending on dia of container, and length of label). Label size range of: (0.5" – 11"L) x (3/4" – 6"W) and container size range of: (7/8" – 4 3/8" dia) up to (14" H). Has a (84" L x 6" W) plastic delron chain product conveyor with product separator wheel, and a (17" L x 6 1/2" H) wrap station. Touch screen controller, stepper motor drive, power assisted label web take up, 8 speed selection, on/off buttons with e-stop, mounted on a welded stainless steel tube frame.

OAD: 80" L x 48" W x 44" H

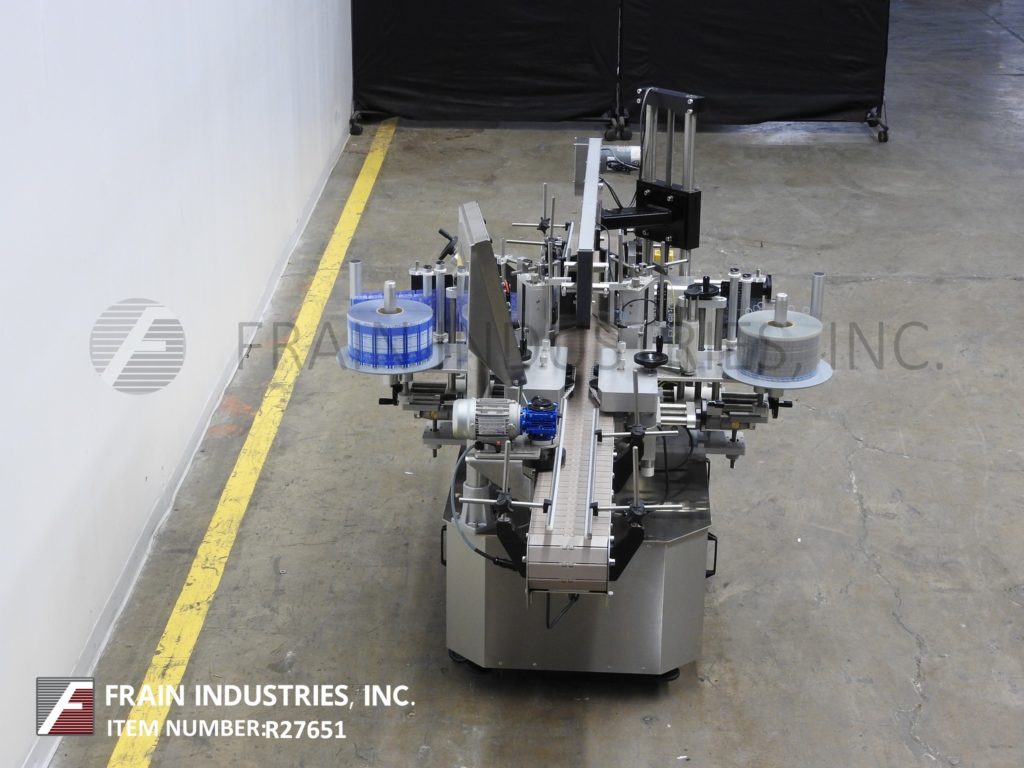

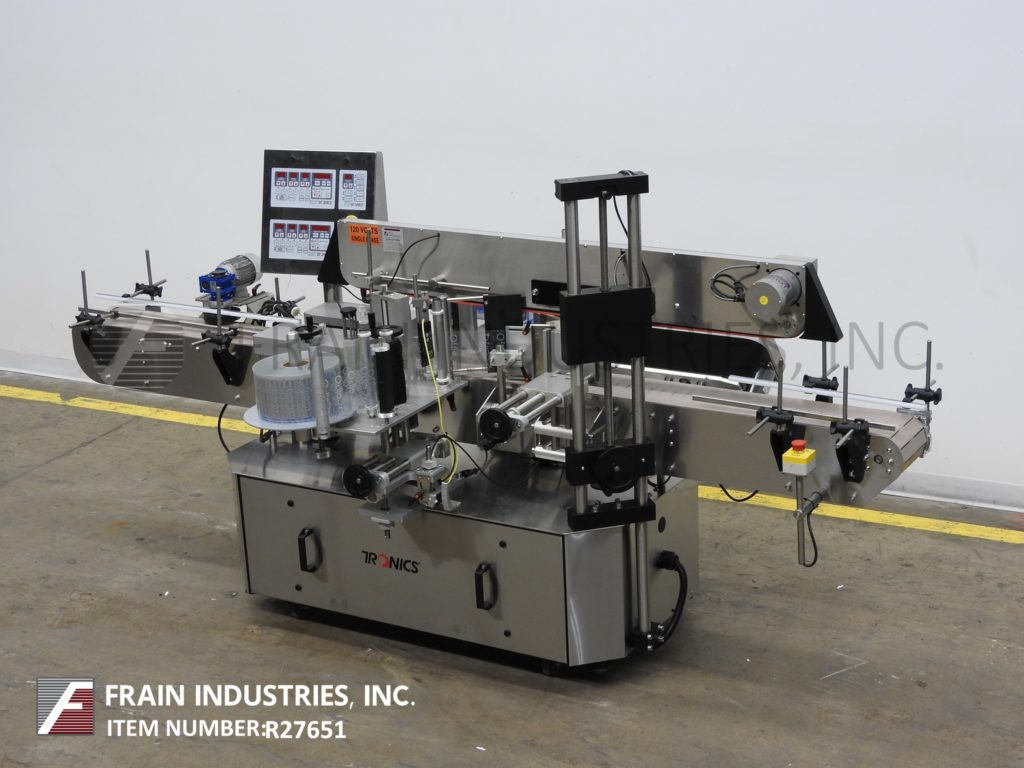

Tronics Labeler Front/Back & Wrap S3S

• Manufacturer: Tronics
• Model Number: S3S
• Frain Number: R27651

Tronics Model S3S, stainless steel, front, back and wrap, pressure sensitive labeler rated from 100" to 1,200" on front / back labels and 50" to 600" on wrap labels per minute with number of product – depending on materials and application. Label size range: 1" to 8-1/2" in Height; 12" in length and can handle containers up to 8" in diameter. Equipped with 120" long x 7-1/2" wide plastic Delrin product in feed conveyor with adjustable guide rails, 60" long x 1" wide top hold down conveyor, spacing wheel, aligning chains for container squaring,

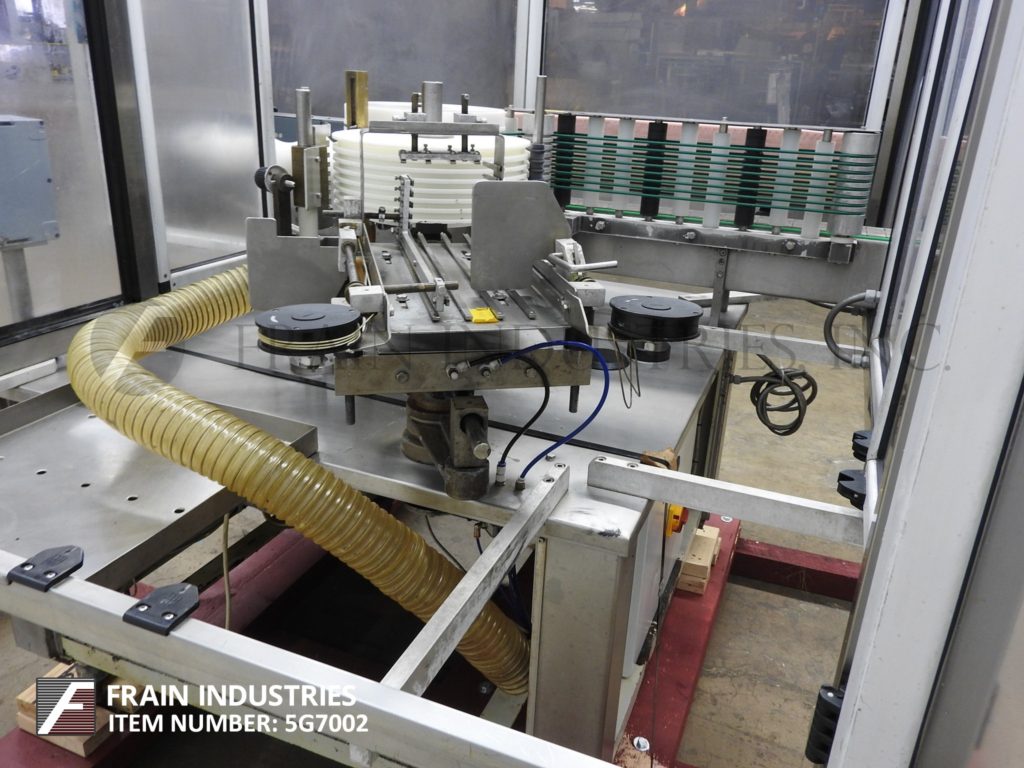

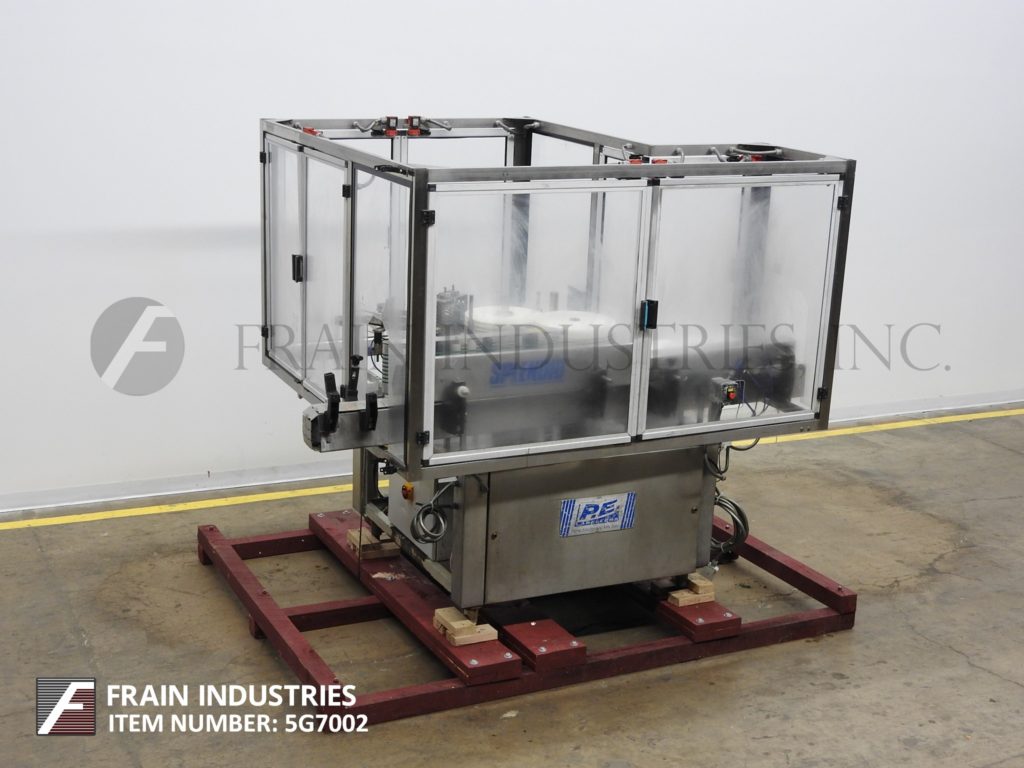

P E USA Inc Labeler Glue Wrap SPLENDID

• Manufacturer: P E USA Inc
• Model Number: SPLENDID
• Frain Number: 5G7002

P E, Model SPLENDID L7A, automatic inline stainless steel cold glue, partial or full wrap around labeler. Round container size range: 1.6" to 5.9" in Diameter; 4.3" to 15" in Height. Label size range: 2" to 18” in Length; 1.6" to 7" in Height. Equipped with 106" long by 5" wide conveyor, worm screw in feed, pre-cut sheet stock label magazine, 5" high horizontal stripe cold glue wheel applicator system and 40" long x 7" high wrap station. Control panel with start, e-stop push button controls and interlock safety guarding. Mounted on height adjustable legs. Change parts required to accommodate size ranges. Speed dependent on materials, application and machine configuration.

OAD: 110"L x 75"W x 84"H

Krones Labeler Glue Front & Back SUPERMATIC

• Manufacturer: Krones
• Model Number: SUPERMATIC
• Frain Number: 5F4762

Krones Model Supermatic, Automatic, (12) station, rotary, cold glue, front, back and neck labeler rated from 80 to 360 labels per minute – depending on materials and application. Equipped with 48" long x 4" wide in feed conveyor, worm screw to star wheel infeed, (12) station rotary turret set on 7" centers, front and neck label station, compression label brushes, back label station, compression brushes, Interlocking Lexan safety guarding, 48" long discharge conveyor. and remote control panel with A/B PLC and hand held controller. Mounted on heavy duty frame.

OAD: 96" L x 96" W x 80" H

Label Aire Labeler P/S Spot 3114

• Manufacturer: Label Aire
• Model Number: 3114
• Frain Number: 5G8634

Label Aire, Model 3111/14-15 LH/SW Grid, pressure sensitive, around the corner spot labeler. Rated from 100 to 2000 linear inches per minute with number of product – depending on materials, application and machine configuration. Equipped with swivel mounted bracket, tamp on label head and label size range: ¾" to 12" in Length ; ¾" to 4" in Width, with proper change parts and accuracies of: ± 1/32", 12" OD label roll with a 3" core and 8" OD powered label rewind. Pneumatic 90° vacuum grid plate to tamp on front of label, and swing arm wrap around corner wipe arm to smooth out front of label. Stepper driven has touch pad controller with digital display. Mounted on 18" wide x 120" long belt conveyor with leveling legs.

OAD: 120" L x 60" W x 56" H

Koch Labeler P/S Spot PR9911520002

• Manufacturer: Koch
• Model Number: PR9911520002
• Frain Number: 5G8214

Koch, Model PR99-11520-002, crossweb film labeler. Automatically applies pressure-sensitive labels perpendicular to the machine production flow across multiple lanes. Capable of running a maximum label of 20mm (0.78") to 150mm (5.9") wide x 20mm (0.78") to 400mm (15.74") long at speeds from 30 to 190 feet per minute with accuracies of ± 0.5mm – depending on materials, application and machine configuration. Label roll specifications: 14" OD roll on 1½" core. Equipped with a super torque stepper drive, 6" wide wiper plate, 42" long (11) belt chassis, 36" long x 2½" wide tamping plate and allows for 24" of longitudinal travel. Includes a touch screen controller and is designed to be mounted on the discharge section of most packaging machines.

OAD: 75"L x 25"W x 28"H

Koch Labeler P/S Spot PR9911520002

• Manufacturer: Koch
• Model Number: PR9911520002
• Frain Number: 5G8213

Koch, Model PR99-11520-002, crossweb film labeler. Automatically applies pressure-sensitive labels perpendicular to the machine production flow across multiple lanes. Capable of running a maximum label of 20mm (0.78") to 150mm (5.9") wide x 20mm (0.78") to 400mm (15.74") long at speeds from 30 to 190 feet per minute with accuracies of ± 0.5mm – depending on materials, application and machine configuration. Label roll specifications: 14" OD roll on 1½" core. Equipped with a super torque stepper drive, 6" wide wiper plate, 42" long (11) belt chassis, 36" long x 2½" wide tamping plate and allows for 24" of longitudinal travel. Includes a touch screen controller and is designed to be mounted on the discharge section of most packaging machines.

OAD: 76"L x 33"W x 43"H

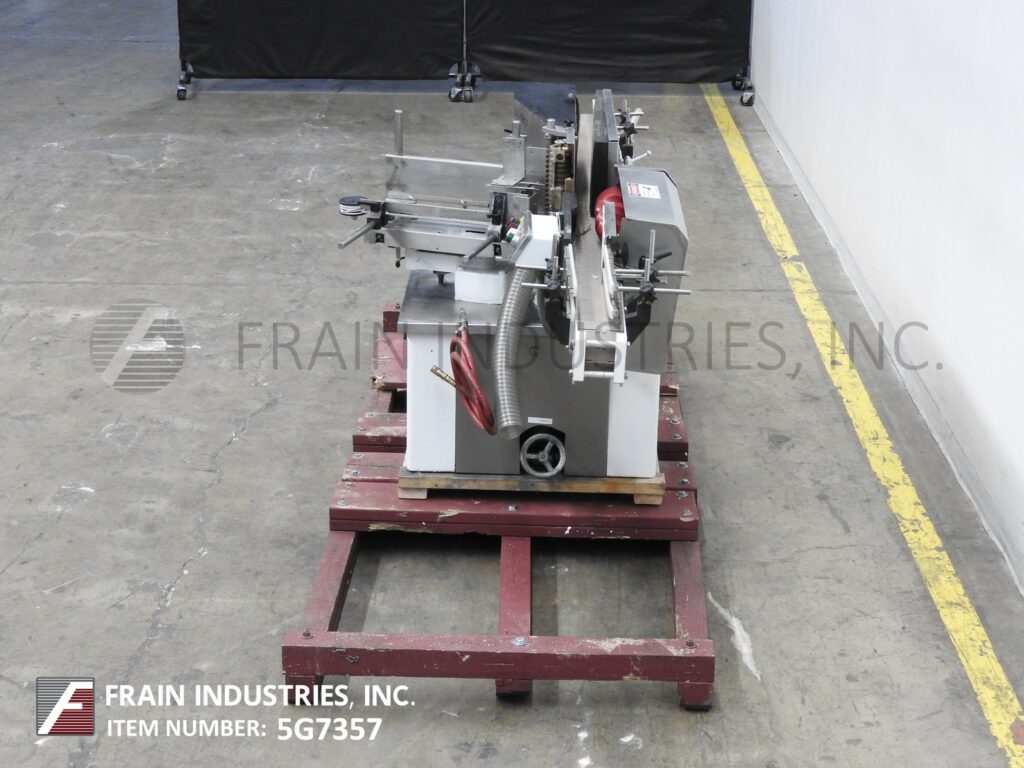

Krones Labeler Glue Wrap ROTINA II

• Manufacturer: Krones
• Model Number: ROTINA II
• Frain Number: 5G7357

Krones, Model Rotina II, automatic, inline, cold glue spot or wrap labeler. Rated from 50 to 135 containers per minute – depending on materials and application. Container size range: 2” to 5¾"’ in Diameter; minimum of 3-1/8" in Height. Label size range: 2¼” to 11” in Length; ¼" to 9" in Height and capable of handling glass / plastic containers and metal cans with proper change parts. Equipped with 100" long x 4½" wide Delrin belt conveyor with adjustable guide rails, worm screw infeed, 19" long pre-cut label magazine, 9" high finger pick off and glue wheel, 28" long x 9" high wrap station, no container / no label with start, stop, and e-stop push button controls. Mounted on base frame with adjustable height legs.

OAD: 107"L x 48"W x 46"H

Quadrel Labeler P/S Spot Q31

• Manufacturer: Quadrel
• Model Number: Q31
• Frain Number: 5G7150

Quadrel, Model Q31, automatic, pressure sensitive, spot labeler rated from 10 to 100 labels per minute – depending on materials, application and label size. Label size range: ½" to 6" Length; ½" to 6-7/8" in Width with accuries to +/- 1/32". Equipped with 96" long x 4½" wide product conveyor, (2) label heads are hand crank height adjustable, powered label rewind, 32" long top product stablizer conveyor and 26" long dual side product gripper discharge conveyors drop to bottom side label application. Label: 10" OD label roll on 3" OD core. Control panel has start, stop and e-stops push button controls. Mounted on heavy duty frame with locking casters.

OAD: 114"L x 76"W x 68"H

Mateer Burt Labeler Glue Wrap 408

• Manufacturer: Mateer Burt
• Model Number: 408
• Frain Number: 5G3910

Mateer Burt, Model 408, roll through glue labeler. Container size range: 1¾" to 4½" In Diameter x 1-9/16" to 10½" in Height. Label size range: 4-5/8" to 15" in Length x 1¼" to 9¼" in Width. Equipped with hydraulic lift label magazine, 5/8" gripper belt, hot glue pot with direct container contact finger applicators and cold glue band lap seal. Rated to 600 cpm, depending on materials, application and machine configuration.

OAD: 105"L x 36"W x 50"H

Krones Labeler Glue Front & Back TOPMATIC

• Manufacturer: Krones
• Model Number: TOPMATIC
• Frain Number: 5G2637

Krones Model Topmatic, Automatic 30 station rotary cold glue labeler rated from 80 to 400 labels per minute – depending on materials, application, environment and machine configuration. Equipped with 5" wide in feed conveyor, worm screw to star wheel in feed, (30) station rotary turret set on 7½" centers, (2) cold glue pre-cut label stations, compression label brushes, interlocking Lexan safety guarding and 5" wide discharge conveyor. Control panel has A/B PLC, with touch pad operator interface and visual display. Mounted on heavy duty frame.

OAD: 154" L x 135" W x 101" H

Mateer Burt Labeler Glue Wrap 704

• Manufacturer: Mateer Burt
• Model Number: 704
• Frain Number: 5F5123

Mateer Burt Model 704 roll through glue labeler. Container size range: 1-3/4" to 7-1/4" In Diameter x 1-9/16" to 10-3/4" in Height. Label size range: 4-5/8" to 24" in Length x 7/8" to 10" in Width. Equipped with gripper V-belts, hot glue pot with direct container contact finger applicators and glue belt system. Speed dependant on materials, application and machine configuration.

OAD: 148" L x 30" W x 52" H
