Semi Auto (Semi-Automatic) Machines

Used Semi Auto (Semi-Automatic) Equipment

Semi-automatic cappers are designed to tighten the cap on a container or bottle but require an operator to place the cap on the bottle. Semi-automatic cappers are designed needing different levels of operator involvement. The most simple semi-automatic cappers, often called hand held cappers or manual assist cappers, require the operator to place the cap on the container, hold the container, bring the hand held capper in touch with the cap, and activate the hand held capper. (Hand held cappers are approximately the size of a powered screw driver.) At the other extreme of semi-automatic cappers are spindle cappers, often called retorquers. Semi-automatic spindle cappers require the operator to only place the cap on the container while the spindle capper automatically handles the remainder of the capping operation. Single head chuck cappers can also be used as semi-automatic cappers.

Spindle cappers use one of multiple pairs of counter rotating spindles. The gripper wheels at the end of the spindles make contact with the cap and tighten the cap on the container. The gap between the spindles gets progressively smaller with each subsequent pair of spindles to increase the force applied on the cap. Spindle cappers have gripper belts which grip both sides of the container to move the past the spindles and to prevent the container from spinning or turning as the caps are being tightened. Spindle cappers are designed to cap containers that are on a conveyor. (For more information on spindle cappers see Cappers / Spindle Cappers.)

Semi-automatic chuck cappers are designed with a single chuck. Semi-automatic chuck cappers require an operator to place the cap on the container and to place the container below the chuck. The chuck on the semi-automatic capper is then lowered by the operator to make contact with the cap and tighten the cap on the container. Once the proper amount of torque is applied to the cap, the chuck on the semi-automatic capper releases the cap. Chucks are designed to “sense” the amount of torque that is applied to the cap. The sensing of torque is often done pneumatically or mechanically, and the chucks can be adjusted to apply different amounts of torque. Chucks are specifically designed for the size cap that they are applying. For different size caps, different size chucks need to be installed on the semi-automatic capper.

Contact Us

Semi Auto (Semi-Automatic) Equipment In Stock

Kaps All Capper Semi Auto (Capper) FC8

  • Manufacturer: Kaps All
  • Model Number: FC8
  • Frain Number: R26165

Kaps-All Model FC8, semi – automatic, stainless steel 4 station, 8 spindle capper, rated from 20 to 400 containers per minute – depending material and application. Cap size range: 8mm to 120mm, Container size range: 1oz to 2-1/2 gallons and capable of handling all types of caps including pilfer proof and child resistant, containers of plastic, metal, or glass all with proper change parts and hand crank adjustable for quick changeovers. Equipped with 36" long x 1" wide single container gripper belts, 3 station, 6 spindle non-marring cap tighners with adjustable torque clutches. Control panel with spindle and gripper belt on / off switches and speed controls dials, raise and lower switch, start, e-stop push button controls and statis light. Mounted on stainless steel base frame with casters, ment to roll over existing conveyor.

OAD: 48" L x 36" W x 65" H

Get a Free Quote Call: 630-629-9900

Accutek Capper Semi Auto (Capper) SSC6

  • Manufacturer: Accutek
  • Model Number: SSC6
  • Frain Number: 5G4924

Accutek, Model 22-001-000, semi-automatic stainless steel 3-station / 6-spindle capper. Rated from 40 to 200 caps per minute – depending on materials, application and operator dexterity. Cap size range:10 mm to 120 mm in Diameter, 1oz to gallons and capable of handling, plastic, metal, or glass containers with proper change parts. Equipped with 36" long x 1" wide dual container gripper belts, automatic height adjustment for different size containers, control panel with 3 station torque and gripper conveyor speed control dials, Mounted on a stainless steel frame with locking casters and leveling pads.

OAD: 38"L x 35"W x 60"H

Get a Free Quote Call: 630-629-9900

Charles Lapierre /NJM Capper Semi Auto (Capper) RU180

Charles Lapierre Model RU180, automatic, inline, stainless steel, roll over conveyor, 4 station spindle retorquer, rated from 50 to 300 containers per minute – depending on materials and application. Container size: 2-1/2" to 12" in Height, 3/4" to 6-1/4" in Diameter. Cap size: 3/4" to 6" in Diameter and will handle screw, snap and child proof in plastic or metal (with proper change parts). Equipped with with 4 station each side and 4 set of torque controls, with single 36" long x 1" wide side container gripper belts. Control panel with cap feed, conveyor, tighting wheel, gripper belt, on / off switches with speed control dials, start, stop and e-stop, mounted on stainless steel common base frame with casters.

OAD: 48" L x 33" W x 76" H

Get a Free Quote Call: 630-629-9900

Kiss Pkg Capper Semi Auto (Capper) VCT06

  • Manufacturer: Kiss Pkg
  • Model Number: VCT06
  • Frain Number: 5G8637

Kiss Pkg, Model VCT-06, semi-automatic, inline, 3 station, 6 spindle, stainless steel capper. Rated from 40 to 120 caps per minute – depending on materials, application and machine configuration. Cap size: 10mm to 110mm in Diameter. Equipped with 36" long adjustable width side single gripper belts, 6 spindles with individual adjustment dials and air torque adjustment on third spindle set. Control panel with push button start / stop / reset, on / off switch for power / spindle / gripper and variable speed dials for spindle / gripper. Mounted on a stainless steel frame with casters.

OAD: 58" L x 47" W x 74" H

Get a Free Quote Call: 630-629-9900

Kaps All Capper Semi Auto (Capper) FE4

  • Manufacturer: Kaps All
  • Model Number: FE4
  • Frain Number: R26166

Kaps All Model FE4, semi-automatic, 2 station, 4 spindle, quill capper / retorquer rated from 5 to 90 containers per minute – depending on materials, application, container and machine configuration. Cap size range: 8mm to 70mm, and capable of handling all types of caps. Container size range: 1oz to gallons, of plastic, metal, or glass (with proper change parts). Equipped with 25" long x 1" wide single container gripper belts and hand crank adjustable. Control panel with spindle and gripper speed dials, start / e-stop buttons and mounted on stainless steel base with conveyor and casters.

OAD: 38" L x 41" W x 62" H

Get a Free Quote Call: 630-629-9900

Kaps All Capper Semi Auto (Capper) FC8

  • Manufacturer: Kaps All
  • Model Number: FC8
  • Frain Number: R26168

Kaps-All Model FC8, semi – automatic, stainless steel 4 station, 8 spindle capper, rated from 20 to 90 containers per minute – depending material, application and machine configuration. Cap size range: 8mm to 120mm, Container size range: 1oz to 2-1/2 gallons and capable of handling all types of caps including pilfer proof and child resistant, containers of plastic, metal, or glass all with proper change parts and hand crank adjustable for quick changeovers. Equipped with 6" wide x 120" long Delrin conveyor, 36" long x 1" wide single container gripper belts, 4 station, 8 spindle non-marring cap tighners with adjustable torque clutches. Control panel with spindle and gripper belt on / off switches and speed controls dials, raise and lower switch, start, e-stop push button controls and statis light. Mounted on stainless steel base frame with casters.

OAD: 120" L x 36" W x 65" H

Get a Free Quote Call: 630-629-9900

Kaps All Capper Semi Auto (Capper) FA6

  • Manufacturer: Kaps All
  • Model Number: FA6
  • Frain Number: R26169

Kaps-All Model FA-6, semi – automatic, stainless steel 3 station (6 spindle) capper. Cap size range: 8mm to 120mm, Container size range: 1oz to 2-1/2 gallons. Equipped with 6" wide x 120" long Delran conveyor, 32" long x 1/4" wide single container gripper belts, 3 station, 6 spindle tighteners with adjustable torque clutches and safety guarding. Control panel with speed control, raise and lower switch, start/stop and e-stop. Mounted on stainless steel base frame with casters. Rate / Speed dependant on material, application and machine configuration.

OAD: 120" L x 33" W x 60" H

Get a Free Quote Call: 630-629-9900

SureKap Capper Semi Auto (Capper) SK600

  • Manufacturer: SureKap
  • Model Number: SK600
  • Frain Number: R25743

SureKap Model SK600, semi-automatic, inline, stainless steel, 3 station, 6 spindle roll over conveyor capper or re-tourging rated from 10 to 90 containers per minute – depending on materials, application and operator dexterity. Cap size range: 8mm to 110mm in Diameter. Equipped with 10’L x 4.5"W stainless steel conveyor, 24" long x 1" wide single container gripper belts, (3) hand crank adjustable spindle stations the last with clutche control. Control panel with spindle and gripper control dials, start and e-stop buttons. Mounted on heavy duty stainless steel "C" base frame with casters.

OAD: 38" L x 38" W x 63" H

Get a Free Quote Call: 630-629-9900

SureKap Capper Semi Auto (Capper) SK600

  • Manufacturer: SureKap
  • Model Number: SK600
  • Frain Number: R25742

SureKap Model SK600, semi automatic, inline, roll over conveyor capper / re-torquer with number of containers per minute – depending on materials, application and operator dexterity. Cap size range: 8mm to 110mm in Diameter. Equipped with front knob adjustable 3 station, 6 spindle tightner section with (2) sets of clutches, 24" long x 1" wide single container gripper belts. Control panel with spindle and gripper speed control dials, and start / e-stop buttons. Mounted on hand crank height adjustable frame with casters.

OAD: 38" L x 38" W x 63" H

Get a Free Quote Call: 630-629-9900

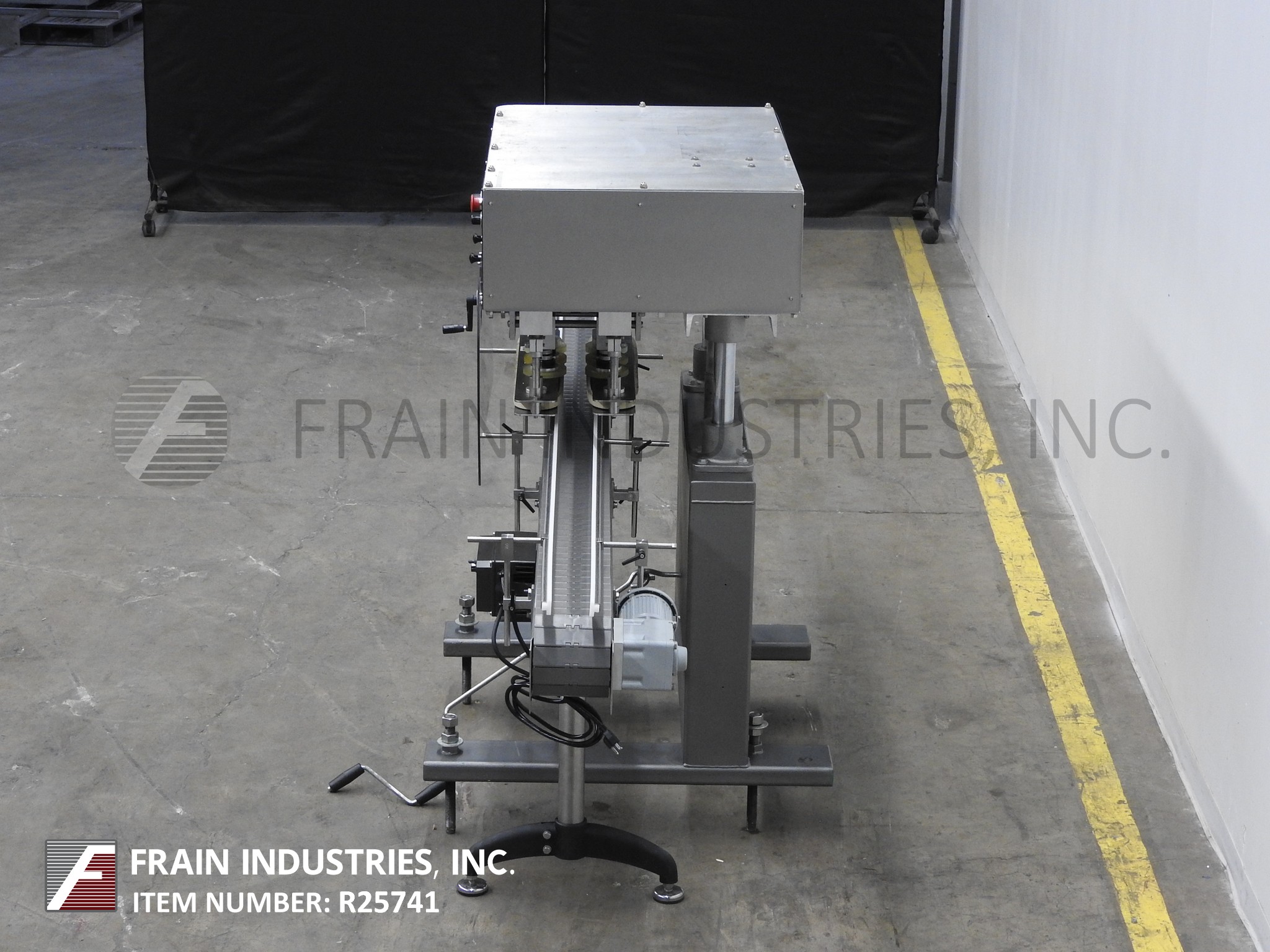

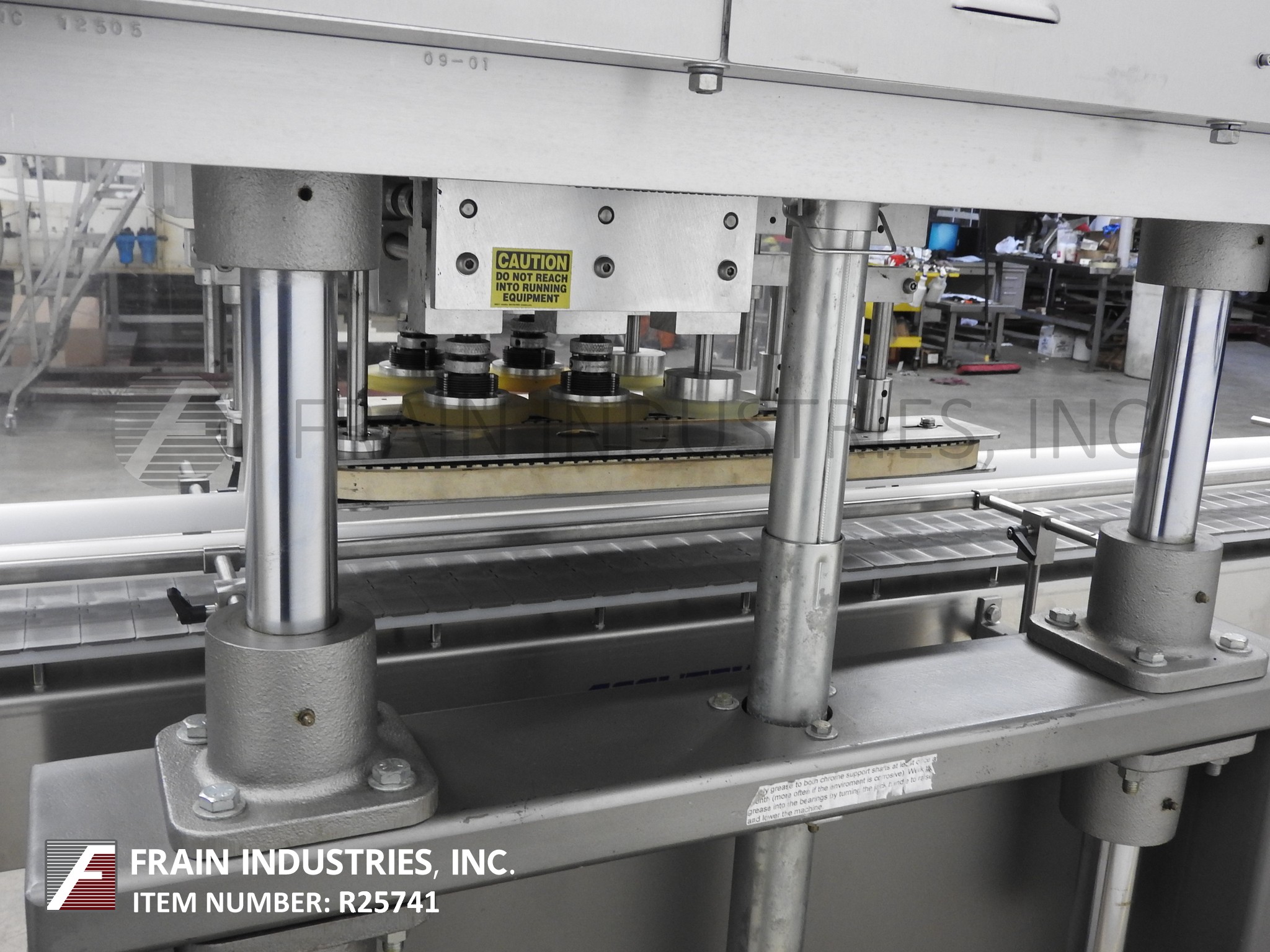

SureKap Capper Semi Auto (Capper) SK600

  • Manufacturer: SureKap
  • Model Number: SK600
  • Frain Number: R25741

SureKap Model SK600, semi automatic, inline, roll over conveyor capper / re-torquer with number of containers per minute – depending on materials, application and operator dexterity. Cap size range: 8mm to 110mm in Diameter. Equipped with 6" wide x 120" long Delrin belt conveyor, front knob adjustable 3 station, 6 spindle tightner section with (2) sets of clutches, 24" long x 1" wide single container gripper belts. Control panel with spindle and gripper speed control dials, and start / e-stop buttons. Mounted on hand crank height adjustable frame with casters.

OAD: 3120" L x 38" W x 63" H

Get a Free Quote Call: 630-629-9900

Kaps All Capper Semi Auto (Capper) E

  • Manufacturer: Kaps All
  • Model Number: E
  • Frain Number: R25412

Kaps All Model E4, semi-automatic, 2 station, 4 spindle, quill capper / retorquer rated from 10 to 80 container per minute – depending on materials and application, container. Cap size range: 8 mm to 110 mm, standard and capable of handling all types of caps. Container size range: 1oz to gallons, of plastic, metal, or glass (with proper change parts). Equipped 80" long; 4-1/2" wide container conveyor, 28" long x 1" wide single container gripper belts and hand crank adjustable. Control panel with spindle, gripper, and conveyor speed dials and on / off switches, start / e-stop buttons and mounted on stainless steel base with conveyor and casters.

OAD: 80" L x 36" W x 68" H

Get a Free Quote Call: 630-629-9900

SureKap Capper Semi Auto (Capper) SK600

  • Manufacturer: SureKap
  • Model Number: SK600
  • Frain Number: R24880

SureKap Model SK600, semi automatic, inline, roll over conveyor capper / re-torquer with number of containers per minute – depending on materials, application and operator dexterity. Cap size range: 8mm to 110mm in Diameter. Equipped with front knob adjustable 3 station, 6 spindle tightner section with (2) sets of clutches, 24" long x 1" wide single container gripper belts. Control panel with spindle and gripper speed control dials, and start / e-stop buttons. Mounted on hand crank height adjustable frame with casters.

OAD: 42" L x 42" W x 55" H

Get a Free Quote Call: 630-629-9900
