Pluggers, or Plug cappers, are designed to apply plug caps or stoppers to containers. Plugger cappers seal containers by being inserted into the neck of the container. Plugger caps are designed to fit into or around a specific size neck and to fit tightly inside the container neck or tightly around the container neck to secure the seal. Plug caps are often made from plastic or rubber. Plug cappers are designed to apply plug caps to the neck of a container. As the container passes the plug capper, a plug cap is placed into the neck or on the neck of the container. To seat the plug cap to the neck, the pluggers apply pressure to the exposed top of the plug cap to properly seal the container. Capper pluggers are very simple devices and by extension, plug cappers are also relatively simple machines (when compared to other types of cappers).

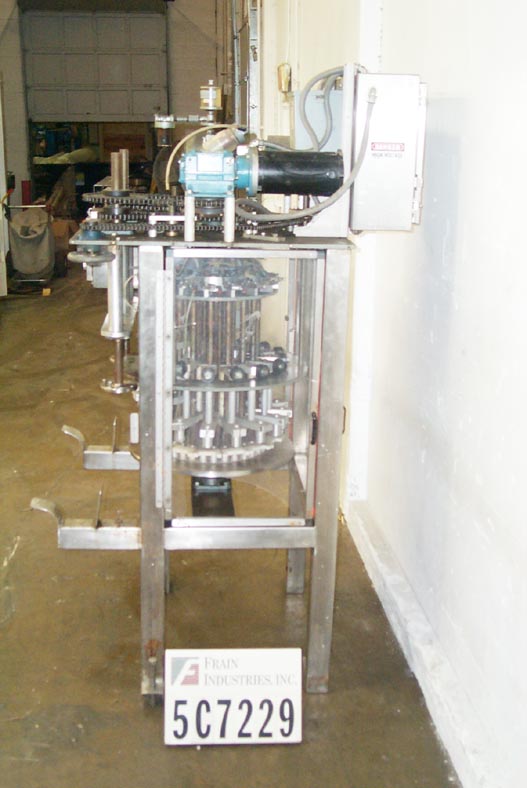

8 head rotary plugger capable of speeds from 60 to 160 cpm – speeds depending on materials and application. Straw size range of (dia) .08" to .375" and a (length) of 2" to 8 1/2". Container has a max dia of 3" with clamps and a (height) of 2" to 8 1/2". and a max pump size of 43mm. Currently has eight 19mm (1/2") dia chucks with eight torque chucks on 6" centers. No bottle/no plug. Worm screw infeed to star wheel index and discharge. Has a 122" (L) x 3" (W) flowthrough conveyor. Last running 1/2 ounce "nose spray" type containers.
OAD: 122" (L) x 46" (W) x 80" (H)

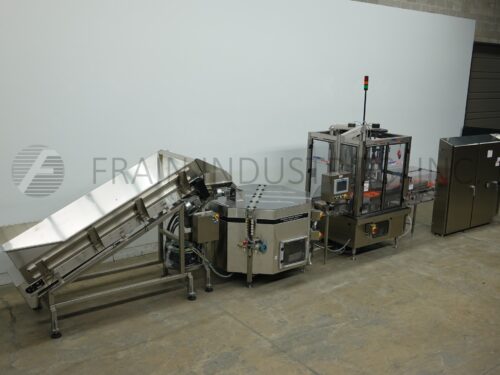

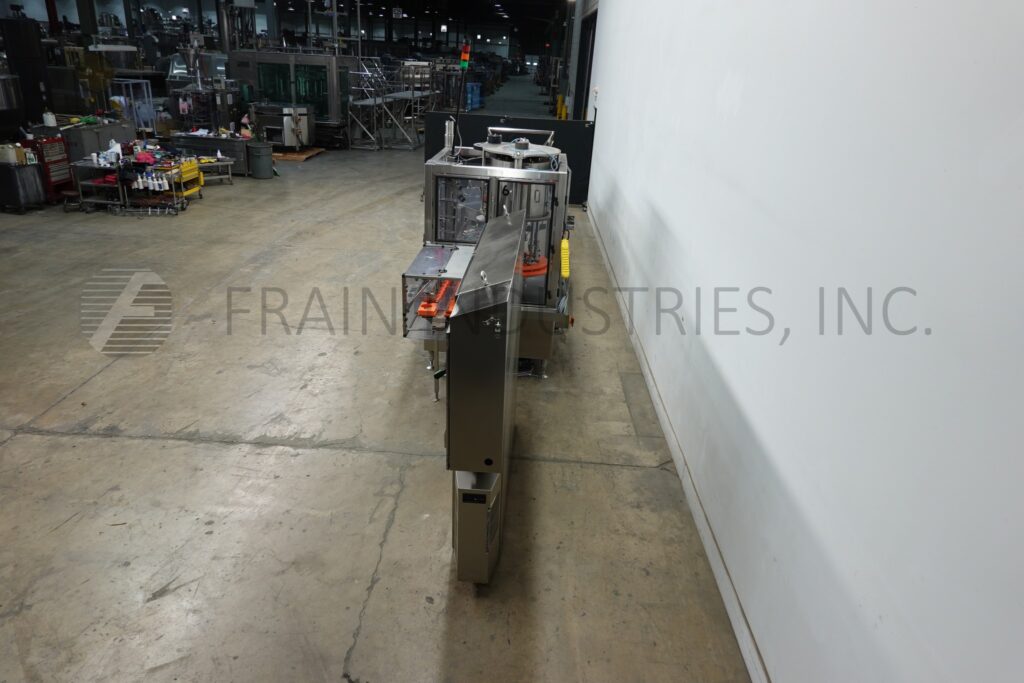

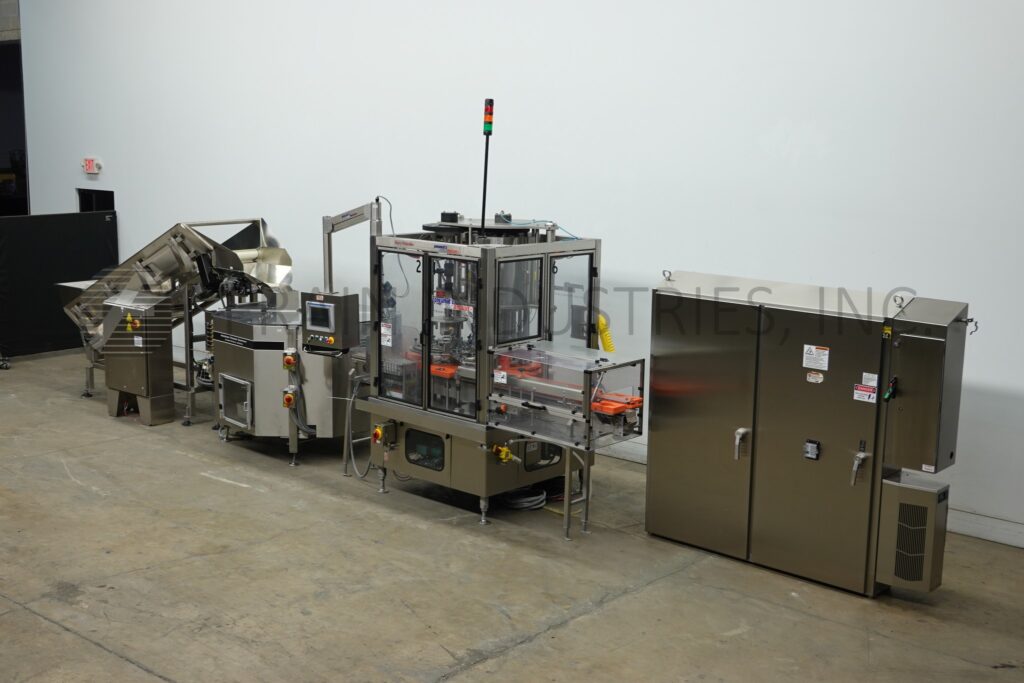

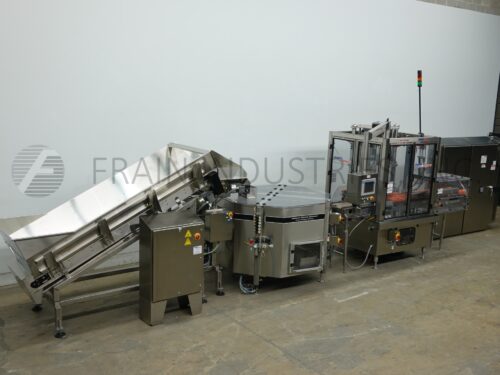

Pneumatic Scale Model TC450-10C plugger and Hoosier Feeder Company Moel FT50 feeder system.
Hoosier Feeder Company Model FT50, 30 cu ft stainless steel, prefeeder and vibratory rigid disc centrifical feed system and inclined cleated conveyor with number of product per minute – depending on materials and application. Maximum plug size 89mm, Maximum container diameter 4.97" Maximum square container with turret pockets 3.93" x 3.93". Equipped with 26" long x 40" wide x 22" deep, stainless steel product hopper with 104" long x 23" wide incline product feed belt with 1" high cleats set on 6" centers and discharge chute with 51" discharge height. 48" diameter stainless steel vibratory feeder bowl with 2" wide x 1" high tracks with low product eye and control panel with feeder and bowl vari speed controls, start, stop, reset push buttons and statis light bar. Mounted on stainless steel base platform with height adjustable leveling legs.
Pneumatic Scale, Model TC450-10C, plugger equipped with 52" long x 4½" wide container conveyor with 48" long worm screw to star wheel container handling, no container / no cap, (10) pluggers set on 5½" centers to star wheel discharge and (1) 28" long x 4½" wide discharge alongside of (1) 28" long x 4½" wide reject lane conveyor. Remote Control panel has A/B Panelview 1000 HMI touch screen controls and stop, start and e-stop buttons. Mounted on heavy duty base frame with interlock safety door guarding and statis light bar.
OAD: 144"L x 42"W x 84"H (Conveyor) 88"L x 77"W x 57"H (Feeder Bowl) 124"L x 70"W x 92"H (Plugger) 16"L x 90"W x 80"H (Control Panel)
Hoosier Feeder Company Model FT50, 30 cu ft stainless steel, prefeeder and vibratory rigid disc centrifical feed system and inclined cleated conveyor with number of product per minute – depending on materials and application. Maximum container diameter 4.97" Maximum square container with turret pockets 3.93" x 3.93". Equipped with 26" long x 40" wide x 22" deep, stainless steel product hopper with 104" long x 23" wide incline product feed belt with 1" high cleats set on 6" centers and discharge chute with 51" discharge height. 48" diameter stainless steel vibratory feeder bowl with 2" wide x 1" high tracks with low product eye and control panel with feeder and bowl vari speed controls, start, stop, reset push buttons and statis light bar. Mounted on stainless steel base platform with height adjustable leveling legs.

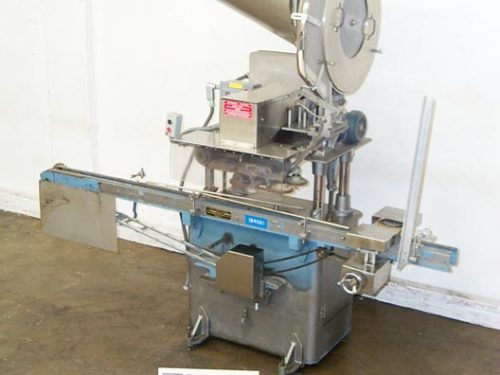

Automatic plugger. Equipped with 8′ x 4-1/2" wide infeed conveyor, container handling belts, plug/cap hopper – sorter – shoot and transfer station, . Adjustable bottle timing wheels and variable speed drive. Rated from 50 to 120 cpm – speeds depending on materials and application.
Automatic variable speed inline plug inserter rated from 90 to 250 cpm – speeds depending on materials and application. Container size range: 2-1/2" to 8" in Height. Insert size range: 18mm to 53mm both with proper change parts. Complete with stainless steel hopper, 43mm / 48mm sorting ring, 10 foot long x 4.5" wide delron belt conveyor and variable speed container indexing wheels. Constructed of stainless steel and aluminum, with interlocking Lexan guarding. Last running 43mm and 48 mm inserts in a phamaceutical operation.
OAD 120"L x 41"W x 90"H.

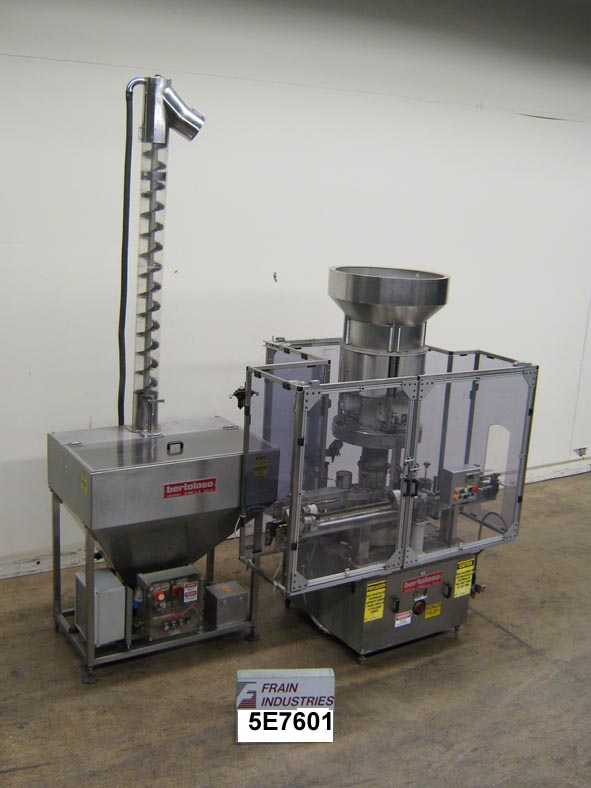

Bertolaso Gruppo SPA / Collopack Model 404R, automatic, (4) head, rotary corker rated from 30 to 108 containers per minute – depending on materials and application. Cork size range: 22mm to 35mm in Diameter x 26mm to 50mm in Height. Container size range: 50mm to 120mm in Diameter x 200mm to 370mm in Height. Equipped with bulk cork screw feeder and has 47" long x 31" wide x 41" deep, 4,500 capacity cork hopper with cover and 122" long x 5-3/4" ID brush style cork feed screw, with 72" discharge height into corker. Vacuum, gas, vacuum dust collection devise, quick release and quick change over compression boxes, no container / no cork. Control panel has start, stop, e-stop buttons, Omeron counter and safety guarding. Mounted on base frames with leveling legs.
OAD: 72" L x 48" W x 95" H Corker 47" L x 31" W x 112" H Feeder
Automatic, in-line, metal lid inserter capable of placing 20 to 120 lids per minute depending on material and application. Has 30" diameter vibratory fitment feeder bowl, 6-head rotary magnetic fitment pick and place, 142"L x 2 5/8"W stainless steel tabletop conveyor, start / stop push button controls, fitments feeding in bowl sensor, and fitment placement sensor with pneumatic reject. Mounted on height adjustable feet.

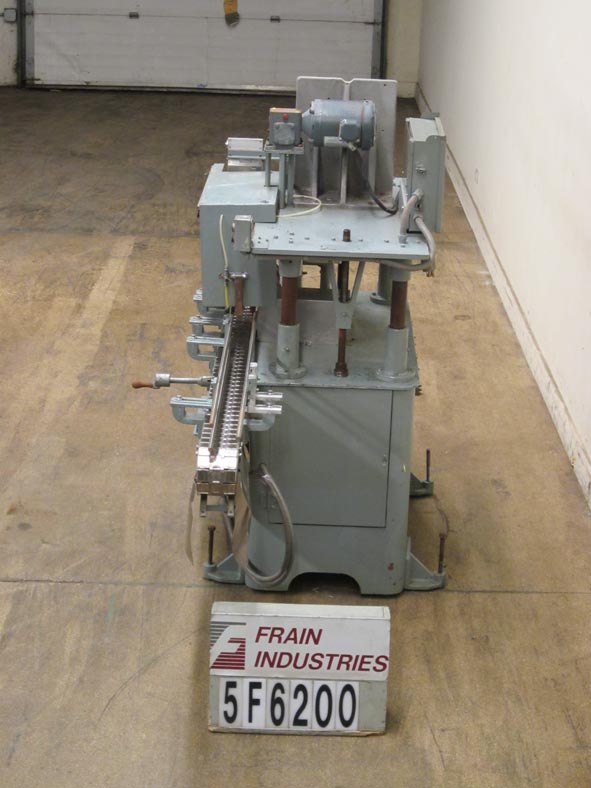

Automatic 16 head rotary oriface reducer style cap inserter capable of speeds from 50 to 200 Bottles per minute – speeds depending on materials and application. Last used in a cosmetic operation on 20mm diam restriction caps for a suntan oil type container. Has delrin chain style infeed conveyor.
OAD: 60" L x 50" W x 87" H
