Over Lidder Machines

Used Over Lidder Equipment

Capper / over-lidders, or over-lid cappers are designed to apply a cap or lid onto a container on top of another cap or some other type of seal. Overlids are often resealable snap-on caps that are simply snapped onto the container. Over-lid cappers are designed to take in a container that already has a cap or some type of film closure. The over-lid capper feeds an over-lid from a magazine and places the over-lid on top of the container. The container and cap then usually pass under a set of pressure rollers to snap the over-lid in place. Some can over-lid cappers are designed to place over-lids on cans as the cans are on their sides. The cans are driven through the over-lid capper by drive belts that cause the can to turn. Pressure rollers are also used to snap the over-lid in place. Besides over-lids on cans, over-lids can also be found on top of aerosol containers and on top of plastic containers or cups that have been sealed with a foil or film seal. (Consumer products such as cream cheese, cottage cheese, or cans of chips use a package with a foil seal and an over-lid snap on cap.) Dosing cups on the caps of medicine bottles are also referred to as over-lids.

Contact Us

Over Lidder Equipment In Stock

Wrabacon Capper Over Lidder OVER LIDDER

  • Manufacturer: Wrabacon
  • Model Number: OVER LIDDER
  • Frain Number: 5H5122

Wrabacon Inc, inline container laner and snap on over lidder. Rated from 20 to 250 containers per minute – depending on materials, application and machine configuration. Equipped with a 17½” wide x 57″ long Intralox style infeed belt with a 1:2 lane overhead diverting arm. 17¾” wide x 90″ long rubber belt thru (2) lane snap on over lidding station with suction cup denesting and 12″ long overhead roller compression section and 17½” wide x 84″ long Intralox discharge conveyor. Control panel with GE controller and push button start / stop controls.

OAD: 235″L x 40″W x 58″H

Get a Free Quote Call: 630-629-9900

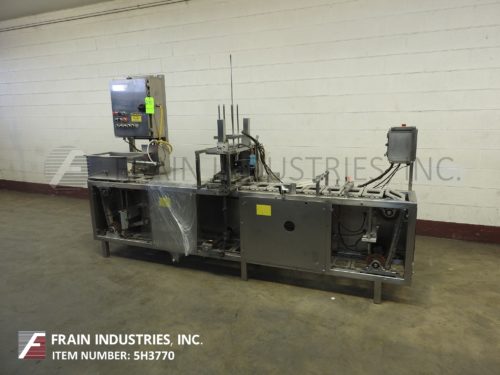

Modern Capper Over Lidder SL1X1

  • Manufacturer: Modern
  • Model Number: SL1X1
  • Frain Number: 5H3770

Modern Packaging, Model SL1X1, inline stainless steel cup overlidder. Rated from 5 to 30 cups per minute – depending on materials, application and machine configuration. Currently set to do 1 x 1 pattern set on 6" centers. Control panel with Push button start / stop controls and variable speed dial. Mounted on a heavy duty stainless steel frame with leveling legs.

OAD: 122"L x 45"W x 75"H

Get a Free Quote Call: 630-629-9900

Del Packaging Capper Over Lidder ASRL-CC-401

  • Manufacturer: Del Packaging
  • Model Number: ASRL-CC-401
  • Frain Number: 5H1755

Del Packaging, Model ASRL-CC-401, automatic, stainless steel, inline overlidder with inclined cleated and centrifugal feeders. Rated from 50 to 300 containers per minute – depending on materials, application and machine configuration. Container size range: 2" to 7" in Diameter; 2" to 12" in Height with proper change parts. Equipped with stainless steel incline cleated feeder with 46" long x 40" wide x 40" deep stainless steel product hopper and pnuematic plastic lift up cover with 96" long x 11-1/2" wide inclined cleated belt has 2-1/4" high cleats on 8-1/2" centers to 60" OD rigid disc high speed centrifical bowl feeder to air conveyor designed to transport the lids from the bowl feeder to the overlidder that has a 132" long x 4-1/2" wide plastic Delrin conveyor belt with 15" and 32" long container worm screw in feed, 36" long cradle chain container handling conveyor with dual gripper pockets, 4-1/16" wide lid chute and 15" long roller lid compression section. Remote control panel with AB PLC controller with variable speed controls and on board control pad with start, stop, jog and e-stop

OAD: 132" L x 40" W x 72" H Overlidder
148" L x 80" W x 92" H Elevator / Bowl Feeder
140" L x 6" W x 6" H Air Conveyor & Blower
72" L x 15" W x 82" H Control Panel

Get a Free Quote Call: 630-629-9900

Del Packaging Capper Over Lidder SASRC-CC

  • Manufacturer: Del Packaging
  • Model Number: SASRC-CC
  • Frain Number: 5H1014

DEL, Model SASRC-CC, automatic, stainless steel, inline overlidder. Rated from 20 to 200 containers per minute – depending on materials, application and machine configuration. Equipped with 175" long x 6" wide plastic Delrin conveyor with adjustable guide rails, 24" long screw in feed, 30" long lugged chain container handling conveyor with container grippers pockets, 68" long powered spinning roller lid magazine and 5" long roller compression section, grippers then open up and release down conveyor belt. Control panel with AB controller, AB PanelView Plus 400 touch pad display, push button start / stop variable speed controls. Mounted on (8) leg base frame.

OAD: 180"L x 45"W x 90"H

Get a Free Quote Call: 630-629-9900

GEI Ashford Ltd Capper Over Lidder DICO Capper w/Cap elevator and Vibratory Bowl Cap Feeder

6 Head rotary, twin turret, over-lidder designed to apply press on over-lids rated from 50 to 250 cpm – speeds depending on materials and application. Equipped with inclined feeder has 144" L x 8" W conveyor 2" H cleats on 6" centers, 34" L x 32" W x 30" D cap hopper, with 124" discharge height 48" dia bowl feeder, with cover and discharge chute were caps enter open side up, and reversed in chute to orientator, then orientated into lower chute to cap turret, containers feed into star wheel product in feed, to cap turret were cap is applied and pressed on and then leaves machine in star wheel discharge, with A/B PLC.

OAD: 224" x 48" x 168" H

Get a Free Quote Call: 630-629-9900

Donahower Capper Over Lidder SRHR-250

  • Manufacturer: Donahower
  • Model Number: SRHR-250
  • Frain Number: 5F3510

Automatic, horizontal rolling, overlidder rated from 90 to 250 containers per minute – speeds depending on materials and application. Container size range: 401 in Diameter; up to 700 in Height. Equipped with a 97" high vertical lid magazine extension, 43" long spinning rod lid feeder, metering belts, adjustable can height, and wipe on capping action with compression section. Mounted on height adjustable legs.

OAD: 66" L x 47" W x 97" H

Get a Free Quote Call: 630-629-9900

Del Packaging Capper Over Lidder ASRL-CC-401

  • Manufacturer: Del Packaging
  • Model Number: ASRL-CC-401
  • Frain Number: 5H1756

Del Packaging, Model ASRL-CC-401, automatic, stainless steel, inline overlidder with inclined cleated and centrifugal feeders. Rated from 50 to 300 containers per minute – depending on materials, application and machine configuration. Container size range: 2" to 7" in Diameter; 2" to 12" in Height with proper change parts. Equipped with stainless steel incline cleated feeder with 46" long x 40" wide x 40" deep stainless steel product hopper and pnuematic plastic lift up cover with 96" long x 11-1/2" wide inclined cleated belt has 2-1/4" high cleats on 8-1/2" centers to 60" OD rigid disc high speed centrifical bowl feeder to air conveyor designed to transport the lids from the bowl feeder to the overlidder that has a 132" long x 4-1/2" wide plastic Delrin conveyor belt with 15" and 32" long container worm screw in feed, 36" long cradle chain container handling conveyor with dual gripper pockets, 4-1/16" wide lid chute and 15" long roller lid compression section. Remote control panel with AB PLC controller with variable speed controls and on board control pad with start, stop, jog and e-stop

OAD: 132" L x 40" W x 72" H Overlidder
148" L x 80" W x 92" H Elevator / Bowl Feeder
140" L x 6" W x 6" H Air Conveyor & Blower
72" L x 15" W x 82" H Control Panel

Get a Free Quote Call: 630-629-9900

Orics Ind Capper Over Lidder ACP150

  • Manufacturer: Orics Ind
  • Model Number: ACP150
  • Frain Number: 5H0823

Orics, Model ACP-150, automatic, stainless steel, inline overlidder. Rated from 20 to 150 lids per minute – depending on materials, application and machine configuration. Equipped with a 120" long x 7" wide plastic Delrin conveyor with adjustable guide rails, 24" long worm screw in feed, 46" long powered spinning roller lid magazine and 11" long compression belt. Control panel with a GE Fanuc controller, push button start / stop controls and on / off switches.

OAD: 120"L x 34"W x 64"H

Get a Free Quote Call: 630-629-9900

Accutek Capper Over Lidder ACCUSNAP

  • Manufacturer: Accutek
  • Model Number: ACCUSNAP
  • Frain Number: 5G4923

Accutek, Model 50-551-000, AccuSnap automatic stainless steel snap capper. Rated from 20 to 120 containers per minute – depending on materials, application, environment and machine configuration. Cap size range: 10mm to 60mm, Cap snap types: milk jugs, dropper inserts, lip balmcaps, over caps and more with proper change parts. 29" diameter x 10" deep centrifugal cap feed hopper with rotating orientator disc, cap chute, 36" L x 1" W single container gripper belts and 35" L compression belt. Control panel with hopper, and gripper conveyor speed control dials. Mounted on stainless steel height adjustable base frame with casters and mounted over a 73" long x 3¼" wide Delrin style conveyor.

OAD: 87"L x 42"W x 88"H

Get a Free Quote Call: 630-629-9900

Holmatic /Oystar Capper Over Lidder PH-41C

Holmatic Model PH-41C-SM600, automatic, lid applicator rated from 20 to 150 containers per minute – speeds depending on materials and application. Adjustable lid size: 307 and 401 lids with adjustable container width and height both up to 10". Equipped with 50" long lid magazine, has capacities up to 600 lids and up to 50 lids per lift, 80" long x 4" wide container conveyor with star wheel in feed and 28" long dual side belt assist, no container / no lid, Vari speed controller with start / stop, run / jog and speed dial controls, mounted on (4) leg base frame and can apply injection molded reclosure lids to metal or fiber cans. Currently set for 401 diameter lid.

OAD: 108" L x 24" W x 58" H

Get a Free Quote Call: 630-629-9900

Holmatic /Oystar Capper Over Lidder PH41C-401

Holmatic Model PH-41C, automatic, lid applicator rated from 60 to 150 containers per minute – speeds depending on materials and application. Equipped with 36" long lid magazine, with 132" long x 3-12" wide container conveyor (needs belt) with 28" long dual side belt assist, no container / no lid, start / stop push buttons, Vari speed with speed dial controls, mounted on (4) leg base frame and can apply injection molded reclosure lids to metal or fiber cans.

OAD: 132" L x 24" W x 50" H

Get a Free Quote Call: 630-629-9900

Del Packaging Capper Over Lidder LCC

Del Packaging. Model LCC, automatic, stainless steel, inline, large container overlidder rated from 20 to 80 lids per minute – depending on materials and application. Capable of handling large pails or tubs, plastic or metal from 5" to 12" in Diameter of ridid injection molded lids or caps with proper change parts. Equipped with 104" long x 7" wide plastic container conveyor with, 48" long gravity fed lid magazine, vacuum pick off and powered roller compression section. Control panel with A/B controller start / stop and e-stop, jog, reset, no container / no lid and variable speed lid controls, mounted on height adjustable base frame.

OAD: 120" L x 45" W x 79" H

Get a Free Quote Call: 630-629-9900
