4 Head (Four Head) Machines

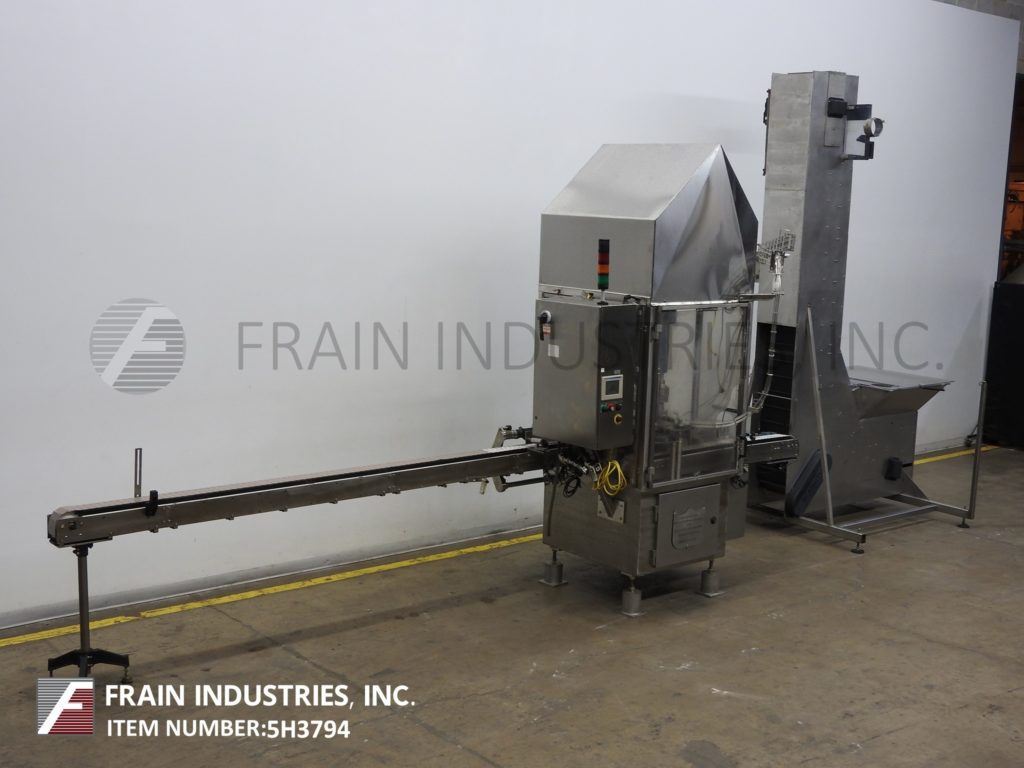

U S Bottlers Capper 4 Head (Capper) TC-4-14

• Manufacturer: U S Bottlers
• Model Number: TC-4-14
• Frain Number: 5H3794

U S Bottlers Model TC-4-14, stainless steel, 4 head rotary chuck capper and feeder rated from 16 to 40 containers per minute – depending on materials and application Equipped with 201" long x 4-1/2" wide plastic delrin belt conveyor with worm screw in feed, cap feed chute and 16" OD rotary turret with top mounted motor drive and cone style cover and (4) pneumatic chucks, set on 10" centers with 84" long x 4-1/2" wide plastic delrin belt conveyor with star wheel discharge. Control panel has A/B controller and A/B Panel view with start, stop, reset, e-stop push button controls and statis light bar, with air chuck controls and gauges. Mounted on a stainless steel base frame with safety door guarding. Also a
stainless steel, cleated cap feeder has 32" wide x 38" long x 30" deep stainless steel cap hopper and 16" wide x 130" long belt conveyor with 1" high cleats set on 6" centers and 125" discharge height into the capper feed chute with top motor drive. Mounted on base frame with leveling legs.

OAD: 84" L x 48" W x 120" H Capper
80" L x 72" W x 157" H Feeder
117" L x 6" W x 36" H In Feed Conveyor

Pneumatic Scale Capper 4 Head (Capper) D4F

• Manufacturer: Pneumatic Scale
• Model Number: D4F
• Frain Number: 5D9222

Automatic, stainless steel, 4-head rotary, chuck capper capable of speeds from 40 to 120 caps per minute – depending on cap, container and configuration. Caps size: up to 120mm with correct change parts. Containers: up to 6 1/2" diameter. Equipped with 5" conveyor, worm screw to star wheel in feed, star wheel discharge, cap hopper, cap sorting disc with chute, cap to chuck transfer disc and four chuck stations. Mounted on stainless steel frame with adjustable feet.

OAD: 110"L x 43"W x 85"H

Pack West Capper 4 Head (Capper) 4 ROYAL

• Manufacturer: Pack West
• Model Number: 4 ROYAL
• Frain Number: 5D9302

Automatic, stainless steel, 4-head rotary, chuck-style capper Caps: 10mm to 110mm, with proper change parts. Containers: up to 4 1/2" diameter x up to 11"H. Has 16" pitch, 120"L x 4 1/2"W tabletop conveyor, wormscrew to starwheel infeed, starwheel discharge, 2 cu.ft. cap hopper and sorting wheel, 17" diameter cap transfer disc, barrier guarding with electrical interlock, E-stop, programmable controller, touch screen control panel, neck supports, status indicator lights, no bottle / no cap sensor, and individual clutch pressure and jaw pressure adjustments for each chuck. Mounted on stainless steel frame.

OAD: 124"L x 64"W x 96"H

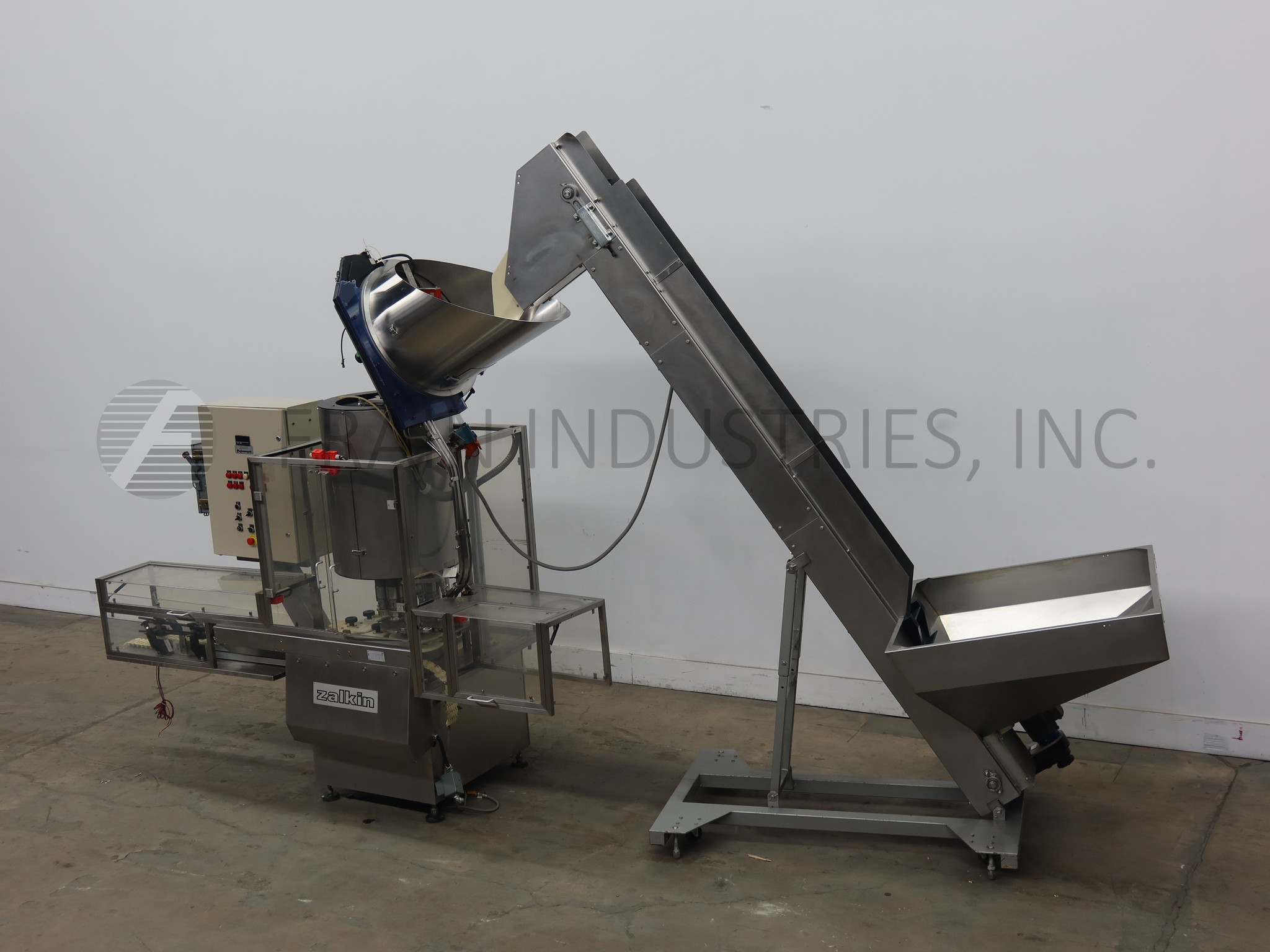

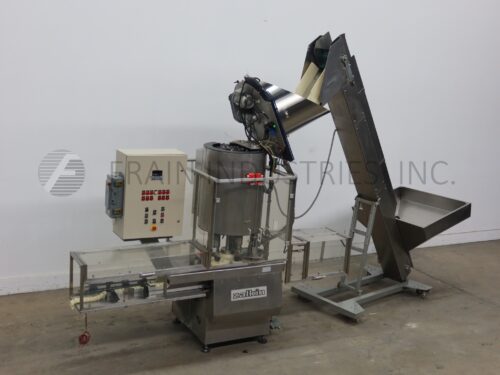

Zalkin Capper 4 Head (Capper) CA3PM

• Manufacturer: Zalkin
• Model Number: CA3PM
• Frain Number: 5C4772

Stainless steel, 3 head rotary capper capable of speeds from 40 up to 105 cpm. Cap range from 15-63mm. Container size range: dia of 85mm (3-3/8) & max ht of 250 (10"). Equipped with screw in feed to star wheel, 3-1/2” wide conveyor with variable speed controls. Screw feed left to right product flow. Available at an additional cost model ECT cap feeder /hopper, 8” (W) x 2 1/2” (H) cleated cap elevator set on 5” centers.

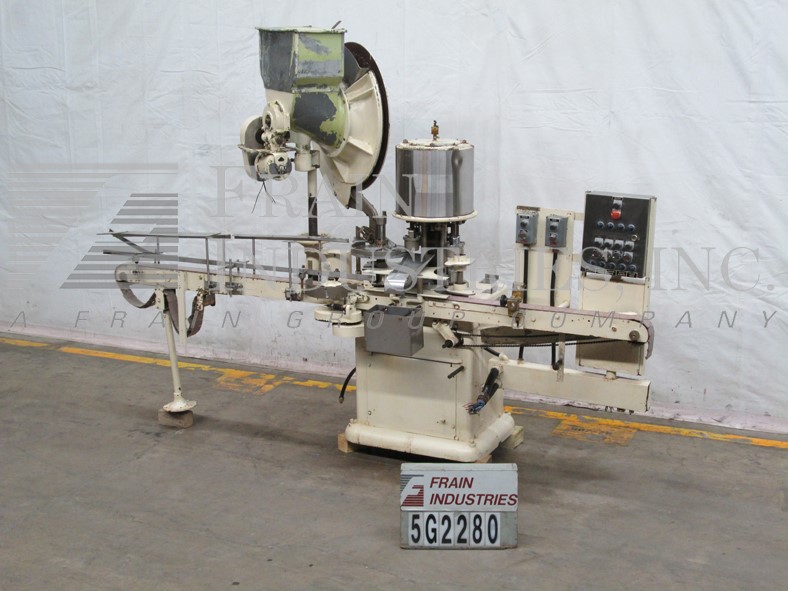

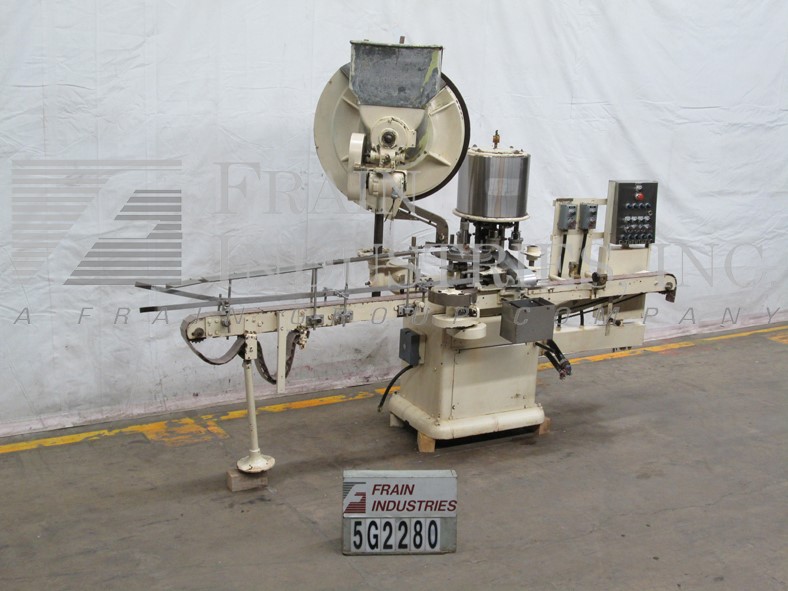

Consolidated / Pneumatic Scale Capper 4 Head (Capper) C4F

• Manufacturer: Consolidated / Pneumatic Scale
• Model Number: C4F
• Frain Number: 5G2280

Consoilidated Model CF4, automatic, 4-head rotary, chuck capper, with cap sorter and feeder, rated from 40 to 120 containers per minute – depending on materials and application. Maximum cap size: 70mm, Maximum container height: 9". Equipped with integrated cap feeder and hopper, disc unscrambler, cap chute and button, 142" long x 2-1/4" wide belt conveyor with star wheel in feed and discharge, no container / no cap and (4) chuck cap heads set on 9" centers with double grip container handling. Controls with cap sorter, capper, turret drive, sorter and machine on / off, push button controls and mounted on heavy duty base frame.

OAD: 142" L x 40" W x 88" H

Consolidated / Pneumatic Scale Capper 4 Head (Capper) D4F

• Manufacturer: Consolidated / Pneumatic Scale
• Model Number: D4F
• Frain Number: 5G1660

Consolidated Model D-4, automatic, 2 head rotary, chuck capper rated from 10 to 60 containers per minute – depending on materials and application. Cap size range: up to 89mm. Container size range: up to 6-1/2" in Diameter; and up to 12" in Height with proper change parts. Equipped with 96" long x 3-1/4" wide Delrin belt conveyor, 24" worm screw to star wheel in feed / discharge, 24 diameter cap sorting wheel with hopper. Controller with machine start / e-stop, jog, cap feed / cap supply controls and mounted on heavy duty base frame.

OAD: 100" L x 48" W x 82" H

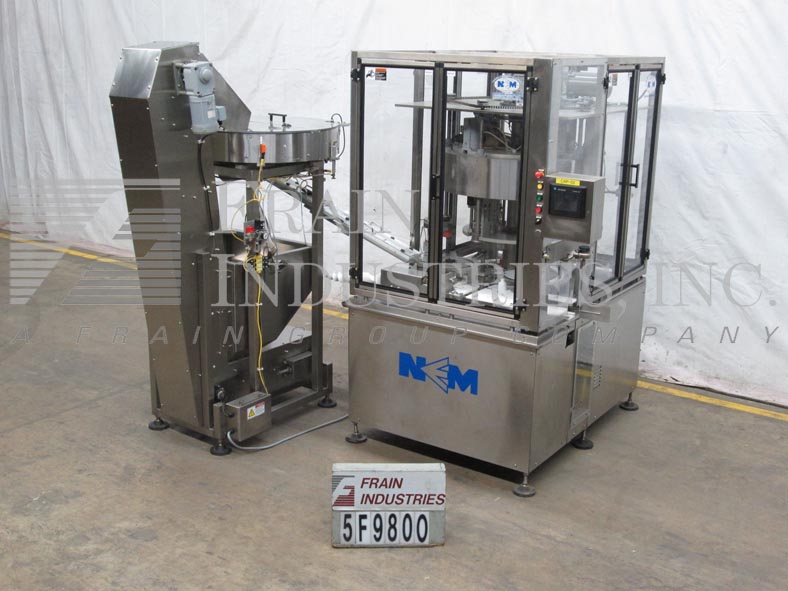

New England Capper 4 Head (Capper) NERCCE-2004-S

• Manufacturer: New England
• Model Number: NERCCE-2004-S
• Frain Number: 5F9800

New England Model NERCCE, 4 head, stainless steel, rotary chuck capper and Model NES 36 cap feeder and bowl sorter with speeds – depending on number of heads, container size and configuration. Cap size range: 15mm to 70mm, container size range: 2" to 5" in diameter; 4" to14" in height with proper change parts. Equipped with 44" long x 2-1/4" wide product conveyor with Urethane coated container handling surfaces for gentle handling of containers and is constructed of non marring HDPE (change part per application). 24" rotary turret with 4 servo driven pneumatic chuck capper heads set on 15" centers and collet pull pins for quick release / change over adaptable to a wide variety of caps / containers and has electronic torque control for consistent applied torque of +/- 1.5 in per lb. Control panel with A/B controller with panel view and speed controllers, interlock safety guarding. Mounted on stainless steel base frame. NES 36 stainless steel cap feeder and sorter has 30" long x 27" wide x 26" deep cap hopper and 55" long x 10" wide flexlink conveyor belt with 3-1/2′ high cleats on 10" centers and 36" OD stainless steel sorting bowl.

OAD: 63" L x 48" W x 87" H Capper
56" L x 42" W x 89" H Feeder

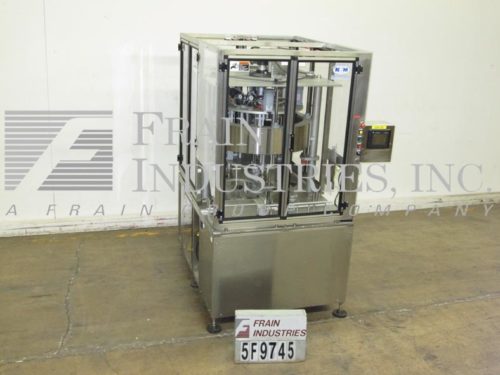

New England Capper 4 Head (Capper) NERCCE-2004-S

• Manufacturer: New England
• Model Number: NERCCE-2004-S
• Frain Number: 5F9745

New England Model NERCCE, 4 head, stainless steel, rotary chuck capper and Model NES 36 cap feeder and bowl sorter with speeds – depending on number of heads, container size and configuration. Cap size range: 15mm to 70mm, container size range: 2" to 5" in diameter; 4" to14" in height with proper change parts. Equipped with 44" long x 2-1/4" wide product conveyor with Urethane coated container handling surfaces for gentle handling of containers and is constructed of non marring HDPE (change part per application). 24" rotary turret with 4 servo driven pneumatic chuck capper heads set on 15" centers and collet pull pins for quick release / change over adaptable to a wide variety of caps / containers and has electronic torque control for consistent applied torque of +/- 1.5 in per lb. Control panel with A/B controller with panel view and speed controllers, interlock safety guarding. Mounted on stainless steel base frame.
NES 36 stainless steel cap feeder and sorter has 30" long x 27" wide x 26" deep cap hopper and 55" long x 10" wide flexlink conveyor belt with 3-1/2′ high cleats on 10" centers and 36" OD stainless steel sorting bowl.

OAD: 63" L x 48" W x 87" H Capper
56" L x 42" W x 89" H Feeder

Consolidated / Pneumatic Scale Capper 4 Head (Capper) C4F

• Manufacturer: Consolidated / Pneumatic Scale
• Model Number: C4F
• Frain Number: 5F9480

Consoilidated Model CF4, automatic, 4-head rotary, chuck capper, with cap sorter and feeder, rated from 40 to 120 containers per minute – depending on materials and application. Maximum cap size: 70mm, Maximum container height: 9". Equipped with integrated cap feeder and hopper, with disc unscrambler cap chute and button, 85" long x 2-1/2" wide belt conveyor with star wheel in feed and discharge, no container / no cap and (4) torque open chuck cap heads set on 9" centers with double grip container handling. Control panel has CPU controller with cap sorter, capper and turret speed controls, sorter and machine manual, on / off, automatic switch.

OAD: 90" L x 42" W x 82" H

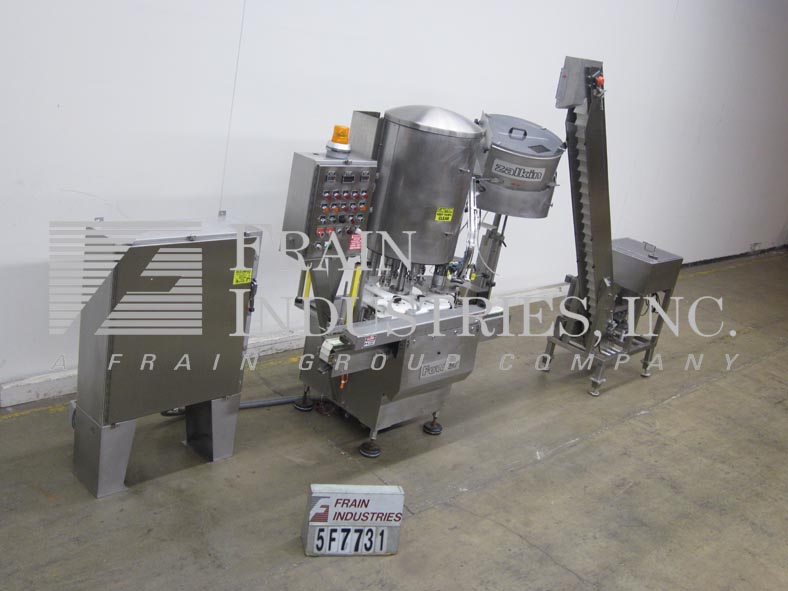

Zalkin Capper 4 Head (Capper) CA4PM

• Manufacturer: Zalkin
• Model Number: CA4PM
• Frain Number: 5F7731

Fowler / Zalkin Model CA4PM, automatic, 4 head stainless steel, small footprint otary screw capper rated from 40 to 200 containers per minute – depending on materials and application. Cap size range: 15mm to 43mm, Container size up to: 3" in Diameter; up to 5" in Height with proper change parts. Equipped with 76" long x 3-1/4” wide plastic Delrin belt conveyor with worm screw to star wheel in feed and discharge 22" diameter stainless steel cap bowl feeder, cap chute, cap button and cap head, stainless steel inclined cap feeder, (4) frictionless, magnetic clutch capping heads, with missing cap and container detection. Remote control panel has A/B PLC with on machine controller, safety light curtains, statis light and mounted on all stainless steel base frame. Capable of running both plastic and glass containers with proper change parts.

OAD: 76" L x 42" W x 85" H Capper
84"L x 34" W x 112" H Inclined Feeder
37"L x 20" W x 62" H Control Panel

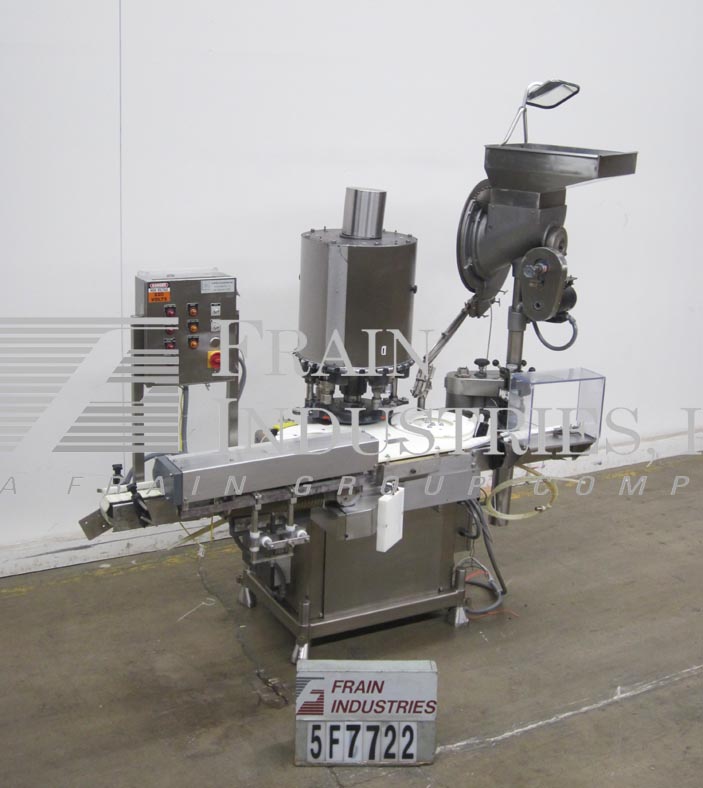

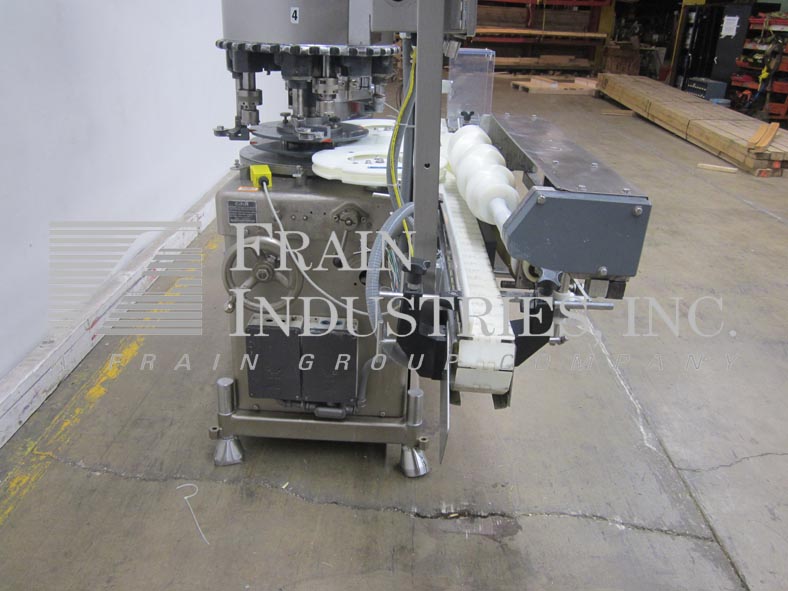

Consolidated / Pneumatic Scale Capper 4 Head (Capper) TG-4-15

• Manufacturer: Consolidated / Pneumatic Scale
• Model Number: TG-4-15
• Frain Number: 5F7722

Consoilidated Model TG-4-15, automatic, 4-head rotary, chuck capper cap sorter / feeder rated from 30 to 150 containers per minute – depending on materials and application. Containers size range: up to 6-1/2" in Diameter; 2" to 8" in Height. Equipped with integrated cap feeder, 20 x 20 x 17 cap hopper, disc unscrambler / feeder, cap chute, button and head. 108" long x 3-1/4" wide belt conveyor with worm screw to star wheel in feed and discharge, no container / no cap and torque open chucks, set on 12" centers. Control panel with cap sorter and capper speed control dials, turret in feed, star wheel feed, screw jam and cap chute low indicator lights.

OAD: 108′ L x 45" W x 137" H

Calumatic Capper 4 Head (Capper) MTV4

• Manufacturer: Calumatic
• Model Number: MTV4
• Frain Number: 5C8811

Four head rotary vacuum chuck capper capable of speeds from 40 to 100 CPM – speeds depending on materials and application. Has cap size range from 11mm up to 85MM (larger diameters can be handled under strict conditions. Container range: (diam) up to 130MM (height) 35 – 300MM. All s/s construction with barrier lexan guardiing. Has wormscrew to starwheel container handling. Pin style sorter.

OAD: 86"H 110"W 40"L
