Case Erector Machines

Used Case Erector Equipment

case erectorFrain Industries has hundreds of case erector machines and other end of line packaging equipment in stock and ready to set up for your application.  Frain carries many types of case erectors depending on your specific application, case size, speed, and line integration requirements.  Case erector machines and equipment are available in fully automatic or semi-automatic configuration and with many footprints depending on you container size.  Additionally different case erectors can handle a wide range of container types including:

  • RSC (regular slotted case)
  • AFM (all flaps meet)
  • HSC (half slotted case)
  • HSC with display
  • Five panel RSC or HSC with or without display
  • RSC bottom with folding flap
  • Interlocking cases
  • Self locking cases
  • Tablock cases
  • Bliss cases

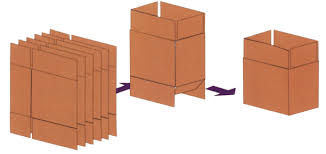

A case erector is a machine designed to erect a case from flat folded, pre-scored, case blank made from corrugated containerboard or other material.  A case erector takes one case blank from a magazine and forms or erects the case through the uses of mechanical devices, pneumatic devices, or a combination of both depending on the design of the machine.  Case erectors can be designed to seal the bottom of the case using either tape or glue, or not to seal the bottom of the case at all.  Cases can be erected with either the case opening facing up or the case opening facing to the side.  Special case erectors can be designed to erect bliss boxes, insert partitions into a box or case, or to erect a case and insert a bag into the case for a bag-in-box application (see Bag-in-box).  Bliss boxes are created with a solid piece of containerboard that is formed to create the front, back, and bottom of the box.  A bliss box case erector then inserts two additional pieces of containerboard to form the sides of the case.  The two addition pieces are sealed to flaps on the main portion of the case using hot melt glue.

Case erectors are widely used in many industries for automated drop loading and hand packing applications. They are used to form cases, trays, and boxes for the food, beverage, nutraceutical, personal care and household care industries.  Frain’s case erector are highly customizable and can be integrated seamlessly into any production line.

In addition to standard case erectors Frain industries carries the following:

  • Partition Inserters – Designed to automatically place partitions of the type used to separate bottles and jars into open cases.  Flat partitions are are erected form a stack and expanded using mandrels.  The expanded partitions are then inserted into the awaiting case.
  • Bag Inserters – Designed to open, insert, and cuff plastic bags from roll stock into a wide variety of corrugated containers.

Contact Frain Industries to discuss your application requirements with one of our engineers.  We can design a complete solution depending on your case erecting requirements.

Frain carries case erectors from many OEM’s including: ABC, Arpac, Bemis, Cermex, Combi, Delkor, Durable, Dyna Pak, Eagle Packaging Machinery, Elliott, Fallas, Hartness, K&R, Lantech, Little David, Loveshaw, Marq, McDowell, Moen, New Way, OK International, Padlocker, Pearson, Serpa Packaging, Sig, SWF, Thiele, WE Plemons, Wayne, Wepackit, Wexxar and others.

Contact Us

Case Erector Equipment In Stock

Combi America Case Erector Glue 2EZHS

  • Manufacturer: Combi America
  • Model Number: 2EZHS
  • Frain Number: R32967

Combi America Model 2EZHS, automatic, case erector, bottom taper rated from 5 to 30 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length x 6" to 16" in Width x 5" to 18" in Height. Heavy duty welded steel construction. Equipped with easy load, 57" long automatic blank case magazine, (5) suction cup pic-n-place case erector, minor and major flap closers, 48" long dual side belt case indexing, hand crank non-tool adjustable, vacuum system, seko guages with Nordson ProBlue hot melt glue system and interlock safety guarding. Control panel has A/B controller and A/B panel view with safety reset, start, stop and e-stop controls and statis light bar. Mounted on heavy duty frame with casters and leveling legs.

OAD: 105" L x 80" W x 77" H Magazine up
105" L x 137" W x 77" H Magazine down

Get a Free Quote Call: 630-629-9900

ABC Case Erector Glue 230

  • Manufacturer: ABC
  • Model Number: 230
  • Frain Number: 5H7041

ABC, Model 230, automatic, case erector, bottom tape sealer. Rated from 5 to 35 cases per minute – depending on materials, application and machine configuration. Case size range; 7" to 22" in Length; 5¾" to 16" in Width; 7" to 22" in Height. Knock down dimmensions: 12" to 38" in Length; 8" to 29¼" in Width both (RSC) and (HSC) cases. Equipped with 72" long (2) belt blank case magazine, suction cup pick and place, walking beam case transfer, 48" long x 2½" wide dual upper and lower case belt drive transports thru the 2" tape head. Control panel has start / e-stop push buttons controls with flip up, interlock safety guarding. Mounted on heavy duty frame with leveling legs.

OAD: 160" L x 60" W x 74" H Erector
72" L x 34" W x 34" H Magazine

Get a Free Quote Call: 630-629-9900

Combi America Case Erector Tape 2EZHS

  • Manufacturer: Combi America
  • Model Number: 2EZHS
  • Frain Number: R31802

Combi America Model 2EZHS, automatic, case erector, bottom taper rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length x 6" to 16" in Width x 5" to 18" in Height. Heavy duty welded steel construction. Equipped with easy load, 80" long automatic blank case magazine, (5) suction cup pic-n-place case erector, minor and major flap closers, 44" long x 3-1/4" wide dual side belt case indexing, 3" bottom tape head, hand crank no-tool adjustable, vacuum system and interlock safety guarding. Control panel has A/B controller with A/B panel view and safety reset, start, stop and e-stop controls with ethernet interface port and statis light bar. Mounted on height adjustable frame with leveling legs.

OAD: 105" L x 80" W x 84" H Magazine up
105" L x 160" W x 75" H Magazine down

Get a Free Quote Call: 630-629-9900

Combi America Case Erector Tape 2EZHS

  • Manufacturer: Combi America
  • Model Number: 2EZHS
  • Frain Number: R31806

Combi America Model 2EZHS, automatic, case erector, bottom taper rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length x 6" to 16" in Width x 5" to 18" in Height. Heavy duty welded steel construction. Equipped with easy load, 80" long automatic blank case magazine, (5) suction cup pic-n-place case erector, minor and major flap closers, 44" long x 3-1/4" wide dual side belt case indexing, 3" bottom tape head, hand crank no-tool adjustable, vacuum system and interlock safety guarding. Control panel has A/B controller with A/B panel view and safety reset, start, stop and e-stop controls with ethernet interface port and statis light bar. Mounted on height adjustable frame with leveling legs.

OAD: 105" L x 80" W x 84" H Magazine up
105" L x 160" W x 75" H Magazine down

Get a Free Quote Call: 630-629-9900

Combi America Case Erector Tape 2EZHS

  • Manufacturer: Combi America
  • Model Number: 2EZHS
  • Frain Number: R31804

Combi America Model 2EZHS, automatic, case erector, bottom taper rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length x 6" to 16" in Width x 5" to 18" in Height. Heavy duty welded steel construction. Equipped with easy load, 80" long automatic blank case magazine, (5) suction cup pic-n-place case erector, minor and major flap closers, 44" long x 3-1/4" wide dual side belt case indexing, 3" bottom tape head, hand crank no-tool adjustable, vacuum system and interlock safety guarding. Control panel has A/B controller with A/B panel view and safety reset, start, stop and e-stop controls with ethernet interface port and statis light bar. Mounted on height adjustable frame with leveling legs.

OAD: 105" L x 80" W x 84" H Magazine up
105" L x 160" W x 75" H Magazine down

Get a Free Quote Call: 630-629-9900

Combi America Case Erector Tape 2EZHS

  • Manufacturer: Combi America
  • Model Number: 2EZHS
  • Frain Number: R31805

Combi America Model 2EZHS, automatic, case erector, bottom taper rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length x 6" to 16" in Width x 5" to 18" in Height. Heavy duty welded steel construction. Equipped with easy load, 80" long automatic blank case magazine, (5) suction cup pic-n-place case erector, minor and major flap closers, 44" long x 3-1/4" wide dual side belt case indexing, 3" bottom tape head, hand crank no-tool adjustable, vacuum system and interlock safety guarding. Control panel has A/B controller with A/B panel view and safety reset, start, stop and e-stop controls with ethernet interface port and statis light bar. Mounted on height adjustable frame with leveling legs.

OAD: 105" L x 80" W x 84" H Magazine up
105" L x 160" W x 75" H Magazine down

Get a Free Quote Call: 630-629-9900

Combi America Case Erector Tape 2EZHS

  • Manufacturer: Combi America
  • Model Number: 2EZHS
  • Frain Number: R31803

Combi America Model 2EZHS, automatic, case erector, bottom taper rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length x 6" to 16" in Width x 5" to 18" in Height. Heavy duty welded steel construction. Equipped with easy load, 80" long automatic blank case magazine, (5) suction cup pic-n-place case erector, minor and major flap closers, 44" long x 3-1/4" wide dual side belt case indexing, 3" bottom tape head, hand crank no-tool adjustable, vacuum system and interlock safety guarding. Control panel has A/B controller with A/B panel view and safety reset, start, stop and e-stop controls with ethernet interface port and statis light bar. Mounted on height adjustable frame with leveling legs.

OAD: 105" L x 80" W x 84" H Magazine up
105" L x 160" W x 75" H Magazine down

Get a Free Quote Call: 630-629-9900

ABC Case Erector Tape 330T

  • Manufacturer: ABC
  • Model Number: 330T
  • Frain Number: 5H6440

ABC, Model 330T, automatic case erector and bottom tape sealer with number of cases per minute – depending on materials and application. Case size range; 7" to 22" in Length; 5¾" to 16" in Width; 7" to 22" in Height. KD dimmensions: 12" to 38" in Length; 8" to 29¼" in Width both (RSC) and (HSC) cases. Equipped with 64" long (2) belt easy load automatic blank case magazine, suction cup case pick and place with suction cup case erector, major and minor flap closers, walking beam case transfer, 48" long x 2½" wide dual upper and lower case belt drive transports thru 2" tape head. Control panel has A/B Micrologix controller with A/B panelview touch pad controls, statis light bar, light curtain and e-stop push buttons. Mounted on heavy duty frame with flip-up safety guarding.

OAD: 154" L x 60" W x 72" H

Get a Free Quote Call: 630-629-9900

Wexxar Case Erector Tape WFT

  • Manufacturer: Wexxar
  • Model Number: WFT
  • Frain Number: 5H6309

Wexxar, Model WFT, automatic, in line case erector and bottom tape sealer. Rated from 5 to 15 cases per minute – depending materials, application and machine configuration. Case size range: 6" to 24" in Length; 6" to 17" in Width; 9" to 24" in Depth (flaps up). 6" to 24" in Length; 5" to 17" in Width; 3.5" to 16.5" in Depth (flaps down). Equipped with 72" long powered blank case magazine, recipicating pin and dome case forming plates, minor and major flap closers, pusher bar and is hand crank adjustable. with bottom 2" tape head and 32" long side belt discharge. Control panel has jog, start, stop and e-stop push button controls with statis light bar. Mounted on (4) leg frame with safety door guarding.

OAD: 144" L x 60" W x 76" H

Get a Free Quote Call: 630-629-9900

Belcor Case Erector Tape 615T

  • Manufacturer: Belcor
  • Model Number: 615T
  • Frain Number: 5H6271

Belcor, Model 615T, automatic, in line case erector and bottom tape sealer. Rated from 5 to 15 cases per minute – depending materials, application and machine configuration. Case size range: 6" to 24" in Length; 5" to 17" in Width; 3½" to 16½" in Depth. Equipped with 48" long powered blank case magazine, recipicating pin and dome case forming plates, minor and major flap closers, pusher bar and is hand crank adjustable with bottom 2" tape head. Control panel has push button start / stop controls. Mounted on (4) leg frame with safety door guarding.

OAD: 135"L x 53"W x 80"H

Get a Free Quote Call: 630-629-9900

Combi America Case Erector Tape 2EZHS

  • Manufacturer: Combi America
  • Model Number: 2EZHS
  • Frain Number: R31800

Combi America Model 2EZHS, automatic, case erector, bottom taper rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length x 6" to 16" in Width x 5" to 18" in Height. Heavy duty welded steel construction. Equipped with easy load, 80" long automatic blank case magazine, (5) suction cup pic-n-place case erector, minor and major flap closers, 44" long x 3-1/4" wide dual side belt case indexing, 3" bottom tape head, hand crank no-tool adjustable, vacuum system and interlock safety guarding. Control panel has A/B controller with A/B panel view and safety reset, start, stop and e-stop controls with ethernet interface port and statis light bar. Mounted on height adjustable frame with leveling legs.

OAD: 105" L x 80" W x 84" H Magazine up
105" L x 160" W x 75" H Magazine down

Get a Free Quote Call: 630-629-9900

Pattyn Packaging Line Case Erector Bag Inserter CEFLEC-31

Pattyn Packaging Model CEFLEX-31, automatic, case erector, bottom taper and bag inserter rated from 2 to 10 cases per minute – depending on materials and application. Case size range: 12" to 24" in Length; 8" to 16" in Width; 10" to 25-1/2" in Depth. Flat blank range: 20" to 40" in Length x 14" to 3-1/2" in Width. Equipped with (4) chain auto blank case magazine and pneumatic tri-grip case erector and squaring arm with mechanical grippers, bottom flap closer, side flap plows and dual side belt case asset conveyors, with 2" bottom taper. Bag inserter which inserts pre-performed roll stock bags into cases, fitting all corners and cuffing the bag around the outer perimeter of the case with bag opening carriage, spoon and gripper design, (4) corner cuffing rods with air assit bag inset and is hand crank adjustable. Maximum film OD of 9" with 3" ID core. Control panel has A/B controller with panelview and start, stop, reset mode control switches, with safety guarding. Mounted on heavy duty frame with leveling legs.

OAD: 185" L x 80" W x 72" H

Get a Free Quote Call: 630-629-9900
