Glue case erectors are designed to erect cases from pre-scored folded-flat blank corrugate and to close and seal the bottom of the case with glue. The glue case erectors form the case, fold the bottom minor flaps, apply the glue to either the folded minor flaps or the unfolded major flaps, and close the major flaps. The glue sealed major flaps are often compressed for a short period of time to allow the glue to set up resulting in a stronger seal.

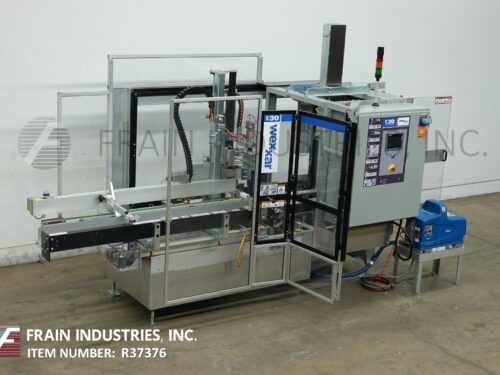

Wexxar, Model WF-30H, Automatic, in line case erector, bottom hot melt glue sealer. Rated from 5 to 30 cases per minute – depending on materials, application and machine configuration. Case size range: 9" to 18" in Length; 7¼" to 14" in Width; 6" to 15" in Height. Equipped with 61" long (2) belt powered blank case magazine, pin and dome case forming plates, minor and major flap closers, case pusher bar, Norden ProBlue hot melt glue unit and 34" long x 6" wide dual side belt discharge section with adjustable 23" to 28" discharge height. Control panel has PLC controller with panel view touch screen HMI, e-stop and status light bar. Mounted on base frame with leveling legs and safety guarding.
OAD: 168" L x 77" W x 94" H
Wexxar, Model WF-30H, Automatic, in line case erector, bottom glue sealer. Rated from 5 to 30 cases per minute – depending on materials, application and machine configuration. Case size range: 9" to 18" in Length; 7¼" to 14" in Width; 6" to 15" in Height. Equipped with 61" long (2) belt powered blank case magazine, pin and dome case forming plates, minor and major flap closers, case pusher bar, Norden ProBlue hot melt glue unit and 34" long x 6" wide dual side belt discharge section with 23" to 28" discharge height. Control panel has PLC controller with panel view touch screen HMI, e-stop and status light bar. Mounted on base frame with leveling legs and safety guarding.
Pearson, Model CE35G, Automatic, inline, case erector and hot melt glue bottom sealer rated from 10 to 35 cases per minute – depending on materials, application and machine configuration. Mild steel construction with standard powder coat flint grey fine texture coating. Case size range: 6" to 23½" in Length; 5" to 16" in Width, 3½" to 18½" in Depth and capable of handling CSSC, FOL, HSC, RSC and RSC with integral divider cases with proper change parts. Equipped with extended (4) chain automatic blank case magazine, suction cup pic n place with case erecting squaring system and top hold down, hand crank height and width adjustable, has top flap lifters and rear flap closers with plow and Nordson hot melt glue system. Control panel has A/B controller with A/B PanelView touch screen HMI and statis light bar. Mounted on heavy duty frame with interlock safety guarding.
OAD: 225"L x 88"W x 90"H
Pearson, Model CE35G, automatic, case erector and hot melt glue bottom sealer. Rated from 10 to 35 cases per minute – depending on materials, application and machine configuration. Case size range: 6" to 23½" in Length; 5" to 16" in Width, 3½" to 18½" in Depth. Equipped with 77" long (4) chain automatic blank case magazine, suction cup pic n place and case erecting squaring system with top hold down, hand crank height and width adjustable case feed section, top flap lifters and rear flap closers and plow and Nordson hot melt glue system. Control panel has AB controller with AB PanelView touch screen HMI and statis light bar. Mounted on heavy duty base frame with interlock safety guarding.
Pearson, Model CE35G, Automatic, case erector and hot melt glue bottom sealer. Rated from 10 to 35 cases per minute – depending on materials, application and machine configuration. Case size range: 6" to 23½" in Length; 5" to 16" in Width, 3½" to 18½" in Depth. Equipped with 77" long (4) chain automatic blank case magazine, suction cup pic n place and case erecting squaring system with top hold down, hand crank height and width adjustable case feed section, top flap lifters and rear flap closers and plow and Nordson hot melt glue system. Control panel has AB controller with AB PanelView touch screen HMI and statis light bar. Mounted on heavy duty frame with interlock safety guarding.
Combi America Model 2EZHS, automatic, case erector, bottom hot melt glue sealer. Case size range: 8" to 24" in Length; 6" to 16" in Width; 5" to 18" in Height. Equipped with 57" long case magazine, (5) suction cup pic-n-place, minor and major flap closers, 48" long dual side belt case indexing, non-tool adjustable, vacuum system, Siko gauges, Nordson ProBlue hot melt glue system and interlock safety guarding. A/B controller with panel view, safety reset, start, stop, e-stop and status light bar. Mounted on casters and leveling legs. Speed dependant on materials, application and machine configuration.OAD: 105" L x 80" W x 77" H Magazine up 105" L x 137" W x 77" H Magazine down
Pearson, Model CE35-G, automatic, right to left, case erector and hot melt glue bottom sealer. Rated from 5 to 30 cases per minute – depending on materials and application. Case size range:10" to 20" in Length; 5" to 16" in Width, 8" to 16" in Depth. Equipped with 58" long x 19" wide (4) chain automatic blank case magazine, suction cup pic n place and case erecting, squaring system with top hold down and 48" long choke feed transfer. Hand crank height and width adjustable case feed section, top flap lifters and rear flap closers and plows, Nordson hot melt glue system with single ram arm compression section. Control panel has A/B PanelView Plus 600 touch screen controller with push button start / stop / E-stop push button controls and statis light bar. Mounted on heavy duty base frame with interlock safety guarding.
OAD: 181"L x 85"W x 95"H
ABC Model 500, automatic, continuous motion, hot glue, case erector and bottom sealer, rated from 20 to 55 cases per minute – speeds depending on materials and application. Knock down case size: 14-1/4" to 29-3/4" in Length; 12-1/4" to 26" in Width. Equipped with a 32" long blank case magazine, reciprocating vacuum pick and place, lugged chain carrier system set on 32" centers, top squaring conveyor, minor and major flap closers, two compressing rams, hot melt glue system, and interlocking Lexan guarding.
OAD: 180" L x 84" W x 68" H
Loveshaw Model CF209XLT8FTL, automatic case erector, hot melt glue, bottom sealer rated from 5 to 15 cases per minute – depending on materials and application. Case size range: 15" to 32" in Length; 10" to 22" in Width, 8" to 24" in Height. Equipped with blank case magazine, suction cup pic n place with pusher block and feed wheels, top vacuum suction cup and swing arm case erector, 108" long choke feed hand crank height and width adjustable case feed section with top squaring rail, top flap lifters and rear flap closers and plows, Nordson hot melt glue system and single ram arm compression section. Control panel with drive motor, sheet folder, x-lift, case erector and sheet folder vacuum on / off switches, glue and blank feed auto manual and off controls. Mounted on heavy duty base frame with cage style safety guarding.
168" L x 80" W x 78" H Case Erector Sealer 70" L x 60" W x 82" H Blank Case Magazine
Wexxar Model WFH, automatic, inline case erector, bottom hot melt glue sealer. Case size range: 6" to 24" in Length; 5" to 16-1/2" in Width; 3.5" to 16.5" in Height. Equipped with 72" long powered blank case magazine, recipicating pin and dome case forming plates, minor and major flap closers, case pusher bar, Nordson hot melt glue system, single arm case compression ram and 36" long dual side roller discharge section. Control panel with A/B CPU, has ram arm, glue, jog, run, remote demand, on / off switches with start, stop, e-stop buttons, statis light bar and safety guarding. Speed dependant on materials, application and machine configuration.
OAD: 168" L x 70" W x 99" H
Southern Packaging Model CE-900, automatic case erector rated from 5 to 30 cases per minute – depending on materials, application and machine configuration. Case size range: 10" to 24" in Length; 5" to 18" in Width; 6-1/2" to 22" in Height. Equipped with 80" long by 24" wide dual chain blank case magazine, suction cup pic-n-place, case erection system, hot melt glue system, bottom flap closers and ram compression section. A/B PLC, e-stop and safety guarding. Capable of handling RSC and HSC cases.
OAD: 184" L x 80" W x 77" H
