Coupon inserters / feeders are designed to feed coupons into cartons, bags or bottles. The coupons can come in either a pre-cut stack or in a bandolier style where each individual coupon is separated from the rest of the coupon roll. A coupon inserter / feeder for pre-cut product will pick off one piece of product from a magazine using a one or many vacuum cups. The arm, which carries the vacuum cup, then rotates the product and discharges the product at the proper location by releasing the vacuum on the product. The arm can have a rotary or reciprocating motion. Rotary pick & place machines can be designed with multiple arms for additional output.

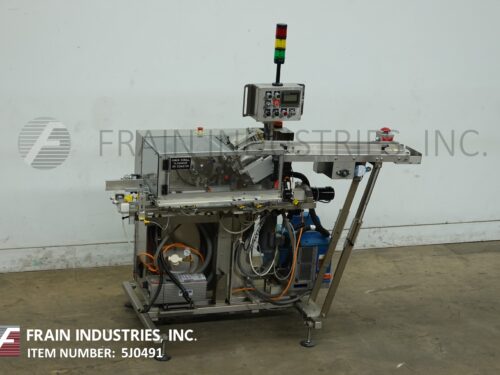

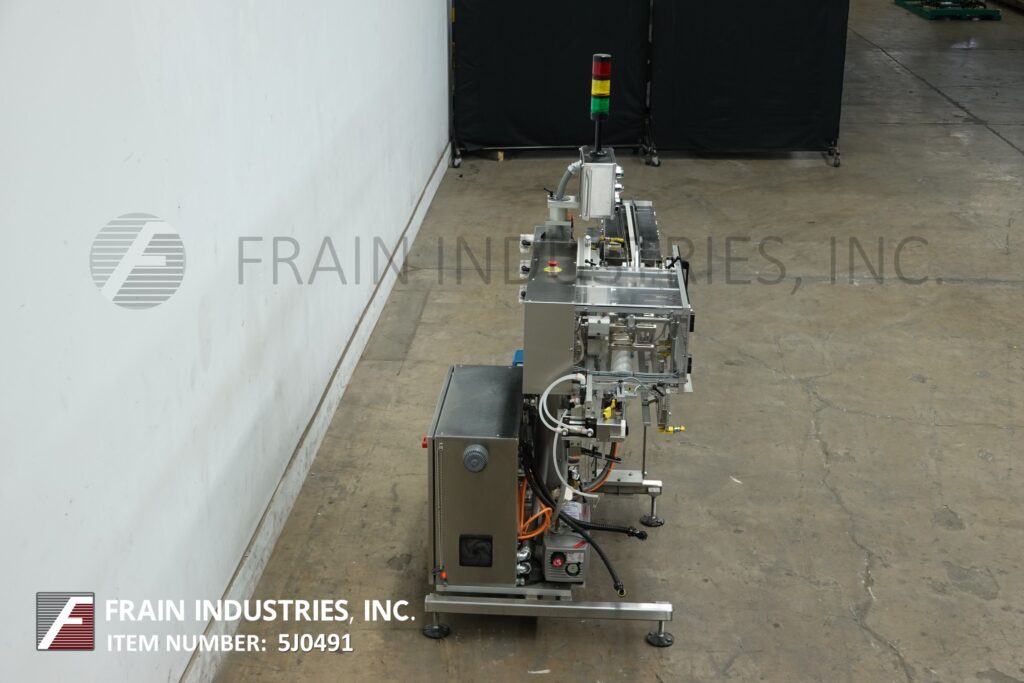

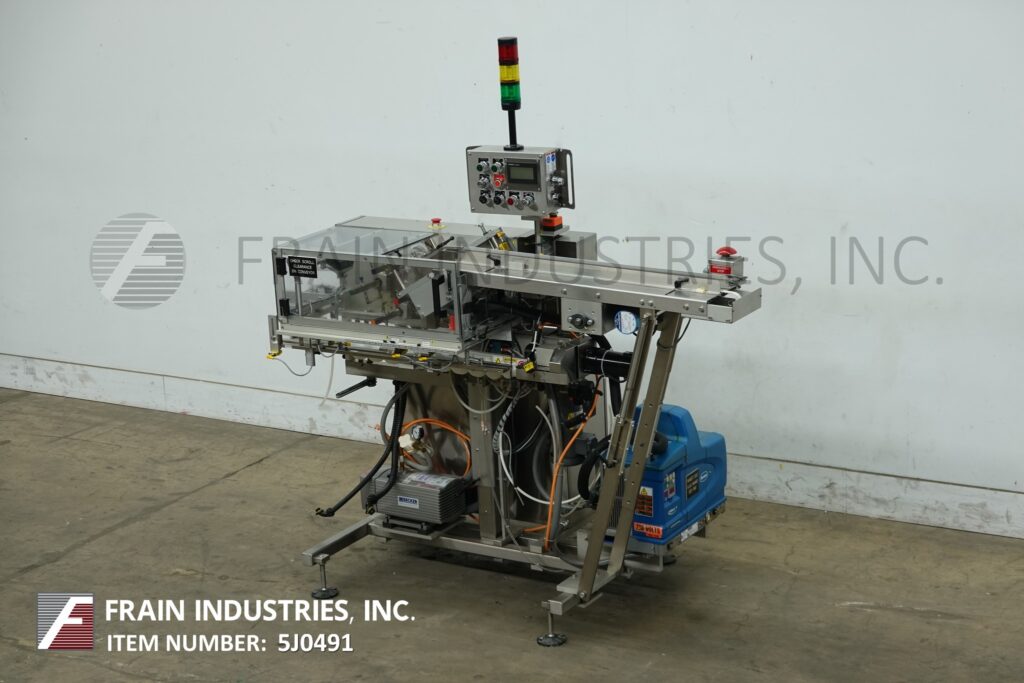

MGS, Model RPP-421T Topsert feeder. Rated from 10 to 600 picks per minute – depending on materials and application. Product size range: 1" to 7" in Width x 1" to 5" in Length. Equipped with 48" long powered product magazine with (4) head suction cup rotary pick n place, 30" worm screw and Nordson hot melt glue system. Control panel with Start/Stop controls. Mounted on stainless steel frame.
OAD: 84" L x 39" W x 85" H
Two tier, pack off conveyor. Equipped with (1) 7½" wide x 222" long infeed belt with an infeed and discharge height of 32" to 35" and (1) 186" long V-belt with (2) 4½" wide belts and an infeed and discharge height of 36" to 29". All belts independently powered by ½ hp drives.
OAD: 252"L x 44"W x 49"H

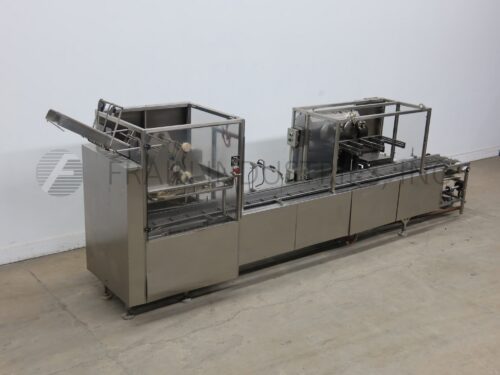

Series 20 reciprocating pick-in-place tray feeder capable of up to 40 cycles per minute (each head). on trays. Has a tray size range of: Min (2"W x 2"L x 1/2" Deep) and Max (24"W x 30"L x 2"Deep). Comes with a 2 head reciprocating pick-in-place,with 2 vacuum cups each head, and a 3′ long x 28" wide tray magazine, mounted over a 13′ long with (2) 6" wide dual lane stainless steel feed conveyor set on 7 1/2" centers. Last feeding (7"L x 5"W x 1 1/4" Deep) tray in a food operation.
OAD: 232"L x 50"W x 82"H
Thiele, Model T7400A, topsert feeder. Rated from 10 to 400 picks per minute – depending on materials, application and machine configuration. Product size range: 1" to 6" in Width; 1" to 6" in Height and to 1" thick with (4) heads. Equipped with 60" long adjustable width coupon magazine, (4) head rotary vacuum suction cup pick n place, barcode reader, Nordson Problue hot melt glue system and vacuum pump. Control panel has AB controller with touch screen HMI and statis light bar.Mounted on frame with casters and leveling legs.
OAD: 72"L x 54"W x 89"H
Thiele, Model 34-BOAM-IB, stainless steel, topsert feeder. Rated from 10 to 400 picks per minute – depending on materials, application and machine configuration. Product size range: 1″ to 6″ in Width; 1″ to 6″ in Height and to 1″ thick with (4) heads. Equipped with 60″ long adjustable width coupon magazine, (4) head rotary vacuum suction cup pick n place, barcode reader, hot melt glue system and vacuum pump. Control panel has AB controller with push button start / stop controls. Mounted on stainless steel frame with leveling legs.
OAD: 80″L x 54″W x 78″H
Thiele, Model T7400A, topsert feeder. Rated from 10 to 400 picks per minute – depending on materials, application and machine configuration. Product size range: 1″ to 6″ in Width; 1″ to 6″ in Height and to 1″ thick with (4) heads. Equipped with 60″ long adjustable width coupon magazine, (4) head rotary vacuum suction cup pick n place, barcode reader, Nordson Problue hot melt glue system and vacuum pump. Control panel has AB controller with touch screen HMI.
OAD: 72″L x 54″W x 89″H
MGS Model RPP-42IT Top Sorter, automatic, stainless steel, 4 head rotary pick n place rated from 60 to 600 placements per minute – depending on materials, application and machines configeration. Product size range: 1" to 7" in Height x 1" to 12" in Width. Equipped with 42" long x 3/4" wide powered coupon magazine,and feed screw product timing indexer with self contained vacuum pump and pressure gauge, digicount counter and Nordson hot melt glue system. Control panel has A/B PLC with digital readout, vacuum, glue and mode on / off / bypass switches has start, stop and multiple e-stop push buttons with statis light bar. Mounted on stainless steel frame with leveling legs and safety guarding. Container is timed in with a screw in feed and automatically pick leaflet from magazine and at the same time the glue is applied to the top of the container and the leaflet is placed on top of the glue.
OAD: 78" L x 48" W x 80" H
MGS, Model RPP-420D-CSU, automatic, rotary feeder. Rated from 10 to 400 picks per minute – depending on materials, application and machine configuration. Product size: 1½" to 18" in Width; 1½" to 5" in Height. Equipped with an 80" long powered magazine, with (4) head, rotary vacuum suction cup pick n place.
OAD: 95"L x 36"W x 16"H
Dual lane, 3-arm rotary, vacuum, pick and place capable of up to 150 cycles per minute. Product: up to 12"W x up to 14 1/2"H. Has two 30"L magazines, low blank sensor, auditory alarm, 1-cup vacuum product pick-off per lane, air blow to assist vacuum pick-off, ratcheted hand crank for changeover, changeover guages, Ab controller, E-stop and interlocked barrier guarding. Mounted on height adjustable feet.
OAD: 60"L x 57"W x 78"H
Automatic, stainless steel, rotary feeder rated up to 400 products per minute – depending on materials and application. Product size: 1.5" to 6" in Length; 1.5" to 6" in Width. Equipped with a 36" long magazine, 4 head rotary pick and place with vacuum suction cups, Lexan safety guarding, and push button controls. Mounted on a stainless steel frame with height adjustable legs.
OAD: 60" L x 32" W x 68" H
Automatic. adjustable bucket feed conveyor system equipped with two high speed card feeders. Streamfeeder model ST1250 card/coupon feeders with a belt speed of 9,000" per minute and feed rate of up to 1,950 pieces per minute batch mode or one shot mode of up to 750 pieces per minute. Product size range of: 3-3/4" – 14" in Length; 3-3/4" – 12" in Width; 0.002" – 1" in Thickness. Streamfeeder touch pad controller. Buckets: 6-1/2" long by adjustable width.
OAD: 156" L x 16" W x 65" H
Reciprocating placer rates dependant on materials and application. Equipped with 72′ long magazine, reciprocating suction pick & place mechanism and guarding.
OAD: 103" L X 30" W X 58" T.
