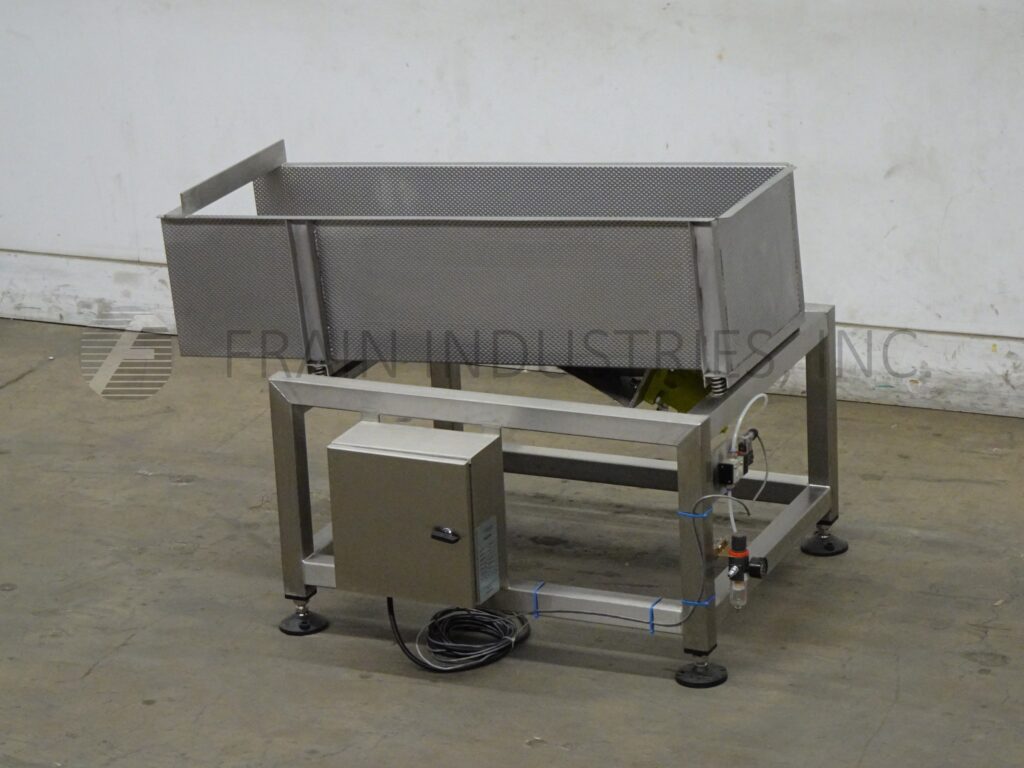

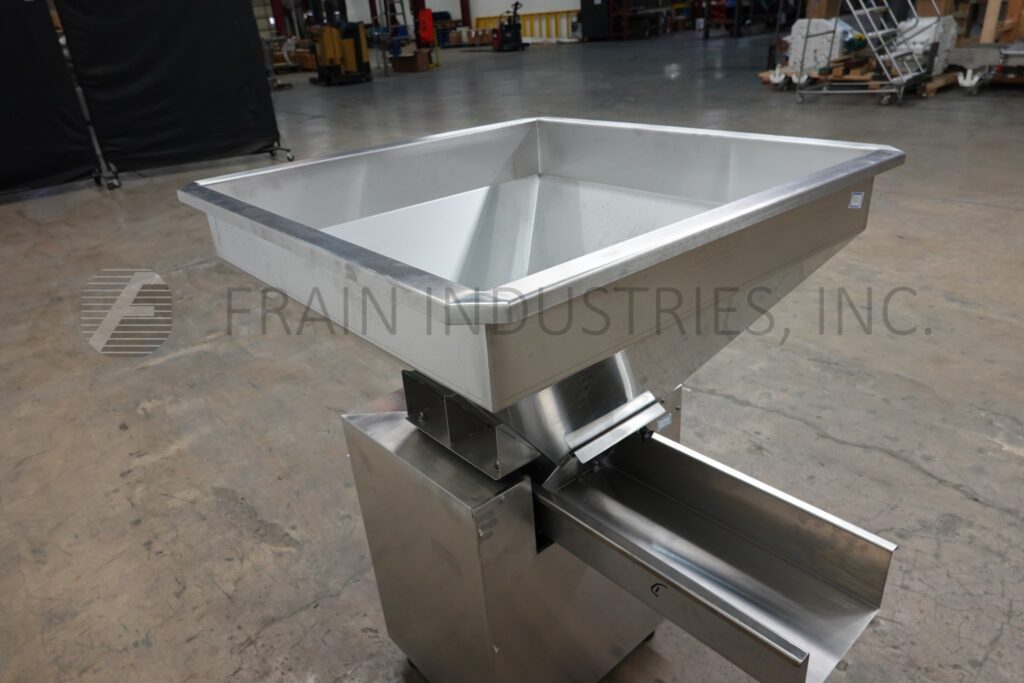

Ohlson, 9" wide x 28" long, vibratory feeder. Equipped with 31"L x 31"W x 24"D hopper, stainless steel bed with 5" high side walls and 22" discharge height. Mounted on stainless steel legs and leveling pads.
OAD: 42"L x 35"W x 46"H

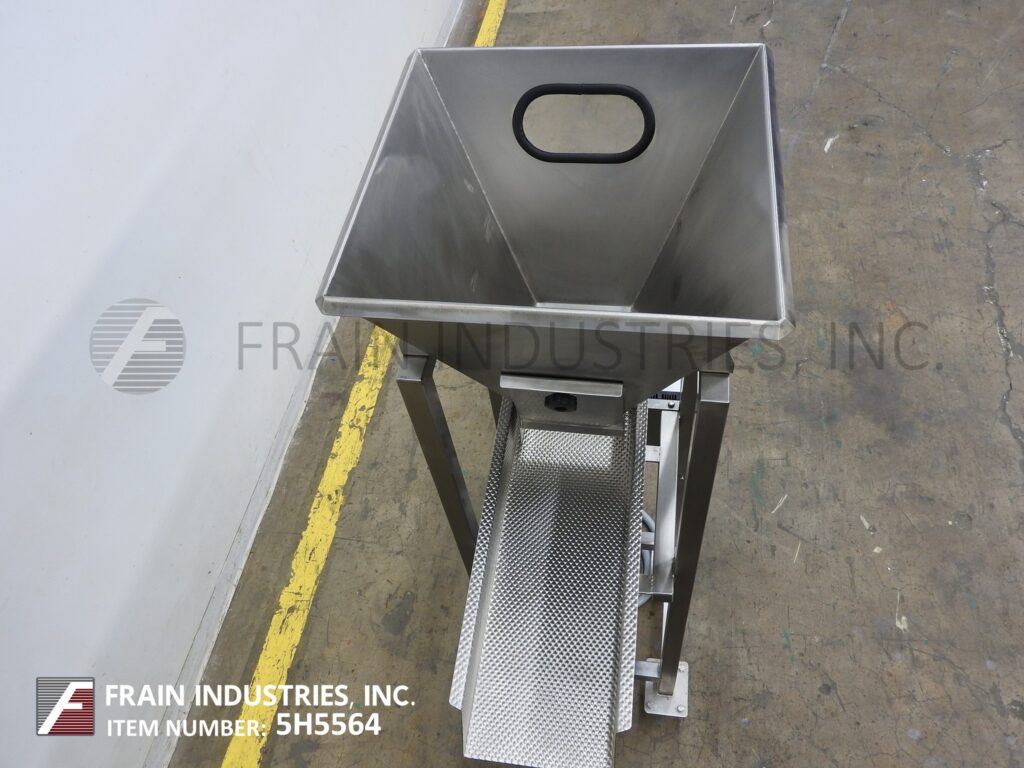

8" Wide x 24" Long, vibratory feeder. Equipped with a 20" long x 20" wide x 20" deep product hopper and 8" wide x 24" long dimpled pan vibratory conveyor with 48" ground clearance. Mounted on a stainless steel frame with casters and variable speed control.
OAD: 40"L x 22"W x 68"H
Volumetric feeder / counter. Equipped with a 12" x 12" x 10" product hopper, 6" wide x 12" long vibratory pan conveyor, 15" long (9) lane track sorter and reciprocating cylinder depositor.
OAD: 40"L x 16"W x 91"H

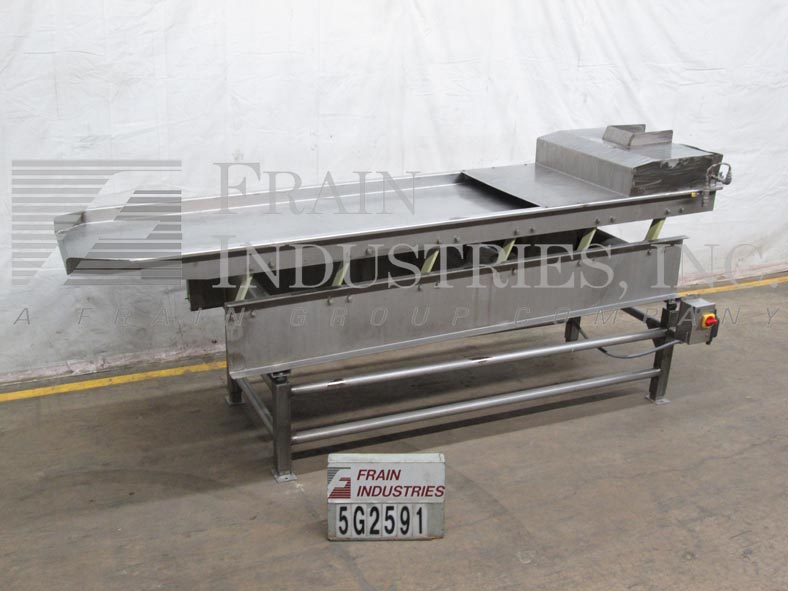

Meyer, stainless steel vibratory conveyor. Equipped with 34"wide x 112"long bed with 2¾" sidewalls. Quadra Eccentric vibrator driven by 1hp gearmotor and A-B enclosed disconnect switch. 45"high outfeed and 51"high infeed with 1/2"diameter x 34"long water spray pipe. Unit is mounted on a 69"long x 40"wide x 24"high stainless steel frame stand.
OAD: 116"L x 52"W x 63"H
Three to one, stainless steel, belt feeder rated up to 540 feet per minute – depending on materials and application. Equipped with three 24" long x 12" wide infeed ports, three 36" long x 6" wide neoprene conveyors, vacuum dust collection ports, and a 156" long x 12" wide neoprene discharge conveyor. Mounted on height adjustable legs with casters.
OAD: 60"L x 150"W x 54"H

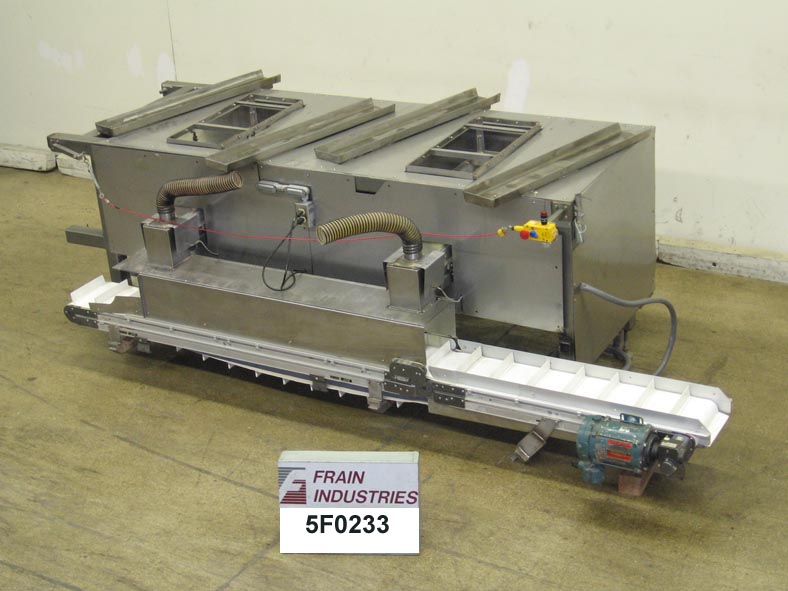

Two to one, stainless steel, belt feeder rated up to 360 feet per minute – depending on materials and application. Equipped with two, 24" long x 12" wide infeed ports, two 36" long x 6" wide neoprene conveyors, vacuum dust collection ports, and a 132" long x 10" wide cleated discharge conveyor with 2" long x 10" wide x 6" high cleats. Mounted on height adjustablel legs with casters.
OAD: 146"L x 44"W x 48"H

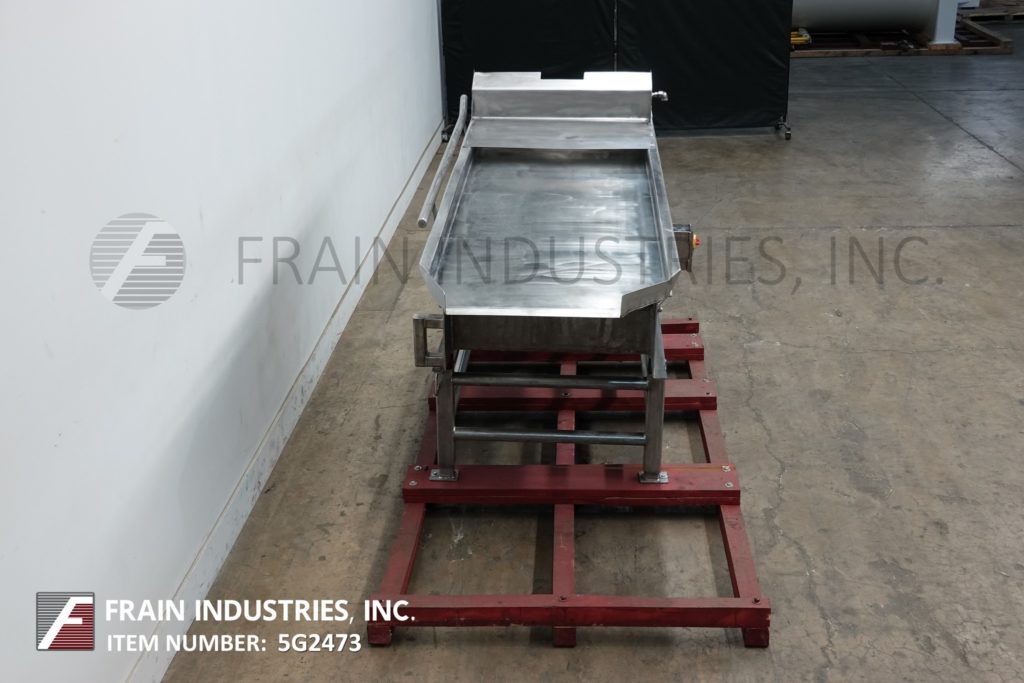

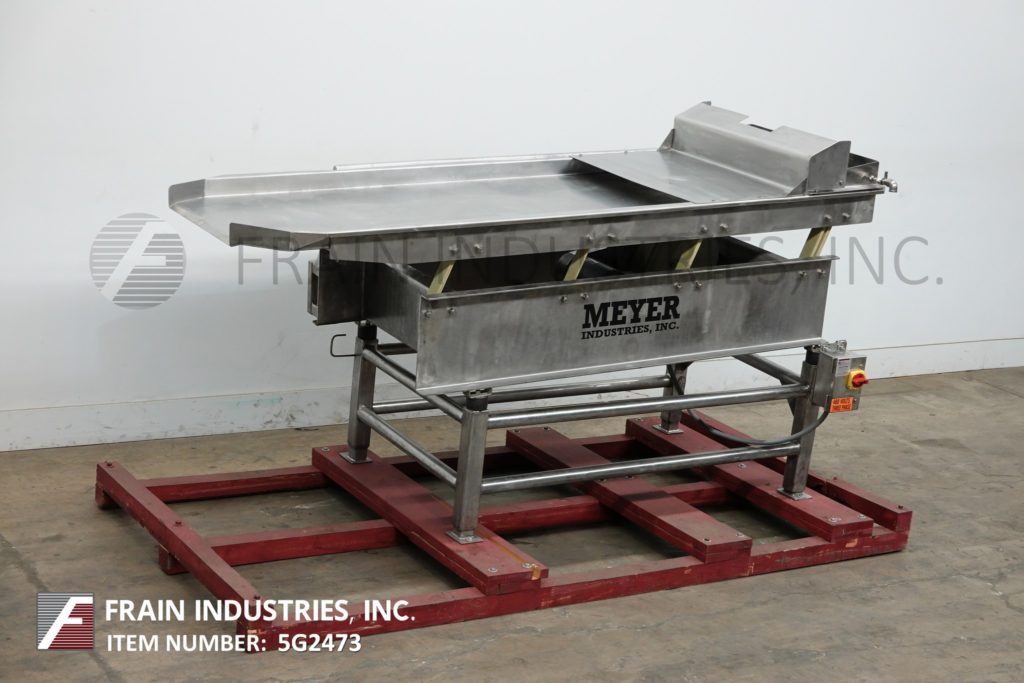

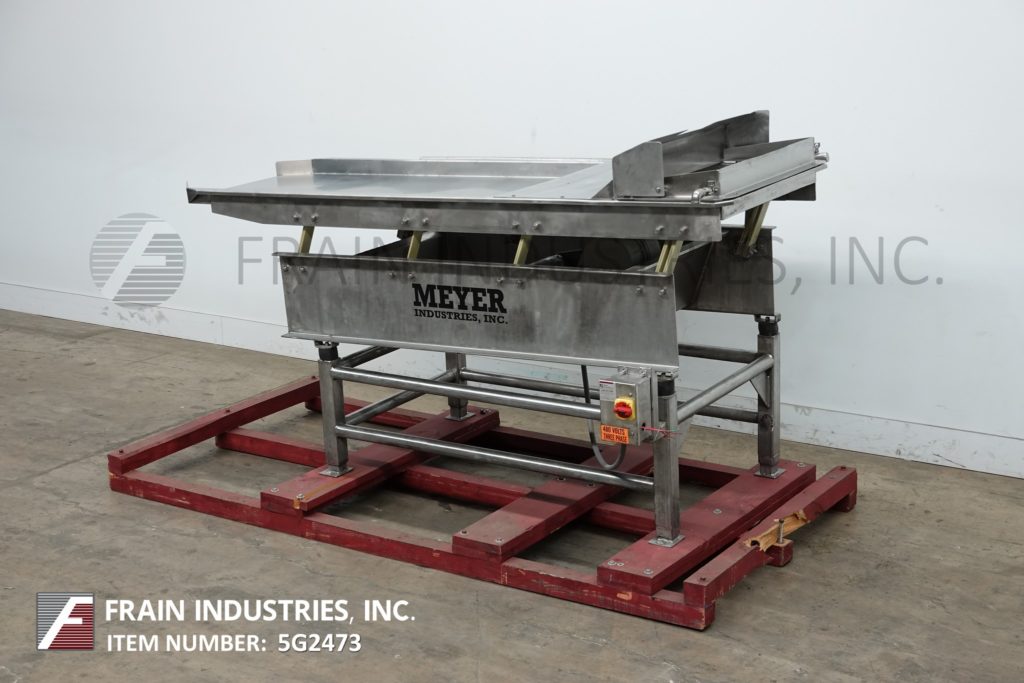

Stainless steel 144" long x 34" wide shaker inspection table. Equipped with 2-1/4" high side splash wall, 52-1/2" high charge side with 1/2" water spray tube, 43-1/2" discharge height, and eccentric vibrator driven by 1hp motor drive with A-B disconnect switch.
OAD: 145"L x 52"W x 64"H

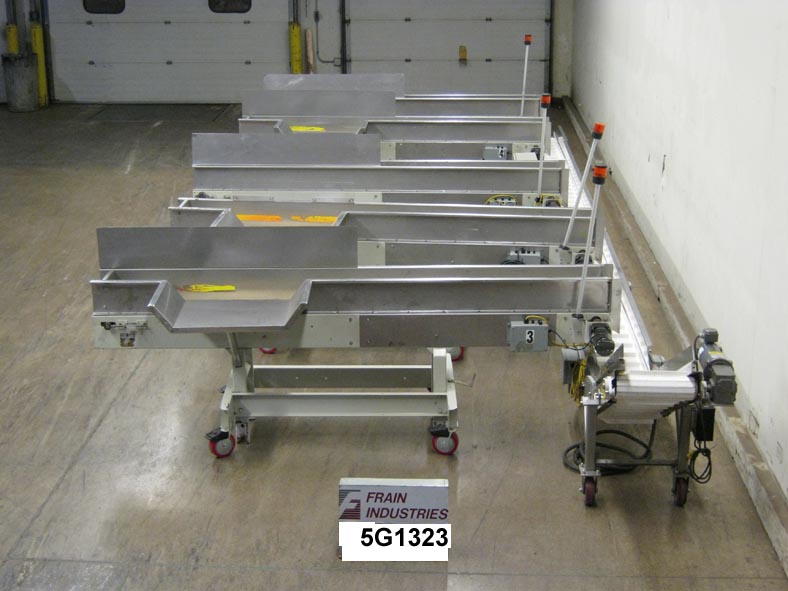

Meyer Model HPB12B, Conveyor product "Blending System" rated up to 160 feet per minute with number of product – depending on materials and application. Equipped with (5) 120" long x 8" wide stainless steel uncasing conveyors feeding into a 30′ long x 17" wide incline cleated accumulating conveyor with 17" wide x 2" high cleats set on 12" centers. (5) 34" x 18" uncasing station, stainless steel with guide rails, status lights and 48" high discharges. Each mounted individual frames with locking casters. Previous operation: conveying individual single serving snack bars to a form and fill machine to be filled in a variety pack.
OAD: 360" L x 132"W x 52" H

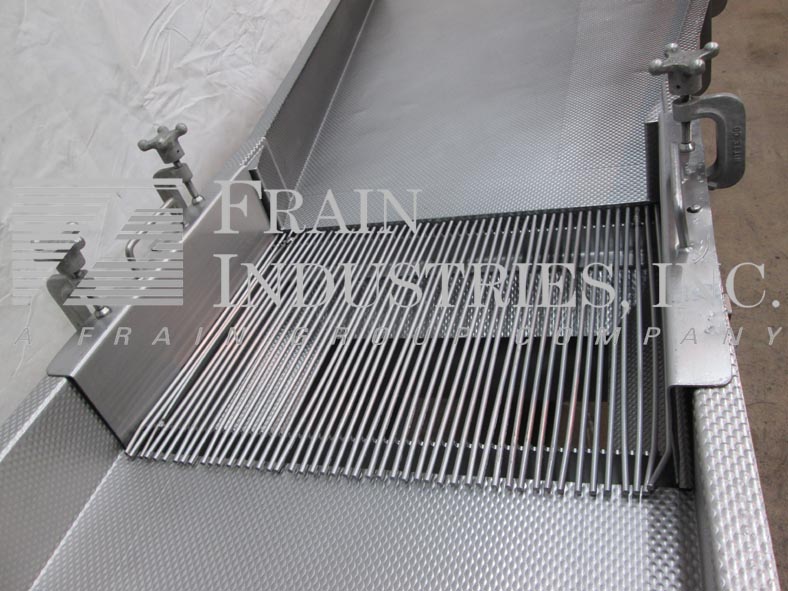

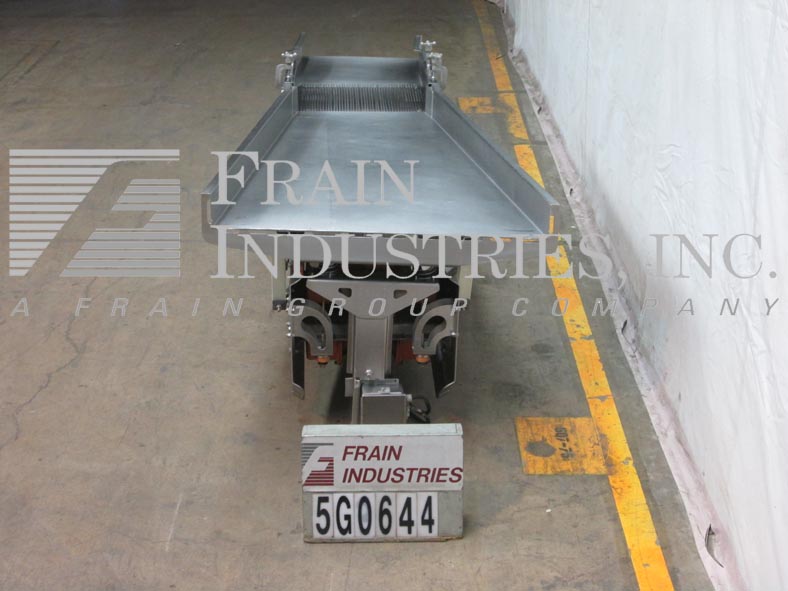

Model Ultra stainless steel vibratory conveyor. Infeed height 35" to a 24-1/2" wide opening with 5" high sidewalls. After a further 11" a 17-3/4" long x 24-1/2" wide stainless steel rod area begins, last used for de-watering. The rods are 1/4" thick spaced at 1/2" intervals, interchangable screen. Below the screen is a reject chute with terminal dimensions of 11" long x 18" wide, discharging at a height of 28-1/4". The conveyor continues above into a gradually widening section which terminates after 63" at 46-1/4" wide and discharges at a height of 35".
OAD: 106"L x 48-1/2"W x 46"H

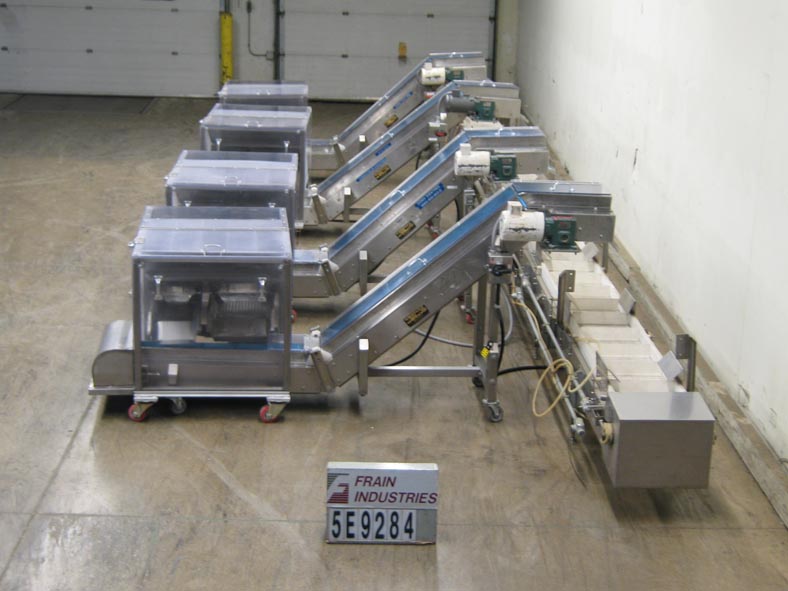

Continuous, 4 to 1, product blending system rated up to 30 tons per hour – depending on materials and applications. Equipped with four 5 ft³ stainless steel vibratory bins, feeding into four 108" long x 10" wide incline cleated take away conveyors with 9" wide x 1" high cleats set on 8" centers, feeding into a 382" long x 14" wide flex-link accumulating conveyor with 14" wide x 3" high cleats set on 12" centers. Additional features: Lexan guarding, stainless steel guide rails and Neoprene conveyor belts. Mounted on height adjustable legs and casters.
OAD: 396" L x 24" W x 35" H
