Weigh Auger Machines
Used Weigh Auger Equipment
Feeder Weigh Auger machines use an auger or screw to feed a certain amount product. The number of rotations of the screw determines the amount of product that is fed. Designed for dry bulk product, powders, and slurries. Feeder weigh augers, which are also known as loss in weight feeder, uses a belt or auger to feed product. The amount of product fed is determined by weighing the amount of product that has been fed. Feeder weigh augers are designed for dry bulk product.
Weigh Auger Equipment In Stock
- Manufacturer: Accurate
- Model Number: MODMCDG1A
- Frain Number: 5H3161
AccuRate, Model Mechatron MODMCDG1A, stainless steel, auger, gravimetric feed system. Capable of dispensing 330 ft³ of product per hour – depending on materials, application, environment and machine configuration. Equipped with 28" OD x 12" Deep stainless steel 3.7 ft³ conical product hopper and auger gravimetric feed system. 1.2 ft³ vinyle bottom with (2) external agitation paddles. 3" diameter x 30" long screw powered by a 1 Hp drive. Control panel has touch pad controller with digital display screen, push button start, maunual / off / auto switch and variable speed dials for feed rate and agitation. Mounted on 330 lbs. (150 kg) load cells.
OAD: 36"L x 30"W x 41"HGet a Free Quote Call: 630-629-9900
- Manufacturer: WCB APV Anderson Cherry Burell
- Model Number: 530
- Frain Number: 5G9735

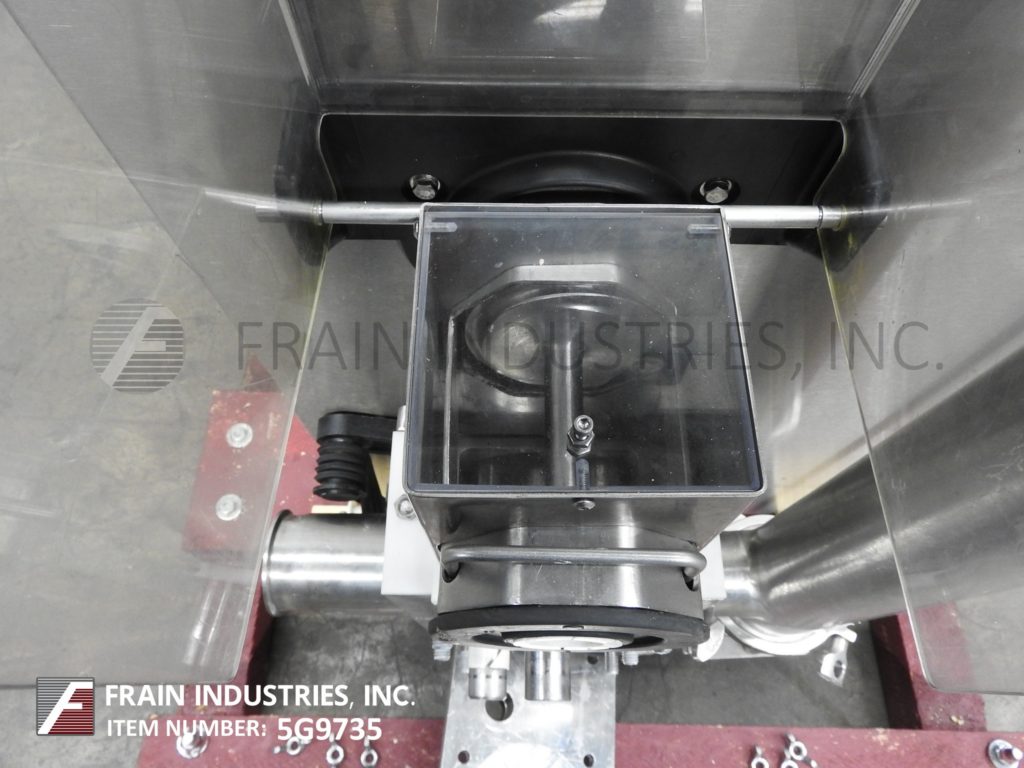

WCB / APV / Anderson, automatic, stainless steel, weighing / feeding / blending system with gallons of product per hour – depending on materials and application. Equipped with 19" ID x 17" Deep 20 gallon, stainless steel ingredient hopper with (2) blade agitator, safety grid and see thru flip up molded plastic cover with shut-off, auger and blender tube with outlet, feed funnel has see-thru cover to rotor and scraper with enrobing case inlet. Control panel has controller with touch pad controls and start, stop, rotor, blender and agitator speed controls with auger and rotor speed indicators. Mounted on stainless steel base frame with caster.
Designed to accurately / evenly meter ingredients into a viscous liquid product stream such as fruits / nuts (the ingredient), ice cream (the product) from a continous ice cream freezer and drop from the hopper into rotor enrobing chambers, deposits ingreidents to the product stream, blended and sent to filler.
OAD: __" L x __" W x __" HGet a Free Quote Call: 630-629-9900
- Manufacturer: WCB / Anderson Icecream
- Model Number: FF (S-420)
- Frain Number: 5E7231
PART OF COMPLETE LINE
Automatic, S/S, weighing / feeding / blending system capable of doing up to 600 – 2000 gallons @ hr of combined frozen desserts, and ingredients. Accurately, and evenly meters ingredients into viscous liquid product stream such as fruits / nuts (the ingredient), ice cream (the product) from a continous ice cream freezer. Has 16" L x 17" W x 16" D 14 gallon, S/S hopper with flip off cover and 6" dia plexey glass site port, (3) blade agitator, 4" dia single screw auger, feed tube, drop ingredients from the hopper into 4 pocket rotor enrobing chambers, and hydraulic blender attachment with 3 1/2" OD top threaded port and 3 1/2" OD sanitary port into feeder deposits ingreidents to the product stream, is blended and sent to filler, and is mounted on all S/S base frame with caster.
OAD: 48" L x 24" W x 52" HGet a Free Quote Call: 630-629-9900
- Manufacturer: Industrial Process Automation
- Model Number: PWF110018
- Frain Number: 5G0206
Industrial Process Automation, stainless steel, loss in weight, pivotal weigh belt feeder rated from 2500 to 10,000 lbs per hour – depending on materials & application. Weigh cell measurement: 16" in width x 40" in length. Max load capacity: 100 kg. Equipped with 56" infeed and 62"H Discharge. A/B Controls. Mounted on a stainless steel frame.
OAD: 56"L x 44"W x 72"HGet a Free Quote Call: 630-629-9900
- Manufacturer: Acrison
- Model Number: 203B-105Z
- Frain Number: 5C8242
Fully digital weigh scale / auger feeder system with a capacitie range of 120 to 136,000 lbs. per hour (based on 40 lbs per cu ft bulk density., and accuracies between +/- 0.25 – 1 percent. Has 10" dia top product feed opening with a 3" dia screw to feed to the bottom section feed chamber with a 4 1/2"dia screw has (2) MD II microprocessor controlers good for dust free wiegh scale auger applications.
OAD: 72" L x 36"W x 36"’HGet a Free Quote Call: 630-629-9900
