Home » Feeder » Desiccant
Frain Industries can help you with your desiccant feeder project no matter how big or small your feeder needs. Feeder Desiccant are machines that feeds desiccant pouches into a container. Desiccant draws moisture from the air to prevent moisture inside the bottle from affecting the product.

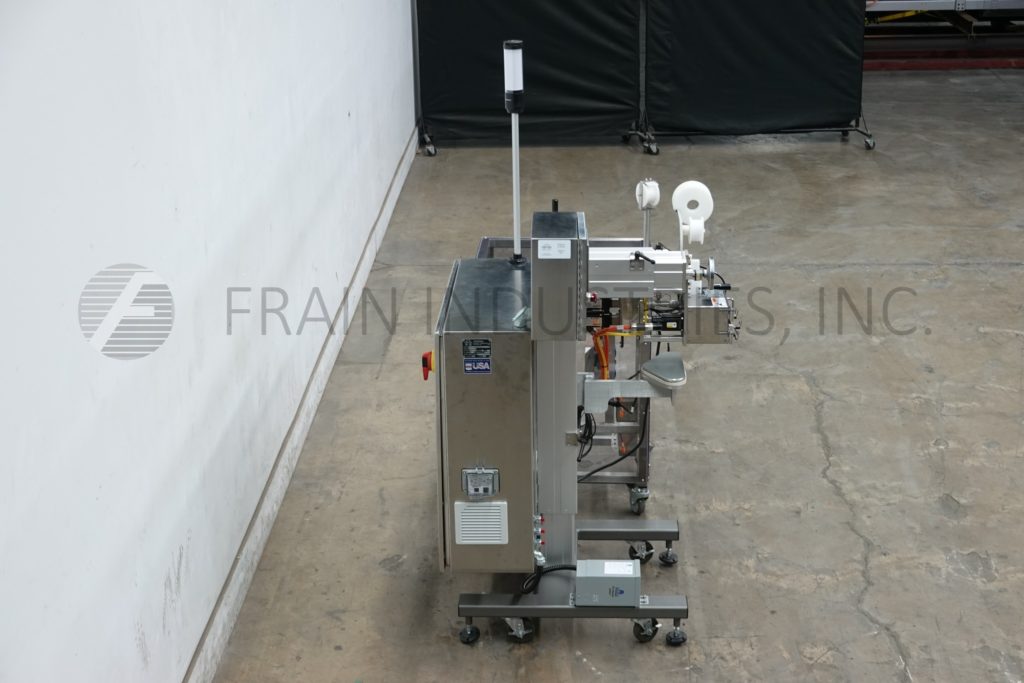

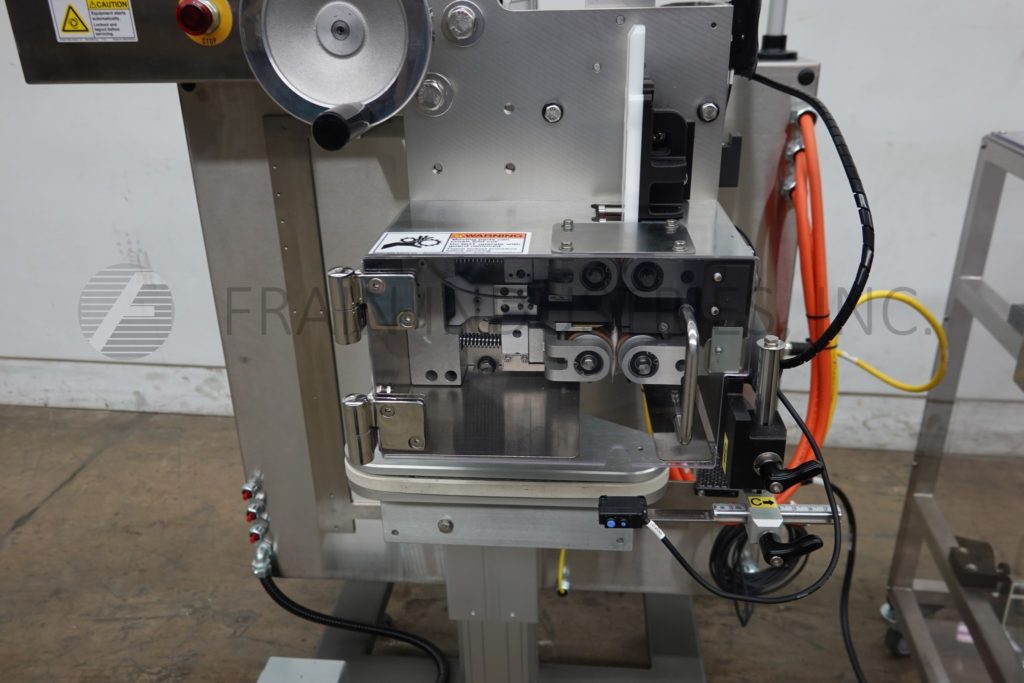

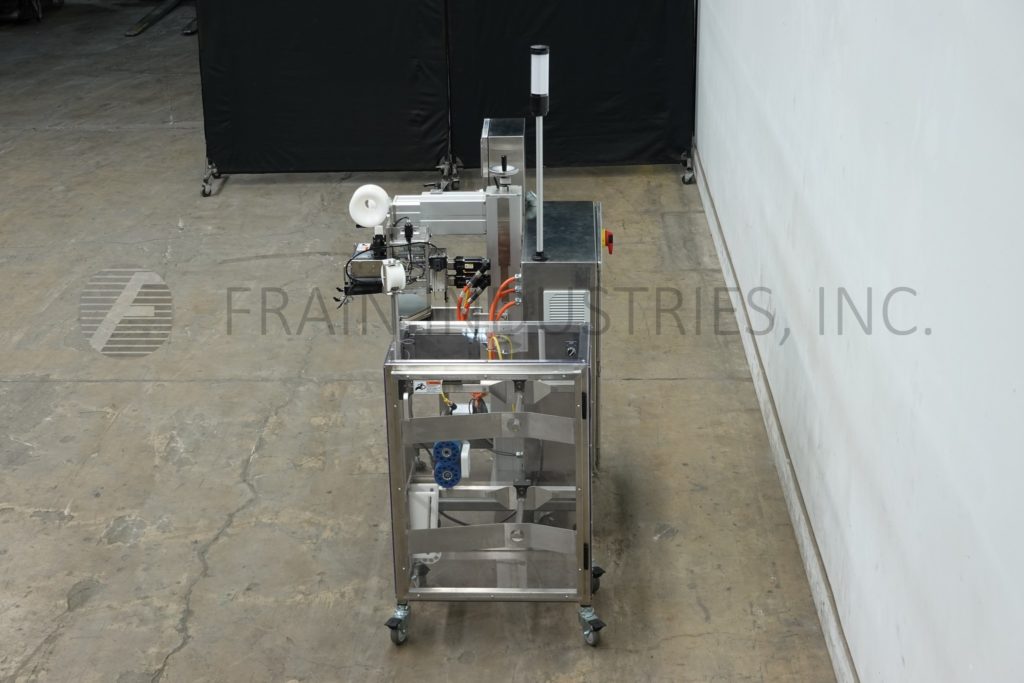

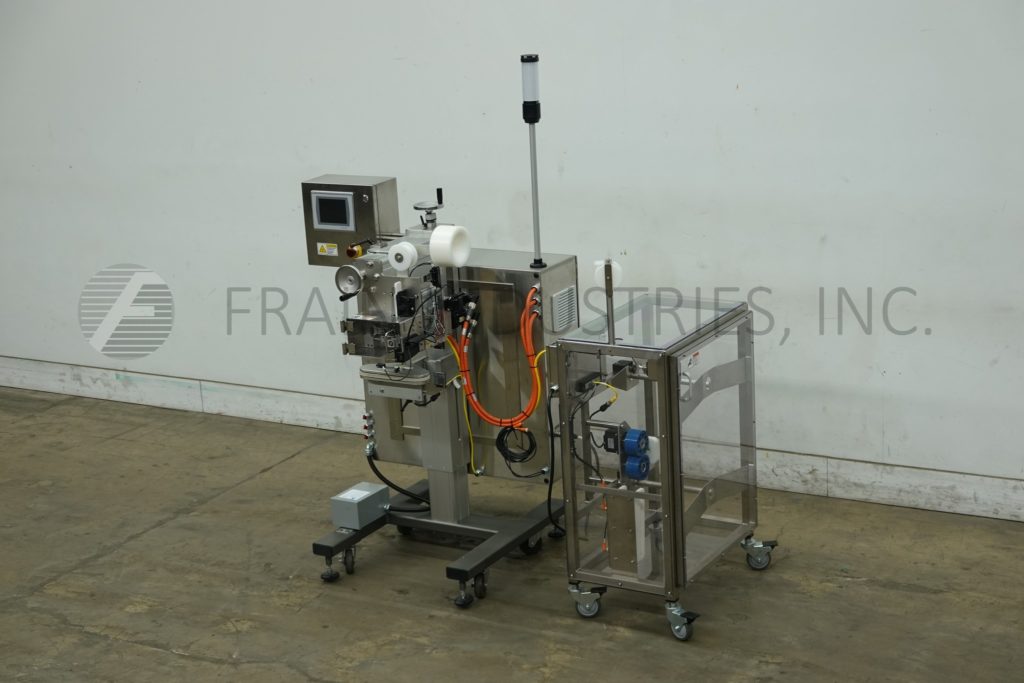

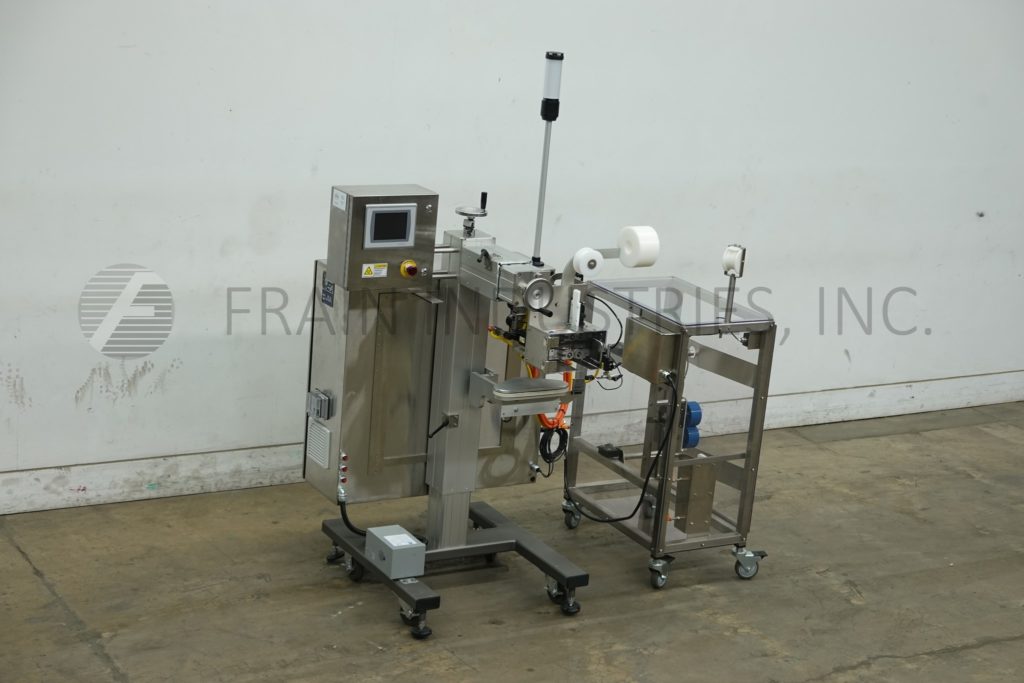

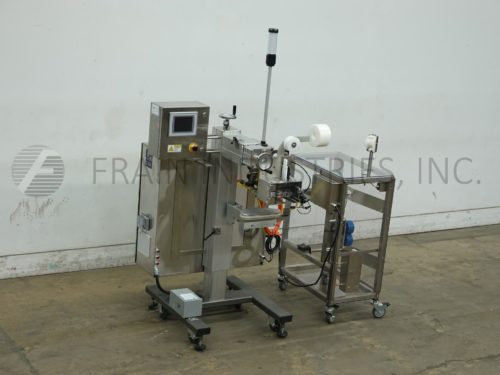

Omega Design, Model PDF, Stainless steel, pouch desiccant feeder capable of single or double drops at speeds from 80 to 120 poches per minute on single drop – depending on materials and application. Equipped with container and desiccant verification eyes, dual pouch reel and adjustable drop height. Control panel with Panelview HMI Screen with e-stop down push button controls and statis light bar. Mounted on stainless steel base with height adjustable legs.
OAD: 48" x 36" W x 82" H Cart: 30"L x 23"W x 58"H

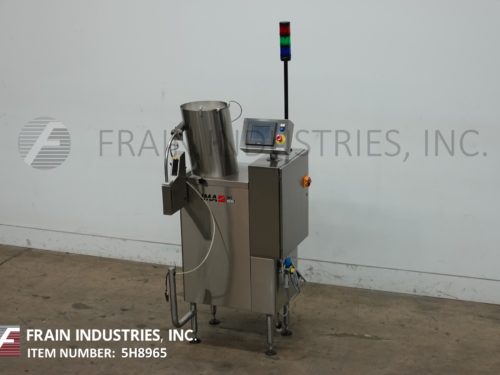

IMA North America, Model 8338, free standing portable stainless steel, desiccant feeder capable of single, double, or triple drops, feeding of 1 gram to 3 gram "barrel" style desiccants into containers at speeds from 50 to 300 barrels per minute on 1 drop – depending on materials, application and machine configuration. Equipped with 12" diameter x 3" deep stainless steel product hopper and 12" diameter feed wheel. Control panel with AB PLC controller and touch screen HMI.
OAD: 30"L x 30"W x 84"H

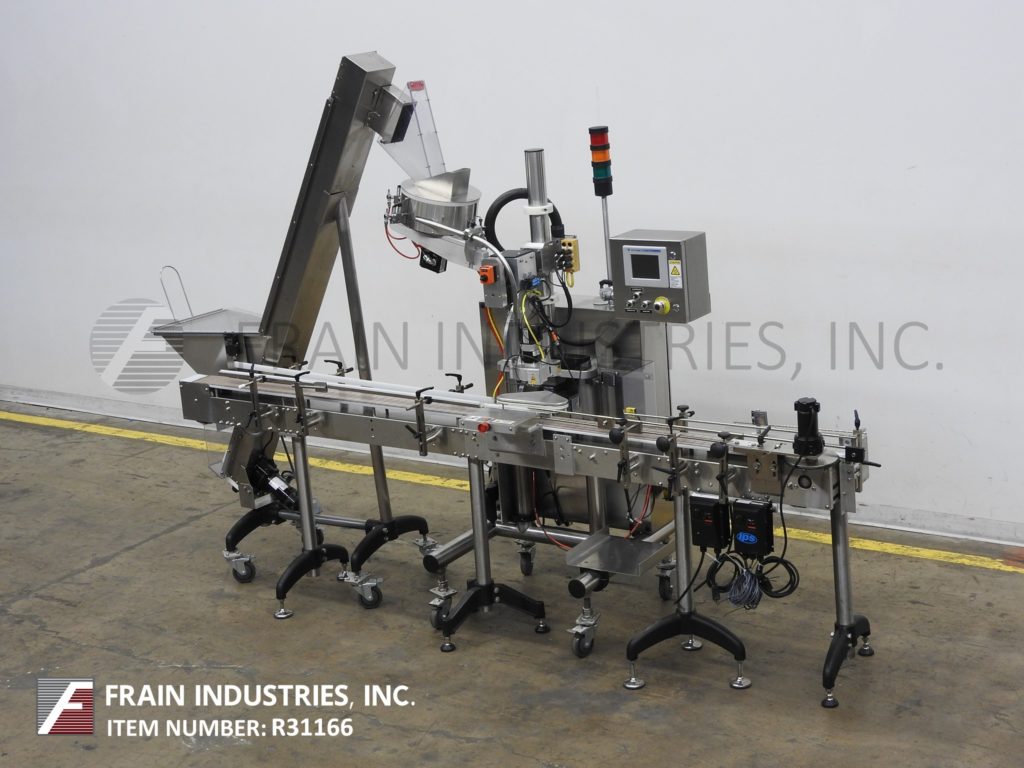

Omega Design, Model CDFR-1D1, in line canister style desiccant despenser with incline cleated belt feeder and container conveyor rated from 50 to 400 single drops and 50 to 300 double drops per bottle per minute – depending on materials, application and desiccant design and is capable of feeding 1 to 3 gram desiccants into containers single or multiple drops per bottle with proper change parts. Stainless steel construction. Equipped with stainless steel container conveyor with 120" long x 4-1/2" wide plastic delrin belt with bump wheel discharge, 24" long x 21" deep desiccant feed hopper with plastic flip up cover, 72" long x 2" wide inclined cleated feeder with continous rotary feed conveyor belt with 2" high cleats set on 5" centers and plastic cover with 70" discharge height. 12" OD desiccant sorting disc, with 3/4" wide desiccant canister tube dispenser with spacing belt and product counter. Control panel has A/B PLC controller and A/B PanelView controls with elevator, pre-orienter, spacing belt control drives with variable speed controllers and statis light bar. All Mounted on stainless steel base frames.
OAD: 138" L x 42" W x 74"H
OAD: 103"L x 40"W x 87"H
Omega Design Model DF-1D1, free standing portable stainless steel, desiccant feeder capable of single, double, or triple drop feeding of a 1gram to 3 gram "barrel" style desiccants into containers at speeds from 50 to 300 barrels per minute on 1 drop – depending on materials and application. Equipped with 12" diameter x 15" deep stainless steel product hopper with cover, 10" diameter adjustable feed wheel and container orienter with container and desiccant verification eyes, adjustable drop height currentlt at 38" discharge height. Control panel with PLC controller start, stop and up, down push button controls. Mounted on stainless steel base with casters designed to roll over existing conveyor.
OAD: 36" x 36" W x 80" H
