Auger Machines

Acrison Feeder Auger 1015

• Manufacturer: Acrison
• Model Number: 1015
• Frain Number: 5H4315

Acrison, Model 1015-B, auger feeder. Rated from 0.06 to 19 FT³ of product per hour – depending on materials, application and machine configuration. Equipped with 16" long x 14" wide x 14" deep product hopper with level sensor, safety grid and clamp down cover. 11" long x 6" wide mixing chamber with ½" OD x 30" long screw feeder. Control panel has vari-speed controller and statis light. Mounted on (4) leg cart with casters.

OAD: 65"L x 24"W x 80"H

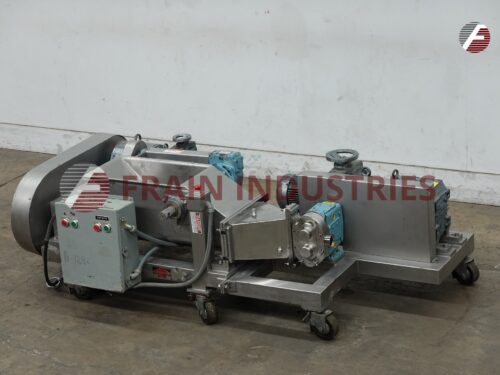

Doering Feeder Auger 3PFL

• Manufacturer: Doering
• Model Number: 3PFL
• Frain Number: 5J5644

Doering, Model 3PFL, 304 stainless steel, variable speed, twin screw pump feeding system. Product viscosity: up to 1,000,000 CPS. Rates dependent on materials, application and machine configuration. Pump rates of between 11.1 GPM to 54.9 GPM depending on RPM. Equipped with a stainless steel product hopper (Hopper dimensions: Top 30½" x 21"; Bottom 20½" x 11"; 5½" Deep) with an infeed height of 72", (2) 5½" diameter x 25" long stainless steel feeding screws and transition rotors powered by a common 1½ hp drive with variable speed gearbox. Discharge is through a 1½ hp lobe pump with a variable speed gerarbox with a 3" ID seated bevel port with 54¾" discharge height. Mounted on stainless steel frame with locking casters.

OAD: 74"L x 59"W x 72"H

Feeder Auger 10 CU FT

• Model Number: 10 CU FT
• Frain Number: 5E2220

10 cu ft, S/S, pre feeder with product trough, and dual feed screws. Has 4 1/2" flanged end bottom discharge with a 14" floor clearance, and a Reliance Electric 3/4 Hp AC motor drive, and mounted on (4) leg base frame.

OAD : 80"L x 26" W 48" H

Gough Econ Feeder Auger 14" DIA

• Manufacturer: Gough Econ
• Model Number: 14" DIA
• Frain Number: 5G8587

Gough Econ, 335" long x 14" diameter, stainless steel, screw feeder. Equipped with 19" OD / 15" ID flanged top infeed, 5 hp drive, and (4) 19" x 19" flanged discharges.

OAD: 357"L x 23"W x 38"H

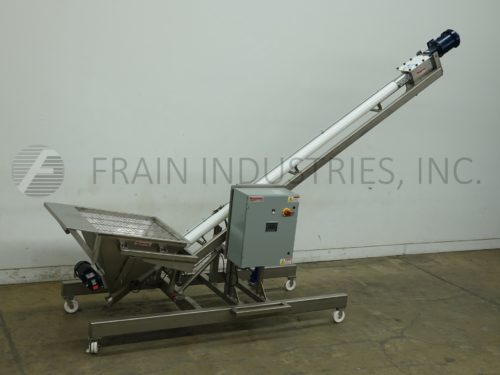

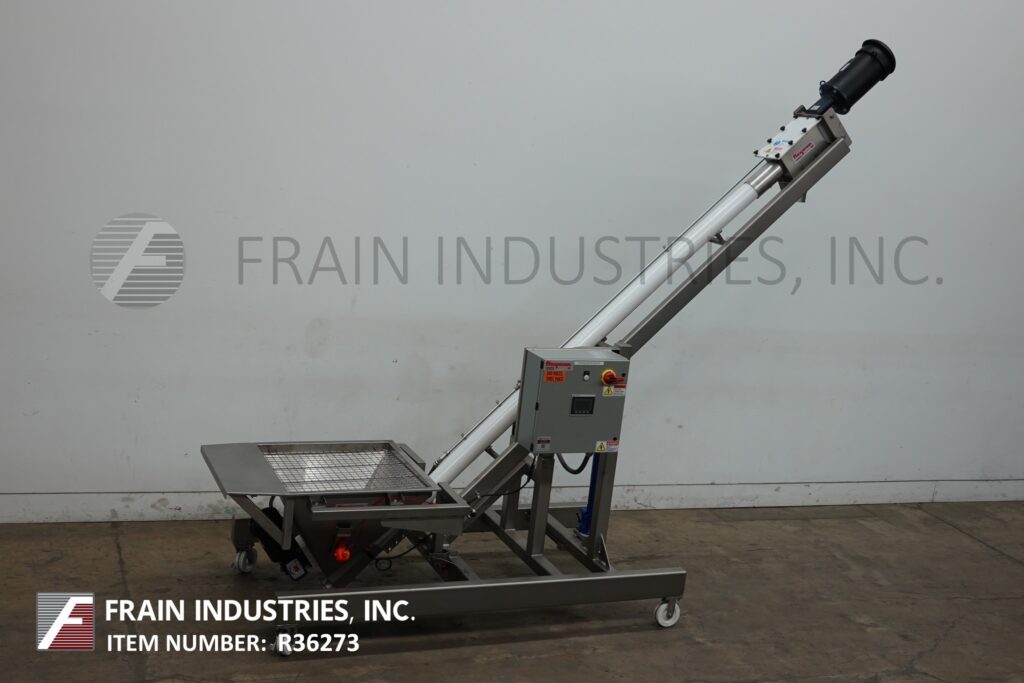

Flexicon Feeder Auger 1450 5FT³

• Manufacturer: Flexicon
• Model Number: 1450 5FT³
• Frain Number: R36273

Flexicon, Model 1450, Rated up to 140 ft³ of product per hour – depending on materials, application and product density. Equipped with 30” long x 30” wide x 24” deep stainless steel agitated product hopper and cover with ½ Hp agitator drive, and mounted on (4) legs, with 3" OD x 151" long stainless steel product conveying screw, 4" OD x 120" long flexible poly tube and has top mounted 3 Hp motor drive with 6” ID product discharge port Control panel has start, stop, e-stop controls. Mounted on stainless steel Model PB1-S-X Portable base with support mast and has (2) 6" swivel casters with brake under hopper and (2) 6" rigid casters with extended length base and Tilt-Down support mast with manually actuated hydraulic jack.

OAD: 152" L x 46" W x 132" H

Hapman Feeder Auger HELIX

• Manufacturer: Hapman
• Model Number: HELIX
• Frain Number: 5J3811

Hapman screw conveyor with product hopper Rated from 120 to 360 ft³ with pounds of product per hour – depending on materials, application, environment and machine configuration. Equipped with 22” long x 22” wide x 13” deep stainless steel product hopper with safety grid and 4" ID x 108" long flexable poly tube with top mounted 3 Hp motor drive. 6” OD product discharge port with 96" ground clearance. Control panel with push button start / stop controls. Mounted on frame with casters.

OAD: 142"L x 56"W x 116"H

Hapman Feeder Auger HELIX

• Manufacturer: Hapman
• Model Number: HELIX
• Frain Number: 5J3810

Hapman, 400 series screw conveyor and product hopper. Equipped with 36” long x 36” wide x 30” deep stainless steel product hopper with safety grid, 4" ID x 125" long flexible poly tube and top mounted 3 Hp motor drive has 6” OD product discharge port with 105" ground clearance. Control panel with raise / lower switch, variable speed, E-stop and start / stop and reverse push button controls. Mounted on stainless frame with casters.

OAD: 165"L x 55"W x 140"H

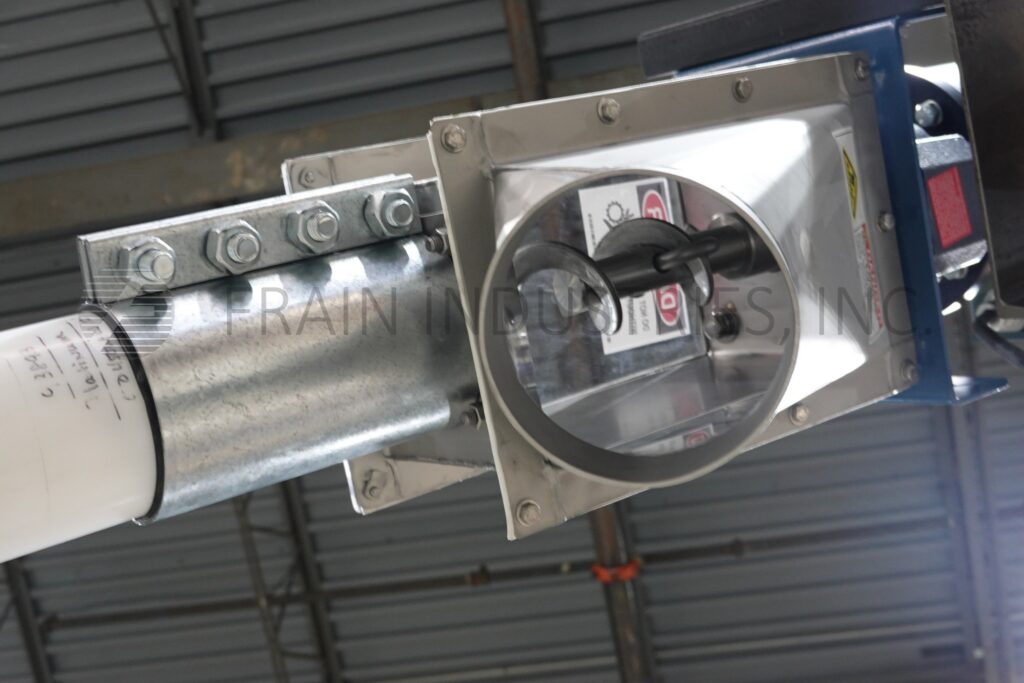

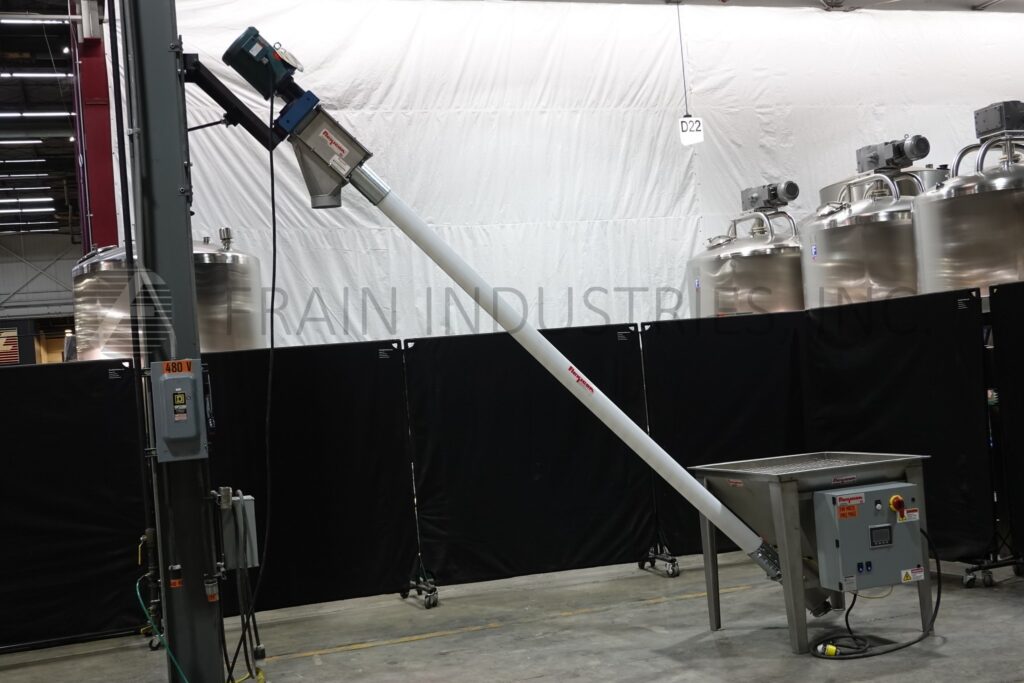

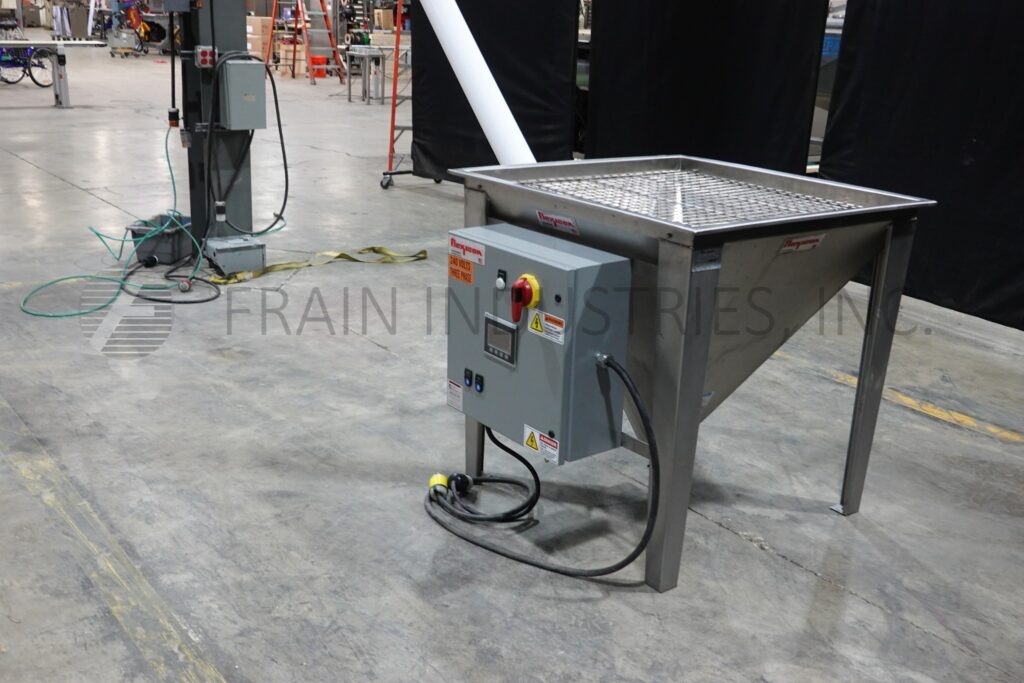

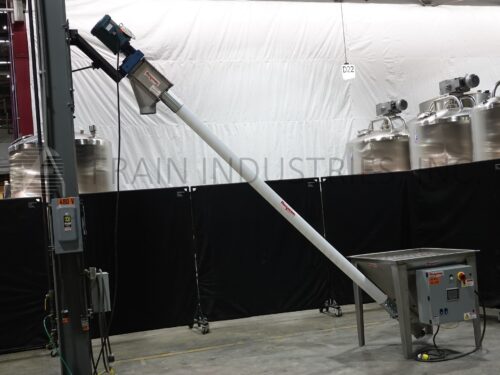

Flexicon Feeder Auger 1450

• Manufacturer: Flexicon
• Model Number: 1450
• Frain Number: R34721

Flexicon, Model 1450, Capable of transferring up to 140 ft³ of product per hour – depending on materials, application and product density. Equipped with 36” long x 36” wide x 27” deep stainless steel agitated product hopper with cover and ½ Hp agitator drive, and mounted on (4) legs, with 3" OD x 151" long stainless steel product conveying screw, 4" OD x 120" long flexable poly tube and has top mounted 3 Hp motor drive with 6” ID product discharge port Control panel has start, stop, e-stop controls. Mounted on base frame.

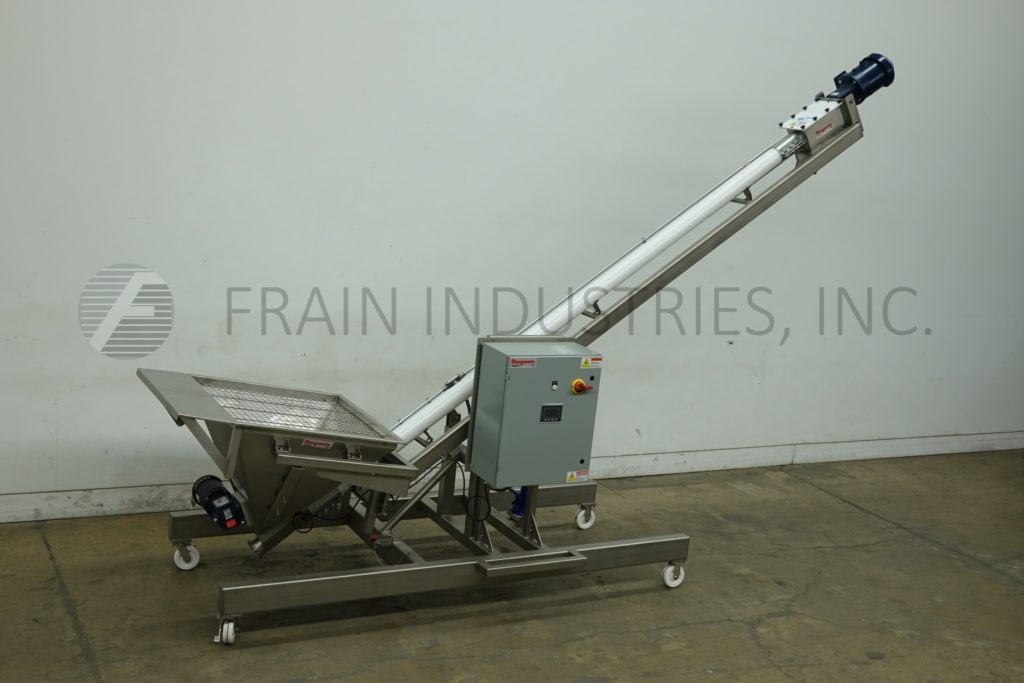

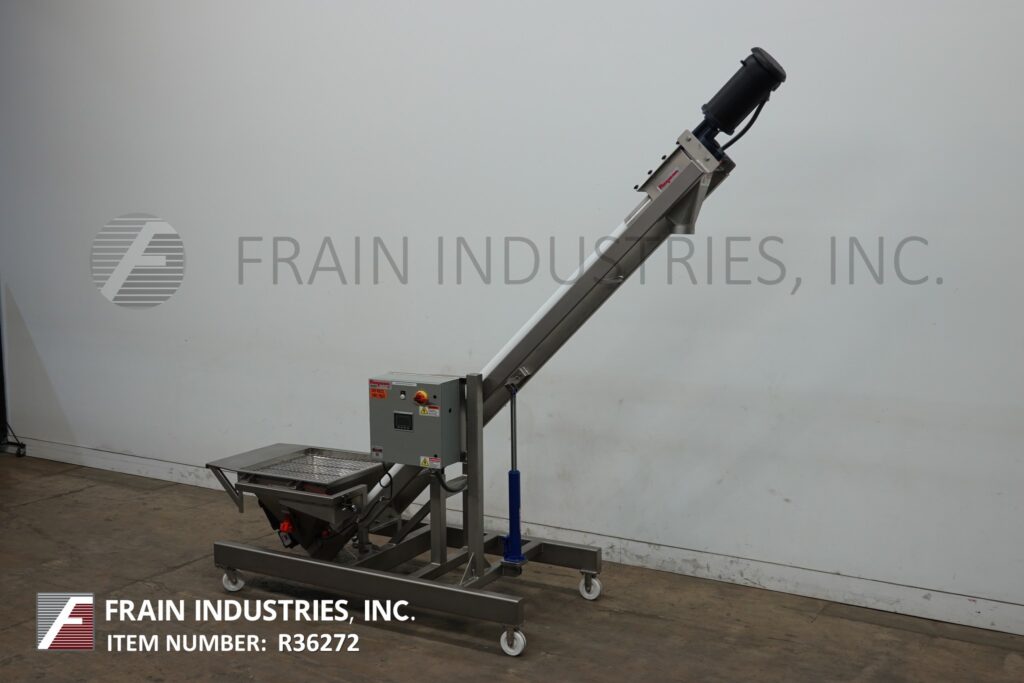

Flexicon Feeder Auger 1450 5FT³

• Manufacturer: Flexicon
• Model Number: 1450 5FT³
• Frain Number: R36272

Flexicon, Model 1450, Rated up to 140 ft³ of product per hour – depending on materials, application and product density. Equipped with 30” long x 30” wide x 24” deep stainless steel agitated product hopper and cover with ½ Hp agitator drive, and mounted on (4) legs, with 3" OD x 151" long stainless steel product conveying screw, 4" OD x 120" long flexible poly tube and has top mounted 3 Hp motor drive with 6” ID product discharge port Control panel has start, stop, e-stop controls. Mounted on stainless steel Model PB1-S-X Portable base with support mast and has (2) 6" swivel casters with brake under hopper and (2) 6" rigid casters with extended length base and Tilt-Down support mast with manually actuated hydraulic jack.

OAD: 152" L x 46" W x 132" H

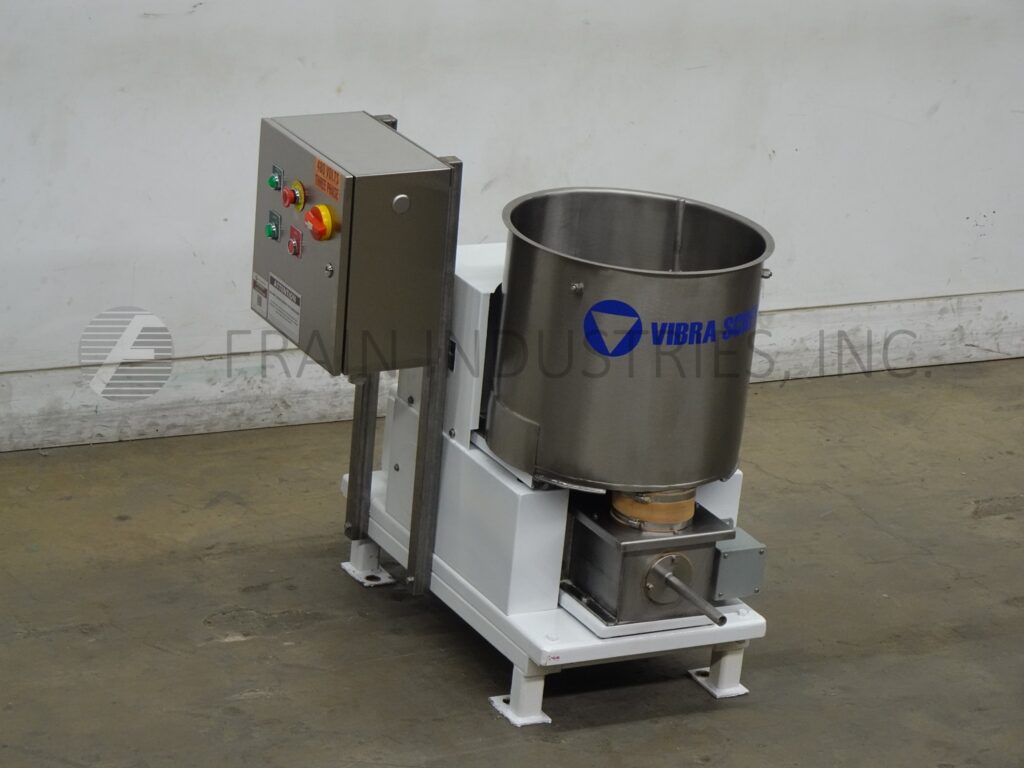

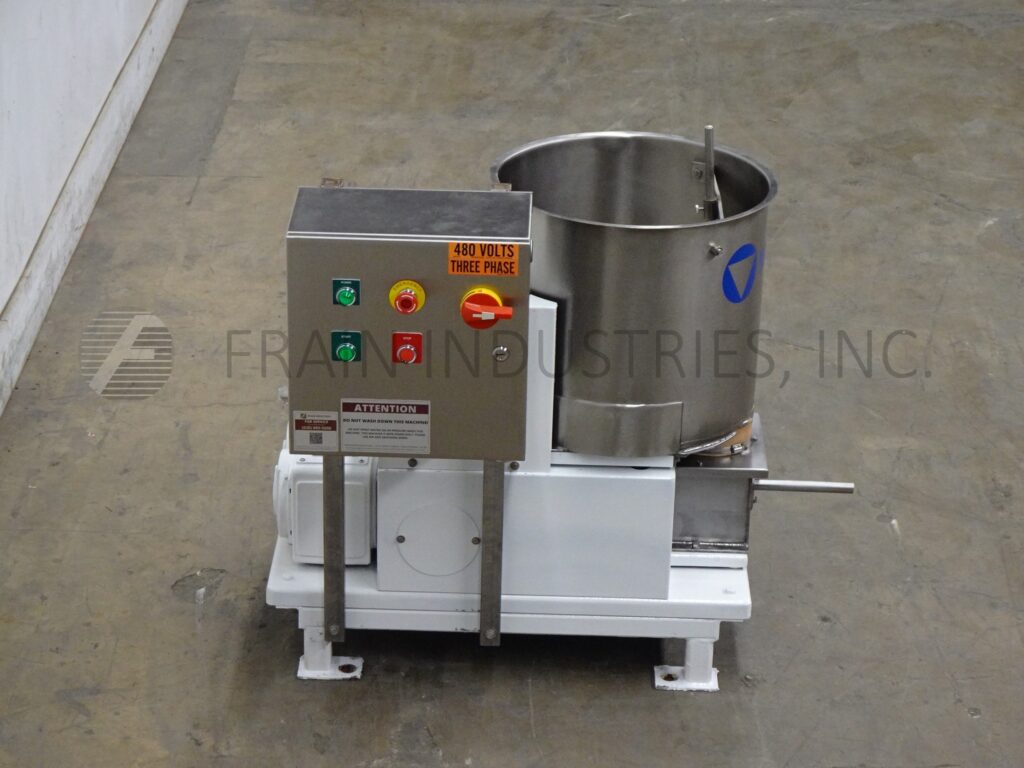

Vibra Screw Feeder Auger

• Manufacturer: Vibra Screw
• Model Number:
• Frain Number: 5A7707

Stainless Steel Volumetric Vibratory Feeder Is Capable Of Delivering 1 To 30 Pounds Per Hour. Unit Has Auger Feed With 5/8" Screw And 7/8" Od Tube. Currently Equipped With 1/3 Hp Variable Speed Drive And 3 Cu Ft Hopper. Unit Is Capable Of Interchanging Screw Sizes From 1/4" To 2" In Diameter. Mounted On Mild Steel Base.

OAD: 45" L x 21" W x 48" H

Flexicon Feeder Auger 1450 5FT³

• Manufacturer: Flexicon
• Model Number: 1450 5FT³
• Frain Number: R36270

Flexicon, Model 1450, Rated up to 140 ft³ of product per hour – depending on materials, application and product density. Equipped with 30” long x 30” wide x 24” deep stainless steel agitated product hopper and cover with ½ Hp agitator drive, and mounted on (4) legs, with 3" OD x 151" long stainless steel product conveying screw, 4" OD x 120" long flexible poly tube and has top mounted 3 Hp motor drive with 6” ID product discharge port Control panel has start, stop, e-stop controls. Mounted on stainless steel Model PB1-S-X Portable base with support mast and has (2) 6" swivel casters with brake under hopper and (2) 6" rigid casters with extended length base and Tilt-Down support mast with manually actuated hydraulic jack.

OAD: 152" L x 46" W x 132" H

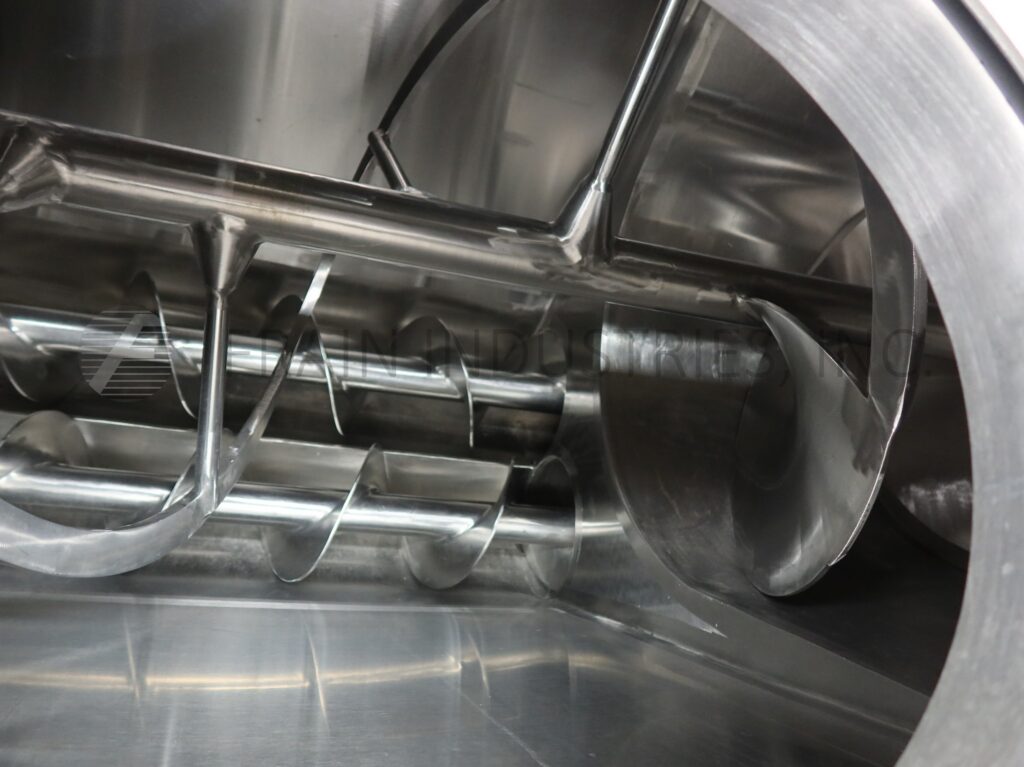

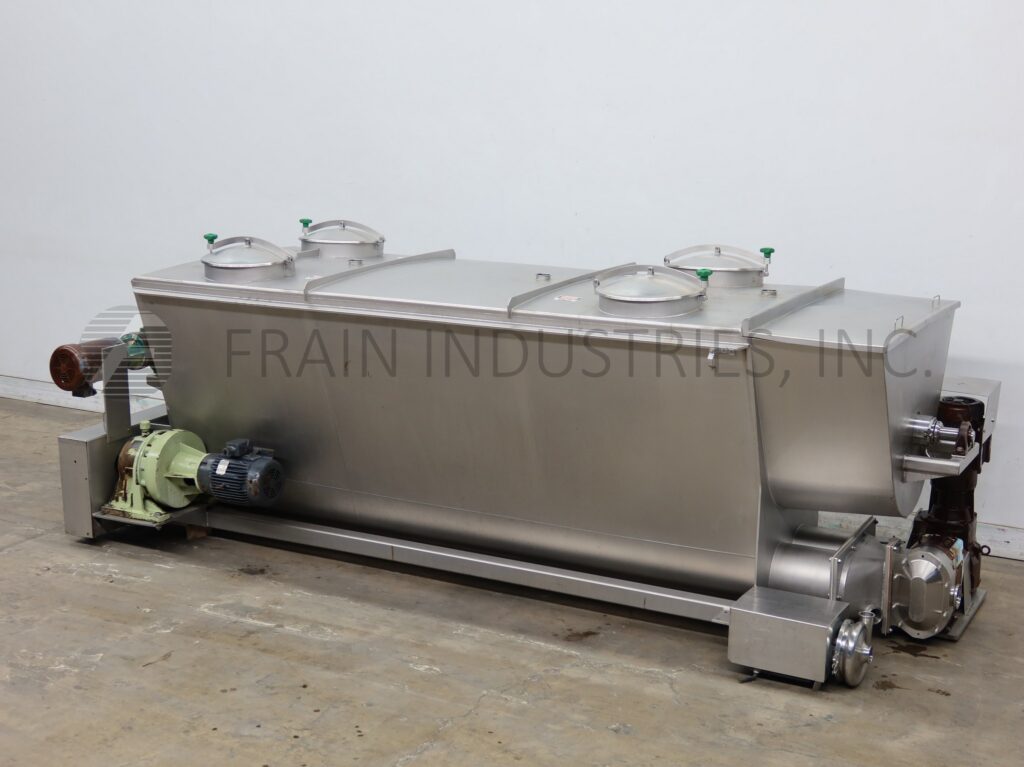

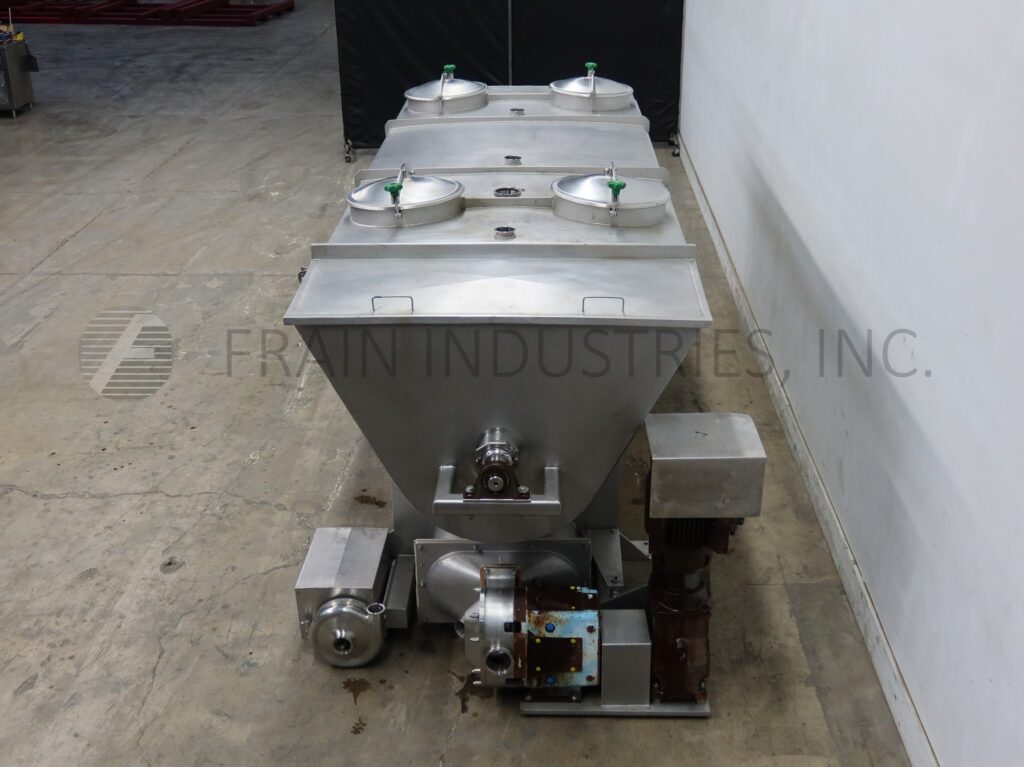

Feeder Auger TWIN SCREW FEEDER

• Model Number: TWIN SCREW FEEDER
• Frain Number: 5J2873

125 ft³ (110 ft³ working capacity) 304 stainless steel dual auger feeder with ribbon agitation and discharge pump. Vessel dimensions: 59" wide x 144" long x 28" deep (main vessel) with a 59" wide x 24" long x 38" deep end extension. Equipped with (4) 19" diameter manways, lift off cover on vessel extension, single ribbon powered by a 7½ hp drive and dual bottom auger screws powered by a 15 hp drive. Waukesha model 224 positive displacement pump with a 19.71:1 ratio gearbox for a current rate of 45.23 GPM with a 4½" OD / 4" ID discharge with 13" ground clearance. CIP Spray balls supplied by a Waukesha model 2085 centrifugal pump powered by a 10 hp drive with a 3½" OD / 3" ID Suction infeed and 3"OD / 2½"ID discharge.

OAD: 200"L x 75"W x 83"H
