Filter Machines

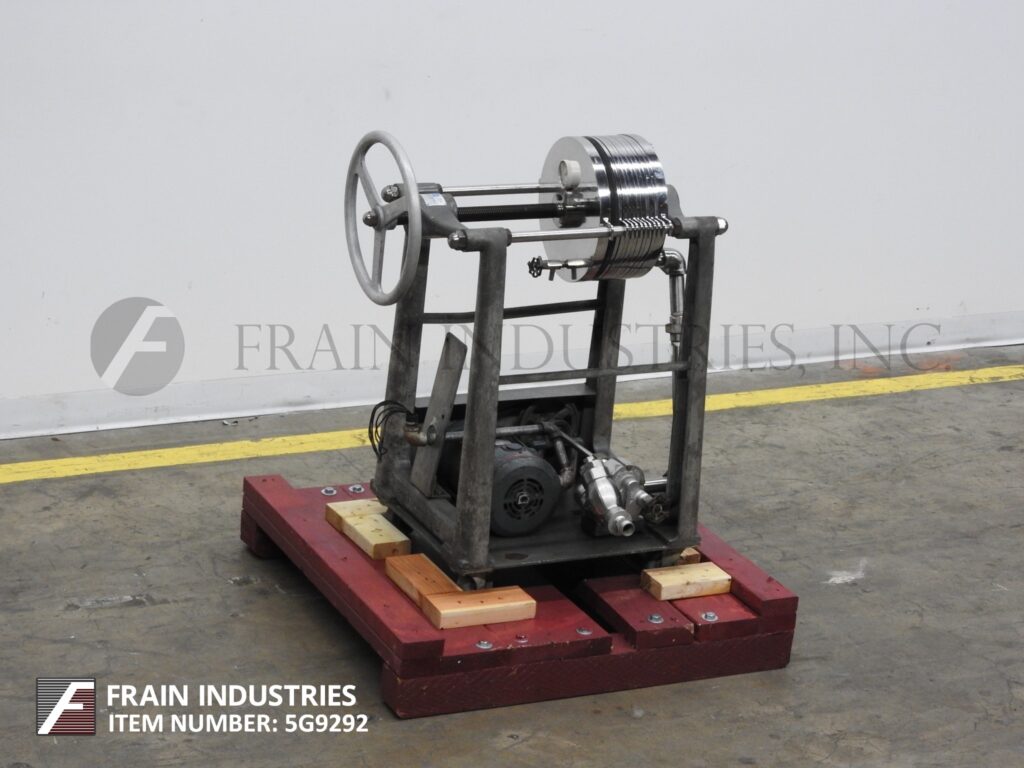

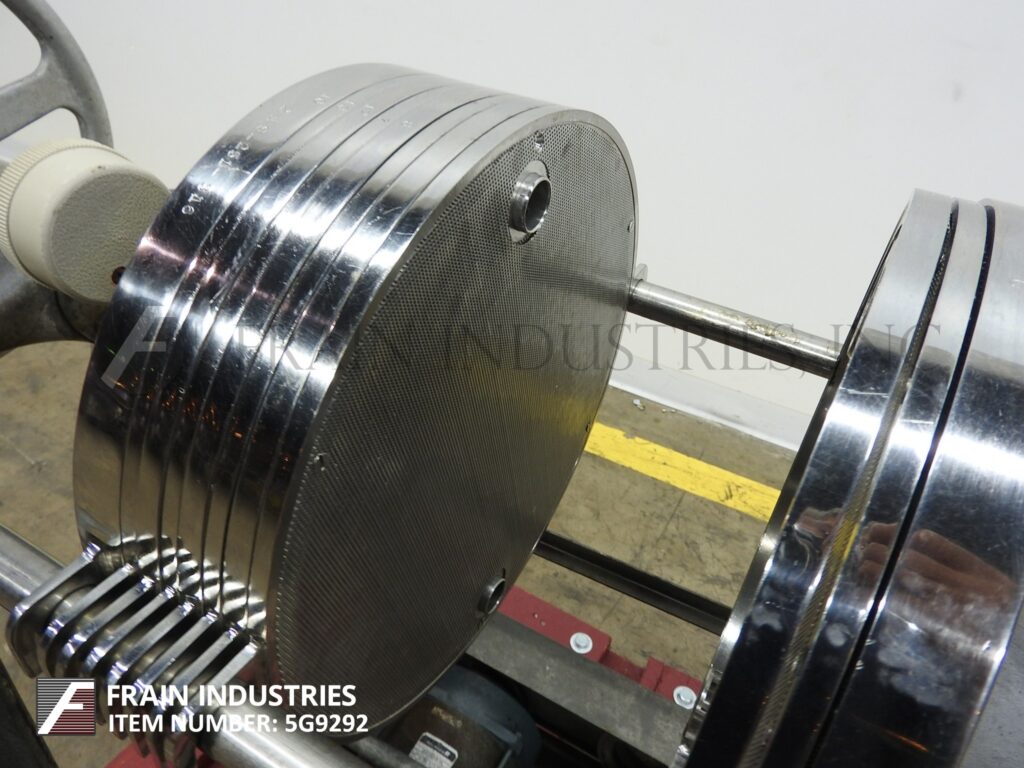

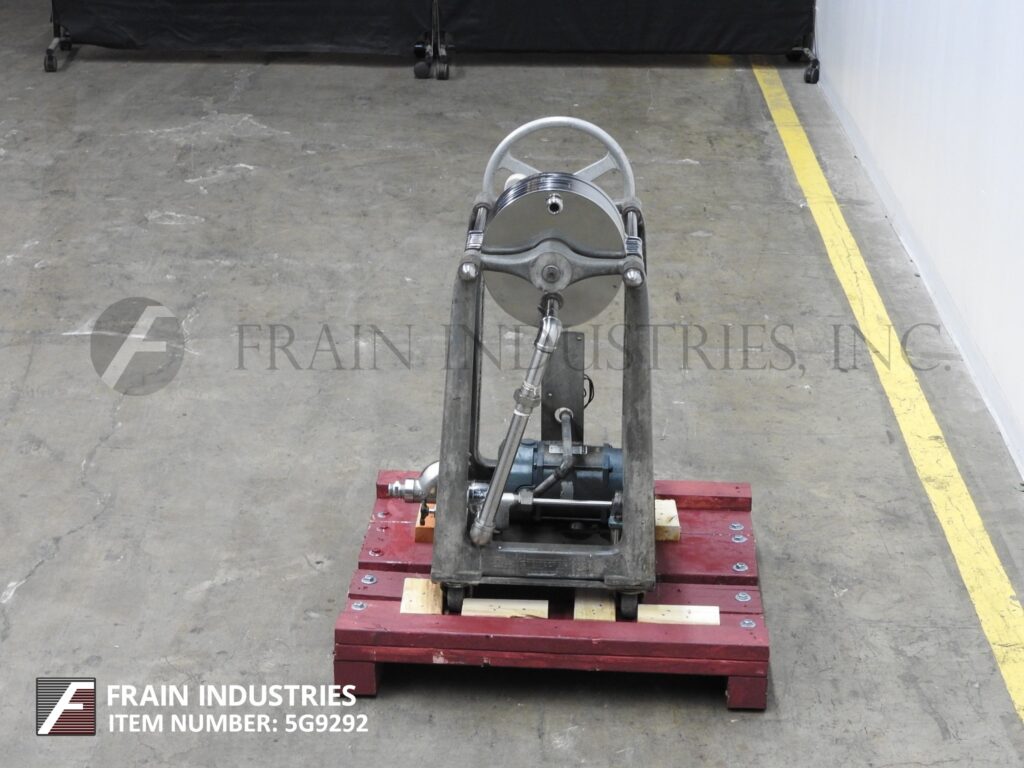

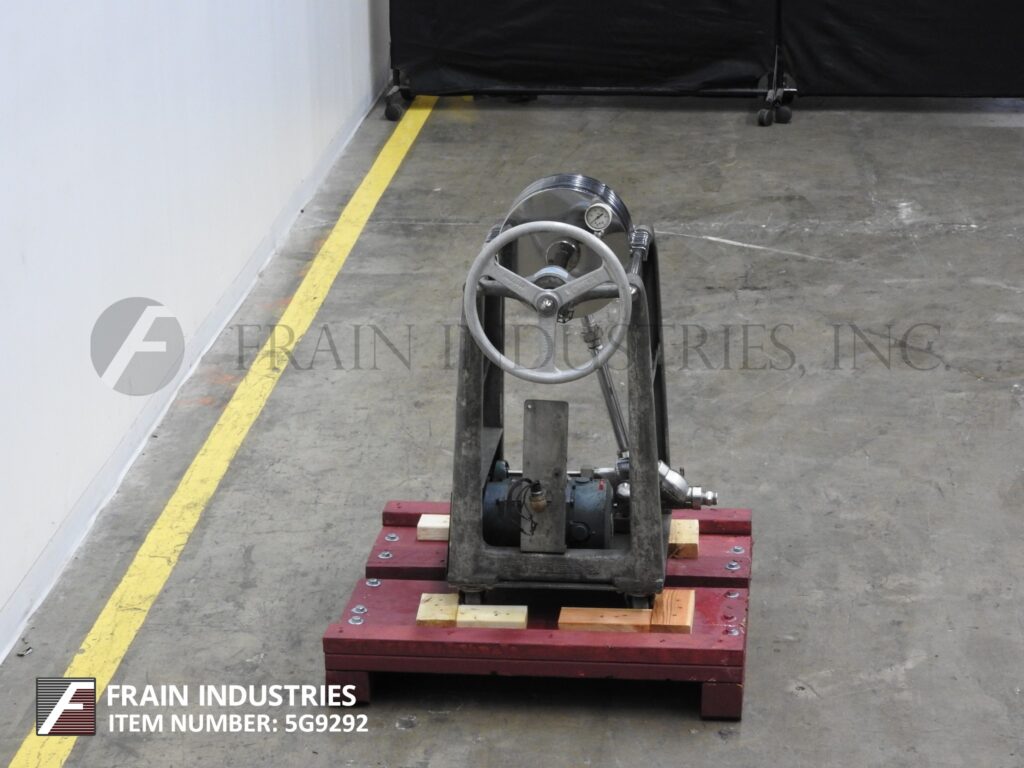

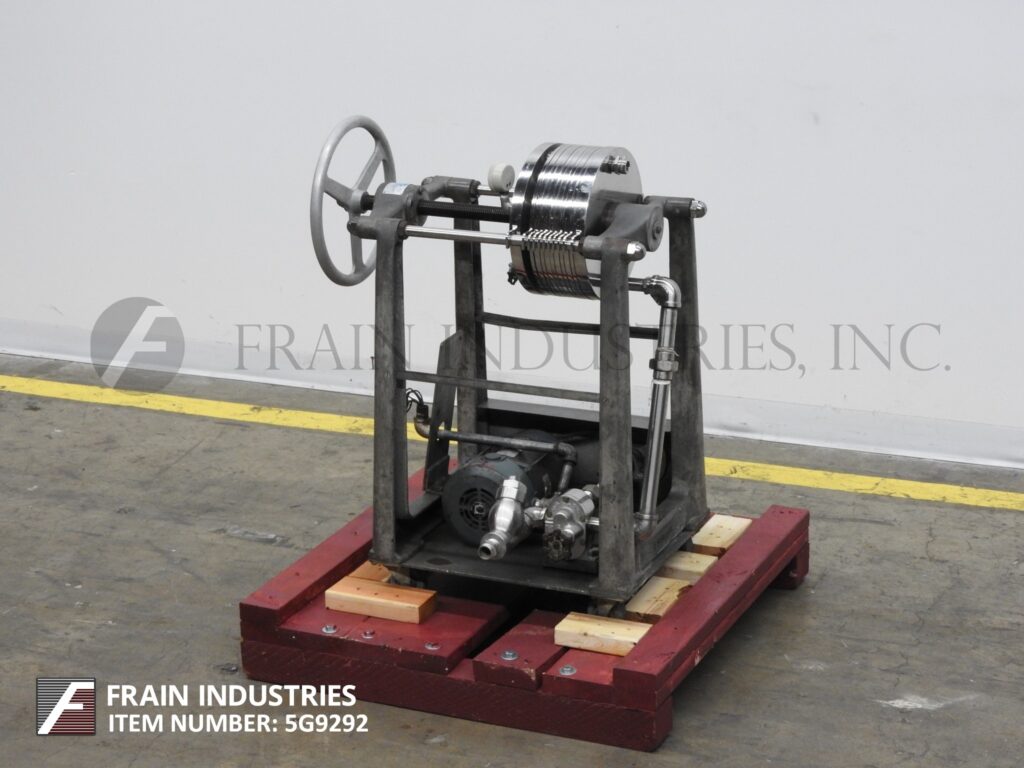

Ertel Filter Plate & Frame 2HS

• Manufacturer: Ertel
• Model Number: 2HS
• Frain Number: 5G9292

Ertel, Model 2HS, horizontal, 316 stainless steel plate and frame filter press. Volumes of product per hour – depending on materials, application and machine configuration. Equipped with (5) 12" OD stainless steel filter plates with filteration area of 4 ft², (4) (3/8)" thick sludge plates with sludge capacity of 0.1 ft³, ¾ hp positive displacement pump, 1" NPT pump inlet with a check valve, ¼" ID outlet nozzle, hand crank filter closure and pressure guage up to 100 psi. Mounted on (4) leg base frame with casters.

OAD: 31" L x 23" W x 39" H

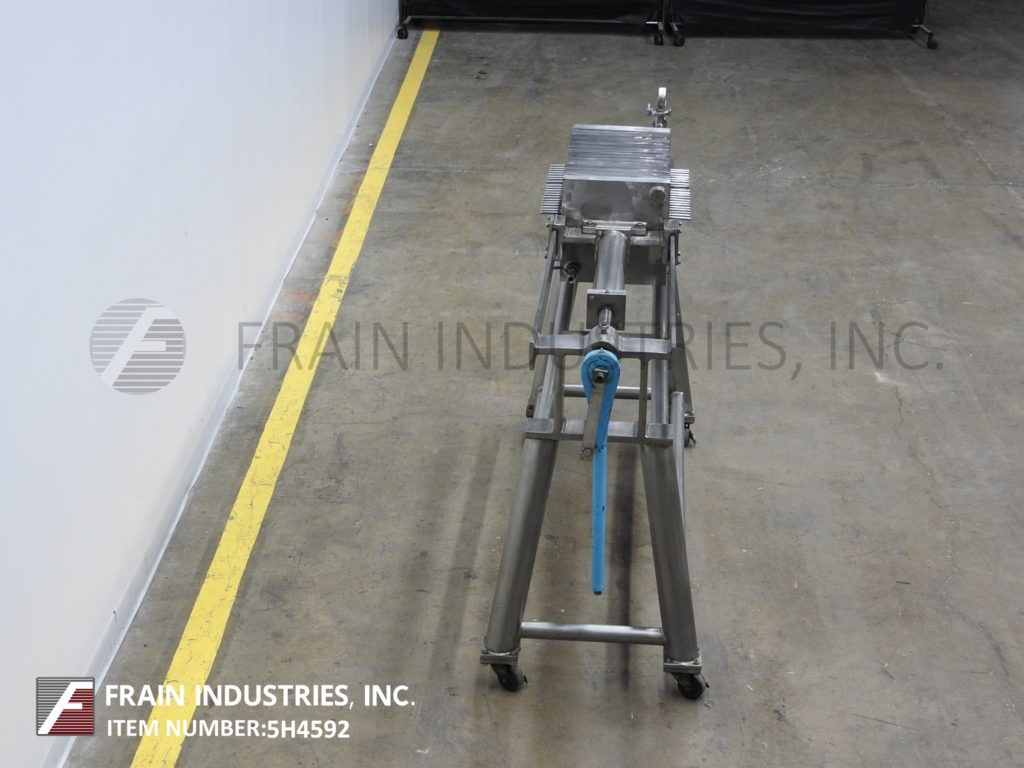

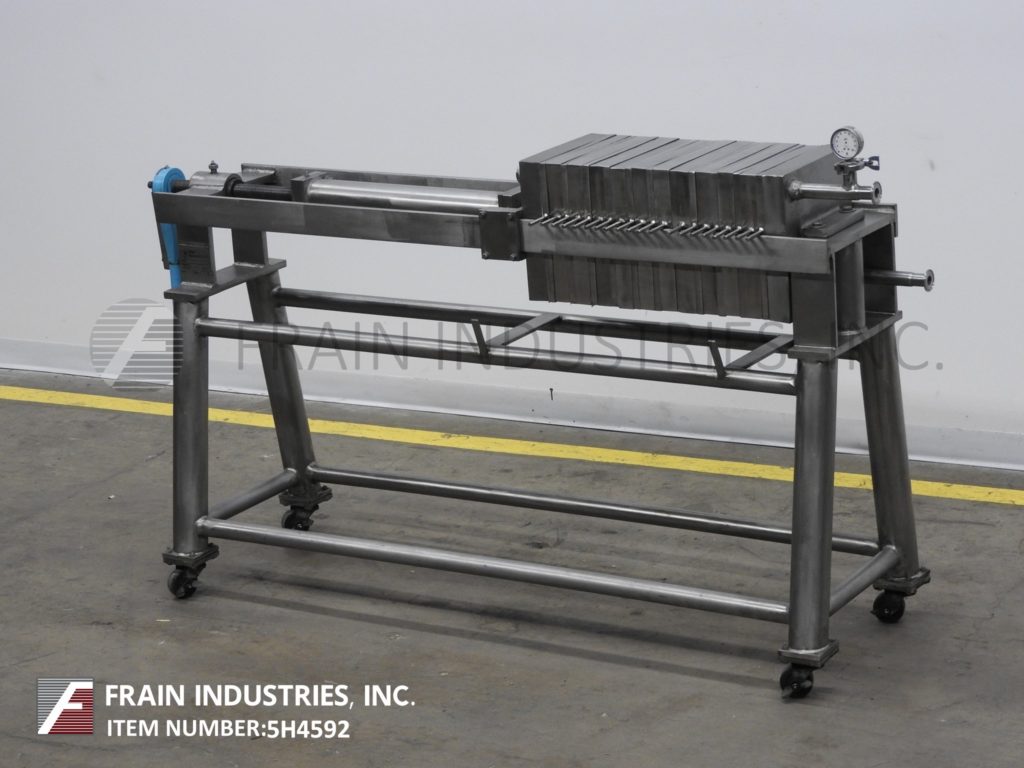

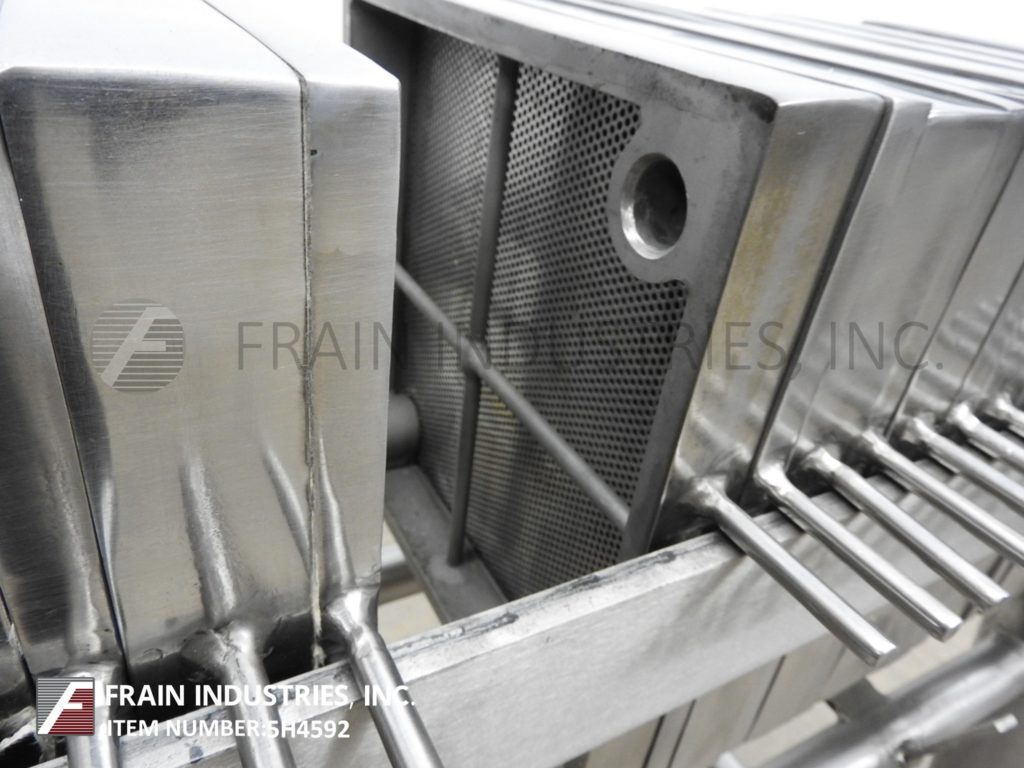

Star Filter Plate & Frame 20SS4113S2TIC

• Manufacturer: Star
• Model Number: 20SS4113S2TIC
• Frain Number: 5H4592

Star, Model 20SS4 113S2 TIC, horizontal, stainless steel, plate and frame filter press. Volumes of product per hour – depending on materials, application and machine configuration. Equipped with (20) 12-7/8" x 12-7/8" square plates with filteration area of 10 ft², 1½" thick sludge plates with a sludge capacity of 1¼ ft³, 2"OD / ¾"ID Tri-clamp inlet, 2"OD / ¾"ID Tri-clamp outlet, hand crank filter closure and pressure guage. Mounted on (4) leg base frame with casters.

OAD: 84" L x 24" W x 50" H

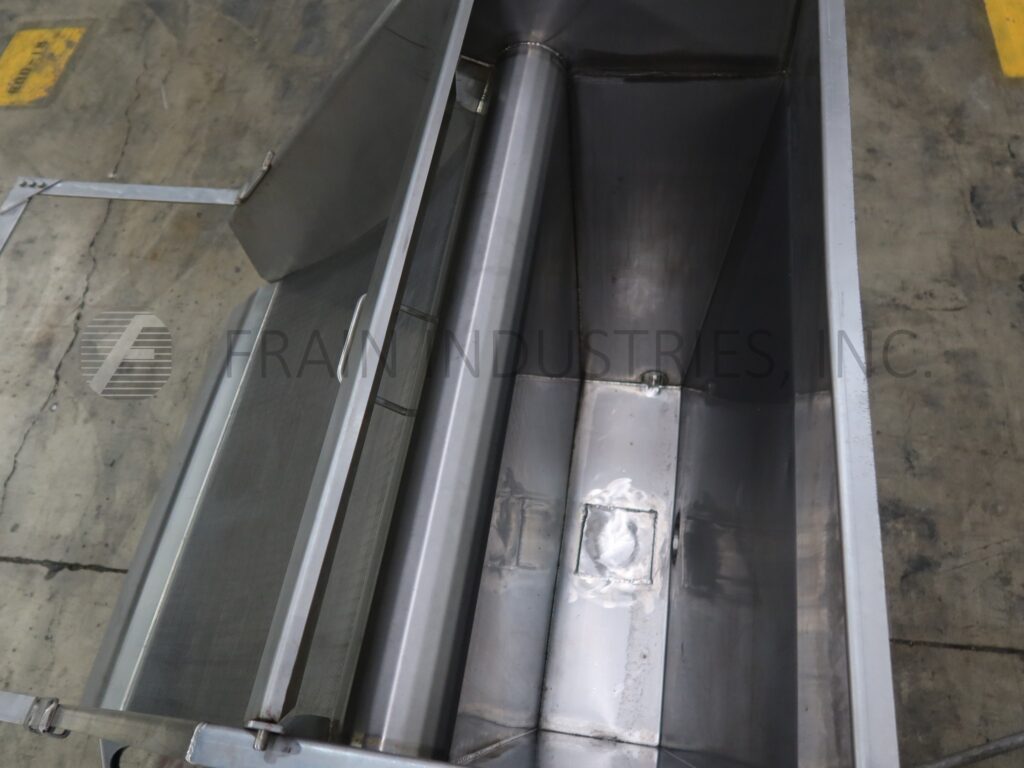

Lyco Filter 36"

• Manufacturer: Lyco
• Model Number: 36"
• Frain Number: 5G2522

Lyco, 36" wide, stationary-screen dewatering separator. Unit rated up to 375 GPM depending on materials, application, environment and machine configuration. Equipped with a 5"OD/4"ID I-Line style product feed, 36" wide x 11" long x 30" deep resivoir with (2) 2½"OD/2"ID tri-clamp style drains, 36" wide x 28" long screen with .080" gaps, and (1) 5"OD/4"ID I-Line style water discharge.

OAD: 60"L x 43"W x 50"H

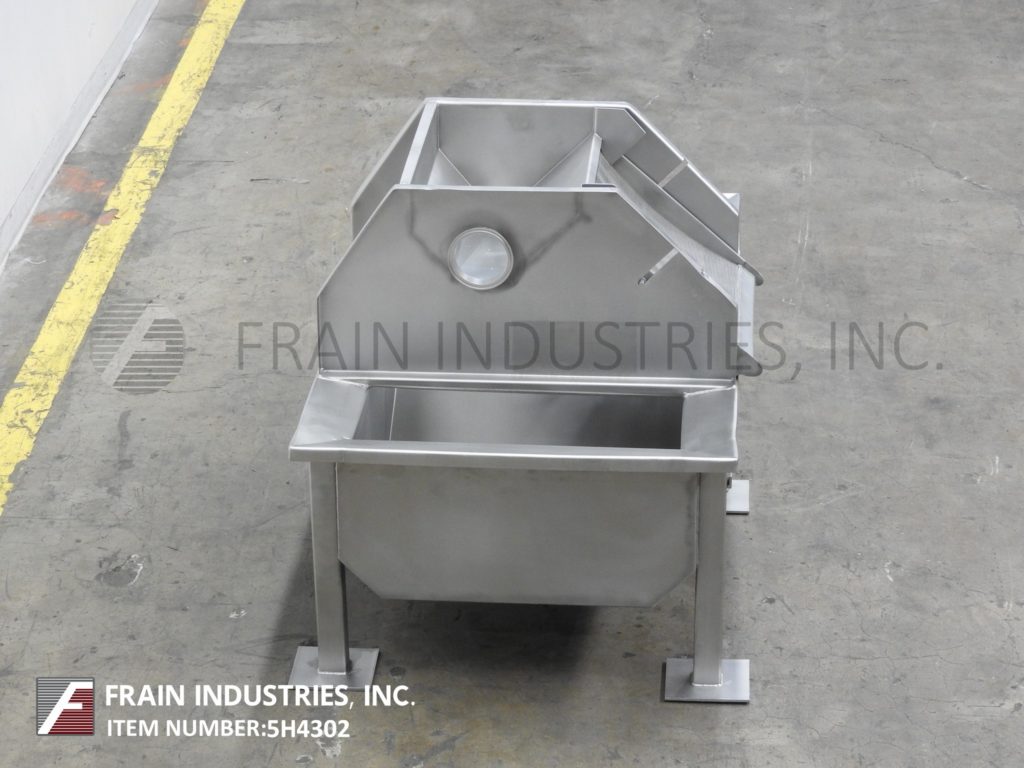

Lyco Filter 24"

• Manufacturer: Lyco
• Model Number: 24"
• Frain Number: 5H4302

Lyco, 24" wide stationary-screen dewatering separator. Unit rated up to 100 GPM depending on materials, application, environment and machine configuration. Equipped with a 4¾"OD/4"ID Tri-Clamp style top product charge into trough with 2½"OD / 2" ID Tri-clamp bottom water supply fitting, 24" wide x 48" long x 15" deep resivoir with 2½"OD / 2"ID Tri-clamp discharge with 4" ground clearance and 17" wide x 14" long screen with (1/32)" gaps and 22" ground clearance.

OAD: 55"L x 32"W x 36"H

PCI Wedeco Filter Cartridge B1UF

• Manufacturer: PCI Wedeco
• Model Number: B1UF
• Frain Number: 5H0972

PCI Wedeco Model B1UF, Stainless steel, food grade parallel flow, shell and tube membrane ultrafiltration and clarification system that can be used for all types of juices, beverages, liquor, food and water filtration processing from 0 to 200 gallons per minute – depending on materials and application Equipped with (55) 3-3/4" OD x 160" long, 316 stainless steel outer shroud material, with (18) perforated steel tubes in the shell to form of shell and tube and each tube is fitted with membrane element, and has 2.6 of surface area per square foot per membrane with operating pressure up to 64 bar max and operating temperatures up to 80 Deg C or 176 Deg F and has (5) sections of 10 modules each 2 x 2 pattern and (1) section of 5 modules single for a combined total of (55) modules with specially designed end caps connecting all (55) tubes in series and all have 3/4" OD shroud drains. (1) 60 gallon and (1) 200 gallon, stainless steel, single wall tanks, with circulation pump and all stainless steel piping, fittings and valves, with system motor drive. APV Control panel has A/B CPU controller with juice stock, feed stock and recirculation flow touch pad controls, CIP, recirculation, drain and feed valve and on / off switches with e-stop. Mounted on all stainless steel base frame.

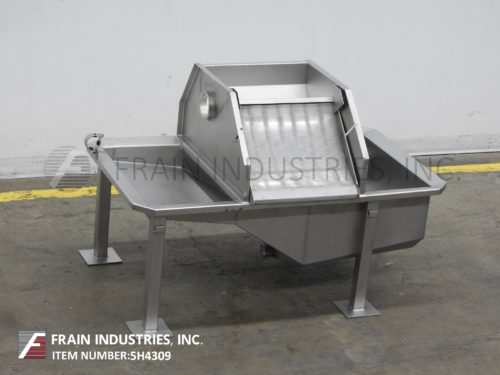

Andritz Separation Inc Filter 17"W

• Manufacturer: Andritz Separation Inc
• Model Number: 17"W
• Frain Number: 5H4309

Andritz, 17" wide stationary-screen dewatering separator. Unit rated up to 100 GPM depending on materials, application, environment and machine configuration. Equipped with a 4¾"OD/4"ID Tri-Clamp style product with water charge into top trough with 2½"OD / 2" ID Tri-clamp bottom fitting, 24" wide x 48" long x 15" deep resivoir with 2½"OD / 2"ID Tri-clamp discharge with 4" ground clearance and 17" wide x 14" long screen with (1/32)" gaps and 22" ground clearance.

OAD: 55"L x 32"W x 36"H

Perrin / Evoqua Water Tech LLC Filter Plate & Frame 10 FT³

• Manufacturer: Perrin / Evoqua Water Tech LLC
• Model Number: 10 FT³
• Frain Number: R29311

Perrin / Evoqua Water Technologies, horizontal, stainless steel, side bar plate and frame filter press. Volumes of product per hour – depending on materials, application and machine configuration. Equipped with (31) 24" x 24" x 1" square cake plates with cake capacity of 10 ft³ and (32) 24" x 24" filtering plates with a filteration area of 128 ft², (4) 2"OD / 1½"ID Tri-clamp inlet / outlets, hand crank filter closure and air over oil hydraulic finishing closure, Rosemont digital flow meter and Precision digital turbidity meter. Mounted on (4) leg base frame.

OAD: 132"L x 53"W x 43"H

Perrin / Evoqua Water Tech LLC Filter Plate & Frame 16 FT³

• Manufacturer: Perrin / Evoqua Water Tech LLC
• Model Number: 16 FT³
• Frain Number: R29310

Perrin / Evoqua Water Technologies, horizontal, stainless steel, side bar plate and frame filter press. Volumes of product per hour – depending on materials, application and machine configuration. Equipped with (50) 24" x 24" x 1" square cake plates with cake capacity of 16 ft³ and (51) 24" x 24" filtering plates with a filteration area of 200 ft², (4) 2"OD/1½"ID Tri-clamp inlet / outlets, hand crank filter closure and air over oil hydraulic finishing closure. Mounted on (4) leg base frame.

OAD: 168"L x 55"W x 47"H

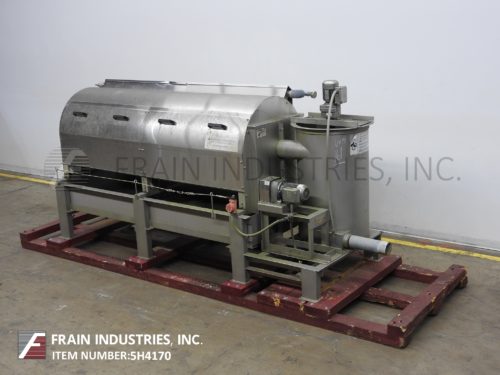

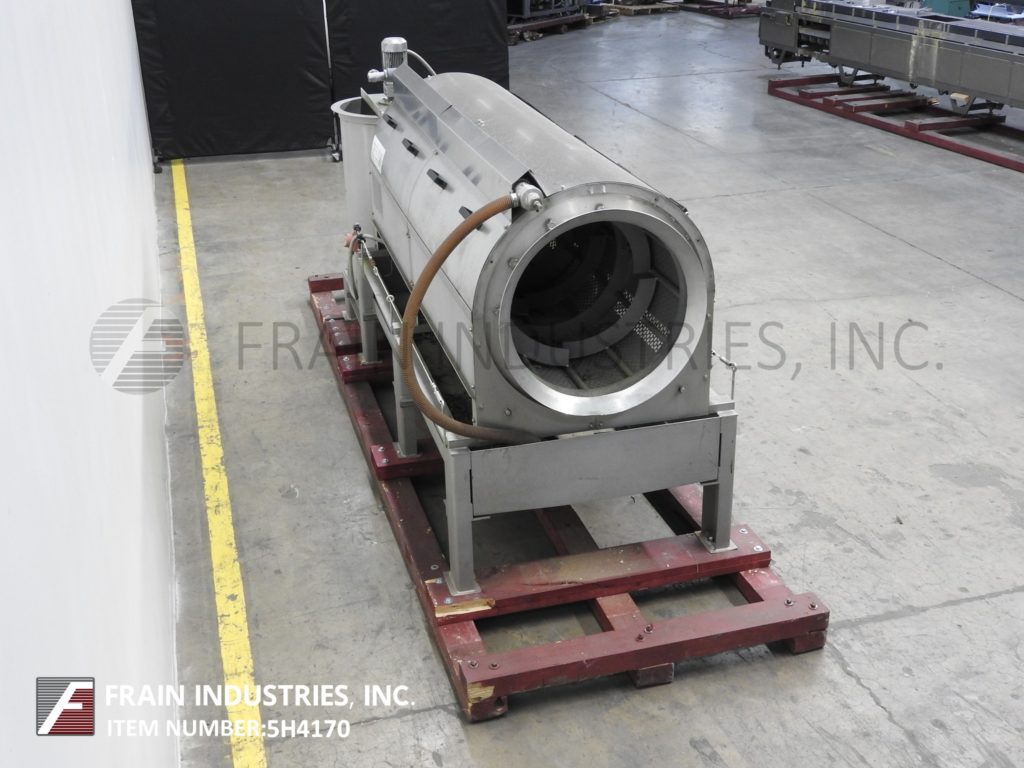

Parkson Corporation Filter Rotary RDT100

• Manufacturer: Parkson Corporation
• Model Number: RDT100
• Frain Number: 5H4170

Parkson, Model RDT-100, stainless steel rotary drum thickener. Rated from 25 to 100 gallons per minute – depending on materials, application and machine configuration. Equipped with a 4" NPT charge, 25" diameter x 40" deep (75 gallon) "flocculation" tank with ½ hp paddle agitation for mixture detention time, 30" diameter x 96" long baffeled rotarty drum screen powered by a 1 hp drive, screen spray nozzles supplied by a 1" NPT fitting, open-end solids discharge with 30" ground clearance and 105" long x 40" wide x 10" deep liquid collection bin with 4" NPT bottom drain with 11" ground clearance. System mounted on heavy duty stainless steel frame.

OAD: 138"L x 50"W x 70"H

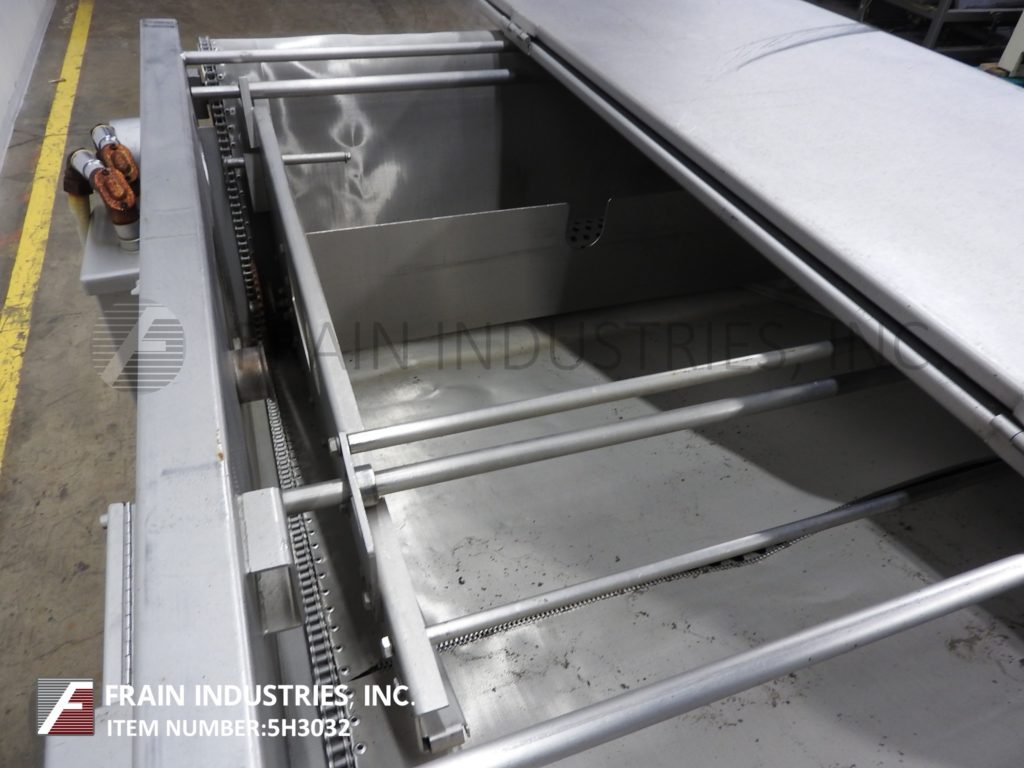

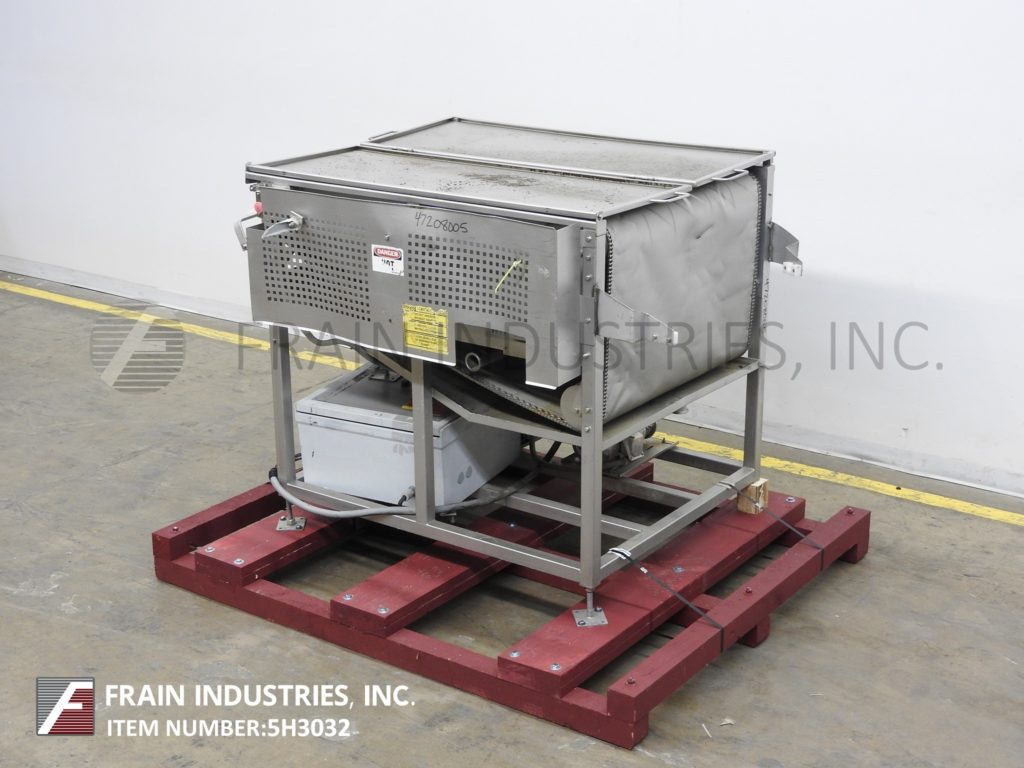

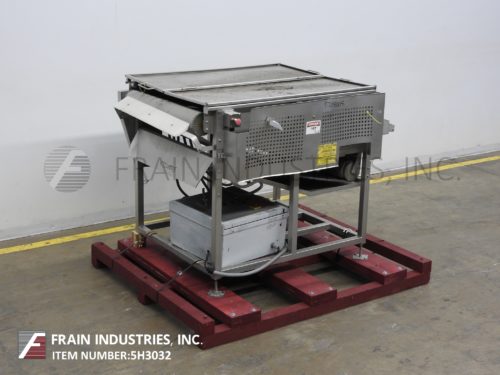

MP Equipment Filter Rotary CO39

• Manufacturer: MP Equipment
• Model Number: CO39
• Frain Number: 5H3032

MP Equipment, Model CO39, endless media filter. Equipped with (2) 2½"OD / 2"ID Tri-clamp style charge ports, 36" wide mesh filter screening belt powered by a 1 HP drive with scrapper blade, (2) 2½"OD / 2"ID Tri-Clamp style discharge ports and bottom mounted drip pan. Control panel with on / off switch and push button start / stop controls.

OAD: 70"L x 58"W x 54"H

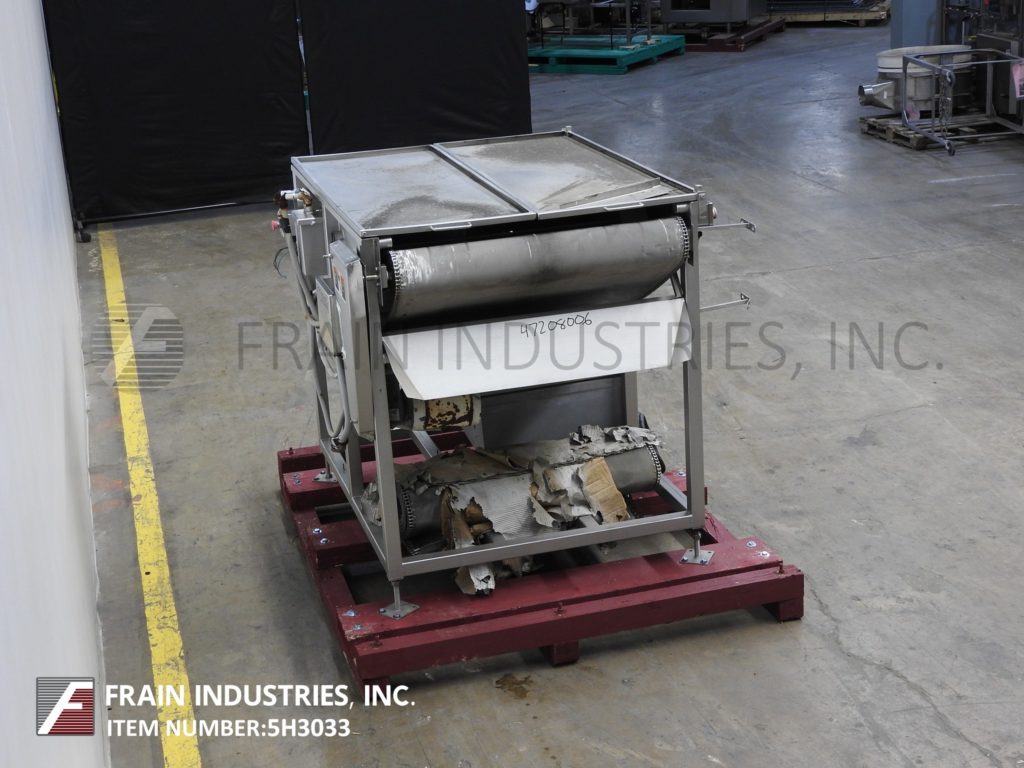

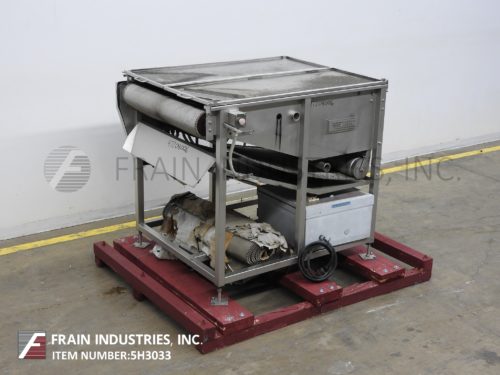

MP Equipment Filter Rotary CO39

• Manufacturer: MP Equipment
• Model Number: CO39
• Frain Number: 5H3033

MP Equipment, Model CO39, endless media filter. Equipped with (2) 2½"OD / 2"ID Tri-clamp style charge ports, 36" wide mesh filter screening belt powered by a 1 HP drive with scraper blade, (2) 2½"OD / 2"ID Tri-Clamp style discharge ports and bottom mounted drip pan. Control panel with on / off switch and push button start / stop controls.

OAD: 70"L x 58"W x 54"H

Dontech Industries Inc Filter Rotary IS34

• Manufacturer: Dontech Industries Inc
• Model Number: IS34
• Frain Number: 5H0979

Dontech Industries, Model IS-34, stainless steel internally fed rotary drum screen. Equipped with a 6½"OD / 5¾"ID Tri-clamp style charge port, 36" diameter x 64" long rotarty drum screen powered by a ¾ hp drive, 18" x 13" solids discharge with 94" ground clearance, 51" long x 48" wide x 64" deep liquid collection bin with (1) 3½"OD / 3"ID Tri-clamp bottom drain with 22" ground clearance and (1) 4¾"OD / 4"ID bottom side discharge with 30" ground clearance. Rated dependant on materials, application and machine configuration.

OAD: 110"L x 65"W x 142"H
