Ribbon S. S. Machines

Morcos Mixer Powder Ribbon S. S. RM600

• Manufacturer: Morcos
• Model Number: RM600
• Frain Number: R32170

Morcos Machinery Model RM600, stainless steel, double ribbon mixer with pounds of product per hour – depending on materials and application. 304L stainless steel construction. Has Maximum bowl capacity of 600 Litres, (21.18 ft³) with minimum mixing capacity of 268 litres (9.464 ft³) and maximum mixing capacity of 500 litres (17.657 ft³). Mixing chamber dimensions: 60" in Length; 24" in Width; 30" in Depth. Equipped with flip up / clamp down cover, with micro-switch safety switch and safety grate with seals for powdered products and 6" OD top product port. (2) levels of spirals, (1) internal anticlockwise and (1) external clockwise has 1¾" wide x (1/8)" thick (outer) and 1¾" wide x (1/8)" thick (inner) stainless steel ribbons powered by 7.3 Hp motor drive. 8" OD center bottom pneumatic discharge gate with 24" ground clearence. Control panel has start, stop push button controls. Mounted on (4) leg stainless steel frame.
Granule product with crystal size ranging from 450 microns (17.71 mil.) till 650 microns (25.59 mil.).

OAD: 92" L x 30" W x 64" H

Blentech Corp Mixer Powder Ribbon S. S. SH-180A

• Manufacturer: Blentech
• Model Number: SH-180A
• Frain Number: R32122

Blentech, Model SH-180A, 100 ft³, 304 stainless steel, ribbon mixer with pounds of product per hour – depending on materials and application. Chamber dimmensions of 155" in Length x 65" in Width x 46" in Depth with flip top covers, 6½" OD center shaft with 3" wide x ¼" thick has single ribbon with 40" OD spokes. 4½" OD / 4" ID Tri-Clamp style center bottom discharge with 8" floor clearence. Mounted on (4) leg frame.

OAD: 192"L x 78"W x 65"H

Mixer Powder Ribbon S. S. 36 FT³

• Model Number: 36 FT³
• Frain Number: R32491

Stainless steel, 44 ft³ total, (36 ft³ workable) double ribbon mixer with pounds of product per hour – depending on materials and application. 78" long x 30" wide x 36" deep inner mixing chamber dimensions. Equipped with (2) 17" OD product ports with covers, 4½" OD mixing shaft with 1¼" wide x (3/8)" thick (outer) and 2" wide x (1/8)" thick (inner) stainless steel ribbons. 6" OD center bottom discharge with 22" ground clearence. Control panel has start, stop push button controls. Mounted on (4) leg stainless steel frame.

OAD: 135"L x 45"W x 75"H

Ross Mixer Powder Ribbon S. S. RB42B18

• Manufacturer: Ross
• Model Number: RB42B18
• Frain Number: R32420

Ross, model RB42B-18, 18 ft³ workable, double ribbon mixer with 304 stainless steel contact parts and pounds of product per hour – depending on materials and application. Inner mixing chamber dimensions: 60" in Length; 24" in Width; 28" in Depth. Equipped with lift up covers, 2" OD mixing shaft with 1" wide x (3/8)" thick (outer) and 2" wide x ¼" thick (inner) stainless steel ribbons powered by 5.4 Hp motor drive with variable speed control. 4" OD center bottom manual discharge with 36" ground clearence.

OAD: 92"L x 36"W x 86"H

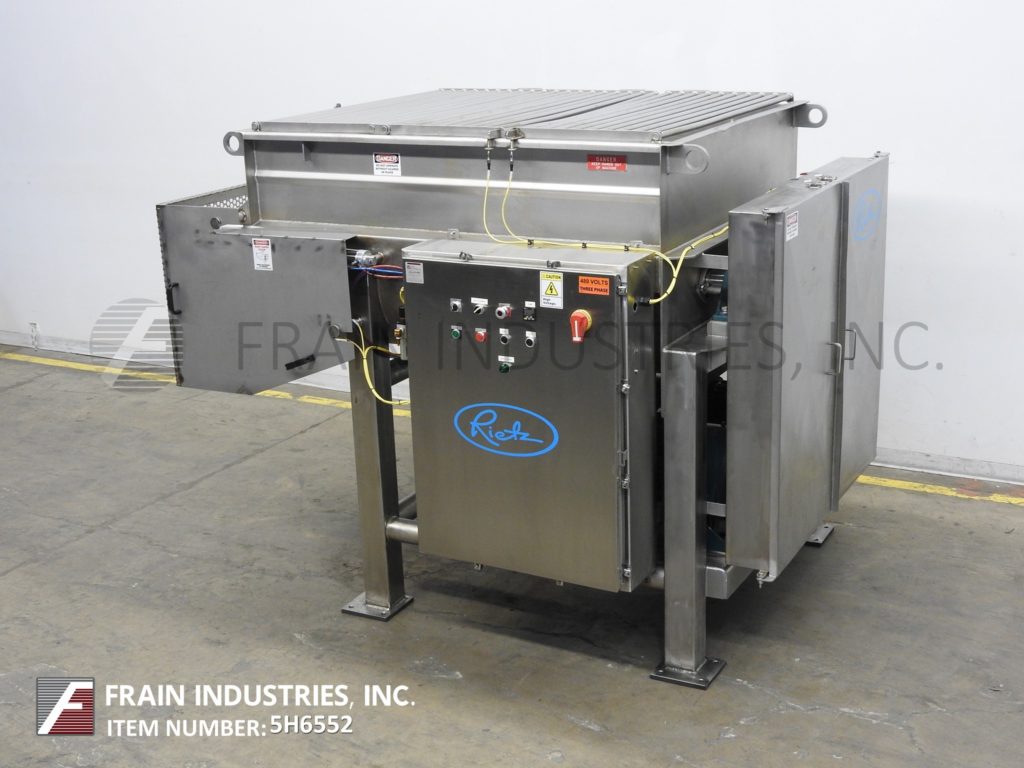

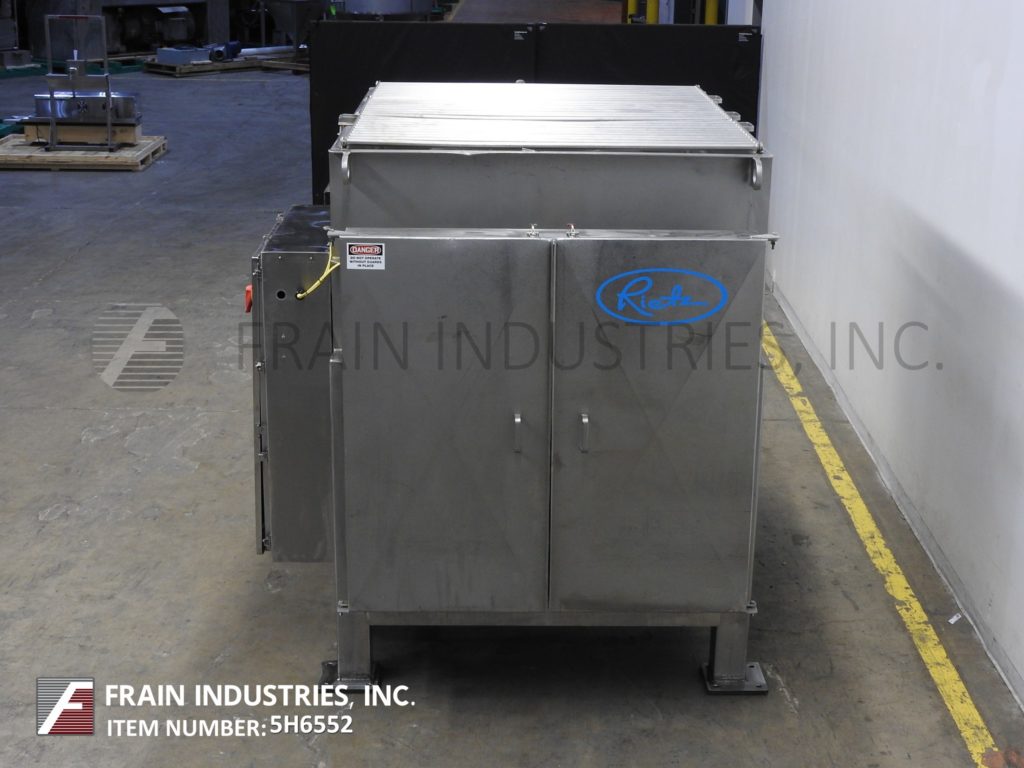

Rietz Mixer Powder Ribbon S. S. RS28K5406

• Manufacturer: Rietz
• Model Number: RS28K5406
• Frain Number: 5H6552

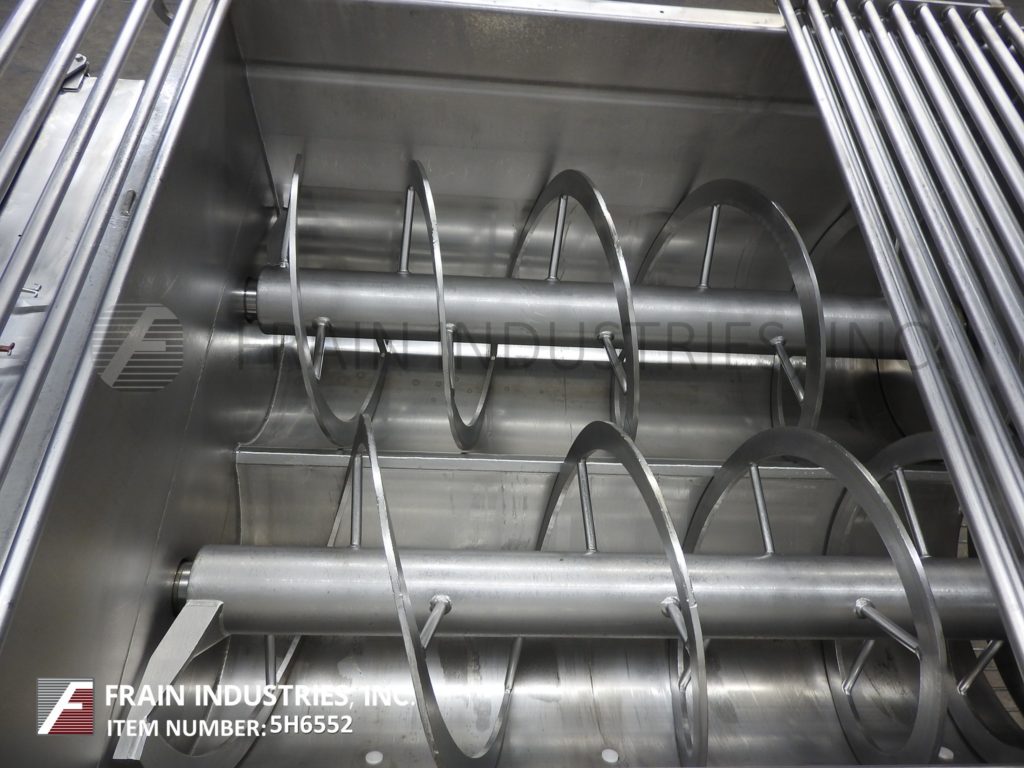

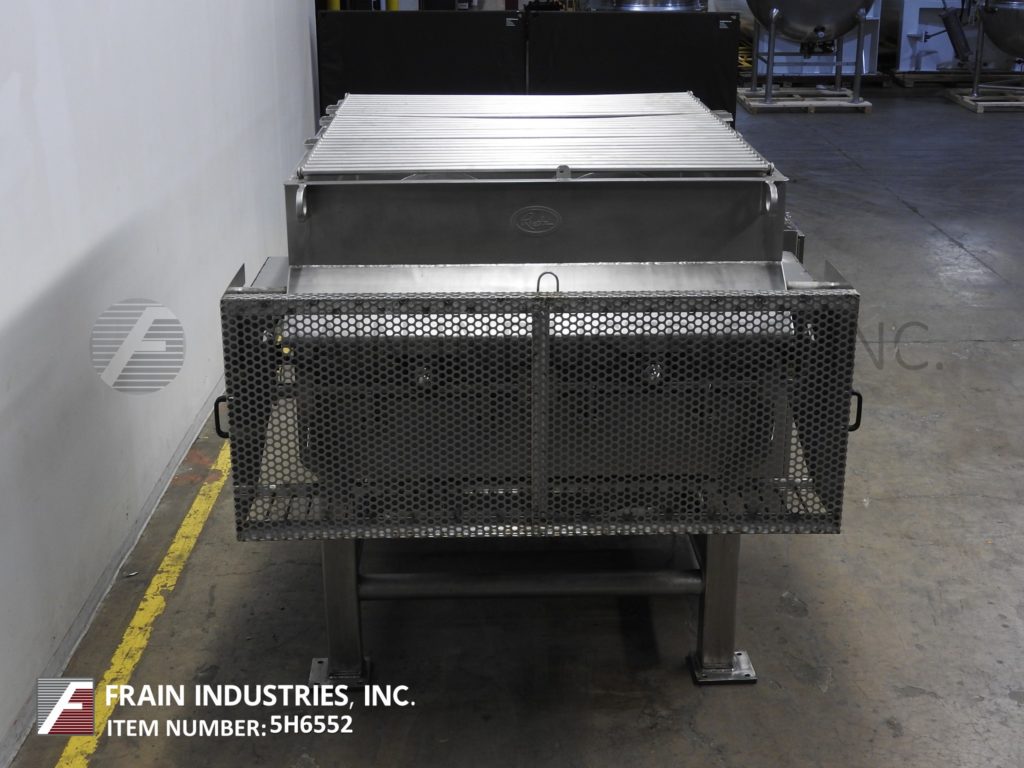

Rietz, Model RS-28-K5406, 304 stainless steel dual trough ribbon blender with pounds of product per hour – depending on materials and application. Working Capacity: 60 ft³. Dual trough dimensions: 72" in Length; 56" in Width; 36" in Depth. Equipped with (3) lift up top safety grates, (6) steam injection ports, 2½" wide x (3/8)" thick stainless steel ribbons and has dual pneumatic discharge gates with 42" ground clearance. Powered by (2) 15 Hp chain to sprocket motor drives with safety guarding. Mounted on (4) leg base frame.

OAD: 102"L x 75"W x 85"H

Mueller Mixer Powder Ribbon S. S. 50FT³

• Manufacturer: Mueller
• Model Number: 50FT³
• Frain Number: R31775

Mueller, 50 ft³, double ribbon mixer with pounds of product per hour – depending on materials and application. 304 stainless steel contact parts. Inner mixing chamber dimensions of: 58" in Length; 41" in Width; 45" in Depth. Equipped with dual flip up cover and lift out safety grate, 3" OD mixing shaft with 1½" wide x (5/8)" thick (outer) and 2½" wide x (3/8)" thick (inner) stainless steel ribbons and (2) CIP spray balls. 4¾"OD / 3¾" ID Tri-Clamp discharge with 27" ground clearence. Mounted on (4) leg frame.

OAD: 96"L x 55"W x 80"H

Mixer Powder Ribbon S. S. 70 FT³

• Model Number: 70 FT³
• Frain Number: 5H4466

75 ft³ (70 ft³ working capacity), 304 stainless steel double ribbon mixer with pound of product per hour – depending on materials and application. Inner mixing chamber dimensions: 96" in Length; 38" in Width; 40" in Depth. Equipped with dual flip up covers, 12" OD charge port, 4½" OD mixing shaft with 1¼" wide x (3/8)" thick (outer) and 2" wide x ¼" thick (inner) stainless steel ribbons. 9" OD center bottom discharge has manual slide valve with 43" floor clearence and 20 Hp motor drive. Mounted on (4) leg base frame.

OAD: 155" L x 46" W x 95" H

J H Day Mixer Powder Ribbon S. S. 5 CU FT

• Manufacturer: J H Day
• Model Number: 5 CU FT
• Frain Number: R21766

5 Cuft, 304 S/S, fully jacketed, single shaft double ribbon blender (37 gallon working capacity) and a 6 cubic foot (45 gallon) overall capacity. Has side liquid injection w/ 5 ports. Chamber measures 38"(W) x 17"(L) x 18"D). Jacket working pressure 80 psi @ 324 Deg. F. Shell working pressure is Atmosphere @ 324 Deg. F. Jacket has (2) 1" side inlet/outlet ports, (2) 1" bottom inlet/outlet ports, and (2) 3/16" side pressure relief ports. Equipped with dual hinged dust tight lid with a 7/8" center vent, sanitary stuffing box, continuous ribbon agitator with the inner spokes measuring 3/16”(thick) x 1 ”(high), outer spoke 3/8” (thick) x 1"(high), 3" dust tight slide gate center bottom discharge at 35” from the ground. Allen Bradley start/stop controls and safety switches. Mounted on casters. National Board # 1677
(OAD: 65"(L) x 24"(W) x 52"(H).

Aaron Equipment Mixer Powder Ribbon S. S. 25 FT³

• Manufacturer: Aaron
• Model Number: 25 FT³
• Frain Number: 5H4465

Aaron, 25 ft³ (23 ft³ working capacity), 304 stainless steel double ribbon mixer with pound of product per hour – depending on materials and application. Inner mixing chamber dimensions: 66" in Length; 26" in Width; 30" in Depth. Equipped 4" OD mixing shaft with ¾" wide x ¼" thick (outer) and 2" wide x ¼ thick (inner) stainless steel ribbons. 6" OD center bottom discharge with manual slide valve and 45" floor clearence. Mounted on (6) leg base frame.

OAD: 143" L x 32" W x 88" H

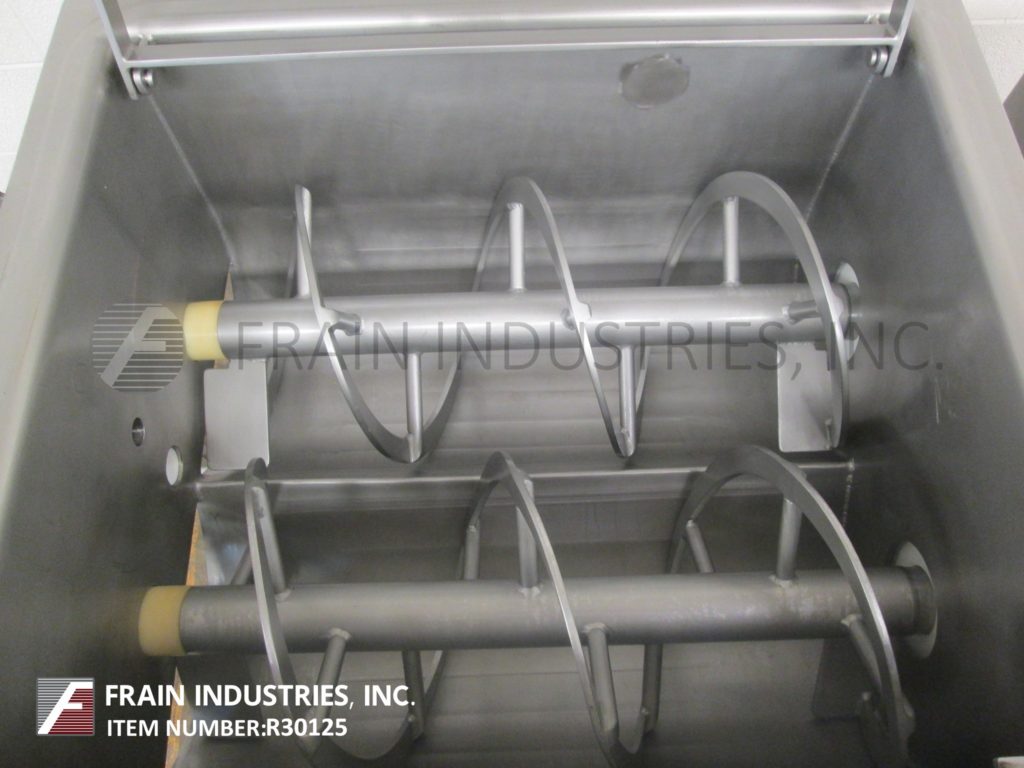

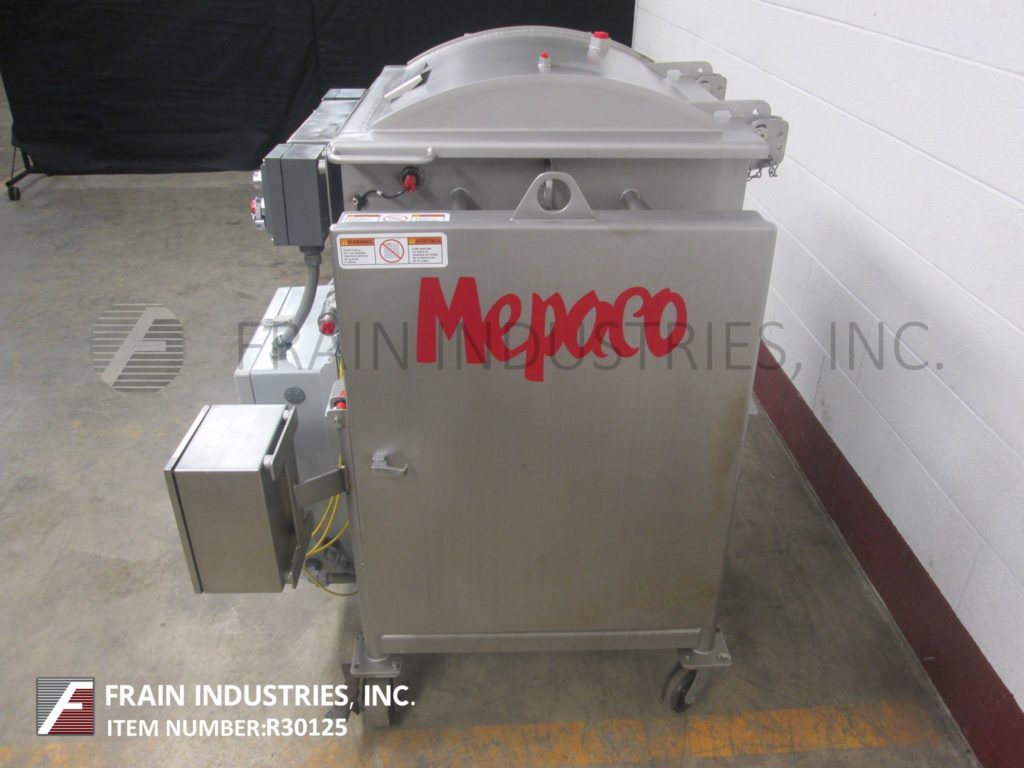

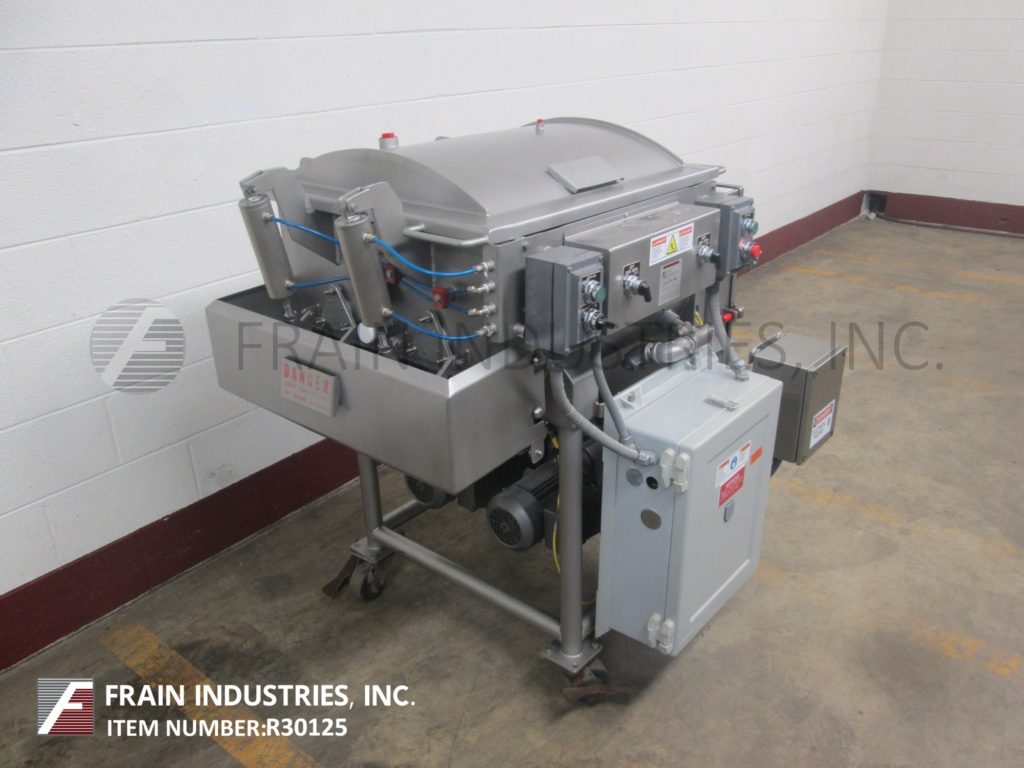

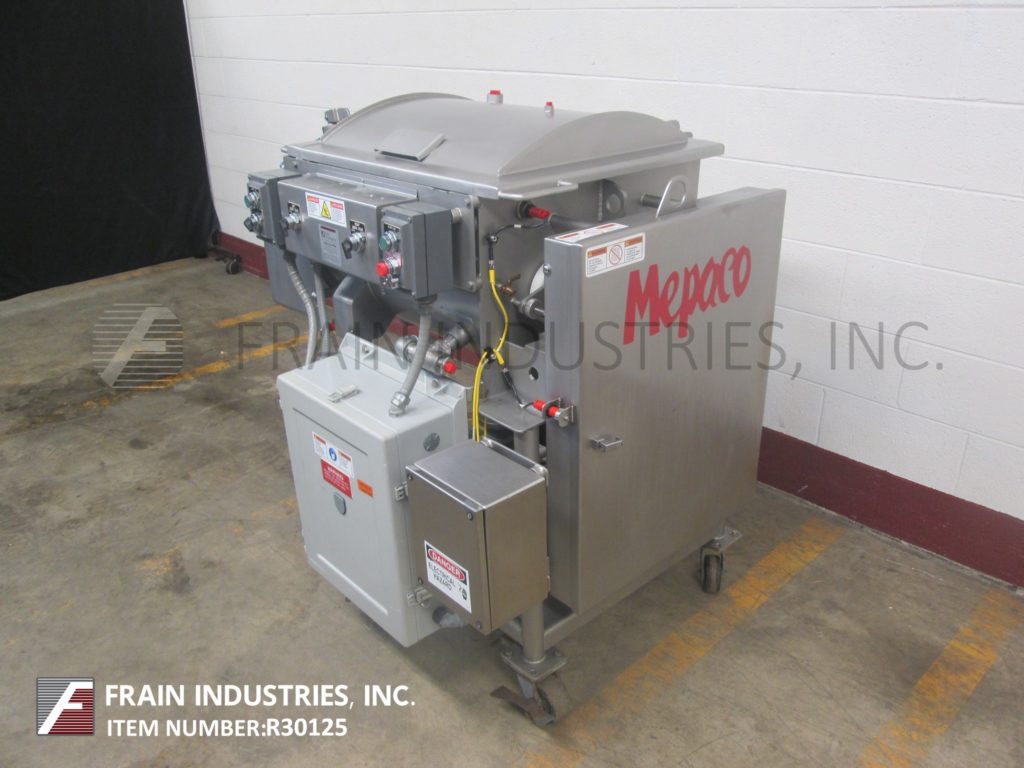

Mepaco Mixer Powder Ribbon S. S. 170

• Manufacturer: Mepaco
• Model Number: 170
• Frain Number: R30125

Mepaco, Model 170, 304 stainless steel, jacketed, dual trough ribbon blender, rated from 0 to150 pounds of product per batch and pounds per hour – depending on materials application and machine configuration. Capacity: 2½ ft³ total (2 ft³ working). Dual trough dimensions: 25" in Length; 22" in Width; 15" in Depth each trough. Equipped with lift up top cover and safety grate, dual pneumatic gate discharges with 30" ground clearance and powered by (2) 1 Hp motor drives with mechanical variable speed. Control panel has start / jog / stop and switches for mix / unload / reverse and open / close for both discharge doors. Mounted on heavy duty base frame with casters.

Top Ports:
(1) 1" NPT
(1) ¼" NPT

Jacket Ports:
(4) 1" NPT

MAWP: 100 psi @ 338°F
MDMT: -20°F @ 115 psi
Nat’l Brd: 10711

OAD: 46"L x 40"W x 51"H

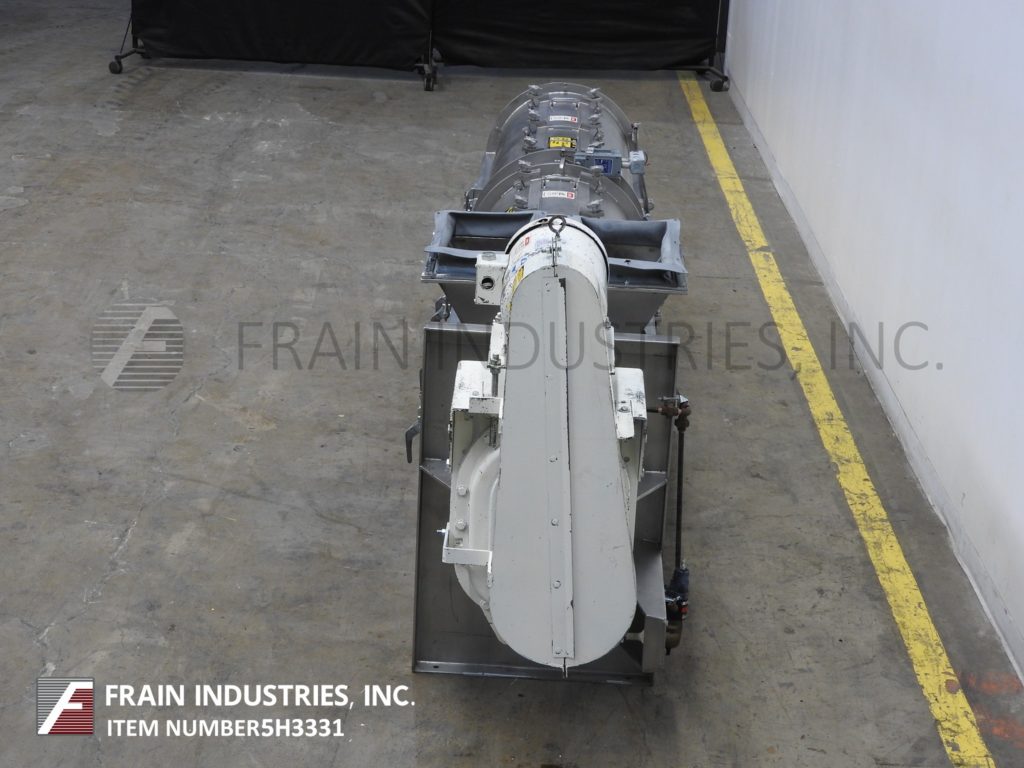

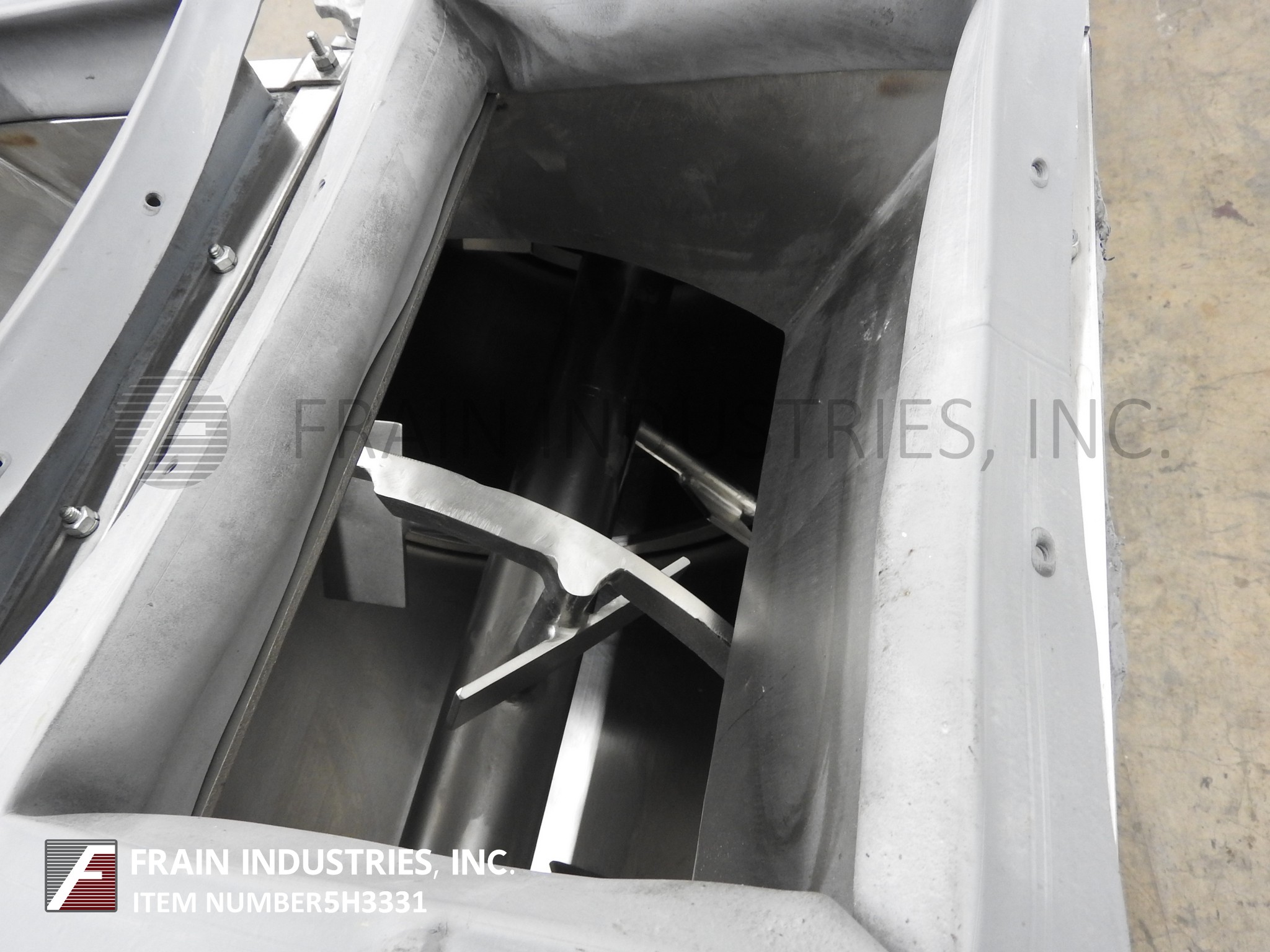

Scott Equipment Co Mixer Powder Ribbon S. S. TB1610

• Manufacturer: Scott Equipment Co
• Model Number: TB1610
• Frain Number: 5H3331

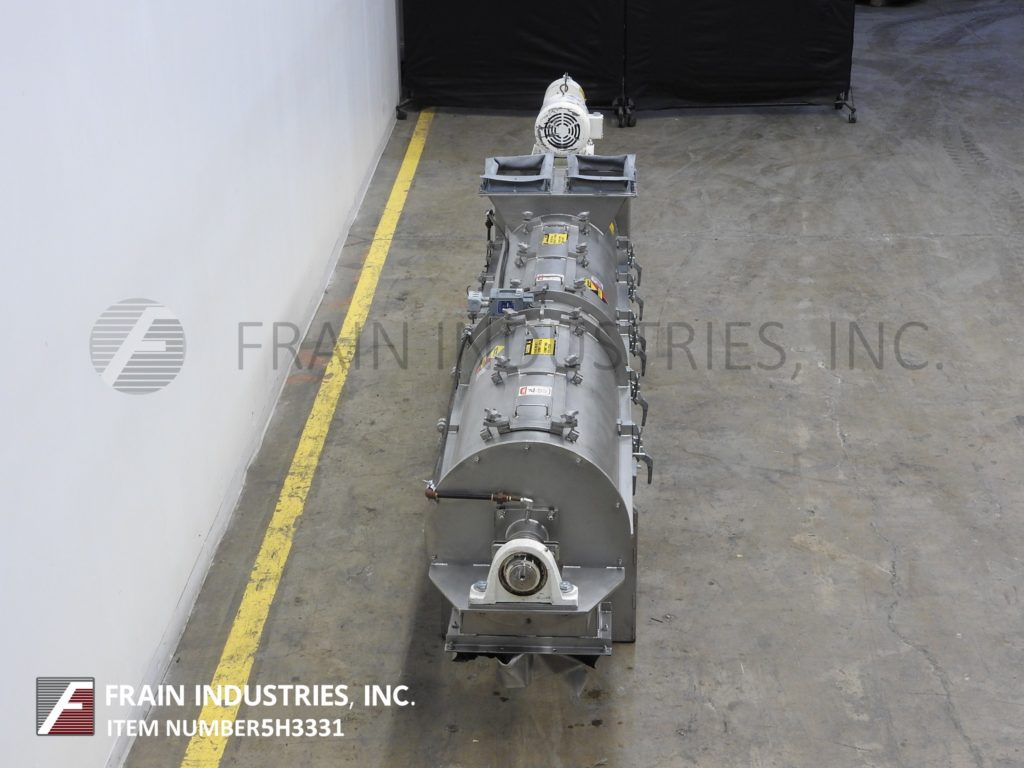

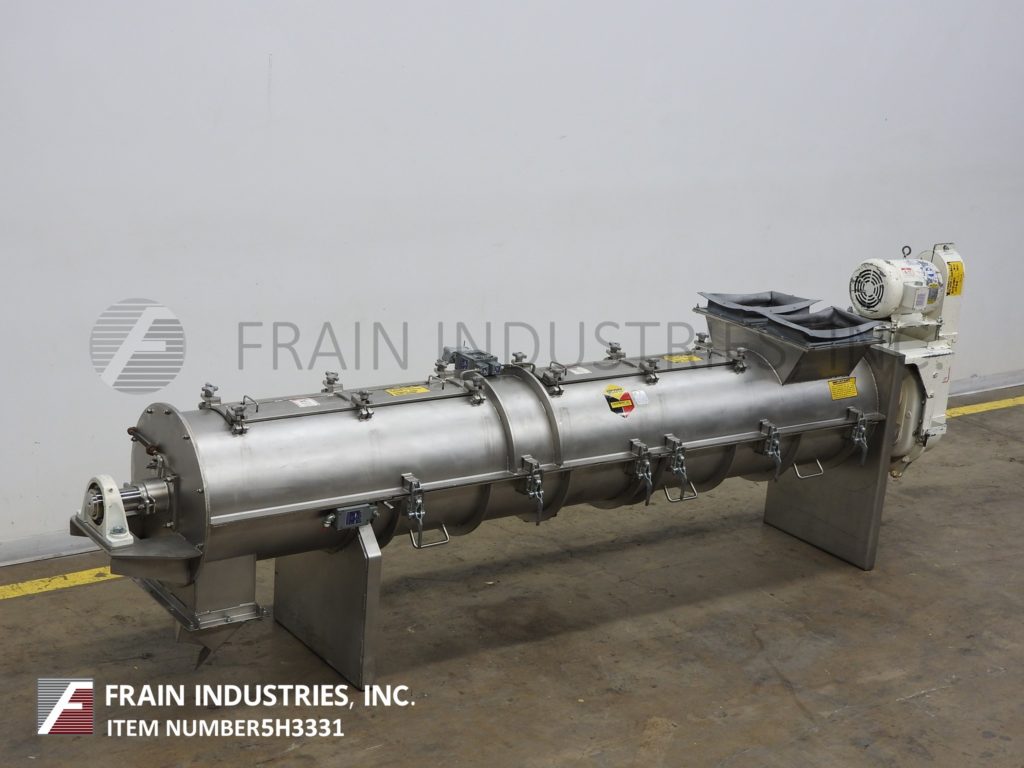

Scott Equipment Model TB1610, stainless steel, continuous ribbon / paddle mixer with pounds of product per hour – depending on materials, application and machine configuration. Chamber dimensions: 120" in Length; 24" ID. Equipped with dual 14" long x 10" wide top product feed ports and dual 34" long x 8" wide flip-up bolt down top access covers and 92" long bolt down flip open bottom access doors. Has inner 6" long x 3" wide paddles and 1" wide x 1/2" thick single ribbon on 1" OD spokes set on 4" OD shaft. 20" long x 11" wide flanged end bottom discharge with (8) 1/4" bolts holes set on 6" centers with 19" floor clearence. 7-1/2 Hp belt to motor drive with safety guarding. Mounted on stainless steel frame.
This style of mixer uses both the paddle agitator design and simultaneously giving end-to-end mixing action of the ribbon design.

OAD: 160" L x 36" W x 54" H

J H Day Mixer Powder Ribbon S. S. 16 FT³

• Manufacturer: J H Day
• Model Number: 16 FT³
• Frain Number: 5H2466

J H Day, 16 ft³ workable, double ribbon mixer with 304 stainless steel contact parts. Inner mixing chamber dimensions: 60" in Length; 24" in Width; 26" in Depth. Equipped with flip up cover, 2" diameter mixing shaft with 1" wide x ¼" thick (outer) and 1¼" wide x (1/8)" thick (inner) stainless steel ribbons powered by a 5 hp drive. 3½" diameter center bottom discharge has manual slide gate with 54" ground clearence.

OAD: 92"L x 39"W x 85"H
