Blommer Candy Chocolate Melter 60,000 LBS

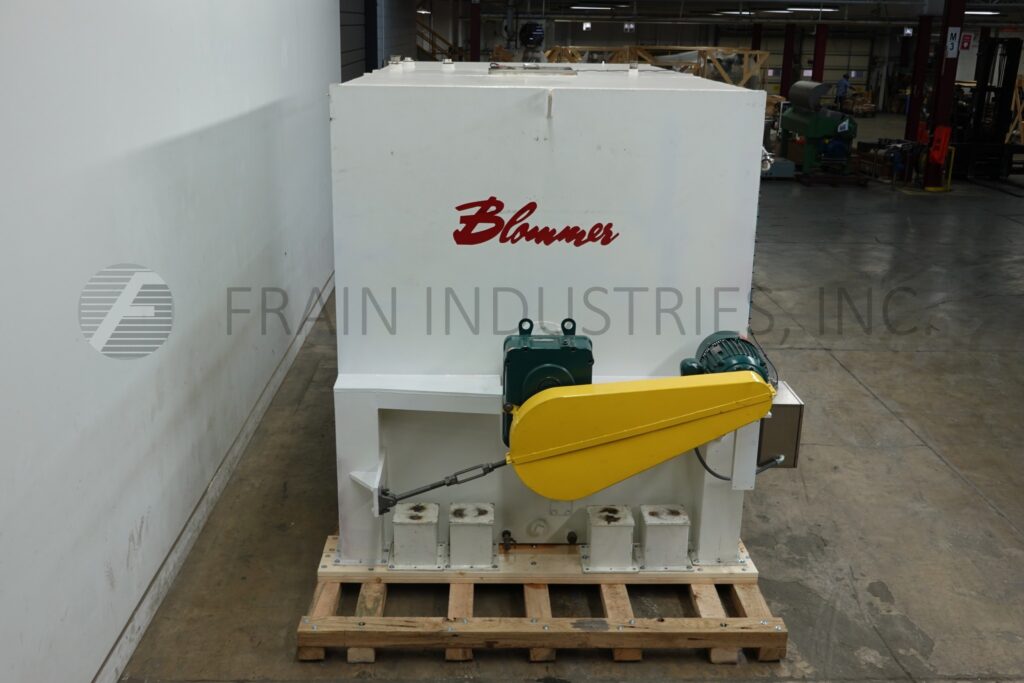

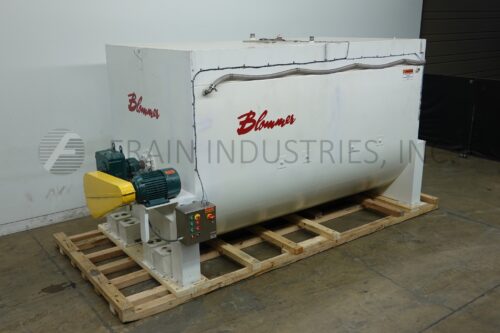

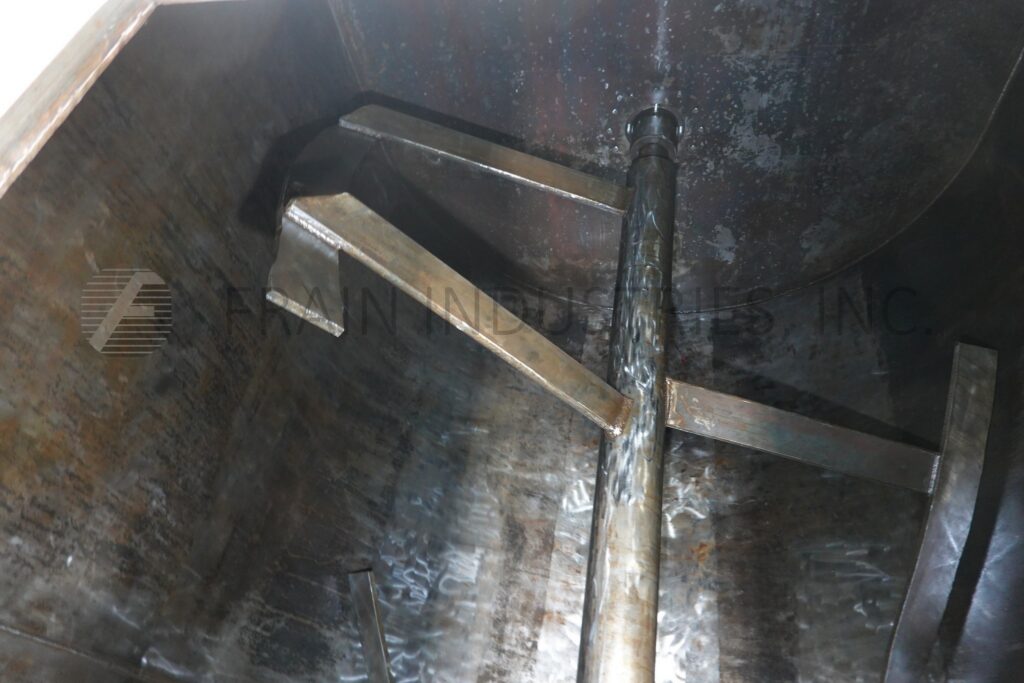

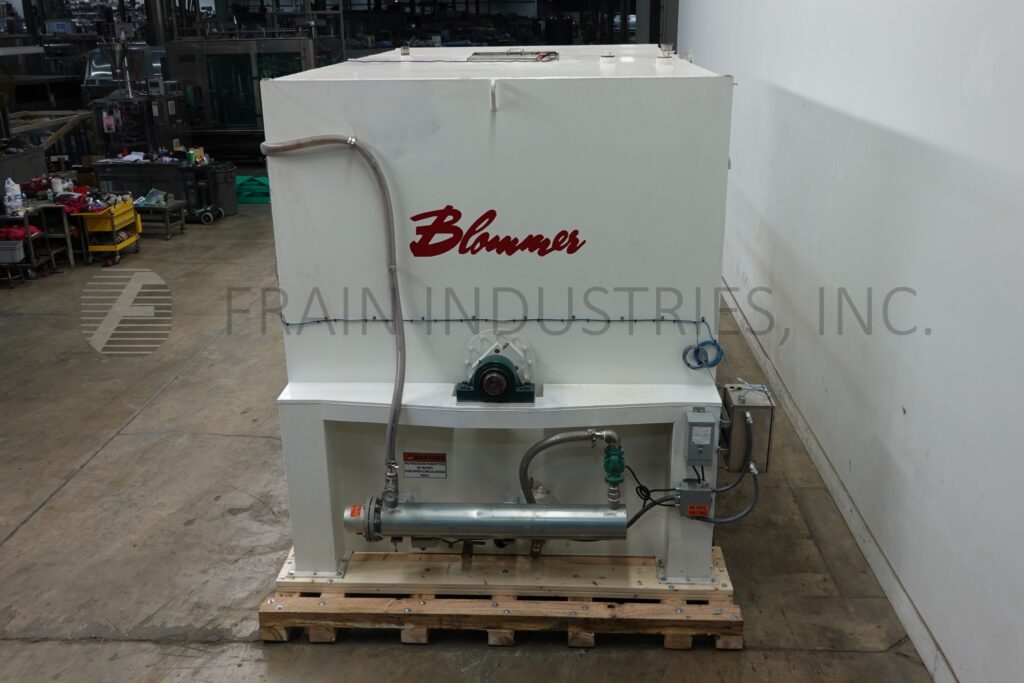

Back to All Equipment5J7710 Blommer, 60,000 lb., Carbon steel, horizontal, self-contained recirculating hot water jacketed, chocolate melting and mixing vessel with pounds of product per hour – depending on materials and application. Inner chamber dimensions: 168″ in Length; 91″ in Width; 107″ in Depth. Equipped with enclosed top, 24″ x 24″ man way with hinged flip up cover, paddle style mixer with 4½” OD shaft with 15 Hp motor drive, recirculating water jacket, 40 Kw circulation heater, 2″ ID / 2½” OD Tri-clamp center bottom discharge with 7″ discharge height and butterfly valve, 2″ ID / 2½” od Tri-clamp bottom end discharge with 10″ ground clearance. Mounted on heavy duty carbon steel frame with 13″ leg extensions.
OAD: 223″ L x 96″ W x 122″ H
