Blommer Candy Chocolate Melter 100,000 LB

  Back to All Equipment
  • Manufacturer: Blommer
  • Model: 100,000 LB
  • Frain Number: 5H2930
  • Category: Candy
  • Subcategory: Chocolate Melter
  • Condition: Used, in excellent condition
  • Availability: In Stock

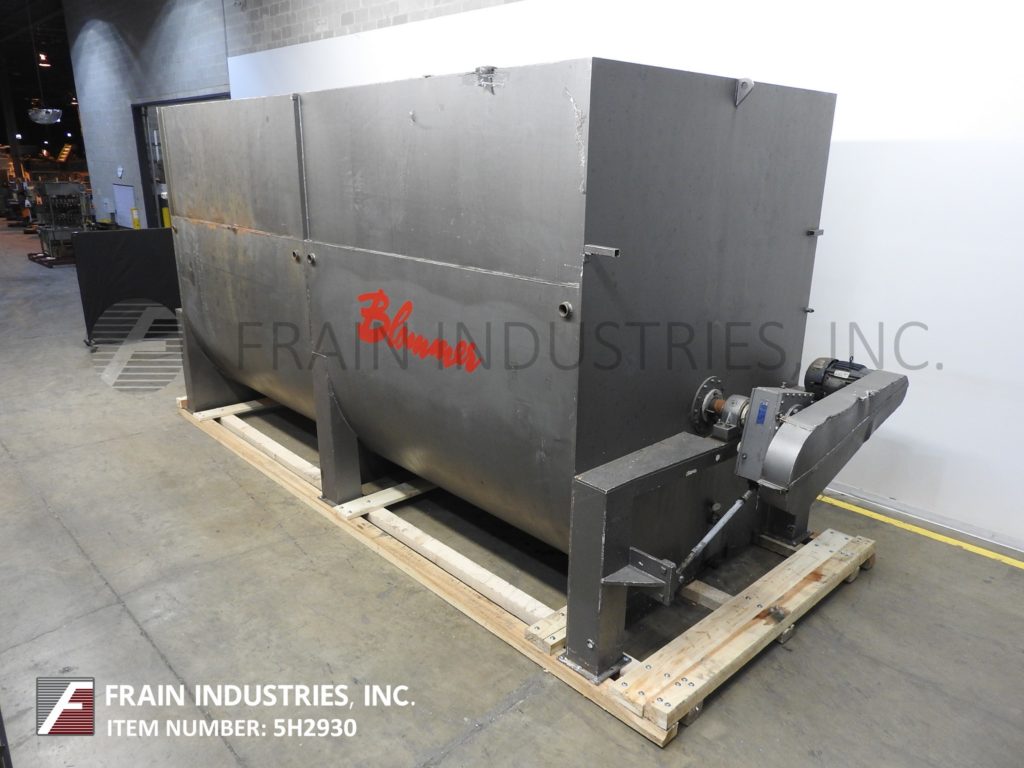

Blommer Model Dual Chamber, horizontal, carbon steel, 100,000 pound total, 50,000 pound each chamber, low pressure water jacketed, chocolate melting and mixing vessel, with pounds of product per hour – depending on material and application. Inner chamber dimensions: 60" in Length; 102-1/2" in Width; 128" in Depth each chamber. Equipped with covered flat top with 24 x 24 flip up covers each chamber with (1) 2" OD, (1) 4" OD threaded top ports has paddle style mixer set on 5" OD shaft, driven by 15 Hp (4) belt end motor drive with safety guarding. Low pressure, 1/2 water jacket each chamber with (4) 2-3/4" OD / 2-1/2" ID inner threaded jacket ports and (1) 2-1/2", (1) 2" threaded end bottom ports with temperature gauges and 6" OD center bottom discharges with 6" discharge height each chamber. Mounted on heavy duty, carbon steel, bolt down base frame.

OAD: 282" L x 111" W x 126" H
