Tetra Pak Hoyer Heat Exch Plate C10-KSH

• Manufacturer: Tetra Pak Hoyer
• Model Number: C10-KSH
• Frain Number: R40130

Tetra Pak, Model C10-KSH, stainless steel, plate and frame heat exchanger. 1655 total ft² heat transfer area. Equipped with (258) plates 58" in Length; 10" in Width; in (4) zones. (20) 4" ID Tri-Clamp style transfer ports. Mounted on stainless steel base frame.

OAD: 128"L x 36"W x 96"H

APV Heat Exch Plate PARAFLOW HX

• Manufacturer: APV
• Model Number: PARAFLOW HX
• Frain Number: 5J2891

APV, Model Paraflow, stainless steel, plate and frame heat exchanger. Approx 120 total ft² heat transfer area with a flow rate of 1 to 45 gallons per minute – depending on materials, application and machine configuration. Equipped with (60) plates 32" in Length; 9" in Width; in (3) zones. (16) 2½" OD / 2" ID seated bevel style transfer ports. Mounted on stainless steel base frame.

OAD: 67"L x 24"W x 61"H

Alfa Laval Heat Exch Plate H10-RC

• Manufacturer: Alfa Laval
• Model Number: H10-RC
• Frain Number: 5D9646

Stainless steel, plate and frame heat exchanger 1217 sq ft. Has 180 total plates 19"W x 55"H ,1/4" Thick divided in (3) sections of (97 plates, 49 plates, 34 plates) maximum working pressure of 145psi, maximum working temperature of 285 F, twelve 3" tri-clover product / media ports,

OAD: 108"L x 36"W x 96"H

Cherry Burrell Heat Exch Plate SI-50

• Manufacturer: Cherry Burrell
• Model Number: SI-50
• Frain Number: 5D1073

Stainless steel, plate and frame heat exchanger, 76 sq ft. Has 38 plates 13 1/4 " W x 45" L x 1/4" Thick, and 2 1/4" in/outlet with sanitary couplings. 120 psi rating.

OAD: 39" L x 22" W x 58" H

Chester Jensen Heat Exch Plate B-4-OT-4-32

• Manufacturer: Chester Jensen
• Model Number: B-4-OT-4-32
• Frain Number: 5J1023

Chester Jensen, Model B-4-OT4-52, Open type instant chiller and heat exchanger with amount of product per hour – depending on materials and application. All stainless steel, open type, single pass chiller has (4) short gas flow cooling sections with (32) 45-1/8" x 42-1/2" and 6.75 gallon internal volume 42.75 sq ft cooling area and is capable of bringing product medium down to 33 Deg F in a single pass with all capacity and tonnage ratings based on the use of 26°F, 28°F or 30°F full-flooded or liquid recirculated (4:1) ammonia and will provide sanitary means to instanly, continously and safely chill water, brine, glycols and other fluid media to 1°F of their freezing point R404a refrigerant design ambient 95°F. Plate and frame heat exchanger with Hot side MAWP 435psi @ 450 °F mdmt -310°F @ 450psi. Cold side MAWP 435psi @ 400 °F MDMT -310°F @ 435psi. Mounted on (4) leg stainless steel frame.

OAD: 95" L x 36" W x 90" H

Chester Jensen Heat Exch Plate 100 GPM HTST

• Manufacturer: Chester Jensen
• Model Number: 100 GPM HTST
• Frain Number: 5G7986

Complete, 25 to 100 gallon per minute, HTST pasteurizing system. Equipped with a Chester Jensen, Model M466F, (2) zone (233) plate heat exchanger with 1085 ft² heat exchange surface area; (43) first zone, (190) second zone. Stainless steel 50 gallon holding tube. Schlueter, 150 gallon, stainless steel tank with level detection. Chem Tek, 226 gallon, stainless steel tank with bottom side mounted prop agitation. Waukesha, Model 130, positive displacement pump powered by a 10 hp drive. (2) Tri-Clover centrifugal pumps powered by 5 Hp drives and (1) centrifugal pump powered by 10 Hp drive. Neptune Meter, valves and controls panel with an AB PLC, AVG EZ series touch panel, Anderson chart recorder and push button system power on with E-stop.

APV Heat Exch Plate R57MOD1

• Manufacturer: APV
• Model Number: R57MOD1
• Frain Number: 5G9666

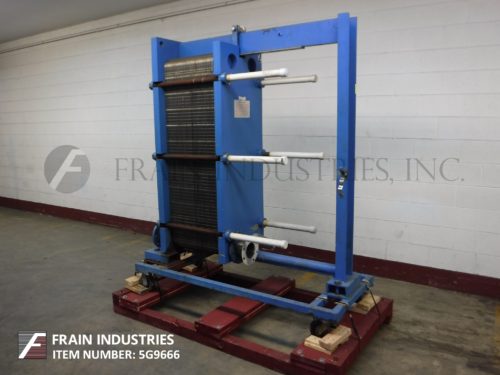

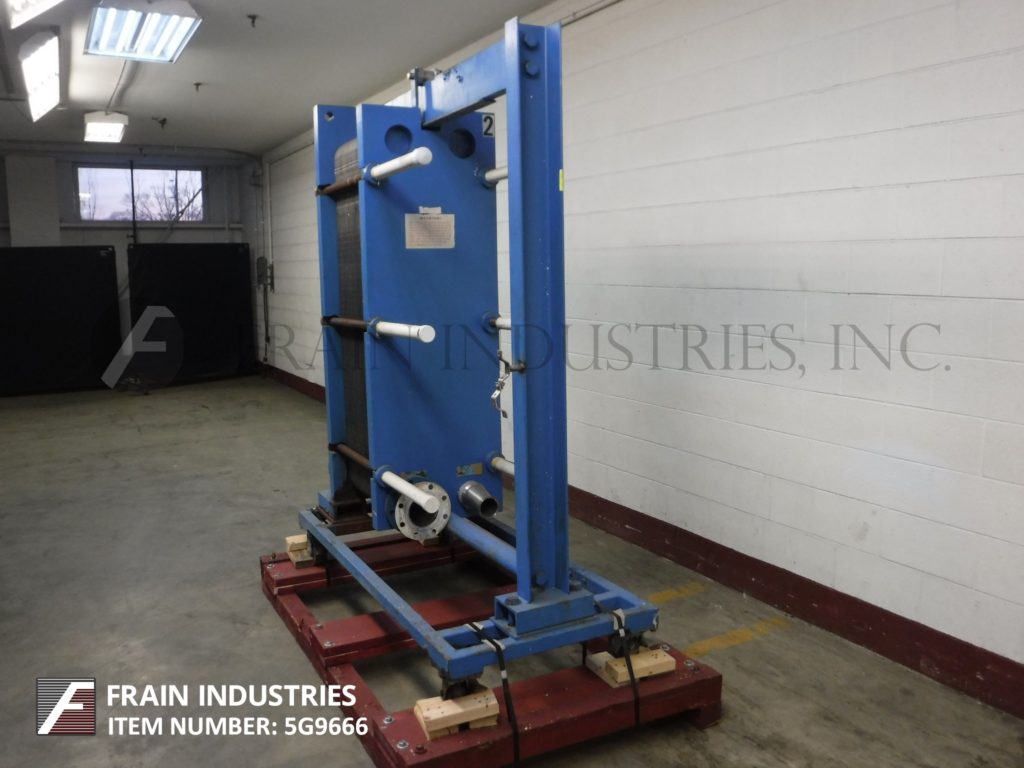

APV, Model R57 MOD1, stainless steel, plate and frame heat exchanger. Approx 600 total ft² heat transfer area. Equipped with (89) plates 61" in Length; 16½" in Width; in (1) zone. (2) 3" OD / 2¾" ID Tri-clamp and (2) 9"OD / 4"ID 8-bolt flange style transfer ports. Mounted on a painted base frame with locking casters.

OAD: 72"L x 30"W x 86"H

Alfa Laval Heat Exch Plate M10

• Manufacturer: Alfa Laval
• Model Number: M10
• Frain Number: 5H1177

Alfa Laval, Model M10, stainless steel, plate and frame heat exchanger. Approx 350 total ft² heat transfer area with a flow rate of 1 to 45 gallons per minute – depending on materials, application and machine configuration. Equipped with (105) plates 35" in Length; 14" in Width; in (1) zone. (4) 4¾" OD / 3¾" ID Tri-clamp style transfer ports with a maximum working pressure of 87 psi and a maximum operating temperature of 230° F – depending on gasket material. Mounted on stainless steel base frame.

OAD: 55"L x 18"W x 39"H

Johnson Controls Inc Heat Exch Plate LZW400

• Manufacturer: Johnson Controls Inc
• Model Number: LZW400

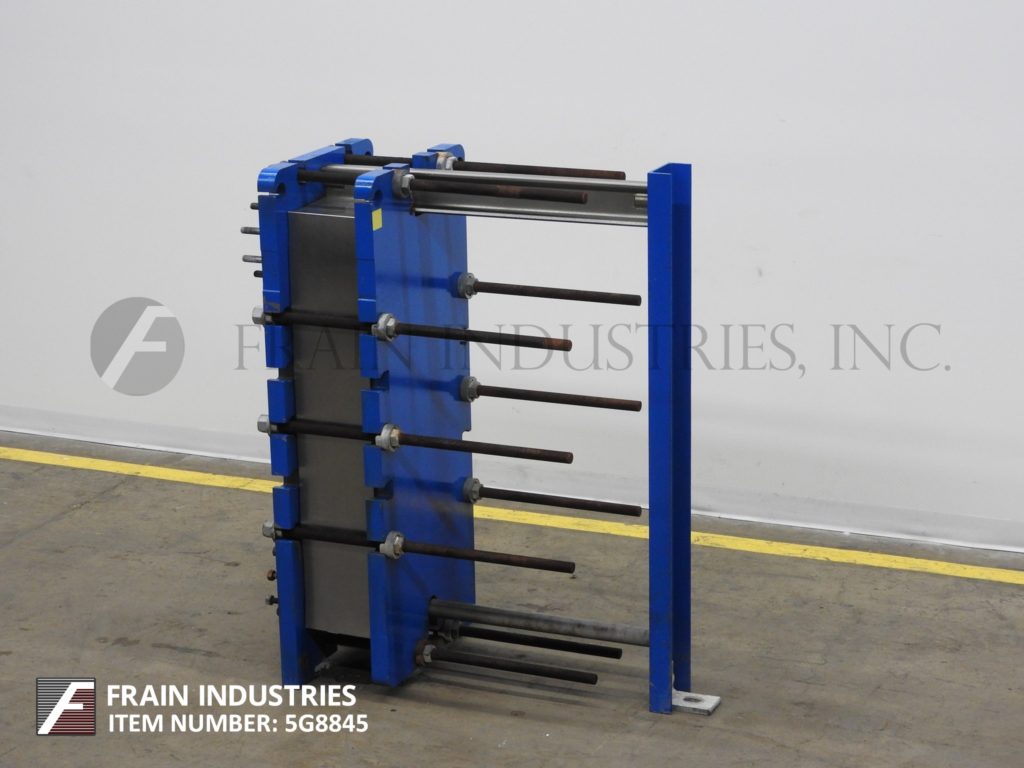

• Frain Number: 5G8845

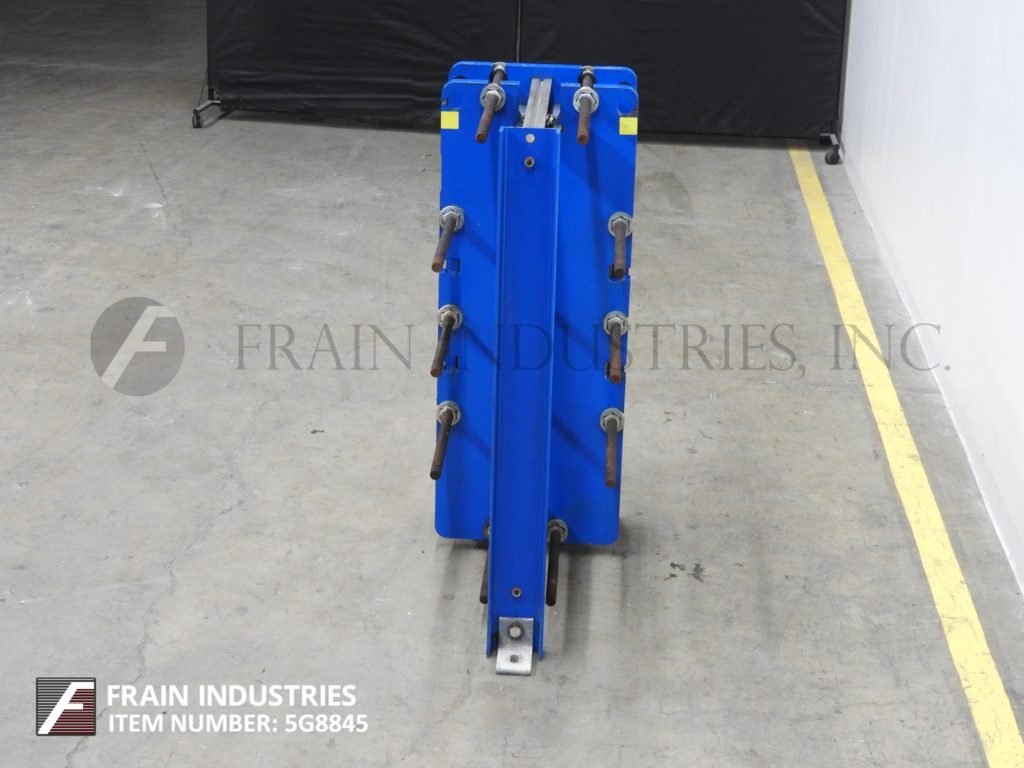

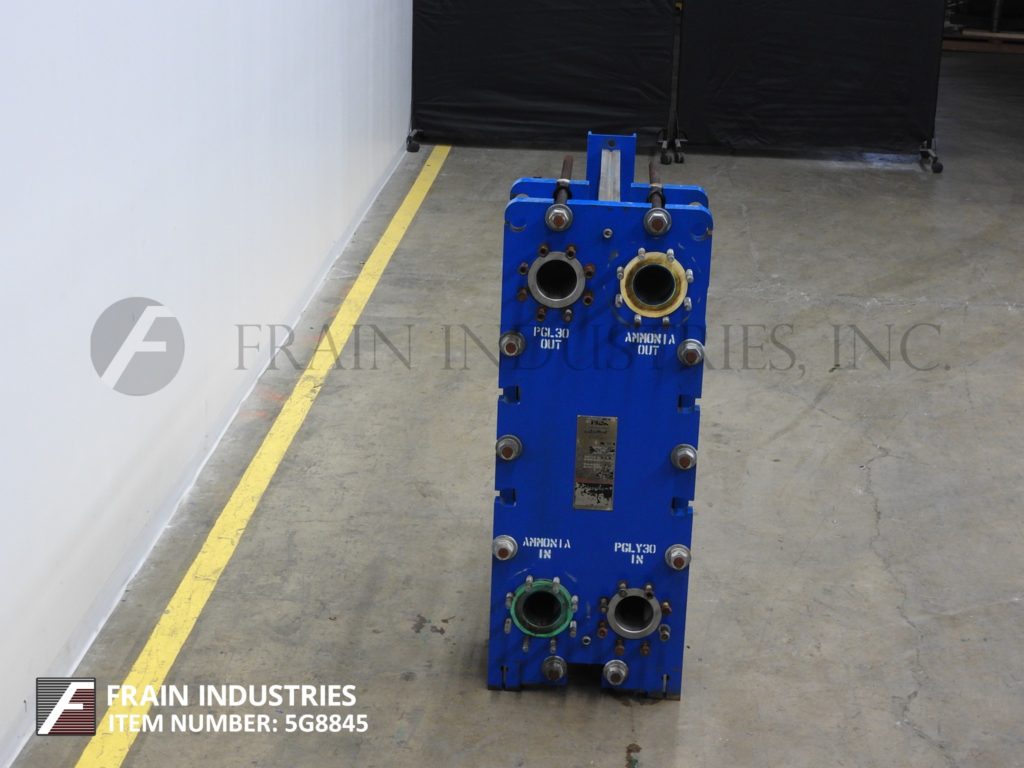

Frick, Model LZW-400, plate and frame heat exchanger. Approx 352 total ft² heat transfer area with a flow rate of 100 to 800 gallons per minute – depending on materials, application and machine configuration. Equipped with (65) plates 46" in Length; 17" in Width; in (1) zone. (4) 4" ID / flanged transfer ports.

Chamber 1:
MAWP: 150 PSI @ 150°F
MDMT: -20°F @ 150 PSI

Chamber 2:
MAWP: 250 PSI @ 150°F
MDMT: -20°F @ 250 PSI

Nat’l Brd: 13079

OAD: 46"L x 22"W x 57"H

APV / SPX Heat Transfer Heat Exch Plate SR310

• Manufacturer: APV / SPX Heat Transfer
• Model Number: SR310
• Frain Number: 5G8011

APV, Model SR310, stainless steel, plate and frame heat exchanger. Approx 765 total ft² heat transfer area with a flow rate of 10 to 100 gallons per minute – depending on materials, application and machine configuration. Equipped with (205) plates 43" in Length; 15" in Width; in (1) zone. (8) 3½" OD / 3" ID Tri-clamp style transfer ports with a maximum working pressure of 150 psi and a maximum operating temperature of 239° F – depending on gasket material. Mounted on stainless steel base frame.

OAD: 109"L x 27"W x 83"H

APV / SPX Heat Transfer Heat Exch Plate SR25

• Manufacturer: APV / SPX Heat Transfer
• Model Number: SR25
• Frain Number: 5G8013

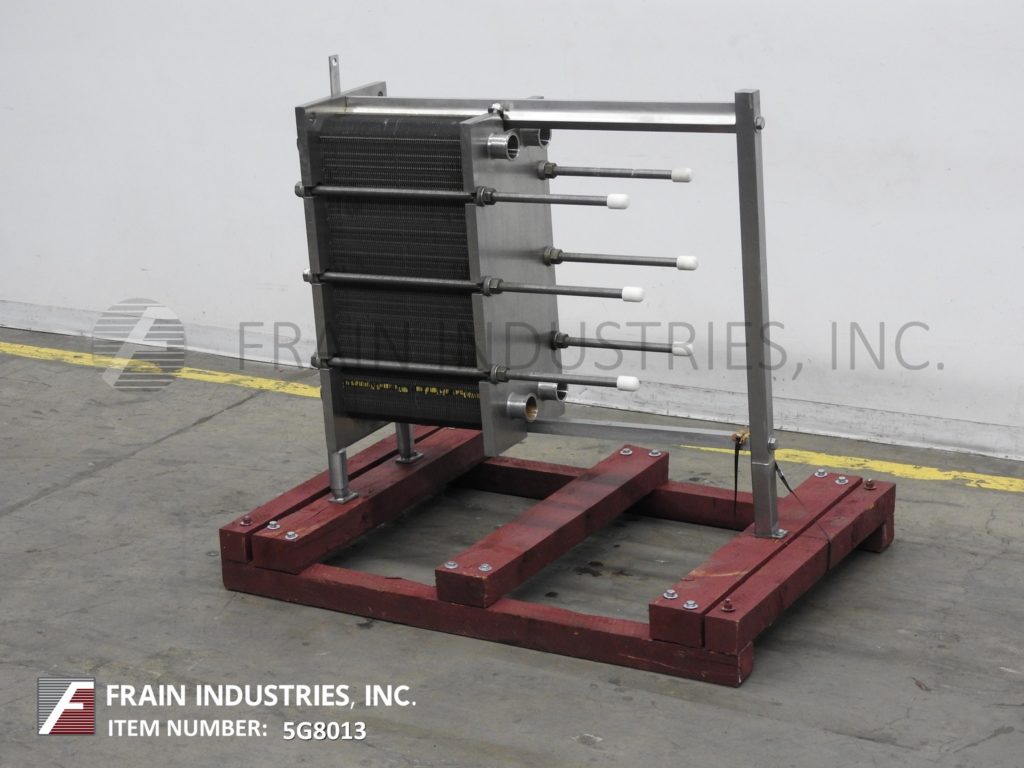

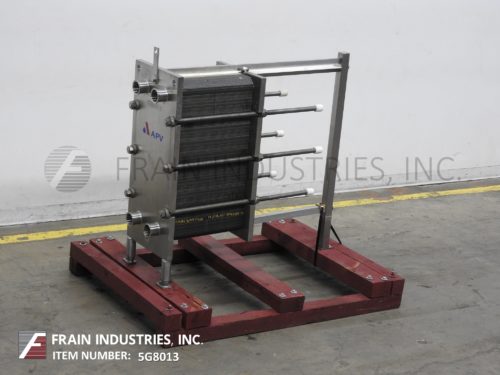

APV, Model SR25, stainless steel, plate and frame heat exchanger. Approx 270 total ft² heat transfer area with a flow rate of 1 to 45 gallons per minute – depending on materials, application and machine configuration. Equipped with (150) plates 31" in Length; 12" in Width; in (1) zone. (8) 2½" OD / 2" ID Tri-clamp style transfer ports with a maximum working pressure of 150 psi and a maximum operating temperature of 239° F – depending on gasket material. Mounted on stainless steel base frame.

OAD: 52"L x 16"W x 43"H

APV / SPX Heat Transfer Heat Exch Plate VEGA028R16

• Manufacturer: APV / SPX Heat Transfer
• Model Number: VEGA028R16
• Frain Number: 5G7332

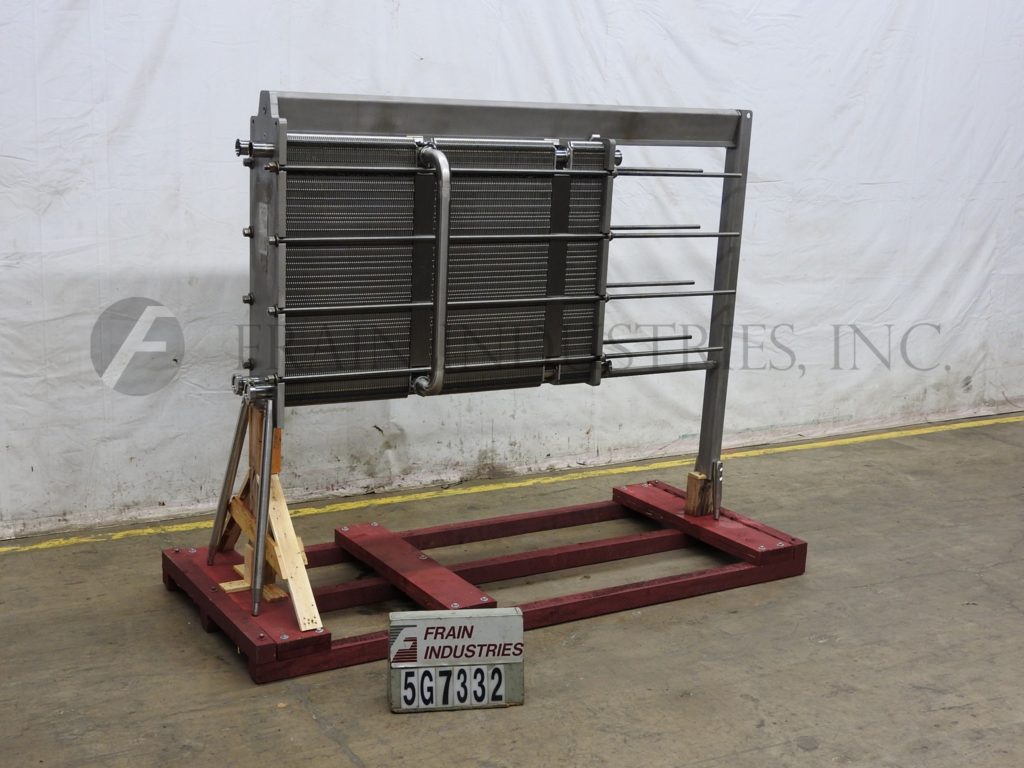

APV, Model VEGA-028 R-16, stainless steel, plate and frame heat exchanger with approx 1200 total ft² heat transfer area with a flow rate of 50 to 250 gallons per minute – depending on materials and application. Equipped with (302) plates 48" in Length; 12" in Width; in (3) zones, (132) plates front zone. (132) middle zone and (38) back zone, with (9) 3" OD / 2½" ID Tri-clamp transfer ports with a maximum working pressure of 150 psi and a maximum operating temperature of 190° F depending on gasket material. Mounted on stainless steel base frame.

OAD: 105"L x 20"W x 115"H
