Shrink Machines
Used Shrink Equipment
Looking for a used shrink wrap machine for sale? You’ve come to the right place.
Shrink wrapping equipment or shrink packaging equipment is designed to package products or packages within a film that is subsequently heat shrunk around the product or package to create a very tight seal with the package.
Shrink wrapping is sometimes used as the primary packaging. Some individual foods, soaps and other products may be wrapped directly. More commonly shrink wrapping is used as a secondary or tertiary packaging. An example of secondary use is shrink wrapped six-packs of beverage cans or 24 pack bundles of water.
Wrapping is also commonly used as a tertiary packaging such as overwrapping an individual carton or bundle of cartons. In the past, appearance of the tertiary packaging has not been considered critical important as the customer never saw it. The rise of club stores like Costco and Sam’s Club has changed this. The 6 pack of canned corn is now the unit of sale in these stores and appearance has become critical to branding. Previously translucent grey film was fine since nobody outside of the stockroom was likely to see it. Now, glossy film with registered graphics is needed to catch the customer’s eye using bullseye or end seal wrapping. This affects the choices of machinery that can be used.
Download the complete Shrink Wrapping Whitepaper to continue learning about different types of wrappers.
One important consideration when selecting the proper a shrink packaging machine is the type of shrink package that is desired around the product. L-bar sealer shrink packaging equipment forms a film seal around a product that has three side seams, one the front of the package and one on each side of the package. Flow thru shrink packaging equipment forms a shrink film package from a single roll of shrink film that has an overlapped shrink film seal underneath the package and a cross seal on the front and back sides of the package. Shrink bundler packaging equipment forms a shrink film package around the product from two rolls of shrink film which has cross seam across the front and back sides of the package and openings in the film package on the left and right sides of the package.
Once a product has been wrapped in shrink film, the product passes through a heat shrink tunnel. The heat from the heat shrink tunnel causes the film to shrink around the product forming a tight package around the product.
Browse our used shrink wrap machines for sale or contact Frain today to discuss your project.
Related Categories
Shrink Equipment In Stock
Arpac Shrink Bundler 55GI20CX
- Manufacturer: Arpac
- Model Number: 55GI20CX
- Frain Number: R28041
Arpac, Model 55GI-20CX, Inline, continuous motion, shrink bundler. Rated from 10 to 55 bundles per minute – depending on materials, application and machine configuration. Equipped with 13" wide x 36" long in feed conveyor, (2) 21" wide film roll holders with film splicing stations, film hoist, 21" wide walking beam seal jaws with 11" vertical travel and 13" wide x 26" long transfer conveyor to shrink tunnel. 70" long single zone shrink tunnel has 21” wide x 16" high total aperture, 90" long x 20½" wide product conveyor, cooling fan and roller side compression on discharge. Control panel with AB controller, touch pad controls with readout, start / stop / e-stop / manual seal push button controls and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.
OAD: 167"L x 60"W x 105"H
Get a Free Quote Call: 630-629-9900
NAFM Nippon Auto Fine Mach Shrink Tunnels YS130L
- Manufacturer: NAFM Nippon Auto Fine Mach
- Model Number: YS130L
- Frain Number: 5H2230
NAFM, Model YS-130L, stainless steel steam shrink tunnel. Capable of handling round, square, oval and other irregularly shaped containers. Equipped with a 5" wide x 12" high x 80" long tunnel, with (12) sets of adjustable steam nozzles, (6) flow controls, 1" NPT connections for steam supply and mounted on a height adjustable "H" style base to accomodate line heights from 32" to 45".
OAD: 80"L x 40"W x 70"H
Get a Free Quote Call: 630-629-9900
Thiele Shrink Bundler BUNDLER
- Manufacturer: Thiele
- Model Number: BUNDLER
- Frain Number: 5G7792
Thiele, dual lane shrink bundler. Product: up to 8½". Film width: up to 15". Equipped with 90° / right angle infeed, dual pusher plates, dual 16" wide seal bars, dual 15" wide x 21" long transfer conveyors, stainless steel shrink tunnel with 15" high aperture and 48" long chamber. Stainless steel frame with interlocked safety guarding and leveling pads. AB PLC with PanelView. Speeds dependent on materials, application and machine configuration.
OAD: 180"L x 64"W x 96"H
Get a Free Quote Call: 630-629-9900

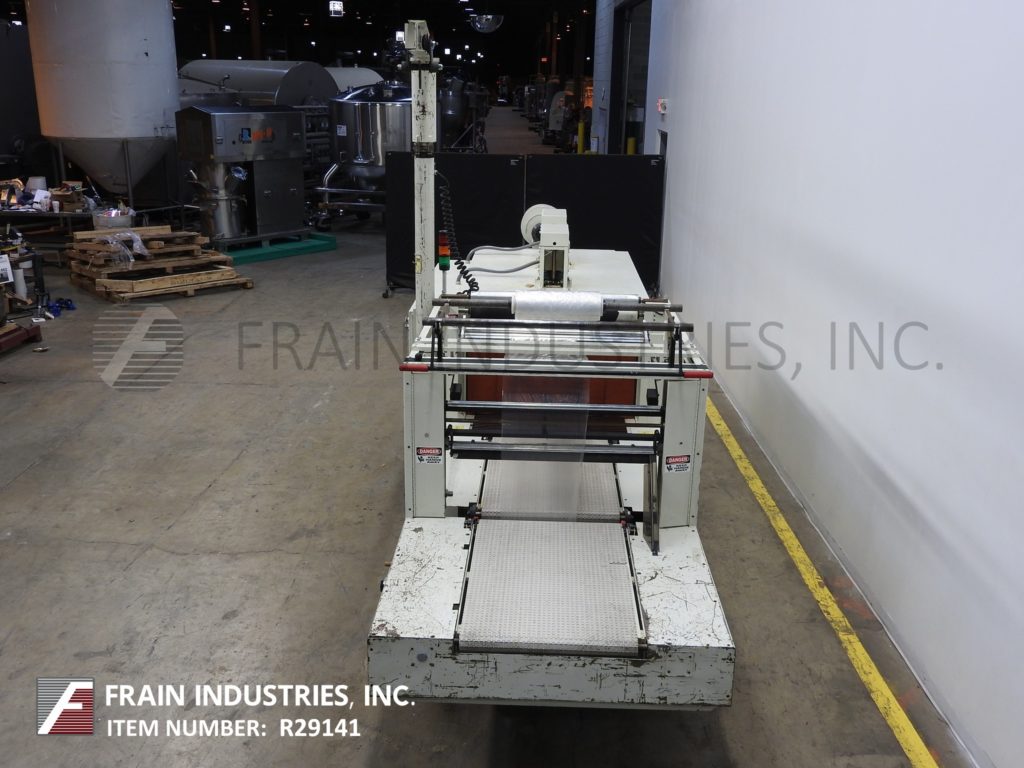

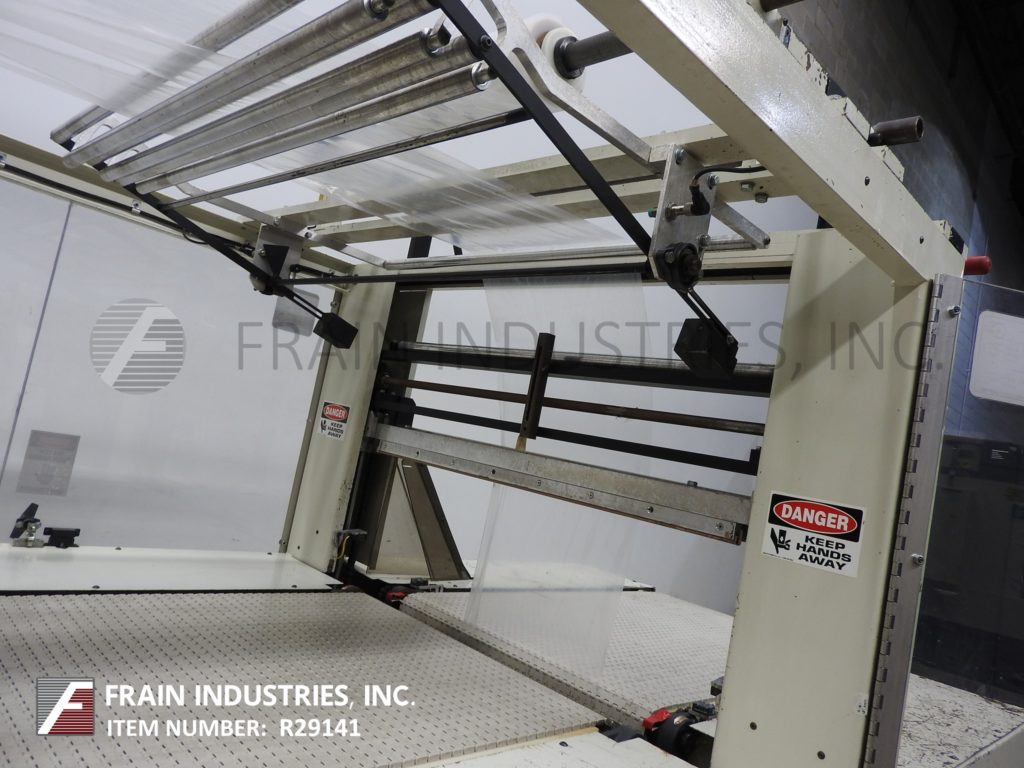

Arpac Shrink Bundler 11536
- Manufacturer: Arpac
- Model Number: 11536
- Frain Number: R29141
Arpac, Model 115-36, Inline, shrink bundler. Equipped with 26¾" wide x 42" long in feed conveyor, 37" wide hot knife seal jaws with 12" vertical travel and 26¾" wide x 42" long transfer conveyor into shrink tunnel.
Tunnel: 83" long tunnel has 37” wide x 15" high total aperture, 125" long x 37" wide conveyor, cooling fan and roller side compression on discharge. AB controller, touch pad and digital temperature controls for seal bar and tunnel.
Speed dependant on materials, application and machine configuration.
OAD: 218"L x 65"W x 120"H
Get a Free Quote Call: 630-629-9900
Klenzade Cleaner CIP/COP CIP
- Manufacturer: Klenzade
- Model Number: CIP
- Frain Number: 5H2948
Klenzade, 304 stainless steel Clean-in-place tank. Equipped with one tank measuring 24" L x 24" W x 28" H (70 gallons) with one 16" x 16" manway, level detector. Ampco, Model 2½x2 DC2, centrifugal pump with a maximum pumping capacity of 230 GPM. Includes chart recorder and tube in shell heat exchange. Unit mounted on stainless steel platform.
Nat’l Brd: 739
Shell
MAWP: 150 PSI @ 375°F
MDMT: -20°F @ 150 PSI
Tube
MAWP: 150 PSI @ 375°F
MDMT: -20°F @ 150 PSI
OAD: 72"L x 55"W x 85"H
Get a Free Quote Call: 630-629-9900

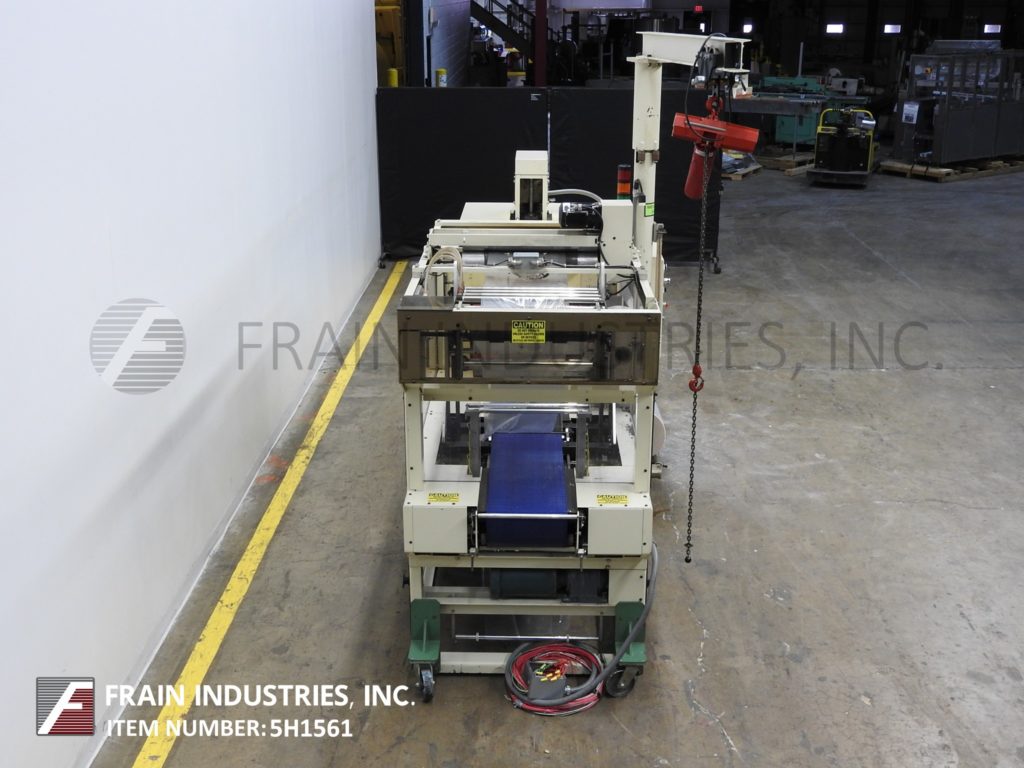

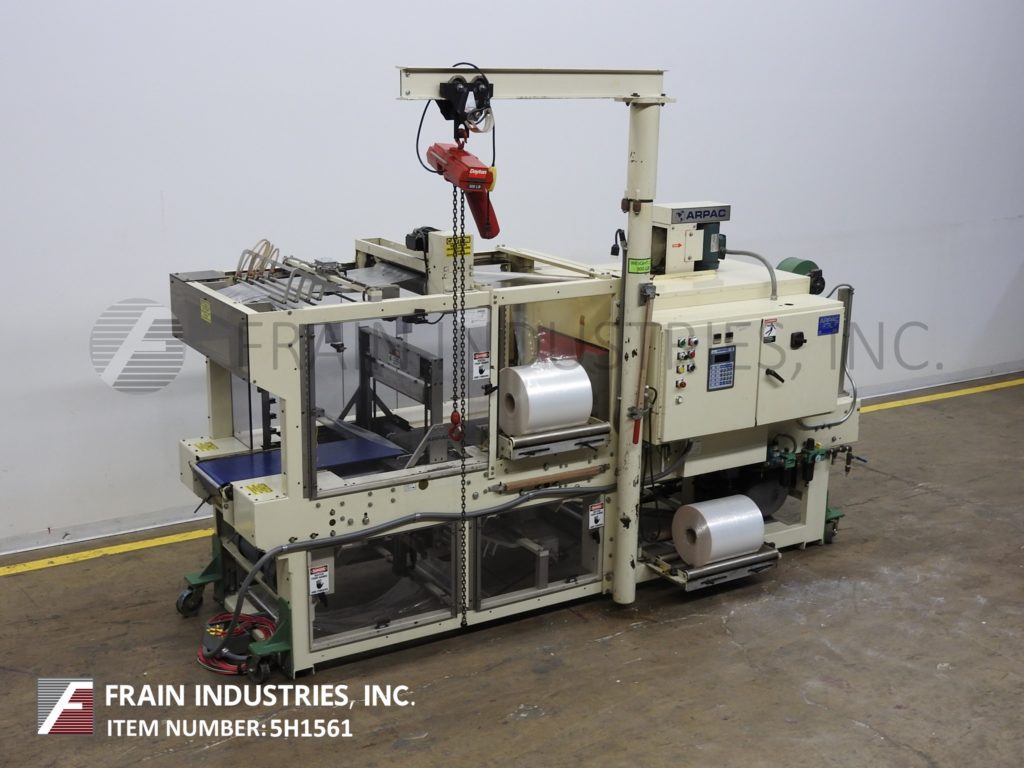

Arpac Shrink Bundler 55GI20CX
- Manufacturer: Arpac
- Model Number: 55GI20CX
- Frain Number: 5H1561
Arpac, Model 55GI-20CX, Inline, continuous motion, shrink bundler. Rated from 10 to 55 bundles per minute – depending on materials, application and machine configuration. Equipped with 13" wide x 25" long in feed conveyor, (2) 21" wide film roll holders with film splicing stations, film hoist, 21" wide walking beam seal jaws with 11" vertical travel and 13" wide x 38" long transfer conveyor to shrink tunnel. 50" long single zone shrink tunnel has 21” wide x 16" high total aperture, 70" long x 20½" wide product conveyor and cooling fan discharge. Control panel with AB controller, touch pad controls with readout, start / stop / e-stop / manual seal push button controls and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.
OAD: 145"L x 52"W x 105"H
Get a Free Quote Call: 630-629-9900
Arpac Shrink Bundler 55GI20CX
- Manufacturer: Arpac
- Model Number: 55GI20CX
- Frain Number: 5H1571
Arpac, Model 55GI-20CX, Inline, continuous motion, shrink bundler. Rated from 10 to 55 bundles per minute – depending on materials, application and machine configuration. Equipped with 13" wide x 36" long in feed conveyor, (2) 21" wide film roll holders with film splicing stations, film hoist, 21" wide walking beam seal jaws with 11" vertical travel and 13" wide x 28" long transfer conveyor to shrink tunnel. 70" long single zone shrink tunnel has 21” wide x 16" high total aperture, 90" long x 20½" wide product conveyor, cooling fan and roller side compression on discharge. Control panel with AB controller, touch pad controls with readout, start / stop / e-stop / manual seal push button controls and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.
OAD: 167"L x 60"W x 105"H
Get a Free Quote Call: 630-629-9900

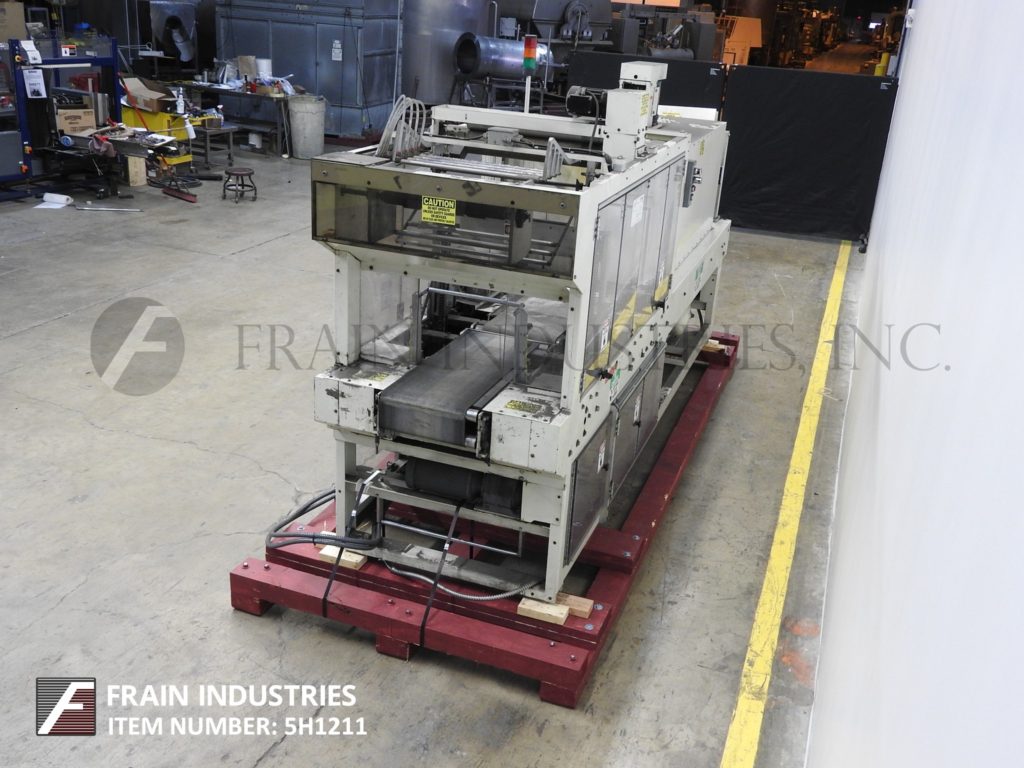

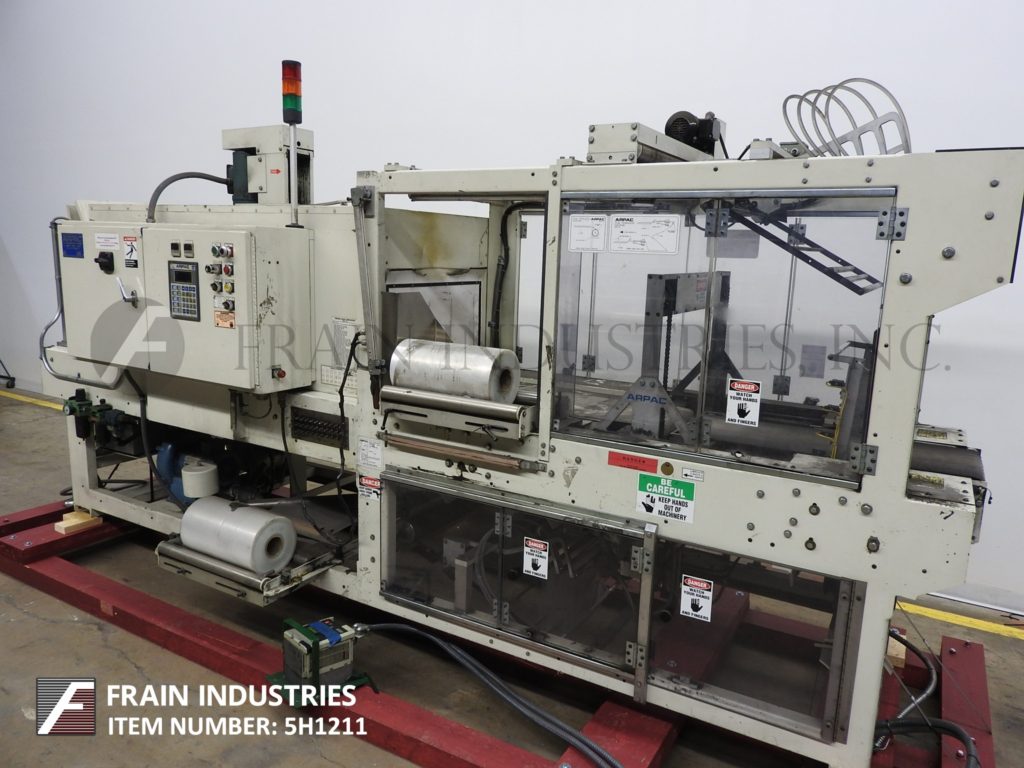

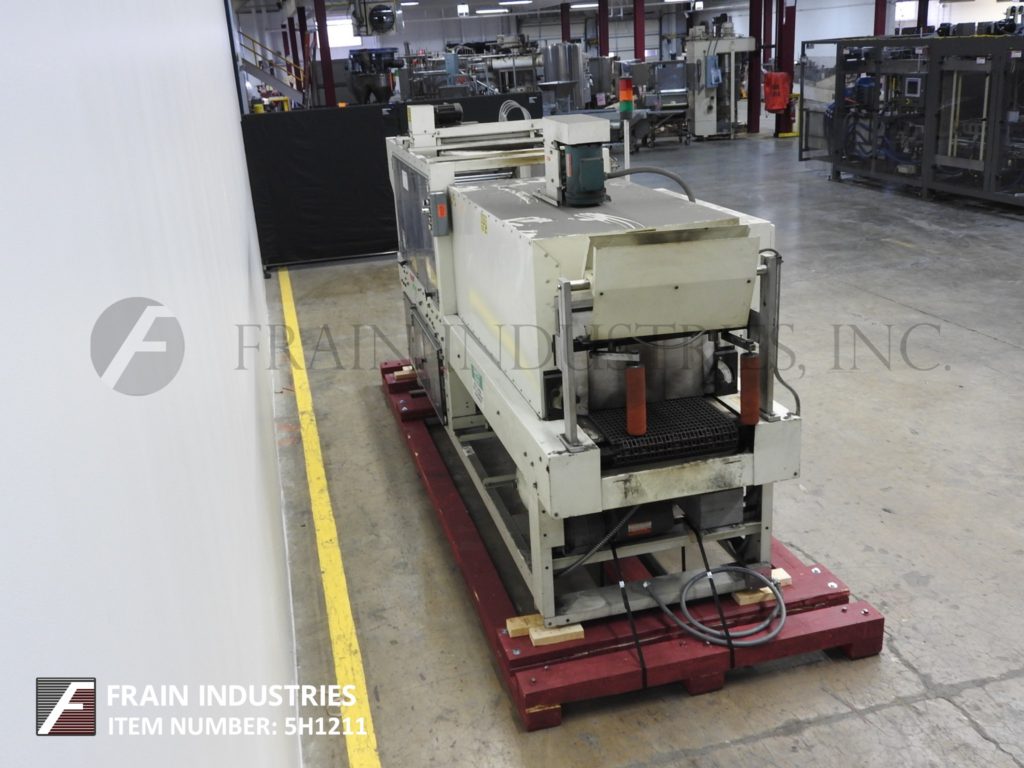

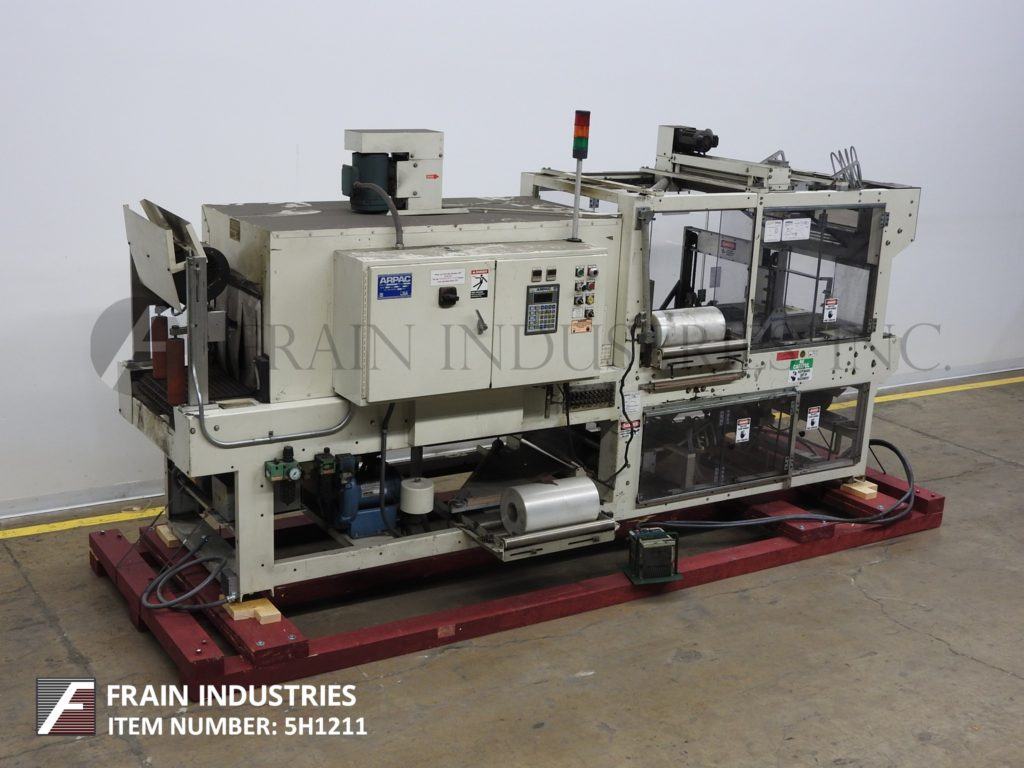

Arpac Shrink Bundler 55GI20
- Manufacturer: Arpac
- Model Number: 55GI20
- Frain Number: 5H1211
Arpac, Model 55GI-20, Inline, continuous motion, shrink bundler. Rated from 10 to 55 bundles per minute – depending on materials, application and machine configuration. Equipped with 14" wide x 34" long in feed conveyor, (2) 31" wide film roll holders with film splicing stations, 21" wide walking beam seal jaws with 11" vertical travel and 14" wide x 30" long transfer conveyor to shrink tunnel. 70" long single zone shrink tunnel has 20” wide x 16" high total aperture, 90" long x 19½" wide Intralox product conveyor, cooling fan and roller side compression on discharge. Control panel with AB controller, touch pad controls with readout, start / stop / e-stop / manual seal push button controls and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.
OAD: 165"L x 50"W x 84"H
Get a Free Quote Call: 630-629-9900
Arpac Shrink Bundler 55GI20CX
- Manufacturer: Arpac
- Model Number: 55GI20CX
- Frain Number: 5H1210
Arpac, Model 55GI-20CX, Inline, continuous motion, shrink bundler. Rated from 10 to 55 bundles per minute – depending on materials, application and machine configuration. Equipped with 13" wide x 26" long in feed conveyor, (2) 21" wide film roll holders with film splicing stations, 21" wide walking beam seal jaws with 11" vertical travel and 13" wide x 36" long transfer conveyor to shrink tunnel. 50" long single zone shrink tunnel has 20” wide x 16" high total aperture, 70" long x 20½" wide Intralox product conveyor, cooling fan and roller side compression on discharge. Control panel with AB controller, touch pad controls with readout, start / stop / e-stop / manual seal push button controls and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.
OAD: 144"L x 55"W x 88"H
Get a Free Quote Call: 630-629-9900
Great Lakes Shrink Bundler 16537
- Manufacturer: Great Lakes
- Model Number: 16537
- Frain Number: 5F3281
Great Lakes, Model 16537, automatic right angle shrink bundler. Rated from 2 to 20 bundles per minute – depending materials, application and operator dexterity. Package size range: up to 37" in Width x 20" in length x 16" in Height. Equipped with a 9½" wide x 26" long right angle infeed conveyor, 11" long x 12" high pusher bar, 38" wide upper and lower powered film rollers, 38" wide seal jaws with 16" of vertical travel and pneumatic end tack sealers. Includes controls for ribbon temp, tack temp and hydraulic on / off. Mounted on heavy duty base frame with a 36" in feed and discharge height.
OAD: 110"L x 70"W x 75"H
Get a Free Quote Call: 630-629-9900
Poly Pack Shrink Bundler FH2432C
- Manufacturer: Poly Pak
- Model Number: FH2432C
- Frain Number: 5G7120
Poly Pack, Model FH-24-32C, intermittent motion, stainless steel, shrink bundling system. Rated from 1 to 30 wraps per minute – depending on materials, application and pack pattern. Can accomodate pack patterns up to 48" long x 24" wide x 14" high. Bundler: Equipped with 170" long x 6" wide product in feed belt conveyor, indexing and accumulation sections to pass product through film, up to 32" in width, with hot wire film cut-off jaws. Control panel has A/B PLC controller with touch pad controls and readout, start / stop / e-stop push buttons, interlock safety guarding and statis light bar. Dual bottom film carriages with specifications: up to 24" in Width; up to 20" in Diameter; on 3" Diameter core.
Tunnel: Equipped with 30" wide x 14" high total aperture, with 40" long heating chamber, 104" long x 25½" wide mesh conveyor, temperature and air flow controls. Both mounted on on stainless steel common base frame with casters.
OAD: 304"L x 77"W x 76"H
Get a Free Quote Call: 630-629-9900
Douglas Machine Inc Shrink Bundler CONTOURS30
- Manufacturer: Douglas Machine Inc
- Model Number: CONTOURS30
- Frain Number: 5H0830
Douglas Machine, Model Contour S30, Inline, intermittent motion, shrink bundler and tunnel. Bundle size range: Length: 5" to 15¾"; Width: 8½" to 22"; Height: 3½" to 12". Equipped with 25" wide x 30" long in feed conveyor, 29" wide x 30" long wrap station conveyor, servo driven wrapping wands, film registration and 25" wide x 30" long Intralox transfer conveyor to shrink tunnel. Single zone shrink tunnel has 40” wide x 12" high total aperture x 105" long chamber with 145" long x 36" wide Intralox product conveyor and cooling fan. AB PanelView Plus 700 touch screen. Speed dependent on materials, application and machine configuration.
OAD: 245"L x 138"W x 71"H
Get a Free Quote Call: 630-629-9900
