Shrink Machines
Used Shrink Equipment
Looking for a used shrink wrap machine for sale? You’ve come to the right place.
Shrink wrapping equipment or shrink packaging equipment is designed to package products or packages within a film that is subsequently heat shrunk around the product or package to create a very tight seal with the package.
Shrink wrapping is sometimes used as the primary packaging. Some individual foods, soaps and other products may be wrapped directly. More commonly shrink wrapping is used as a secondary or tertiary packaging. An example of secondary use is shrink wrapped six-packs of beverage cans or 24 pack bundles of water.
Wrapping is also commonly used as a tertiary packaging such as overwrapping an individual carton or bundle of cartons. In the past, appearance of the tertiary packaging has not been considered critical important as the customer never saw it. The rise of club stores like Costco and Sam’s Club has changed this. The 6 pack of canned corn is now the unit of sale in these stores and appearance has become critical to branding. Previously translucent grey film was fine since nobody outside of the stockroom was likely to see it. Now, glossy film with registered graphics is needed to catch the customer’s eye using bullseye or end seal wrapping. This affects the choices of machinery that can be used.
Download the complete Shrink Wrapping Whitepaper to continue learning about different types of wrappers.
One important consideration when selecting the proper a shrink packaging machine is the type of shrink package that is desired around the product. L-bar sealer shrink packaging equipment forms a film seal around a product that has three side seams, one the front of the package and one on each side of the package. Flow thru shrink packaging equipment forms a shrink film package from a single roll of shrink film that has an overlapped shrink film seal underneath the package and a cross seal on the front and back sides of the package. Shrink bundler packaging equipment forms a shrink film package around the product from two rolls of shrink film which has cross seam across the front and back sides of the package and openings in the film package on the left and right sides of the package.
Once a product has been wrapped in shrink film, the product passes through a heat shrink tunnel. The heat from the heat shrink tunnel causes the film to shrink around the product forming a tight package around the product.
Browse our used shrink wrap machines for sale or contact Frain today to discuss your project.
Related Categories
Shrink Equipment In Stock
A & B Process Systems Cleaner CIP/COP 3 TANK CIP
- Manufacturer: A & B Process Systems
- Model Number: 3 TANK CIP
- Frain Number: 5H0682
A & B Process Systems, Stainless steel, CIP system with rates per hour – depending on materials and application. Equipped with (3) Sani-Fab 32" OD x 56" straight wall, 200 gallon stainless steel single wall tanks (1) for caustic, (1) for acid and (1) for rinse all have flat tops with manways and flip up covers, top return ports and top mounted agitation. Slant side bottoms with end bottom discharges and 9" ID x 60" long single tube heat exchanger. System has all stainless steel piping and sanitary couplings, with flow rate and pressure control valves. Control Panel has A/B PLC and A/B touch pad controls with panel view, e-stop and status light. Mounted on (8) leg stainless steel frame.
OAD: 168" L x 55" W x 101" H
Get a Free Quote Call: 630-629-9900

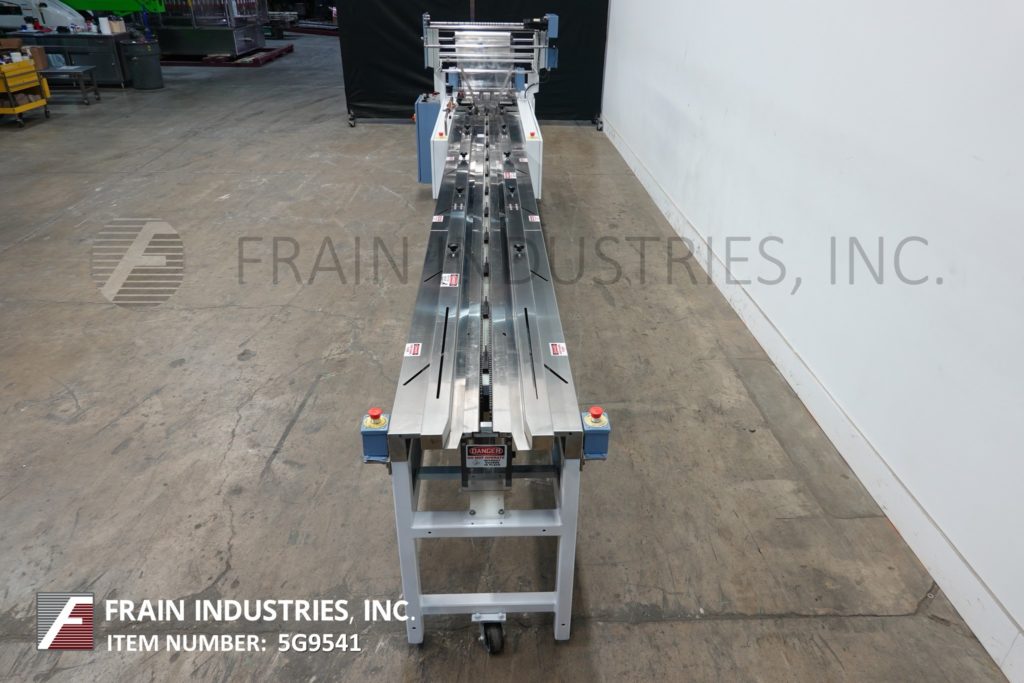

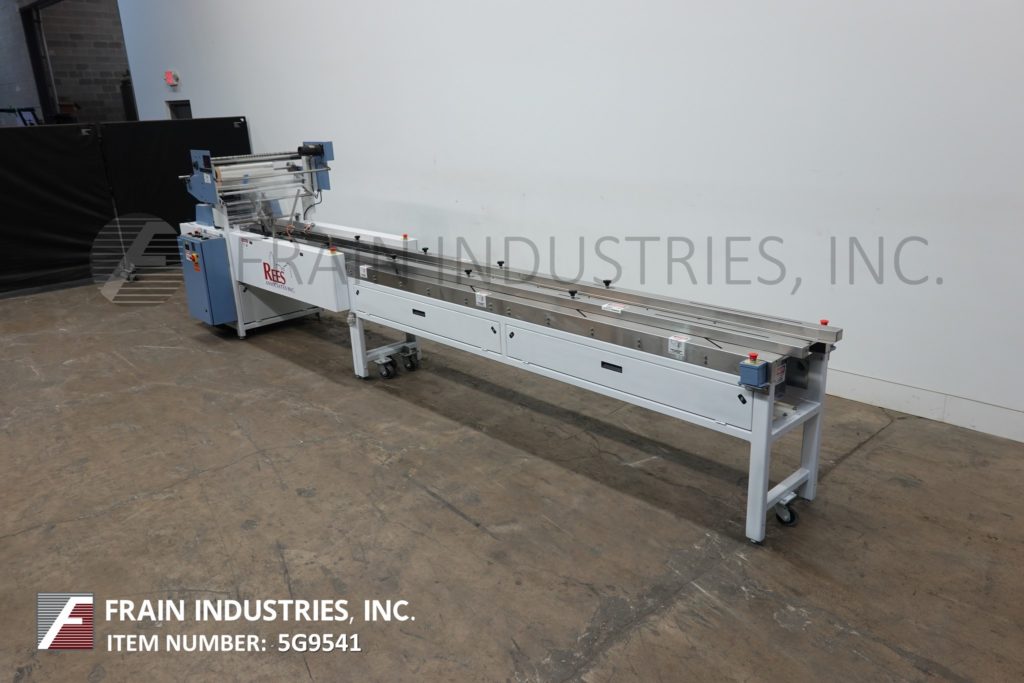

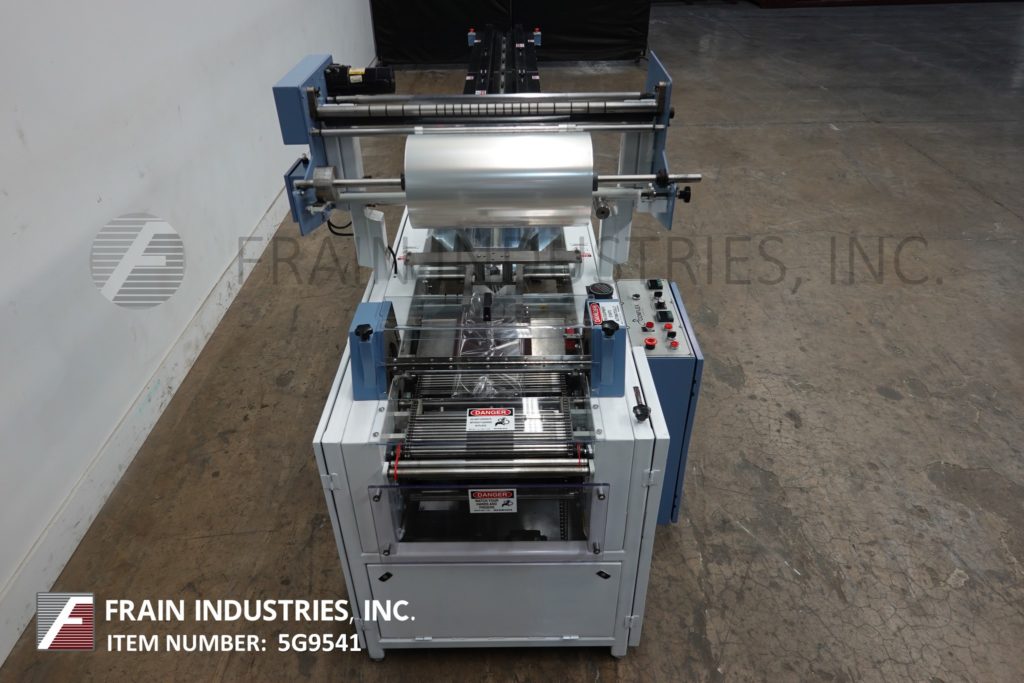

Conflex Shrink Flow Thru CW160
- Manufacturer: Conflex
- Model Number: CW160
- Frain Number: 5G9541
Conflex, Model CW160, continuous motion, flow thru shrink wrapper. Rated from 10 to 100 packages per minute – depending on materials, application and machine configuration. Package size range: 3" to 36" in Length; 2" to 14" in Width; (1/8)" to 5" In Height. Equipped with 192" long lugged feed conveyor set on 10" centers, powered film unwind, pin wheel perforator, forming plow, static lap seal, 16" wide reciprocating hot knife seal jaws with safety guarding, 12" long vacuum transfer belts. Control panel with variable speed dial, push button jog / start / e-stop, digital temperature control for seal bar and forward / off / reverse switch. Film Specs: up to 30" in width, up to 12" in diameter on 3" core.
OAD: 242"L x 47"W x 68"H
Get a Free Quote Call: 630-629-9900
Arpac Shrink Bundler 10854
- Manufacturer: Arpac
- Model Number: 10854
- Frain Number: 5G5140
Arpac Model 108-54, automatic, right angle in feed side seal, shrink bundler rated from 10 to 20 bundles per minute – depending on materials, application and machine configuration. Equipped with (2) 4" wide x 108" long right angle product in feed conveyor, dual top and bottom 54" in width; 14" in diameter on 3" diameter cores, film carriages single product pusher arm, 54" wide heat seal jaw x 22" vertical height with dual side fold and dual 22" long side flip up tack sealers with 24" long dual eagle product conveyors to shrink tunnel. A/B PLC has touch pad controller with read out and tunnel, seal bar, left and right side tack seal temperature controllers and interlock safety guarding.
Arpac Tunnel, single zone heat shrink tunnel with 56" wide x 23" high total aperture x 80" long shrink chamber, single top mounted blower drive, 52" wide x 120" long flexlink product conveyor, top rear cooling fan and end vertical side film smoothing compression rollers.
OAD: 228" L x 80" W x 82" H
Get a Free Quote Call: 630-629-9900
Vector Cleaner CIP/COP WIP SYSTEM
- Manufacturer: Vector
- Model Number: WIP SYSTEM
- Frain Number: 5H0715
Vector, Model WIP System, portable, stainless steel, single tank, clean in place system Rated up to 0 to 20 gallons per minute – depending on materials and application. Equipped with 16" ID x 30" Deep, 25 gallon stainless steel, single wall holding tank with removable cover. Dish bottom has (1) 2" OD sanitary center bottom discharge with 16" floor clearance. System also includes Waukesha Model 20, 2 Hp product transfer pump with 1-1/2" OD top and 1-1/2" OD center in/outlet ports with cleaner and rinse flow meters. Control Panel has A/B controller with Panel view and start / e-stop controls. Mounted on 42" long x 32" wide stainless steel base frame with casters.
OAD: 42" L x 32" W x 57" H
Get a Free Quote Call: 630-629-9900
Skinetta Shrink Bundler ASK450
- Manufacturer: Skinetta
- Model Number: ASK450
- Frain Number: 5G8190
Skinetta, Model ASK 450, automatic, intermittent motion, shrink bundler and tunnel. Rated from 5 to 30 cycles per minute – depending on materials, application, pack pattern and machine configuration. Product size range: 1" to 10" in Length; 1" to 12" in Width; up to 10" in Height. Equipped with a 10" wide x 96" long, one to two lane, in feed conveyor with an adjustable collation area up to 10" wide x 12" long and right angle pneumatic transfer arm. Bundler has top and bottom film rolls for an up to 17" wide web, top film perforation wheel, 18" wide heat seal jaws and product top hold down pad to hold bundle while being sealed. Integrated shrink tunnel with 12" High x 17" Wide x 30" Long heat chamber, with 60" long x 17" wide live roller conveyor and cooling fan. Control panel has an AB PLC with an AB PanelView Plus 600 display screen with touch pad controls, push button start / stop and digital temperature controllers for seal and tunnel.
OAD: 133"L x 120"W x 84"H
Get a Free Quote Call: 630-629-9900
Arpac Shrink Bundler 708HBD32
- Manufacturer: Arpac
- Model Number: 708HBD32
- Frain Number: R27610
Arpac, Model 708HBD32, automatic, stainless steel, intermittent motion, shrink bundler and tunnel. Product size range: 1" to 11" in Length; 1" to 32" in Width; up to 9½" in Height. Equipped with 7½" wide x 58" long right angle in feed conveyor with dual pneumatic load arms. Bundler has top and bottom film rolls for an up to 32" wide web and 35" wide heat seal jaws with product hold down. Integrated shrink tunnel with 11½" High x 36" Wide x 60" Long heat chamber, with 95" long x 34" wide Intralox conveyor and cooling fan. AB PLC with touch pad controls, push button start / stop and digital temperature controllers for seal and tunnel. Rates / speed dependent on materials, application, pack pattern and machine configuration.
OAD: 140"L x 68"W x 90"H
Get a Free Quote Call: 630-629-9900
Thiele Shrink Bundler BUNDLER
- Manufacturer: Thiele
- Model Number: BUNDLER
- Frain Number: 5G8620
Thiele, shrink bundling system with right angle laner infeed. Rated from 10 to 30 bundles per minute – depending on materials, application pack pattern and machine configuration. Maximum product height: 6¼"; maximum film width: (2) 13" rolls. Equipped with a 9" wide x 115" long 1 to 3 lane 90° infeed, (2) pusher plate feeders, 27" wide seal bar, product hold down clamp, stainless steel shrink tunnel with 32" wide x 15" high aperture and 48" long chamber with 30" wide x 94" long thru belt conveyor and 36" discharge height. All stainless steel frame and enclosure with lexan doors and machine leveling pads and casters. Fully automated with AB PLC rack and AB PanelView Plus 600 touch screen display, digital temp controllers for heat tunnel and seal bars with statis light bar. Mounted on base frame with leveling legs.
OAD: 180" L x 160" W x 90" H
Get a Free Quote Call: 630-629-9900
Pester Shrink Bundler PEWOPACK450
- Manufacturer: Pester
- Model Number: PEWOPACK450
- Frain Number: 5G8612
Pester, Model 450, automatic in line stainless steel, shrink bundler. Rated from 10 to 40 cycles per minute with number of product – depending on materials, application pack pattern and machine configuration. Bundle size range: 1" to 9½" in Length; up to 16" in Width; ¼" to 4½" in Height. Equipped with inline in feed with product upender and product upstacking, single arm product ram and after wrap top hold-down. Utilizes film up to 16" wide. Tunnel aperture is 8" high x 18" wide with a tunnel length of 46" and a 62" long x 17½" wide mesh conveyor belt. Additional features include interlocking barrier guarding and touch pad control panel. Mounted on adjustable leveling pads.
OAD: 231" L x 51" W x 73" H
Get a Free Quote Call: 630-629-9900
Arpac Shrink Bundler 105-36TW
- Manufacturer: Arpac
- Model Number: 105-36TW
- Frain Number: 5G7882
Arpac, Model 105-36TW, Inline, intermittent motion, shrink bundler and tunnel. Rated from 1 to 25 bundles per minute – depending on materials and application. Equipped with 27" wide x 45" long Intralox in feed conveyor, 27" wide x 24" long Intralox spacing conveyor, 36" wide film rolls, 37" wide seal jaws with 14¾" vertical travel, 30" wide x 20" long Intralox transfer conveyor to shrink tunnel. Single zone shrink tunnel has 36” wide x 19" high total aperture x 60" long with100" long x 37½" wide Intralox product conveyor and cooling fan. Control panel has AB controller, with touch pad controls and readout, start / stop / e-stop / manual seal push button controls and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.
OAD: 198"L x 66"W x 80"H
Get a Free Quote Call: 630-629-9900
Tampco Shrink Bundler FA36
- Manufacturer: Tampco
- Model Number: FA36
- Frain Number: 5G7680
Tampco, Model FA36, automatic inline, stainless steel shrink bundler and tunnel system. Rated from 1 to 25 bundles per minute – depending materials, application and operator dexterity. Package size range: up to 36" in Width; 11" in Height. Equipped with a 30" wide x 35" long belted roller infeed conveyor, 37" wide upper and lower film rollers, 38" wide seal jaws with 12" of vertical travel and a 32" wide x 26" long belted roller discharge conveyor. Shrink tunnel with 38" in Width x 16" in Height total aperture x 72" in Length heat chamber, 96" long x 34½" wide mesh conveyor with a 31" infeed and discharge height. Digital temperature controls for seal and tunnel, push button start / stop and on / off switch.
OAD: 166"L x 52"W x 70"H
Get a Free Quote Call: 630-629-9900
Kallfass Shrink Flow Thru UNIVERSA700NT
- Manufacturer: Kallfass
- Model Number: UNIVERSA700NT
- Frain Number: R27230
Kallfass, Model Universa 700 NT, intermittent motion side seal, flow through, shrink wrapper and tunnel. Size range: 4.75" to unlimited in Length; 1" to 27" in Width; up to 8" in Height. Equipped with a 27 wide x 49" long infeed conveyor, adjustable former, 30" wide hot knife cross seal with 12" of vertical travel, side seal station with scrap collection, interlocking safety guarding and touch screen HMI. Mounted on height adjustable legs. Film specifications: (center Folded) up to 39" in Width; up to 12" in Diameter.
Shrink tunnel: Aperture 9" in Height; 28" in Width; tunnel 43" in Length. Equipped with 52" long x 25" wide live roller conveyor, variable temperature / speed controls. Mounted on height adjustable legs.
Speed dependant on materials, application and machine configuration.
OAD: 90"L x 86"W x 74"H (Sealer)
OAD: 55"L x 51"W x 49"H (Tunnel)
Arpac Shrink Bundler 11228
- Manufacturer: Arpac
- Model Number: 11228
- Frain Number: 5G7340
Arpac, Model 112-28, automatic inline shrink bundler. Package size range: 7" to 24" in Width; 6" to 18" in Length; 4" to 9" in Height. Equipped with a 24" wide x 20" long in feed conveyor, 29" wide hot knife seal jaw with 9½" of vertical travel, 29" wide top and bottom film carriages and a 24" wide x 16" long discharge conveyor.
Dual zone tunnel dimensions: 26" Wide x 16" High total aperture; 83" in Length with 29" wide x 126" long product conveyor with end of tunnel cooling fan. Control panel has Arpac controller with Arpac touch pad controls and readout with heat seal and tunnel temperature controllers, start, stop, and e-stop push button controls with status light bar. Mounted on common base frame. Rate / Speed dependant on materials, application and machine configuration.
OAD: 176"L x 57"W x 93"H
