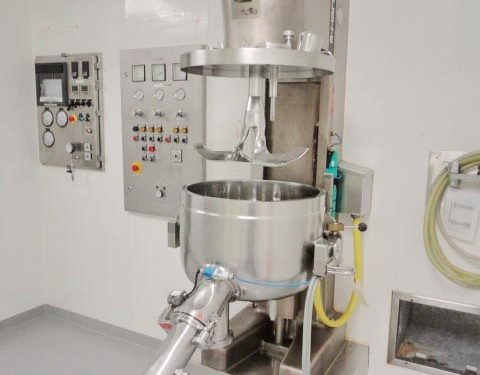

Photo of Collette Granulator High Shear GRAL75

Collette Granulator High Shear GRAL75

  Back to All Equipment
  • Manufacturer: Collette
  • Model: GRAL75
  • Frain Number: R26390
  • Category: Granulator
  • Subcategory: High Shear
  • Condition: Used, in excellent condition
  • Availability: In Stock

Collette Model GRAL 75, high speed, high shear 316 stainless steel, vertical granulator, with gross capacity of 75 liters and working capacity of 60 liters per batch. Jacketed and vacuum mixing bowl with dimensions of 20" ID x 14" Deep. GAMP (good automated manufacturing practice) design for 25% less granulating liquid use resulting in reduction time in drying with no wet sizing required and has (4) 1" ID threaded side / bottom jacket in / outlets and side bottom pneumatic operated discharge valve. Hydraulic lift up top cover with 16" OD (3) blade anchor style mixer with 8" long x 2" wide blades and 6" OD (4) blade high shear mixer with (4) 3" long x 1" wide blades and 2-1/2 ID site port with (1) 3-1/2" top port and (1) 2-1/2" OD sanitary top port with 10 Hp belt to motor drive. Control multiple panels (1) main remote and (1) operator with high and low speed start, stop, jog and hydraulic lift controls with pressure, vacuum, rpm and temperature gauges Mounted on 48" long x 28 " wide x 16" high stainless steel base platform.

OAD: 60" L x 32" W x 74" H Mixer
48" L x 28" W x 16" H Main Control Panel
24" L x 12" W x 39" H Operator Control Panel
