Cutter Slicer Machines

Urschel Laboratories Inc Cutter, Slicer Chopper/Processor CC-D

• Manufacturer: Urschel
• Model Number: CC-D
• Frain Number: 5J5000

Urschel, Model CC-D, slices, strip cuts, shreds and crinkle cuts a variety of food products at high speed production rates with volumes per hour – depending on materials, application and machine configuration. Flat Slices: 0.8mm to 12.7mm, Standard Crinkle: 3-1/3 to 5.7 waves per inch Depth of Crinkle: 2.0mm to 2.1mm, Thickness: .040mm to .285mm, V-Slices 4.7 to 8 waves per inch Depth of Crinkle: (4.7) 2.1mm, Thickness: 1.0mm to 2.5mm. Depth of Crinkle (8)1.3mm, Thickness: 1.0mm to 2.5mm. Also does Oval, Cresent Shreds and strip cuts. Centrifical type slicer utilizes rotating impeller that forces the product to the side walls and thru (8) individual interchangeable cutting heads that enable the processor to change the type of cut in minutes, with specially designed throw away knives inexpensive to replace. Accept products up to 3¾" in any dimension. Equipped with stainless steel feed hopper with 8" feed throat and discharge chute with 43" ground clearance. Change parts required to accomodate application range.

OAD: 60"L x 46"W x 72"H

Urschel Laboratories Inc Cutter, Slicer Chopper/Processor AFFINITY

• Manufacturer: Urschel
• Model Number: AFFINITY
• Frain Number: R40251

Urschel, Model Affinity, Stainless steel dicer, has the ability to process high-fat, coldtemperature, and otherwise normally difficult products, with the amount of product per hour – depending on materials, application and machine configuration. Slice thickness 1/8 – 3/4" (3.2 – 19.1 mm), crosscut 1/8 – 2" (3.2 – 50.8 mm) and circular knife spindles 1/8 – 3" (3.2 – 76.2 mm) for a full range of dices, crumbles / granulations. Equipped with a 16" x 14½" x 17" deep infeed hopper that accepts products up to 7" (178 mm), built-in feed assists in feeding and orientation of product with 25 HP drive and 13" x 22" discharge chute with 14½" ground clearance. Control panel has push button start / stop and variable speed dial. Mounted on stainless steel frame.

OAD: 56"L x 63"W x 69"H

Urschel Laboratories Inc Cutter, Slicer Chopper/Processor DIVERSACUT2110

• Manufacturer: Urschel
• Model Number: DIVERSACUT2110
• Frain Number: R40430

Urschel, Model Diversacut 2110, 304 stainless steel, dicer, slicer, strip cutter used for a variety of food products with number of pounds of product per hour – depending on materials and application. Equipped with 19¼" x 13½" product charge with a 80" high charge, swing open locking access door with safety interrupt switch, crosscut and circular knifes that accept product up to 10" in any dimension and 19¾" x 14" discharge chute with 40½" floor clearence. Control panel has start, stop and e-stop push button controls with 10 Hp stainless steel motor drive. Mounted on stainless steel base frame.

OAD: 79"L x 59"W x 82"H

Stephan Machinery Corp Cutter, Slicer Chopper/Processor UM 12

• Manufacturer: Stephan Machinery Corp
• Model Number: UM 12
• Frain Number: R40371

Stephan, model UM 12, 12 liter, 304 stainless steel half low pressure jacketed, bowl slicer. Temperature range: up to 203° F. Equipped with 12½" diameter x 7¼" deep mixing bowl, clamp down plastic cover with hand crank side scraper agitation, (2) stainless steel 3" long x 2" wide bottom chopper blades powered by a two speed 2 / 2½ hp 1800 / 3600 rpm base enclosed drive, removable bowl, 1½ gallon cold trap and V-VGD 10 vacuum pump.

MAWP: Atmos @ 203°F

OAD: 21"L x 16"W x 24"H

Stephan Machinery Corp Cutter, Slicer Chopper/Processor VCM40E6NI

• Manufacturer: Stephan Machinery Corp
• Model Number: VCM40E6NI
• Frain Number: 5E2020

40 quart, vertical, bowl chopper / mixer speeds depend on product and mix time. 19 1/2" ID x 12" Deep stainlees steel mixing bowl and top cover, 14" L bottom twin 2 speed chopper / mixing blades, 90 deg tilt, with flip up, bolt down cover and top mounted vacuum pressure gauge, 1/2 low pressure jacketed with 1/2 Hp top side scrapper motor drive and two speed 1750 / 3500 12/16 Hp bottom chopper blade motor drive, controller with start / stop, slow / fast, and vacuum pump controls (vac pump not included)

OAD: 42" L x 28" W x 57" H Mixer
25" L x 13" W x 46" H Control Panel

Mazzoni Cutter, Slicer TV/SIMPLO/SL/A/80-13

• Manufacturer: Mazzoni
• Model Number: TV/SIMPLO/SL/A/80-13
• Frain Number: 5J4742

Mazzoni, model TV/SIMPLO/SL/A/80-130, continous motion soap bar cutter. Equipped with a 5" wide product conveyor belt and 3½" wide cutting blades set on 5½" centers. Control panel with push button start / stop.

OAD: 80"L x 25"W x 70"H

Convenience Food Systems Cutter, Slicer Chopper/Processor VSM325

• Manufacturer: Convenience Food Systems
• Model Number: VSM325
• Frain Number: 5E3571

Kramer Grebe / Convenience Foods Systems, vacuum bowl chopper and mixer, for cutting, mixing and emulsifying product up to 325 liters per batch – depending on materials and application. All 304 stainless steel construction. Equipped with 70" OD x 40" high (to top of cover) mixing chamber, 9-1/2" top port, with hydraulic lift. Spiral cutting head is capable of using from 2 to 12 blades, currently set-up with 8 blades which can be positioned at angles of both 30 and 60 deg of each other and has hydraulic loading station for standard product carts. (carts not included). Two speed mixing bowl, and spiral knife motor drives, 28" Diameter hydraulic product un-loader with knife speed and portion controls. Mounted on heavy duty frame.

OAD: 130" L x 90" W x 76" H

Urschel Laboratories Inc Cutter, Slicer Chopper/Processor RAA

• Manufacturer: Urschel
• Model Number: RAA
• Frain Number: 5J3793

Urschel, Model RAA, Stainless steel USDA approved cutter. Capable of slices, dices, and strip cuts at speeds from 2500 to 5000 lbs. per hour. Equipped with 14" x 15" product infeed and 7" wide product discharge with 26" discharge height. Unit is capable of cutting up to a 3½" diameter log of product. Unit consists of slicing knife capable of 1/16" to 3/8" cuts, circular knife capable of 1/8" to 1" cuts, and crosscut knives capable of 1/16" to 1½" cuts. To cut different size pieces change parts are needed per application. Slicing also requires a change part. Unit mounted on stainless steel base. Last running in a bread operation. Change parts required to accommodate size range.

OAD: 58"L x 45"W x 68"H

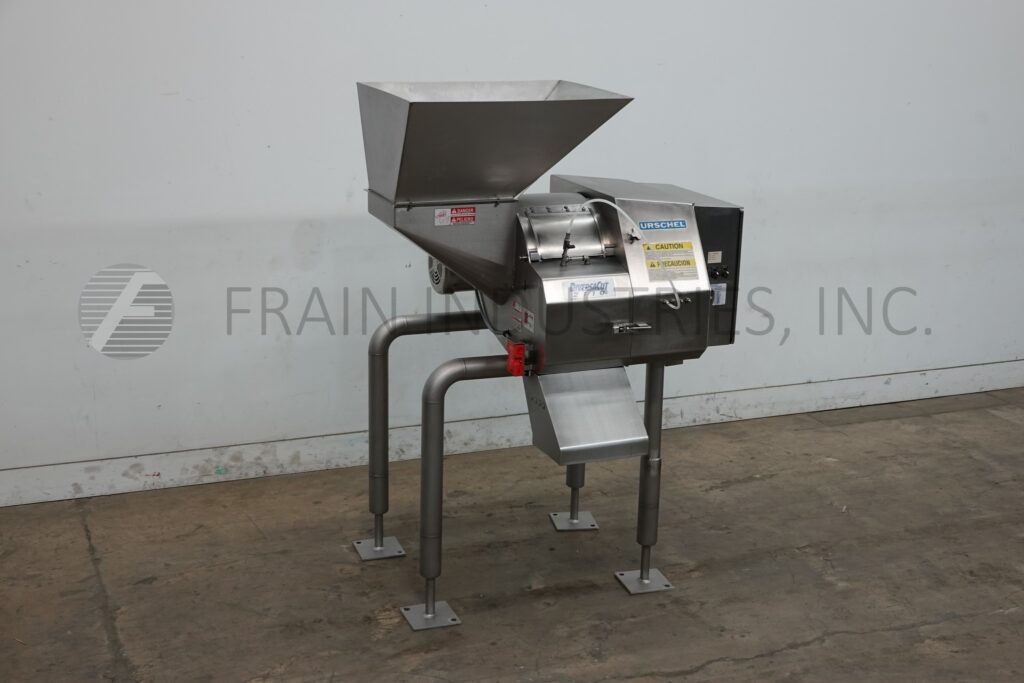

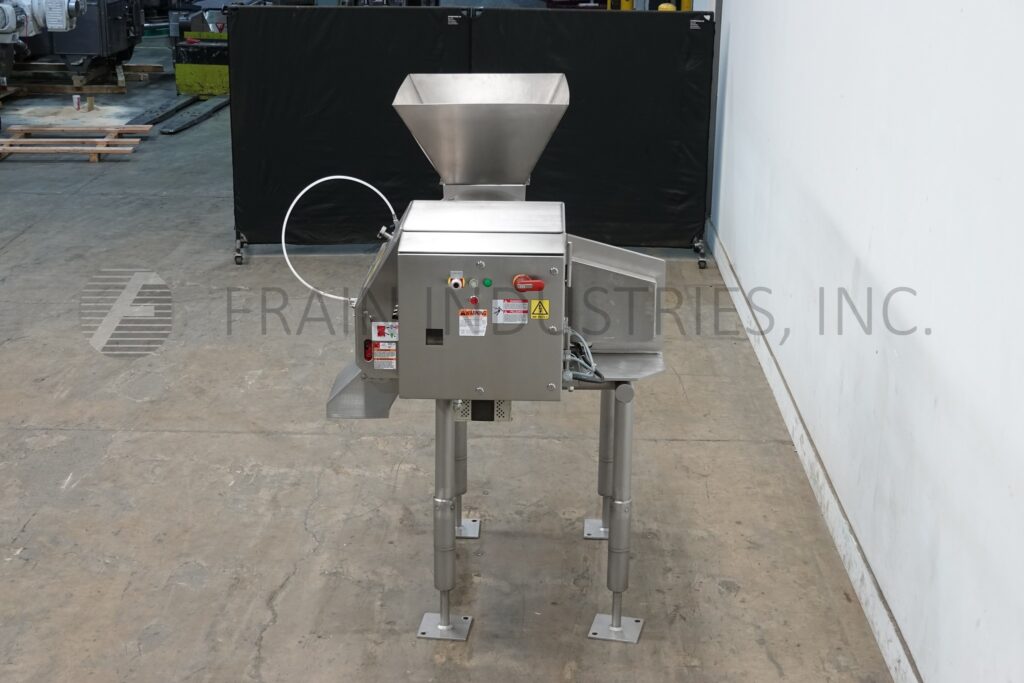

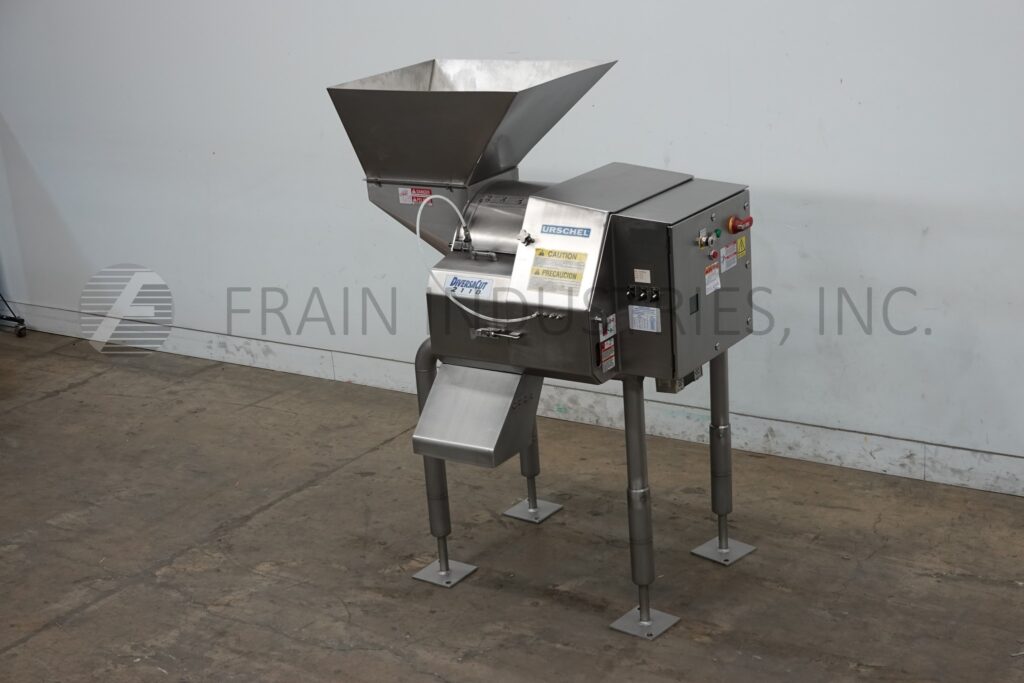

Urschel Laboratories Inc Cutter, Slicer Chopper/Processor DIVERSACUT2110

• Manufacturer: Urschel
• Model Number: DIVERSACUT2110
• Frain Number: R39510

Urschel, Model Diversacut 2110, stainless steel, dicer, slicer, strip cutter with inclined feeder used for a variety of food products with number of pounds of product per hour – depending on materials and application. Equipped with 35" x 27" product charge with a 84" high charge, swing open locking access door with safety interrupt switch, crosscut and circular knifes that accept product up to 10" in any dimension and 10" x 14" discharge chute with 32" floor clearence. Control panel has start, stop and e-stop push button controls with 5 Hp stainless steel motor drive. Mounted on stainless steel base frame.

OAD: 60"L x 55"W x 84"H

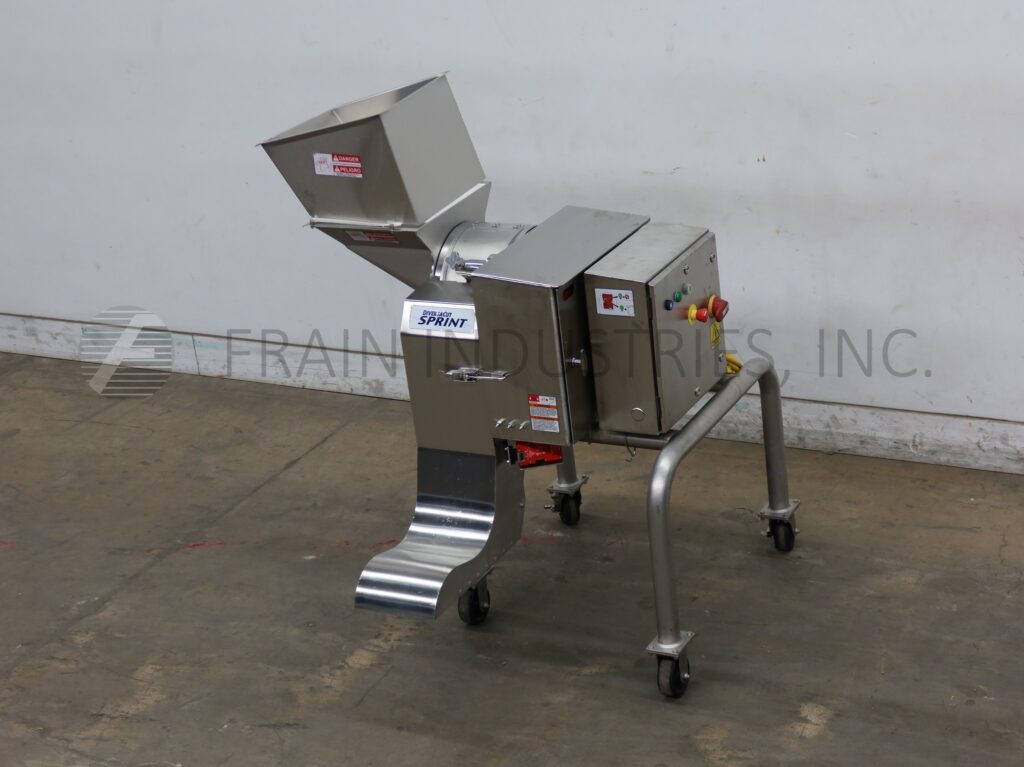

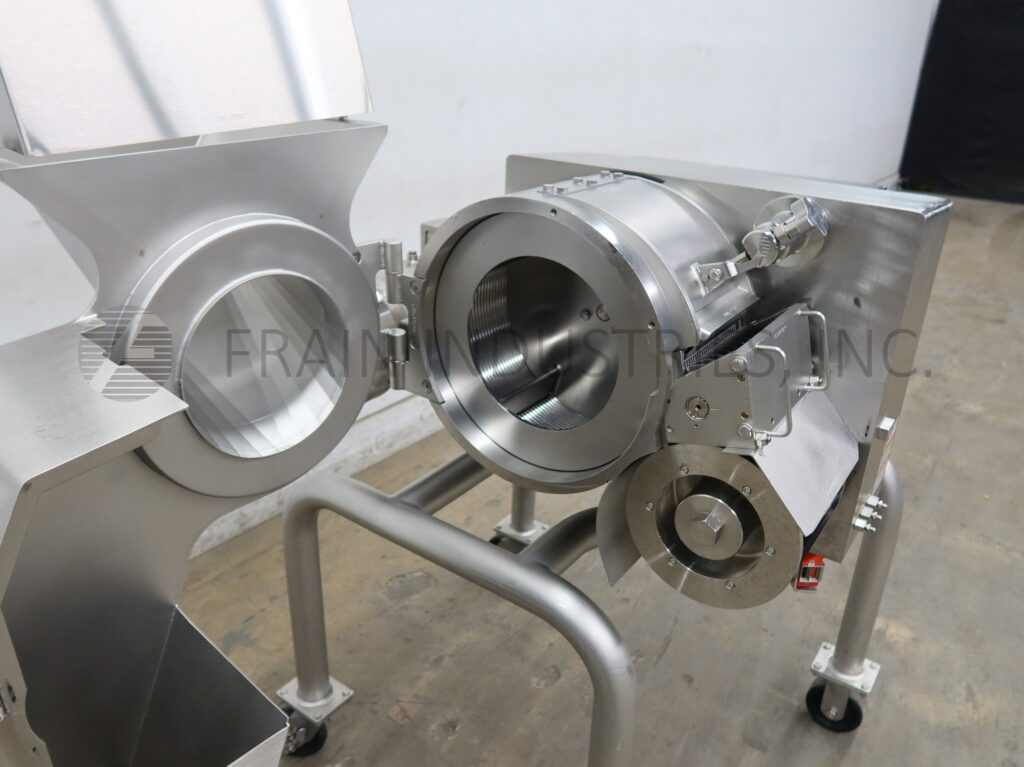

Urschel Laboratories Inc Cutter, Slicer Chopper/Processor SPRINT

• Manufacturer: Urschel
• Model Number: SPRINT
• Frain Number: R39050

Urschel, Model Diversacut Sprint, Stainless steel, dicer, slicer, strip cutter with inclined feeder used for a variety of food products with number of pounds of product per hour – depending on materials and application. Equipped with 16" x 17" product hopper with 61" high in feed, swing open locking access door with safety interrupt switch, crosscut and circular knifes that accept product up to 6½" in any dimension and 10" x 20" discharge chute with 15½" floor clearence. Control panel has start, stop and e-stop push button controls. Mounted on stainless steel (4) leg frame with locking casters.

OAD: 55"L x 55"W x 65"H

Urschel Laboratories Inc Cutter, Slicer Chopper/Processor RAA

• Manufacturer: Urschel
• Model Number: RAA
• Frain Number: R19232

Urschel Model RAA stainless steel dicer / strip cutter able to process a variety of fruits, vegetable and processed meats. Maximum product input 3.5" in any direction. Rates dependent on materials, application and machine configuration. Change parts required to accommodate size range.

Slice knife thickness: 1/16 to 3/8"
Slitter cuts: 1/8 to 1"
Crosscut cuts: .05 to 3"

Urschel Laboratories Inc Cutter, Slicer Chopper/Processor AFFINITY

• Manufacturer: Urschel
• Model Number: AFFINITY
• Frain Number: R38951

Urschel, Model Affinity, Stainless steel dicer, has the ability to process high-fat, coldtemperature, and otherwise normally difficult products, with the amount of product per hour – depending on materials, application and machine configuration. Slice thickness 1/8 – 3/4" (3.2 – 19.1 mm), crosscut 1/8 – 2" (3.2 – 50.8 mm) and circular knife spindles 1/8 – 3" (3.2 – 76.2 mm) for a full range of dices, crumbles / granulations. Equipped with a 10½" x 14" x 17" deep infeed hopper that accepts products up to 7" (178 mm), built-in feed assists in feeding and orientation of product with 25 HP drive and 12" x 13" discharge chute with 24" ground clearance. Control panel has push button start / stop and variable speed dial. Mounted on stainless steel frame with casters.

OAD: 68"L x 60"W x 69"H
