Horizontal Machines

Rietz Mixer Paste Horizontal TWIN PADDLE

• Manufacturer: Rietz
• Model Number: TWIN PADDLE
• Frain Number: R29790

Reitz, Model stainless steel, twin paddle mixer with pounds of product per hour – depending on materials and application. Mix chamber inner dimmensions; 72" in Length; 48"in Width; 30" in Depth with dual flip up covers. Equipped with dual mixing paddles set on 3" OD shafts with 1-1/2" OD spokes. dual 7-1/2 Hp double chain to motor drives with safety guarding and dual air operated, swing up, end bottom product discharge doors with 30" floor clearance. Control panel with start. stop, e-stop push button controls. Mounted on (4) leg base frame.

OAD: 100" L x 60" W x 64" H

Champion Mixer Paste Horizontal 2EXP-SA

• Manufacturer: Champion
• Model Number: 2EXP-SA
• Frain Number: R29091

Champion Model 2EXP-SA, high speed, (3) roller bar, dough mixer with pounds of product per hour – depending on materials and application. Equipped with all stainless steel contact parts and has tilt style mixing chamber with internal bowl dimensions of 30" in Length; 27" in Width; 36" in Depth. 30" long x 1" OD inner (3) roller mixing bars with 1-1/2" od bars all on 2-1/2" shaft and single end 20 Hp motor drive. Control panel has touch pads and readout with mixer start, dough dump, up / down and start, jog, stops push button controls. Mounted heavy duty stainless steel base frame.

OAD: 72" L x 40" W x 76" H

Stephan Machinery Corp Mixer Paste Horizontal TK150

• Manufacturer: Stephan Machinery Corp
• Model Number: TK150
• Frain Number: 5H2950

Stephan Machinery, Model TK150, 150 liter capacity stainless steel horizontal mixer. Rated up to 800 kg / hour, 90 kg Per Batch – depending on materials, application and machine configuration. Chamber dimensions: 22.5" diameter x 21"L. Equipped with a 13¾" x 8½" charge port with hinged cover, single arm mixing bar, scrape agitation, steam injection and 15" x 8½" hydraulic slide gate discharge with 28" ground clearance. Control panel with push button start / stop, push button open / close and touch pad display. System includes a 1 hp hydraulic pack and 9Kw steam generator. Mounted on a stainless steel base with casters.

OAD: 82" L x 42" W x 60" H

Goodway Mixer Paste Horizontal CM35

• Manufacturer: Goodway
• Model Number: CM35
• Frain Number: 5H1267

Goodway Model CM35, compact, stainless steel, continuous, high shear, rotar, stator, aerator, mixer rated from 250 to 4800 pounds of product per hour – depending on materials and application. Equipped with double wall mixing chamber for cooliant circulation with 16" OD / 13" ID pyramid shaped mixing head has raidial flow disc with high shear action consisting of front and rear rotor and stator with 2-1/2" OD threaded center finished product outlet port and sanitary seal drive shaft rated from 150psi standard up to 450psi on the CM35. Bottom product pump with 2" OD threaded in/outlet ports. Control panel has mixer / pump speed control dials, head pressure regulator and pump and mixer hand, auto, off switches. Mounted on a stainless steel common base frame. Continuous mixer aerates cake batter, creme fillings, marshmallow, icings, whipped creme, butter and many others.

450 gallon, 304 stainless steel, slant bottom holding tank. Vessel Dimensions: 46" diameter x 90" deep with a 45" straight wall. Equipped with a 3½"OD / 3"ID Seated Bevel style bottom discharge with 8" ground clearance. Mounted on (4) legs.

OAD: 78" L x 30" W x 80" H (mixer)
OAD: 48"L x 48"W x 110"H (tank)

Oakes Mixer Paste Horizontal 14MC10

• Manufacturer: Oakes
• Model Number: 14MC10
• Frain Number: 5G9634

Oakes, Model 14MC10, jackted high shear continuous rotor stator pin mill mixer with 316 stainless steel contact parts rated up to 4000 lb per hour – depending on materials, application and machines configuration. Equipped with Crepaco, Model R3R, positive displacement feed pump with a 2"OD / 1½"ID seated bevel style inlet powered by a 1½ hp drive and a 14" OD mixing head with 2" OD / 1½" ID seated bevel style center product discharge with 48" ground clearance powered by a 10 hp drive. Control panel with push button start / stop for rotor and pump and variable speed controls. Mounted on painted base frame with casters.

OAD: 60"L x 45"W x 75"H

Oakes Mixer Paste Horizontal 14MF15IA

• Manufacturer: Oakes
• Model Number: 14MF15IA
• Frain Number: 5G9635

Oakes, Model 14MF-15IA, jacketed, high shear continuous rotor / stator pin mill mixer, aerator with 316 stainless steel contact parts, rated up to 4000 lb per hour – depending on materials, application and machines configuration. Equipped with Waukesha Model 60, positive displacement feed pump with 3½"OD / 3"ID Tri-Clamp style inlet port powered by 3 Hp drive and 14" diameter mixing head with 2½"OD / 2"ID Tri-Clamp style center product discharge with 46" ground clearance and powered by a 10 Hp motor drive. Control panel has pull to start / push to stop buttons as well as variable speed dials for pump and rotor. system. Mounted on a stainless steel base frame.

OAD: 64"L x 39"W x 77"H

Rietz Mixer Paste Horizontal RSV23K6405

• Manufacturer: Rietz
• Model Number: RSV23K6405
• Frain Number: 5E1447

Rietz Model RSV23K6405, 2000 lb. stainless steel, dual shaft ribbon mixer with amount of product per hour – depending on materials and application. Chamber dimensions: 64" in Length; 48" in Width; 32" in Depth. Equipped with pneumatically actuated cover, dual reversing ribbons set on 4" shafts with 2" wide x 1/4" thick ribbons, with dual drives and has pneumatically operated end discharge with 36" floor clearance. Mounted on (4) leg heavy duty frame.

OAD: 100" L x 84" W x 82" H

Mepaco Mixer Paste Horizontal 170

• Manufacturer: Mepaco
• Model Number: 170
• Frain Number: 5G7132

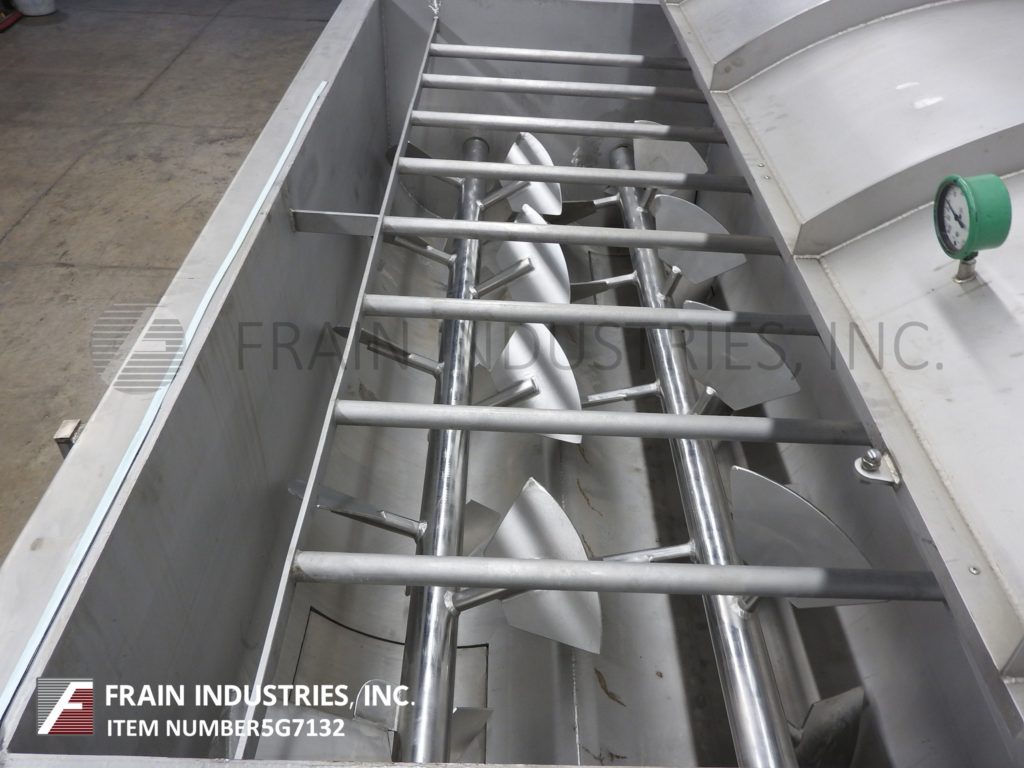

Mepaco, Model 170, 304 stainless steel dual trough, low pressure jacketed, vacuum paddle blender. Pounds of product per hour – depending on materials and application. Capacity: 115 ft³ (100 ft³ working). Trough dimesions: 110" in Length; 52" in Width; 38" in Depth. Equipped with pneumatic lift up top cover, (2) sets of 14" wide x 8" high x ¼" thick paddles, 3½" diameter motor shaft and 4" diameter mixing shaft. (2) 20" x 18" pneumatic flush mount bottom gate discharges with 42" ground clearance. Powered by 40 Hp motor drive..

OAD: 156" L x 80" W x 96"H

Alpine Mixer Paste Horizontal 160-Z

• Manufacturer: Alpine
• Model Number: 160-Z
• Frain Number: 5H2760

Alpine, Model 160Z compact, pin mill with pounds of product per hour – depending on materials and application. Stainless steel contact parts. Equipped with 9" wide x 9" long x 8" deep product hopper, 6" OD rotor / stator pin discs powered by 5 Hp motor drive with variable speed gearbox and 9½" long x 6½" wide discharge chute with 26" ground clearance. Control box has push button start / stop controls. Mounted on a stainless steel base with casters.

OAD: 42"L x 36"W x 55"H

AMFEC American Food Equip Coy Mixer Paste Horizontal 510

• Manufacturer: AMFEC American Food Equip Coy
• Model Number: 510
• Frain Number: 5G7130

AMFEC, Model 510, 304 stainless steel dual trough vacuum paddle blender. Pounds of product per hour – depending on materials and application. Capacity: 56 ft³ (40 ft³ working). Trough dimesions: 72" in Length; 46" in Width; 32" in Depth. Equipped with pneumatic lift up top cover, (2) sets of 12" wide x 9" high x 3/8" thick paddles, 2½" diameter motor shaft and 3¼" mixing shaft. (2) 19" x 8" pneumatic end gate discharges with 34" ground clearance. Powered by (2) 7½ Hp motor drives. Mounted on heavy duty frame.

OAD: 113" L x 60" W x 83" H

Goodway Mixer Paste Horizontal CM35

• Manufacturer: Goodway
• Model Number: CM35
• Frain Number: 5H1270

Goodway compact, high shear, continuous, stainless steel, rotar, stator, aerator, mixer with rates per hour – depending on materials and application. Equipped with double wall mixing chamber for cooliant circulation with 16" OD / 13" ID pyramid shaped mixing head has raidial flow disc with high shear action consisting of front and rear rotor and stator with 2-1/2" OD threaded center finished product outlet port and sanitary seal drive shaft rated from 150psi standard up to 450psi on the CM35. Control panel has rotor / mixer and pump supply speed controls, rotor and pump stops, air supply, and back pressure gauges with flowmeter. Mounted on a stainless steel common base frame. Continuous mixer aerates cake batter, creme fillings, marshmallow, icings, whipped creme, butter and many others.

100 gallon, 304 stainless steel, slant bottom holding tank. Vessel Dimensions: 30" diameter x 47" deep with an 18" straight wall. Equipped with a 3½"OD / 3"ID Seated Bevel style bottom discharge with 11½" ground clearance. Mounted on (3) legs.

OAD: 64" L x 40" W x 48" H (mixer)
OAD: 36"L x 34"W x 63"H (tank)

Goodway Mixer Paste Horizontal CM35

• Manufacturer: Goodway
• Model Number: CM35
• Frain Number: 5H1272

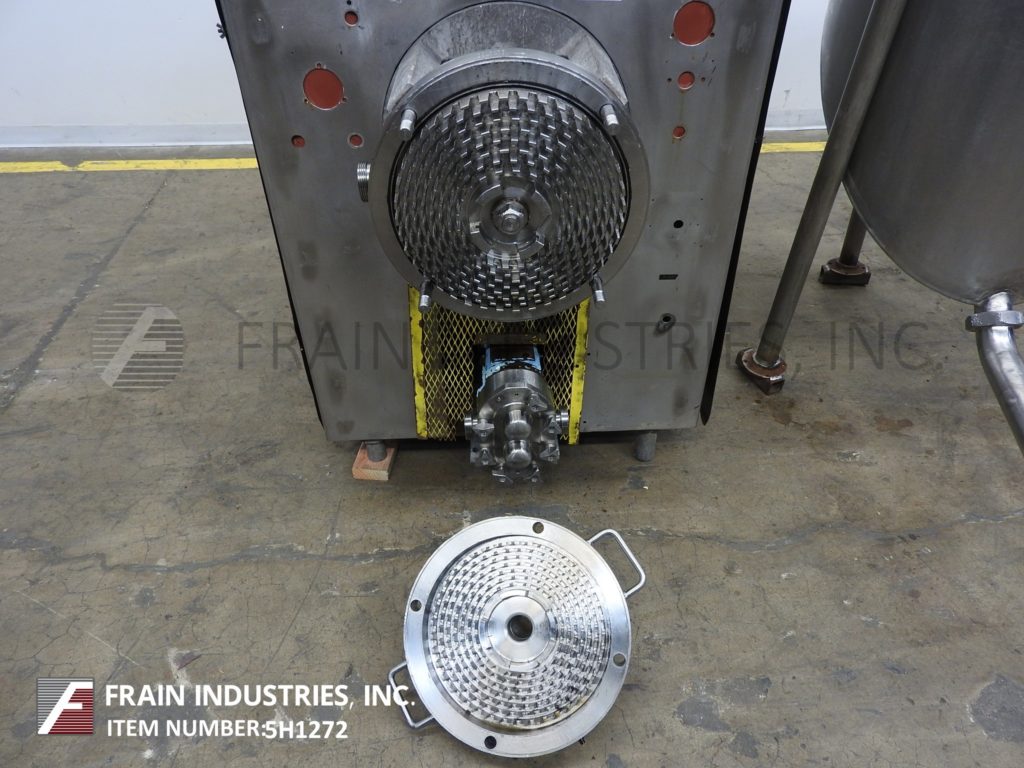

Goodway Model CM35, compact, stainless steel, continuous, high shear, rotar, stator, aerator, mixer rated from 250 to 4800 pounds of product per hour – depending on materials and application. Equipped with double wall mixing chamber for cooliant circulation with 16" OD / 13" ID pyramid shaped mixing head has raidial flow disc with high shear action consisting of front and rear rotor and stator with 2-1/2" OD threaded center finished product outlet port and sanitary seal drive shaft rated from 150psi standard up to 450psi on the CM35. Bottom product pump with 2-1/2" OD threaded in/outlet ports. Control panel has rotor / pump speed controls and start / stop push buttons. Mounted on a stainless steel common base frame. Continuous mixer aerates cake batter, creme fillings, marshmallow, icings, whipped creme, butter and many others.

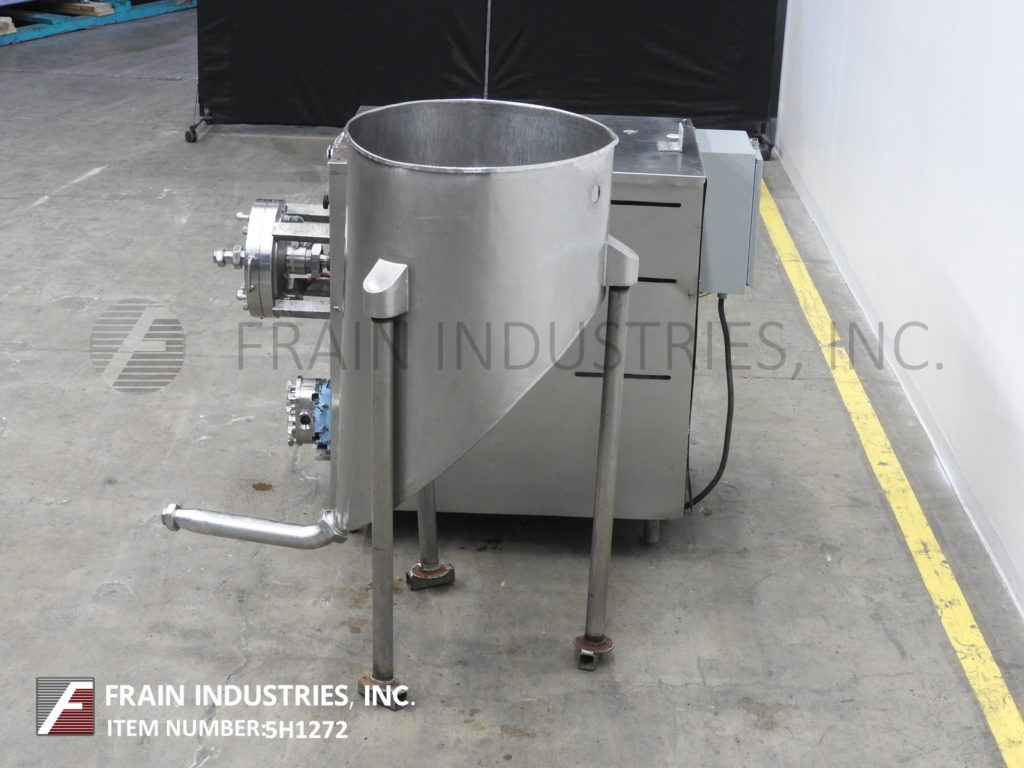

100 gallon, 304 stainless steel, slant bottom holding tank. Vessel Dimensions: 30" diameter x 47" deep with an 18" straight wall. Equipped with a 3½"OD / 3"ID Seated Bevel style bottom discharge with 11½" ground clearance. Mounted on (3) legs.

OAD: 78" L x 40" W x 51" H (mixer)
OAD: 36"L x 34"W x 63"H (tank)
