Commercial and industrial powder mixer equipment and machines encompass a broad range of equipment designed to mix and blend dry:
Powder Mixer equipment and machines are designed to fit their specific mixing and blending application whether it be powder with powder, or liquid with powder, though different types of mixing and mixing processes can be used to mix the same two components together.
The proper powder mixer for an application requires knowledge of the different substances that are to be mixed together as well as their mixing properties. To determine the proper mixer for the application, the desired outcome or end product for the mixing application needs to be known.
Commercial and industrial mixers are mostly batch but some mixing applications, such as powder to liquid, can be continuous. Batch mixers take a certain amount (batch) of product and process it for a certain amount of time.
Once the product is processed, the batch is removed from the mixer and another batch can be placed in the mixer. Continuous mixers move the product through the mixer so that a continuous stream of mixed product is being discharged.
See also: Liquid Mixers
Paul O Abbe, 1.7 ft³, total 1.2 ft³ working capacity stainless steel, roto cone blender with the number of pounds of product per hour – depending on materials, application and machine configuration. Equipped with 24" high cone shell with 10" top and bottom slants and 7" straight wall, with 5" OD top product port with clamp down cover and 7" OD discharge valve with 32" floor clearance, chain and sprocket drive has safety guarding and controller with start, stop push buttons. Mounted on (4) legs with forkable platform.
OAD: 76" L x 32" W x 62" H

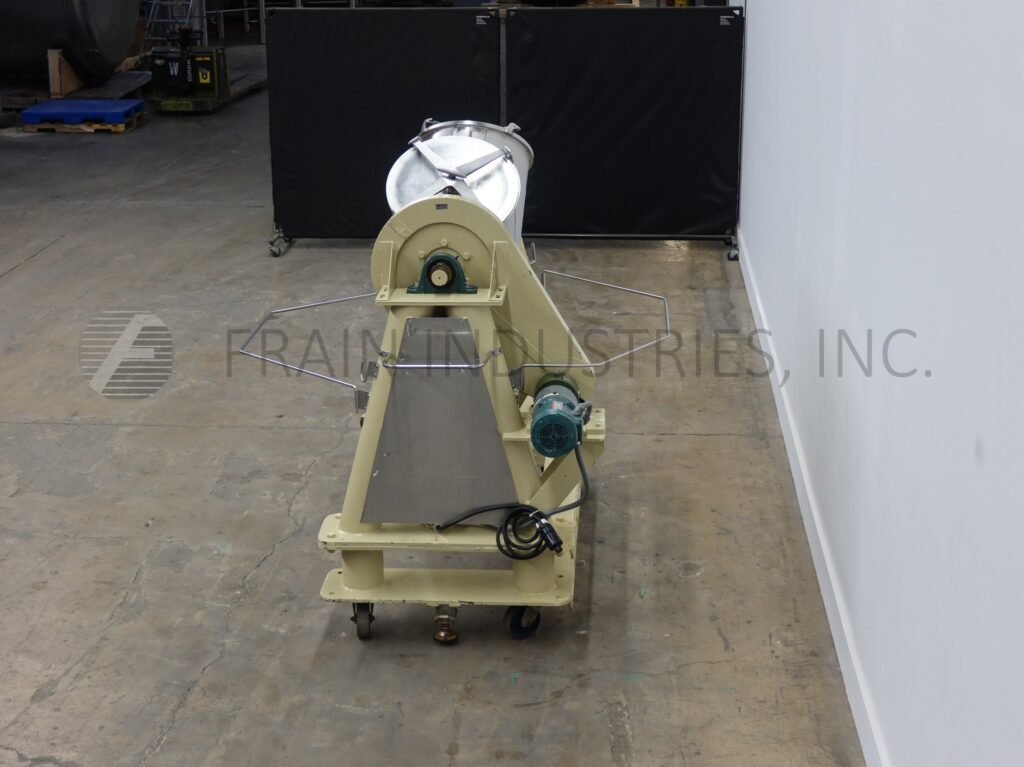

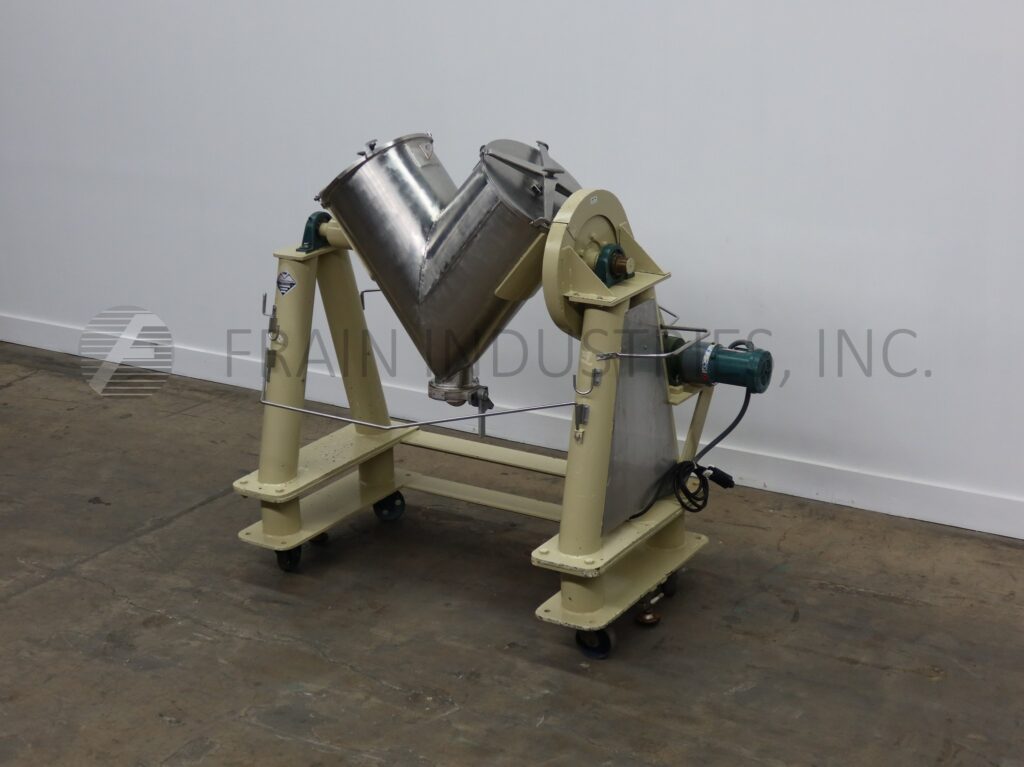

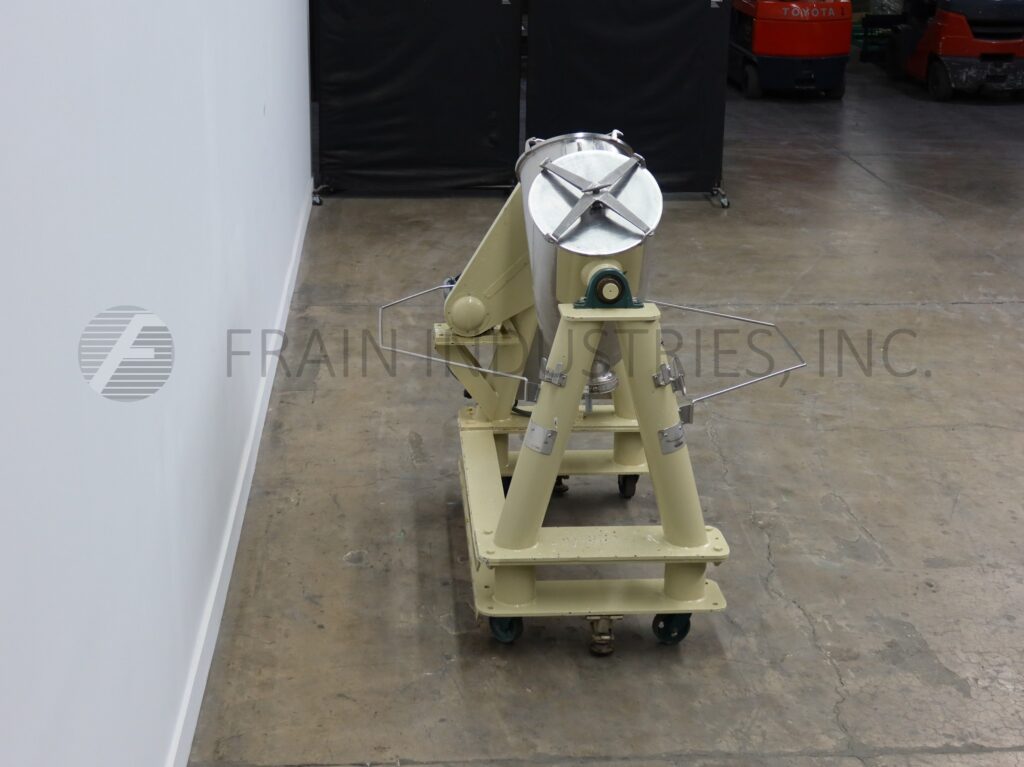

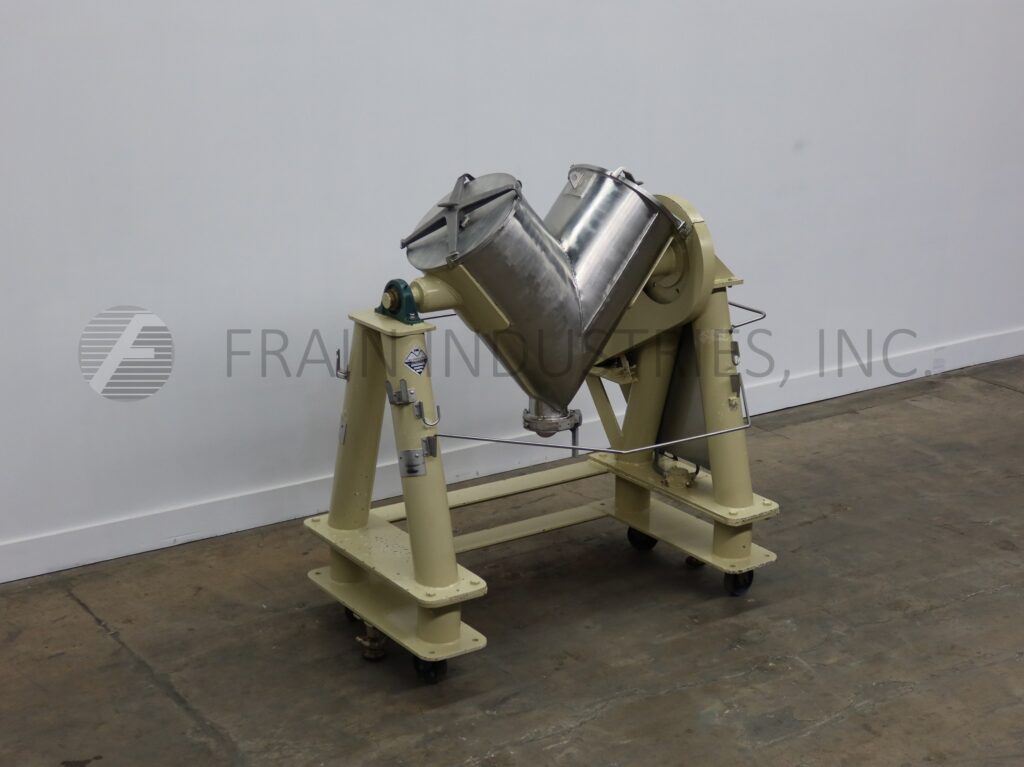

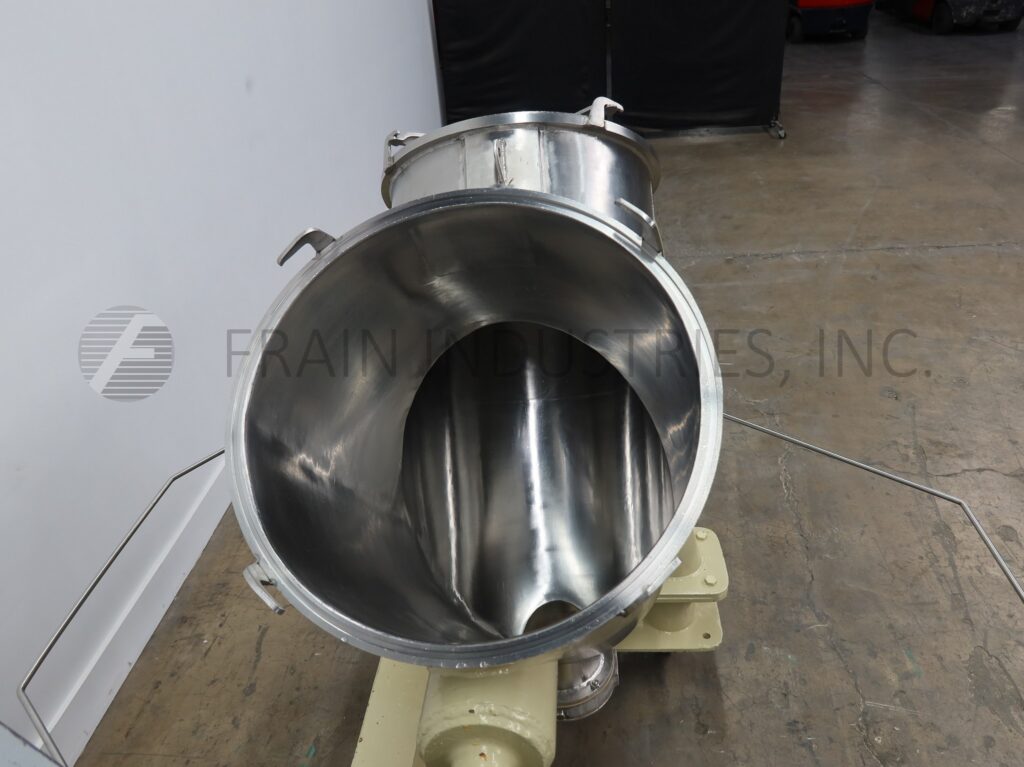

Patterson Kelly, 1 ft³, 304 stainless steel, jacketed twin shell mixer with ounds of product per hour – depending on materials and application. Control Panel with push start/stop mixer, intensifier and timer. Equipped with (2) 11" ID product ports with bolt down covers, (2) 20" long side V-Walls and (2) 9" long inner V-Walls, and full jacket rated to 250 deg f and 30 psi 6" ID x 7"OD discharge with 41" ground clearance, shell powered by (1) ¾ Hp & (1) 3 Hp drive. Requires 76" ceiling clearance with 20" swing radius / 40" swing diameter, mounted on base frame.
MAWP jacket: 30 psi @ 250°FShell: FV @ 250°F
Jacket Access:(5) ½" NPT
OAD: 78" L x 48" W x 75" H
Patterson Kelly, 5 ft³, 314 stainless steel, twin shell mixer with amount of product per hour – depending on materials and application. Equipped with (2) 18" ID product ports with bolt down covers, (2) 42" long side V-Walls, (2) 32" long inner V-Walls, 14" ID butterly valve discharge with 38" ground clearance. shell powered by 1 Hp drive. Requires 96" ceiling clearance with 25" swing radius / 50" swing diameter. Control panel has start, e-stop push buttons. Mounted on (4) leg stainless steel framewith safety guarding and locking caster.
OAD: 72" L x 65" W x 80" H
American Process Systems, Model CPB-30, 52ft³ total and 30 ft³ working capacity, 304 stainless steel jacketed plow mixer with pounds of product per hour – depending on materials and application. Interior chamber dimensions: 40" in Diameter x 72" in Length. Equipped with (8) plows powered by 20 Hp drive, (2) side chamber safety interlocked access doors, flanged 22" OD / 18" ID center bottom discharge with safety grate and pneumatic valve with 2" floor clearance. Mounted on heavy duty frame.
MAWP: 150 PSI @ 650°F
Jacket Access:(2) 2" NPT
Top Access:(2) 10" ID; 16"OD
Bottom Access:(2) 3" NPT
Steam Injections:(6) 3" NPT
OAD: 232"L x 46"W x 65"H
Amfec, Model 510, 15 ft³ (10 ft³ working capacity), 304 stainless steel dual trough vacuum ribbon mixer with pounds of product per hour – depending on materials and application. Equipped with dual mixing troughs with inner dimensions of: 41" in Length; 31" in Width; 21¼" in Depth. with 1½" wide x ¼" thick stainless steel single ribbons on 2" OD shaft, 2 hp vacuum pump, (2) 3 Hp motor drives with safety guarding and dual pneumatic discharge gates with 45" ground clearance. Control panel has push button start / stop, forward / reverse controls. Mounted on (4) stainless steel legs.
OAD: 70" L x 42" W x 105" H
LIttleford, Model FM-130-D, 130 litre total drum volume with 35 to 90 litre (1.2 ft³ to 3.2 ft³) working capacity, 304 stainless steel, jacketed, laboratory mixer with amount of product per hour – depending on materials and application. Equipped with jacketed chamber and has inner dimensions of: 18" diameter x 26" long with (4) 1" threaded jacket fittings and (4) plows on 3" OD shaft powered by 10 Hp motor, 7" OD (4) blade chopper with 10 Hp drive, 22" x 13" lift up cover with 8"ID charge port. Control panel has start and stop for mixer and chopper, with jog button and timer. 6"W x 4"L center bottom flush valve with 10" OD / 14" ID bolt flange discharge with 35" ground clearance. Mounted on heavy duty (4) leg frame.
MAWP: 75 PSIG @ 320°F
OAD: 52" L x 65" W x 86" H
American Process Systems, 11 ft³ total, 8 ft³ working capacity, 304 stainless steel paddle mixer with lbs of product per hour – depending on materials, application and machine configuration. Inner chamber dimmensions: 36" in Length x 21" In Width x 28" in Depth. Equipped with bag dump station with magnetic safety grate and dust collector with 1½ hp blower, (20) 4¾" long x 3¼" wide paddles powered by a 5 hp drive. 6" x 6" flanged center bottom discharge with 42" floor clearence.
OAD: 85"L x 45"W x 132"H
Ross, Model 42B-005, 7 ft³ total (5 ft³ workable), double ribbon mixer with amount of product per hour – depending on materials and application. 304 stainless steel contact parts. Inner mixing chamber dimensions of: 38" in Length; 17" in Width; 21" in Depth, with flip up clamp down cover, 2½" OD mixing shaft with 1" wide x 3/16" thick (outer) and 1½" wide x 1/8" thick (inner) stainless steel ribbons powered by 3 Hp drive. 3" OD center bottom discharge has slide gate valve with 4" ground clearance. Control panel has vari-speed controller.
OAD: 65"L x 37"W x 35"H
Littleford, Model FKM600-D, 21ft³ total capacity / 12.9 ft³ working capacity, 316 stainless steel jacketed plow mixer with pounds of product per hour – depending on materials and application. Interior chamber dimensions: 32" in Diameter x 48" in Length. Equipped with (5) plows powered by 20 Hp drive and (2) 5 Hp choppers, with side chamber safety interlocked access door. 15" ID center bottom discharge with 41" floor clearance. Mounted on (4) leg frame.
Top Access:(1) 13" diameter with bolt down cover(1) 6" diameter open vent
Jacket Access:(4) 1½" NPT
OAD: 88"L x 60"W x 96"H
Ross, 30 ft³ total, double ribbon mixer with pounds of product per hour – depending on materials and application. 304 stainless steel contact parts. Inner mixing chamber dimensions: 60" in Length; 29" in Width; 33" in Depth. Equipped with flip up cover, fume hood, lift out magnetic grate, safety switch, 2½" OD motor shaft, 2½" OD mixing shaft with 1¼" wide (outer) and 2" wide (inner) x 3/8" thick stainless steel ribbons. 6" diameter center bottom discharge has pneumatic slide valve and grate cover with 32"ground clearence, 10Hp motor with start / stop control switch. Mounted on mild steel (4) leg base frame.
OAD: 105" L x 42" W x 99" H
Marion, 11 ft³ total, 10 ft³ working capacity, 316 stainless steel paddle mixer with lbs of product per hour – depending on materials, application and machine configuration. Inner chamber dimmensions: 36" in Length x 24" In Width x 25" in Depth. Equipped with clamp down cover, liquid spray bar, 3" OD shaft with 14" long x 5" wide paddles. 6" diameter center bottom discharge with slide gate valve and 25" floor clearence. 7½ Hp motor drive with variable speed gearbox. Mounted on (4) leg painted forklift base frame.
OAD: 70"L x 56"W x 66"H
Littleford, Model FKM600-D, 21 ft³ total capacity / 12.9 ft³ working capacity, stainless steel plow mixer with pounds of product per hour – depending on materials and application. Interior chamber dimensions: 32" in Diameter x 48" in Length. Equipped with (5) plows powered by a 20 hp drive, (2) 10 Hp choppers, side chamber safety interlocked access door, flanged 19" OD / 15½" ID center bottom discharge with safety grate and pneumatic valve at 36" floor clearance. Mounted on (4) leg stainless steel frame with push button start / stop controls.
OAD: 115"L x 62"W x 96"H
