Glass Lined Machines

Tank Glass Lined 400 GAL

• Model Number: 400 GAL
• Frain Number: 5H0103

400 Gallon single wall glass lined tank. Vessel dimensions: 48" diameter x 48" straight wall. Equipped with a clamp down cover, slant bottom and 1" NPT bottom discharge with 15" ground clearance. Mounted on (4) tubular legs.

Top Ports:
(1) 4½" Open Vent
(1) 2" Open Vent

OAD: 53"L x 53"W x 78"H

Tank Glass Lined 200 GAL

• Model Number: 200 GAL
• Frain Number: 5C9376

200 Gallon single wall glass lined tank. Vessel dimensions: 35" diameter x 48" straight wall. Equipped with a dish bottom and 2"OD / 1½"ID Tri-Clamp discharge with 12" ground clearance. Mounted on painted frame with casters.

OAD: 45"L x 40"W x 80"H

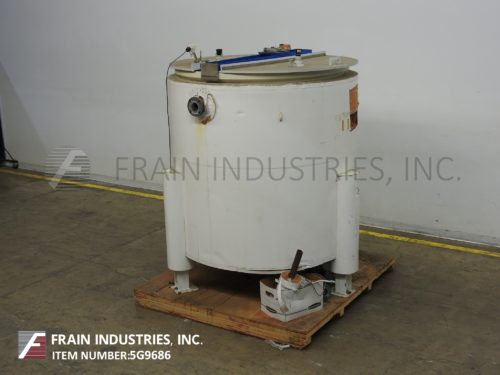

Tycon USA Tank Glass Lined 500 GAL

• Manufacturer: Tycon USA
• Model Number: 500 GAL
• Frain Number: 5G9686

Tycon, 500 gallon, glass lined, low pressure jacketed, mixing tank. Vessel dimensions: 53" diameter x 56" deep. Equipped with lift up covers, bridge mounted prop agitation powered by a ¾ HP motor drive with variable speed control and 2" NPT bottom discharge with 8" ground clearance. Mounted on (3) legs.

Jacket Ports:
(4) 6"OD / 2"ID Flanges

MAWP: ATM @ 400°F (Vessel)
MAWP: ATM @ 400°F (Jacket)

OAD: 70"L x 68"W x 98"H

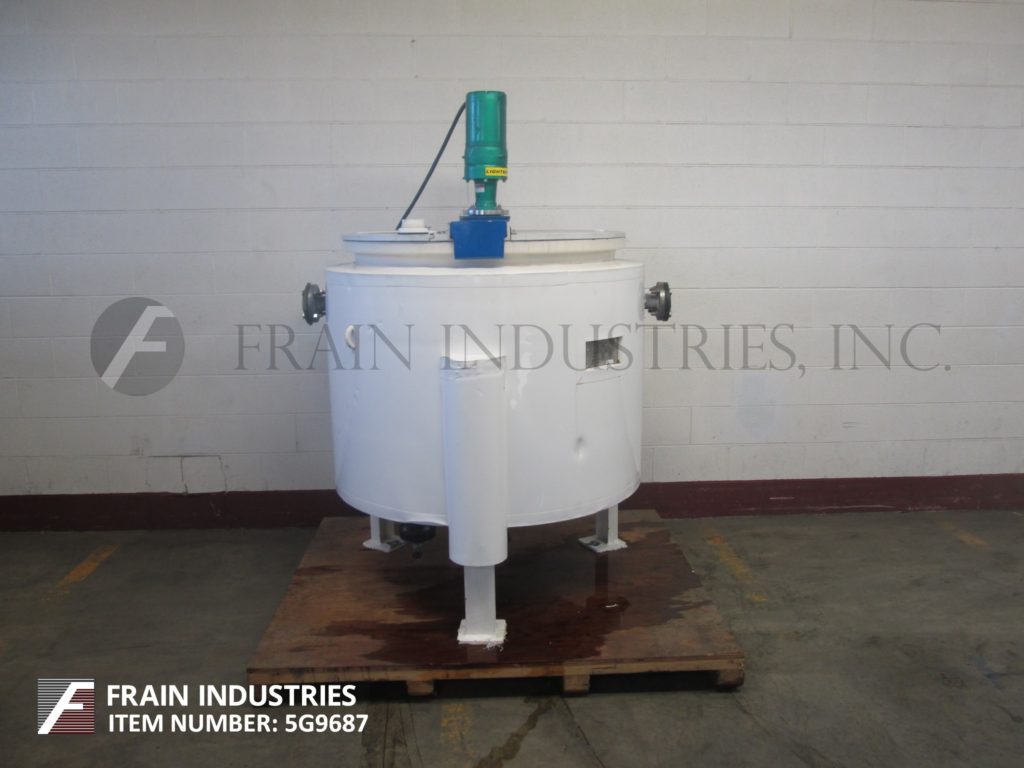

Tycon USA Tank Glass Lined 150 GAL

• Manufacturer: Tycon USA
• Model Number: 150 GAL
• Frain Number: 5G9687

Tycon, 150 gallon, glass lined, low pressure jacketed, mixing tank with pounds of product per hour – depending on materials and application. Vessel dimensions: 38" diameter x 32" deep. Equipped with lift up covers, bridge mounted prop agitation powered by a ¾ HP motor drive with variable speed control and 2"OD / 1½"ID cam style bottom discharge with 8" ground clearance. Mounted on (3) legs.

Jacket Ports:
(4) 6"OD / 2"ID Flanges

MAWP: ATM @ 400°F (Vessel)
MAWP: ATM @ 400°F (Jacket)

OAD: 54"L x 48"W x 76"H
