Cooling Wheels Machines

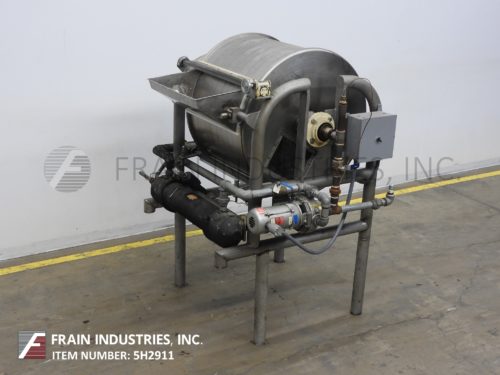

Hohberger Candy Cooling Wheels 2300574

• Manufacturer: Hohberger
• Model Number: 2300574
• Frain Number: 5H2911

Hohberger, Model 2300574, stainless steel, single wall cooling drum. Drum Dimensions: 30" surface width x 40" diameter. Equipped with a 12" x 10" sight glass and internal spray wands with nozzles to spray chilled water on the inside surface of the drum. Mounted on a stainless steel base frame with a tube in shell heat exchanger and ½ HP centrifugal pump recirculation system.

MAWP: 150 psi @ 350°F (shell)
MAWP: 150 psi @ 350°F (tube)

OAD: 72"L x 60"W x 84"H

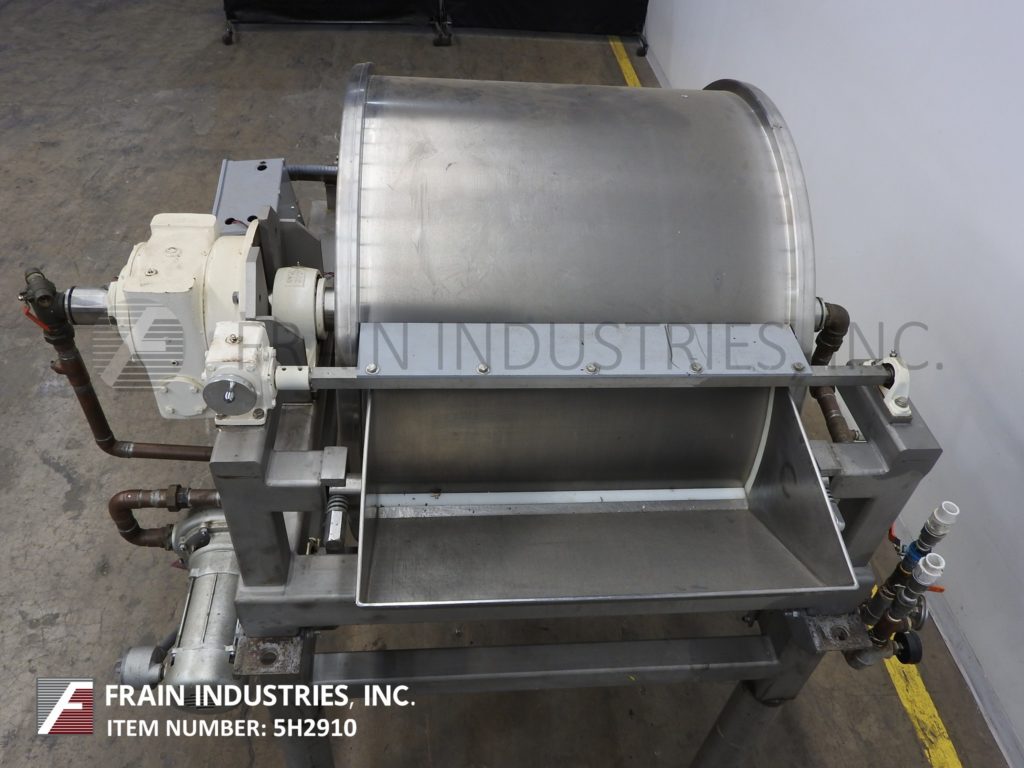

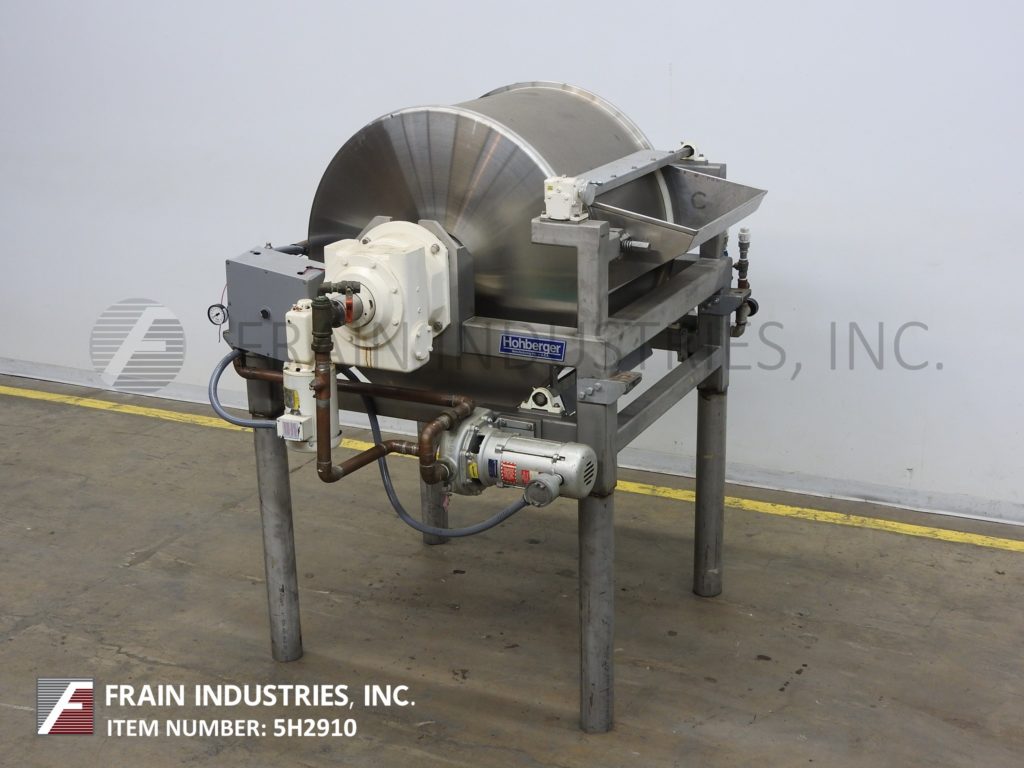

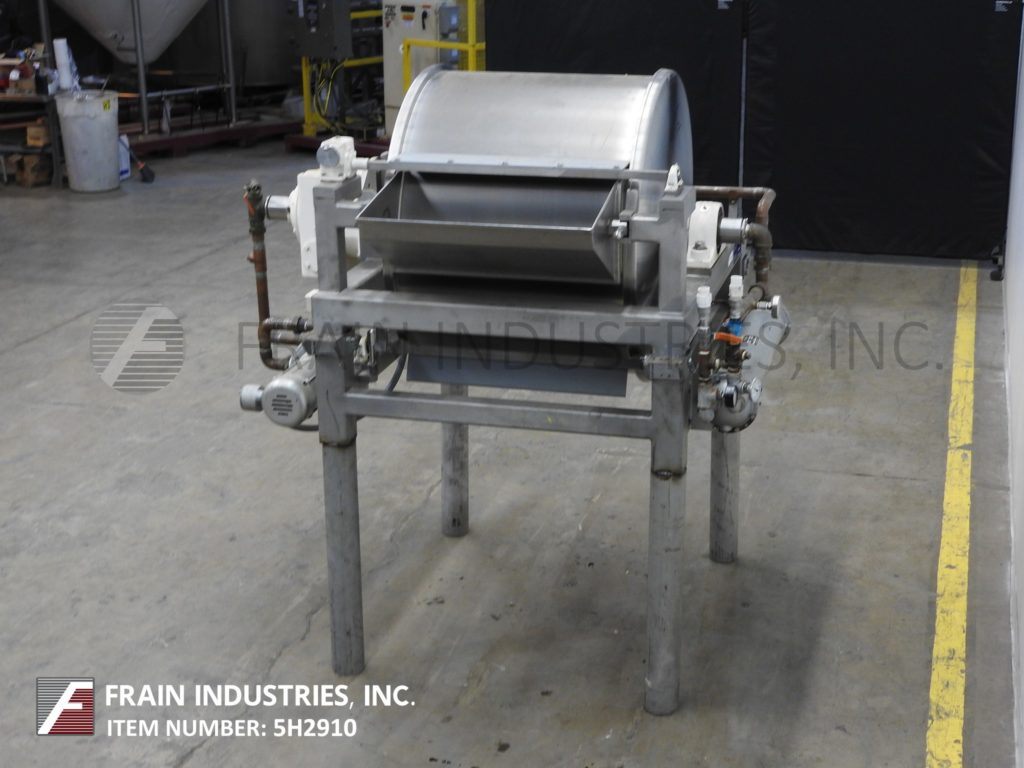

Hohberger Candy Cooling Wheels 2300574

• Manufacturer: Hohberger
• Model Number: 2300574
• Frain Number: 5H2910

Hohberger, Model 2300574, stainless steel, single wall cooling drum. Drum Dimensions: 30" surface width x 40" diameter. Equipped with a 12" x 10" sight glass and internal spray wands with nozzles to spray chilled water on the inside surface of the drum. Mounted on a stainless steel base frame with a tube in shell heat exchanger and ½ HP centrifugal pump recirculation system.

MAWP: 250 psi @ 350°F (shell)
MAWP: 150 psi @ 350°F (tube)

OAD: 80"L x 70"W x 80"H

Hohberger Candy Cooling Wheels

• Manufacturer: Hohberger
• Model Number:
• Frain Number: 5E4622

Stainless steel, 60" diameter x 22" wide cooling wheel. Has 1" lip, 1-1/4" diameter drum cooling media inlet, 1-1/4" diameter drum cooling media outlet, sight glass, and pump with independent motor drive. Powered by 1 1/2hp Reliance Electric motor. Mounted on steel frame.

OAD: 78"L x 72"W x 63"H

Candy Cooling Wheels DRUM

• Model Number: DRUM
• Frain Number: 5E1927

Stainless steel, single wall cooling drum. Drum Dimensions: 51½" surface width x 78" diameter. Equipped with (2) 18" diameter sight glasses ( one on each side) and (2) 2¼" NPT inlet/outlet on the drive shaft of drum for internal spray wands with nozzles to spray chilled water on the inside surface of the drum. Last used in candy operation.

OAD: 78"L x 60"W x 78"H

Sollich Candy Cooling Wheels 60300

• Manufacturer: Sollich
• Model Number: 60300
• Frain Number: 5F4082

Sollich Model 60300, 1800Wet, 75" long x 48" OD stainless steel caramel depositing chilling drum with production rates – depending on product being run. Equipped with (6) Festo 3/4" OD depositing nozzles with maximum pressure rating of 10 bar and above drum product detection eye and is mounted on (4) leg stainless steel base frame.

OAD: 156" L x 84" W x 60" H

Candy Cooling Wheels

• Model Number:
• Frain Number: 5E8640

Stainless steel chilled roller mill. Equipped with (1) 36" diameter roller with 1 1/2" & 7/8" inlet / outlets & (1) 18" diameter roller with 7/8" & 1" inlet/outlets, adjustable infeed size 42 1/2"L x (35" – 50")W. Currently set at 43"W. 5hp Baldor motor. Unit mounted on mild steel frame. Last used to chill caramel & nugat in candy operation.

OAD: 98"L x 102"W x 54"H

Candy Cooling Wheels

• Model Number:
• Frain Number: 5E6740

Stainless steel, three roll cooling wheel. Equipped with three 18" diameter x 18" wide stainless steel rollers, top two counter rotating rolls, hand crank adjustment for roller spacing, 1" threaded fittings for heating / cooling media, lexan barrier guarding and chain drive.

OAD: 67"L x 43"W x 61"H
