Hohberger Latini continous vacuum cooker rated up to 300 lbs per hour – depending on product and application. Equipped with Bulk Mfg Co jacketed processing tank rated to MAWP of 65 psi @ 350 Deg F and MDMT of -20 Deg F @ 65 psi, with shell and tube heat exchanger, vapor flash chamber, exhaust blower, Kinney liquid ring vacuum pump with tempature and pressure gauges. Was taking corn syrup and mixing that with confection in a high temp continous process. Cooking tube: 18" Diameter, 52" Straight wall.
OAD: 100" L x 70" W x 102" H
Theegarten, 60 Gallon, copper, single motion, vacuum kettle. Vessel dimensions: 32" in Diameter; 24" in Depth. Equipped with a dome top, 12½" diameter manway, sweep agitation powered by a two speed 5 hp drive, thermowell, 2¾" ID sight glass, top light, 5hp vacuum system and 2¾" diameter bottom discharge with manual slide valve and 22" ground clearance. Control panel with push button start / stop for agitation and vacuum pump.
Top Access:(1) 9¾"OD / 5"ID Flange(1) 2" NPT(1) 1½" NPT(1) 1" NPT(1) ¾"NPT
Jacket Access:(3) ½" NPT
OAD: 65"L x 60"W x 103"H

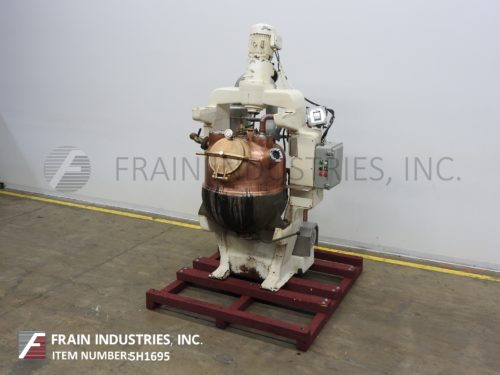

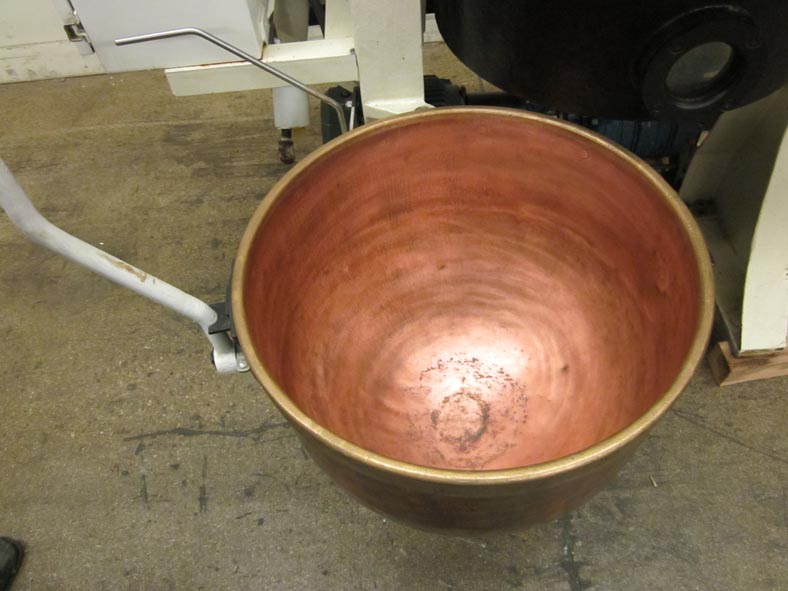

Klockner Hansel, 30 Gallon or 40 kg. batch size copper, single motion, vacuum kettle with amount of product per hour – depending on materials and application. Vessel dimensions: 24" in Diameter; 22" in Depth. MAWP: 80 psig @ 324° F. Vacuum rating: up to 30 Hg. Equipped with flip top cover, anchor style agitation, sight glass, swing out 24" diameter x 24" deep, vacuum bowl, 5 Hp Kinney vacuum system, jacket and vacuum pressure guage and hand tilt discharge. Control panel has push button controls with e-stop. The cooking / kettle facilitates the mixing, heating, and cooling of liquids and liquid-solid dispersions. Mounted on heavy duty frame.
OAD: 60" L x 48" W x 66" H
