Horizontal Batch Rollers Machines

Horizontal Batch Rollers Equipment In Stock

Hansella Candy Horizontal Batch Rollers 19K

  • Manufacturer: Hansella
  • Model Number: 19K
  • Frain Number: 5C6167

Batch candy twist former rated up to a max of 75 Kg, or 165 lb batches. Has (4) S/S conical, ribbed and steam heated product rollers measuring 84" long, (2) 6" dia and (2) 9" dia at base and, all 1 1/2" dia at tip. Rollers have consumption of 40 lbs @ hour steam with 150 psi and 1/2" dia connections, has flip up chamber cover, and a discharge rope outlet of 1 3/8". Used to form a rope from sugar batch, The 4 cone rollers are arranged in such a way that the sugar batch, with or without center, striped or plain, pulled or ordinary, is formed into an even cone in which the unpulled product is continuously reduced in size until it reaches the desired thickness at the discharge end.

OAD: 101" L x 40" W x 60" H

Get a Free Quote Call: 630-629-9900

Hansella Candy Horizontal Batch Rollers 19K

  • Manufacturer: Hansella
  • Model Number: 19K
  • Frain Number: 5C6165

Batch candy twist former rated up to a max of 75 Kg, or 165 lb batches. Has (4) S/S conical, ribbed and steam heated product rollers measuring 84" long, (2) 6" dia and (2) 9" dia at base and, all 1 1/2" dia at tip. Rollers have consumption of 40 lbs @ hour steam with 150 psi and 1/2" dia connections, has flip up chamber cover, and a discharge rope outlet of 1 3/8". Used to form a rope from sugar batch, The 4 cone rollers are arranged in such a way that the sugar batch, with or without center, striped or plain, pulled or ordinary, is formed into an even cone in which the unpulled product is continuously reduced in size until it reaches the desired thickness at the discharge end.

OAD: 99" L x 30" W x 55" H

Get a Free Quote Call: 630-629-9900

Hansella Candy Horizontal Batch Rollers 19K

  • Manufacturer: Hansella
  • Model Number: 19K
  • Frain Number: 5C6166

Batch candy twist former rated up to a max of 75 Kg, or 165 lb batches. Has (4) S/S conical, ribbed and steam heated product rollers measuring 84" long, (2) 6" dia and (2) 9" dia at base and, all 1 1/2" dia at tip. Rollers have consumption of 40 lbs @ hour steam with 150 psi and 1/2" dia connections, has flip up chamber cover, and a discharge rope outlet of 1 3/8". Used to form a rope from sugar batch, The 4 cone rollers are arranged in such a way that the sugar batch, with or without center, striped or plain, pulled or ordinary, is formed into an even cone in which the unpulled product is continuously reduced in size until it reaches the desired thickness at the discharge end.

OAD: 91" L x 30" W x48" H

Get a Free Quote Call: 630-629-9900

Hansella Candy Horizontal Batch Rollers 19K

  • Manufacturer: Hansella
  • Model Number: 19K
  • Frain Number: 5C6163

Batch candy twist former rated up to a max of 75 Kg, or 165 lb batches. Has (4) S/S conical, ribbed and steam heated product rollers measuring 84" long, (2) 6" dia and (2) 9" dia at base and, all 1 1/2" dia at tip. Rollers have consumption of 40 lbs @ hour steam with 150 psi and 1/2" dia connections, has flip up chamber cover, and a discharge rope outlet of 1 3/8". Used to form a rope from sugar batch, The 4 cone rollers are arranged in such a way that the sugar batch, with or without center, striped or plain, pulled or ordinary, is formed into an even cone in which the unpulled product is continuously reduced in size until it reaches the desired thickness at the discharge end.

OAD: 96" L x 34" W x 58" H

Get a Free Quote Call: 630-629-9900

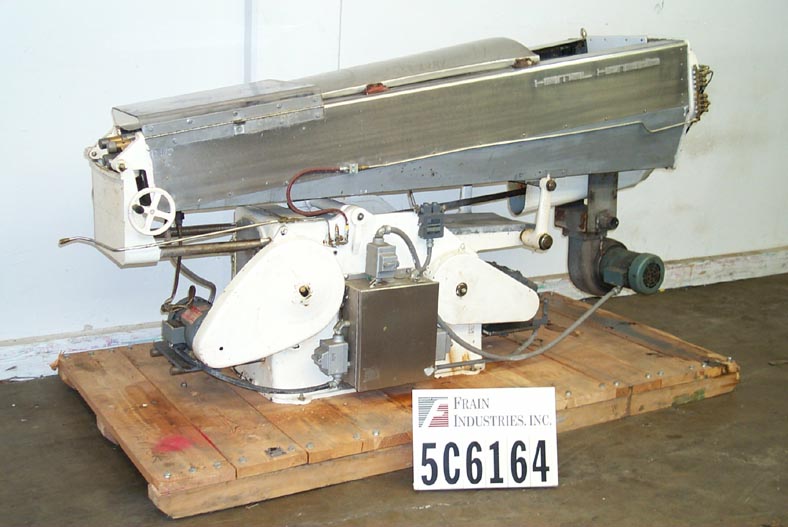

Hansella Candy Horizontal Batch Rollers 19K

  • Manufacturer: Hansella
  • Model Number: 19K
  • Frain Number: 5C6164

Batch candy twist former rated up to a max of 75 Kg, or 165 lb batches. Has (4) S/S conical, ribbed and steam heated product rollers measuring 84" long, (2) 6" dia and (2) 9" dia at base and, all 1 1/2" dia at tip. Rollers have consumption of 40 lbs @ hour steam with 150 psi and 1/2" dia connections, has flip up chamber cover, and a discharge rope outlet of 1 3/8". Used to form a rope from sugar batch, The 4 cone rollers are arranged in such a way that the sugar batch, with or without center, striped or plain, pulled or ordinary, is formed into an even cone in which the unpulled product is continuously reduced in size until it reaches the desired thickness at the discharge end.

OAD: 103" L x 32" W x 60" H

Get a Free Quote Call: 630-629-9900

Hansella Candy Horizontal Batch Rollers 19H

  • Manufacturer: Hansella
  • Model Number: 19H
  • Frain Number: 5G9636

Hansella, Model 19H, batch candy twist former. Rated up to a max of 75 Kg (165 lbs) batches. Equipped with (4) stainless steel conical, ribbed and steam heated product rollers measuring 72" long, (2) 6" dia and (2) 9" dia at base, all 1½" dia at tip. Used to form a rope from sugar batch. The 4 cone rollers are arranged in such a way that the sugar batch, with or without center, striped or plain, pulled or ordinary, is formed into an even cone in which the unpulled product is continuously reduced in size until it reaches the desired thickness at the discharge end.

OAD: 80"L x 28"W x 48"H

Get a Free Quote Call: 630-629-9900

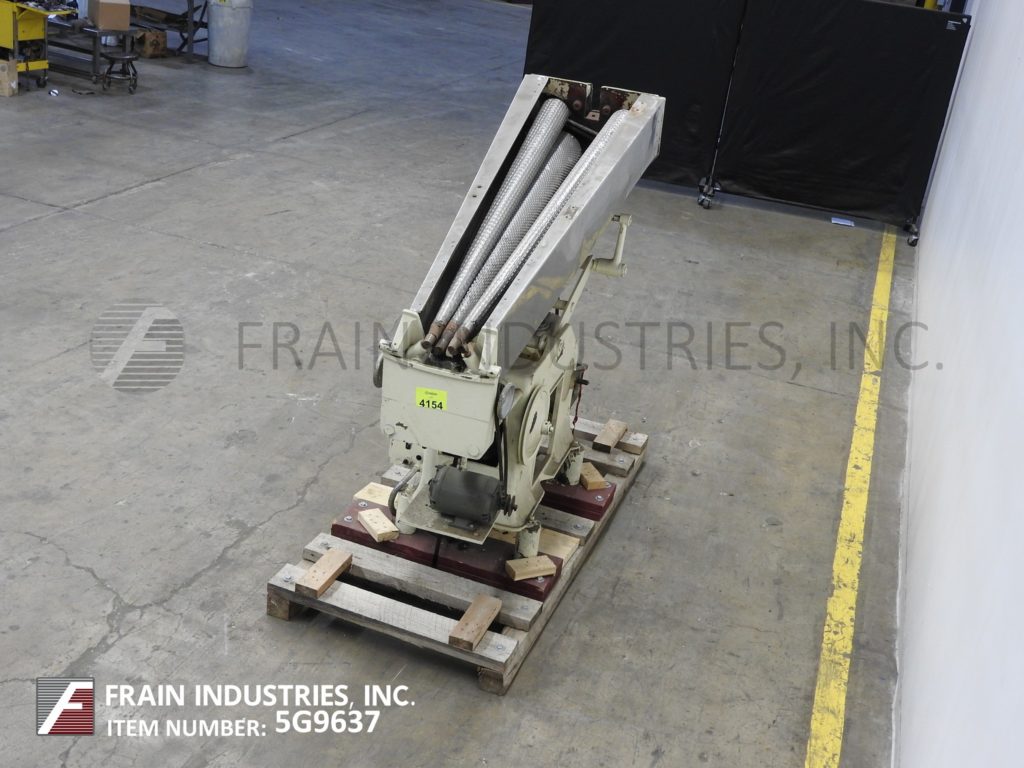

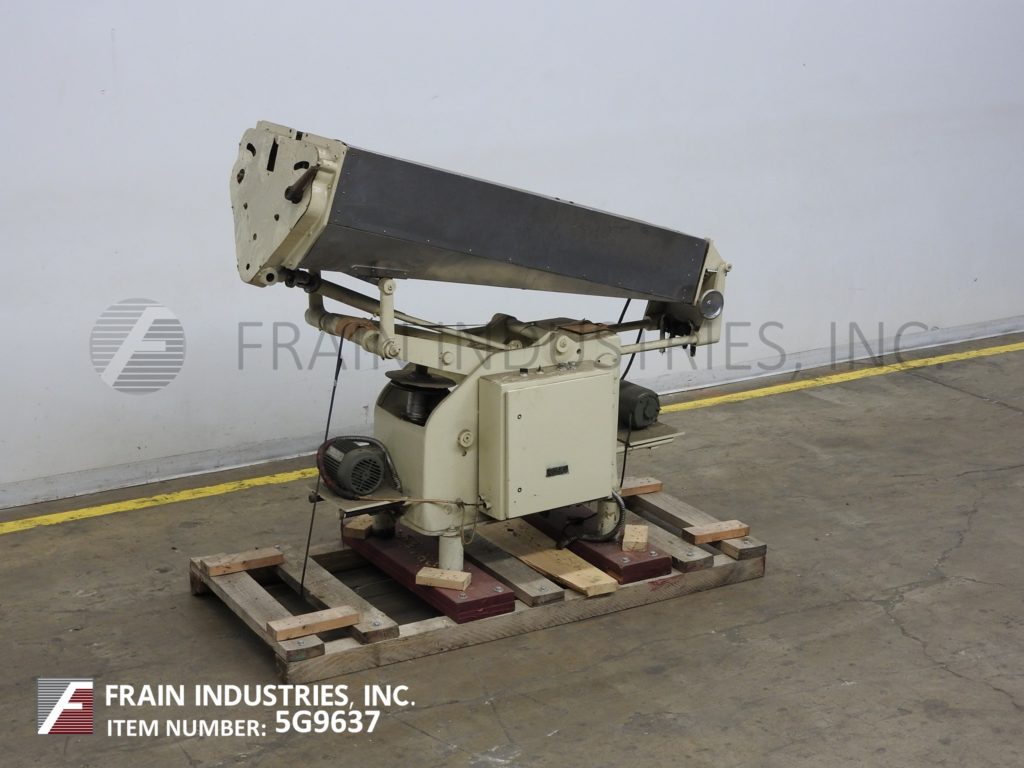

Hansella Candy Horizontal Batch Rollers 19H

  • Manufacturer: Hansella
  • Model Number: 19H
  • Frain Number: 5G9637

Hansella, Model 19H, batch candy twist former. Rated up to a max of 75 Kg (165 lbs) batches. Equipped with (4) stainless steel conical, ribbed and heated product rollers measuring 72" long, (2) 6" dia and (2) 9" dia at base, all 1½" dia at tip. Used to form a rope from sugar batch. The 4 cone rollers are arranged in such a way that the sugar batch, with or without center, striped or plain, pulled or ordinary, is formed into an even cone in which the unpulled product is continuously reduced in size until it reaches the desired thickness at the discharge end.

OAD: 80"L x 28"W x 63"H

Get a Free Quote Call: 630-629-9900
