Semi-Automatic Horizontal Glue Machines

Adco Manufacturing Inc Cartoner Semi Horiz. Glue (Semi) 15D105

• Manufacturer: Adco
• Model Number: 15D105
• Frain Number: R32360

Adco Model 15D105EC, semi automatic, horizontal, hot melt glue cartoner rated from 25 to 125 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 1" to 9" in Length; 3/4" to 4" in Width; 4" to 12" in Depth. Equipped with (4) chains adjustable set on 12" centers, with 2" wide x 3-1/2" high lugs. 36" long automatic blank carton magazine with (2) head rotary vacuum pick and place, top carton hold down rail, 80" long operator load area, Nordson hot melt glue system, flap tuckers and seko gauges. Control panel has relay logic controller and operator control panel with main, hot melt and vacuum system on / off switches, start, stop, e-stop push buttons and foot pedal jog. Mounted on heavy duty frame with interlock safety guarding with casters and leveling legs.

OAD: 240" L x 48" W x 72" H

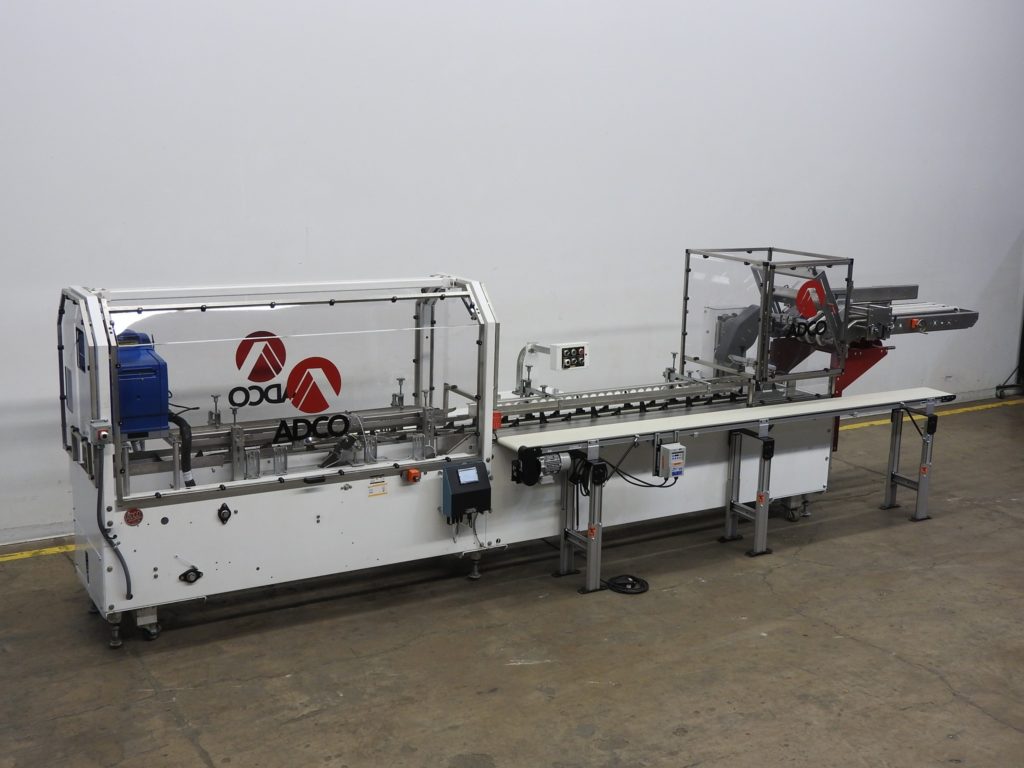

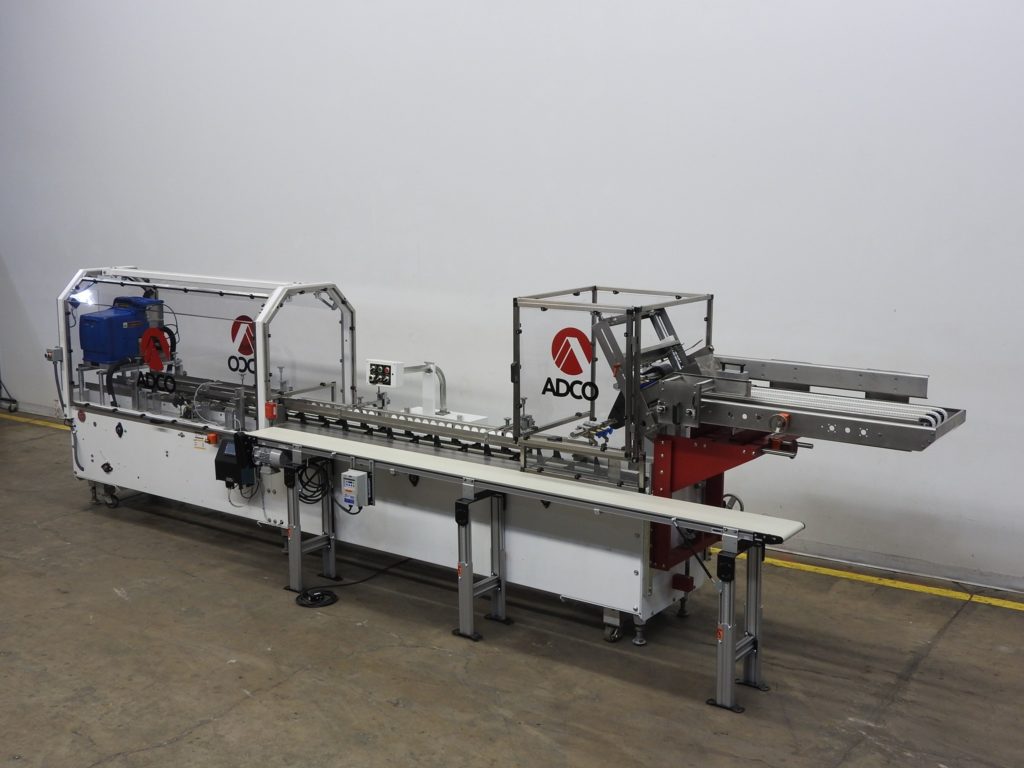

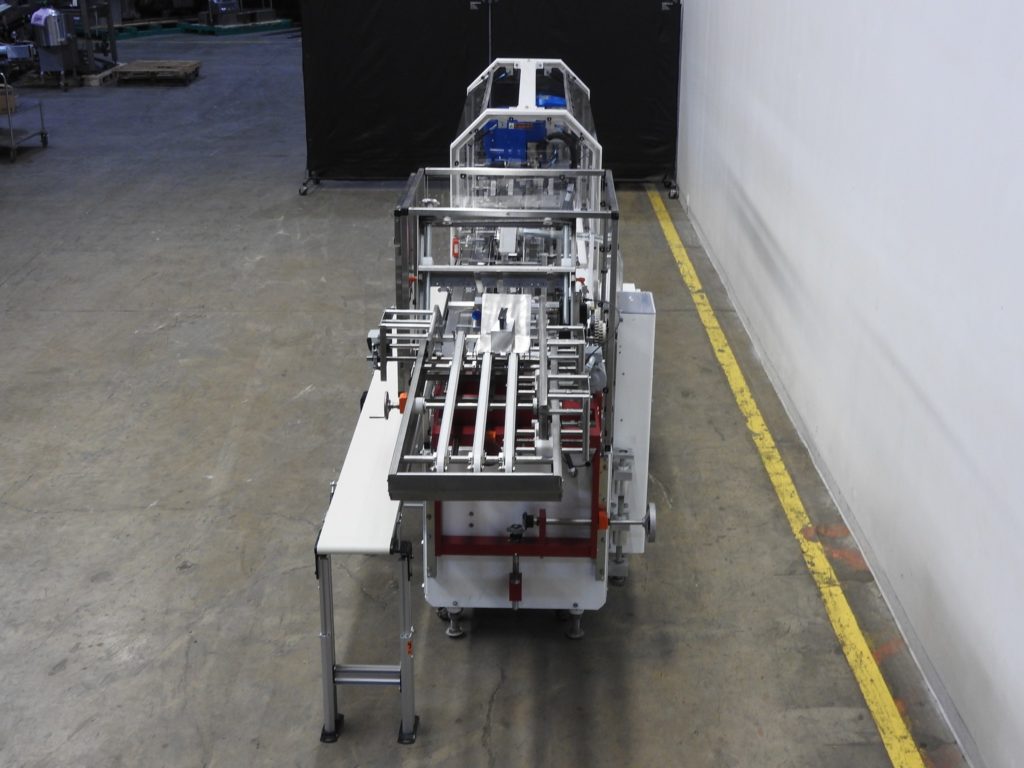

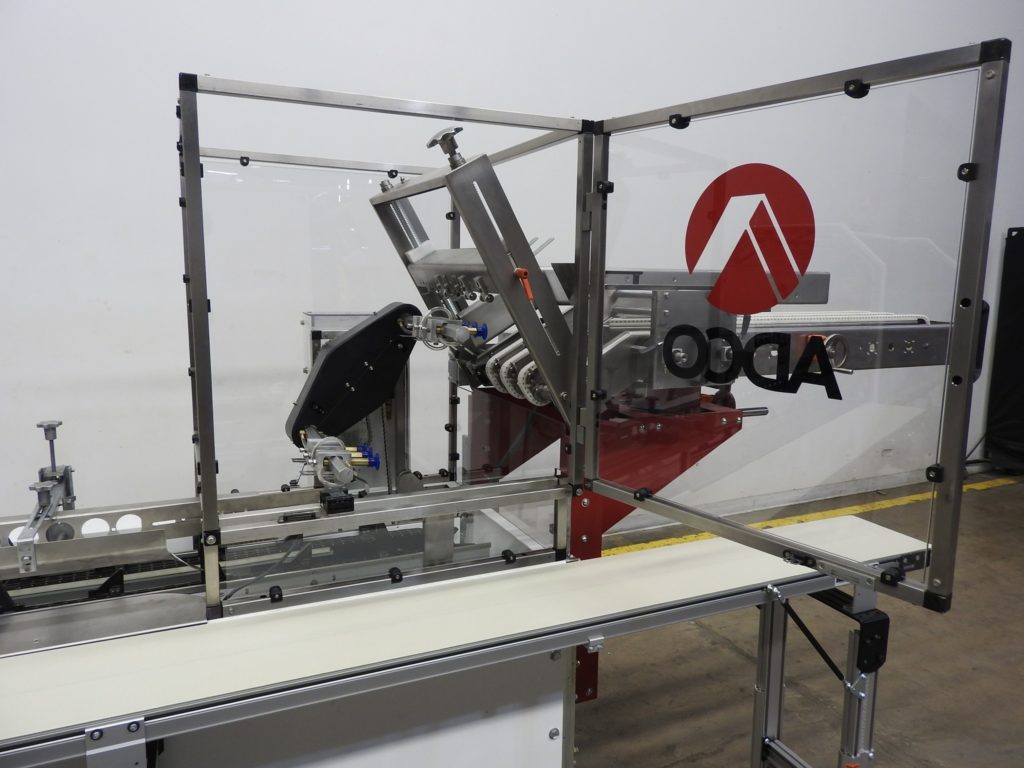

Adco Manufacturing Inc Cartoner Semi Horiz. Glue (Semi) 15D105

• Manufacturer: Adco
• Model Number: 15D105
• Frain Number: R32361

Adco Model 15D105EC, semi-automatic, horizontal, hot melt glue cartoner. Carton size range: 1" to 12-1/2" in Length; 3/4" to 4" in Width; 4" to 12" in Depth. Equipped with (4) chains adjustable set on 15" centers, with 2-1/2" wide x 4-1/2" high lugs. 36" long automatic blank carton magazine with (2) head rotary vacuum pick and place, top carton hold down rail, 80" long operator load area, Nordson hot melt glue system, flap tuckers, seko gauges and interlocked guarding. Rate dependent on materials, application and machine configuration.

OAD: 235" L x 44" W x 72" H

Kodiak Cartoners Cartoner Semi Horiz. Glue (Semi) 901HD-120

• Manufacturer: Kodiak Cartoners
• Model Number: 901HD-120
• Frain Number: 5H6690

Kodiak Model 901HD-120, Semi automatic, horizontal, hot melt glue cartoner, rated from 25 to 120 cartons per minute – depending on materials, application, machine configuration and operator dexterity. Carton size range: to 9-3/4" in Length; 6" in Width; 12" in Depth. Equipped with (4) chains adjustable set on 12" centers with 2¼" wide x 3-7/8" high lugs, 144" long product in feed conveyor, 40" long (3) chain automatic blank carton magazine with (2) head rotary suction cup pick n place, carton squaring device, 64" long operator product hand load area, Nordson 2-gun hot melt glue system, major and minor flap plows and closers, 10" long compression section with Seko guages and foot pedal indexing. Control panel has push button start / stop, vacuum on / off switch, glue on / off switch, run / jog switch and A/B power flex variable speed controller. Mounted on stainless steel frame with safety guarding, casters and leveling legs.

OAD: 216" L x 60" W x 80" H

Adco Manufacturing Inc Cartoner Semi Horiz. Glue (Semi) 15D100-ES

• Manufacturer: Adco
• Model Number: 15D100-ES
• Frain Number: 5H5880

Adco, Model 15D100-ES, Semi automatic, continous motion, horizontal, hot melt glue cartoner. with number cartons per minute – dependant on materials, application, machine configuration and operator dexterity. Carton size range: 1" to 13½" in Length; ¾" to 4" in Width; 4½" to 12" in Depth. Equipped with (4) chains adjutable set on 15" centers with 2" high lugs,183" long x 10" wide product conveyor, 44" long automatic blank carton magazine, (2) head rotary vacuum suction cup pick and place, top carton hold down rail, 54" long operator loading area, Nordson hot melt glue system, carton flap closers, vacuum pump with interlock safety guarding. Control panel has AB CPU, with on / off controls, run, jog, vacuum, hopper, and glue switches with start, stop, e-stop push button controls, and conveyor speed control dial and hand held controller. Mounted on heavy duty frame with casters and height adjustable leveling legs.

OAD: 294" L x 64" W x 75"H

Adco Manufacturing Inc Cartoner Semi Horiz. Glue (Semi) 15D105SS

• Manufacturer: Adco
• Model Number: 15D105SS
• Frain Number: R31020

Adco, Model 15D105SS, semi automatic, stainless steel, horizontal, continuous motion, hot melt glue cartoner. Carton size range: 1" to 9.5" in Length; 3/4" to 4" in Width; 4" to 12" in Depth. Equipped with (4) chains adjustable set on 12" centers with 2-1/2" wide x 3-1/2" high lugs, 48" long carton magazine, (2) head rotary vacuum pick and place, top carton hold down rail, 119" long x 12" wide product in feed conveyor with 72" long operator hand load area, Nordson ProBlue hot melt glue system, flap closers and 24" long side compression discharge belts, Seco gauges, electrically interlock flip-up safety guarding. Control panel has A/B relay logic controller with A/B VFD controls, start, stop, e-stop push buttons, on / off switches for hot melt glue and oiless vacuum systems. Foot pedal activated carton feed controls. Mounted on stainless steel frame with casters and leveling legs. Rated from 25 to 120 cartons per minute – depending on materials, application, machine configuration and operator dexterity.

OAD: 288" L x 60" W x 72" H

Packaging Machinery Cartoner Semi Horiz. Glue (Semi) ELM120

• Manufacturer: Packaging Machinery
• Model Number: ELM120
• Frain Number: 5H5360

Packaging Machinery Model ELM120, semi automatic, continuous motion cartoner. with number of cartons per minute – depending on materials, application and machines configutation. . Carton size range: 1" to 10" in Length; 3/4" to 3" in Width; 4" to 12" in Depth. Equipped with (4) chain system set on 12" centers, with 3" high lugs, 24" carton magazine, (2) head rotary vacuum blank pick and place with 72" product hand load area, Nordson hot melt glue system, no carton / no glue has compression discharge section and interlocked safety guarding, ratcheted magazine height adjustment with hand crank and thumb screw adjustments for easy carton changeover. Mounted on stainless steel frame with locking casters.

OAD: 218" L x 42" W x 72" H

Langen Cartoner Semi Horiz. Glue (Semi) B1

• Manufacturer: Langen
• Model Number: B1
• Frain Number: R28570

Langen, Model B1M, semi-automatic, horizontal, continous motion, hot melt glue cartoner. Rated from 10 to 120 cartons per minute – depending on materials, application, machine configuration and operator dexterity. Carton size range: 1¾" to 7" in Length; ½" to 3" in Width; 3¾" to 14" in Depth. Equipped with (4) chains adjustable set on 18" centers with 2" wide x 1-1/8" high lugs. 96" long extended blank carton magazine with 2-head rotary suction cup pick and place, 60" long hand load section, top hold down, Nordson hot melt glue system and compression section. Control panel has controller with vacuum pump, jog, run, glue and container feed on / off switches with start, stop and e-stop push buttons. Mounted on base frame with casters, leveling legs and safety guarding.

OAD: 228" L x 80" W x 60" H

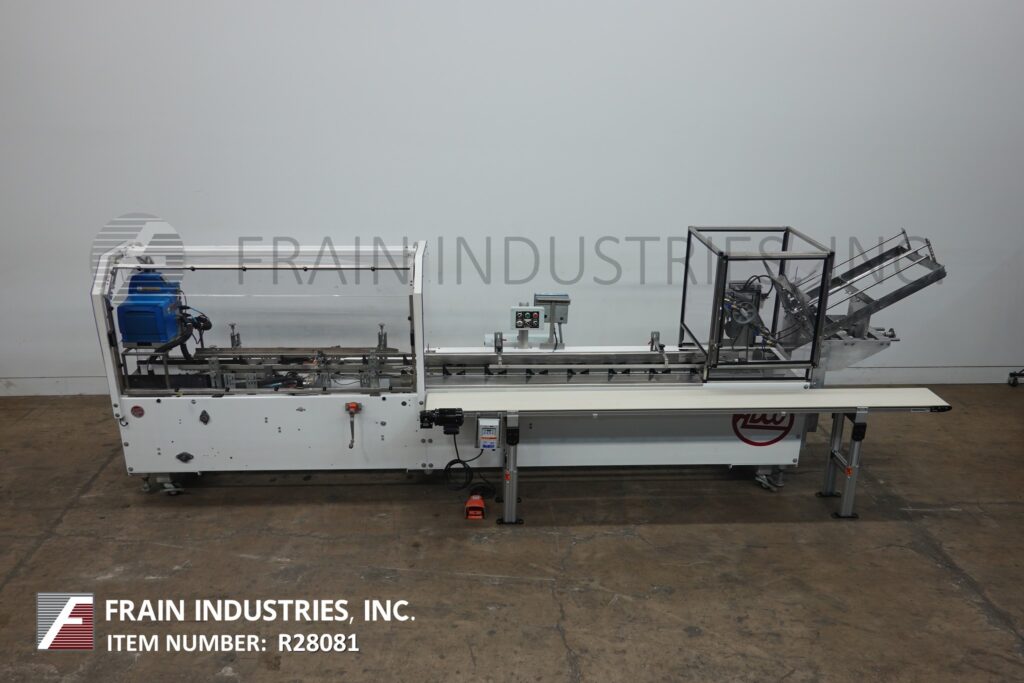

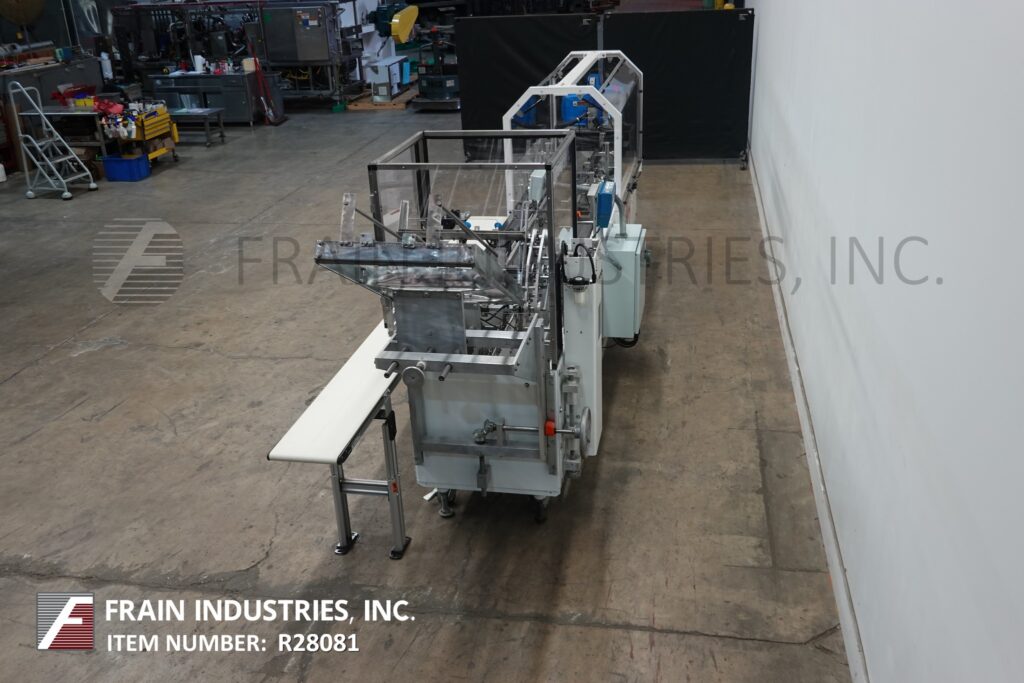

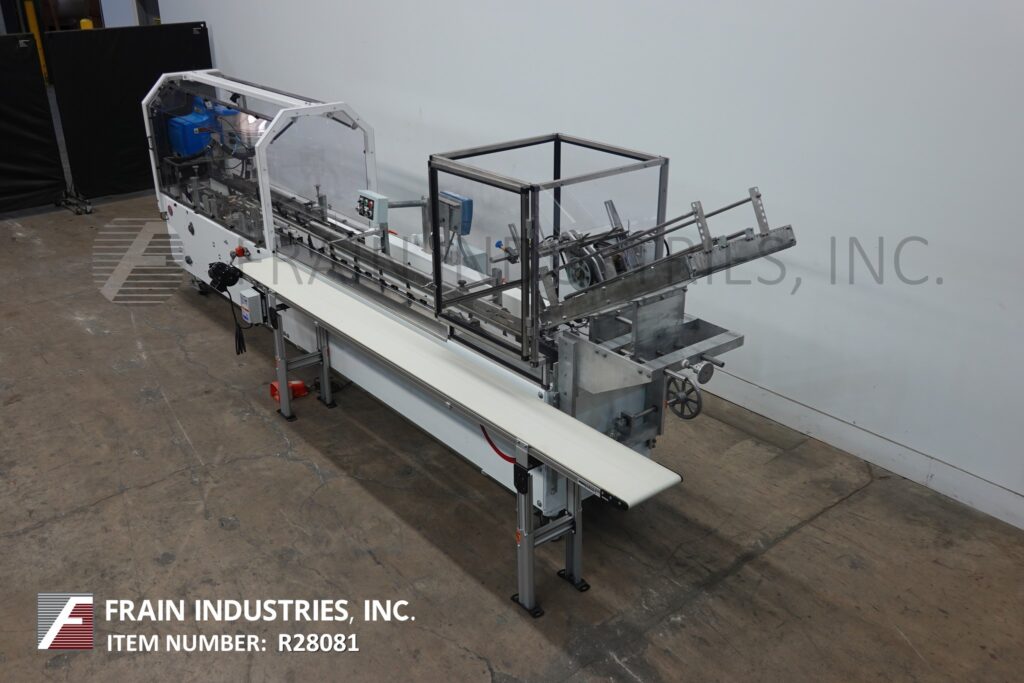

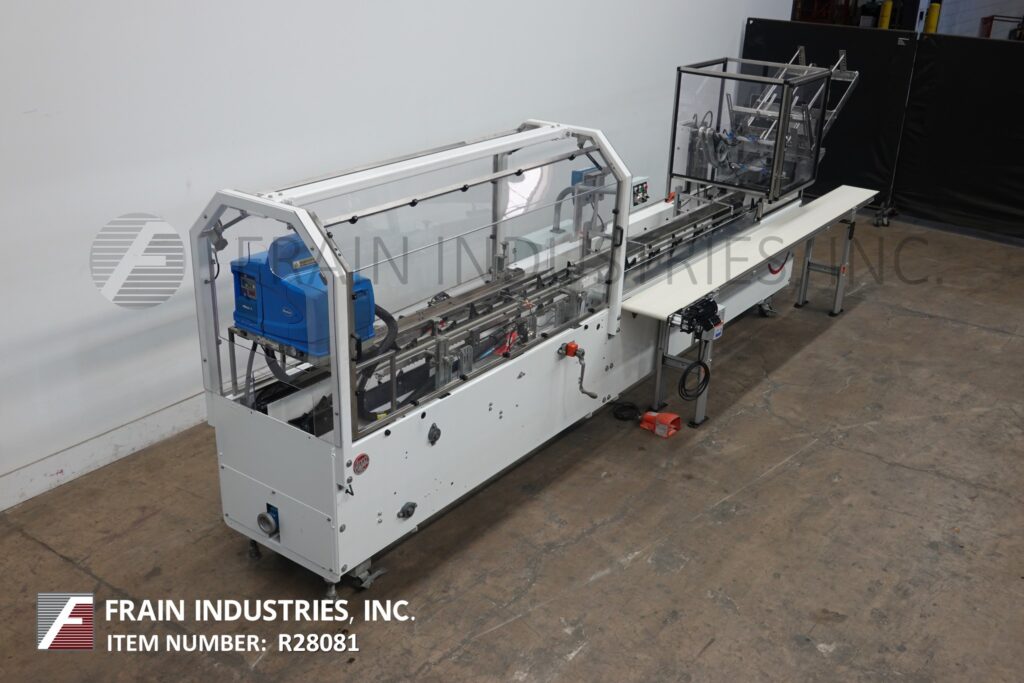

Adco Manufacturing Inc Cartoner Semi Horiz. Glue (Semi) 15D105-EC

• Manufacturer: Adco
• Model Number: 15D105-EC
• Frain Number: R28081

Adco Model 15D105EC, semi automatic, horizontal, hot melt glue cartoner. Carton size range: 1" to 9-1/2" in Length; 3/4" to 4" in Width; 4" to 11" in Depth. Equipped with (4) chains adjustable set on 12" centers, 2-1/2" wide x 3" high lugs, 36" long automatic carton magazine, (2) head rotary vacuum pick and place, top carton hold down rail, 72" long product load area, Nordson hot melt glue system and Siko gauges. Controls with vacuum, on / off, start, stop, e-stop and foot pedal jog. Mounted on heavy duty base frame with interlock safety guarding, casters and leveling legs.
Speed dependant on materials application and machine configuration.
OAD: 232" L x 44" W x 75" H

Adco Manufacturing Inc Cartoner Semi Horiz. Glue (Semi) 15D105125EC

• Manufacturer: Adco
• Model Number: 15D105125EC
• Frain Number: R28760

Adco, Model 15D105125EC, semi automatic, horizontal, hot melt glue cartoner rated from 25 to 125 cartons per minute – depending on materials, application and operator dexterity. Carton size range:1.5" to 9" in Length; 3/4" to 4" in Width; 4" to 12" in Depth. Equipped with (4) chains adjustable set on 12" centers, with 2-1/2" wide x 3-1/2" high lugs, 36" long blank carton magazine, with (2) head rotary vacuum pick n place, 84" long product hand load area, Nordson 2 gun hot melt glue system with major and minor flap closers and interlock flip-up safety guarding. Control panel has controller with start, stop, e-stop push buttons, on / off switches for glue, vacuum and controls with conveyor and speed control dials with self contained vacuum system and foot pedal jog. Mounted on a heavy duty base frame with leveling legs.

Emboss Coder Available at Additional Cost

OAD: 256" L x 48" W x 74" H

Langen Cartoner Semi Horiz. Glue (Semi) B1

• Manufacturer: Langen
• Model Number: B1
• Frain Number: R25330

Langen Model B1-M, semi automatic, continous motion, horizontal, hot melt glue cartoner rated from 40 to 120 cartons per minute – depending on materials and application. (4) chains adjustable set on 18" centers, with 2" long x 3" high lugs. Carton size range: 1¾" to 15¾" in Length; ½" to 6" in Width; 3¾" to 14" in Depth. Equipped with 24" long blank carton magazine, (2) head rotary vacuum pic n place, 60" long product hand load area, with top squaring system, major flap plows, minor flap closers, Nordsen (2) gun hot melt glue system, 24" long dual belt compression discharge section, vacuum system Seco gages Control panel with start / stop, jog / run, glue, carton feed and vacuum pump, on and off switches with e-stop. Mounted on base frame with height adjustable legs and casters.

OAD: 224" L x 72" W x 73" H

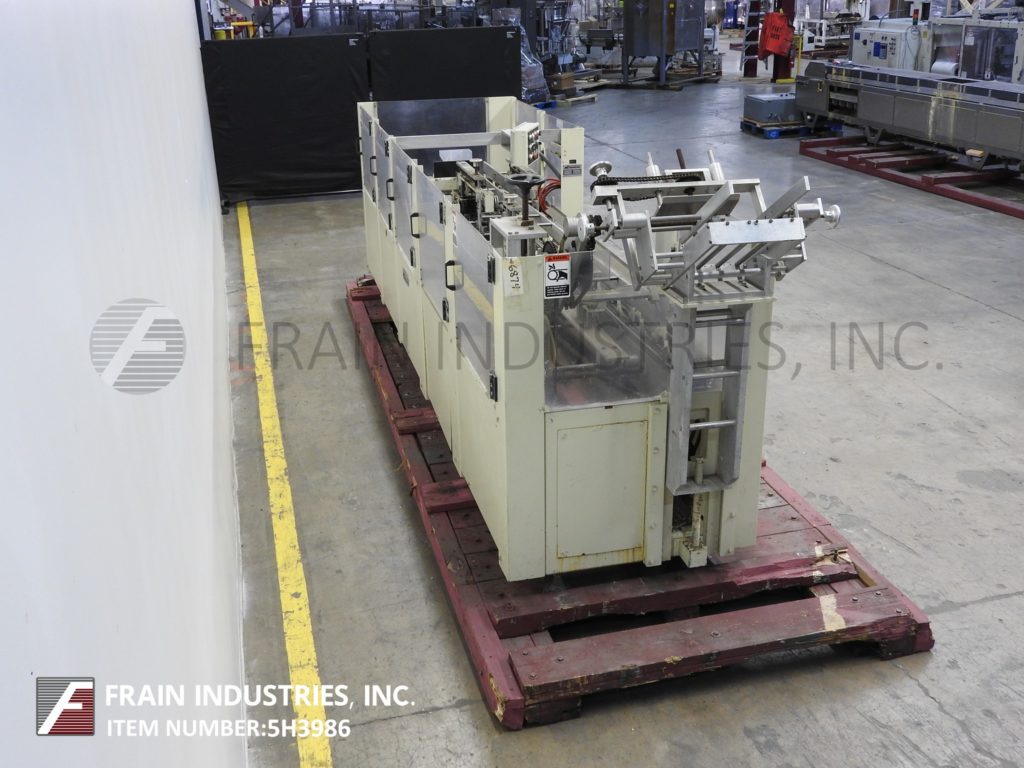

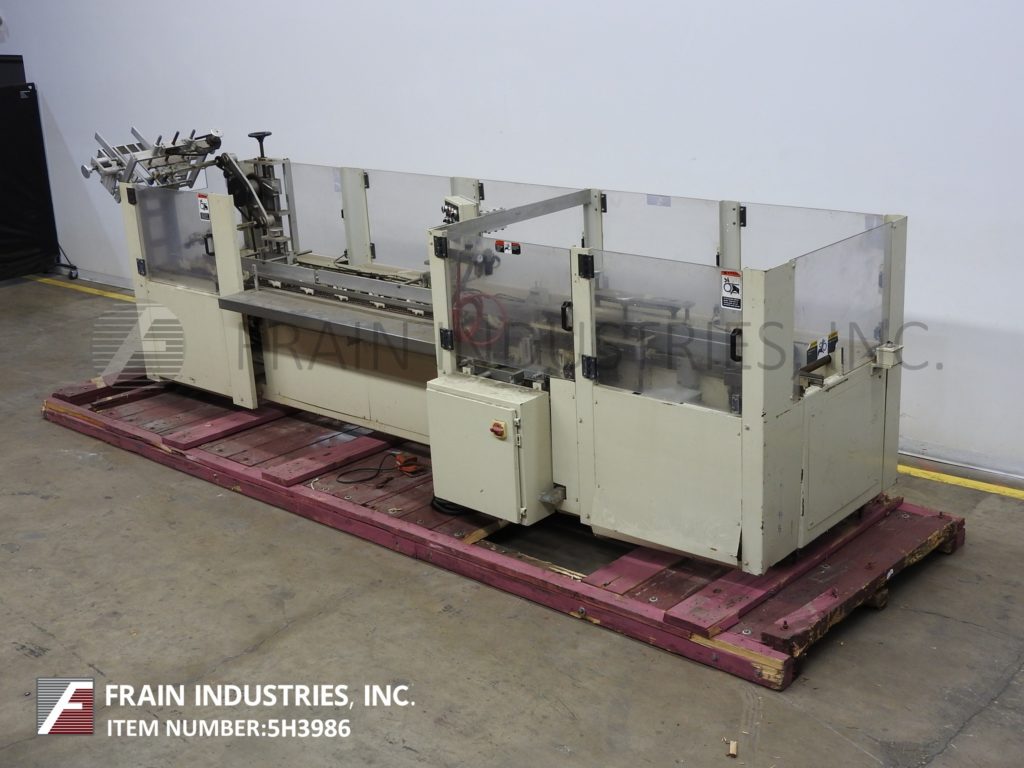

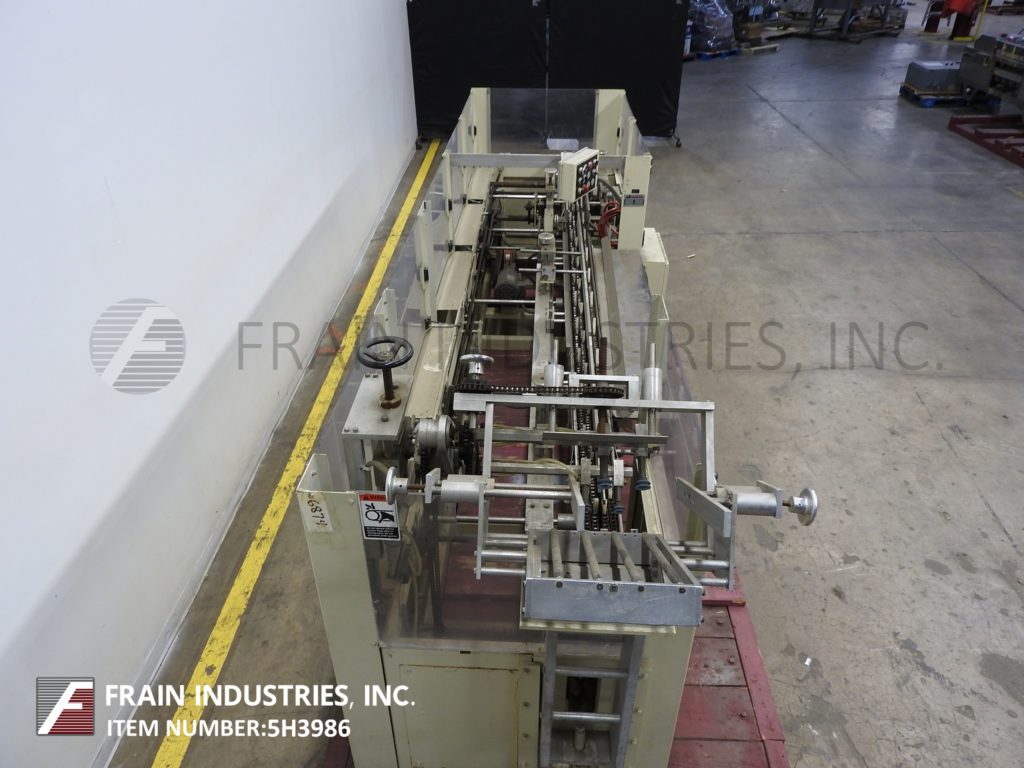

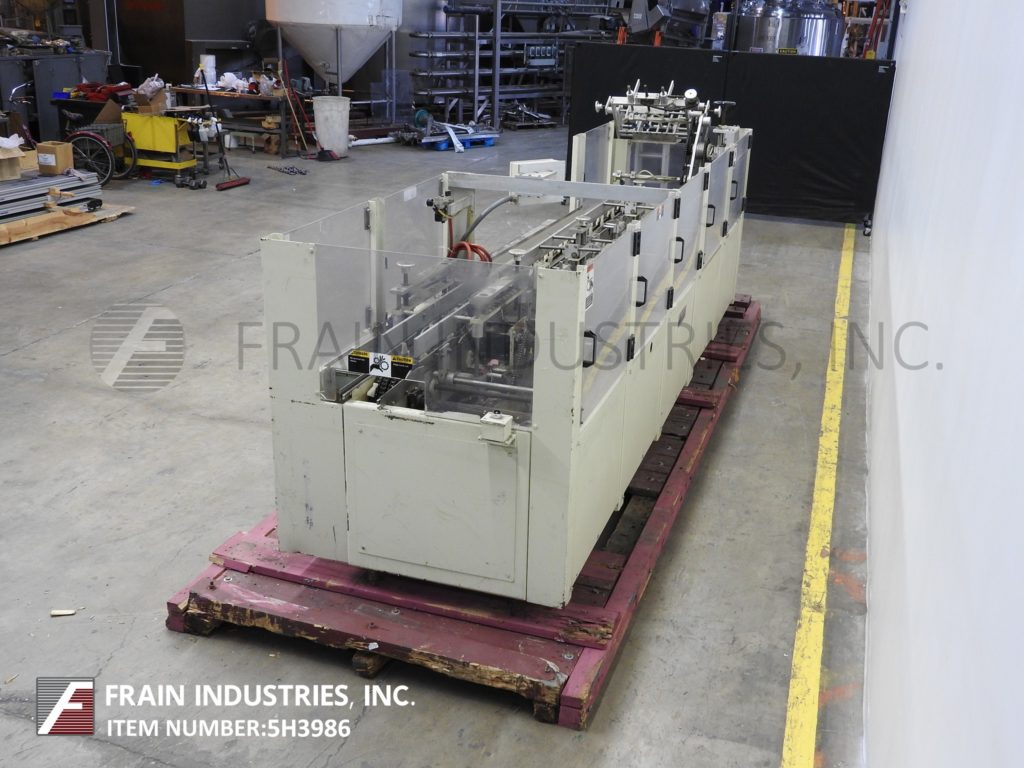

Kodiak Cartoners Cartoner Semi Horiz. Glue (Semi) 901 120

• Manufacturer: Kodiak Cartoners
• Model Number: 901 120
• Frain Number: 5H3986

Kodiak Model 901-120, Semi automatic, horizontal, continous motion, hot melt glue cartoner rated from 20 to 120 cartons per minute – depending on materials, application and operator dexterity. Carton size range per application. Equppied with (4) chains adjustable set on 12" centers with 2-1/4" wide x 2-1/4" high lugs, 24" long blank carton magazine, recpicating vacuum suction cup pick n place, 70" long product operator load area, Nordson (2) gun hot melt glue system with major and minor flap closers. Control panel has A/B vari-speed controller, with vacuum and glue on / off, run jog and speed control switches, with start, stop and-e-stop push buttons. Mounted on heavy duty base frame with safety door guarding and foot pedal jog.

Emboss Coder Available At Additional Cost

OAD: 216" L x 69" W x 68" H

Langen Cartoner Semi Horiz. Glue (Semi) B1

• Manufacturer: Langen
• Model Number: B1
• Frain Number: 5H0173

Langen, Model B1, semi automatic, continous motion, horizontal, hot melt glue cartoner. Rated from 40 to 120 cartons per minute – depending on materials, application and machine configuration. Carton size range: 1¾" to 12" in Length; ½" to 6" in Width; 3¾" to 18" in Depth. Equipped with (4) chains adjustable set on 18" centers, with 1" long x 1½" high lugs, 20" long blank carton magazine, 2 head rotary vacuum pic n place, 72" long product hand load area, top squaring system, overhead confiner belt throught seal area, major flap plows, minor flap closers, Nordsen hot melt glue system and vacuum system. Control panel with start / stop, jog / run, glue on / off and vacuum pump on / off. Mounted on base frame with height adjustable legs and casters.

OAD: 217"L x 70"W x 72"H
