Vertical Glue Machines

Tisma Cartoner Semi Vertical Glue TC50DE

• Manufacturer: Tisma
• Model Number: TC50DE
• Frain Number: R39680

Tisma, Model TC-50DE, Semi-automatic, vertical, hand load cartoner rated from 25 to 150 cartons per minute – depending on materials, application and operator dexterity. Carton specifications: 1" to 3½" in (length) x ½" to 3" in (width) x 2½" to 12" in (depth) Equipped with fixed buckets set on 5" centers and has 44" long blank carton magazine, (2) head rotary pic-n-place, 80" long hand load area each side. Control panel has swing arm touch screen HMI. with start, stop and e-stop push buttons. Mounted on heavy duty frame with safety guarding.

OAD: 233"L x 66"W x 80"H

Jones Cartoner Semi Vertical Glue IMV5

• Manufacturer: Jones
• Model Number: IMV5
• Frain Number: R40670

Jones Model IMV5, Semi-automatic, intermittent motion, vertical hot melt glue cartoner with speeds – dependent on materials, application and machine configuration. Carton size range: 1" to 4-1/4" in Length; 3/4" to 2-3/4" in Width; 2-1/8" to 7" in Depth. Equipped with (2) chain system set on 5" centers, 24" long blank carton magazine, reciprocating carton pic-n-place, load area each side, major flap plows, and minor flap closers, self-contained vacuum system, e-stop and safety guarding.

OAD: 110" L x 58" W x 66" H

Bivans Cartoner Semi Vertical Glue VERTUCK

• Manufacturer: Bivans
• Model Number: VERTUCK
• Frain Number: 5J3430

Bivans, model Vertuck, semi-automatic, continuous motion, vertical, hot melt glue cartoner. Rated up to 120 cartons per minute – depending on materials application and operator dexterity. Equipped with (3) chains adjustable set on 6" centers, carton size: 7/8" to 5" in length x ¾" to 3½" in width x 2¼" to 10" in depth. Equipped with 24" long blank carton magazine with recipacting single arm vacuum pick and place, Nordson hot melt glue system, 24" long load area each side, 36" long x 3" wide discharge conveyor. Control panel with touch screen HMI.

OAD: 124"L x 65"W x 85"H

Jones Cartoner Semi Vertical Glue IMV5 Semi-automatic intermittent motion vertical used cartoner capable of up to 60cpm

• Manufacturer: Jones
• Model Number: IMV5
• Frain Number: 5D5478

Jones IMV5, Semi-automatic, intermittent motion, hot melt glue cartoner rated from 10 to 45 cpm – speeds depending on materials and application. Carton size range: 1" to 4-1/4" in Length; 3/4" to 4-1/4" in Width; 2-1/2" to 7" in Depth. Two chain system set on 5" centers equipped with 24" carton magazine, reciprocating carton pic-n-place, 44" manual product load area on each side, Nordson glue system and compression discharge.

OAD: 144" L x 60" W x 72′ H

Clybourn Cartoner Semi Vertical Glue CH5

• Manufacturer: Clybourn
• Model Number: CH5
• Frain Number: 5J1570

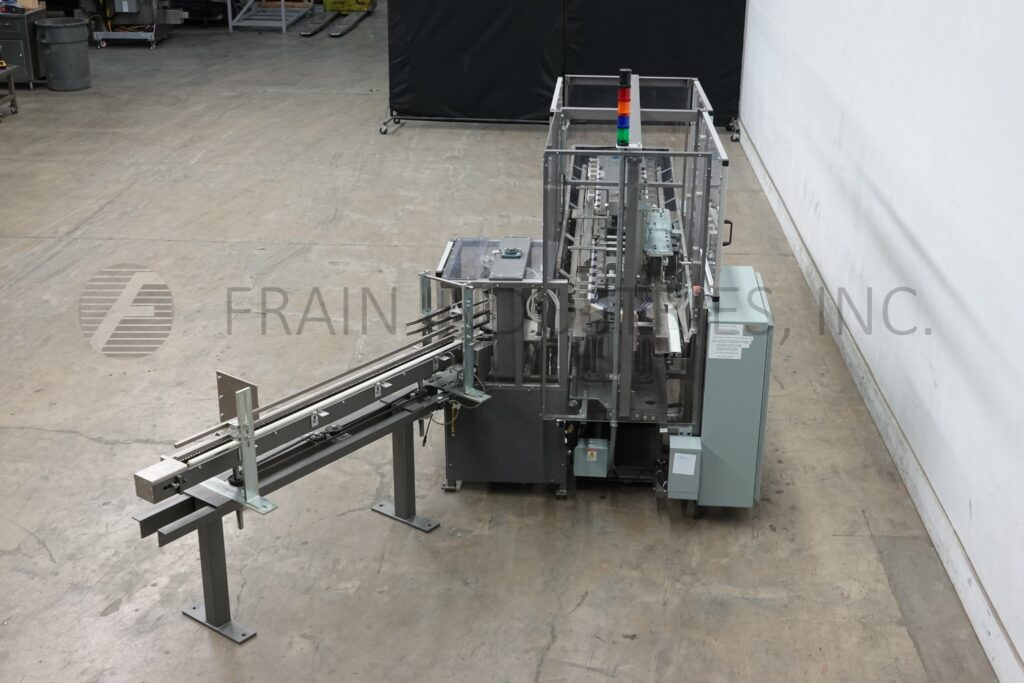

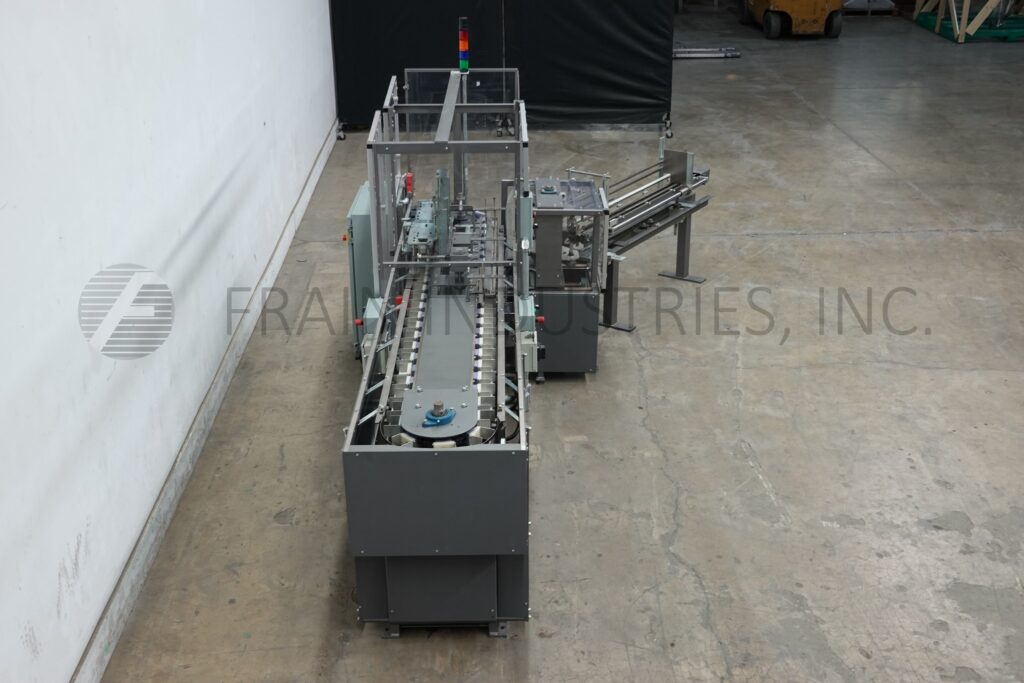

Clybourn, Model CH5, Semi-Automatic, continuous motion, vertical, hot melt glue cartoner with number of cartons per minute – depending on materials, application and operator dexterity. Equipped with 64" long (2) chain powered blank carton magazine, (2) head rotary pic in place, fixed product buckets set on 5" centers, 60" long hand load area each side of machine with major and minor flap closures. Control panel has push button start and e-stop controls with carton pick, run, jog, on / off switches. Mounted on heavy duty frame with interlock safety guarding and statis light bar.

OAD: 144"L x 60"W x 80"H Cartoner
75"L x 20"W x 45"H Carton Magazine

Clybourn Cartoner Semi Vertical Glue CHL-18

• Manufacturer: Clybourn
• Model Number: CHL-18
• Frain Number: R36500

Clybourn, Model CHL-18, Semi automatic, continuous motion, vertical hand load cartoner. Rated from 30 to 100 cartons per minute – depending on materials, application and operator dexterity. Equipped with 12" wide x 180" long product infeed conveyor, 132" long hand load area each side set on single chain, with 7¾" long x 7" wide x 3½" deep fixed product pockets set on 18" centers, 64" long (2) chain powered blank carton magazine, with recipicating carton pick and place, carton opener, Nordson Problue hot melt glue unit, major and minor flap closers Control panel has A/B PLC with A/B Panelview and programable limit switch with start, stop, e-stop push buttons and statis light bar. Mounted on heavy duty frame with Guardmaster interlock safety switch door guarding.

OAD: 331" L x 112" W x 85" H

Romaco Cartoner Semi Vertical Glue PROMATIC BIPAK

• Manufacturer: Romaco
• Model Number: PROMATIC BIPAK
• Frain Number: 5H9248

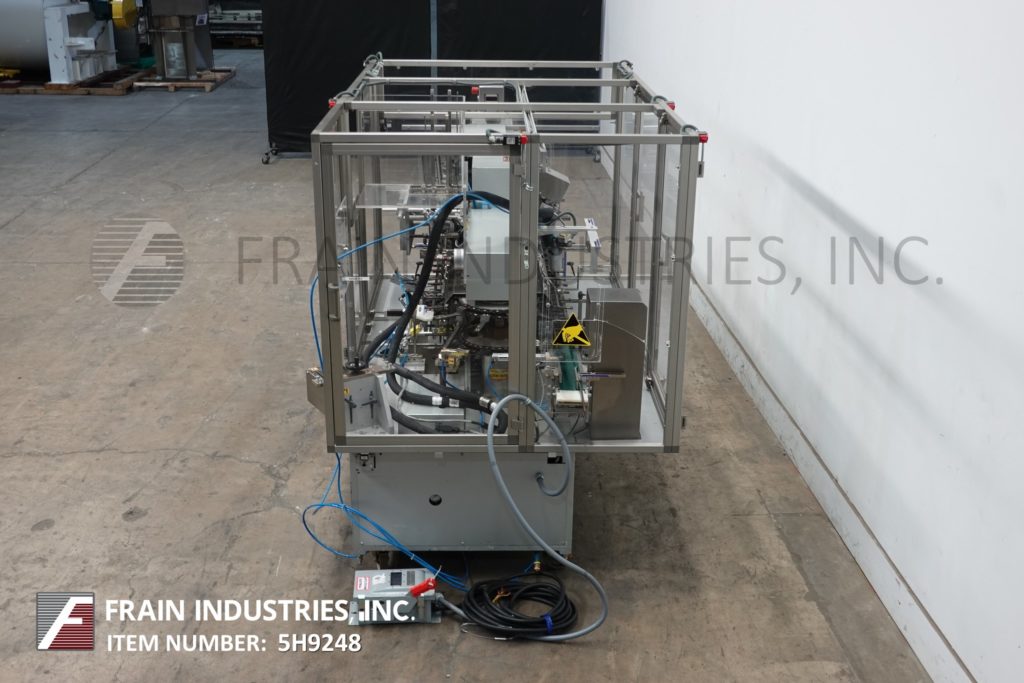

Romaco, Model Promatic Bipak, Semi – automatic, vertical, hand load, hot melt glue cartoner. Rated from 35 to 80 cartons per minute – depending on materials, application and operator dexterity. Carton size range: per application with proper change parts. Carton size: 20mm to 120mm in Length x 18mm to 80mm in Width x 50mm to 250mm in Depth. Can be run intermittent or continuous with automatic feeding system. Equipped withreciprocating pic in place, adjustable chain set on 8" centers, 60" long operator hand load area each side of machine, hot melt glue system with major and minor flap closures, compression section and discharge conveyor. Mounted on heavy duty frame with leveling legs and interlock safety door guarding.

OAD: 173"L x 62"W x 75"H

PMI Cartoner Semi Vertical Glue VS2-15

• Manufacturer: PMI
• Model Number: VS2-15
• Frain Number: R34760

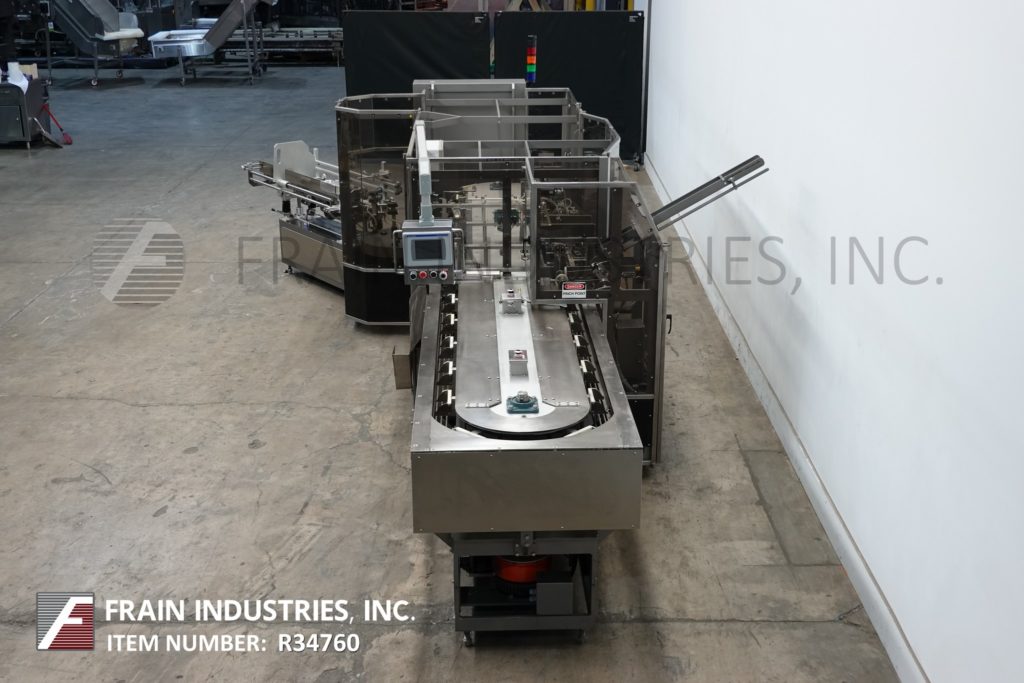

PMI Model VS2-15 Semi – automatic, vertical, hand load, hot melt glue cartoner with number of cartons per minute – depending on materials, application and operator dexterity. Carton size range: per application with proper change parts. Equipped with 72" long (2) chain powered blank carton magazine, (3) head rotary pic in place, 1 chain fixed set on 15" centers, 72" long operator hand load area each side of machine, Nordson ProBlue hot melt glue system with major and minor flap closures, compression section and discharge conveyor. Control panel has A/B CPU controller and A/B swing arm panelview controls with start, reset, stop and, e-stop push button controls. Mounted on heavy duty frame with leveling legs and interlock safety door guarding.

OAD: 240" L x 80" W x 74" H Cartoner
72" L x 6" W Carton Magazine

Clybourn Cartoner Semi Vertical Glue CHL

• Manufacturer: Clybourn
• Model Number: CHL
• Frain Number: R34440

Clybourn Model CHL7, Semi – automatic, vertical, hand load, hot melt glue cartoner rated from 10 to 100 cartons per minute – depending on materials application and operator dexterity. Carton size range: 1" to 8¼" length x ¾" to 3¼" width x 4¼" to 11¼" height with proper change parts. Equipped with 64" long (2) chain powered blank carton magazine, (4) head rotary pic in place, fixed product buckets set on 10" centers, 80" long hand load area each side of machine, Nordson ProBlue hot melt glue system and major and minor flap closures with compression discharge. Control panel has push button controls and glue, vacuum, carton pick, run, jog, on / off switches. Mounted on heavy duty base frame with interlock safety guarding.

OAD: 210"L x 81"W x 68"H Cartoner
75"L x 20"W x 50"H Carton Magazine

Bivans Cartoner Semi Vertical Glue 72

• Manufacturer: Bivans
• Model Number: 72
• Frain Number: 5H6370

Bivans Model 72SL, Semi automatic, vertical, continuous motion, hot melt glue cartoner rated from 20 to 120 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 7/8" to 5" in Length; ¾" to 3½" in width; 2¼" to 10" in Depth. Equipped with (3) chains adjustable unit set on 6" centers. 30" long blank carton magazine with recipacting single arm vacuum cup pick and place, 48" operator load area, Nordson hot melt glue system, major and minor flap closers with 38" long x 3½" wide discharge conveyor. Control panel has start / stop buttons, on / off switches and speed dial controls. Mounted on painted steel frame with interlock safety guarding and screw style leveling legs.

Coder Available At Additional Cost

OAD: 124" L x 60" W x 64" H

Tisma Cartoner Semi Vertical Glue

• Manufacturer: Tisma
• Model Number:
• Frain Number: 5H4481

Tisma Model compact, semi automatic, vertical, hot melt glue cartoner with number of cartons per minute – depending on materials, application and operator dexterity. Equipped with (1) chain fixed set on 10" centers with 3-1/8" long x 3-1/8" wide x 3/4" deep fixed buckets. Equipped with 36" long blank carton magazine, recipacating suction cup pick n place, 48" long load area, hot melt glue system, major and minor flap closers and compression discharge section. Control panel has air system and main power on / off forward / reverse, run / stop, switches and speed control dial with start, stop and e-stop push buttons controls. Mounted on base frame with casters and leveling legs.

OAD: 95" L x 80" W x 68" H

Jones Cartoner Semi Vertical Glue CMV5

• Manufacturer: Jones
• Model Number: CMV5
• Frain Number: R17611

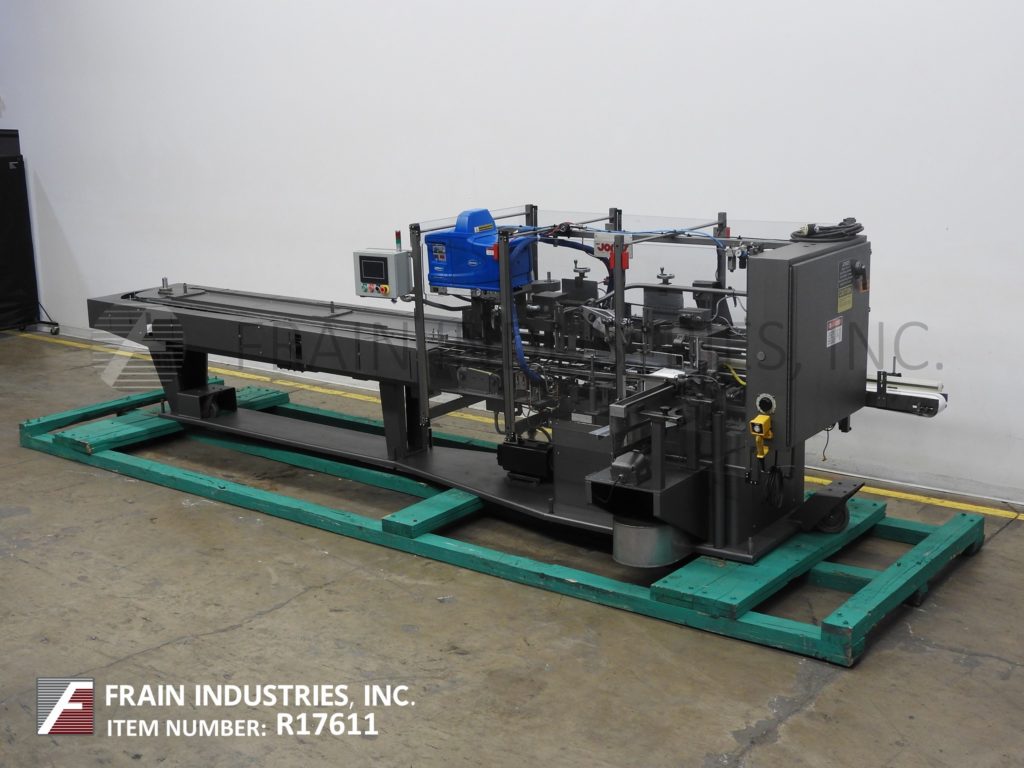

Jones CMV5, Semi automatic, continuous motion vertical hot melt glue cartoner rated from 40 to 120 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 1-1/4" to 4-1/4" in Length x 1" to 4-1/4" in Width x 3" to 8" in Depth. Equipped with blank carton magezine, with recipicating pick n place, set on 5" centers and has 5′ Long extended frame for 10′ Long loading area on each side, Nordson hot melt glue system with belt style major and minor flap closures. Control panel has start, stop, reset and e-stop controls with panelview. Mounted on heavy duty frame with casters, leveling legs and lexan interlock guarding.

Can be modified for straight tuck, fifth panel or glue for additional cost.

OAD: 246"L x 70"W x 70"H
