Frain Industries has hundreds of case erector machines and other end of line packaging equipment in stock and ready to set up for your application. Â Frain carries many types of case erectors depending on your specific application, case size, speed, and line integration requirements. Â Case erector machines and equipment are available in fully automatic or semi-automatic configuration and with many footprints depending on you container size. Â Additionally different case erectors can handle a wide range of container types including:
A case erector is a machine designed to erect a case from flat folded, pre-scored, case blank made from corrugated containerboard or other material. A case erector takes one case blank from a magazine and forms or erects the case through the uses of mechanical devices, pneumatic devices, or a combination of both depending on the design of the machine. Case erectors can be designed to seal the bottom of the case using either tape or glue, or not to seal the bottom of the case at all. Cases can be erected with either the case opening facing up or the case opening facing to the side. Special case erectors can be designed to erect bliss boxes, insert partitions into a box or case, or to erect a case and insert a bag into the case for a bag-in-box application (see Bag-in-box). Bliss boxes are created with a solid piece of containerboard that is formed to create the front, back, and bottom of the box. A bliss box case erector then inserts two additional pieces of containerboard to form the sides of the case. The two addition pieces are sealed to flaps on the main portion of the case using hot melt glue.
Case erectors are widely used in many industries for automated drop loading and hand packing applications. They are used to form cases, trays, and boxes for the food, beverage, nutraceutical, personal care and household care industries. Â Frain’s case erector are highly customizable and can be integrated seamlessly into any production line.
In addition to standard case erectors Frain industries carries the following:
Contact Frain Industries to discuss your application requirements with one of our engineers. Â We can design a complete solution depending on your case erecting requirements.
Frain carries case erectors from many OEM’s including:Â ABC, Arpac, Bemis, Cermex, Combi, Delkor, Durable, Dyna Pak, Eagle Packaging Machinery, Elliott, Fallas, Hartness, K&R, Lantech, Little David, Loveshaw, Marq, McDowell, Moen, New Way, OK International, Padlocker, Pearson, Serpa Packaging, Sig, SWF, Thiele, WE Plemons, Wayne, Wepackit, Wexxar and others.

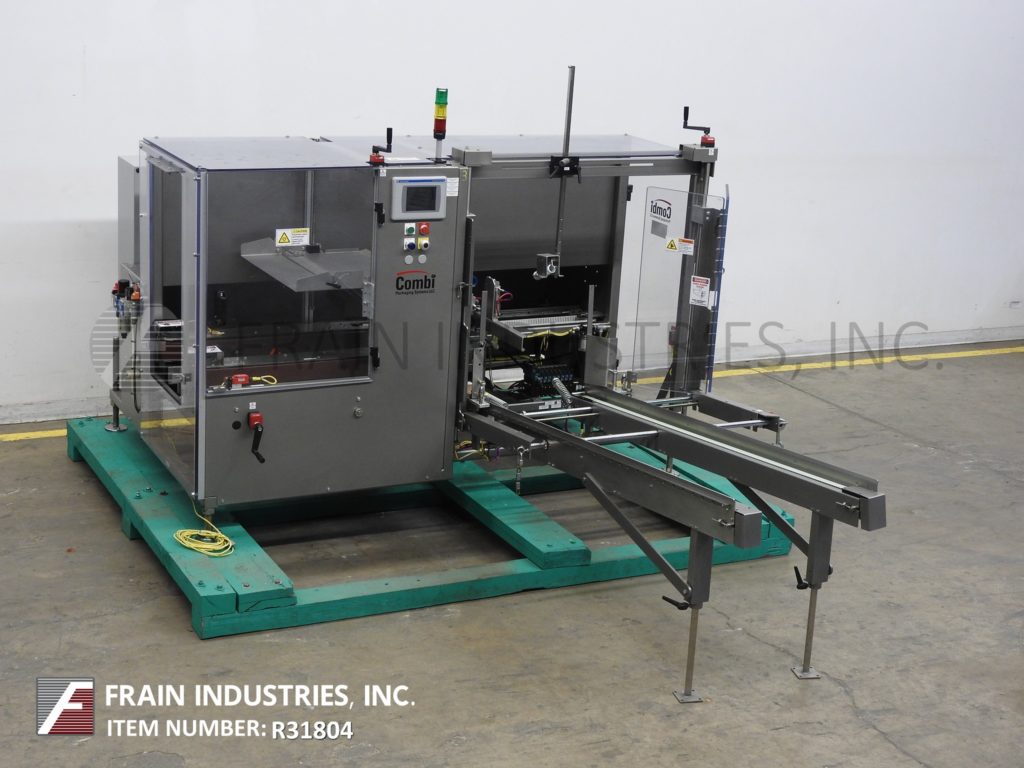

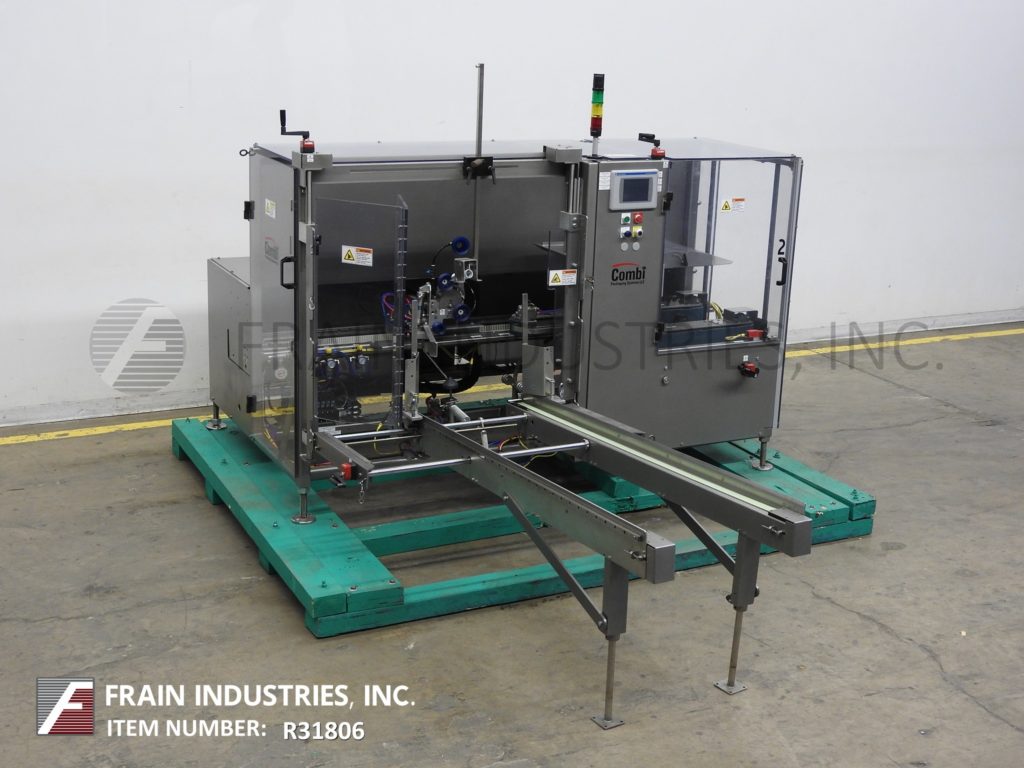

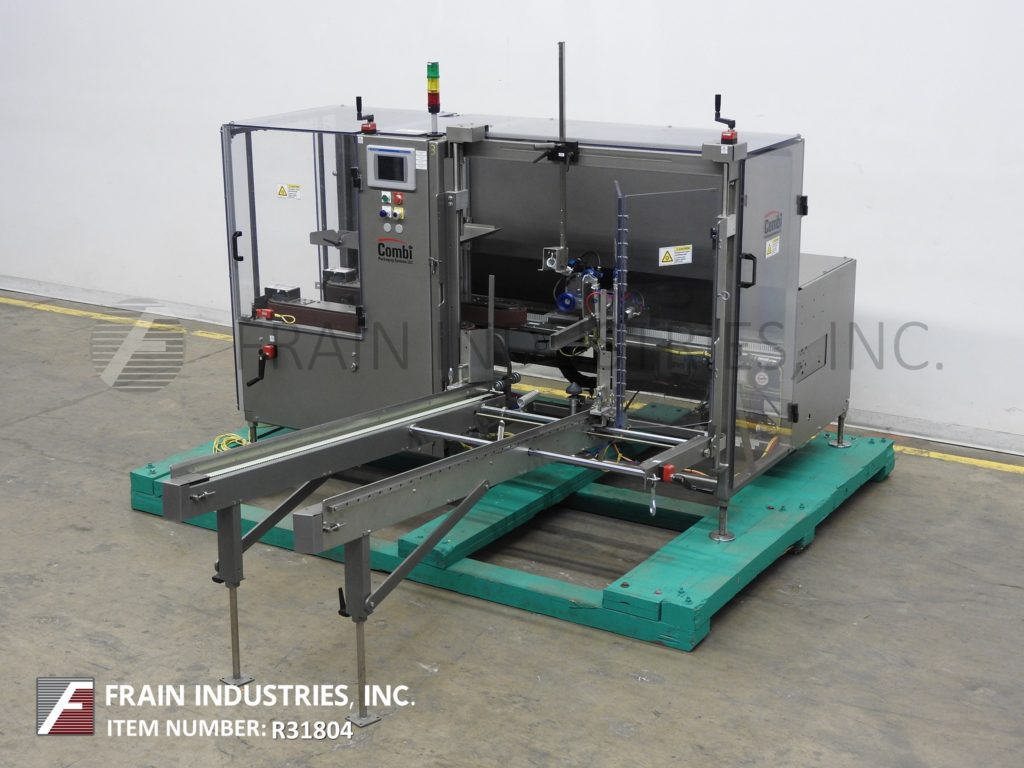

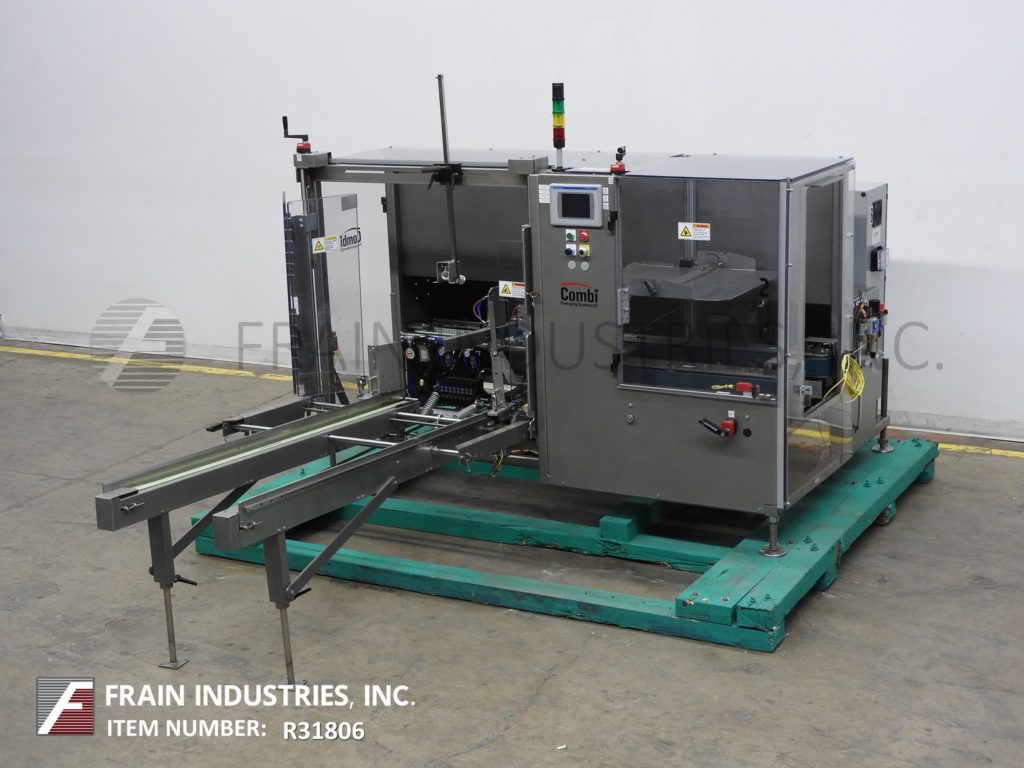

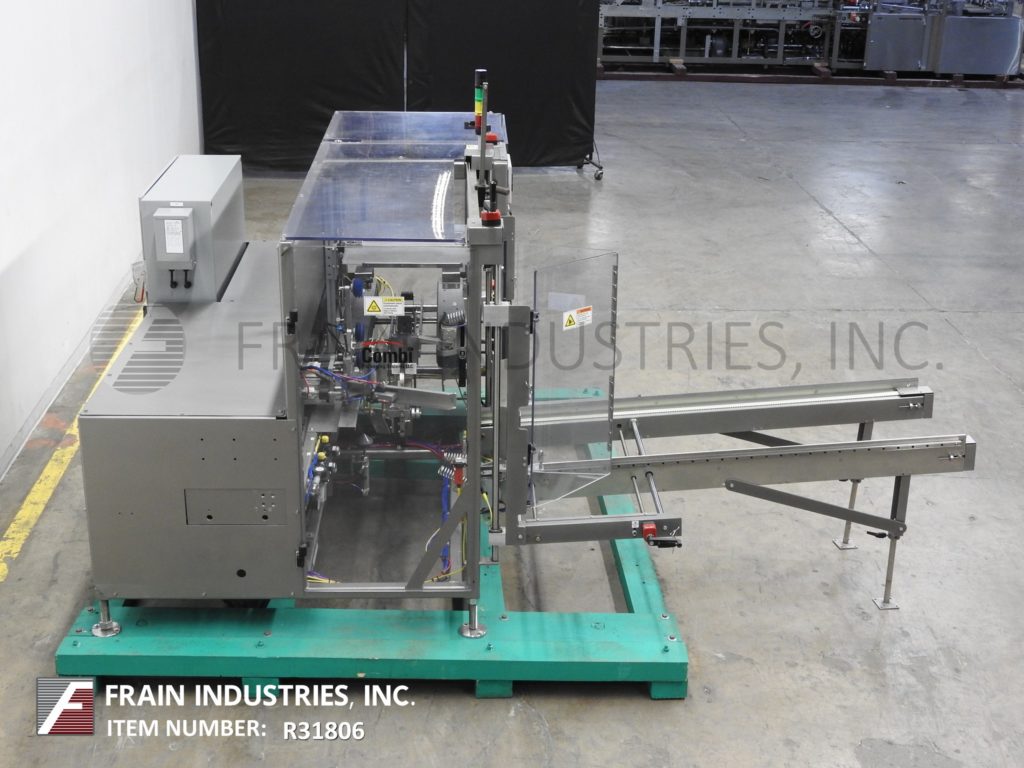

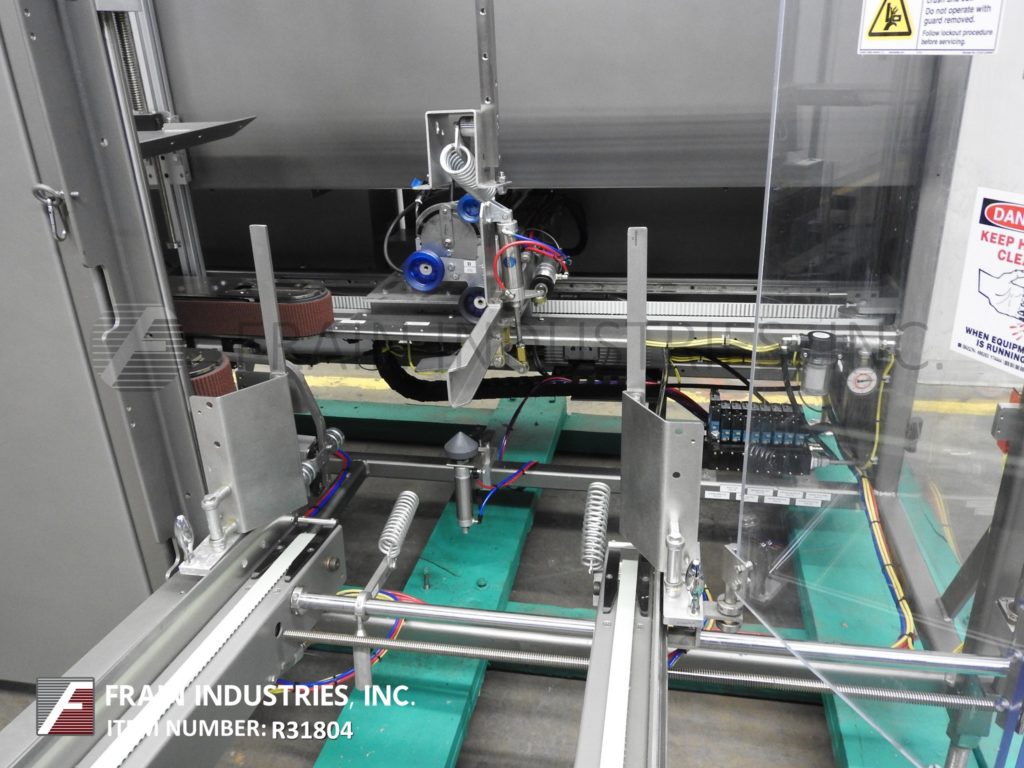

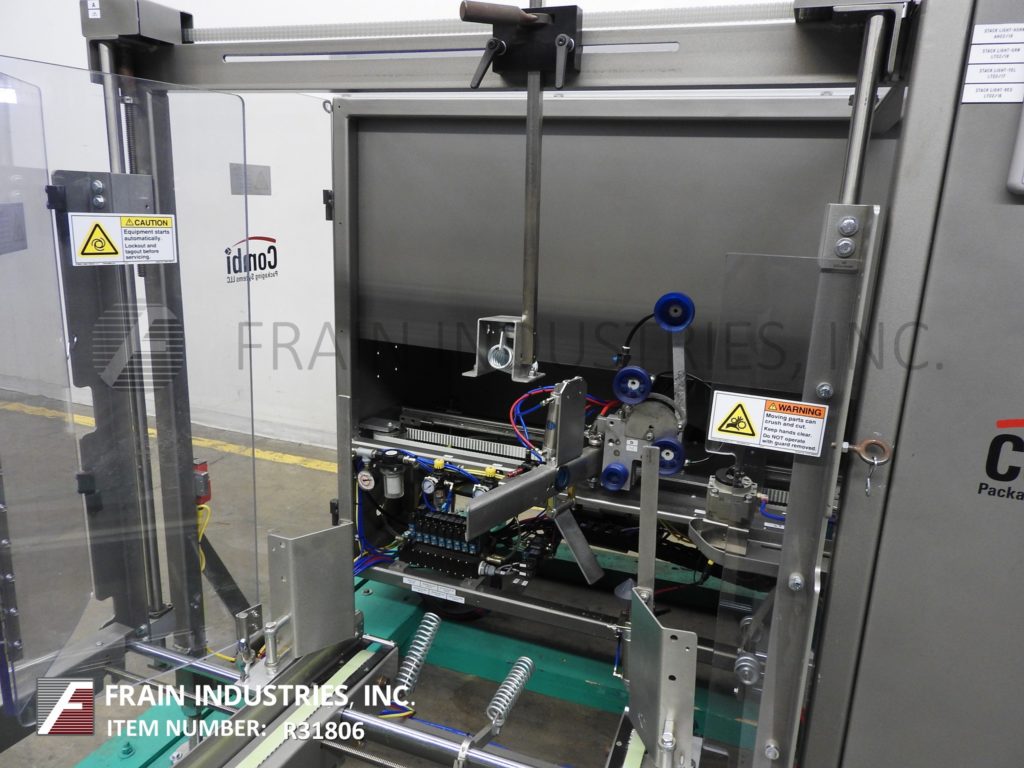

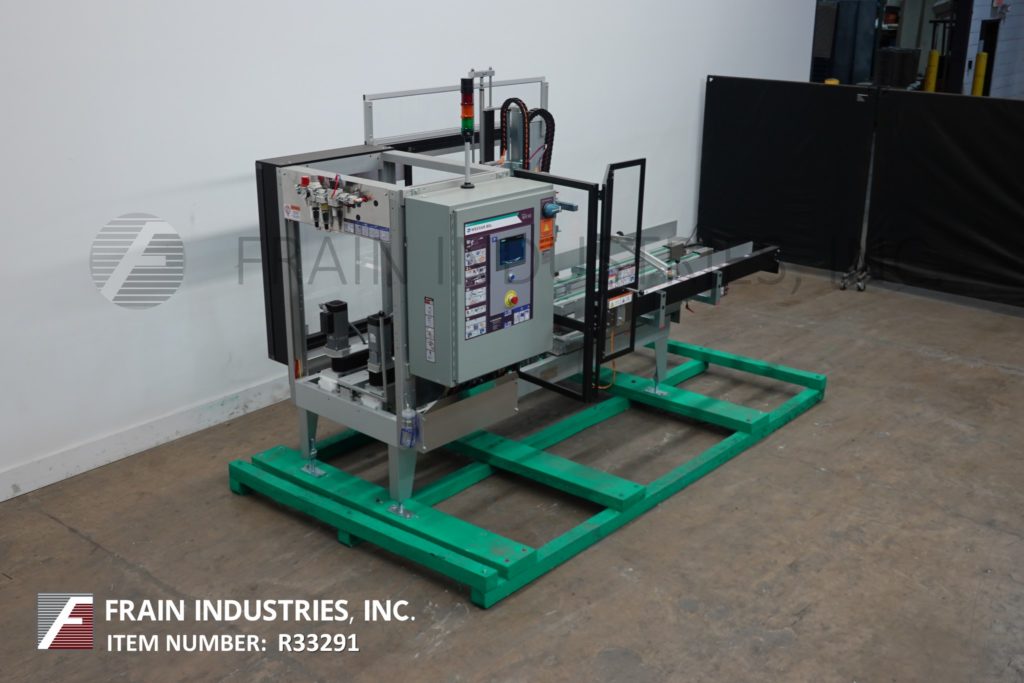

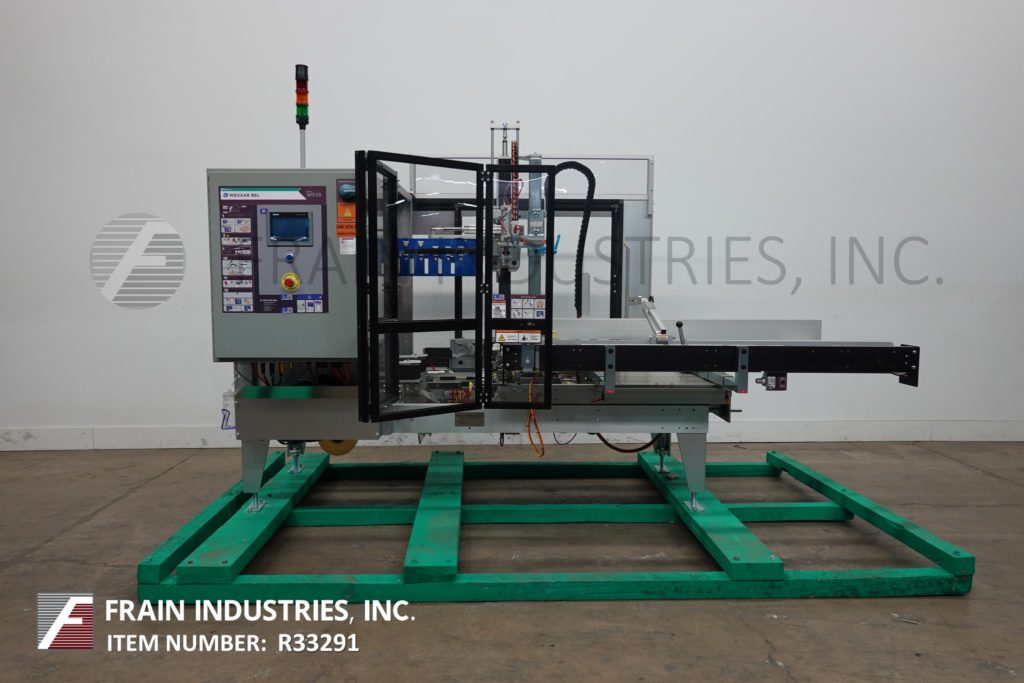

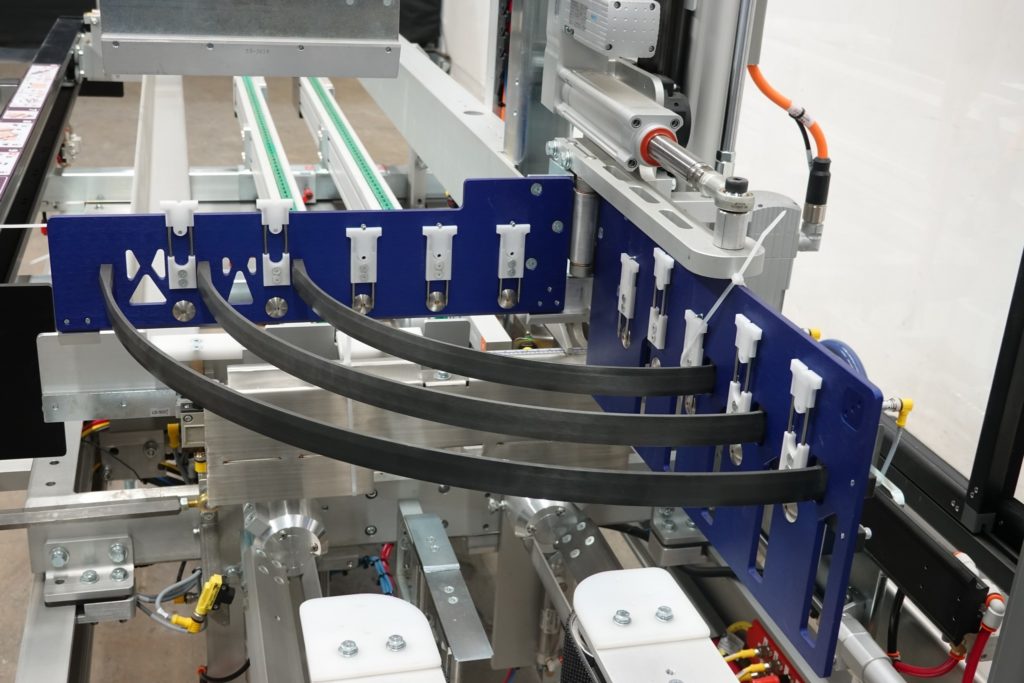

Combi America Model 2EZHS, automatic, case erector, bottom taper rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length x 6" to 16" in Width x 5" to 18" in Height. Heavy duty welded steel construction. Equipped with easy load, 80" long automatic blank case magazine, (5) suction cup pic-n-place case erector, minor and major flap closers, 44" long x 3-1/4" wide dual side belt case indexing, 3" bottom tape head, hand crank no-tool adjustable, vacuum system and interlock safety guarding. Control panel has A/B controller with A/B panel view and safety reset, start, stop and e-stop controls with ethernet interface port and statis light bar. Mounted on height adjustable frame with leveling legs.
OAD: 105" L x 80" W x 84" H Magazine up 105" L x 160" W x 75" H Magazine down

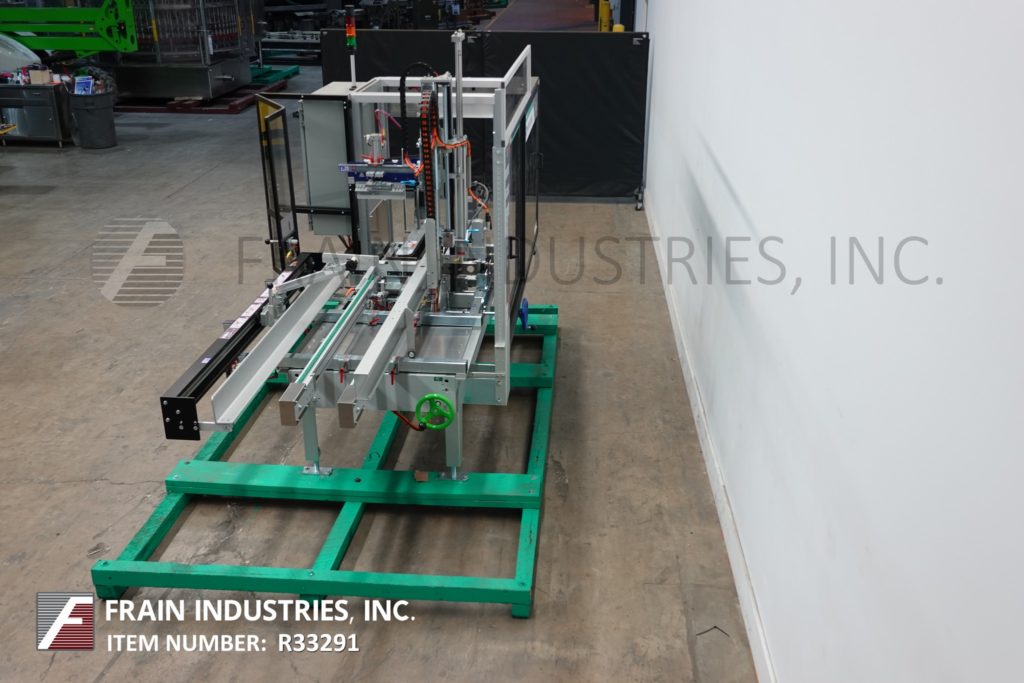

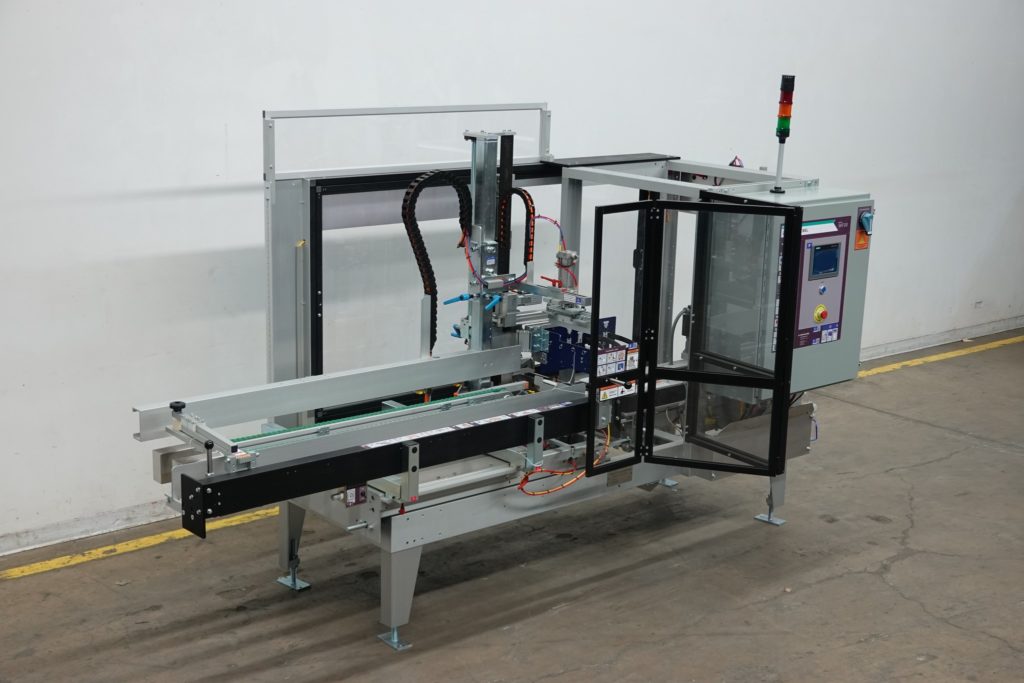

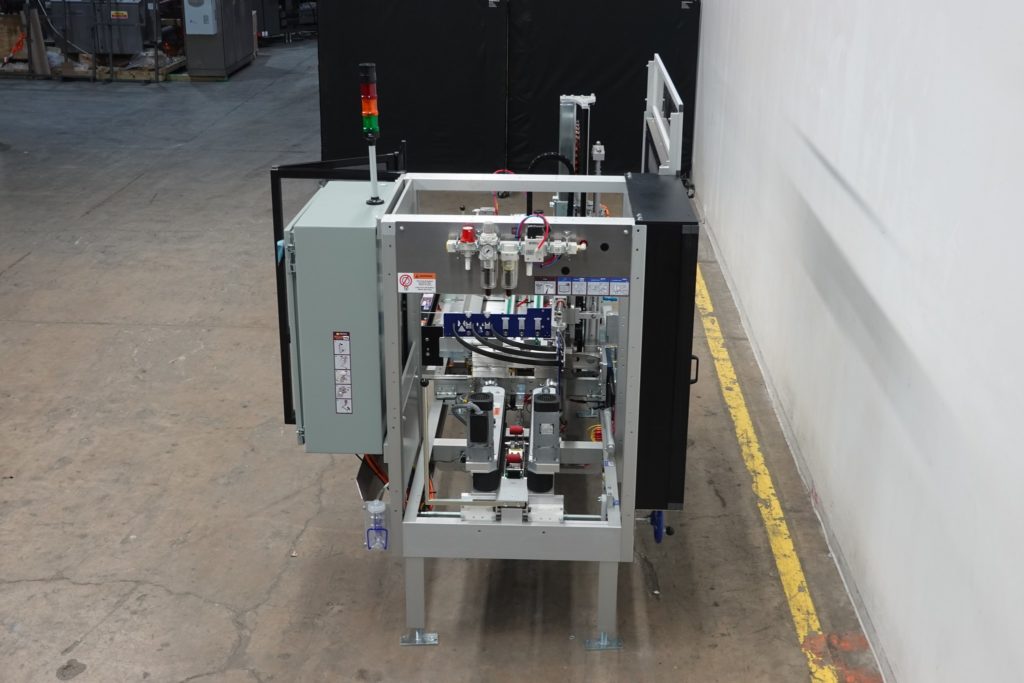

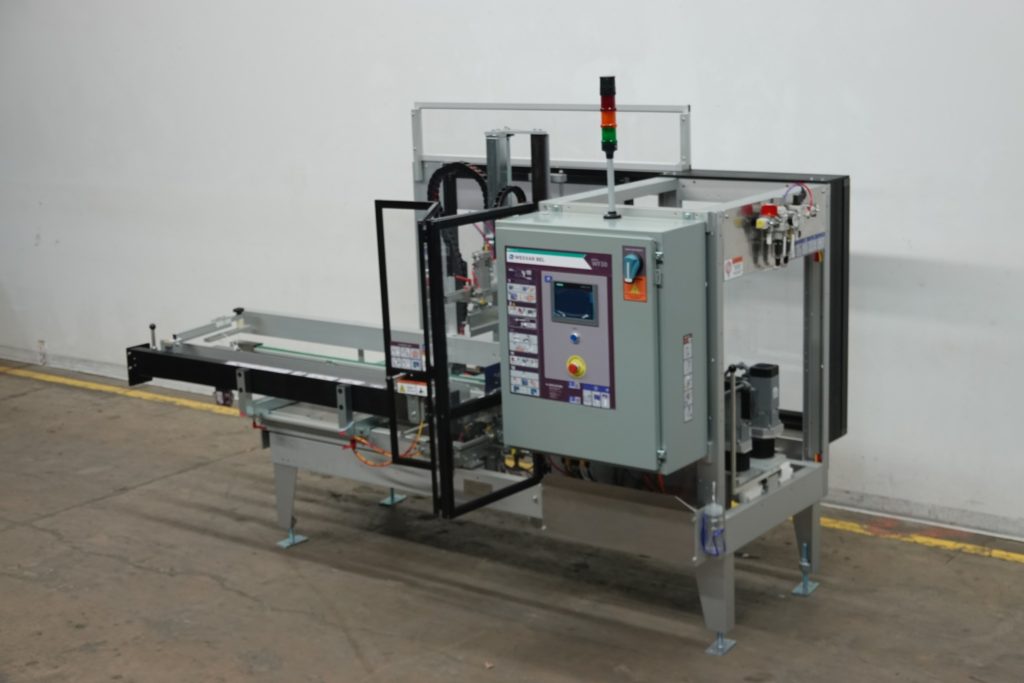

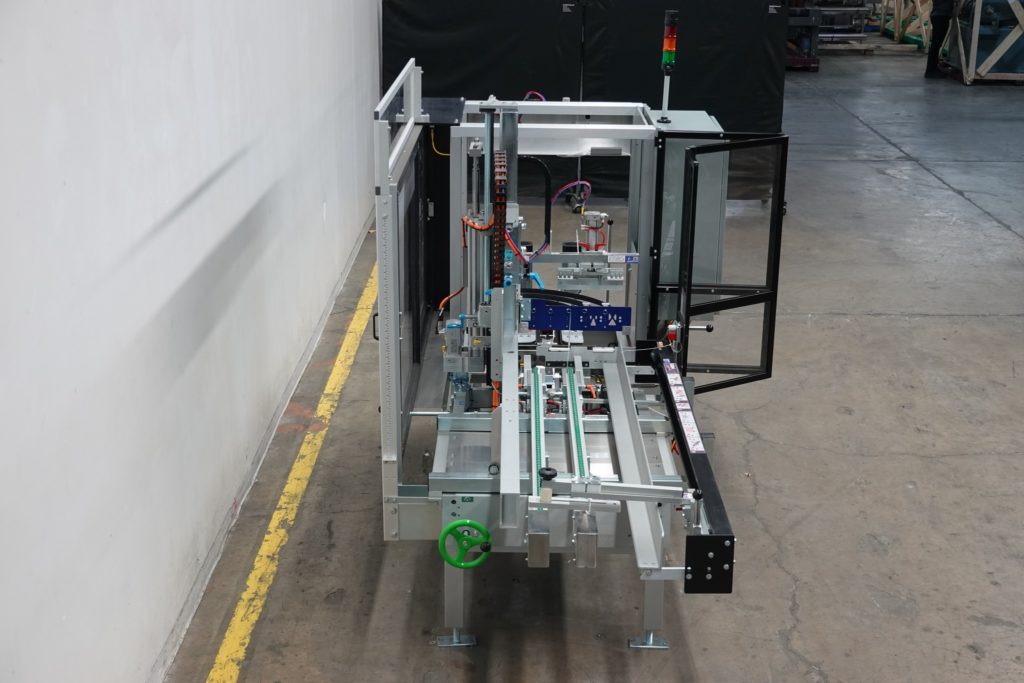

ABC, Model 330T, automatic case erector and bottom tape sealer with number of cases per minute – depending on materials and application. Case size range; 7" to 22" in Length; 5¾" to 16" in Width; 7" to 22" in Height. KD dimmensions: 12" to 38" in Length; 8" to 29¼" in Width both (RSC) and (HSC) cases. Equipped with 64" long (2) belt easy load automatic blank case magazine, suction cup case pick and place with suction cup case erector, major and minor flap closers, walking beam case transfer, 48" long x 2½" wide dual upper and lower case belt drive transports thru 2" tape head. Control panel has A/B Micrologix controller with A/B panelview touch pad controls, statis light bar, light curtain and e-stop push buttons. Mounted on heavy duty frame with flip-up safety guarding.
OAD: 154" L x 60" W x 72" H

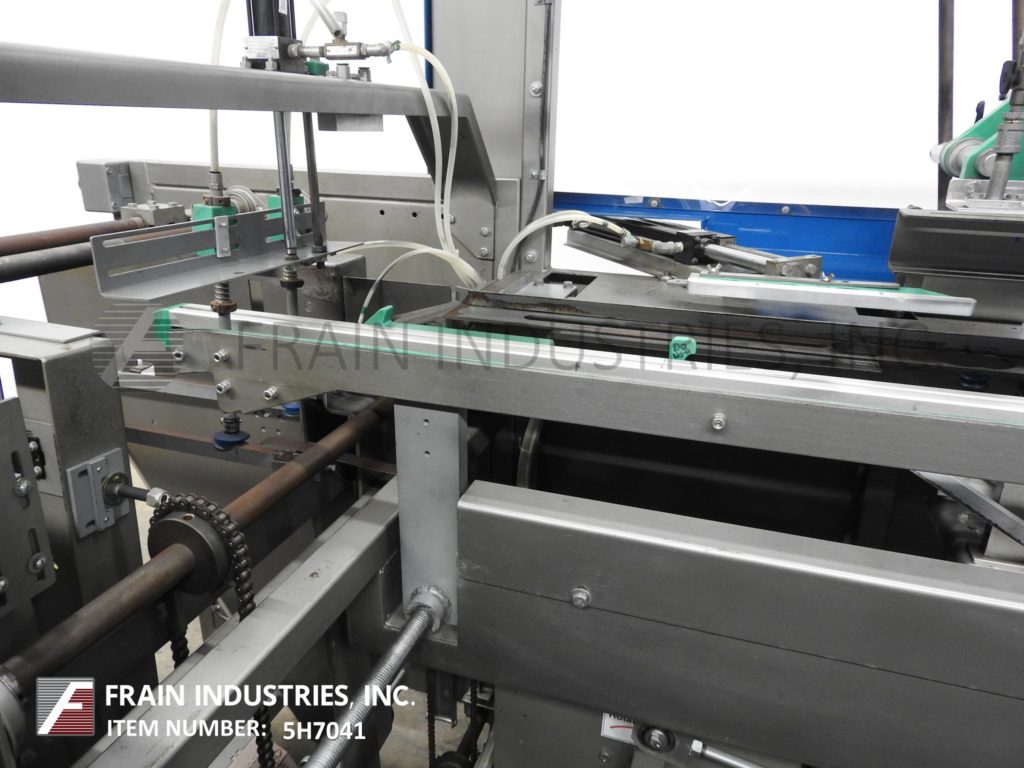

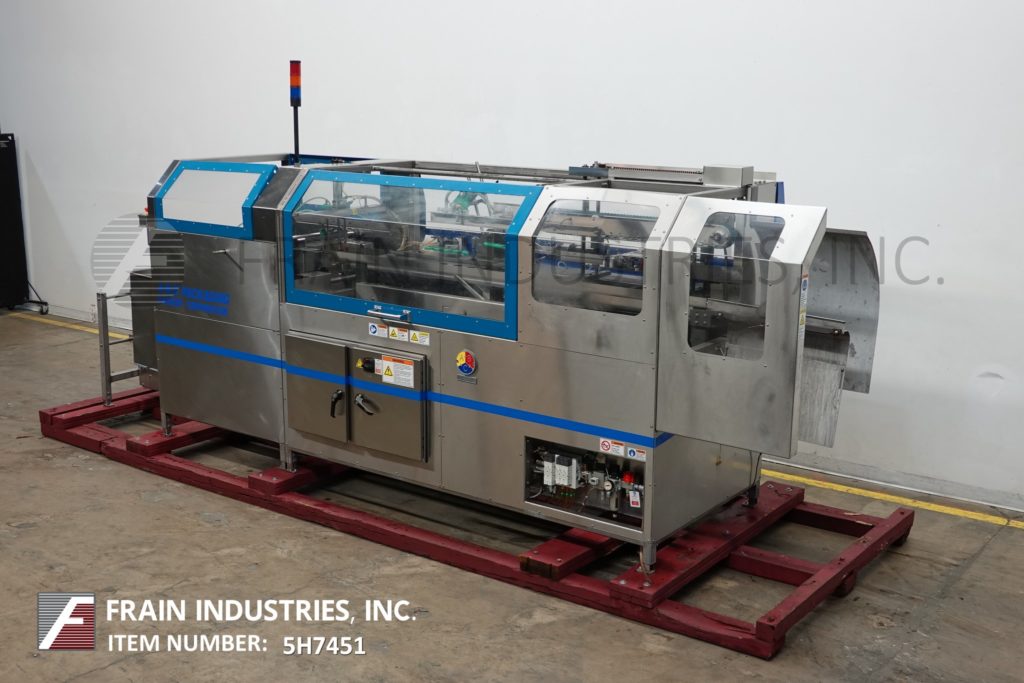

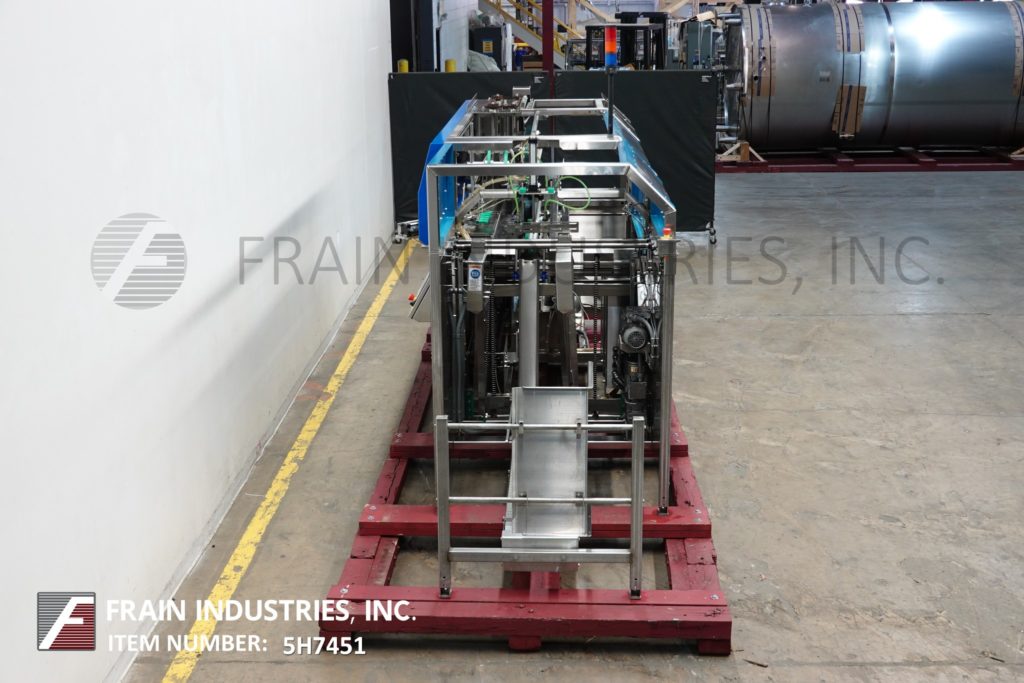

Pattyn Packaging Model CEFLEX-31, automatic, case erector, bottom taper and bag inserter rated from 2 to 8 cases per minute – depending on materials and application. Case size range: 12" to 24" in Length; 8" to 16" in Width; 6" to 25-1/2" in Depth. Flat blank range: 20" to 40" in Length x 14" to 3-1/2" in Width. Equipped with (4) chain auto blank case magazine and pneumatic tri-grip case erector and squaring arm with mechanical grippers, bottom flap closer, side flap plows and dual side belt case asset conveyors, with 2" bottom taper. Bag inserter which inserts pre-performed roll stock bags into cases, fitting all corners and cuffing the bag around the outer perimeter of the case with bag opening carriage, spoon and gripper design, (4) corner cuffing rods with air assit bag inset and is hand crank adjustable. Maximum web width of 20". Maximum film OD of 9" with 3" ID core. Control panel has A/B controller with panelview and start, stop, reset mode control switches, with safety guarding. Mounted on heavy duty frame with leveling legs.
OAD: 185" L x 80" W x 72" H

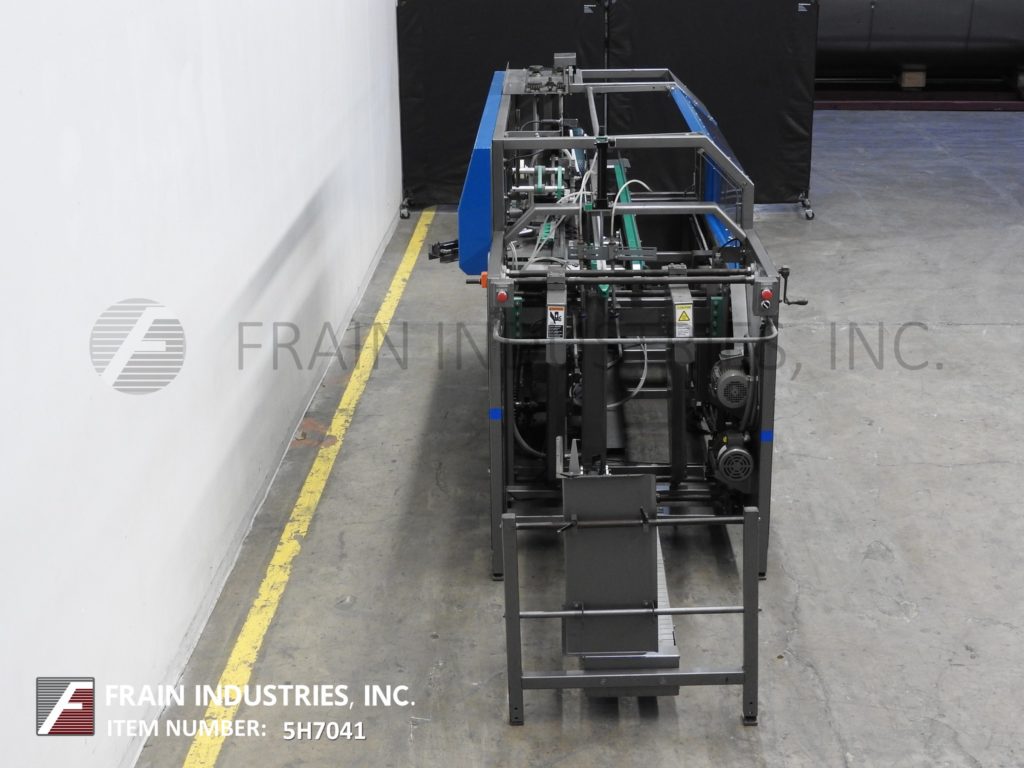

Pattyn Packaging Model CEFLEX-31, automatic, case erector, bottom taper and bag inserter rated from 2 to 8 cases per minute – depending on materials and application. Case size range: 12" to 24" in Length; 8" to 16" in Width; 6" to 25-1/2" in Depth. Flat blank range: 20" to 40" in Length x 14" to 3-1/2" in Width. Equipped with (4) chain auto blank case magazine and pneumatic tri-grip case erector and squaring arm with mechanical grippers, bottom flap closer, side flap plows and dual side belt case asset conveyors, with 2" bottom taper. Bag inserter which inserts pre-performed roll stock bags into cases, fitting all corners and cuffing the bag around the outer perimeter of the case with bag opening carriage, spoon and gripper design, (4) corner cuffing rods and with air assit bag inset and is hand crank adjustable. Maximum web width of 20". Maximum film OD of 9" with 3" ID core. Control panel has A/B controller with panelview and start, stop, reset mode control switches, with safety guarding. Mounted on heavy duty frame with leveling legs.

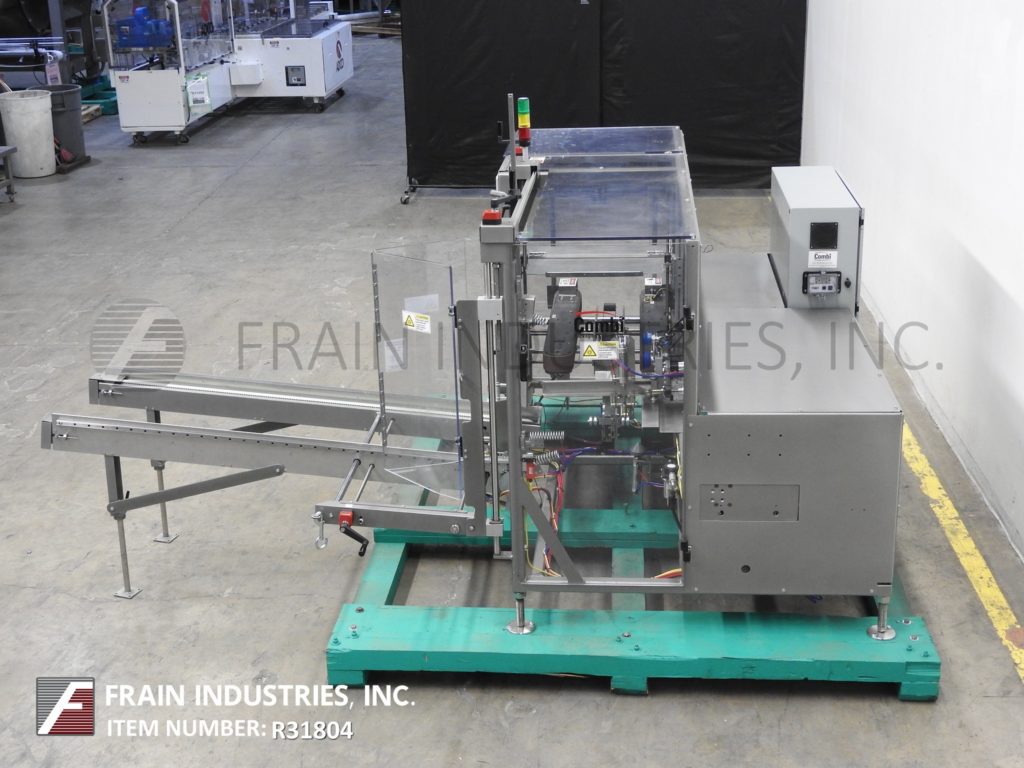

Combi America, Model CE-10, automatic case erector and bottom taper. Rated from 2 to 8 cases per minute – depending on materials, application and machine configuration. Case size range: 8" to 17½" in Length; 6" to 13½" in Width; 5" to 17½" in Height. Equipped with automatic 38" long (4) chain blank case magazine, recipricating vacuum suction cup pic-n-place, top squaring system, front and back flap closers and 2" bottom tape head. Control panel with an AB PLC. Push button start, stop, and e-stop, interlock cage style safety guarding and status light bar. Mounted on heavy duty frame with casters.
OAD: 99"L x 73"W x 92"H
Combi America Model 2EZHS, automatic, case erector, bottom taper rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length x 6" to 16" in Width x 5" to 18" in Height. Equipped with easy load, blank case magazine, suction cup pic-n-place, minor and major flap closers, servo driven pusher bar, vacuum system, 2" tape head, hand crank no-tool adjustments, safety guarding. Mounted on heavy duty frame.
OAD: 112" L x 108" W 75" H

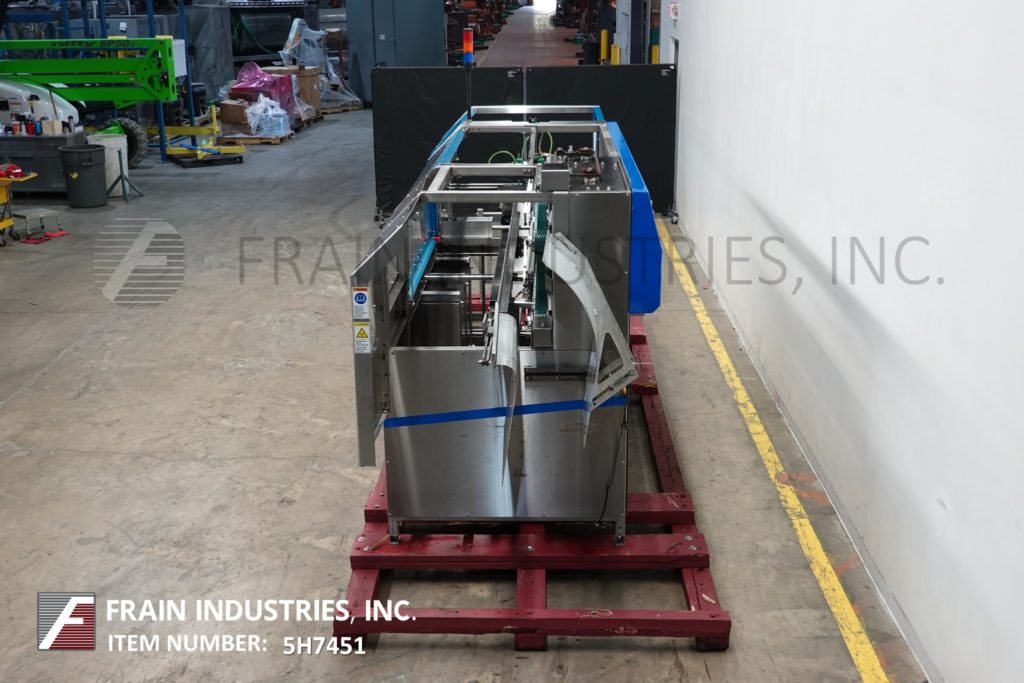

Wexxar Model ABFT, Automatic, in line, case erector, bottom taper with number of cases per minute – depending on materials, application and machines configuration. Case size range: 8" to 22" in Length; 6" to 16" in Width; 4" to 19" in Height. Equipped with 48" long powered case magazine, pin and dome case erecting system, case pusher bar, dual side belt conveyors, minor & major bottom flap closers, 2" wide pressure sensitive bottom tape head and safety guarding. A/B controller with run, jog, on / off switches and start, stop, e-stop and status light bar. Mounted on (4) leg frame with locking casters.
OAD: 156" L x 45" W x 82" H
W E Plemens Model Bliss, automatic, bliss box former, hot melt glue sealer rated from 10 to 35 boxes per minute – depending on material and application. Case size range: 9-1/4" to 31-7/8" in Length; 8" to 20" in Width; 4" to16" in Height. Equipped with 36" long top blank case magazine, 4 vacuum suction cup recipercating pick n place, center guide roller, (2) 48" long side blank feed magazine, forming mandrel (2) gun hot melt glue system. Control panel has hand, auto, run, jog, auto, off on / off switches with start / stop push buttons and statis light bar. Mounted on heavy duty base frame with safety guarding.
OAD: 76" L x 94" W x 100" H
Lantech, Model C-2000, automatic, case erector and bottom taper. Case size range: 8" to 25 5/8" in Length; 6" to 17" in Width; 4" to 23" in Depth. Equipped with 44" long blank magazine, suction cup case pick and place, 2" wide pressure sensitive tape head, and dual 32" long x 4" wide side belt asset conveyors. Control panel with AB controller and push button start / stop. Mounted on heavy duty base frame with locking casters. Rated from 5 to 15 cases per minute – depending on materials, application and machine configuration.
OAD: 103"L x 85"W x 80"H
SWF Model BF 400VK, Automatic, 3-piece bliss case former and hot melt glue sealer. Rated from 12 to 35 cases per minute – depending on material, application and machine configuration. Bliss case size range: 9¼" to 32½" in Length; 9" to 18" in Width; 4" to 16" in Height. Equipped with 146" long powered top blank magazine and (2) 46" long side blank magazines, (4) suction cup vacuum pic n place, single friction feed wheel, Nordson hot melt glue unit with pattern control and vacuum system. Control panel has A/B controller with run / jog, manual / auto and vacuum on / off switches, start / e-stop buttons and cage style safety guarding with statis light bars. Mounted on heavy duty base frame.
OAD: 167" L x 73" W x 140" H
